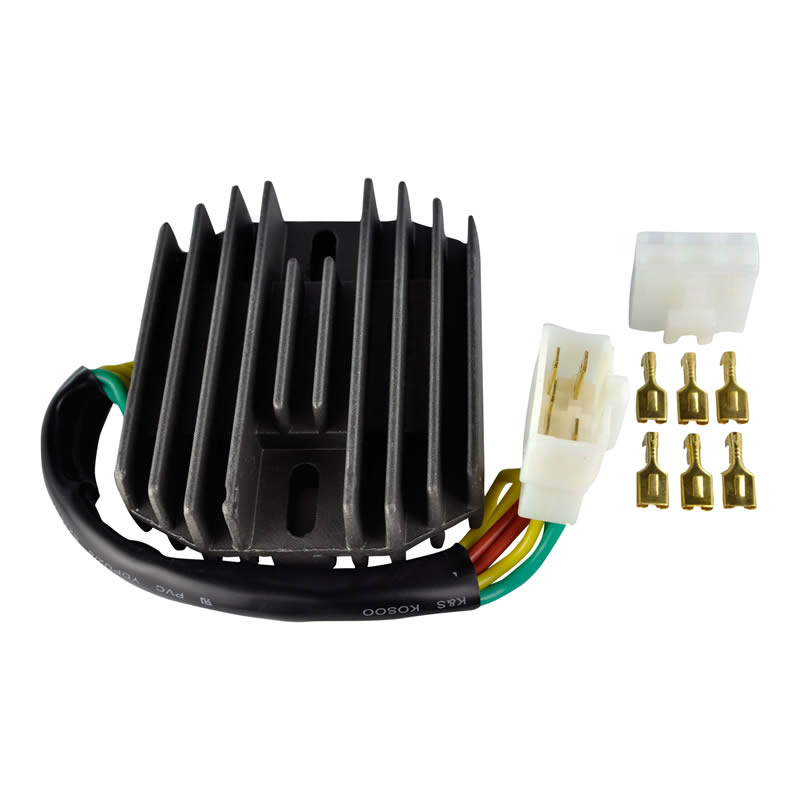

Regulator Rectifier for Suzuki Hayabusa GSX1300R 1999-2007
Regulator Rectifier for Suzuki Hayabusa GSX1300R 1999-2007
SKU:RM30412
Free shipping over £150. Terms apply
Couldn't load pickup availability
Regulator Rectifier for Suzuki Hayabusa GSX1300R 1999-2007
New aftermarket replacement part
Regulator Rectifier for Suzuki Hayabusa GSX1300R 1999-2007 - a new aftermarket regulator / rectifier, supplied ready to fit.
The regulator/rectifier converts AC from the stator into regulated DC. When it fails you get boiling batteries and blown bulbs from overcharging, or a flat battery from no charge at all.
Key Features
- 100% new aftermarket unit - not a remanufactured core
- Direct-fit replacement, no modification required on listed applications
- Built to meet or exceed the original equipment specification
- Dispatched from the UK with technical fitment support
Technical Specs
| Specification | Detail |
|---|---|
| SKU / Part Code | RM30412 |
| Component | Regulator / Rectifier |
| Condition | New aftermarket |
| Warranty | 12 months |
Vehicle Fitment Guide
| Model | Years |
|---|---|
| Suzuki models including Hayabusa GSX1300R | 1999-2007 |
| GSXR 750 | 1996-2005 |
| GSXR 600 | 1997-2005 |
| GSXR 1000 | 2001-2004 |
| VL 1500 Intruder | 1998-2004 |
| LTF 500 F Quadrunner | 1998-2002 |
Frequently Asked Questions
How do I test a regulator rectifier?
Measure battery voltage with the engine running: below about 13.5V means undercharging, above about 15V means the regulator has failed open and is overcharging. Check the stator output first so you do not replace the wrong part.

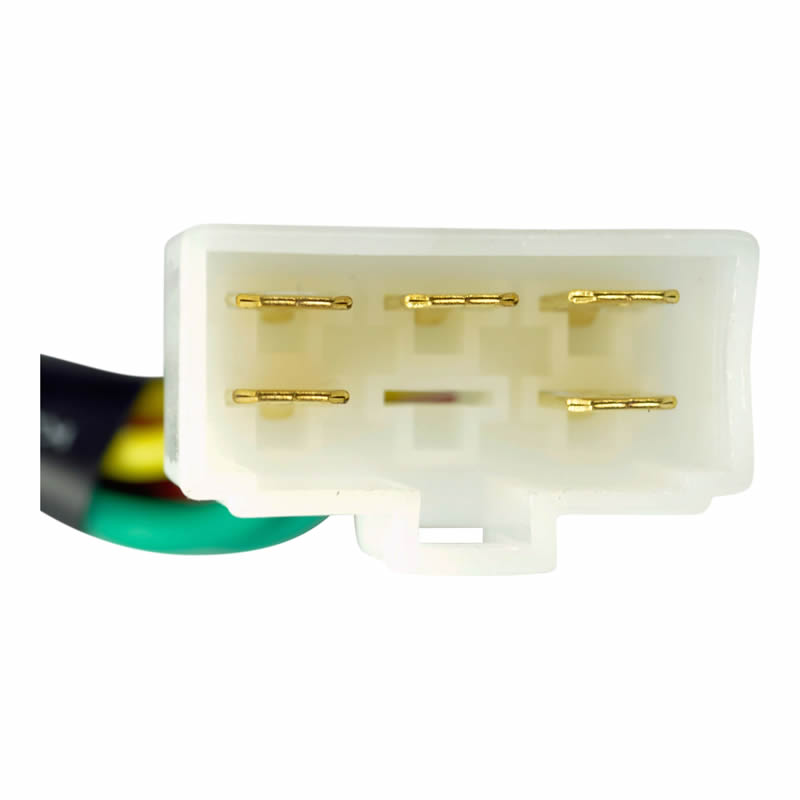

Does it come with the connector?
It is supplied with the original style connector on the models listed. Check the images against your existing unit.
Why do these fail so often?
Heat. They dissipate excess charging current as heat, so a blocked cooling fin area, a corroded earth or a weak battery all shorten their life. Mount it where it gets airflow.
Will a failed regulator damage anything else?
Yes - overcharging cooks batteries and blows bulbs, and a shorted regulator can take the stator with it. Fit the replacement promptly.
