Regulator Rectifier for Suzuki VX 800 and VZ 800 Marauder 1990-2004
Regulator Rectifier for Suzuki VX 800 and VZ 800 Marauder 1990-2004
SKU:RM30F06
Free shipping over £150. Terms apply
Couldn't load pickup availability

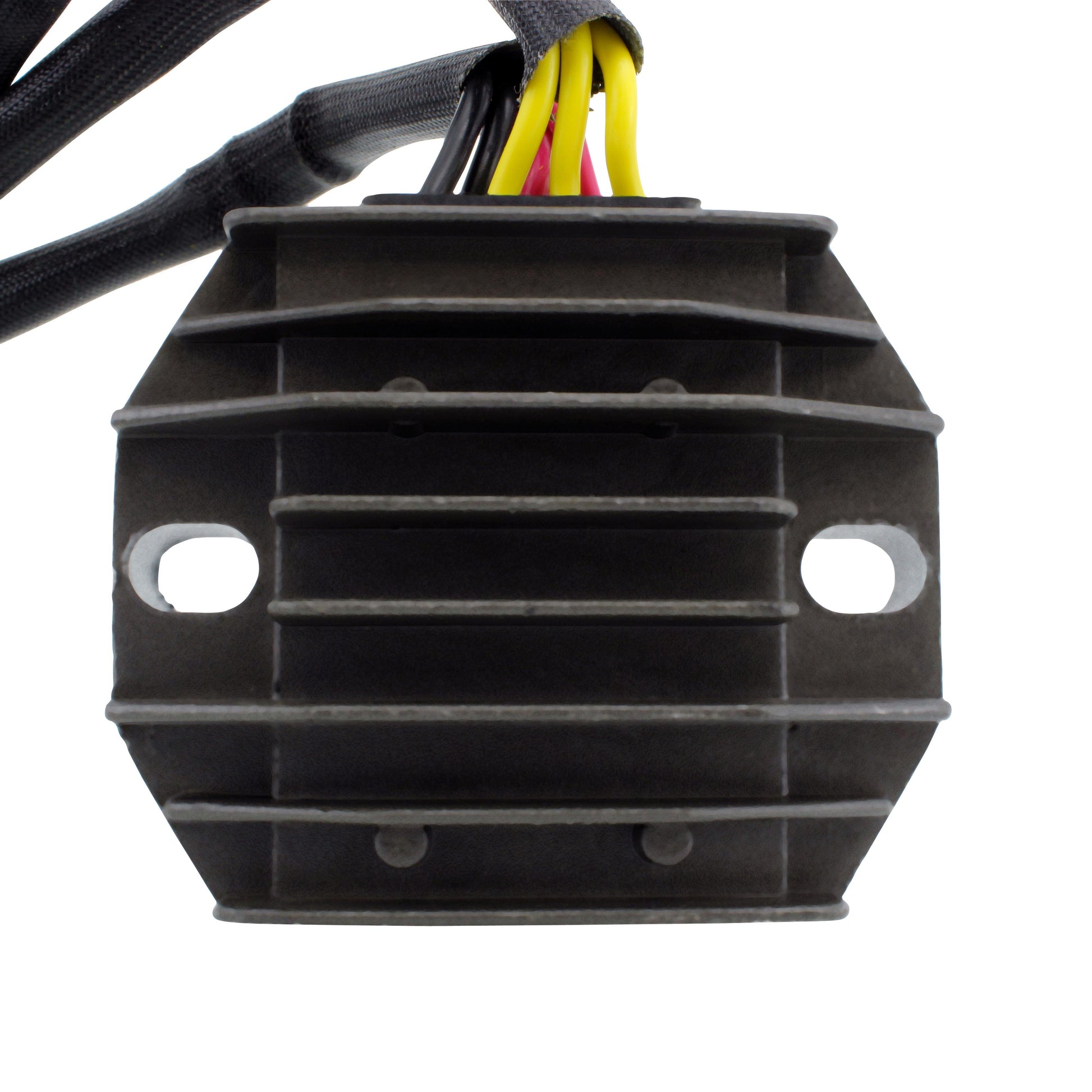

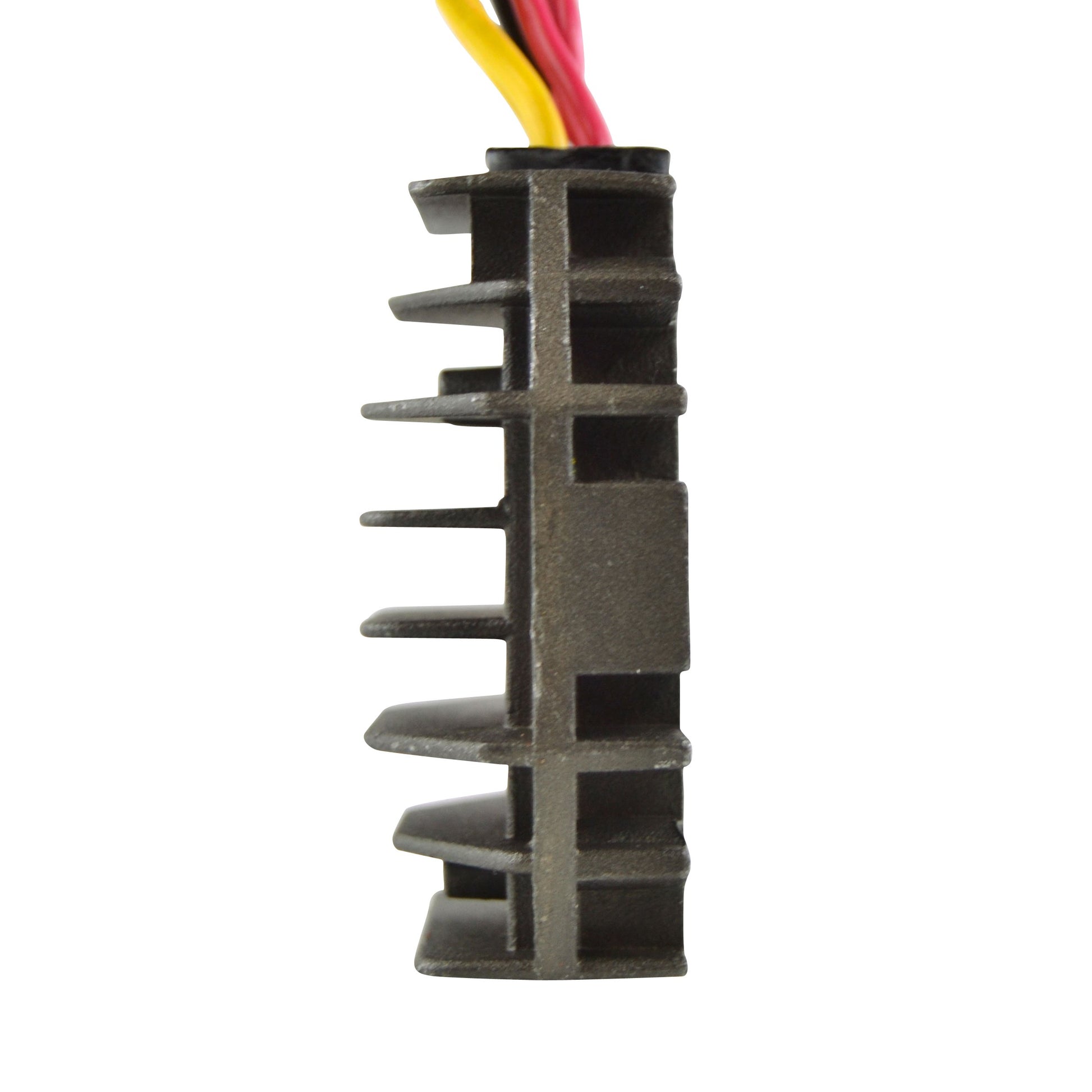

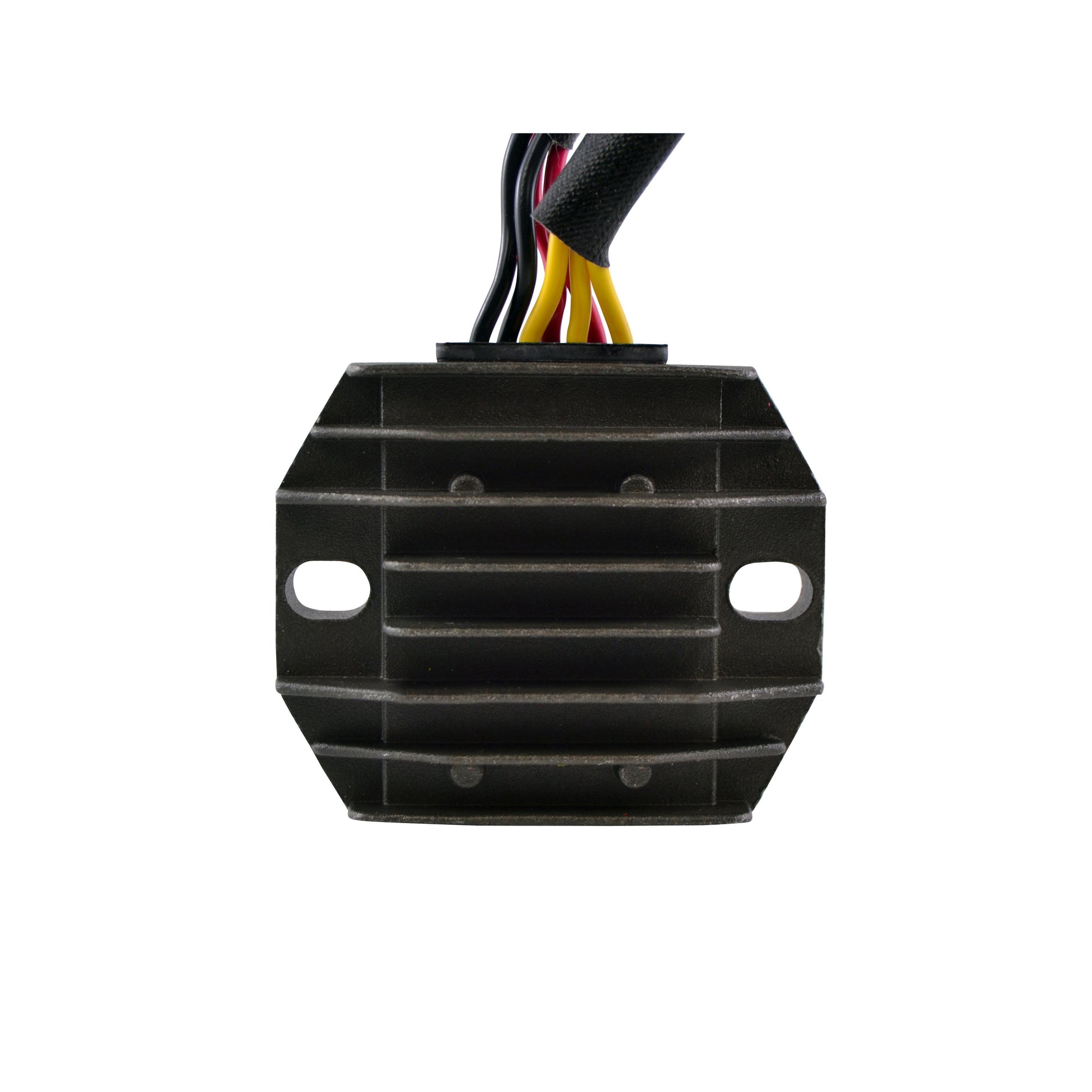

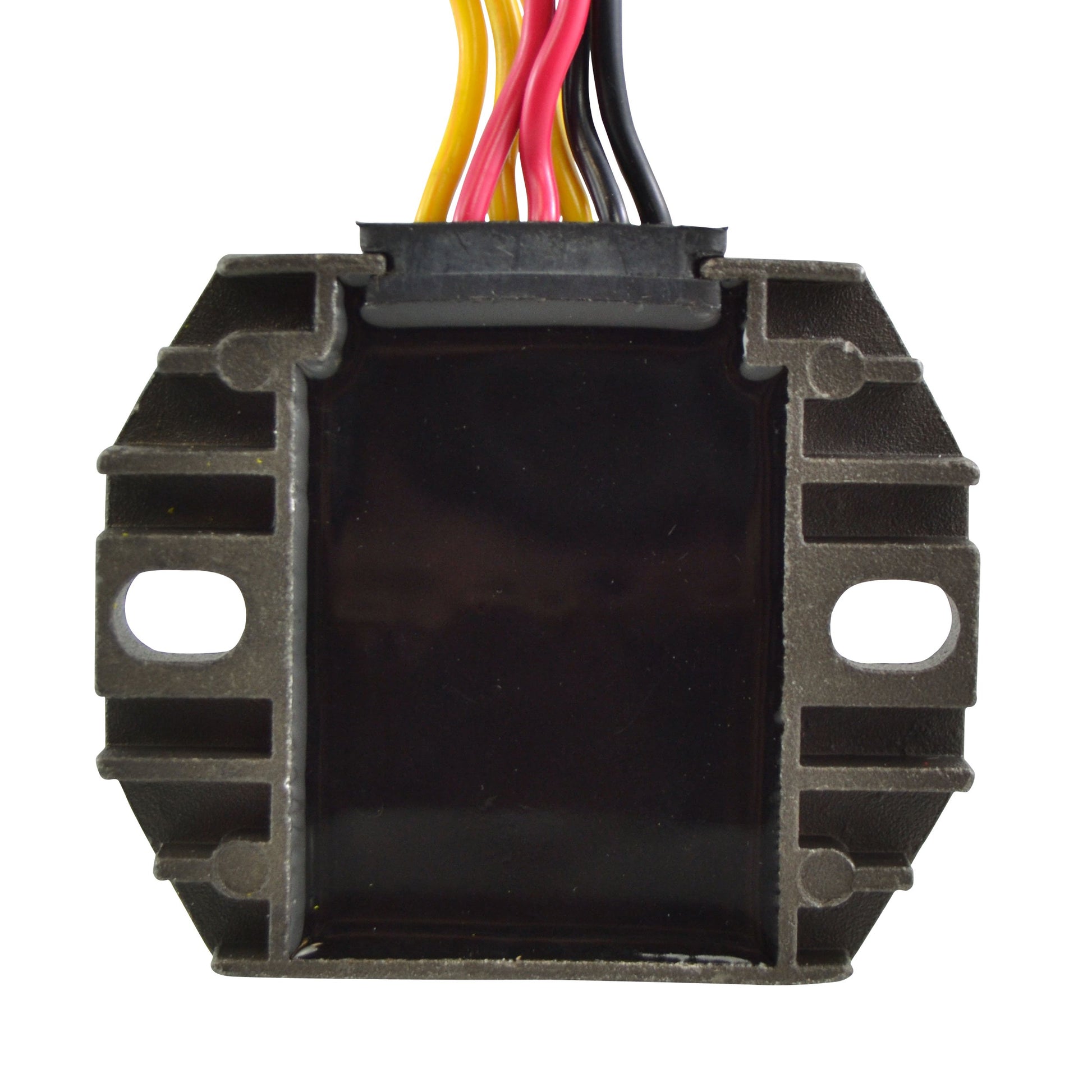

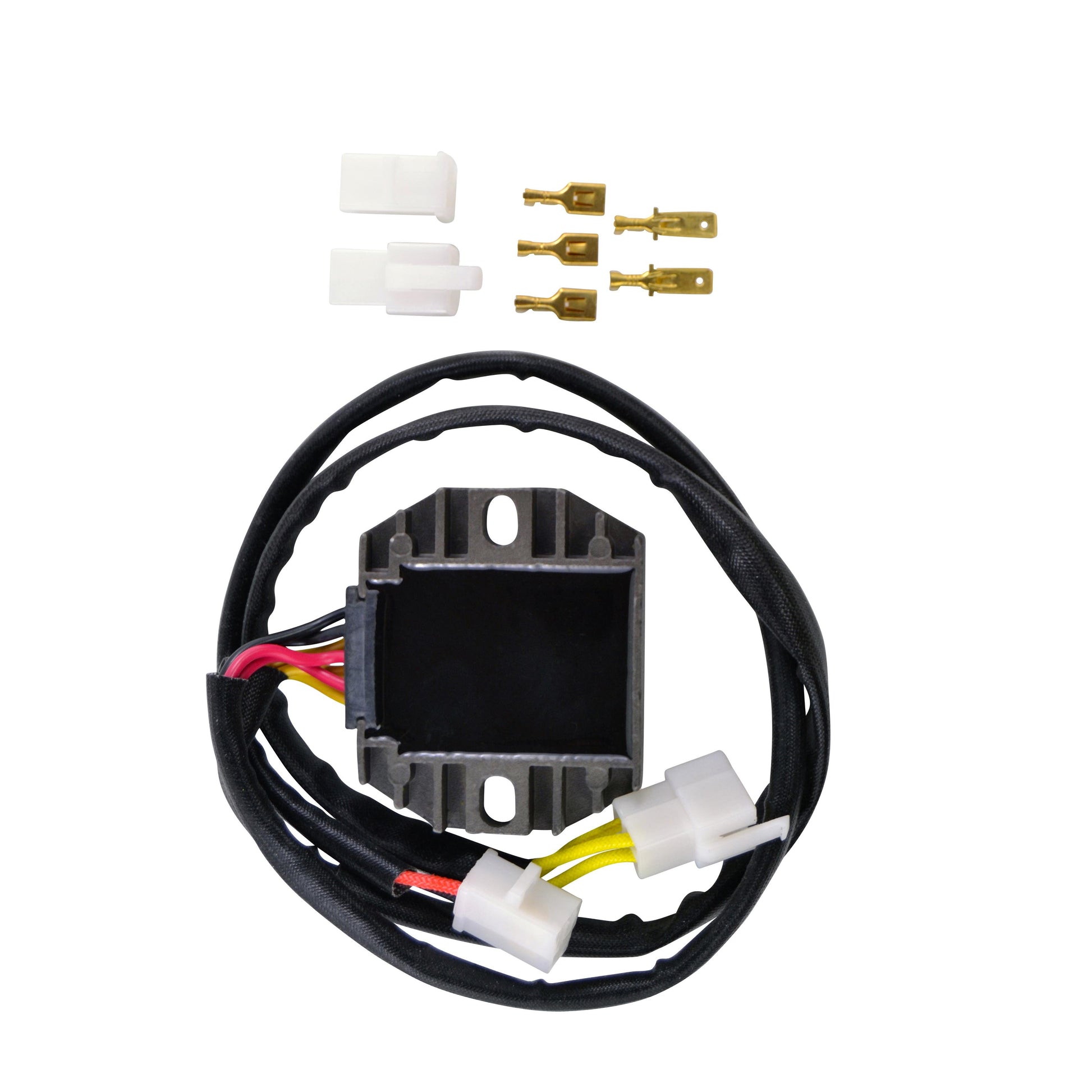

Voltage Regulator Rectifier RM30F06 for Suzuki
Suzuki VX 800 and VZ 800 Marauder - 1990-2004 - OEM 32800-45C01 / 32800-45C00
Brand new aftermarket voltage regulator rectifier, supplied as a direct replacement for the original unit fitted to the Suzuki VX 800 and VZ 800 Marauder between 1990 and 2004. It is a plug-and-play, direct fit part - no assembly is required and no modification to the standard wiring loom is needed. The unit is built with a higher grade of electrical components than the original, the quality exceeds the OEM equipment, and every unit is tested before it is shipped.
This part is supplied with the opposite connector, the main harness side, included. On these machines that connector is very often melted, corroded or otherwise defective, and it is a major cause of repeat electrical faults - fitting a new regulator rectifier into a damaged harness plug will simply destroy the new unit as well. The regulator rectifier itself converts the alternating current from the stator into direct current and holds the charging voltage at a safe level, delivering a minimum charging voltage of 14.5 V +/- 0.5 V and a maximum charging current of 35 A / 500 W, with open circuit voltage held below 15 V.
Key Features
- Direct replacement for the original unit
- Plug-and-play, direct fit, easy installation
- No assembly required

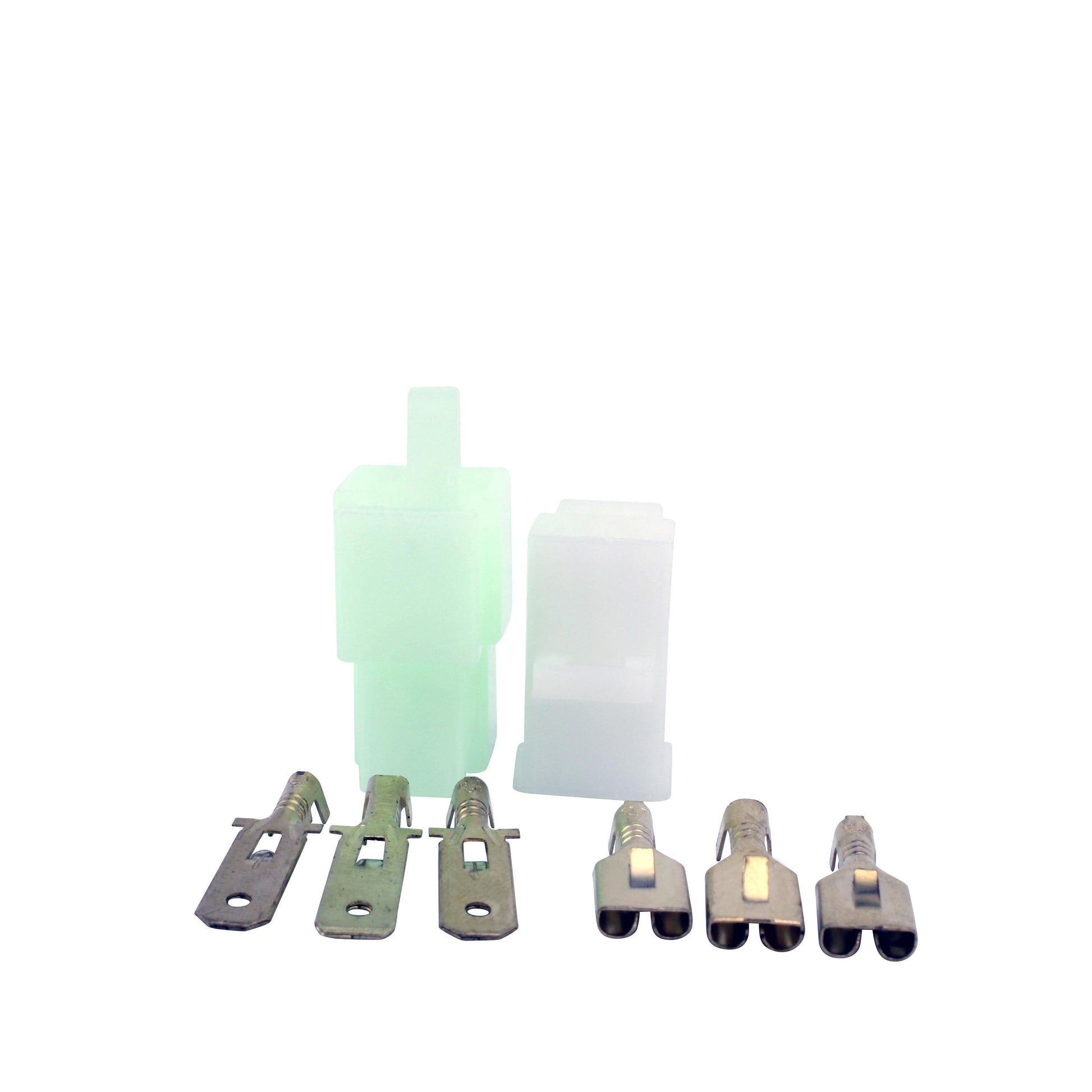

- Opposite connector, main harness side, included
- Higher grade of electric components
- Quality exceeds the OEM equipment
- All products shipped are tested

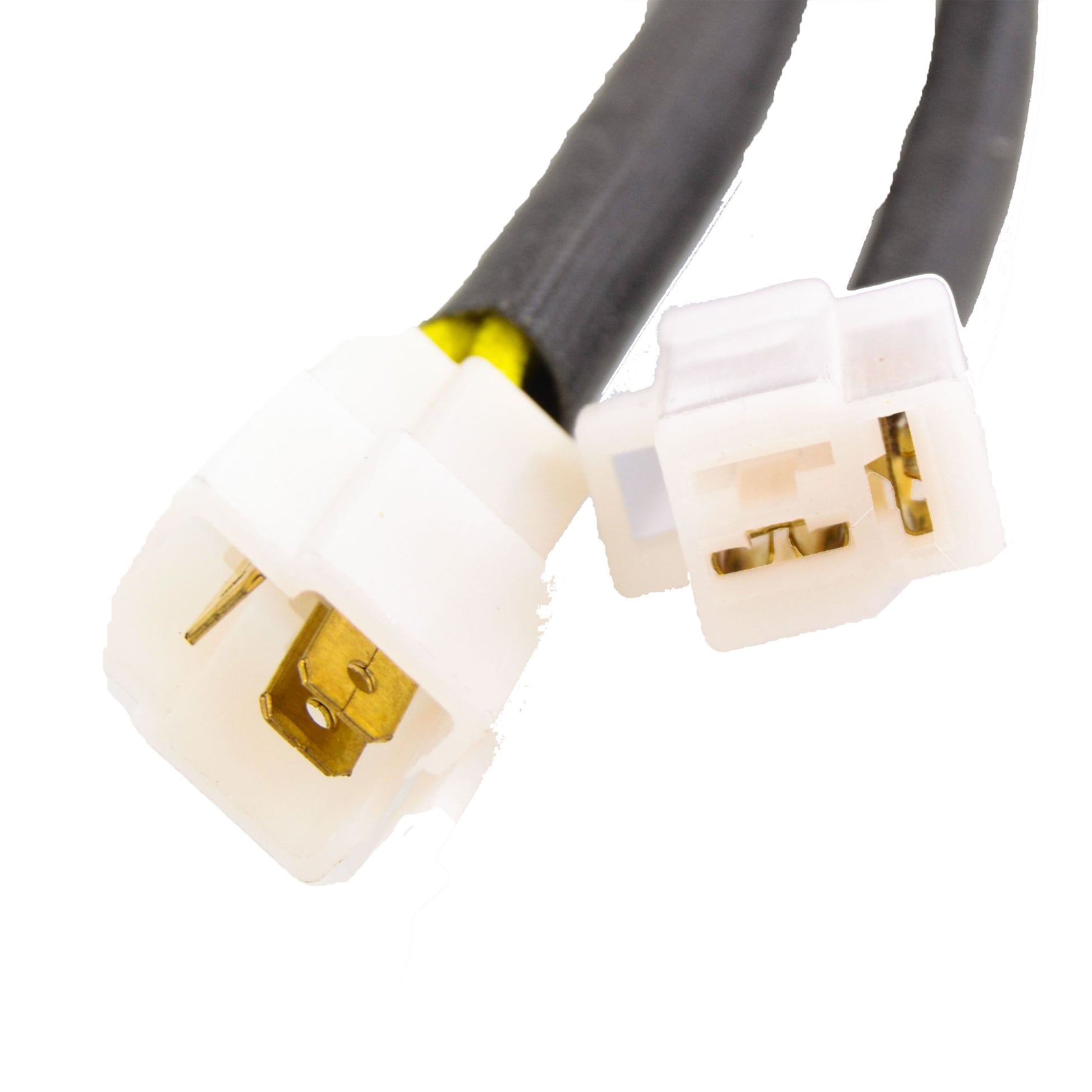

- Two plugs, 5 pins, 500 mm wire length
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RM30F06 |
| Width | 25 mm |
| Length | 79 mm |
| Height | 68 mm |
| Wires length | 500 mm |
| Fixation holes, centre to centre | 53 mm |
| Number of plugs | 2 |
| Number of pins | 5 |
| Number of wires | 5 |
| Minimum charging voltage | 14.5 V +/- 0.5 V |
| Maximum charging current | 35 A / 500 W |
| Open circuit voltage | Less than 15 V |
| Operating temperature | -20 °C to 85 °C |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Suzuki VX 800 | 1990-2004 |
| Suzuki VZ 800 Marauder | 1990-2004 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 32800-45C01 | Suzuki |
| 32800-45C00 | Suzuki |
| 10-215 | Cross reference |
Frequently Asked Questions
Do I need to modify the wiring to fit this unit?
No. This is a plug-and-play, direct fit replacement for the original unit and no assembly is required. It uses two plugs, 5 pins and 5 wires, with 500 mm of wire to reach the original mounting point.
What is supplied?

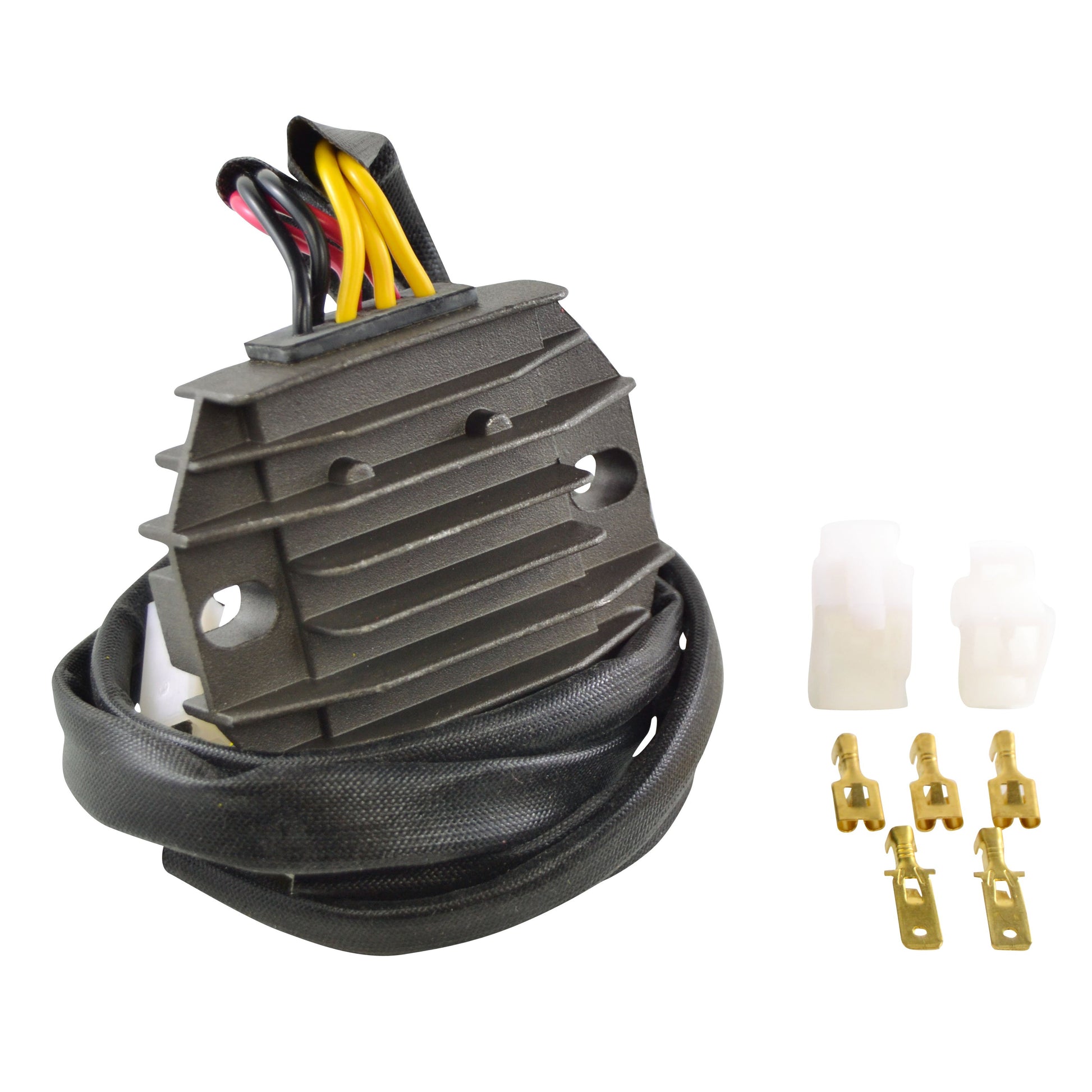

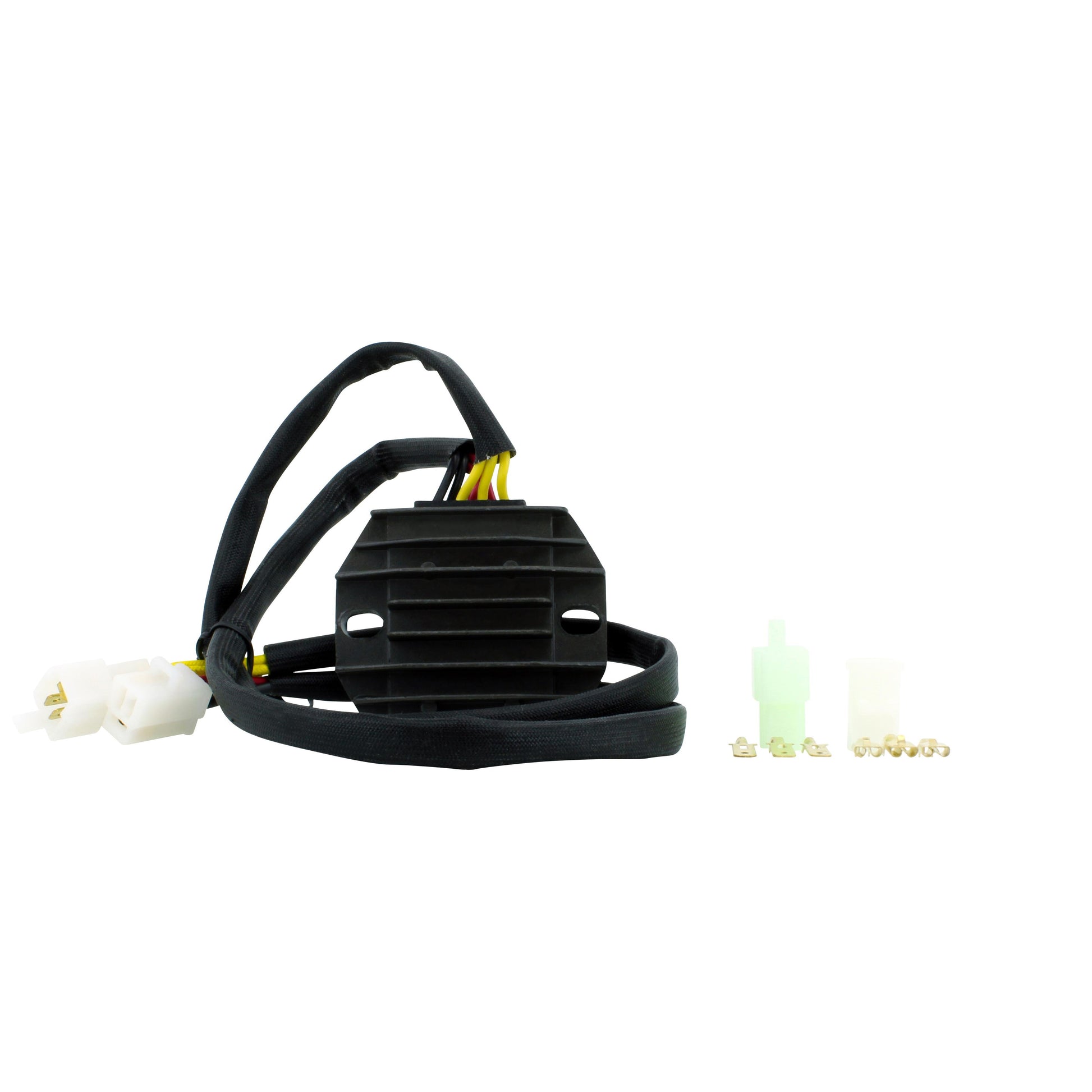

One brand new aftermarket voltage regulator rectifier, part number RM30F06, plus the opposite connector for the main harness side. Every unit is tested before dispatch.
Why is the harness side connector included?
Because on these machines the original harness plug is frequently melted, corroded or defective, and that damaged connector is a major cause of repeat electrical faults. Renewing it at the same time as the regulator rectifier removes the fault that often destroyed the previous unit.
How do I tell whether my old regulator rectifier has failed?
Measure the voltage across the battery terminals with the engine running and warm. A healthy charging system should show around 14.5 V. A reading that stays at resting battery voltage suggests the unit is no longer charging, while a reading above 15 V suggests it is no longer regulating and is overcharging the battery.
