Regulator Rectifier for Yamaha AR 210 and Related Models 1997-2005
Regulator Rectifier for Yamaha AR 210 and Related Models 1997-2005
SKU:RM30Y11
Free shipping over £150. Terms apply
Couldn't load pickup availability

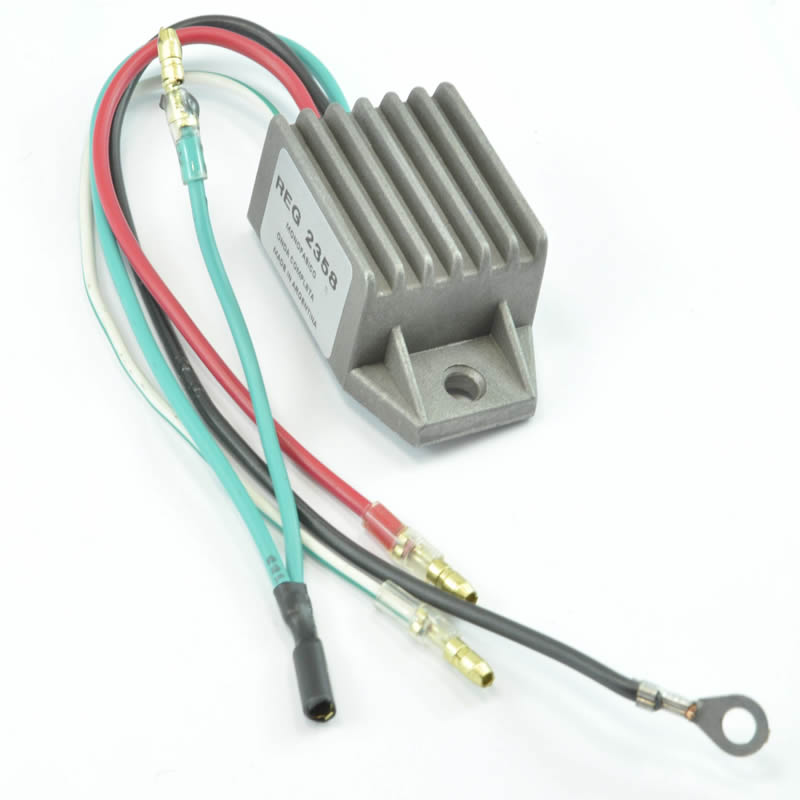

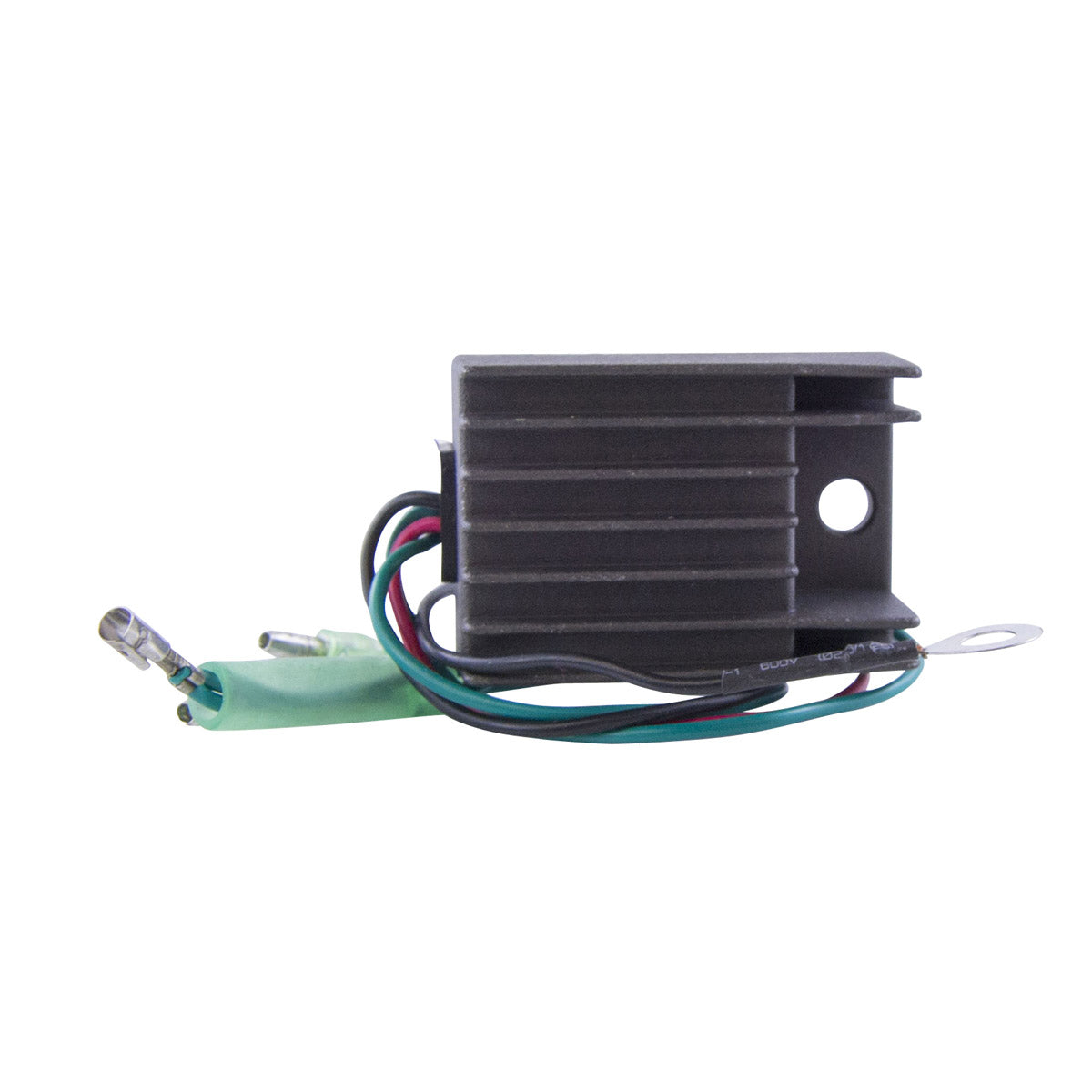

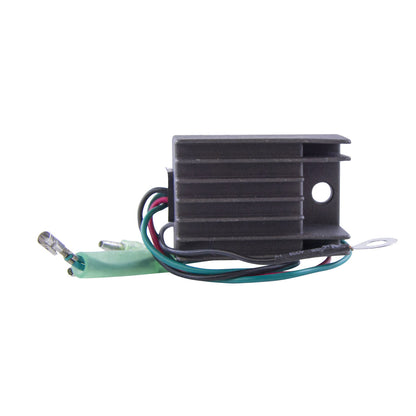

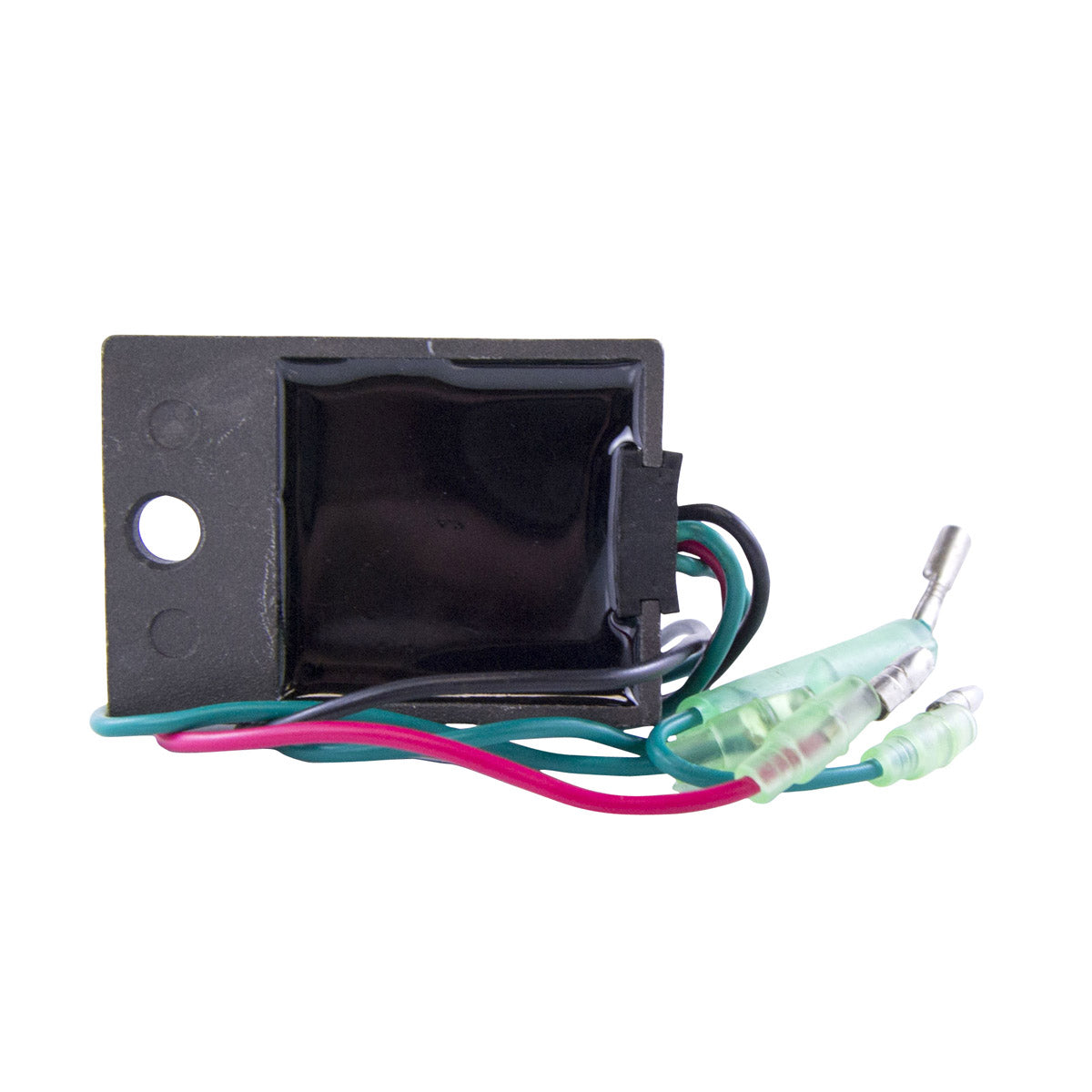

Voltage Regulator Rectifier for Yamaha - RM30Y11
Yamaha AR 210, Exciter, LS, LX, GP, SUV and XL - 1997-2005
This is a brand new voltage regulator rectifier supplied as a direct replacement for the original unit on Yamaha AR 210, Exciter, LS, LX, GP, SUV and XL craft from 1997 to 2005. It is plug-and-play and a direct fit, easy to install, and no assembly is required. All products shipped are tested.

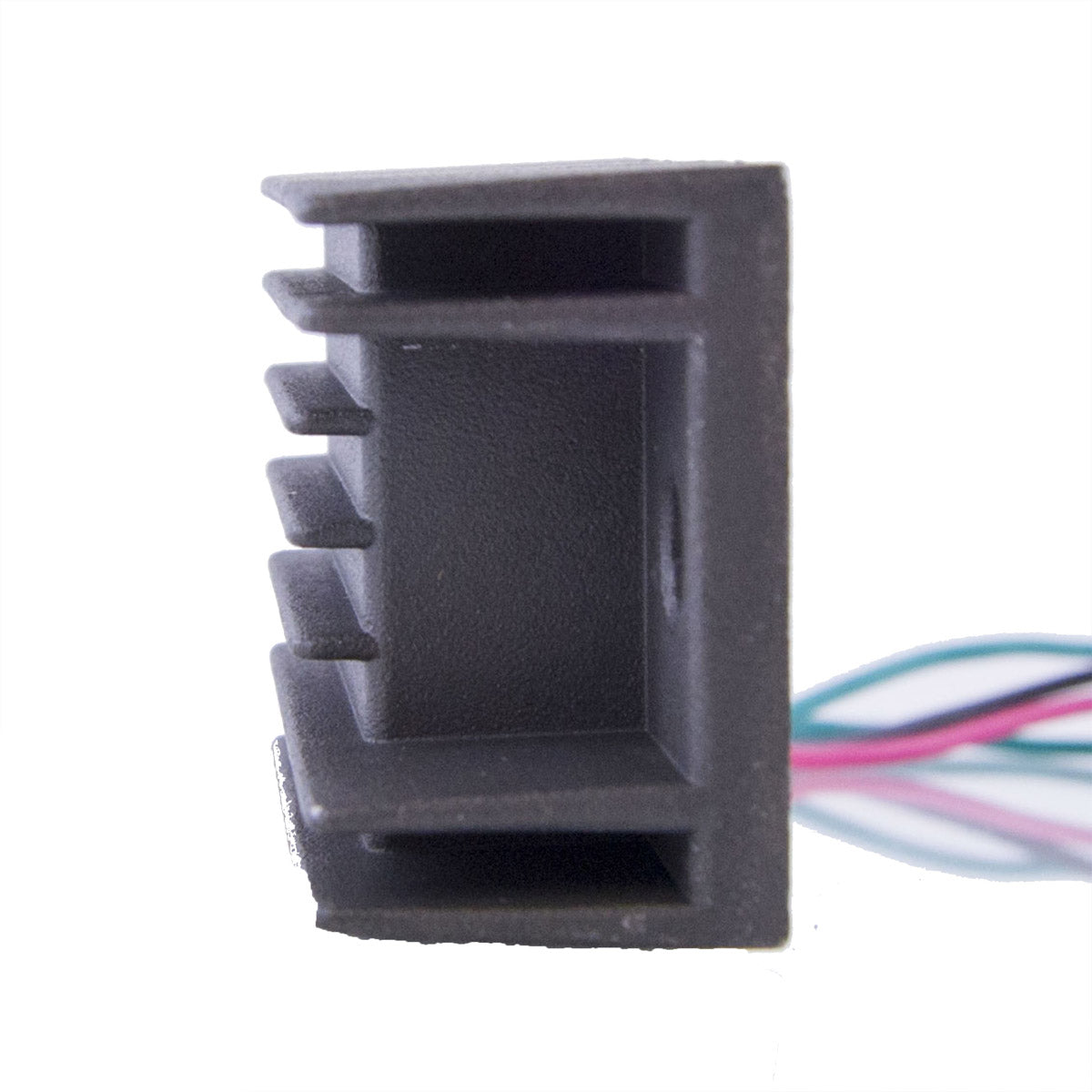

The quality exceeds the OEM equipment. The heat sink and charging capabilities are improved over the original design, and a higher grade of electric components is used throughout, which matters on a part that spends its life in a hot engine bay with limited airflow. Electrically the unit holds a minimum charging voltage of 14.5 V +/- 0.5 V, handles a maximum charging current of 50 A / 500 W, keeps open circuit voltage below 15 V and is rated to run between -20 C and 85 C. It uses 5 wires and 5 pins on a 234 mm loom.
Key Features
- Brand new voltage regulator rectifier
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- No assembly required
- The quality exceeds the OEM equipment
- Improved heat sink and charging capabilities
- Higher grade of electric components
- Rated to 50 A / 500 W maximum charging current
- All products shipped are tested
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RM30Y11 |
| Width | 54 mm |
| Length | 24 mm |
| Height | 37 mm |
| Wires length | 234 mm |
| Number of plugs | 0 |
| Number of pins | 5 |
| Number of wires | 5 |
| Minimum charging voltage | 14.5 V +/- 0.5 V |
| Maximum charging current | 50 A / 500 W |
| Open circuit voltage | Less than 15 V |
| Operating temperature | -20 C to 85 C |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Yamaha AR 210 | 1997-2005 |
| Yamaha Exciter | 1997-2005 |
| Yamaha LS | 1997-2005 |
| Yamaha LX | 1997-2005 |
| Yamaha GP | 1997-2005 |
| Yamaha SUV | 1997-2005 |
| Yamaha XL | 1997-2005 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 6H2-81960-00-00 | Yamaha |
| RM30Y11-R00 | RM Stator |
Frequently Asked Questions
Does this need any modification to fit?
No. It is plug-and-play and a direct fit with no assembly required. The unit is supplied with 5 wires and 5 pins on a 234 mm loom, matching the original arrangement.
What is included?
You receive one brand new voltage regulator rectifier, tested before dispatch. Mounting bolts and loom hardware are not included, so re-use the fixings from the original unit.
How do I know my old regulator has failed?
Measure battery voltage with the engine running. A working charging system holds 14.5 V +/- 0.5 V. If voltage never rises above resting battery level the unit has stopped rectifying, and if it climbs past 15 V it has stopped regulating and will overcharge the battery. Heat discolouration on the case is another clear sign.
Why does this unit have no plug?

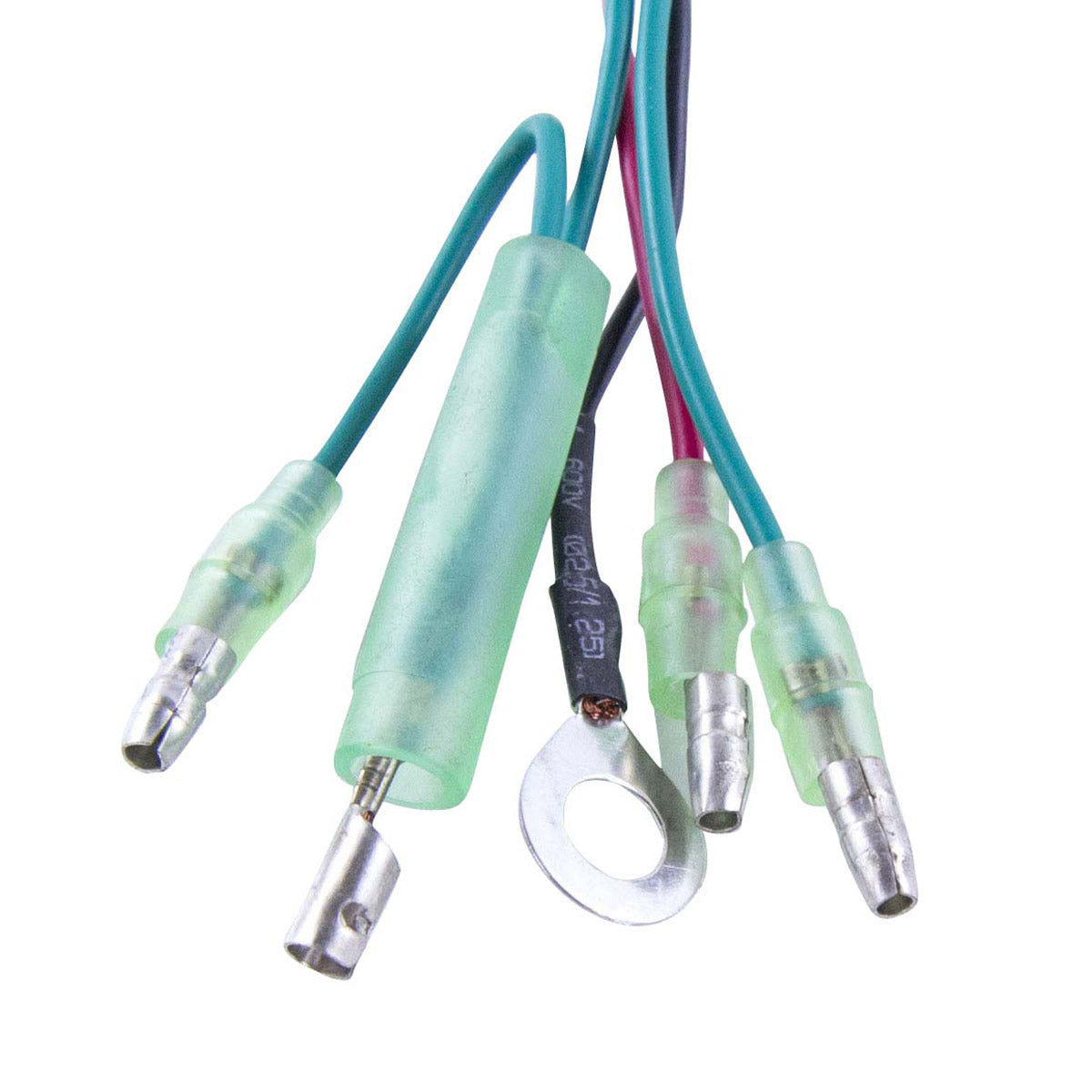

This regulator is specified with 0 plugs and 5 individual wires with 5 pins, which is how the original is arranged on these craft. The pins connect into the existing harness terminals rather than through a single moulded connector body.
