Regulator Rectifier for Yamaha Bravo 250 (1988-2011) - Replacement Part
Regulator Rectifier for Yamaha Bravo 250 (1988-2011) - Replacement Part
SKU:RM30418
Free shipping over £150. Terms apply
Couldn't load pickup availability

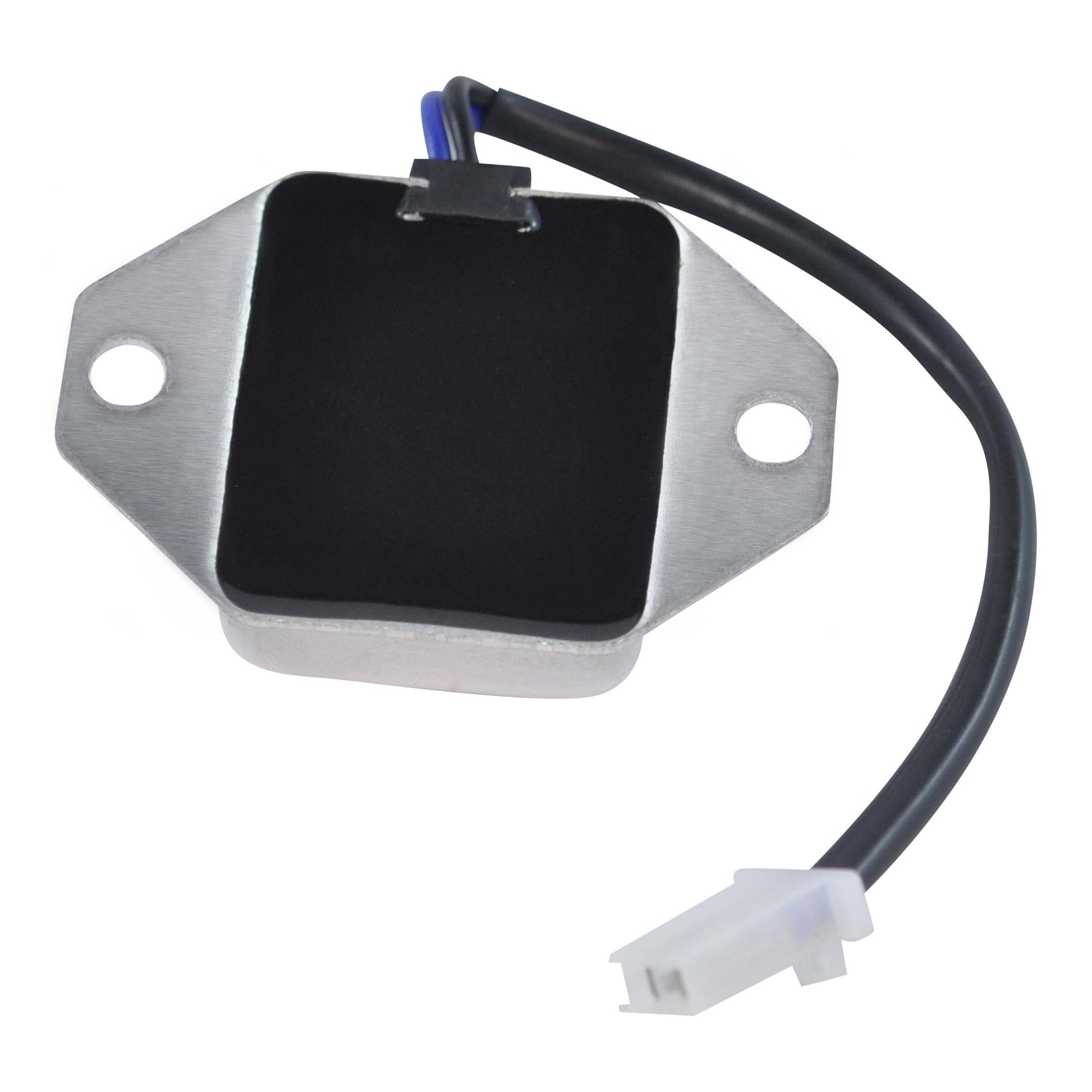

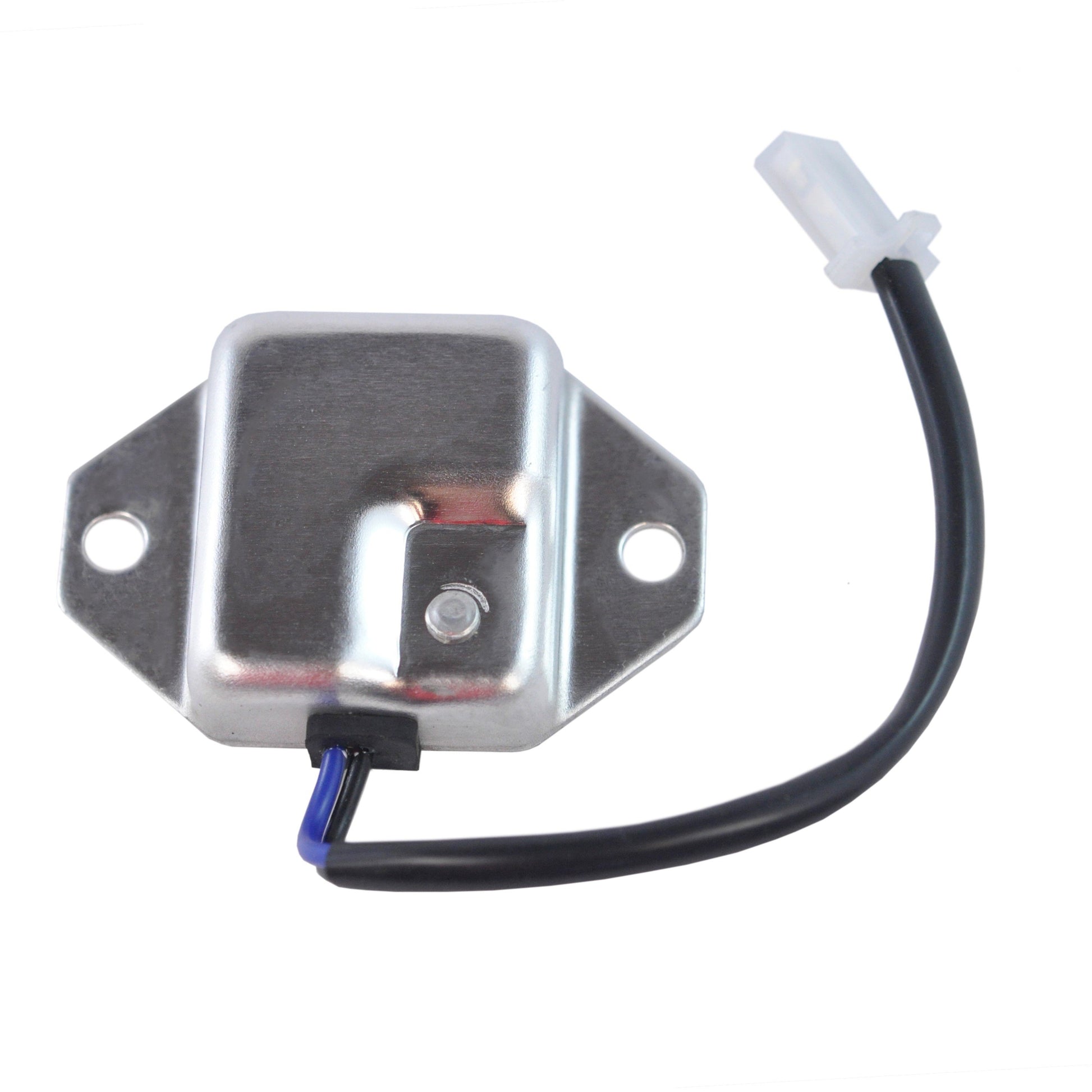

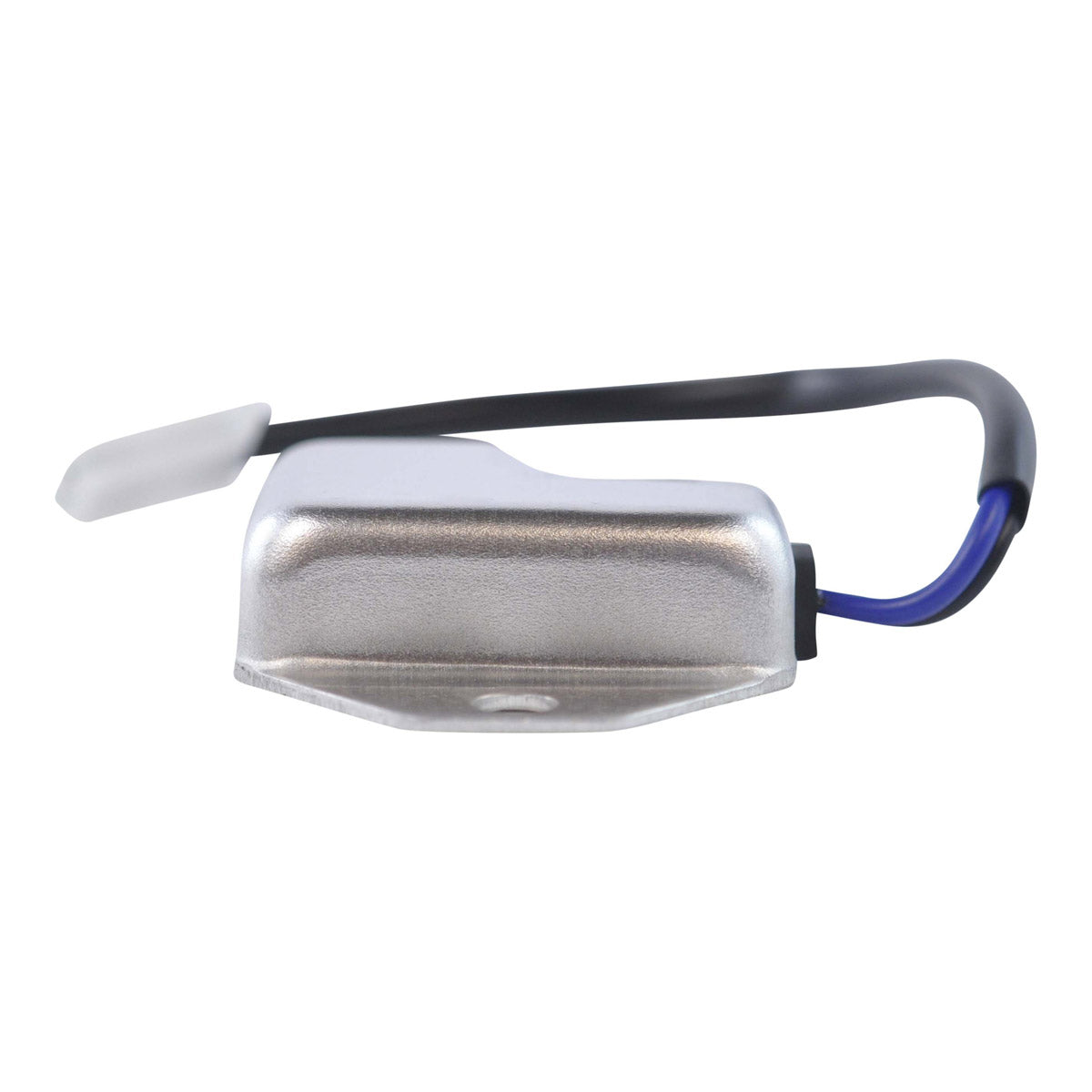

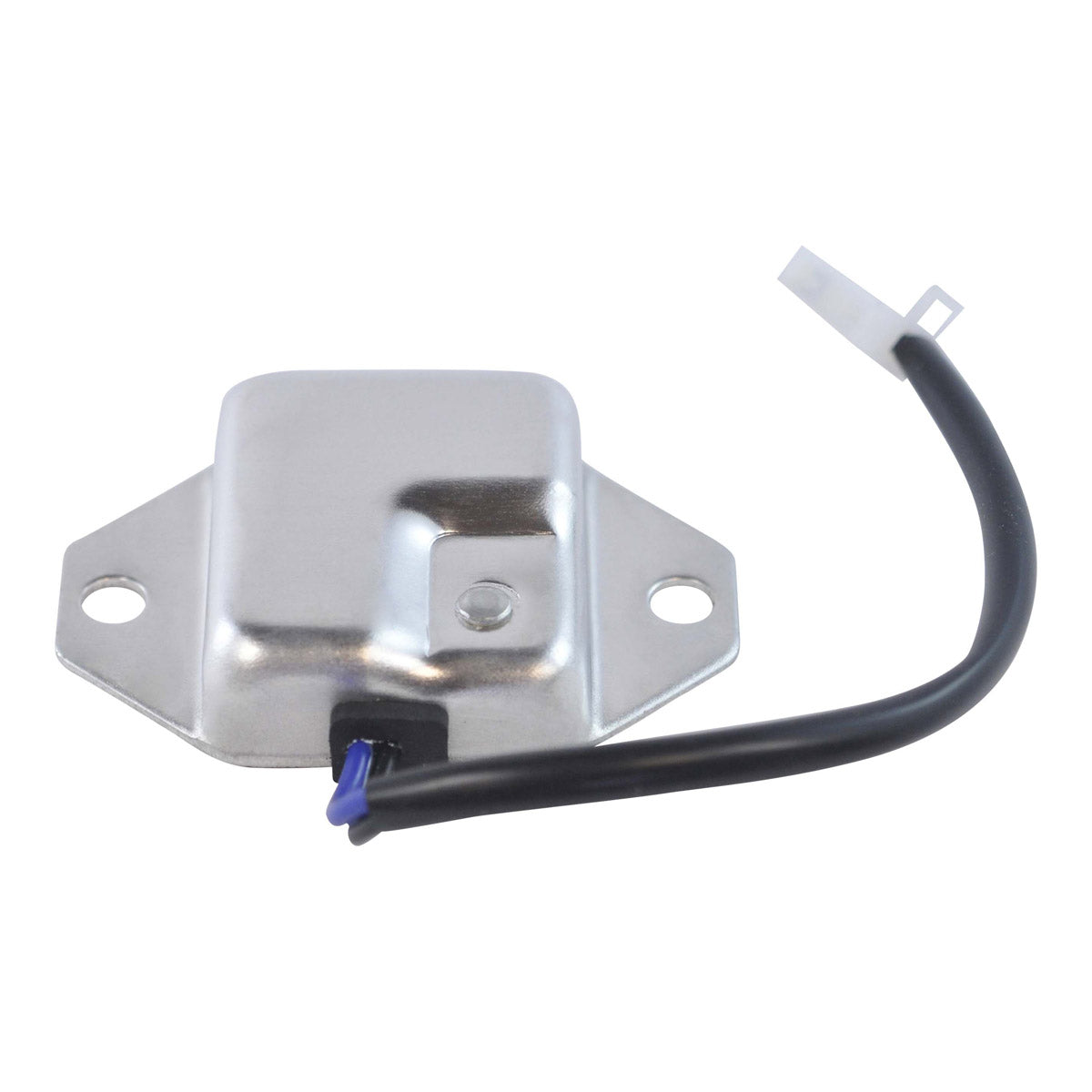

AC Voltage Regulator Rectifier RM30418 for Yamaha
Bravo 250, Enticer, Excel, Exciter, Inviter, Mountain Max, Phazer, SRV, SRX, Viking 540, V-Max and WR 400 - 1987-2011
Brand new aftermarket AC voltage regulator rectifier, supplied as a direct replacement for the original unit fitted to Yamaha Bravo 250, Enticer, Excel, Exciter, Inviter, Mountain Max, Phazer, SRV, SRX, Viking 540, V-Max and WR 400 machines built between 1987 and 2011. Installation is plug-and-play and direct fit, with no assembly required, so the original two-pin plug connects straight to the new unit and there is no need to cut or splice the loom.
The unit is built with a higher grade of electric components than the original, with an improved heat sink and improved charging capabilities, and the quality exceeds the OEM equipment. All products shipped are tested. In service it holds a minimum charging voltage of 14.5 V +/- 0.5 V, will pass a maximum charging current of 20 A / 150 W, keeps open circuit voltage below 15 V and operates across a temperature range of -20°C to 85°C. It replaces Yamaha OEM part number 82M-81910-A0-00.
Key Features
- Direct replacement for the original unit
- Plug-and-play, direct fit, easy installation
- No assembly required
- Higher grade of electric components
- Improved heat sink and charging capabilities
- Quality exceeds the OEM equipment
- All products shipped are tested
- Two-wire AC design with a single 2-pin plug
- Compact 40 x 50 x 15 mm body with 60 mm fixing centres
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RM30418 |
| Type | AC voltage regulator rectifier |
| Width | 40 mm |
| Length | 50 mm |
| Height | 15 mm |
| Fixation holes centre to centre | 60 mm |
| Wire length | 140 mm |
| Number of plugs | 1 |
| Number of pins | 2 |
| Number of wires | 2 |
| Minimum charging voltage | 14.5 V +/- 0.5 V |
| Maximum charging current | 20 A / 150 W |
| Open circuit voltage | < 15 V |
| Operation temperature | -20°C to 85°C |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Yamaha Bravo 250 | 1987-2011 |
| Yamaha Enticer 340 | 1987-2011 |
| Yamaha Enticer 400 | 1987-2011 |
| Yamaha Excel III 340 | 1987-2011 |
| Yamaha Excel V XL 540 | 1987-2011 |
| Yamaha Exciter 570 | 1987-2011 |
| Yamaha Inviter 300 | 1987-2011 |
| Yamaha Mountain Max 800 | 1987-2011 |
| Yamaha Phazer 480 | 1987-2011 |
| Yamaha SRV 540 | 1987-2011 |
| Yamaha SRX 600 | 1987-2011 |
| Yamaha SRX 700 | 1987-2011 |
| Yamaha Viking 540 | 1987-2011 |
| Yamaha V-Max 600 | 1987-2011 |
| Yamaha V-Max 800 | 1987-2011 |
| Yamaha WR 400 | 1987-2011 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 82M-81910-A0-00 | Yamaha |
Frequently Asked Questions
Does this fit without modification?
Yes. It is a direct replacement for the original unit and is plug-and-play with no assembly required. The single 2-pin plug and 140 mm wire lead match the original, and the two fixing holes are 60 mm apart centre to centre. Confirm your existing unit carries OEM number 82M-81910-A0-00 before ordering.
What is included?
The voltage regulator rectifier unit itself, complete with its connector and wiring. Every unit is tested before it is shipped.
How do I know my old regulator has failed?
A working charging system should hold the battery at the minimum charging voltage of 14.5 V +/- 0.5 V with the engine running. A reading that stays low, or one that climbs above the 15 V open circuit figure, points to a failed regulator rectifier. Before fitting a new unit, check the AC output of the stator, replace any burned or corroded connectors and repair melted wiring, otherwise the same fault will return.
Is this an AC regulator or a DC unit?
This is an AC voltage regulator rectifier. It has two wires running to a single 2-pin plug and is rated at a maximum charging current of 20 A / 150 W, with an operating temperature range of -20°C to 85°C.
