Regulator Rectifier for Yamaha Exciter GP 800 – RM30Y10 Replacement
Regulator Rectifier for Yamaha Exciter GP 800 – RM30Y10 Replacement
SKU:RM30Y10
Free shipping over £150. Terms apply
Couldn't load pickup availability

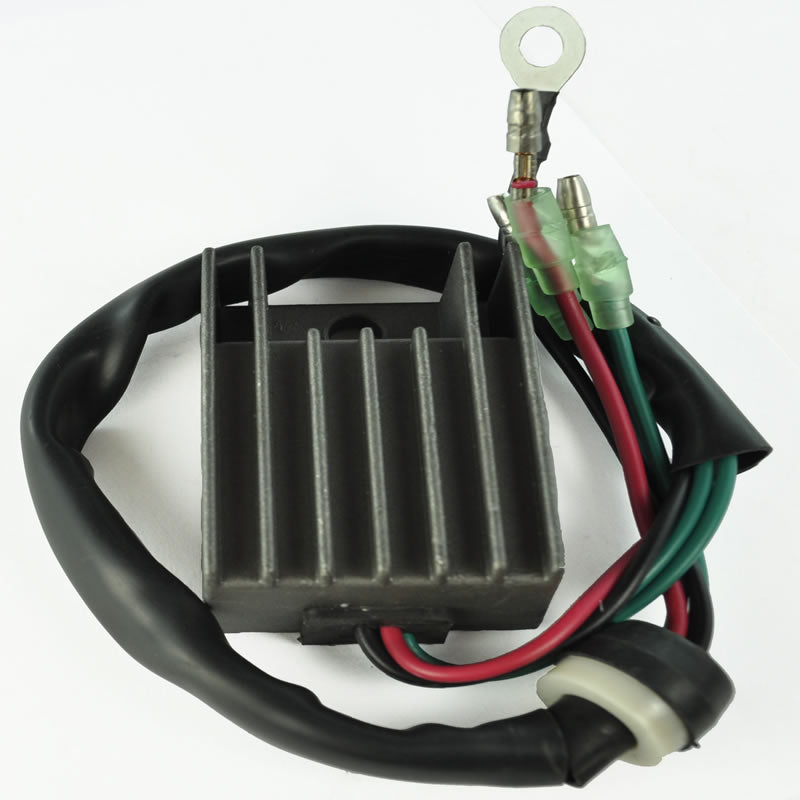

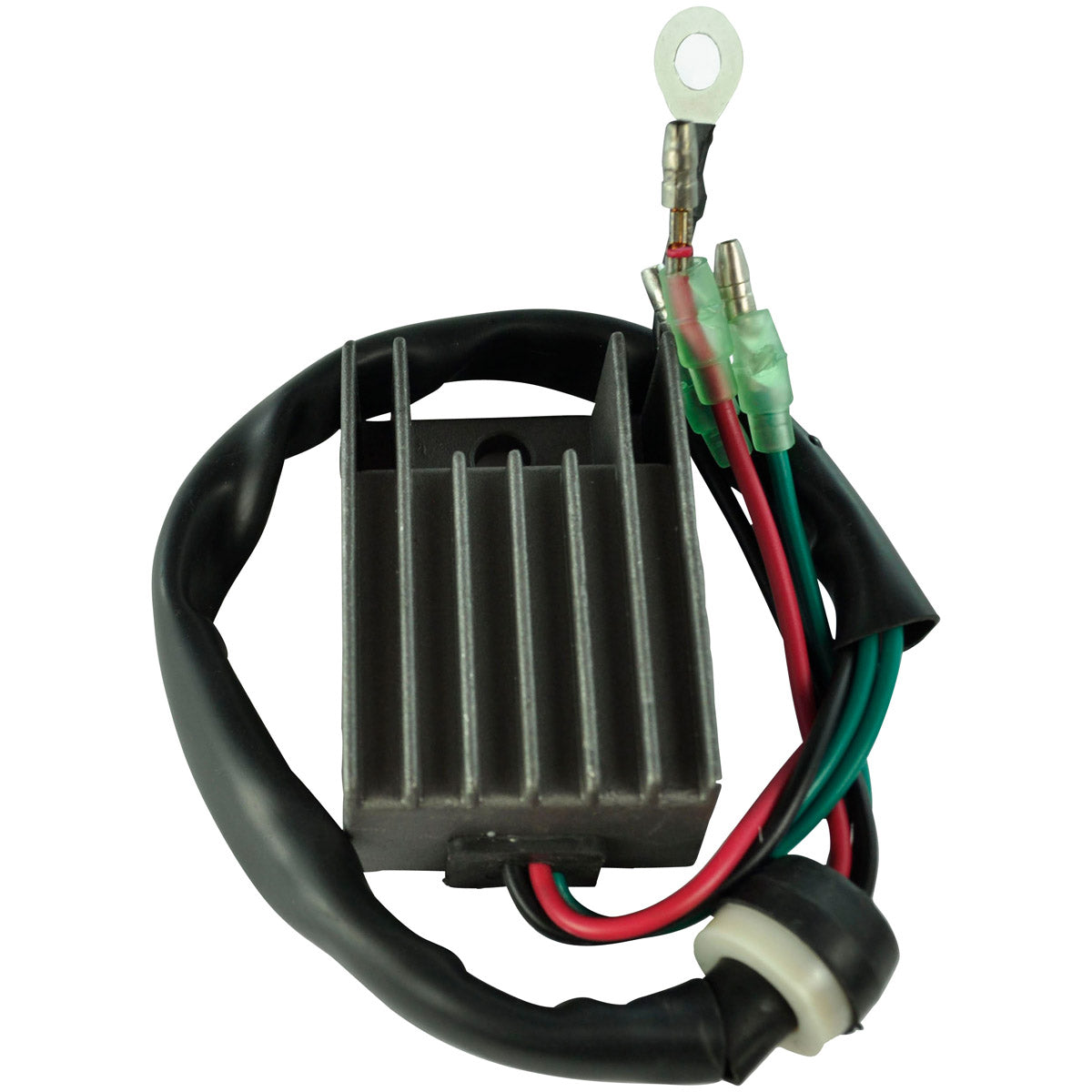

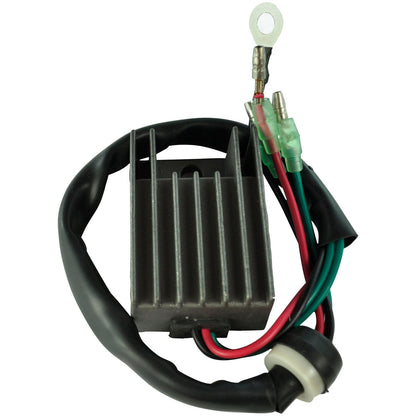

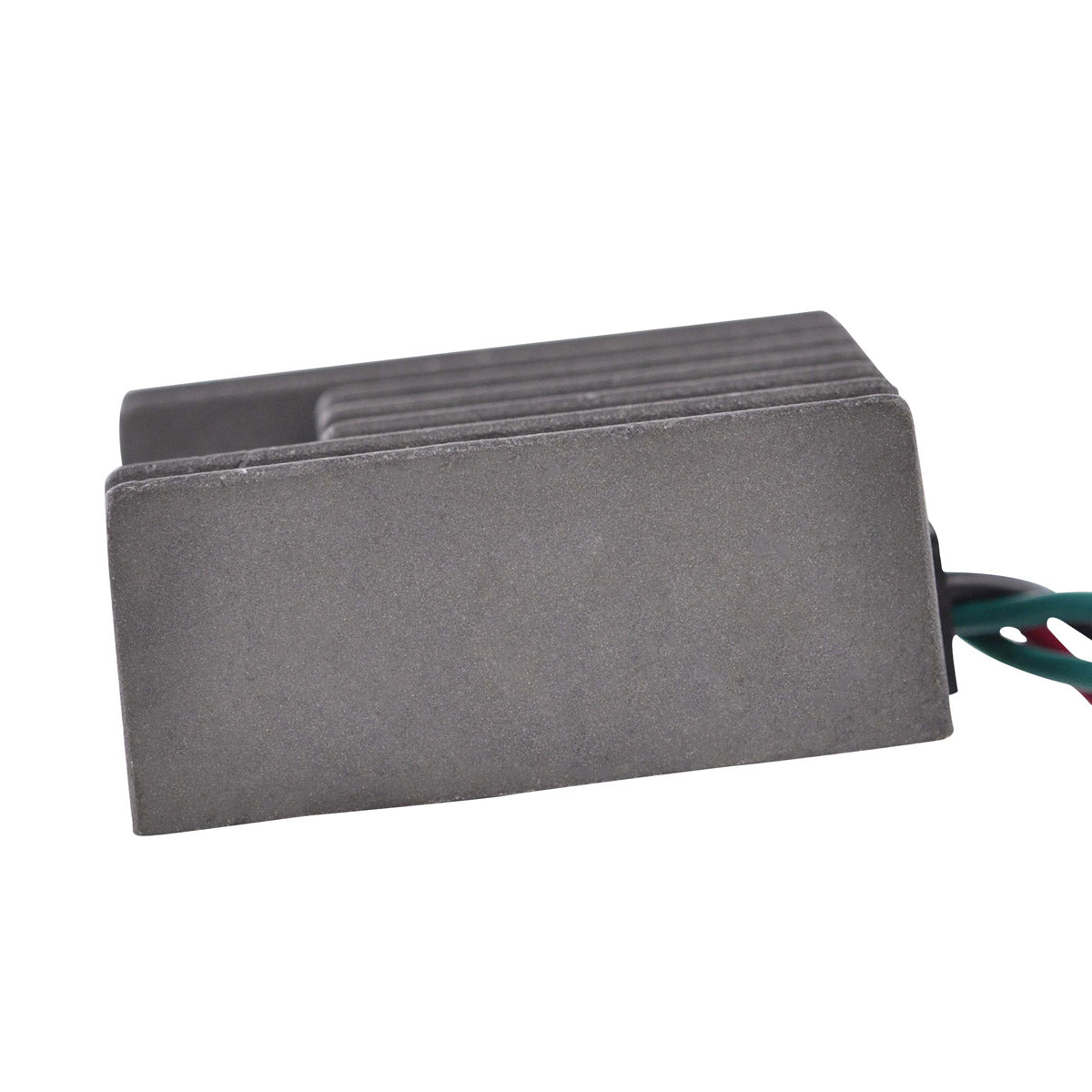

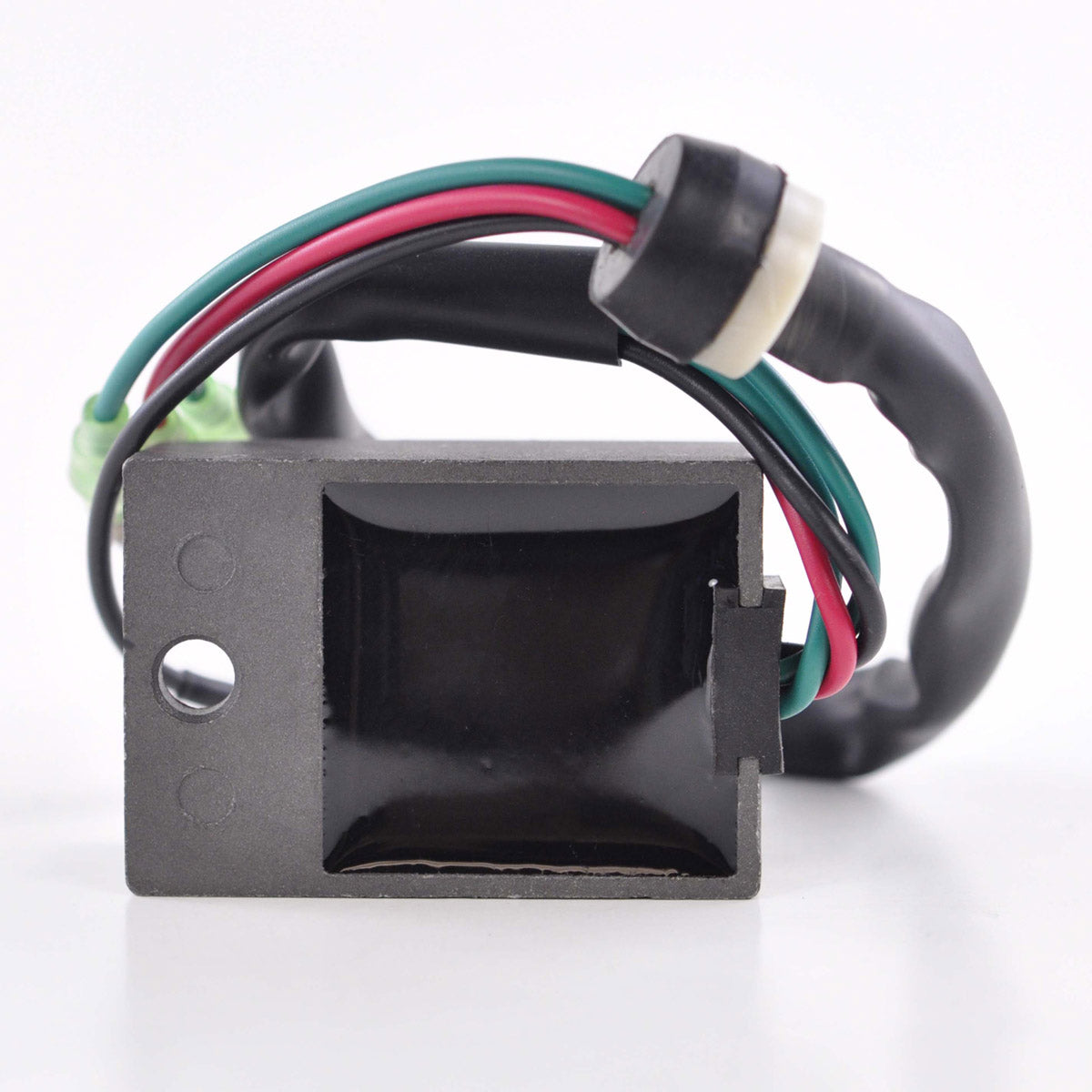

Voltage Regulator Rectifier for Yamaha - RM30Y10
Yamaha Exciter, GP 800, Wave Raider, Wave Venture, XL 800 and XLT 800 - 1995-2005
This is a brand new aftermarket voltage regulator rectifier, built as a direct replacement for the original unit fitted to Yamaha Exciter, GP 800, Wave Raider, Wave Venture, XL 800 and XLT 800 watercraft. It is plug-and-play and a direct fit, with no assembly required, so the job is a straightforward swap using the original mounting position and connections.
The quality exceeds the OEM equipment. An improved heat sink and improved charging capability address the heat problem that kills most original regulators on watercraft, and a higher grade of electric components is used throughout. The unit holds a minimum charging voltage of 14.5 V +/- 0.5 V, handles a maximum charging current of 20 A / 150 W, keeps open circuit voltage below 15 V, and is rated for operation from -20 C to 85 C. All products shipped are tested.
Key Features
- Brand new aftermarket voltage regulator rectifier
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- No assembly required
- The quality exceeds the OEM equipment
- Improved heat sink and charging capabilities
- Higher grade of electric components

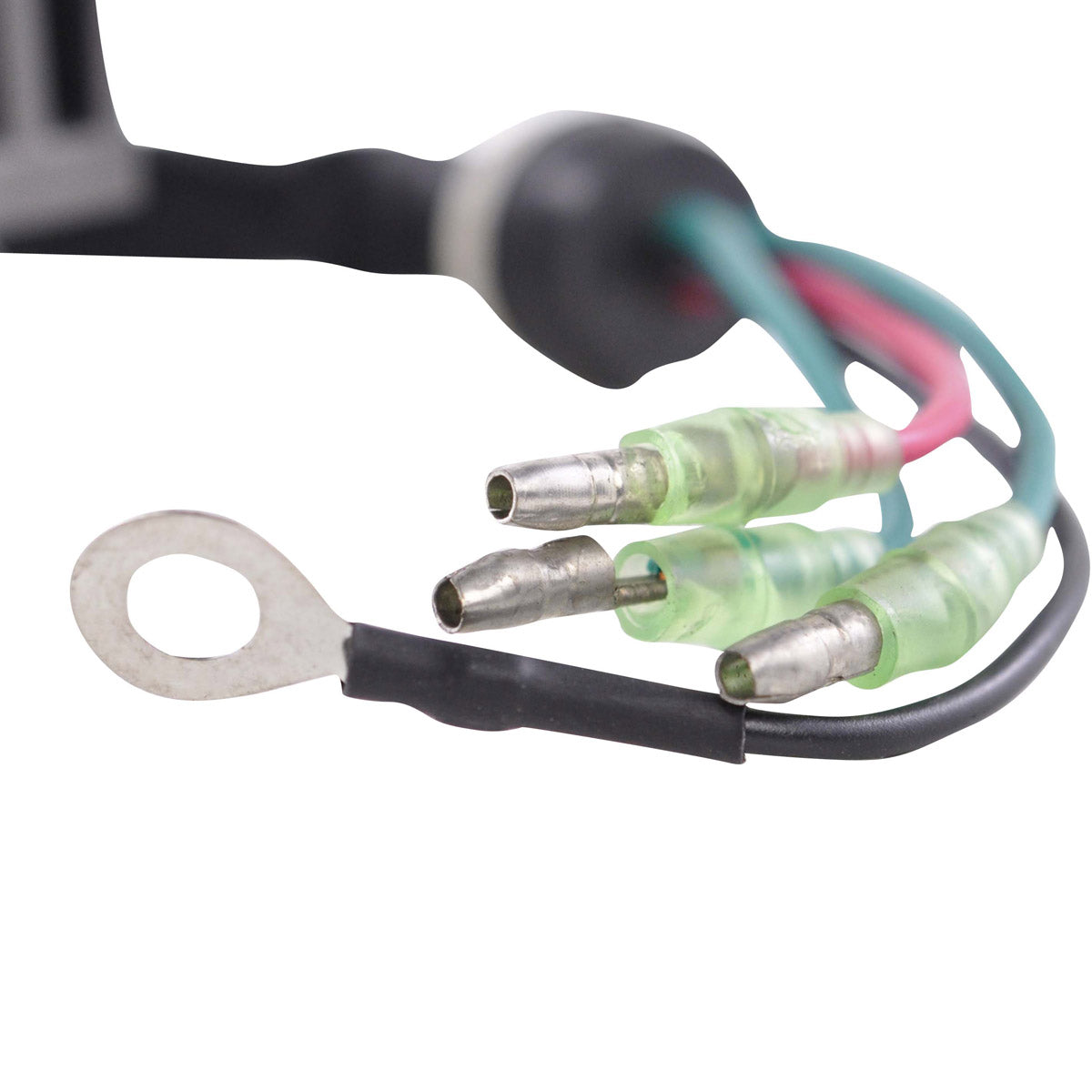

- 300 mm wiring with 4 pins and 4 wires
- All products shipped are tested
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RM30Y10 |
| Width | 35 mm |
| Length | 58 mm |
| Height | 24 mm |
| Wires length | 300 mm |
| Number of pins | 4 |
| Number of wires | 4 |
| Minimum charging voltage | 14.5 V +/- 0.5 V |
| Maximum charging current | 20 A / 150 W |
| Open circuit voltage | Less than 15 V |
| Operating temperature | -20 C to 85 C |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Yamaha Exciter | 1995-2005 |
| Yamaha GP 800 | 1995-2005 |
| Yamaha Wave Raider | 1995-2005 |
| Yamaha Wave Venture | 1995-2005 |
| Yamaha XL 800 | 1995-2005 |
| Yamaha XLT 800 | 1995-2005 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 63M-81960-00-00 | Yamaha |
| RM30Y10-R00 | RM Stator |
Frequently Asked Questions
Does this need any modification to fit?
No. It is plug-and-play and a direct fit with no assembly required, using the same 4-pin, 4-wire arrangement as the original with 300 mm of wiring.
What is included?
You receive one brand new voltage regulator rectifier with its 300 mm wiring, tested before dispatch. Mounting bolts and other hardware are not included, so re-use the fixings from the original unit.
How do I know my old regulator has failed?
Check charging voltage at the battery with the engine running. It should sit at 14.5 V +/- 0.5 V. A reading stuck at battery voltage means the unit is not charging, while a reading above 15 V means it is no longer regulating and will cook the battery. A regulator that is discoloured or extremely hot after a short run is also suspect.
What output does this unit handle?
It is rated for a maximum charging current of 20 A / 150 W with open circuit voltage held below 15 V, and it is designed to operate between -20 C and 85 C.
