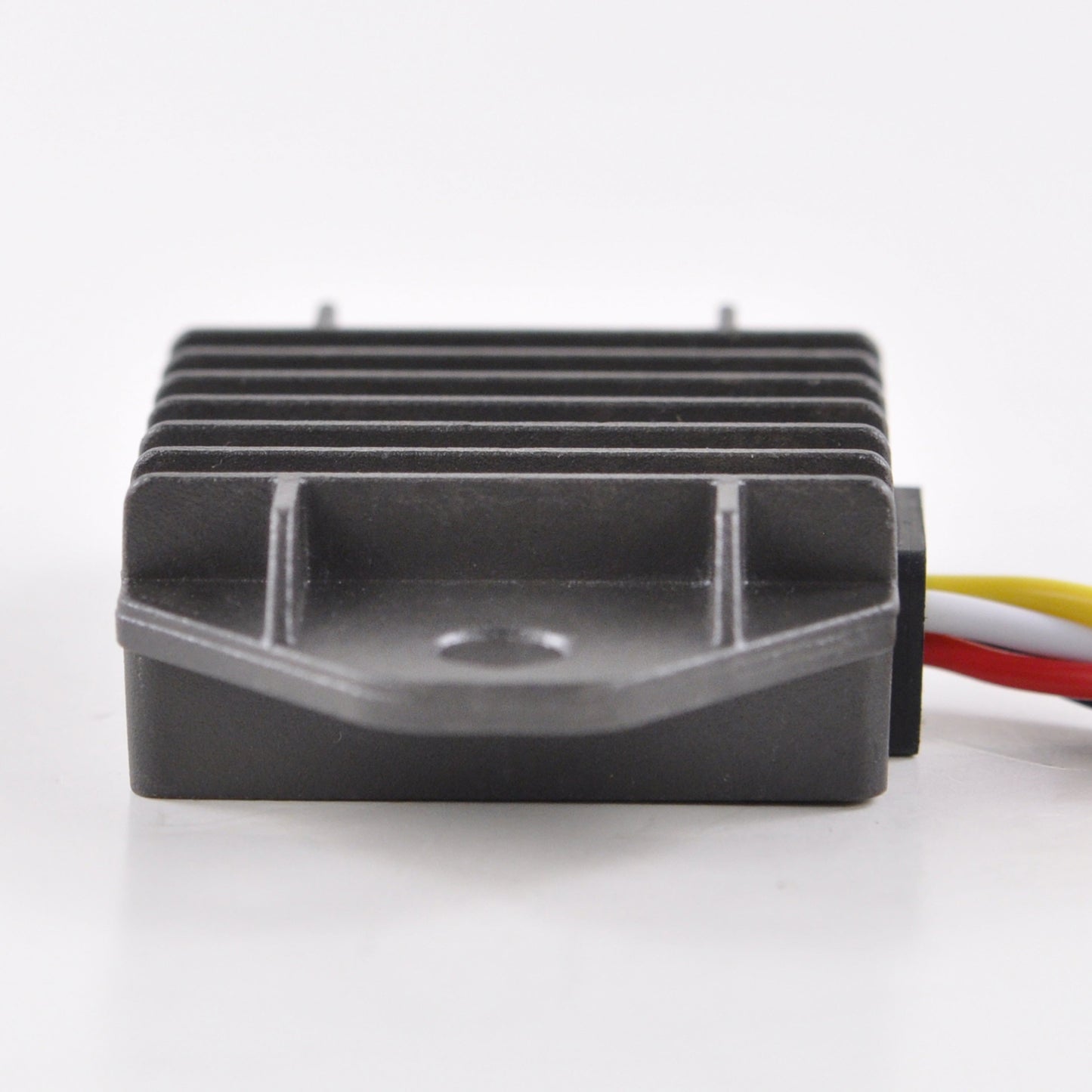

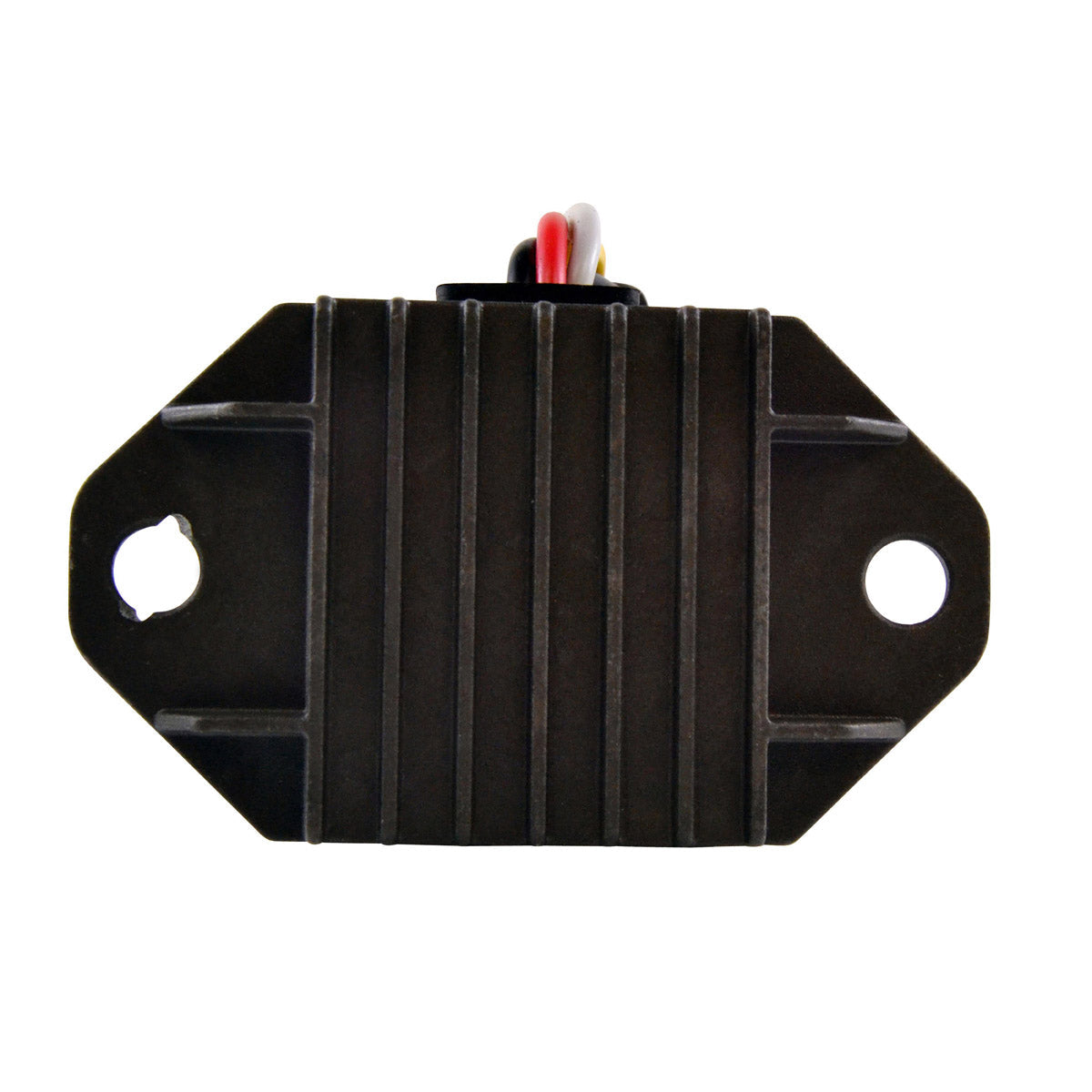

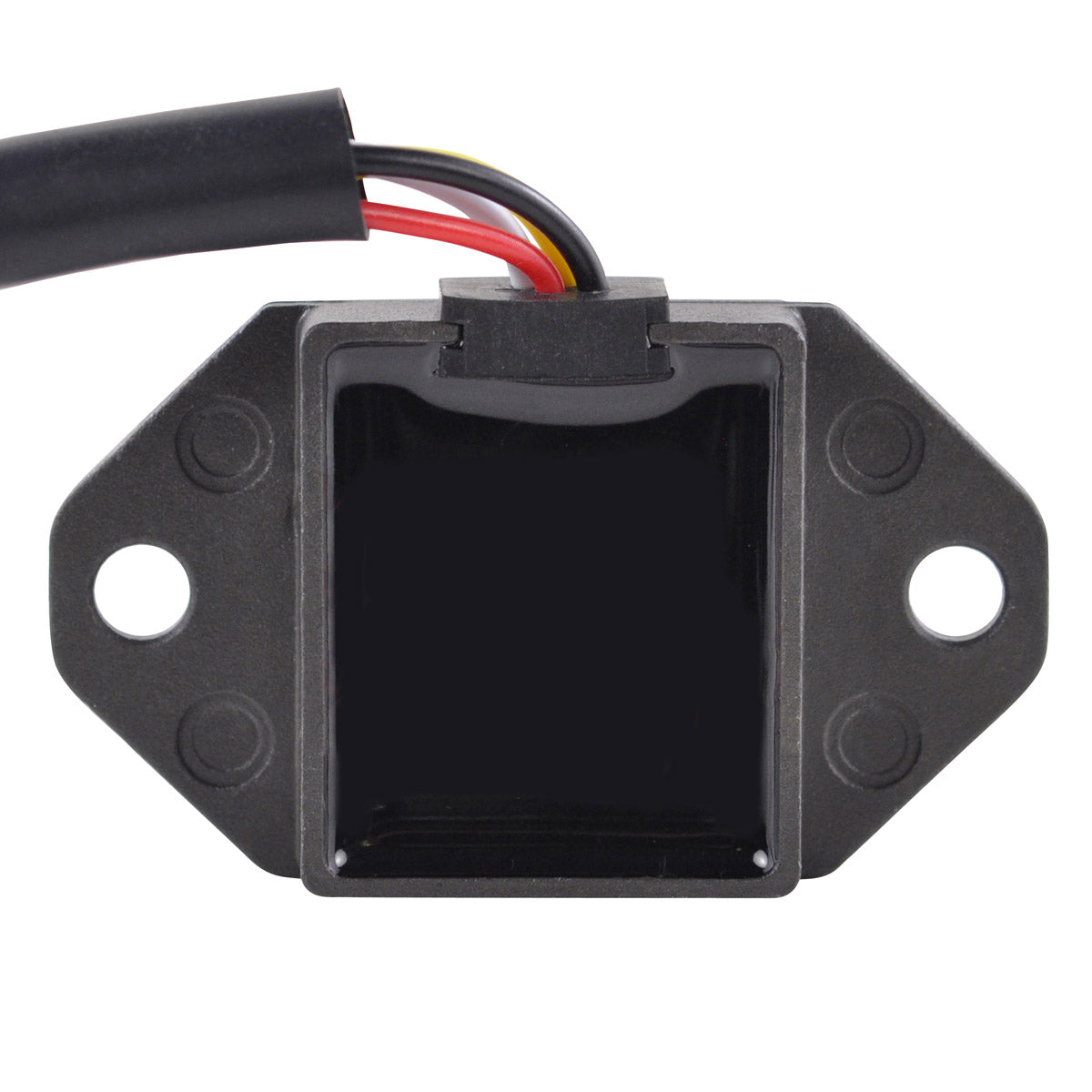

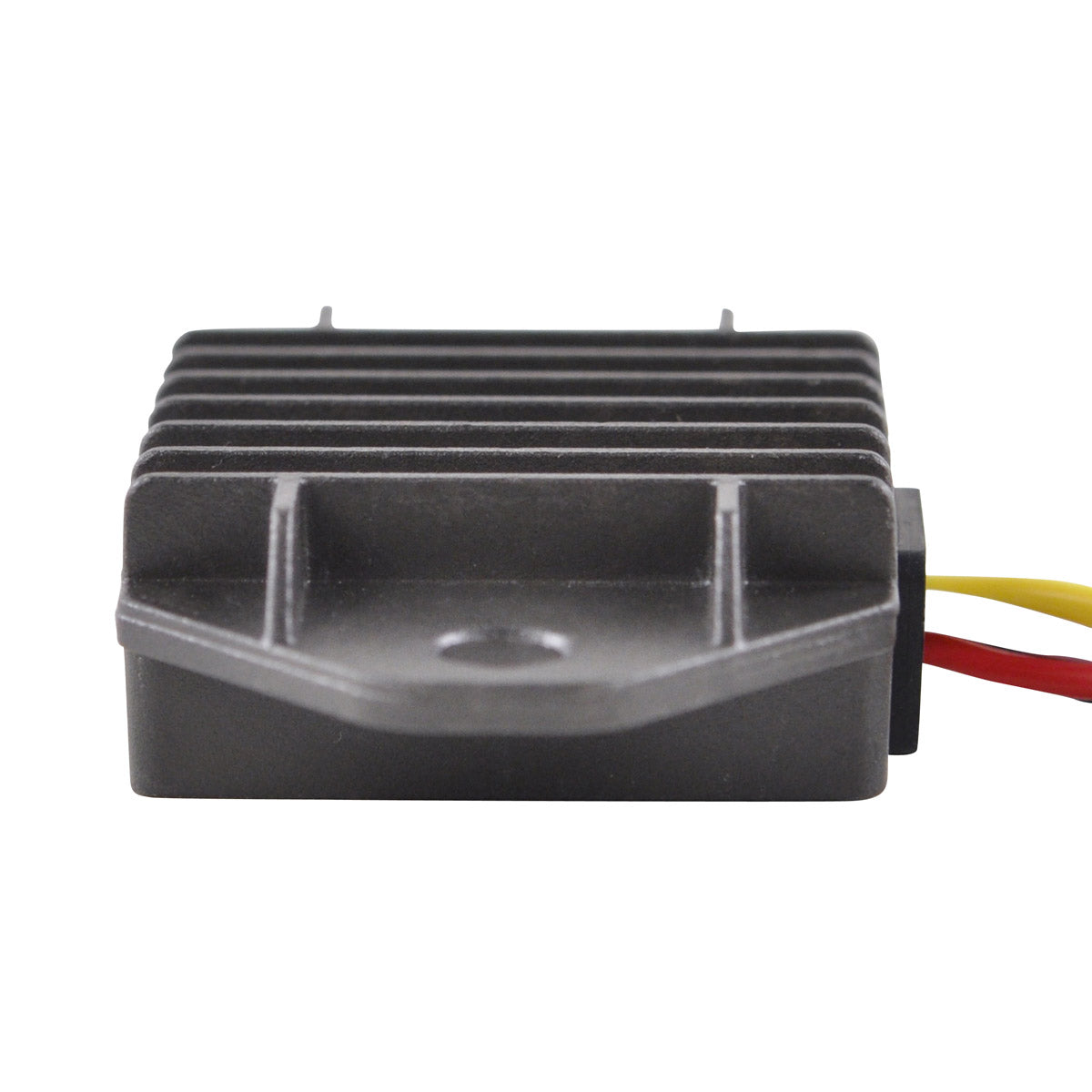

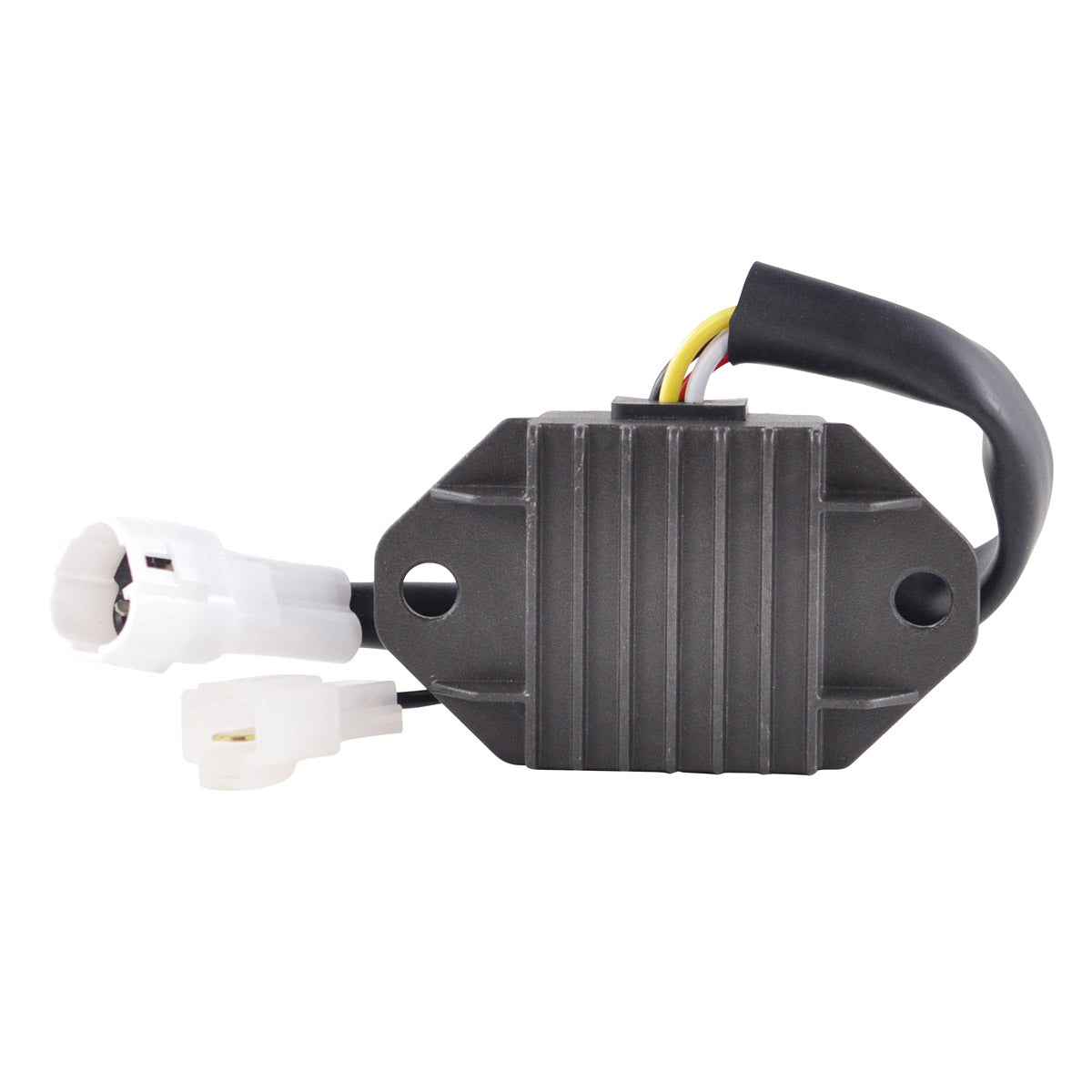

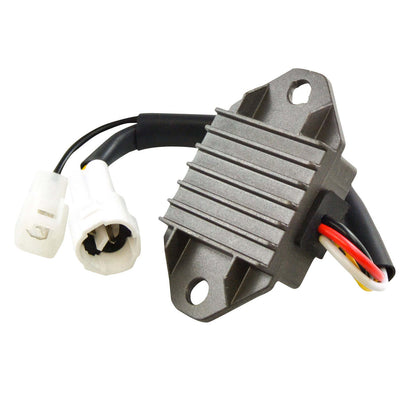

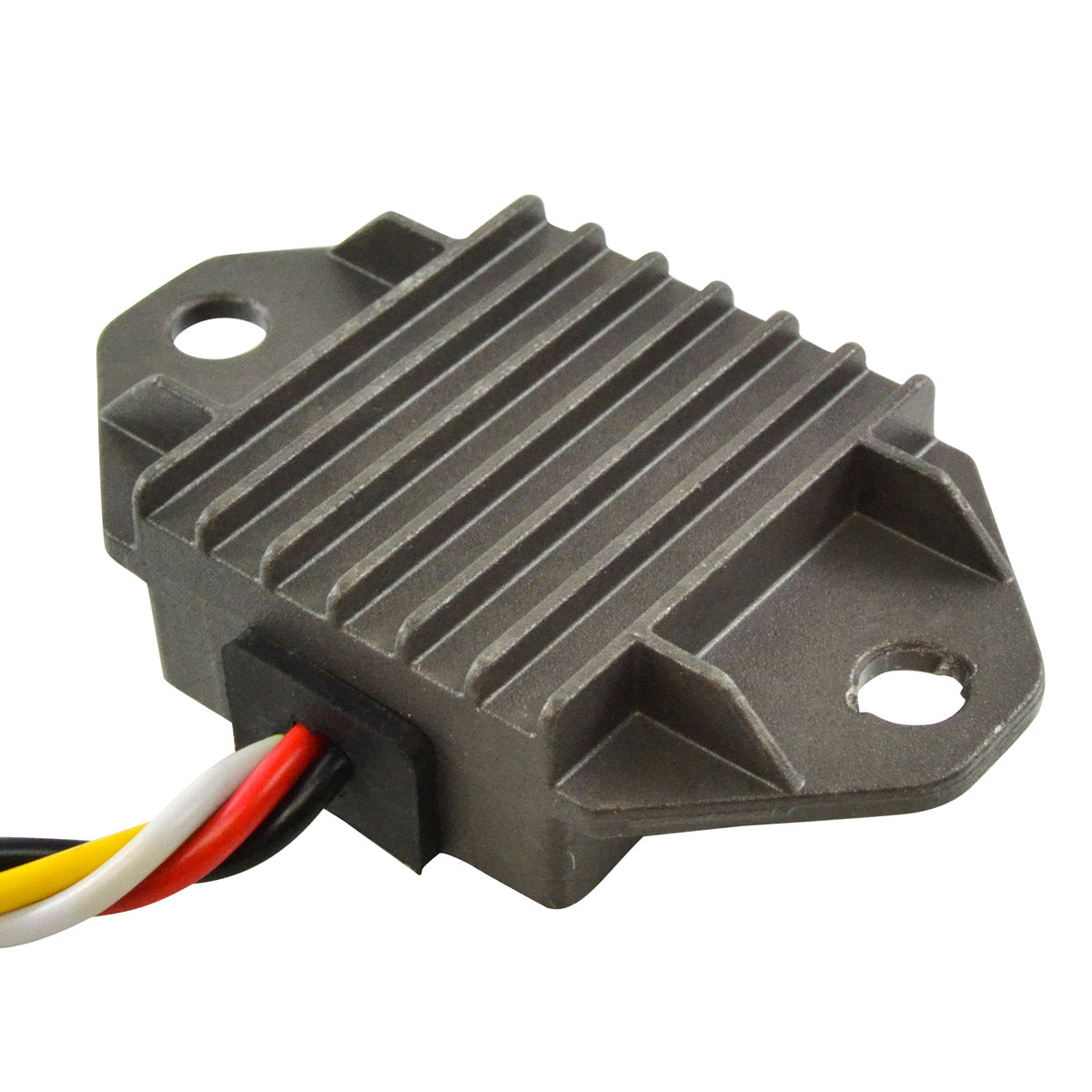

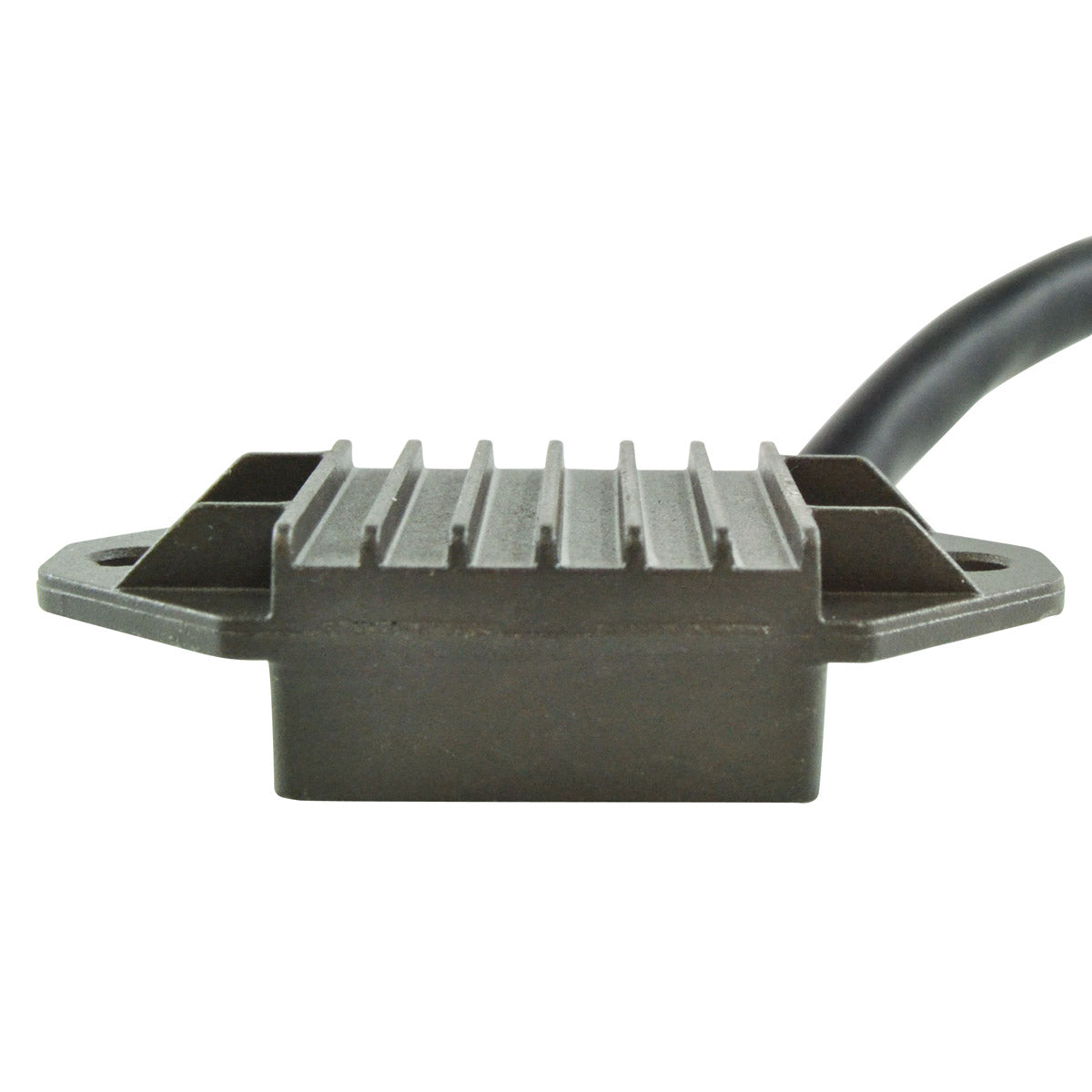

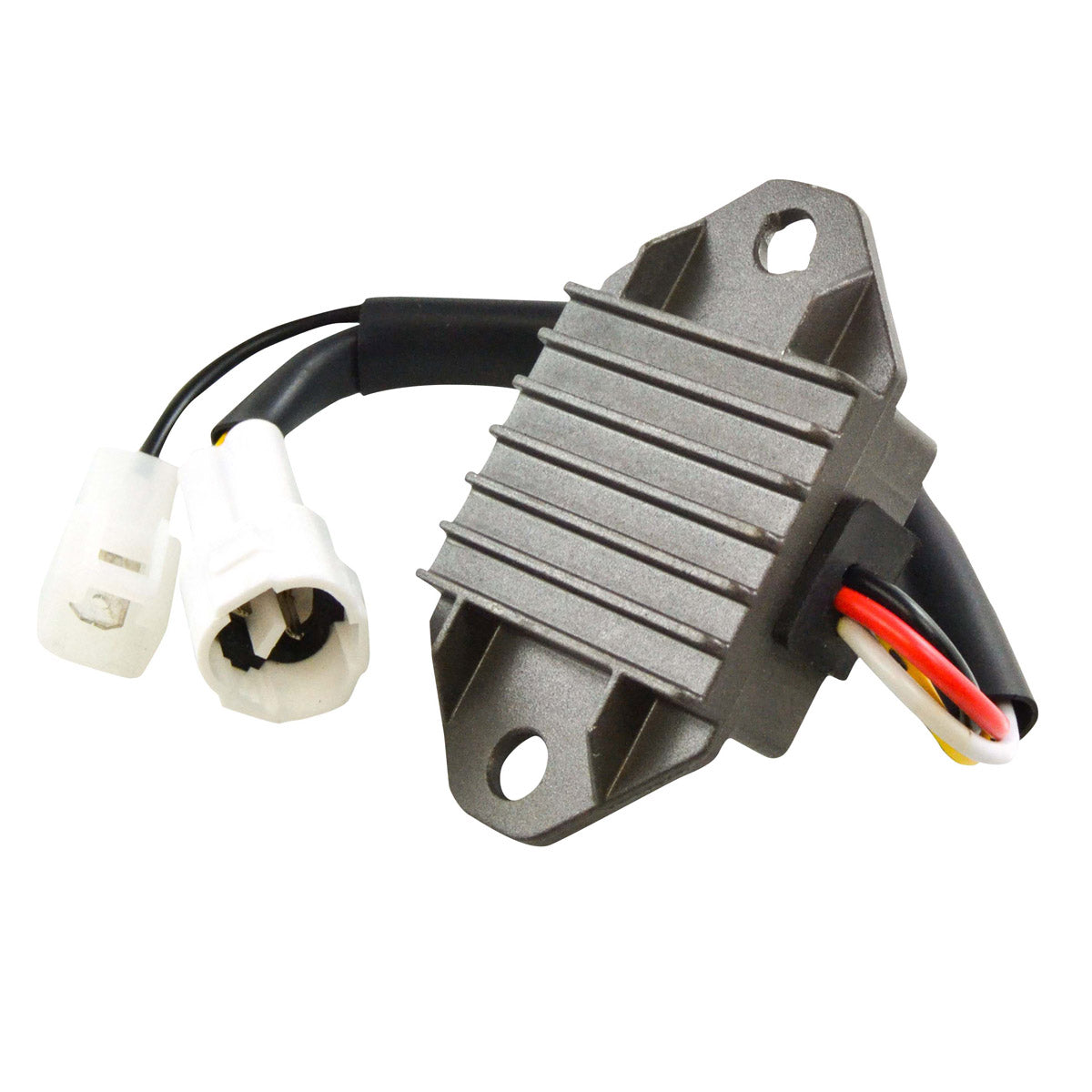

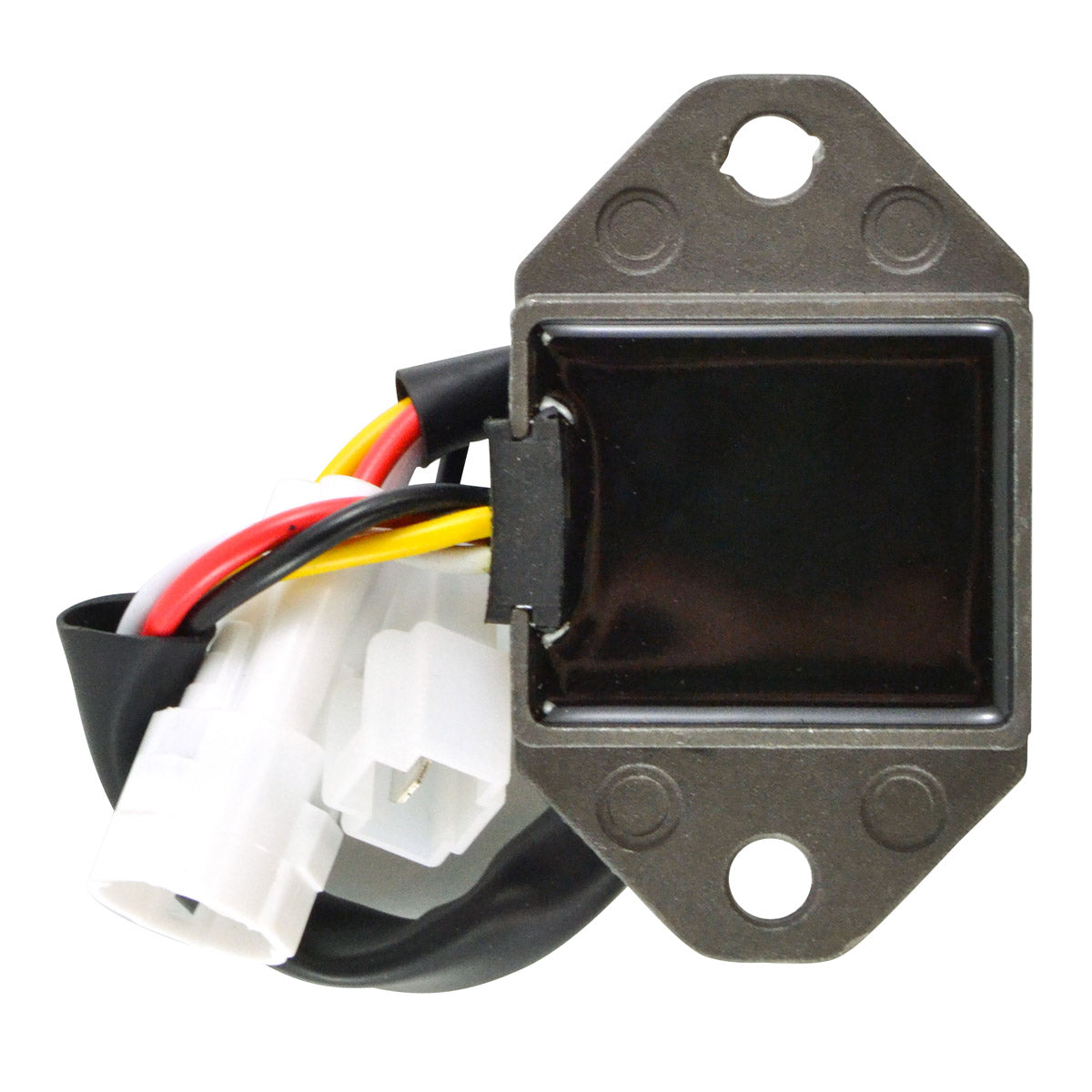

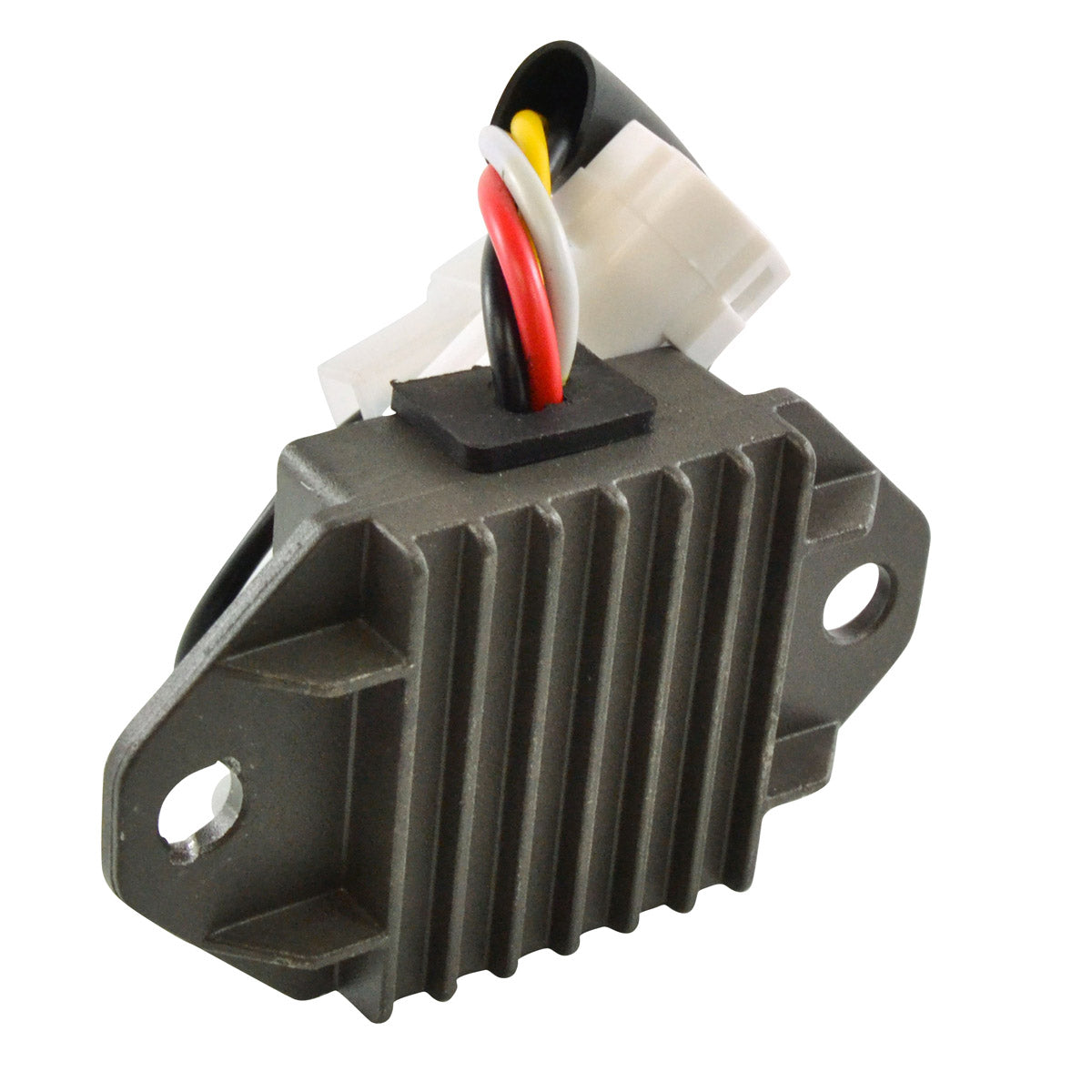

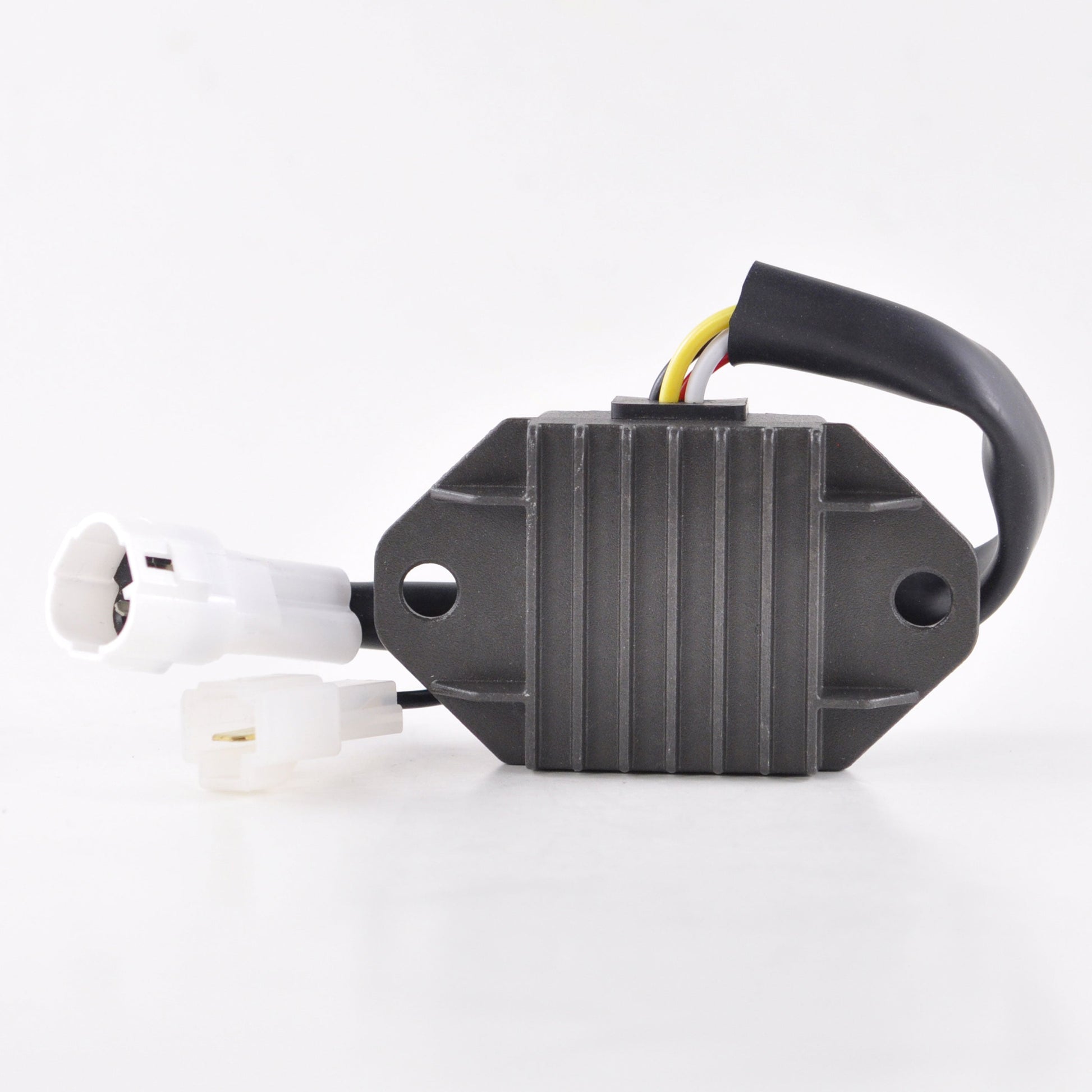

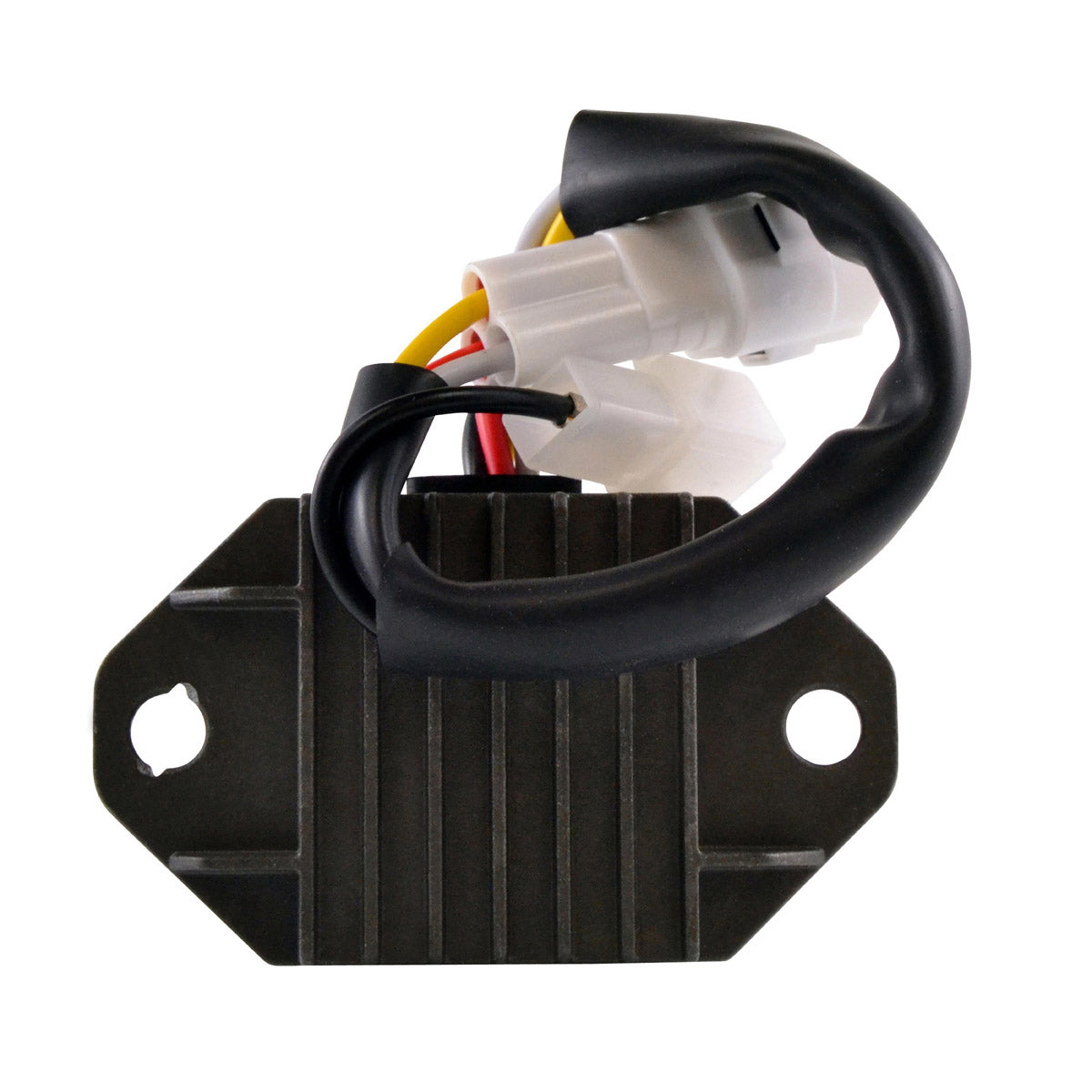

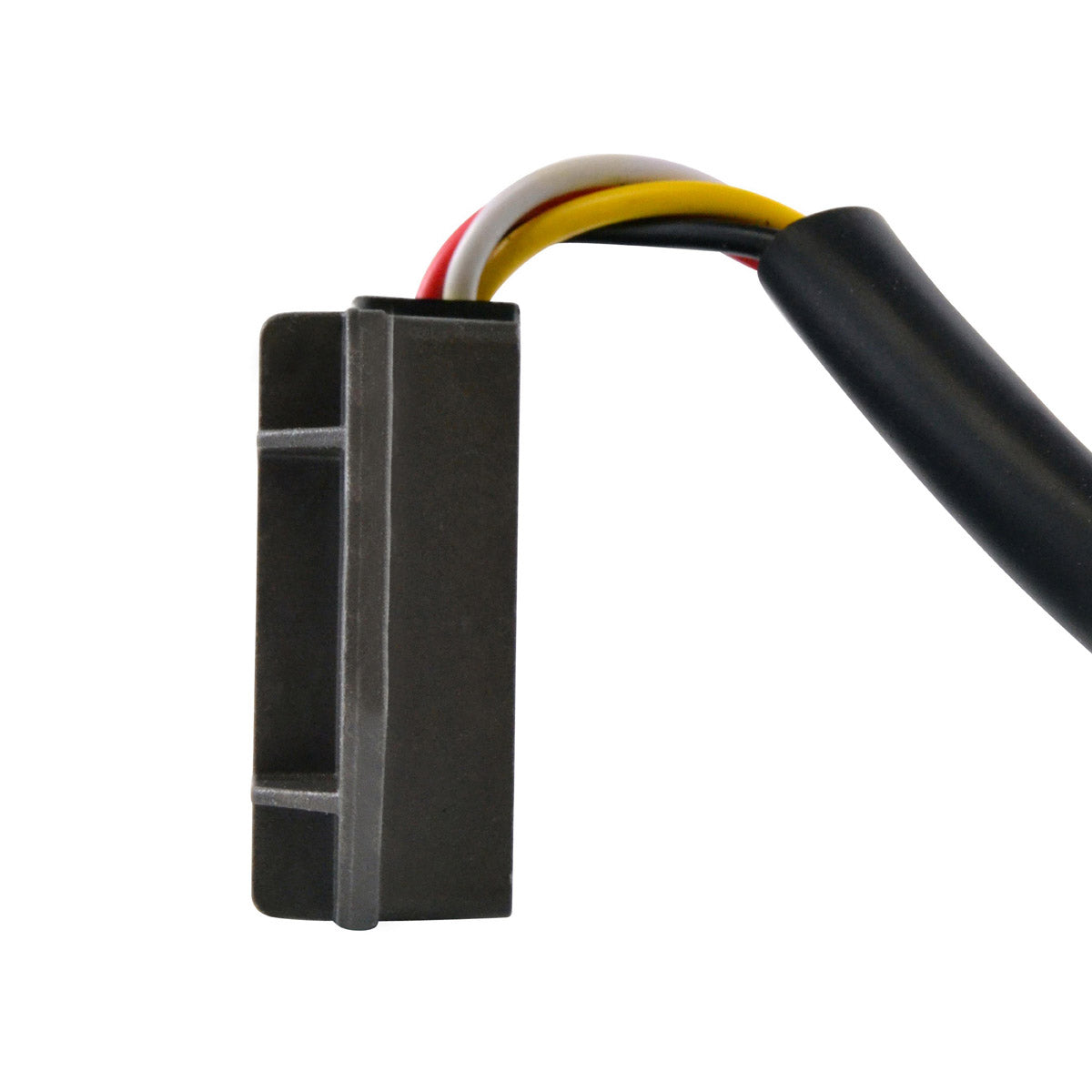

A brand new aftermarket voltage regulator rectifier for the Yamaha WR enduro models, supplied as a direct replacement to your original unit. Installation is plug-and-play and direct fit with no assembly required, so the old regulator unbolts and this one takes its place on the same mounting centres using the same connections. The unit converts the alternator AC output to DC and holds the charging voltage steady, which is what keeps the battery, lighting and engine management running as intended.

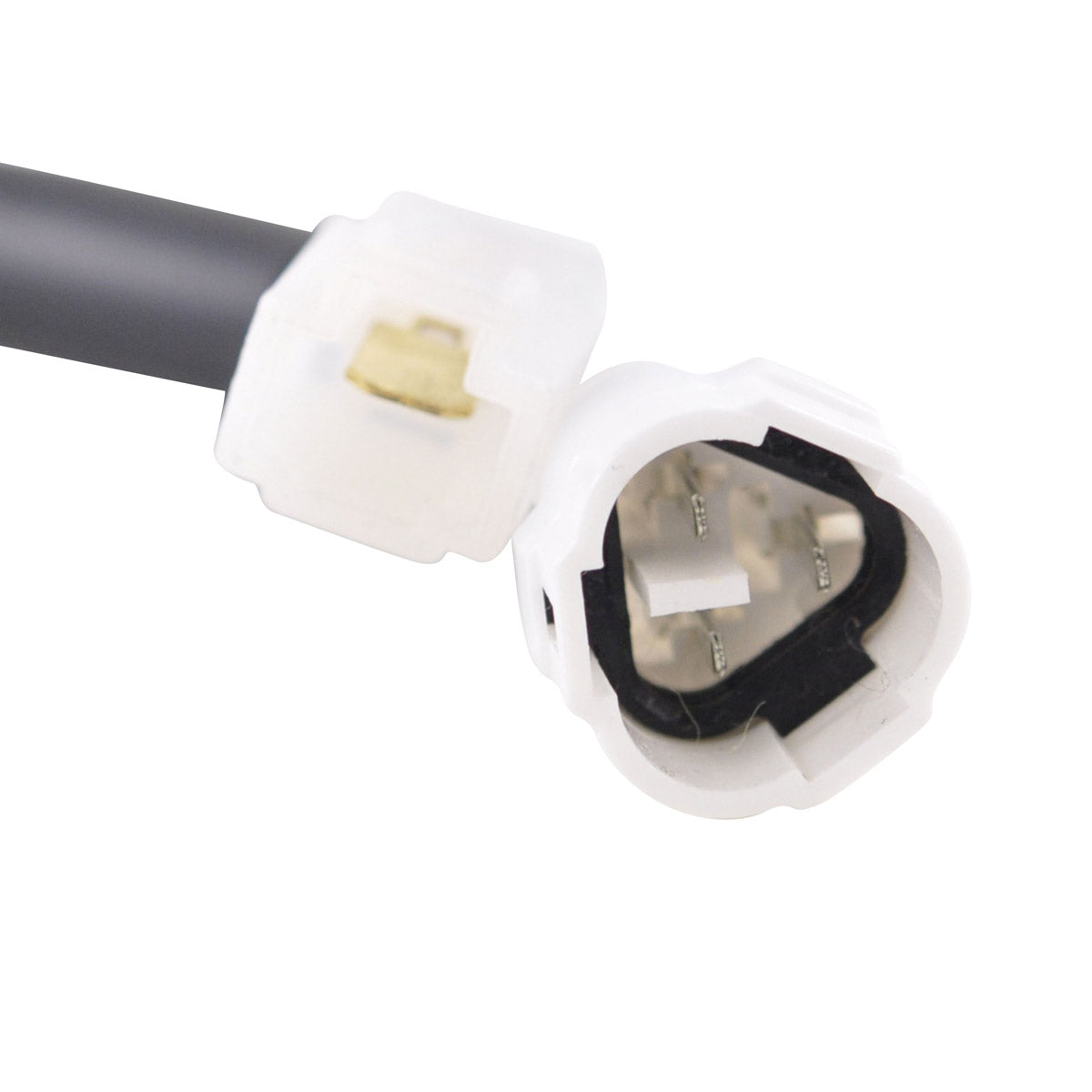

A higher grade of electric components is used throughout and the quality exceeds the OEM equipment. All shipped products are tested. Also included is the opposite connector for the main harness side, because those plugs are often melted, corroded or defective and are a major cause of repetitive electrical issues, so both halves of a heat damaged connection can be renewed in one go. The item pictures are accurate, so if in doubt compare the item against your original part before fitting. The part reference is RM30330.
Key Features
- Brand new aftermarket voltage regulator rectifier
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- No assembly required
- Higher grade of electric components
- Quality exceeds the OEM equipment

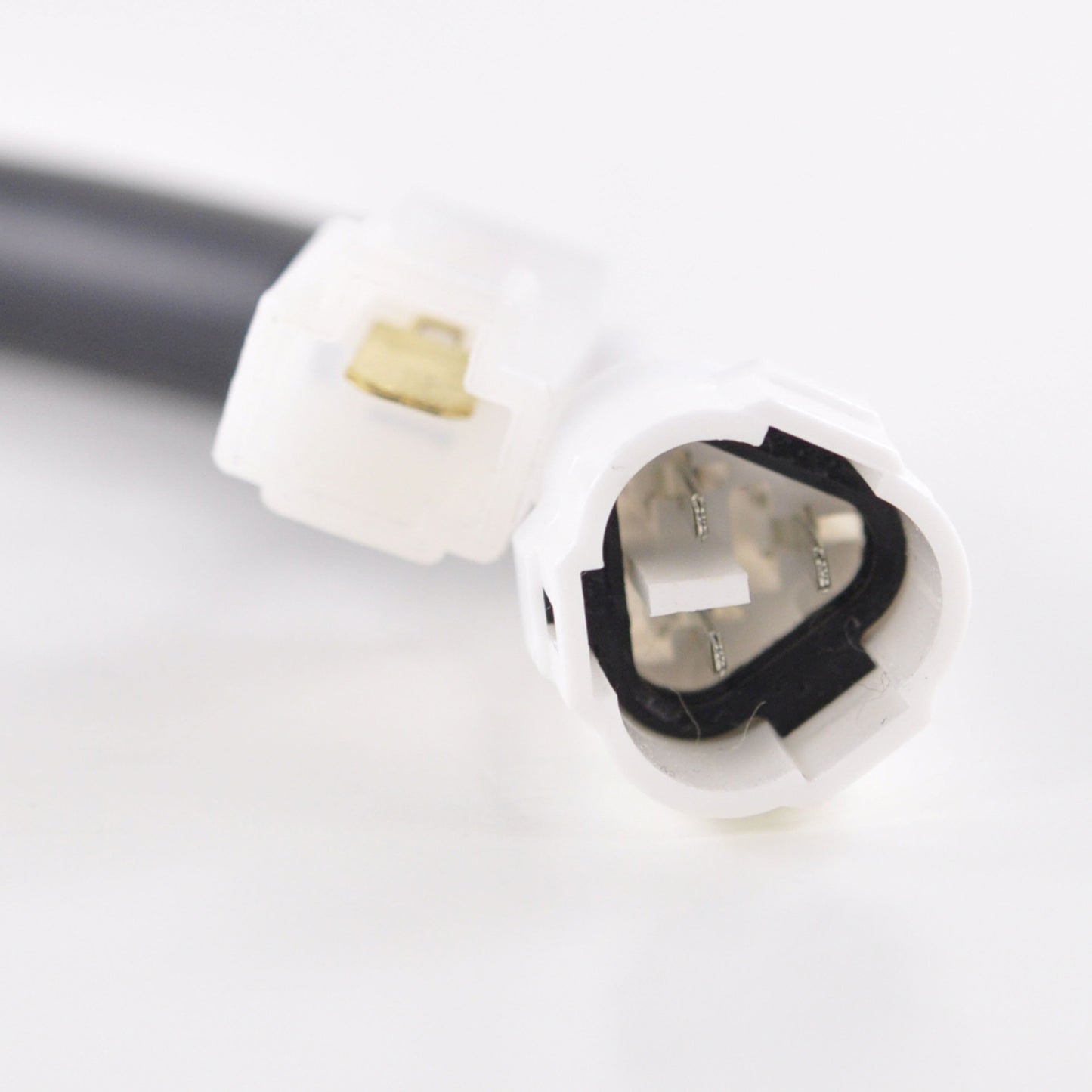

- Opposite connector for the main harness side included
- All shipped products are tested
Technical Specs
| Specification |
Detail |
| Part number |
RM30330 |
| Width |
43 mm |
| Length |
37 mm |
| Height |
16 mm |
| Wire length |
142 mm |
| Fixation holes, centre to centre |
60 mm |
| Number of plugs |
2 |
| Number of pins |
4 |
| Number of wires |
4 |
| Minimum charging voltage |
14.5 V +/- 0.5 V |
| Maximum charging current |
50 A / 500 W |
| Open circuit voltage |
Less than 15 V |
| Operation temperature |
Minus 20 to 85 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Yamaha WR250F |
2007-2013 |
| Yamaha WR450F |
2007-2013 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 5UM-81960-E0-00 |
Yamaha |
Frequently Asked Questions
Does it need any modification to fit?
No. It is a plug-and-play, direct fit replacement with no assembly required. The fixation holes are 60 mm apart centre to centre, matching the original, and the four wires and two plugs follow the standard layout.
What is included?
The voltage regulator rectifier and the opposite connector for the main harness side, so a burnt or corroded plug on the bike can be replaced at the same time.
How do I know the original regulator has failed?
Measure the voltage across the battery with the engine running. A working system should reach at least 14.5 V. If it sits below that the battery is being drained rather than charged, and if it climbs above 15 V the regulator has lost control and is overcharging. On a WR the first symptom is often a battery that will not turn the engine over after a couple of rides, or headlight brightness that rises and falls with revs.
How much output can it handle?
The unit is rated to a maximum charging current of 50 A or 500 W, holds a minimum charging voltage of 14.5 V plus or minus 0.5 V, and is specified to operate from minus 20 to 85 degrees Celsius.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
