Voltage Regulator Rectifier for Yamaha YFM 225, 250 Moto-4 & YFM 350 Big Bear 1986-1995
Voltage Regulator Rectifier for Yamaha YFM 225, 250 Moto-4 & YFM 350 Big Bear 1986-1995
SKU:RM30Y18
Free shipping over £150. Terms apply
Couldn't load pickup availability
Voltage Regulator Rectifier - RM30Y18
Yamaha YFM 225 Moto-4 - YFM 250 Moto-4 - YFM 350 Big Bear Moto-4 - Warrior - 1986-1995

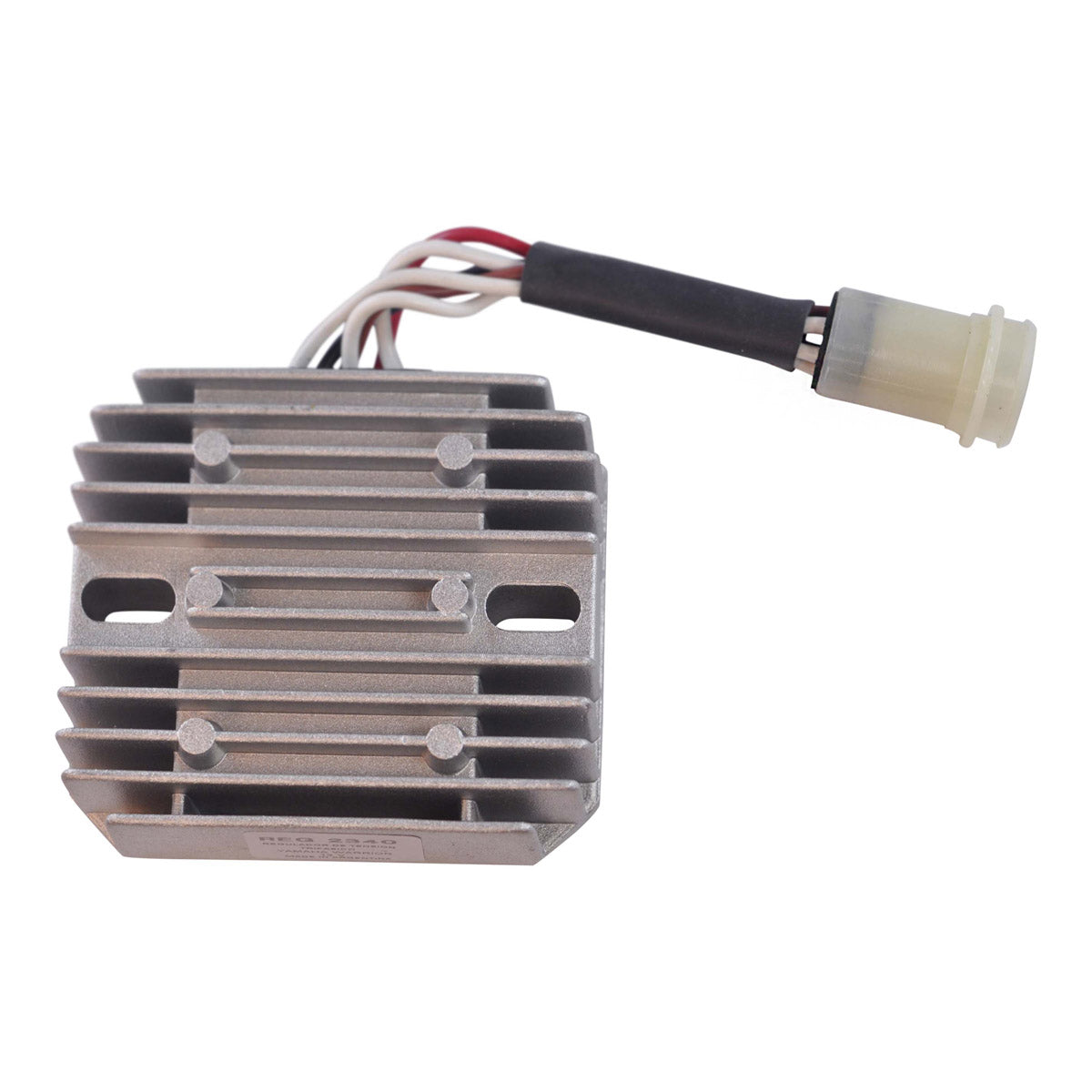

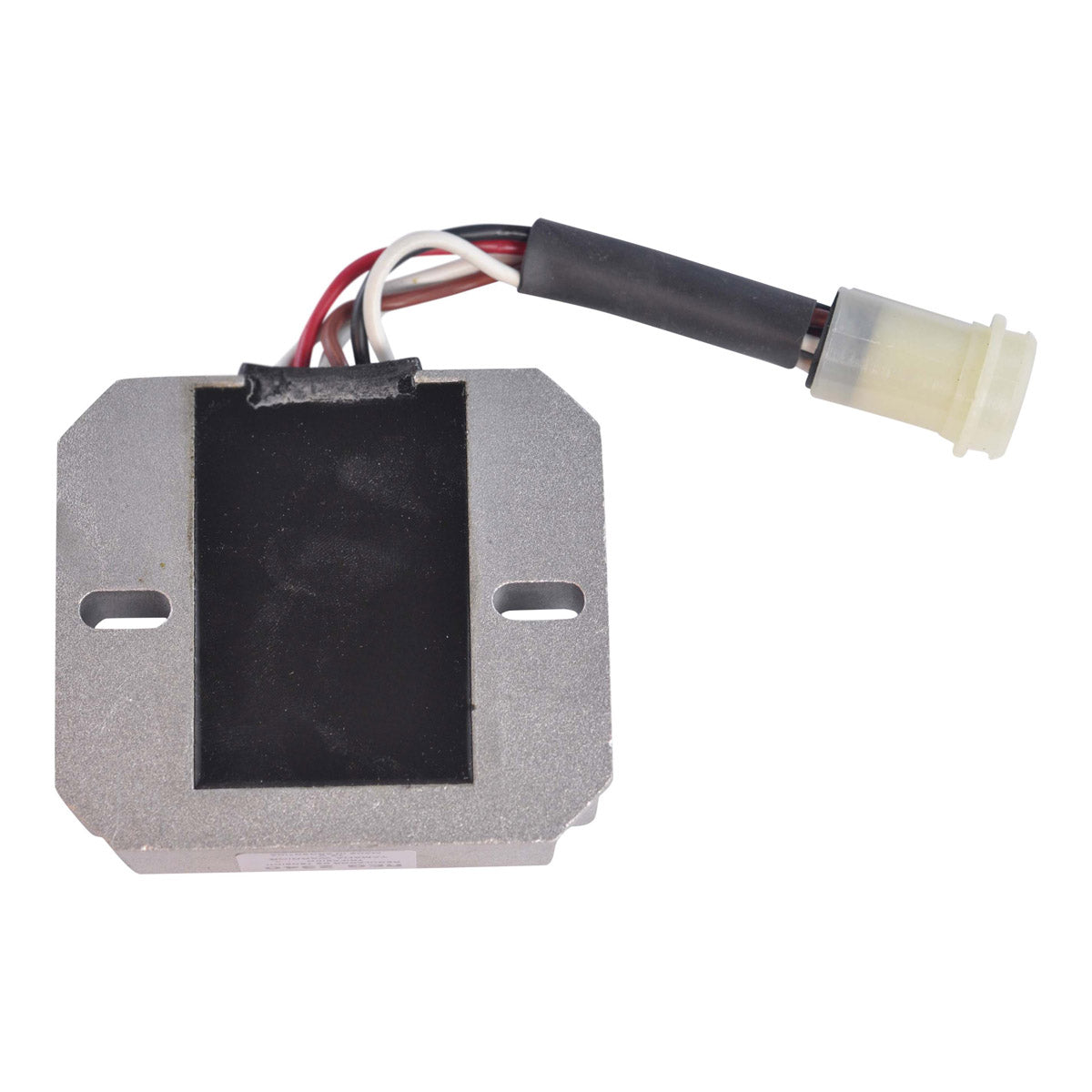

This is a brand new aftermarket voltage regulator rectifier built as a direct replacement for the original Yamaha unit. It is plug-and-play and a direct fit, so installation needs no assembly and no changes to the loom.

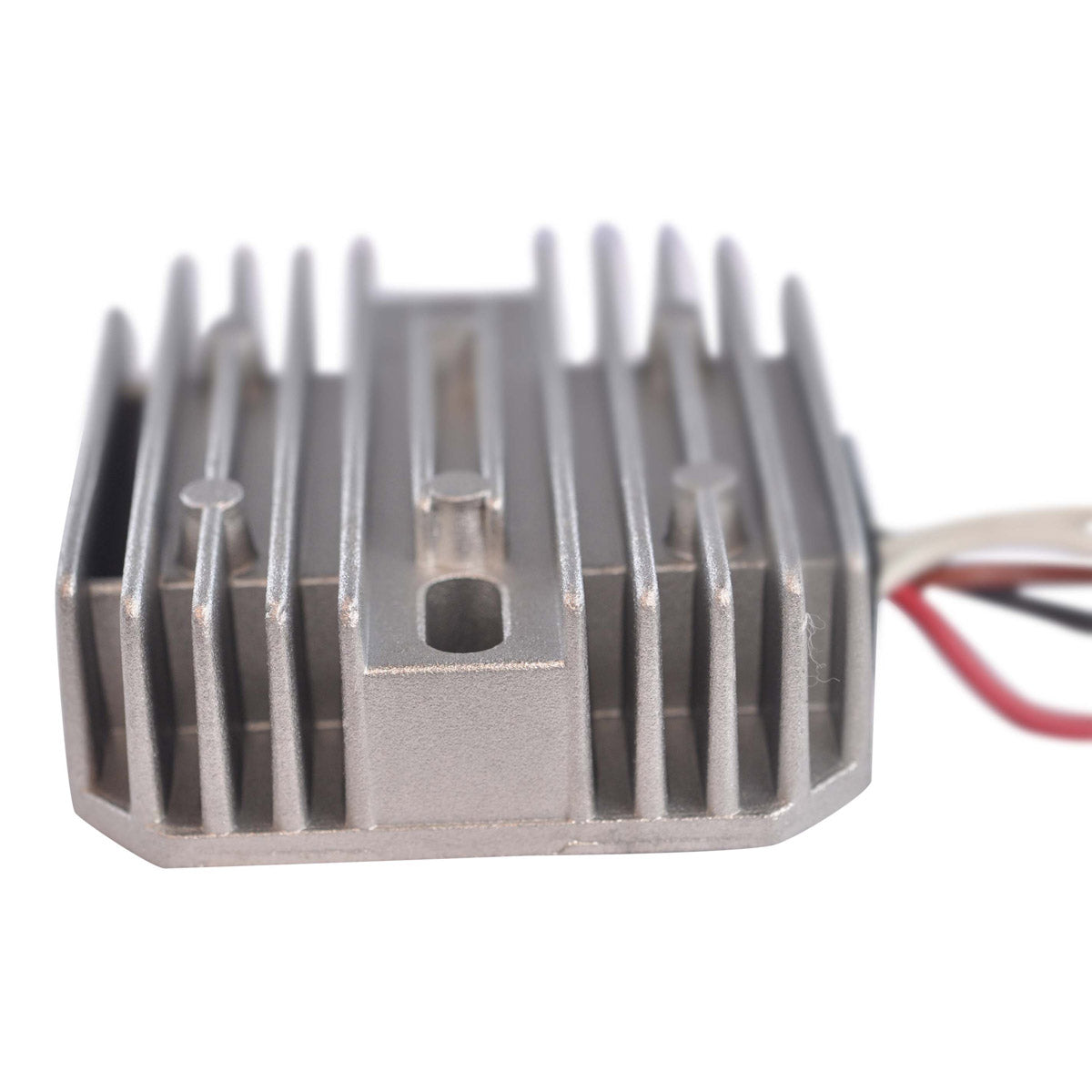

RMSTATOR specify a higher grade of electric components together with an improved heat sink and charging capability that exceeds the original equipment, and every unit is tested before it is shipped. The regulator measures 66 mm wide by 80 mm long by 29 mm high, carries 150 mm of wire, and has 68 mm between the fixation hole centres. Six wires run into a single 6-pin plug.
Key Features
- Direct replacement for the original Yamaha unit
- Plug-and-play, direct fit, easy installation, no assembly required
- Improved heat sink and charging capability over OEM
- Higher grade of electric components

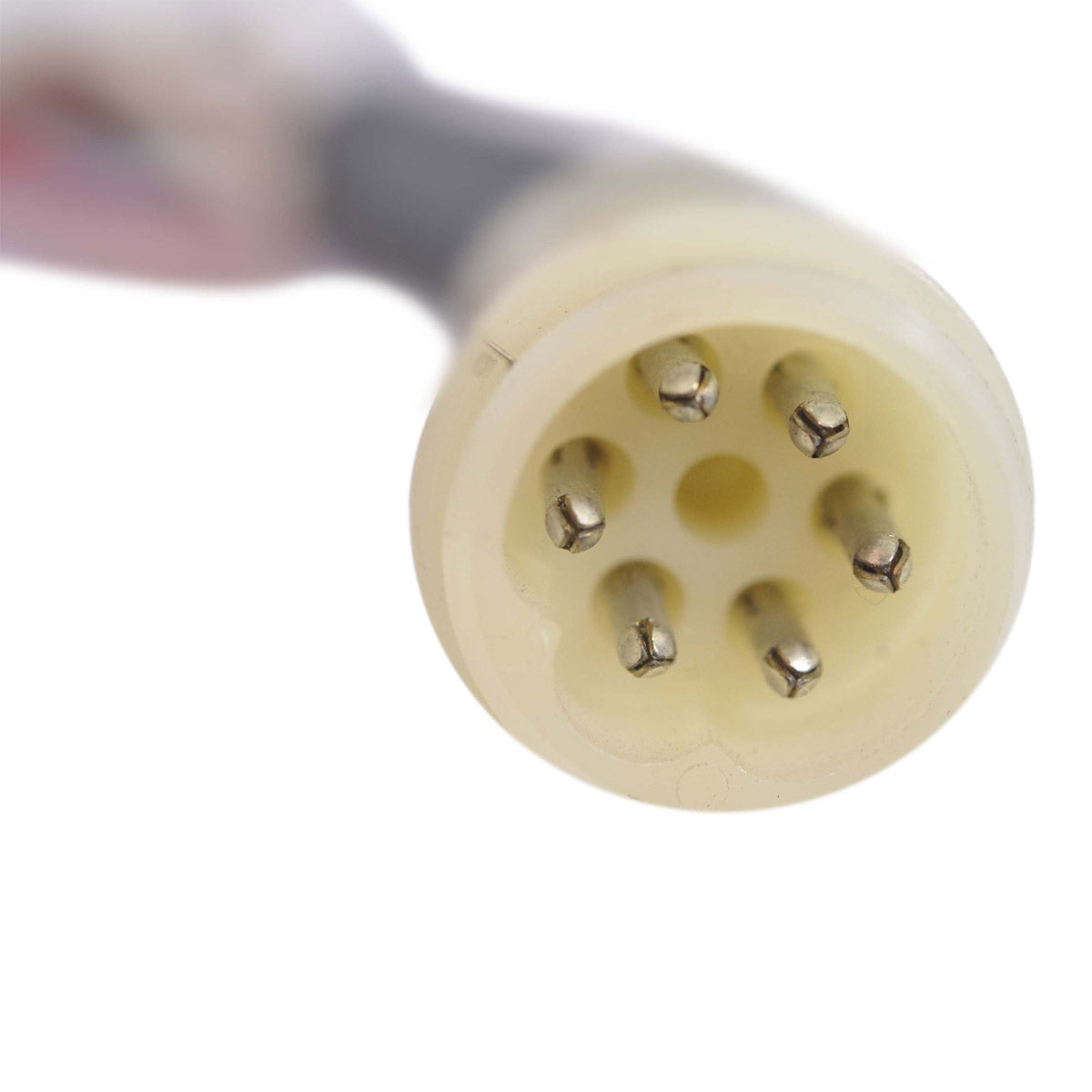

- Single plug with 6 pins, six wires, 150 mm wire length
- Rated to 25 A / 300 W maximum charging current
- Every unit is tested before shipping
Technical Specs
| Specification | Detail |
|---|---|
| Width | 66 mm |
| Length | 80 mm |
| Height | 29 mm |
| Wire length | 150 mm |
| Distance between fixation holes (centre to centre) | 68 mm |
| Number of plugs | 1 |
| Number of pins | 6 |
| Number of wires | 6 |
| Minimum charging voltage | 14.5 V +/- 0.5 V |
| Maximum charging current | 25 A / 300 W |
| Open circuit voltage | < 15 V |
| Operation temperature | -20 C to 85 C |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Yamaha YFM 225 Moto-4 | 1986-1995 |
| Yamaha YFM 250 Moto-4 | 1986-1995 |
| Yamaha YFM 350 Big Bear Moto-4 | 1986-1995 |
| Yamaha YFM 350 Warrior | 1986-1995 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 59V-81960-A0-00 | Yamaha |
| 1YW-81960-A0-00 | Yamaha |
Frequently Asked Questions
Will this fit without modifying the wiring?
Yes. It is a direct fit, plug-and-play replacement using the original single 6-pin plug, so no cutting or splicing is needed on the machines listed. Confirm the OEM number on your existing unit against the cross reference table before ordering.
What is included?
The voltage regulator rectifier with 150 mm of wire and its 6-pin plug. RMSTATOR do not list any additional hardware in the box for this part.
How do I know my old regulator has failed?
On these Moto-4 and Big Bear machines a failed regulator usually shows as a battery that keeps going flat, or as charging voltage that climbs high enough to boil the battery. With this unit fitted the system holds a minimum charging voltage of 14.5 V +/- 0.5 V and an open circuit voltage below 15 V.
How is this better than the original part?
RMSTATOR use a higher grade of electric components and an improved heat sink, which raises the charging capability above the original specification. Heat is the usual reason the factory unit fails on these quads.
