Starter Relay Solenoid for Yamaha WaveRunner FX, GP 800 & Super Jet 700 2002-2017
Starter Relay Solenoid for Yamaha WaveRunner FX, GP 800 & Super Jet 700 2002-2017
SKU:RMS090-101732
Free shipping over £150. Terms apply
Couldn't load pickup availability
Starter Relay Solenoid for Yamaha WaveRunner and Sport Boats
Super Jet 700, AR 210, GP 800, WaveRunner FX 1000, XL 700, SR 230 and XLT 800 A - 2002-2017

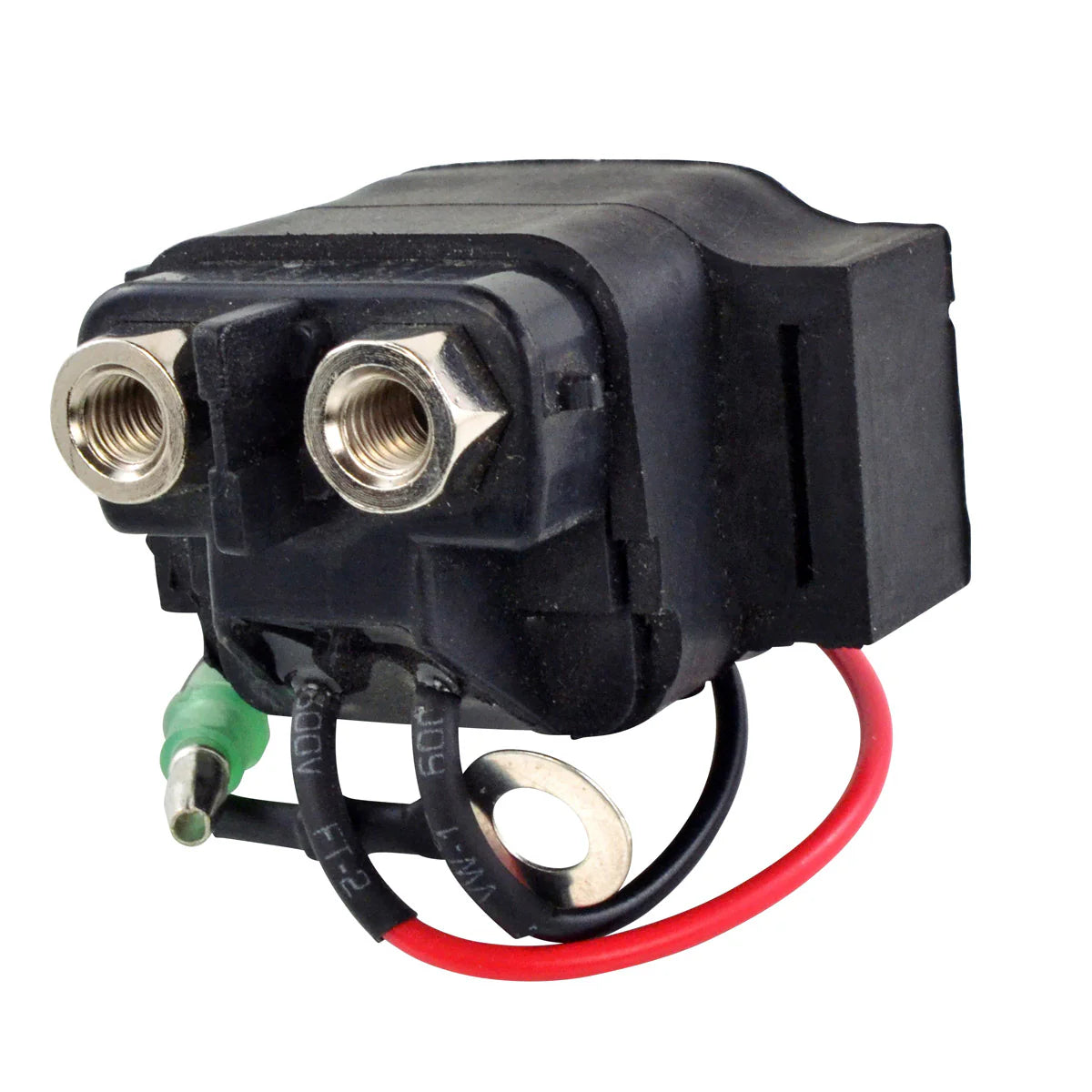

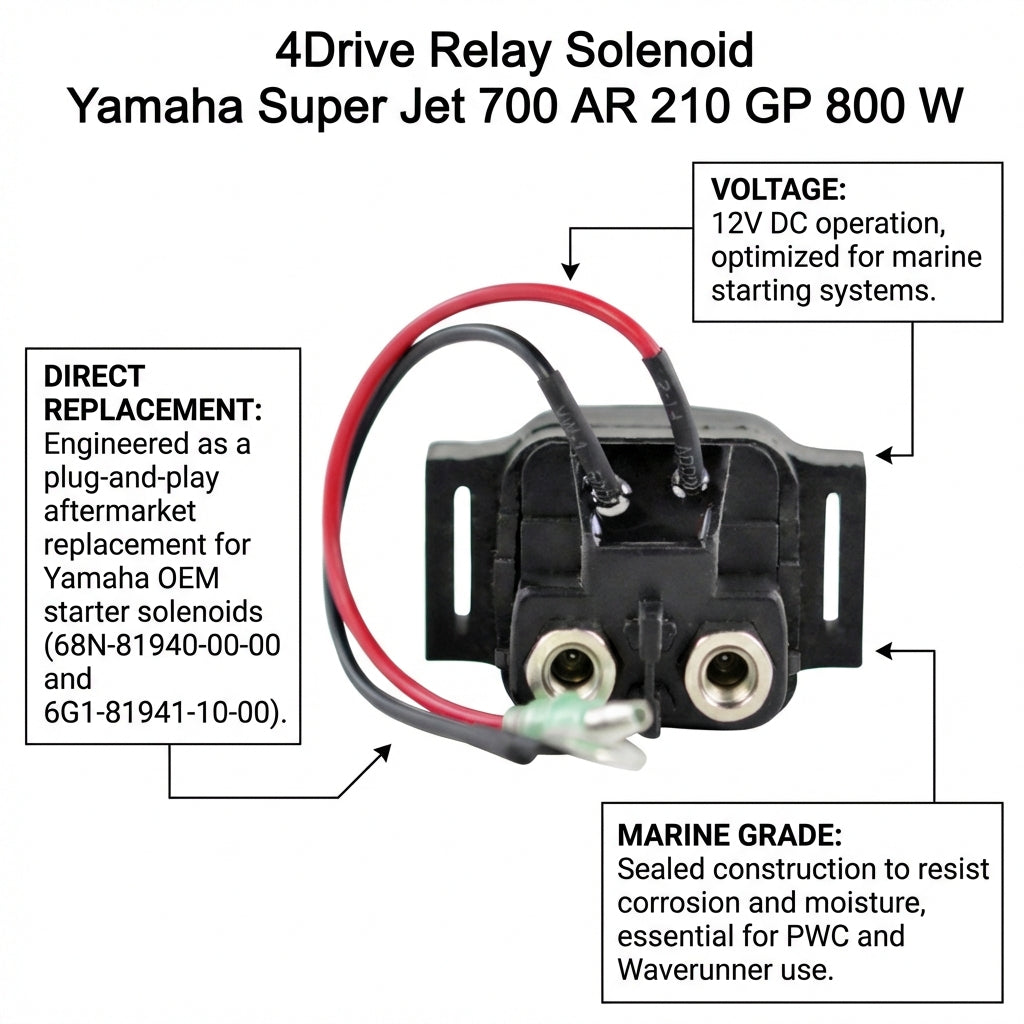

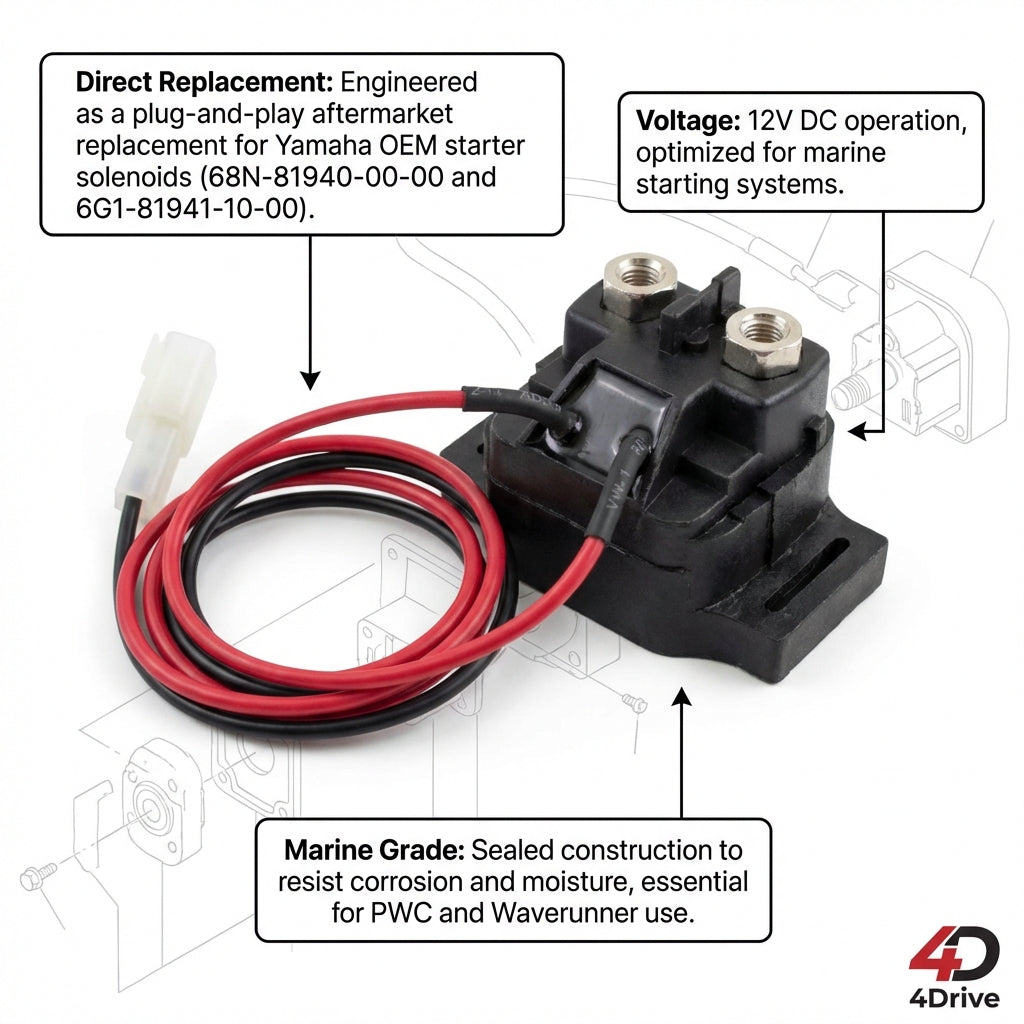

This is a brand new starter relay solenoid switch for Yamaha personal watercraft and sport boats, supplied under part number RMS090-101732. The starter relay is the heavy-duty switch that sits between the battery and the starter motor: when you press the start button, the small control current energises the internal coil, which closes a set of high-current contacts and passes full battery current to the starter.

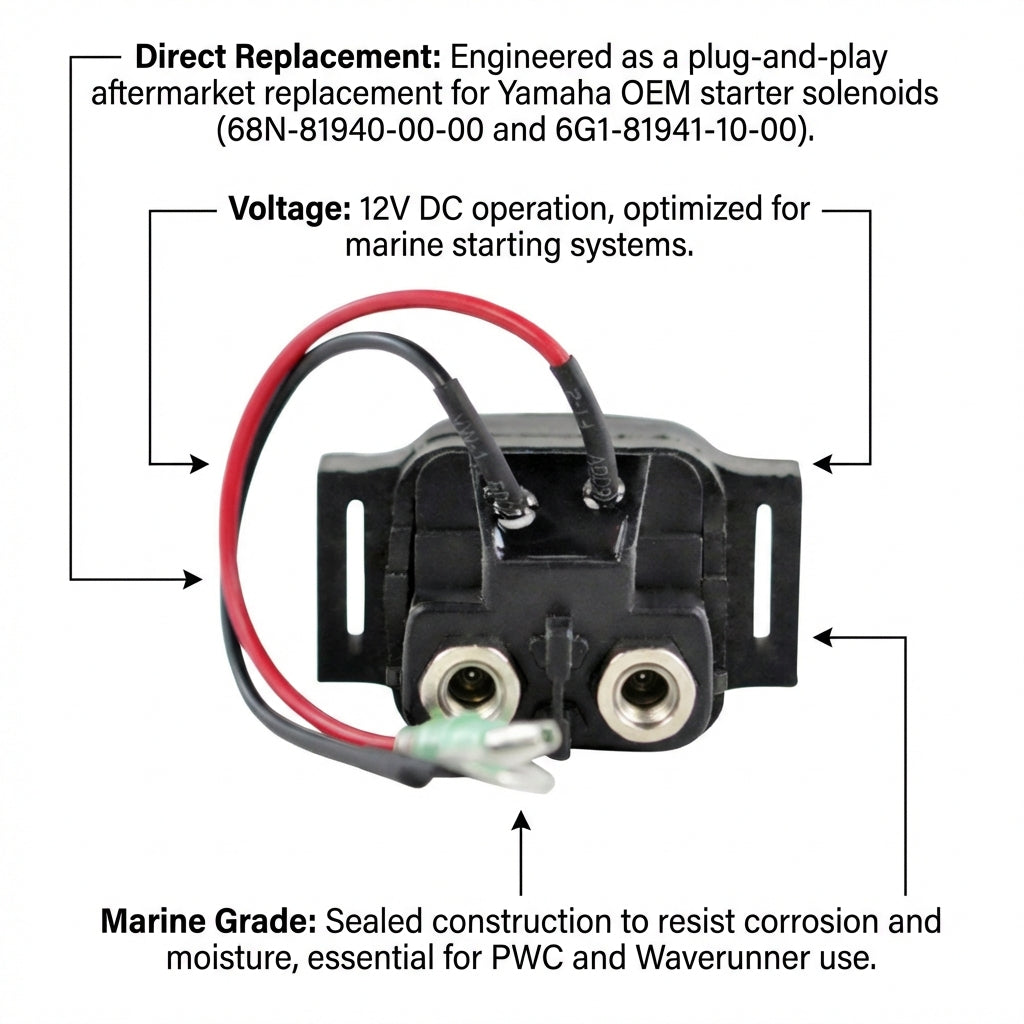

The quality of this unit exceeds the OEM equipment and every relay is tested before it is shipped. It is built to the same case dimensions and the same two-terminal, single-plug layout as the original part, so it drops into the factory mounting position and reconnects to the standard harness. All of the item pictures are accurate, so if you are in any doubt do not hesitate to compare the item shown against your original part before ordering. It replaces Yamaha part numbers 6B6-81940-00-00 and 68N-81940-00-00.
Key Features
- Brand new starter relay solenoid switch - not a reconditioned unit
- Quality exceeds the OEM equipment
- Every unit is tested before it is shipped

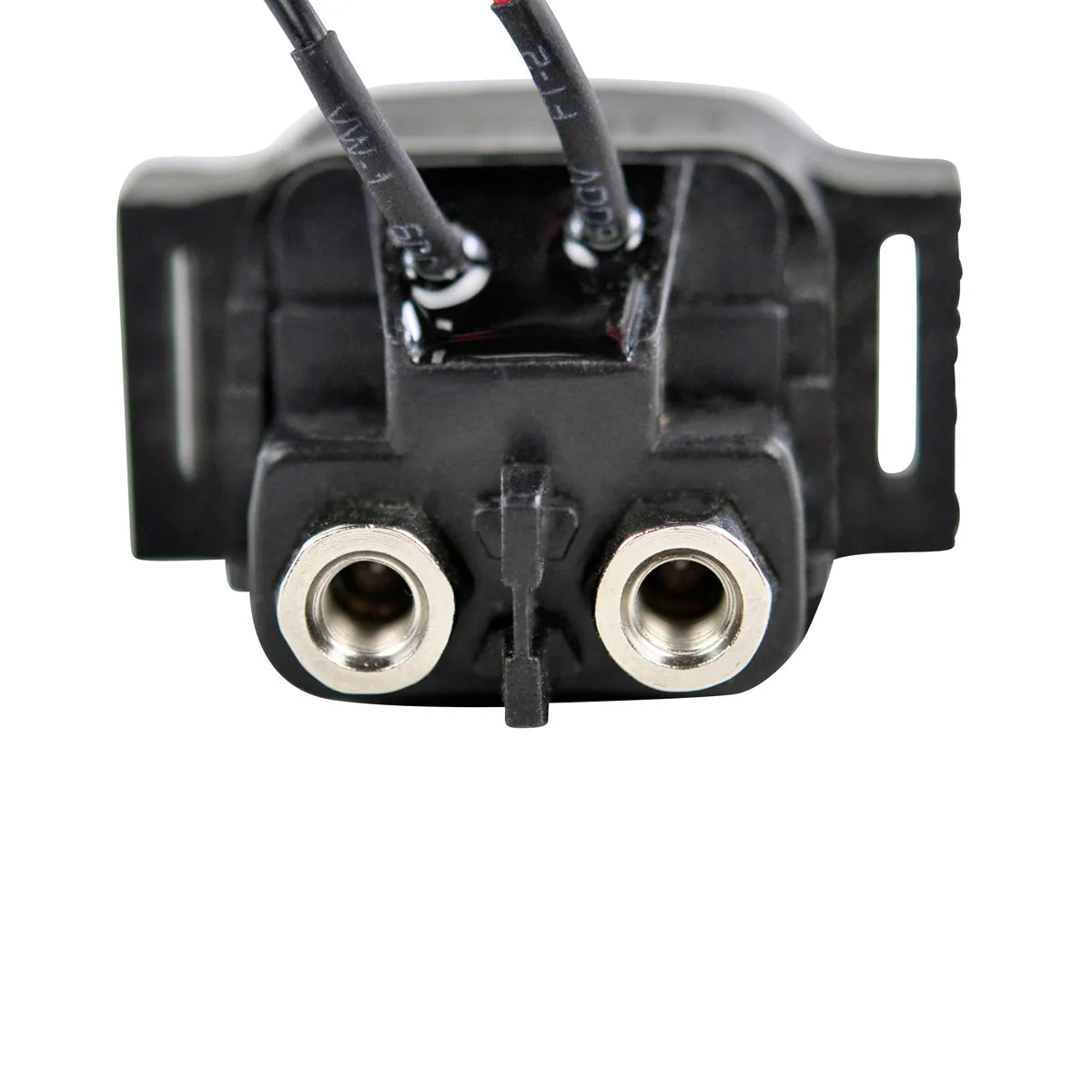

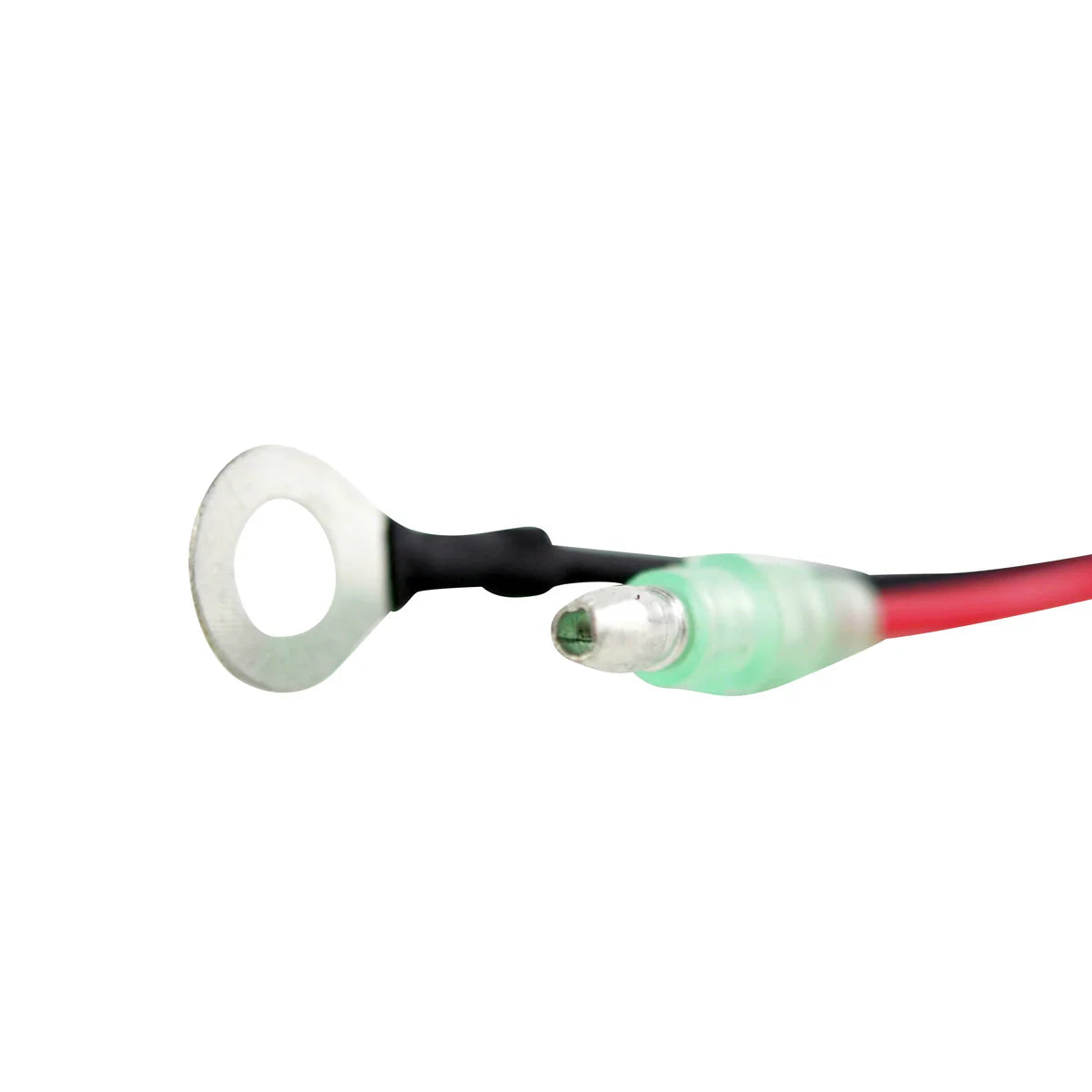

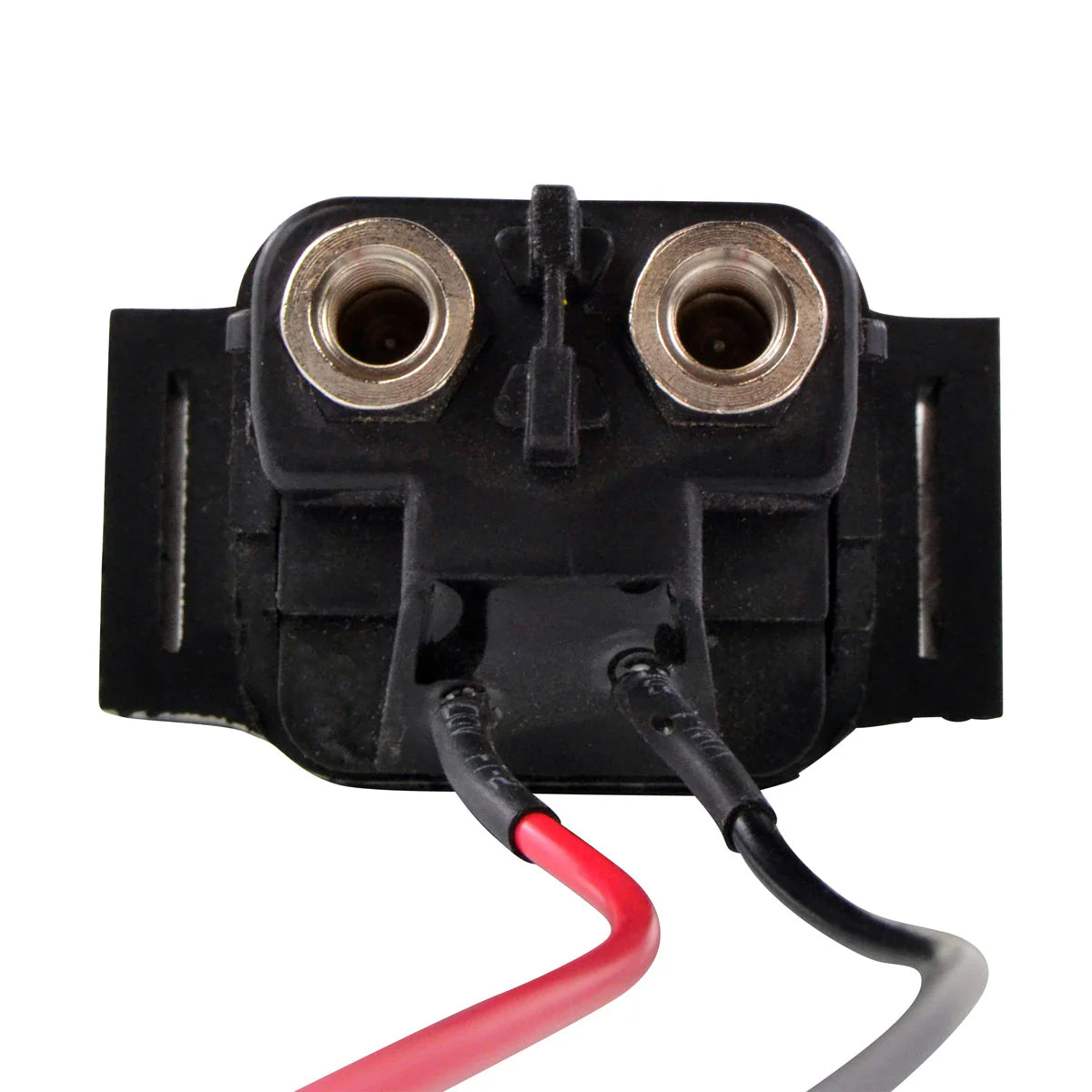

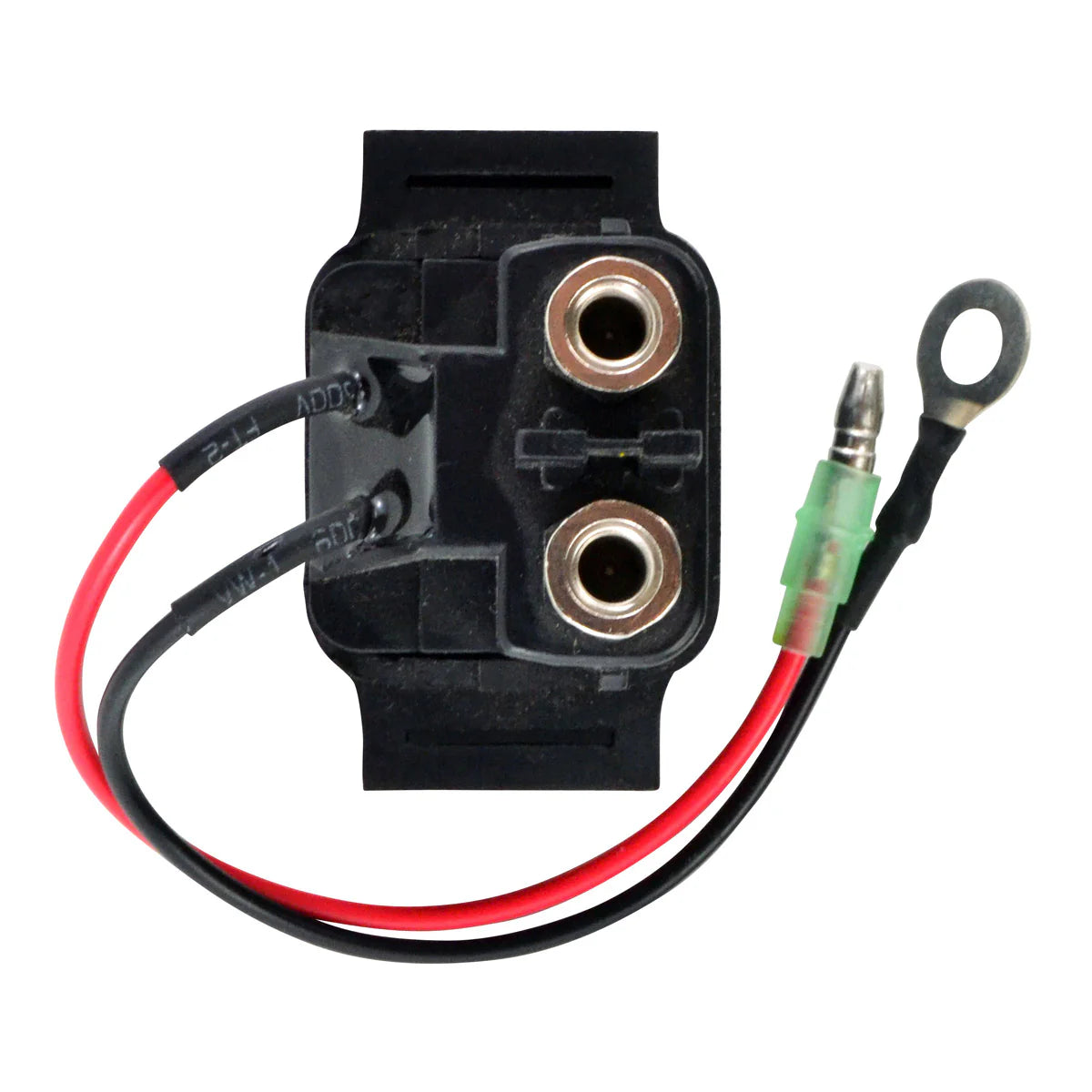

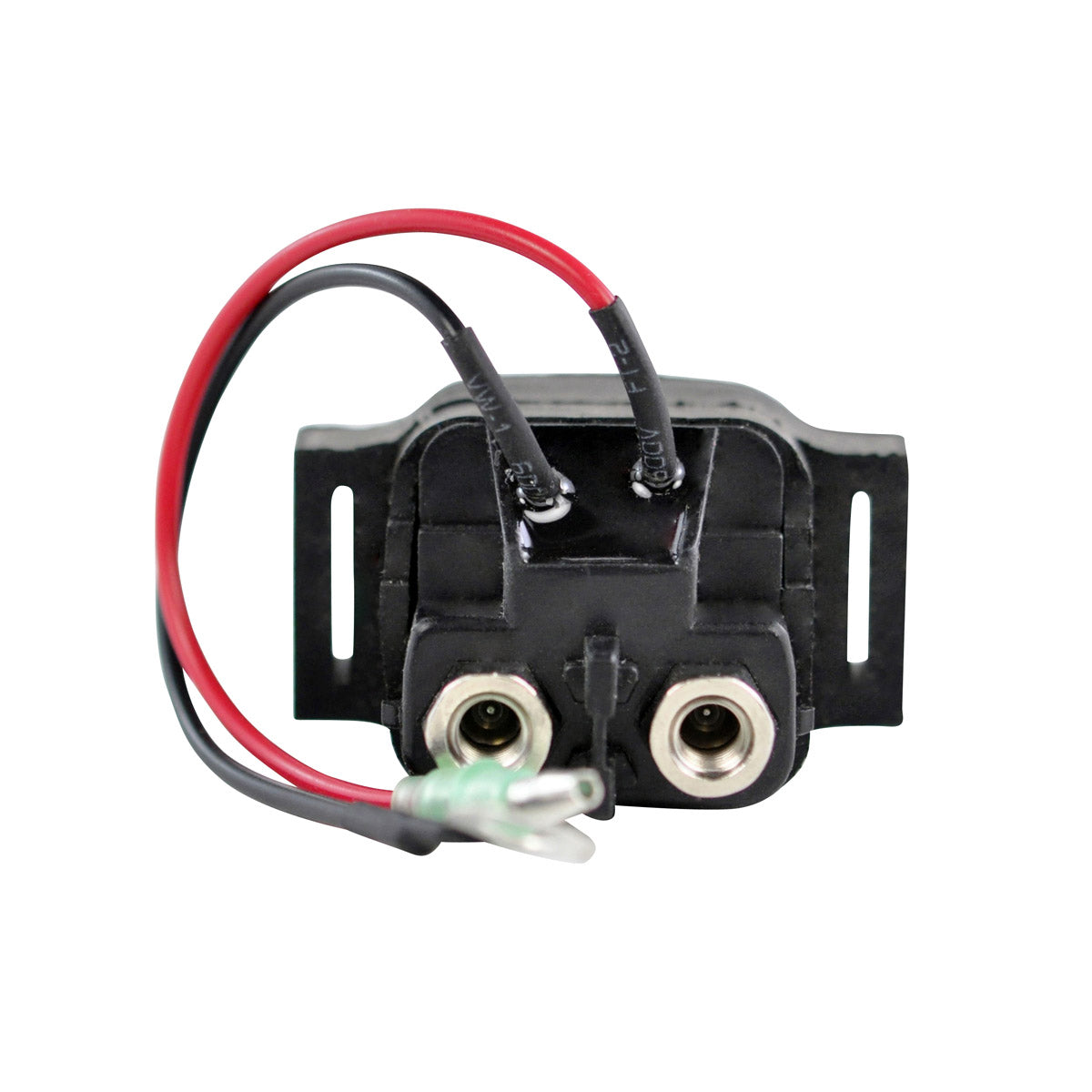

- Two terminals, two wires and a single control plug, matching the original layout
- Direct fit to the factory mounting position
- Replaces Yamaha 6B6-81940-00-00 and 68N-81940-00-00
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RMS090-101732 |
| Height | 54 mm |
| Length | 56 mm |
| Width | 53 mm |
| Number of wires | 2 |
| Number of terminals | 2 |
| Number of plugs | 1 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Yamaha Super Jet 700 | 2002-2017 |
| Yamaha AR 210 | 2002-2017 |
| Yamaha GP 800 | 2002-2017 |
| Yamaha WaveRunner FX 1000 | 2002-2017 |
| Yamaha XL 700 | 2002-2017 |
| Yamaha SR 230 | 2002-2017 |
| Yamaha XLT 800 A | 2002-2017 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 6B6-81940-00-00 | Yamaha |
| 68N-81940-00-00 | Yamaha |
Frequently Asked Questions
Will this fit without modification?
Yes. The relay carries the same two terminals, two wires and single control plug as the original and matches the factory case dimensions of 54 mm high by 56 mm long by 53 mm wide, so it mounts and reconnects using the standard fixings and harness. Check the OEM number on your existing relay reads 6B6-81940-00-00 or 68N-81940-00-00 before ordering.
What is included?
You receive one brand new starter relay solenoid switch, tested before dispatch. Mounting hardware and cables are re-used from your original installation.
How do I know my starter relay has failed?
The classic sign is a single loud click from the relay when you press start, with the engine not turning over, even though the battery is fully charged. Other symptoms are a starter that only engages intermittently, or no click and no response at all. Check the battery and the main cable connections first, since a poor earth produces the same symptoms.
My craft is not listed by name - how do I check?
Yamaha used this relay across a wide spread of watercraft and sport boat models. The reliable check is the part number stamped on the relay body itself: if your original reads 6B6-81940-00-00 or 68N-81940-00-00, this unit is the correct replacement regardless of the model name.
