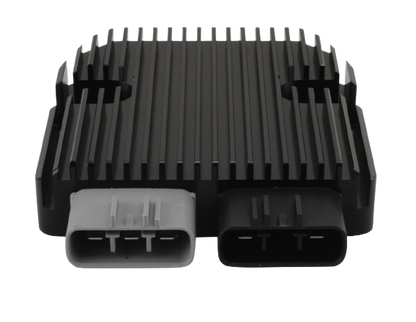

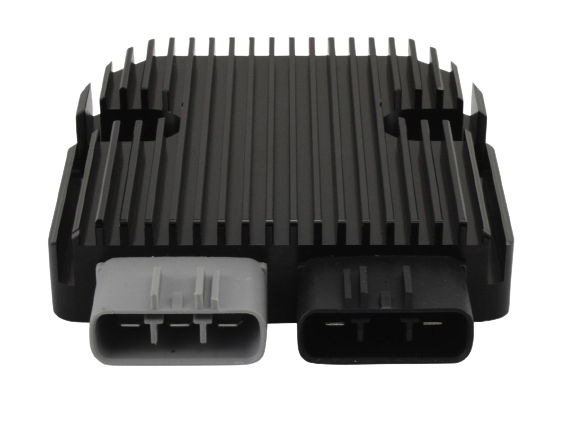

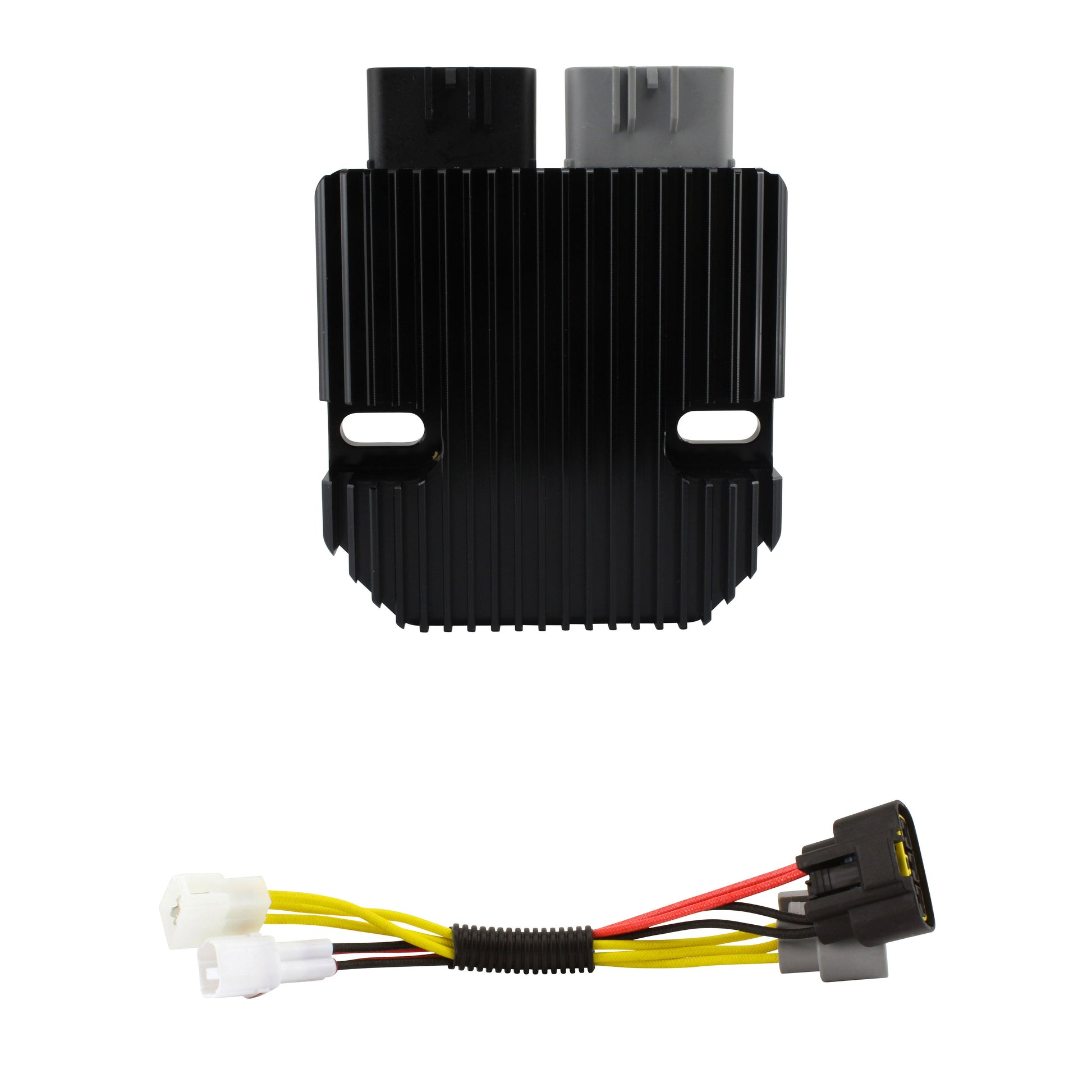

Voltage Regulator for Suzuki Boulevard VZ / VL 800, GSXR 600 / 700 & V-Strom 650
REVOLT series - 2001-2019 - Part RMS020-107861 - Replaces 32800-18H00

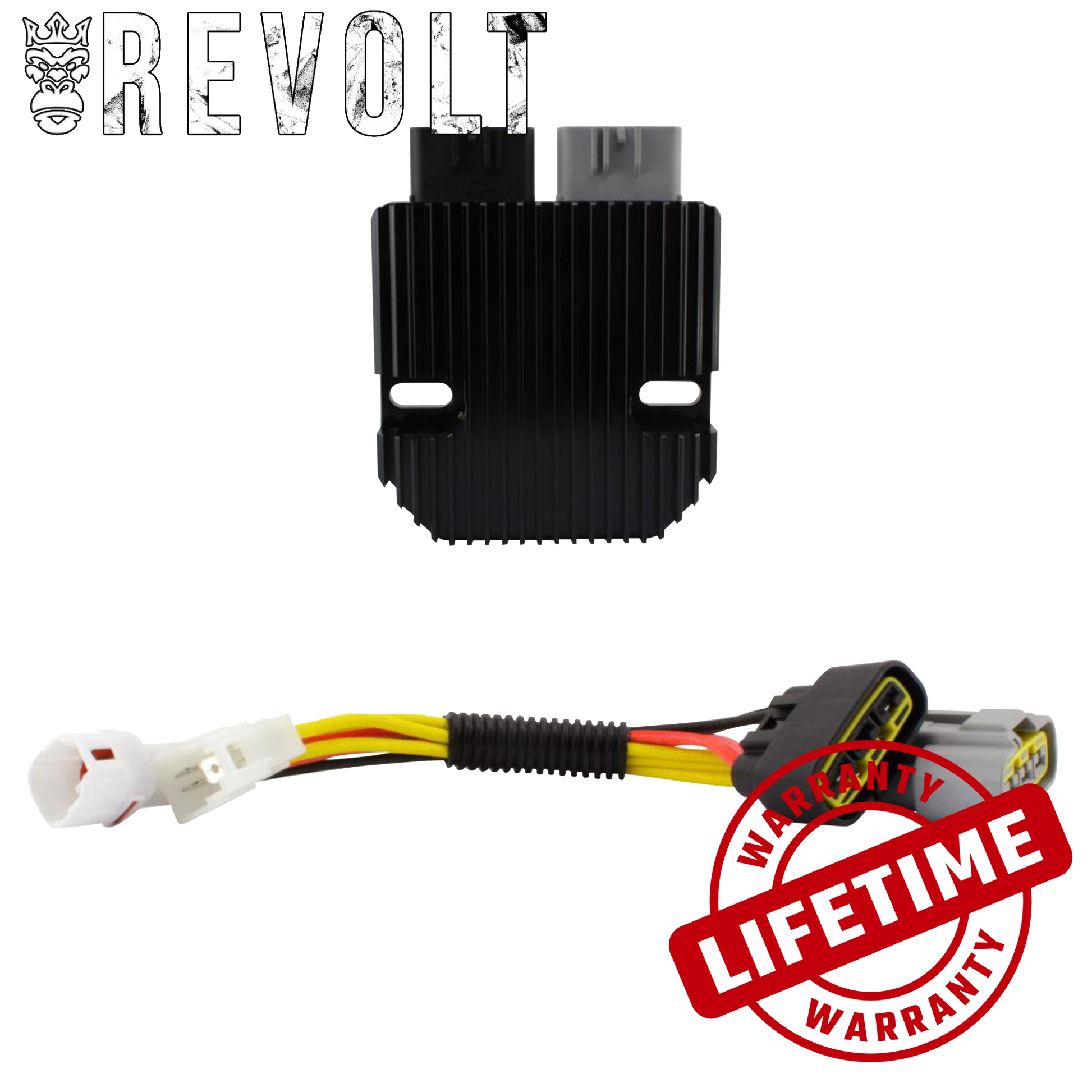

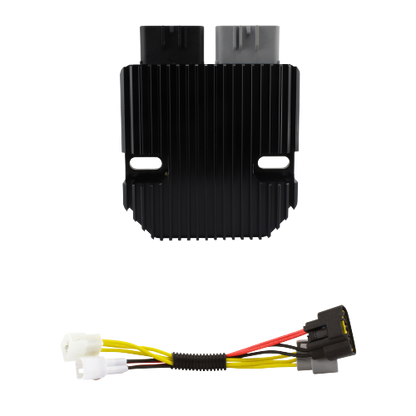

This is a brand new REVOLT voltage regulator, built to replace the failed or failing original unit on your Suzuki. REVOLT was developed to move past 30-year-old regulator technology. Its redesigned rectifier addresses the weak rectifier design that causes 85 per cent of voltage regulator failures in powersports applications, rather than only improving the regulator side of the circuit as most modern replacements do.

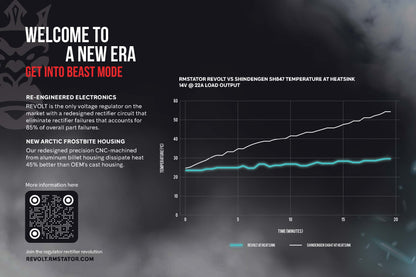

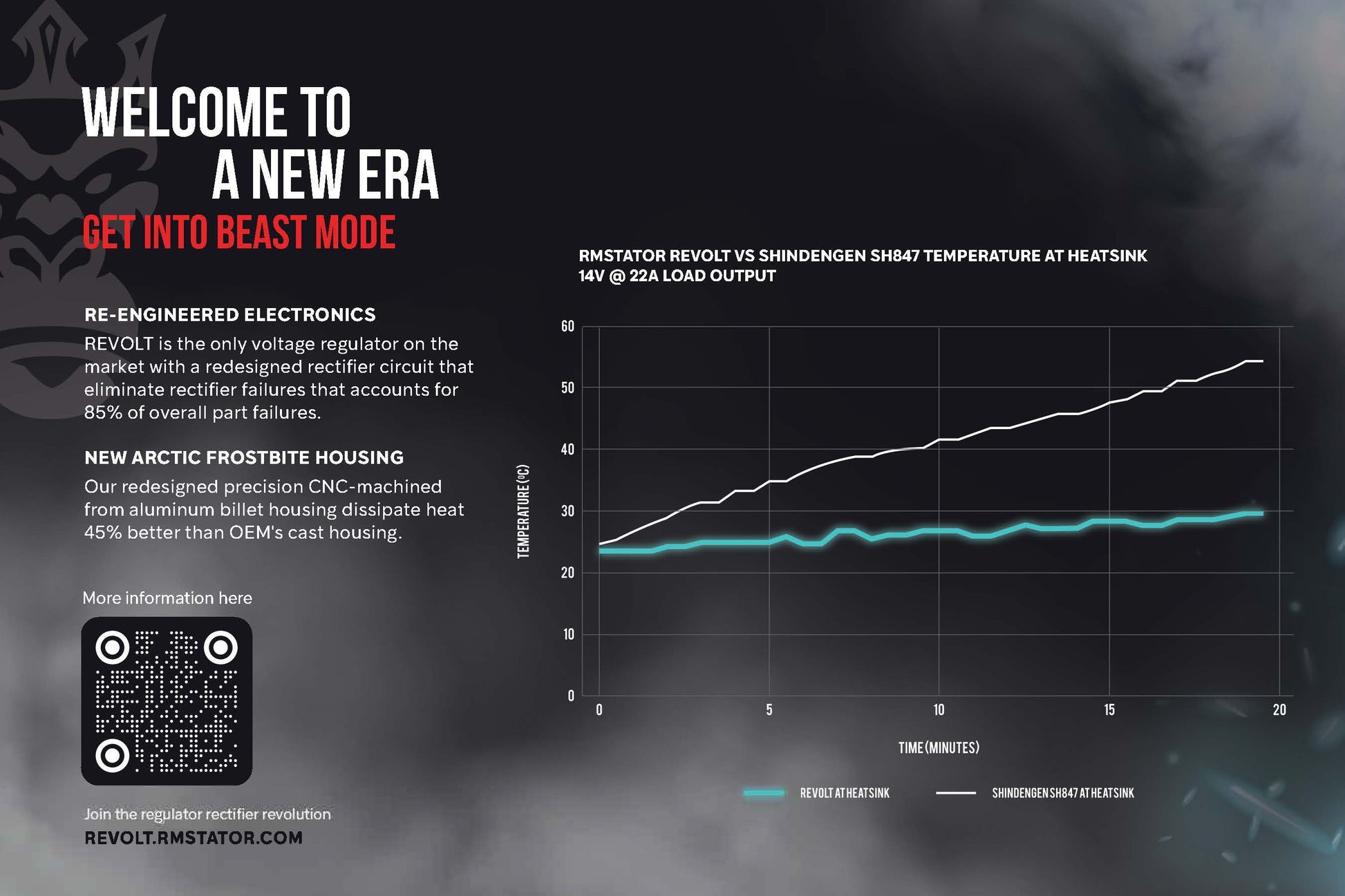

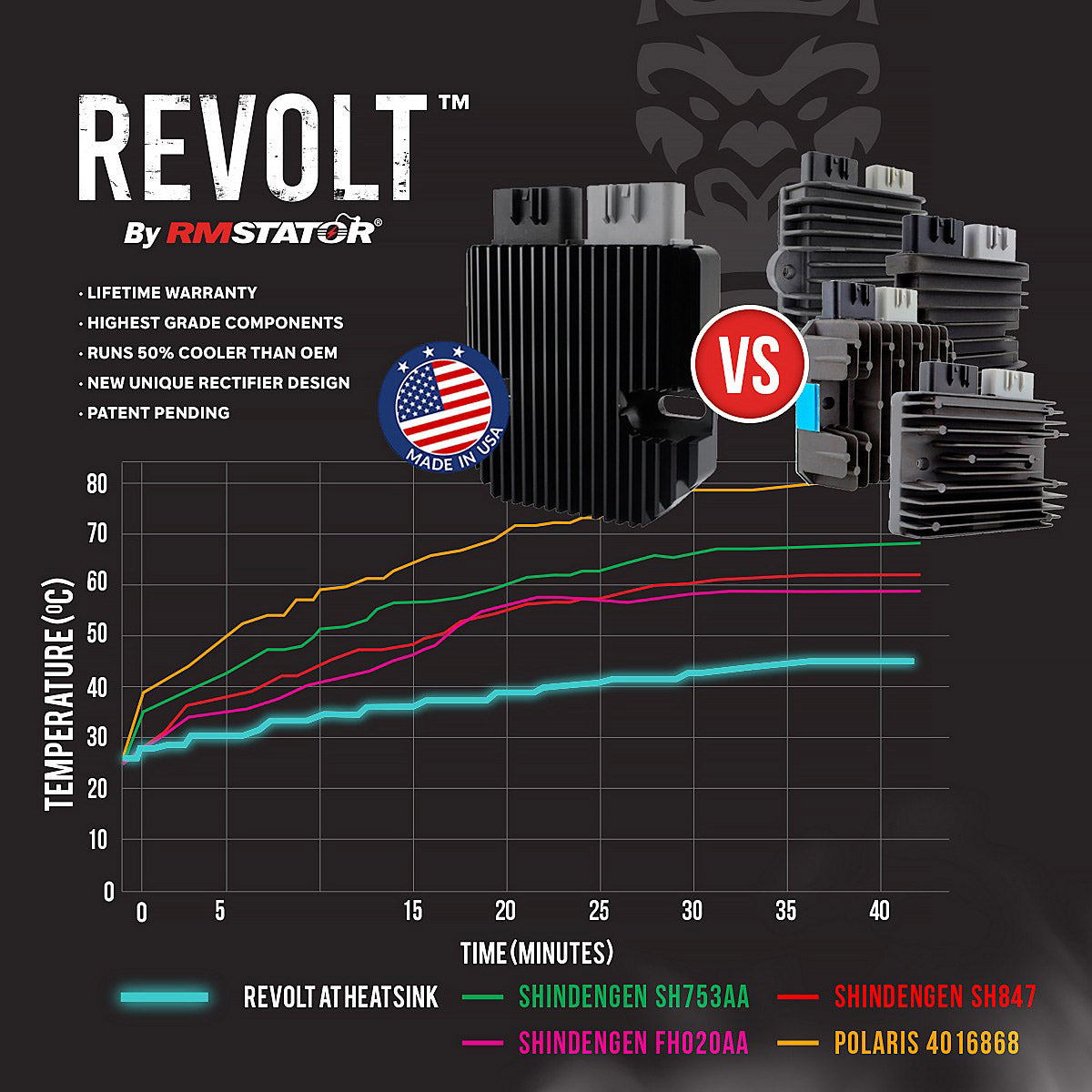

Two years of research and development, together with a careful choice of top graded performance components, allow REVOLT to run substantially cooler than the best OEM and competitor products on the market - around 50 per cent cooler than OEM. The proprietary Arctic Frostbite housing uses increased and deeper fins and is CNC-machined from a high-quality aluminium billet, dissipating heat 45 per cent faster than OEM for optimal heat transfer from the internal components to fresh air. REVOLT is engineered, designed and manufactured in North America under strict quality control standards, and is backed by a limited lifetime warranty.
Key Features
- Runs approximately 50 per cent cooler than the OEM unit
- Redesigned rectifier section, the part responsible for 85 per cent of regulator failures

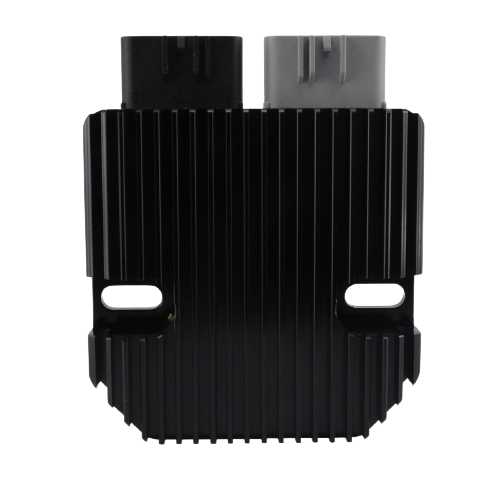

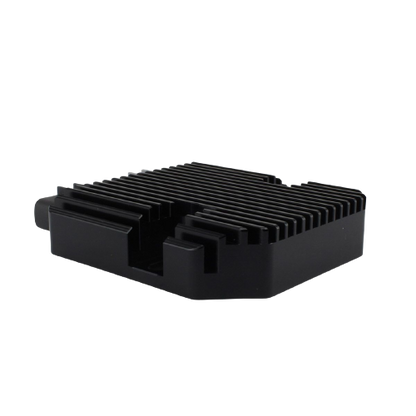

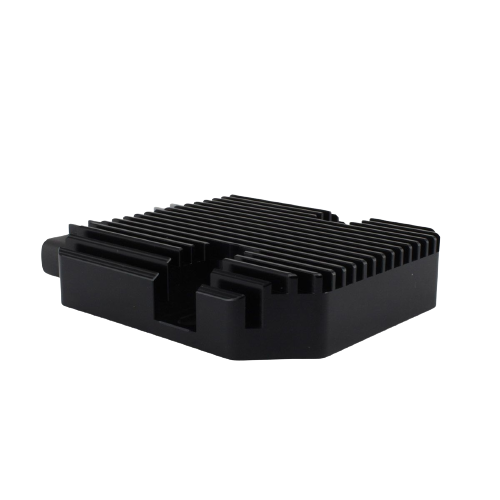

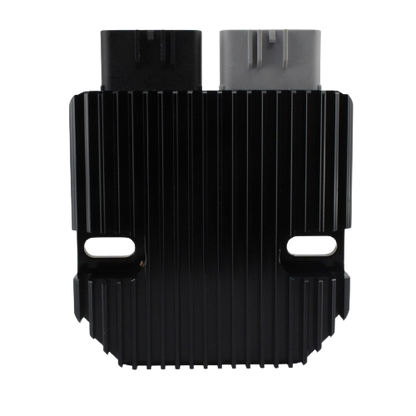

- Arctic Frostbite CNC-machined billet aluminium housing with deeper fins
- Dissipates heat 45 per cent faster than OEM
- Maximum charging current of 50 A / 500 W
- Engineered, designed and manufactured in North America
- Backed by a limited lifetime warranty from the manufacturer

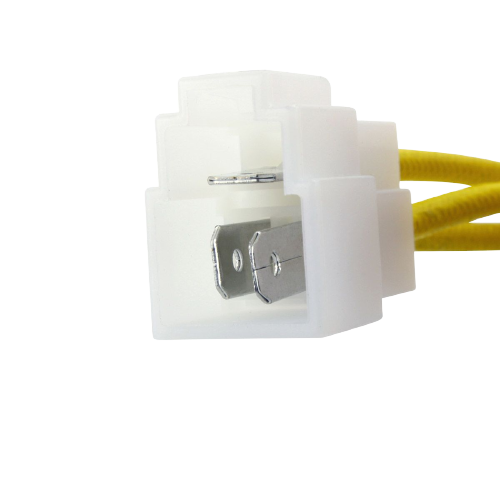

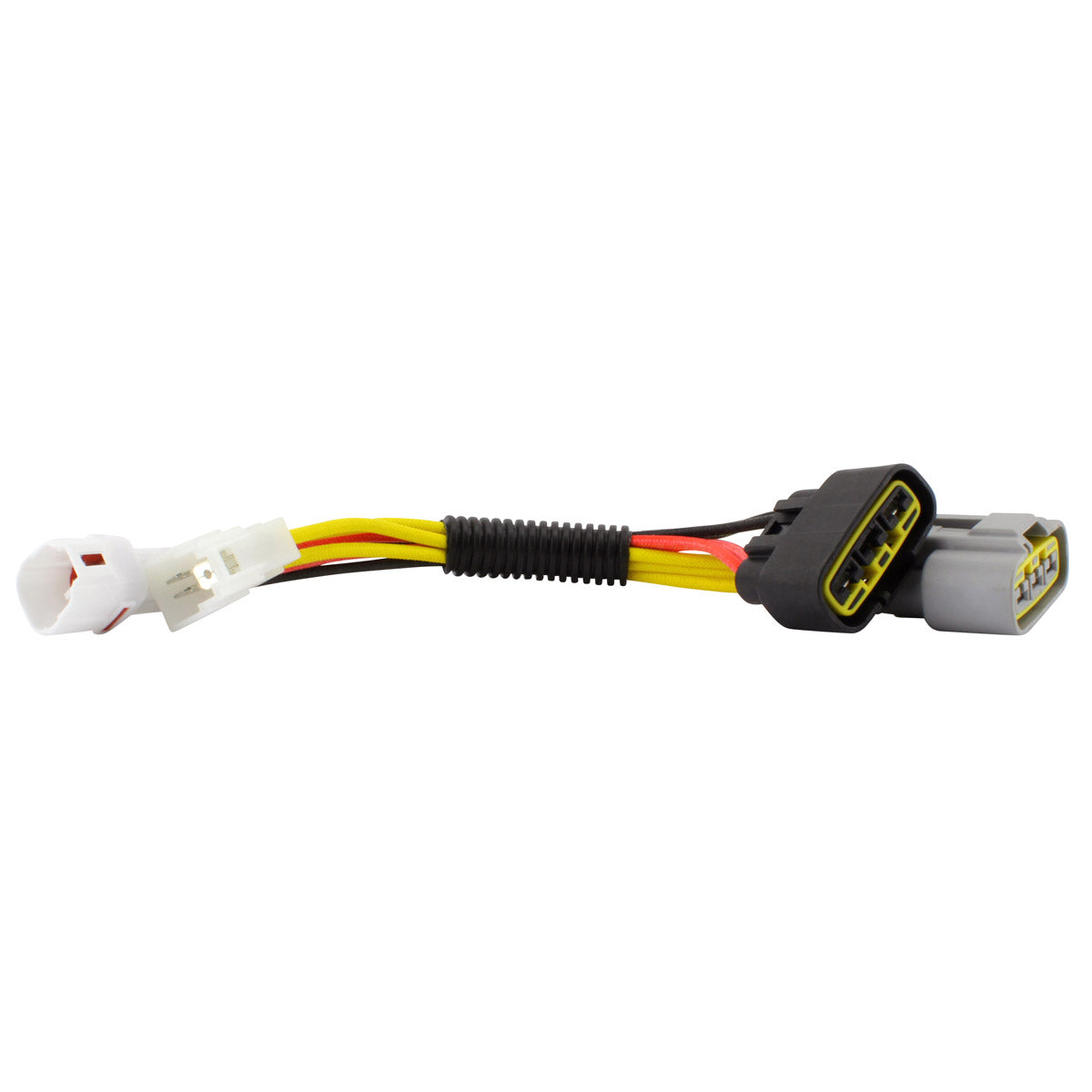

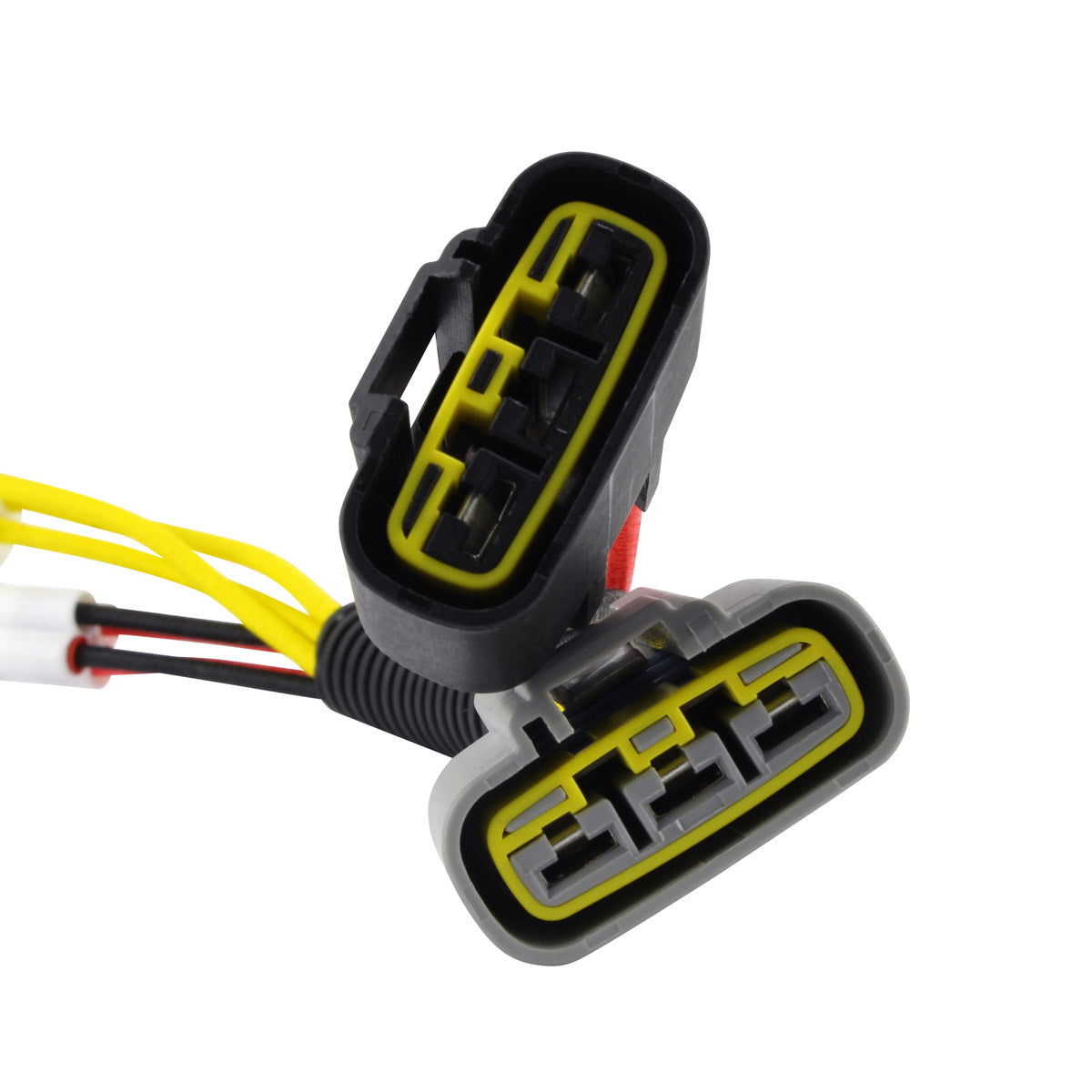

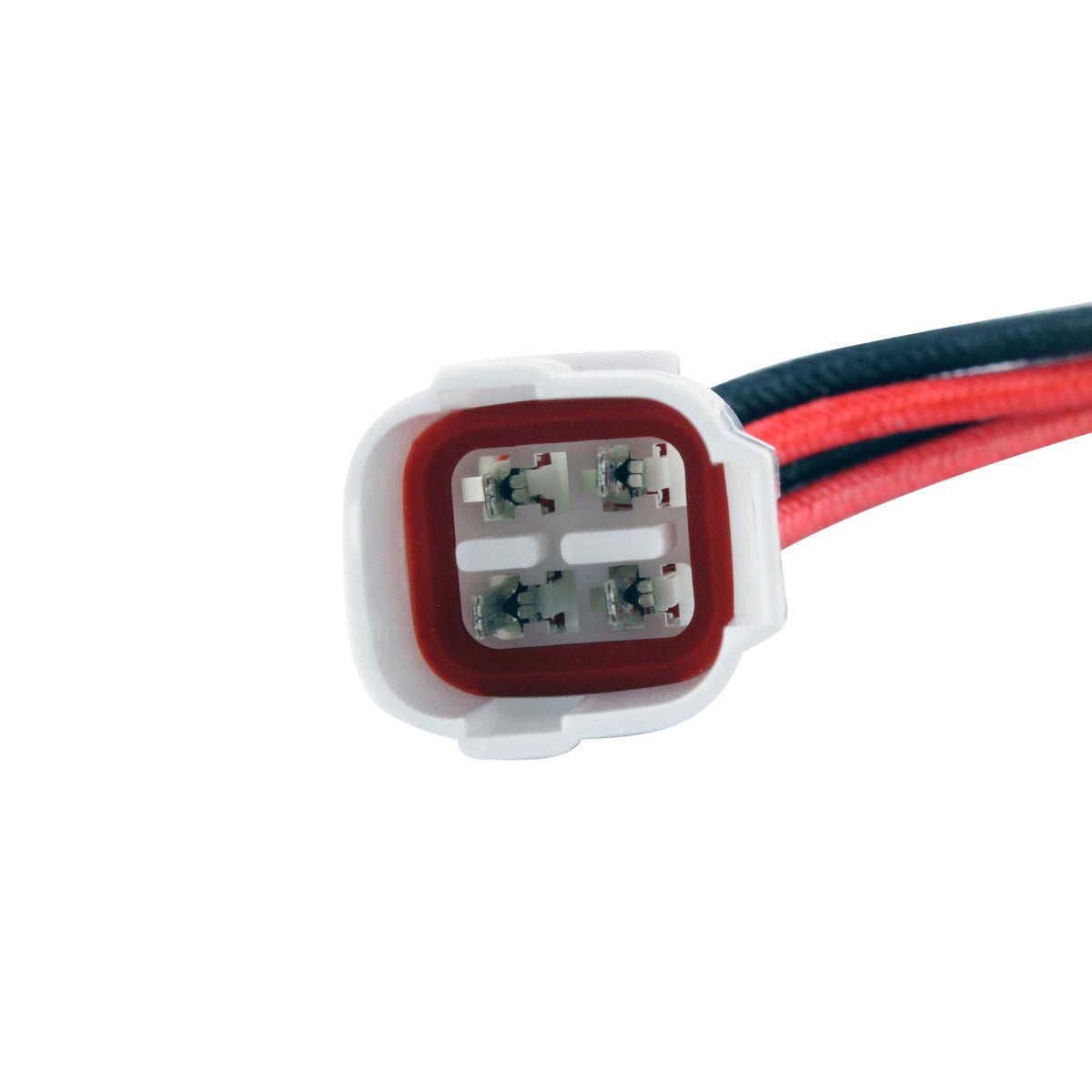

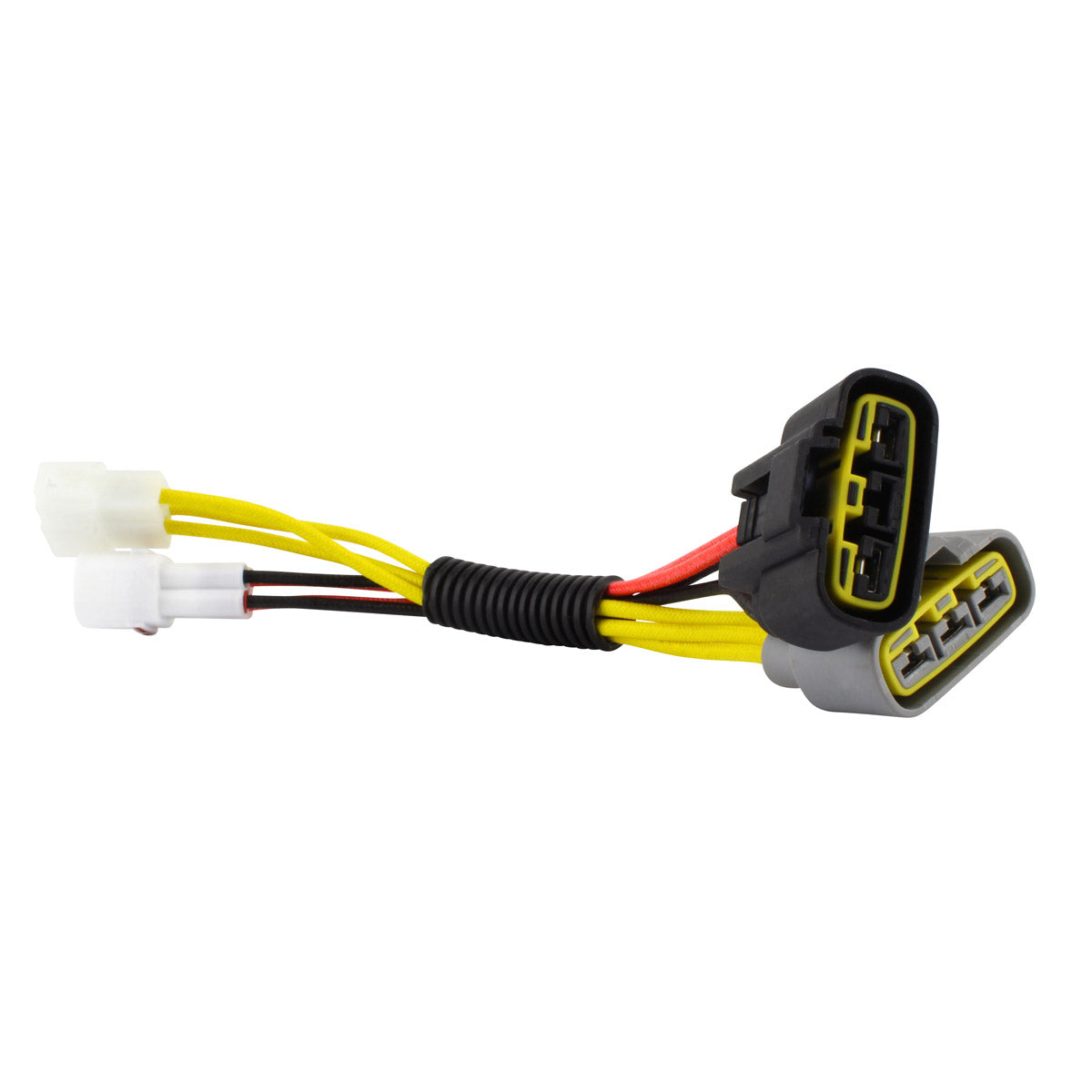

- Supplied with a 150 mm harness carrying the matching plugs
Technical Specs
| Specification | Detail |
|---|---|
| Width | 103 mm |
| Length | 102 mm |
| Height | 26 mm |
| Fixation holes, centre to centre | 78 mm |
| Number of plugs | 2 |
| Number of pins | 5 |
| Number of wires | 0 |
| Minimum charging voltage | 14.5 V +/- 0.5 V |
| Maximum charging current | 50 A / 500 W |
| Open circuit voltage | Less than 15 V |
| Operating temperature | -20 C to 85 C |
| Harness wire length | 150 mm |
| Harness yellow wires | 3 |
| Harness red wires | 1 |
| Harness green wires | 1 |
| Harness plugs | 3 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Suzuki Boulevard VZ 800 | 2001-2019 |
| Suzuki Boulevard VL 800 | 2001-2019 |
| Suzuki GSXR 600 | 2001-2019 |
| Suzuki GSXR 700 | 2001-2019 |
| Suzuki V-Strom 650 | 2001-2019 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 32800-18H00 | Suzuki |
| 32800-02H00 | Suzuki |
| 32800-15H00 | Suzuki |
| 32800-15H01 | Suzuki |
| 32800-15H10 | Suzuki |
| 32800-15H11 | Suzuki |
| 32800-21H00 | Suzuki |
| 32800-41F00 | Suzuki |
| 32800-41F01 | Suzuki |
| 32800-41F02 | Suzuki |
| 32800-41F10 | Suzuki |
| 32800-41F11 | Suzuki |
| 32800-41G00 | Suzuki |
| 32800-41G10 | Suzuki |
| 32800-47H00 | Suzuki |
| 32800-47H10 | Suzuki |
Frequently Asked Questions
Will this fit without modifying my bike?

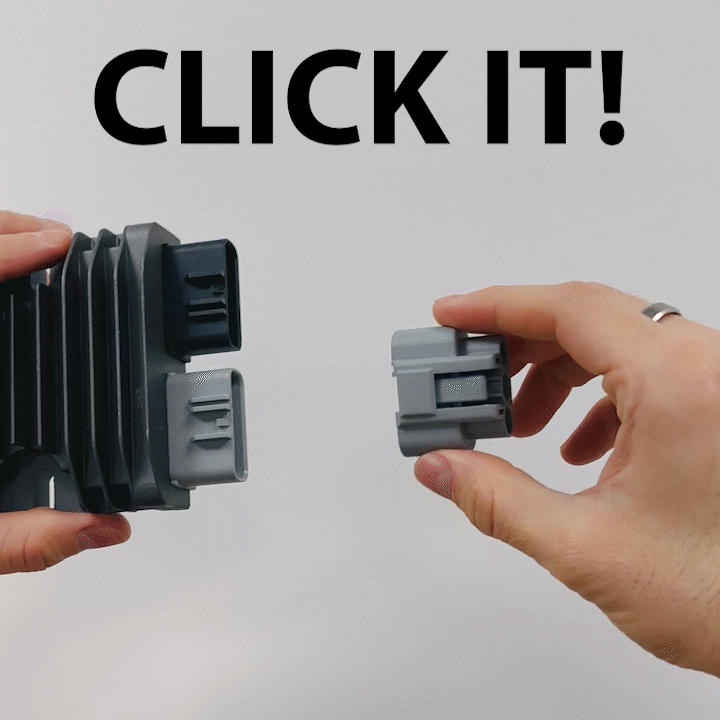

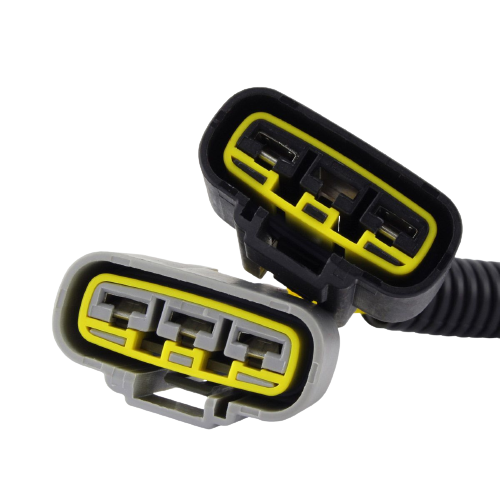

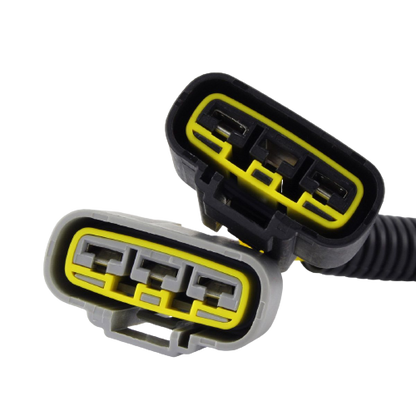

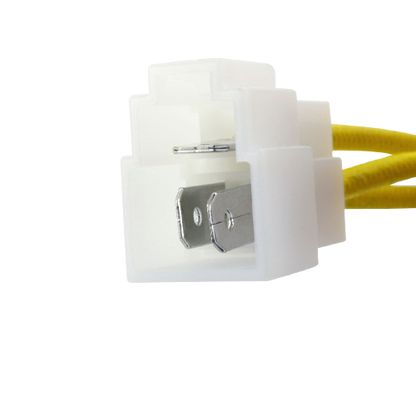

The unit is supplied with a 150 mm harness carrying three plugs, so it connects to the standard Suzuki wiring. Check the fixation hole spacing of 78 mm and the overall size of 103 mm by 102 mm by 26 mm against your original unit and mounting bracket before fitting.
What is supplied?

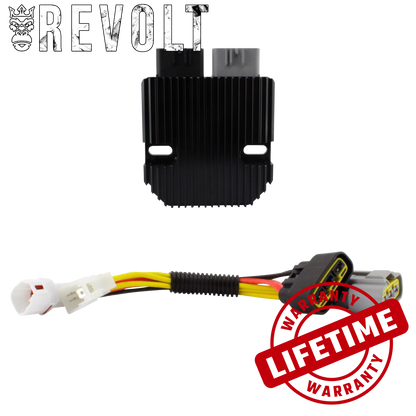

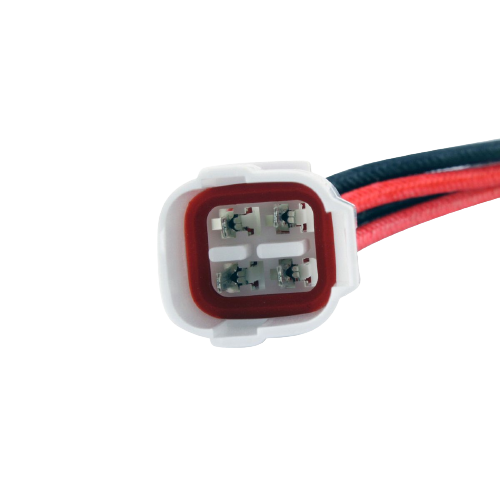

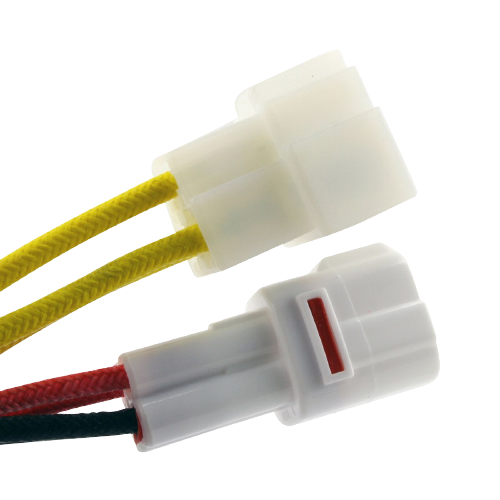

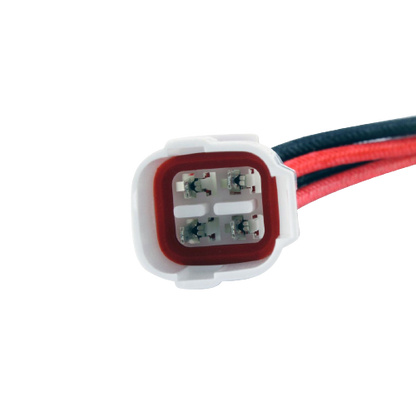

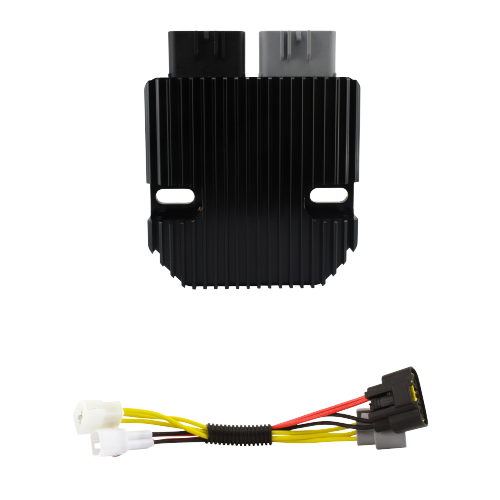

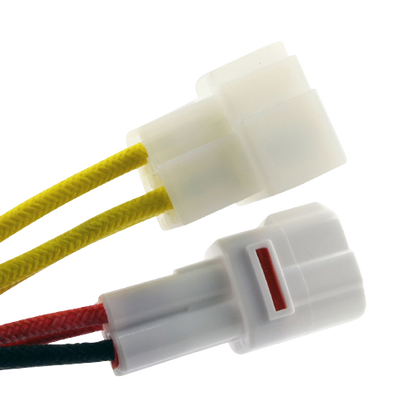

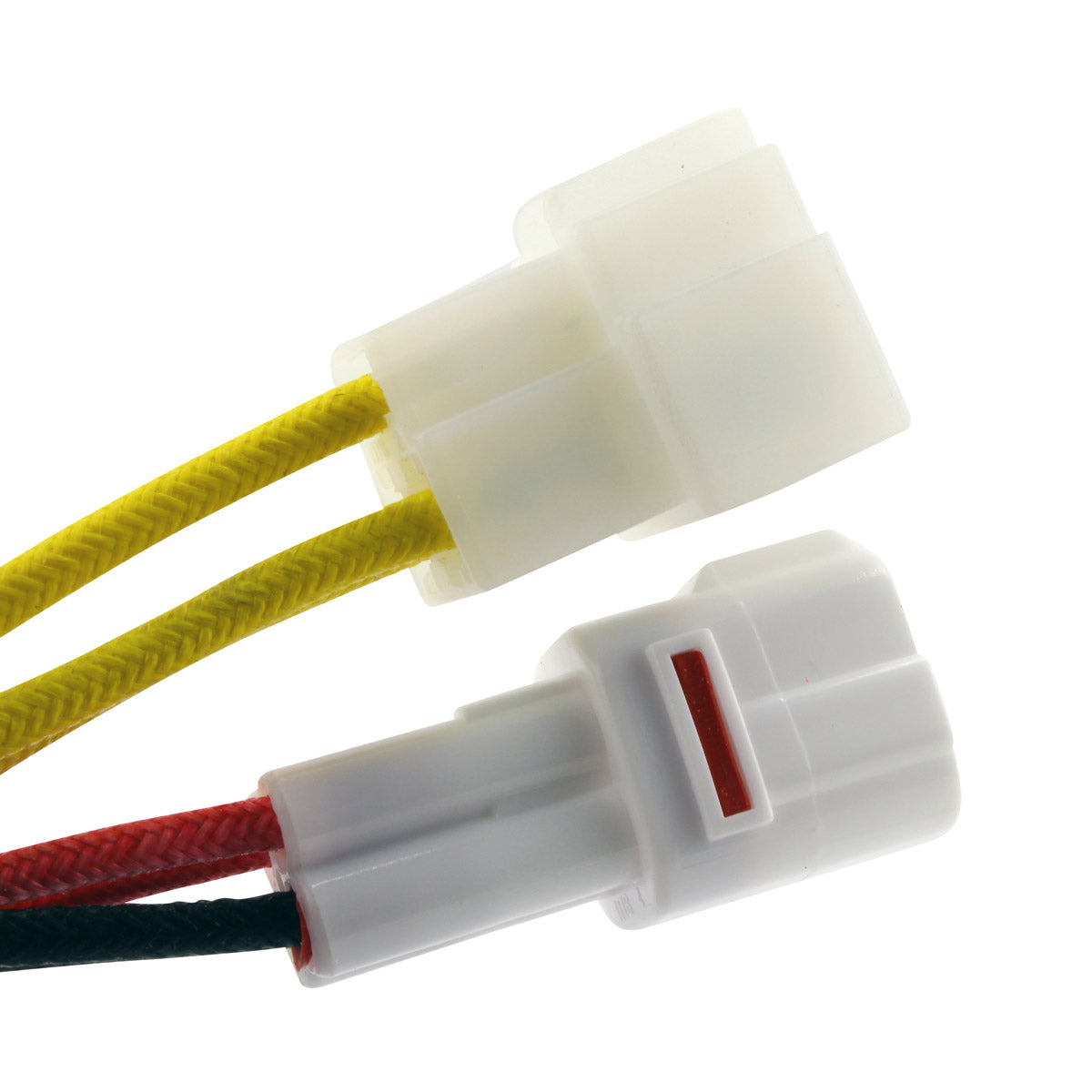

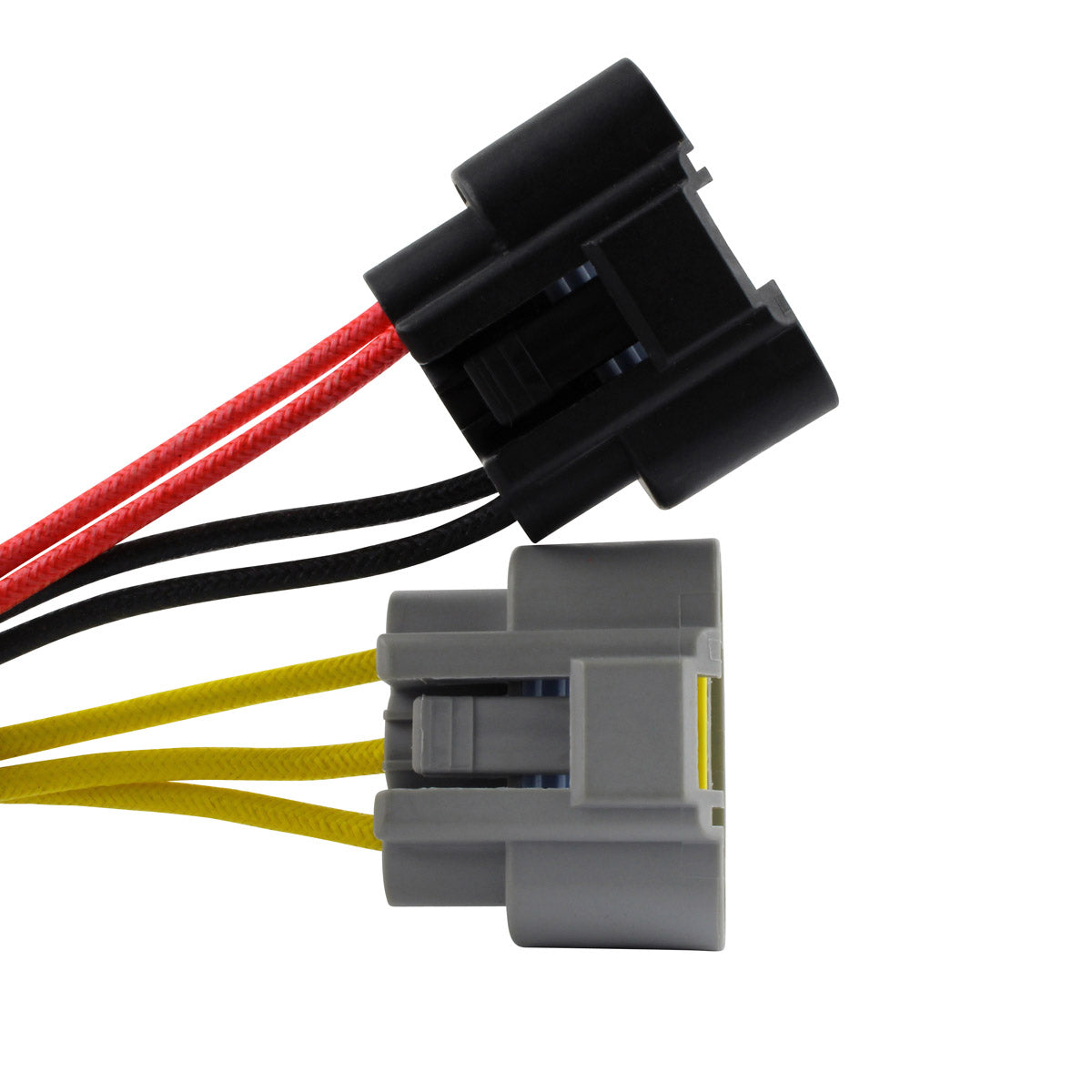

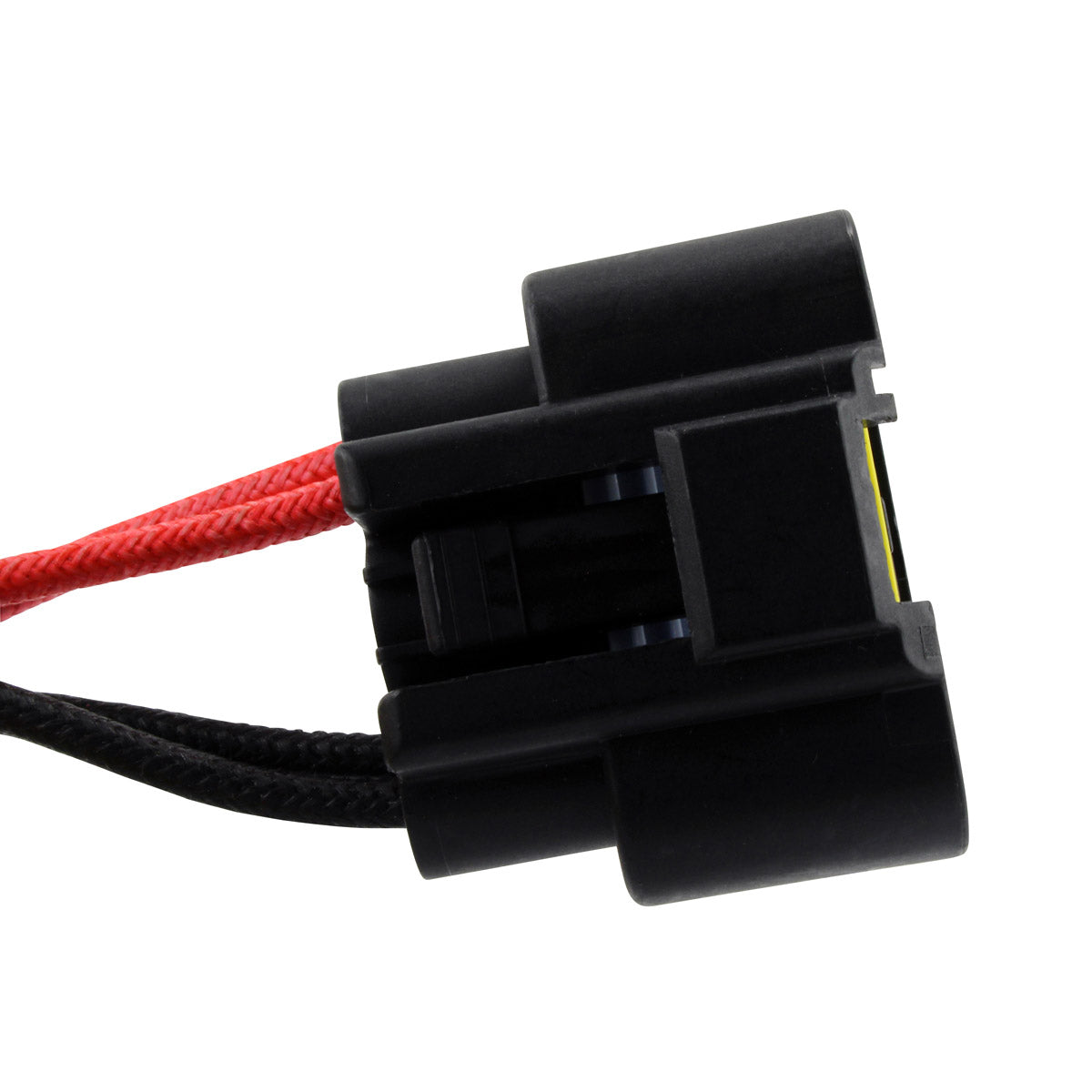

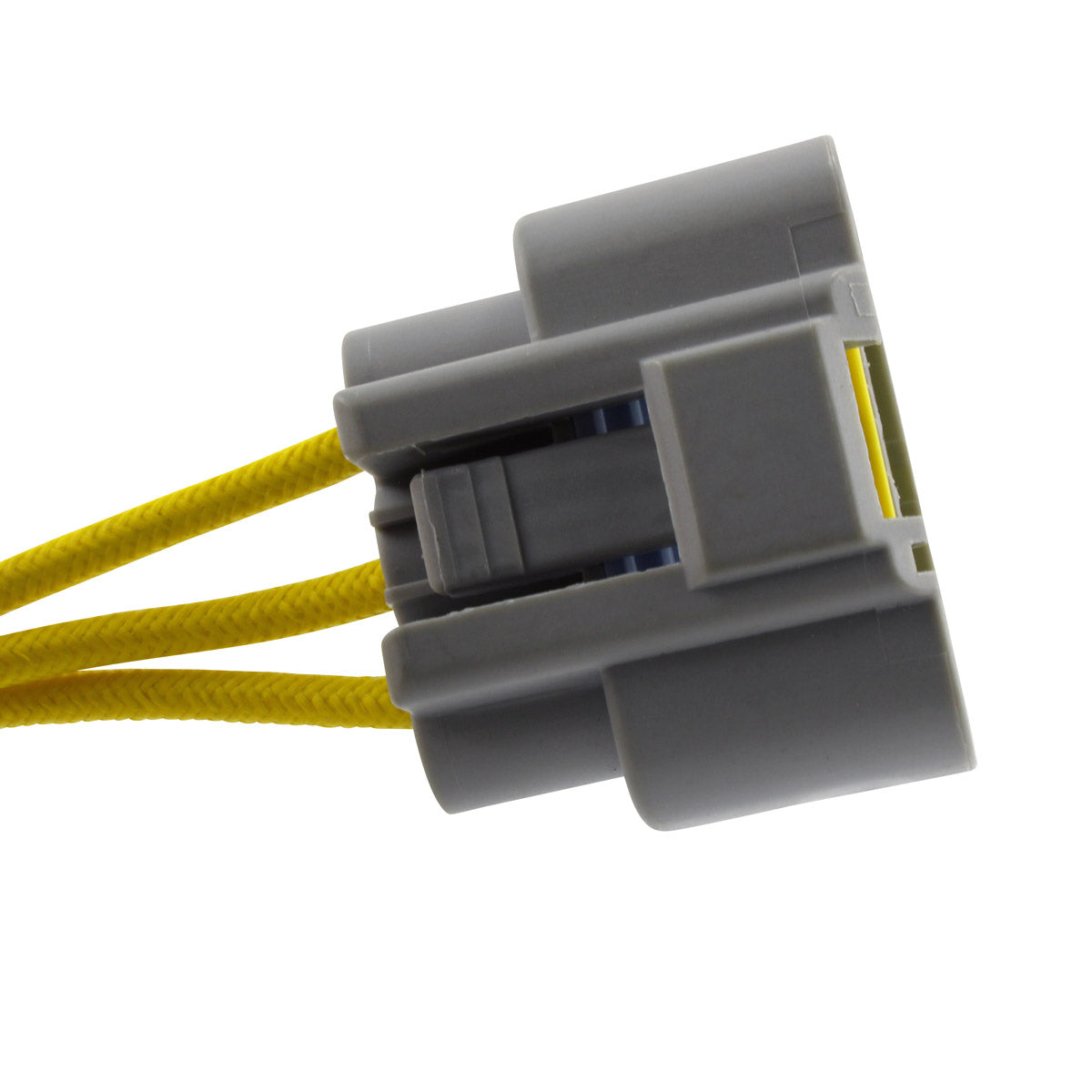

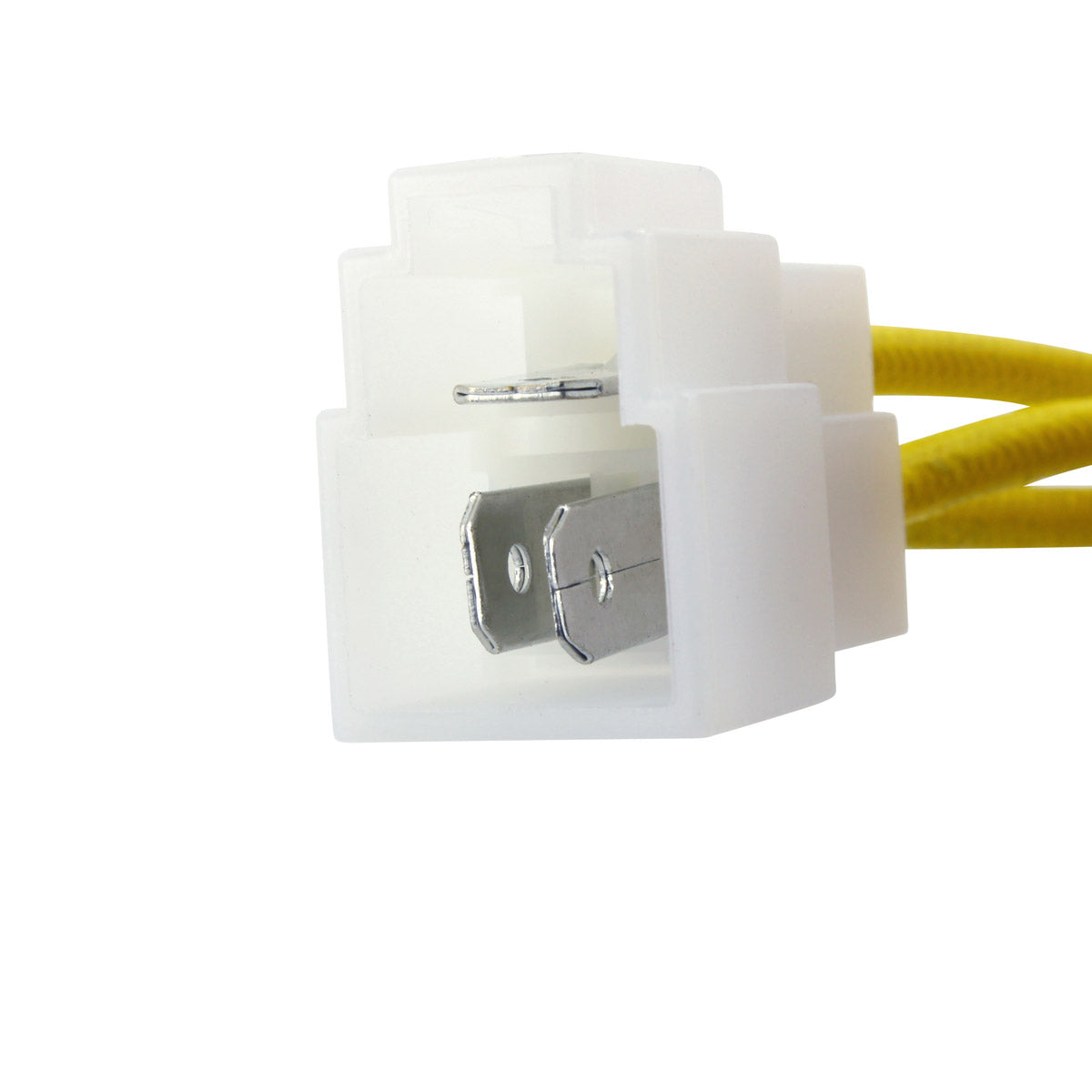

The REVOLT voltage regulator and its 150 mm harness, which carries three yellow wires, one red wire, one green wire and three plugs.
How do I know my old regulator has failed?
A healthy charging system holds at least 14.5 V at the battery with the engine running. A reading that stays at battery voltage, or one that climbs above the open circuit limit of 15 V, points to a failed regulator. Melted or discoloured plugs and a case that is too hot to touch are the other common signs.
What makes REVOLT different from a standard replacement?
Most replacement units improve only the regulator side of the circuit. REVOLT redesigns the rectifier side as well, which is where 85 per cent of powersports regulator failures actually begin, and combines it with the Arctic Frostbite billet aluminium housing to dissipate heat 45 per cent faster than OEM.
