REVOLT Voltage Regulator Rectifier
Victory Cross Country, Cross Roads, Hard Ball, Vision & Magnum - 2008-2017
Refuse to compromise with thirty-year-old technology. REVOLT is a complete rethink of the voltage regulator rectifier, built around a redesigned rectifier stage that tackles the weakness responsible for roughly 85 per cent of voltage regulator failures in powersports applications. Where other units simply improve the regulator side, REVOLT is the only voltage regulator rectifier on the market that meaningfully improves rectifier reliability.

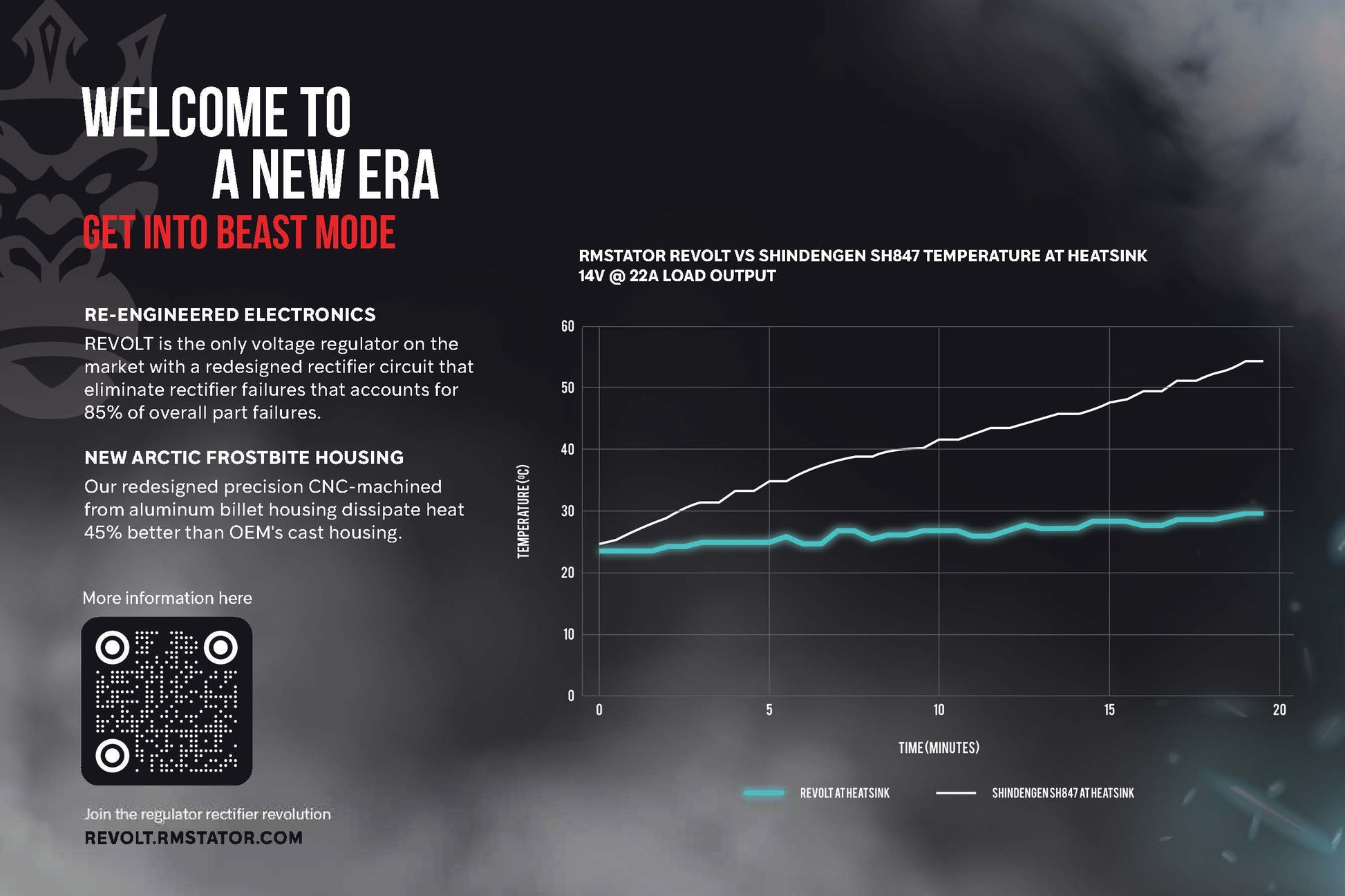

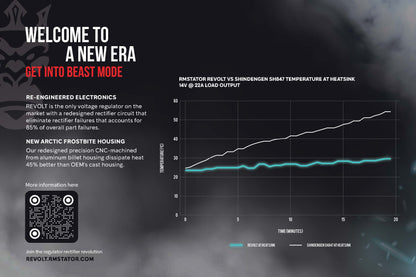

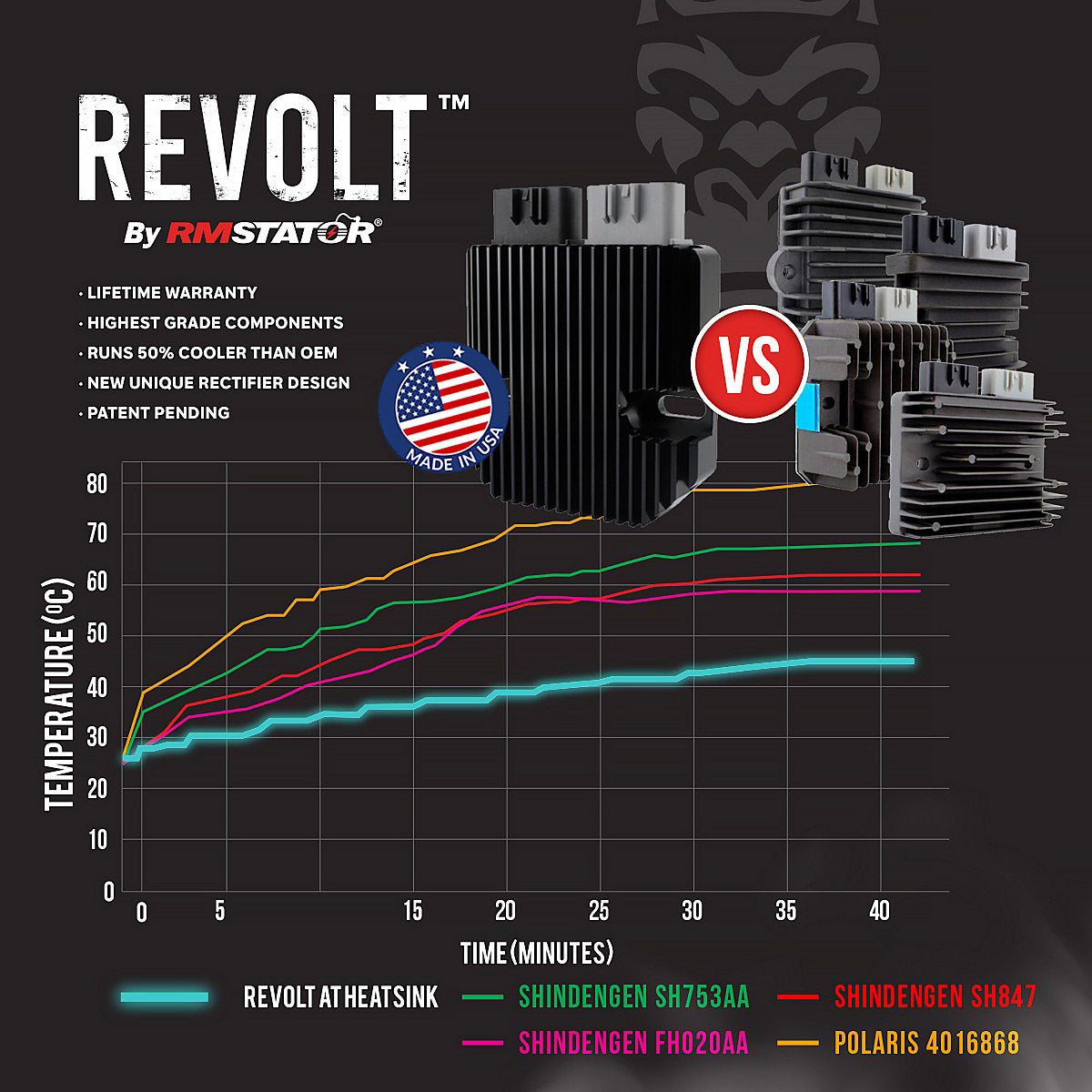

Two years of research and development and a careful choice of top graded performance components allow REVOLT to run around 50 per cent cooler than the best OEM and competitor products, which is what drives its dramatically lower failure rate. The proprietary Arctic Frostbite housing is CNC machined from a high quality aluminium billet with increased, deeper fins, dissipating heat some 45 per cent faster than OEM by moving it from the internal components out into fresh air. REVOLT is engineered, designed and manufactured in North America under strict quality control, and it is backed by a limited lifetime warranty. This unit is supplied as part number RMS020-107974 and comes with its harness.
Key Features
- Redesigned rectifier technology that addresses the cause of about 85 per cent of regulator failures
- Runs around 50 per cent cooler than OEM

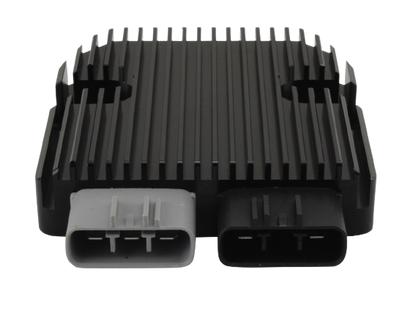

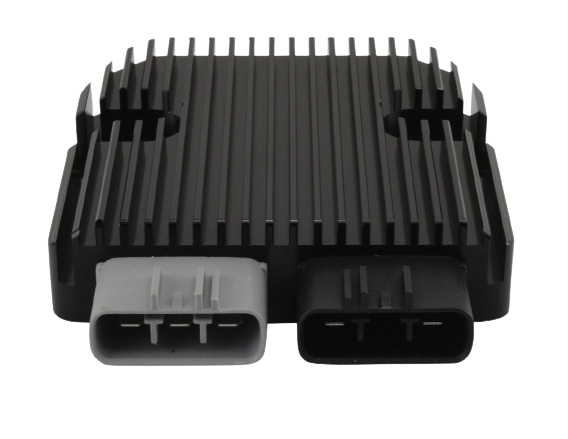

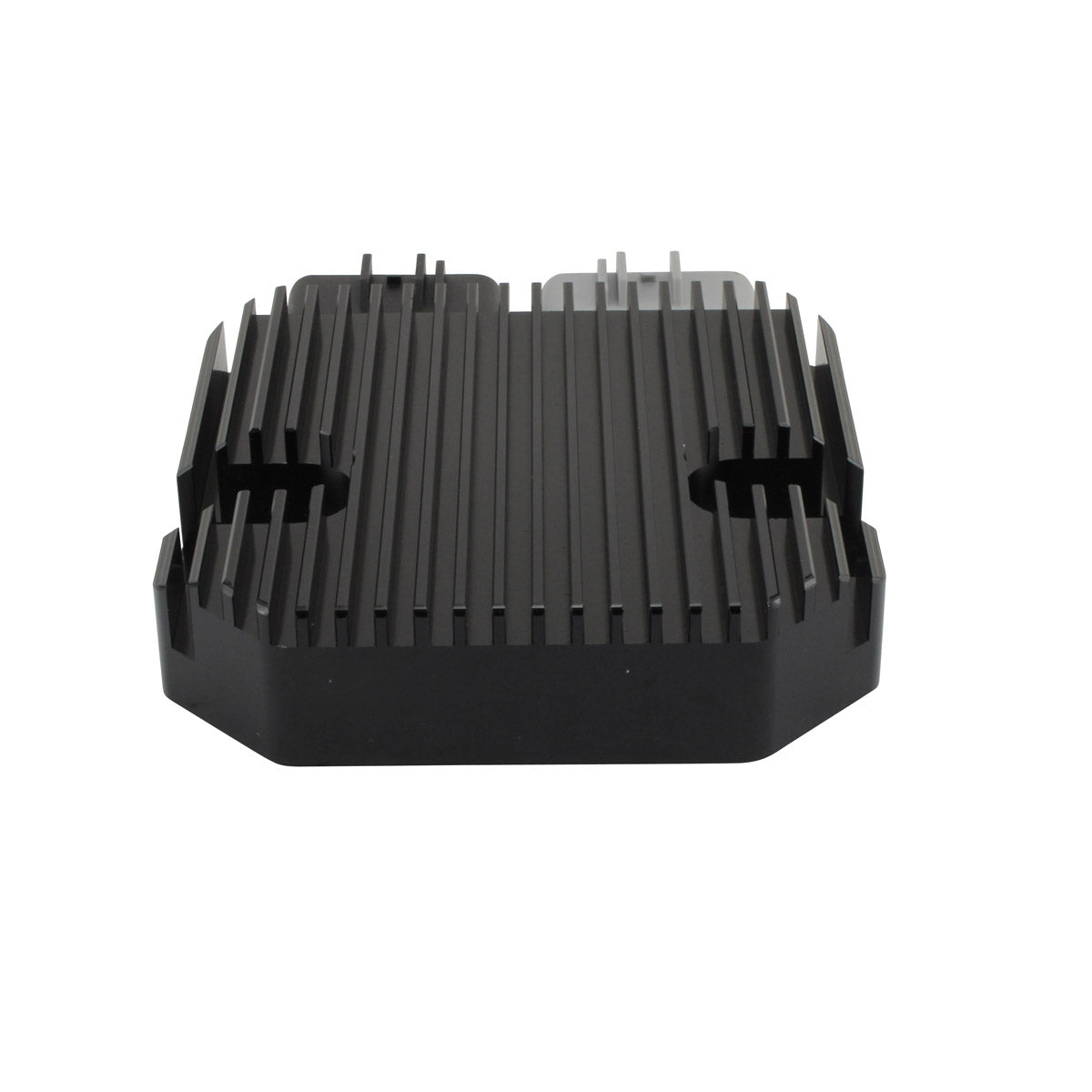

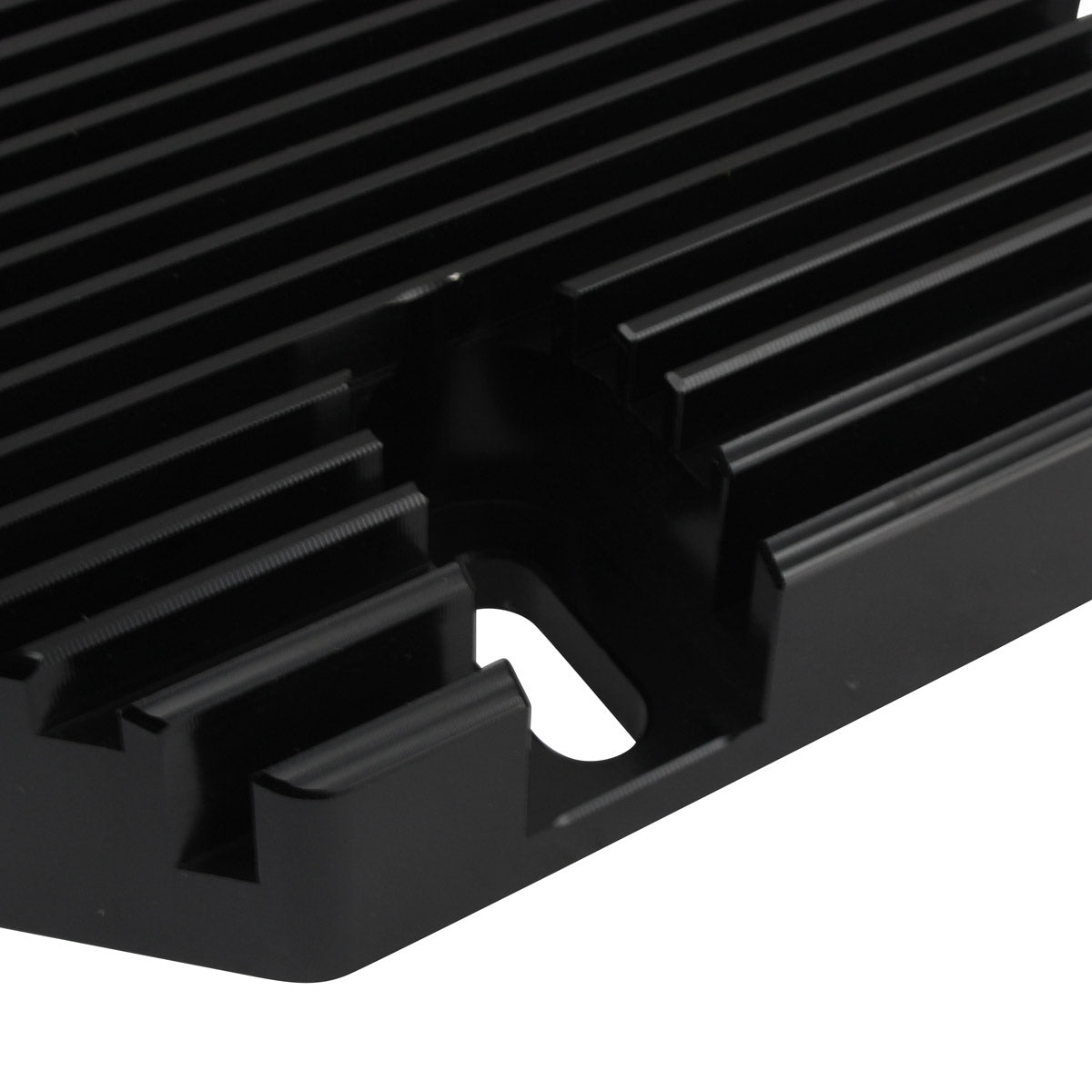

- Arctic Frostbite CNC machined billet aluminium housing dissipates heat about 45 per cent faster than OEM

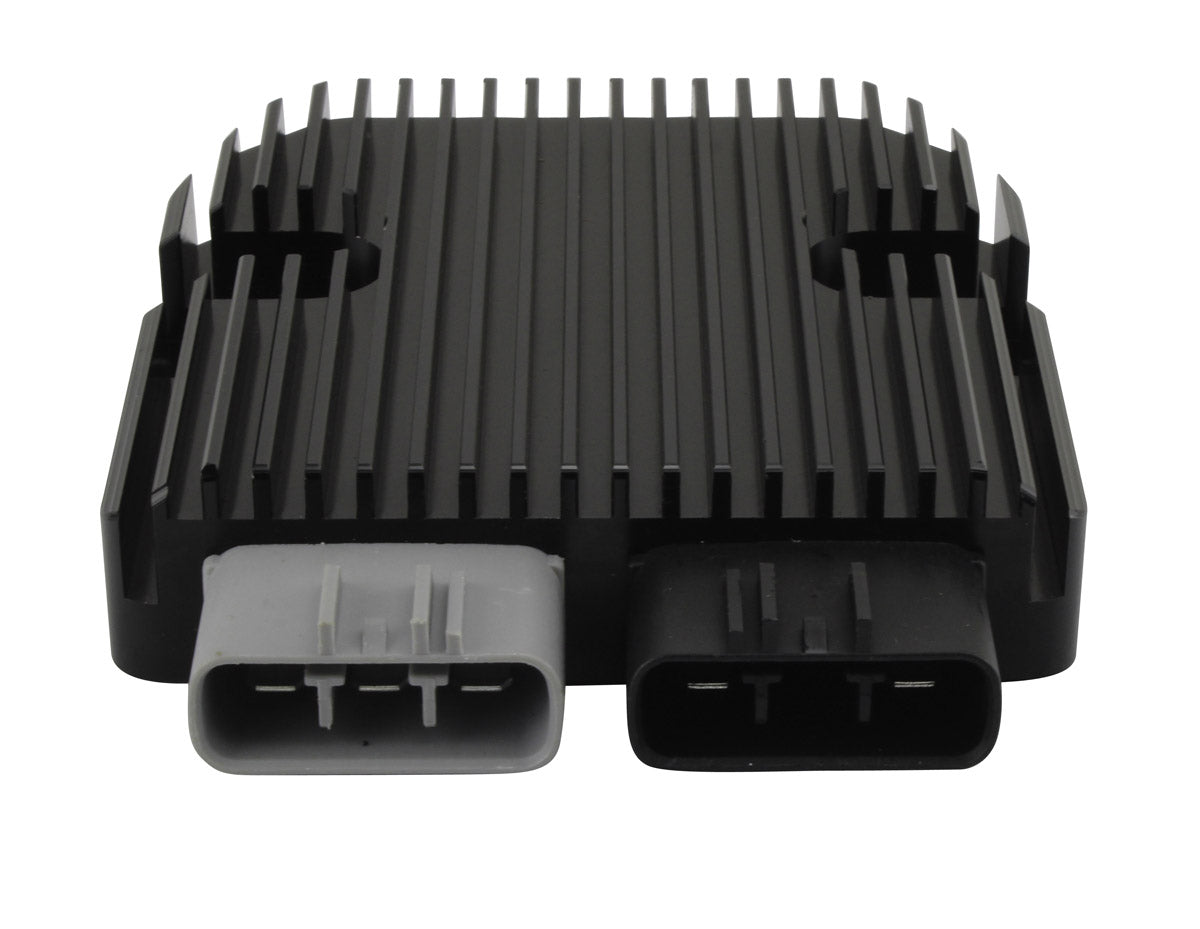

- Deeper, increased fin area for optimal heat transfer
- Rated to a maximum charging current of 50 A / 500 W
- Engineered, designed and manufactured in North America
- Backed by a limited lifetime warranty

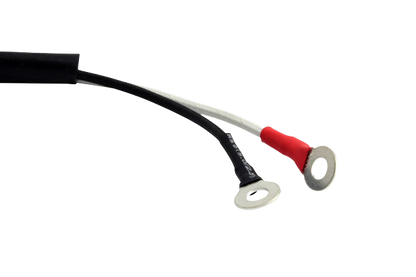

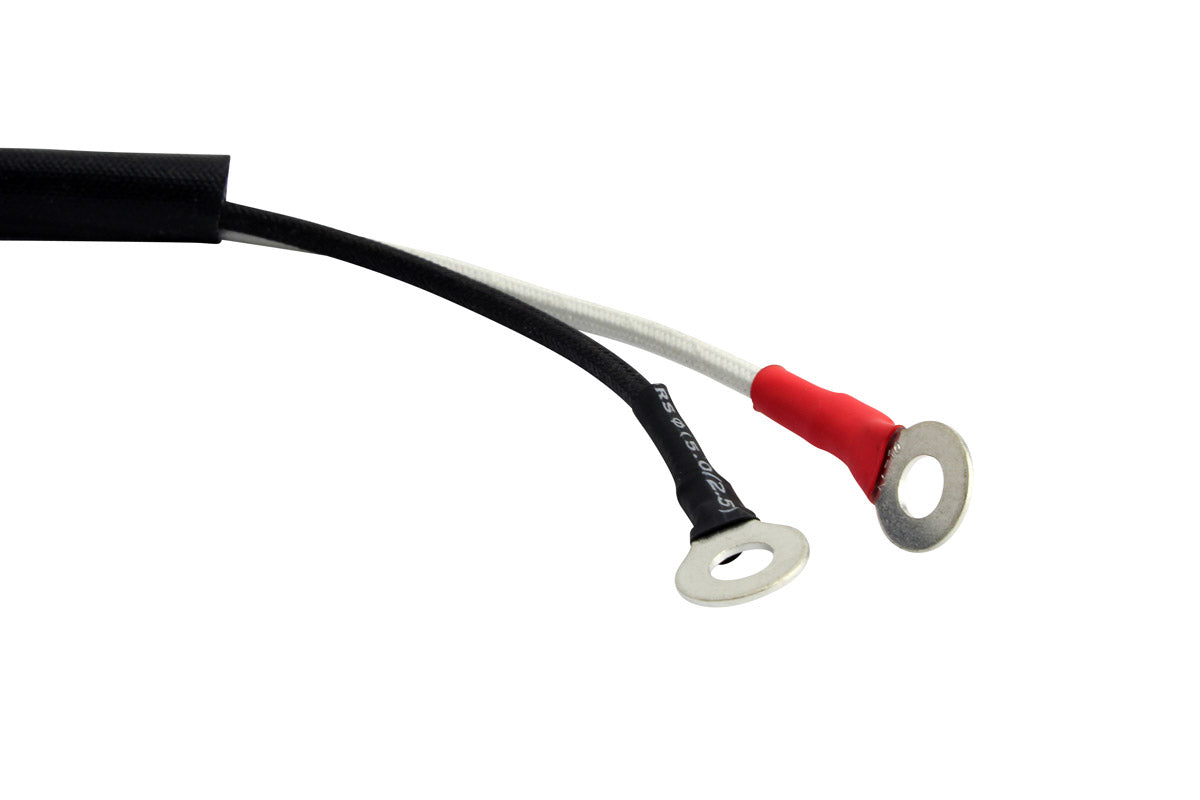

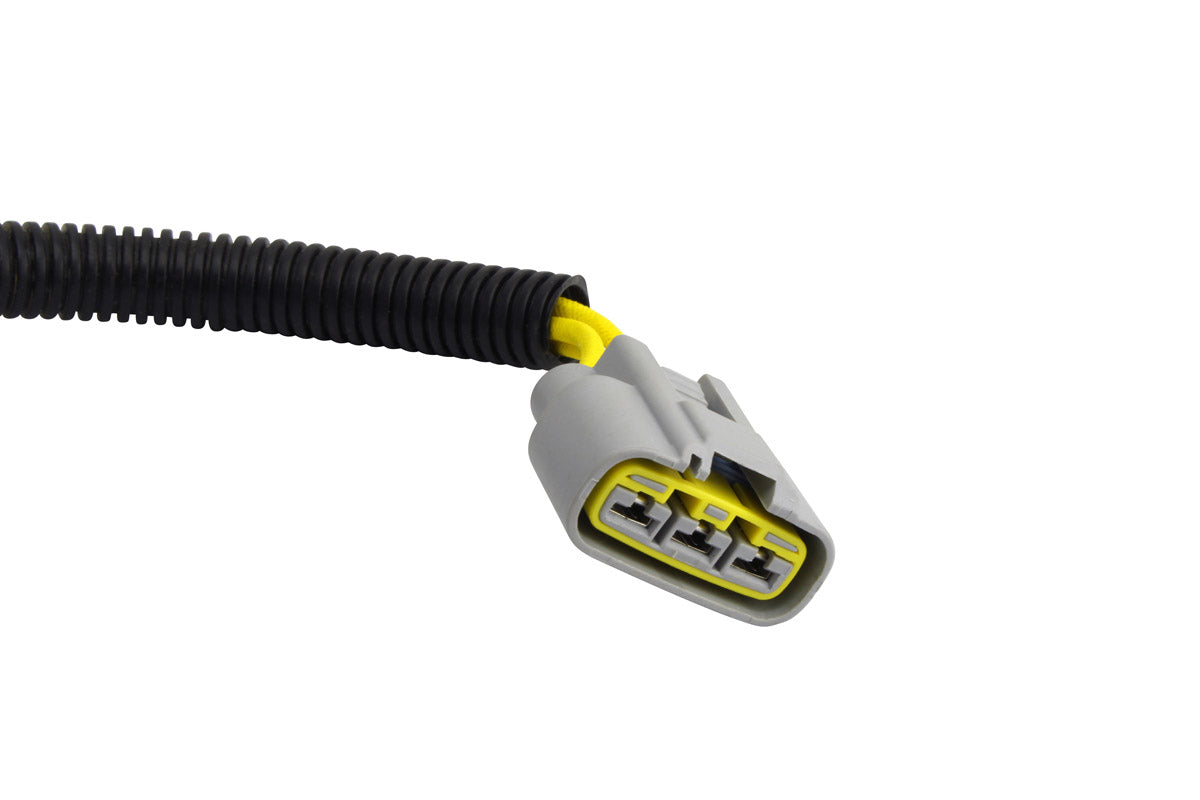

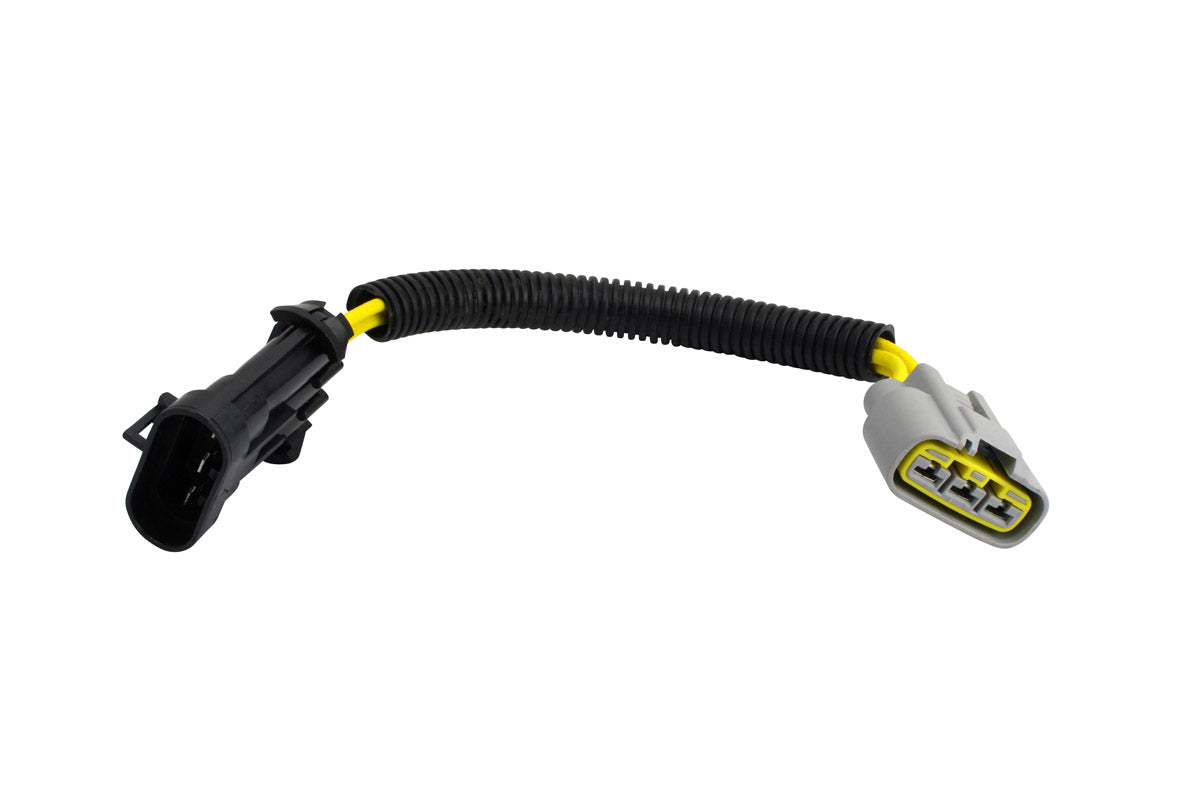

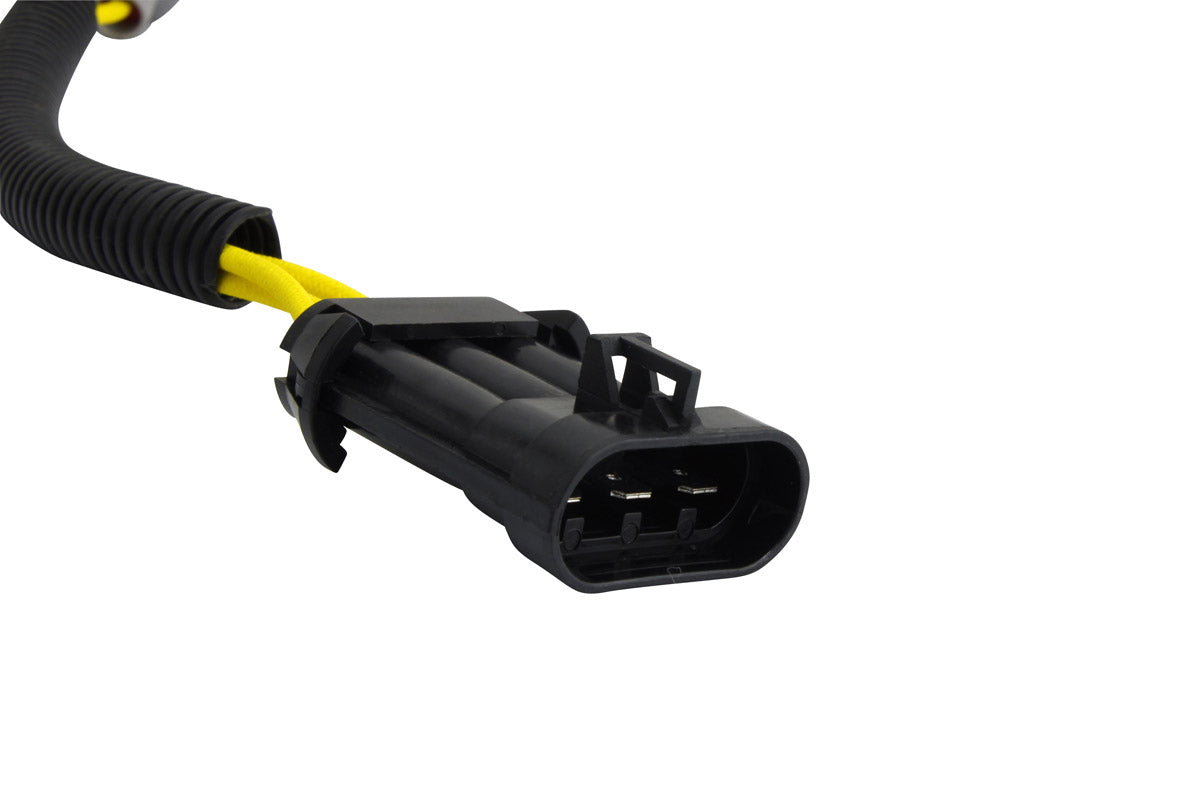

- Supplied with harness: 720 mm battery wires and 250 mm stator wires
Technical Specs
| Specification | Detail |
|---|---|
| Width | 103 mm |
| Length | 102 mm |
| Height | 26 mm |

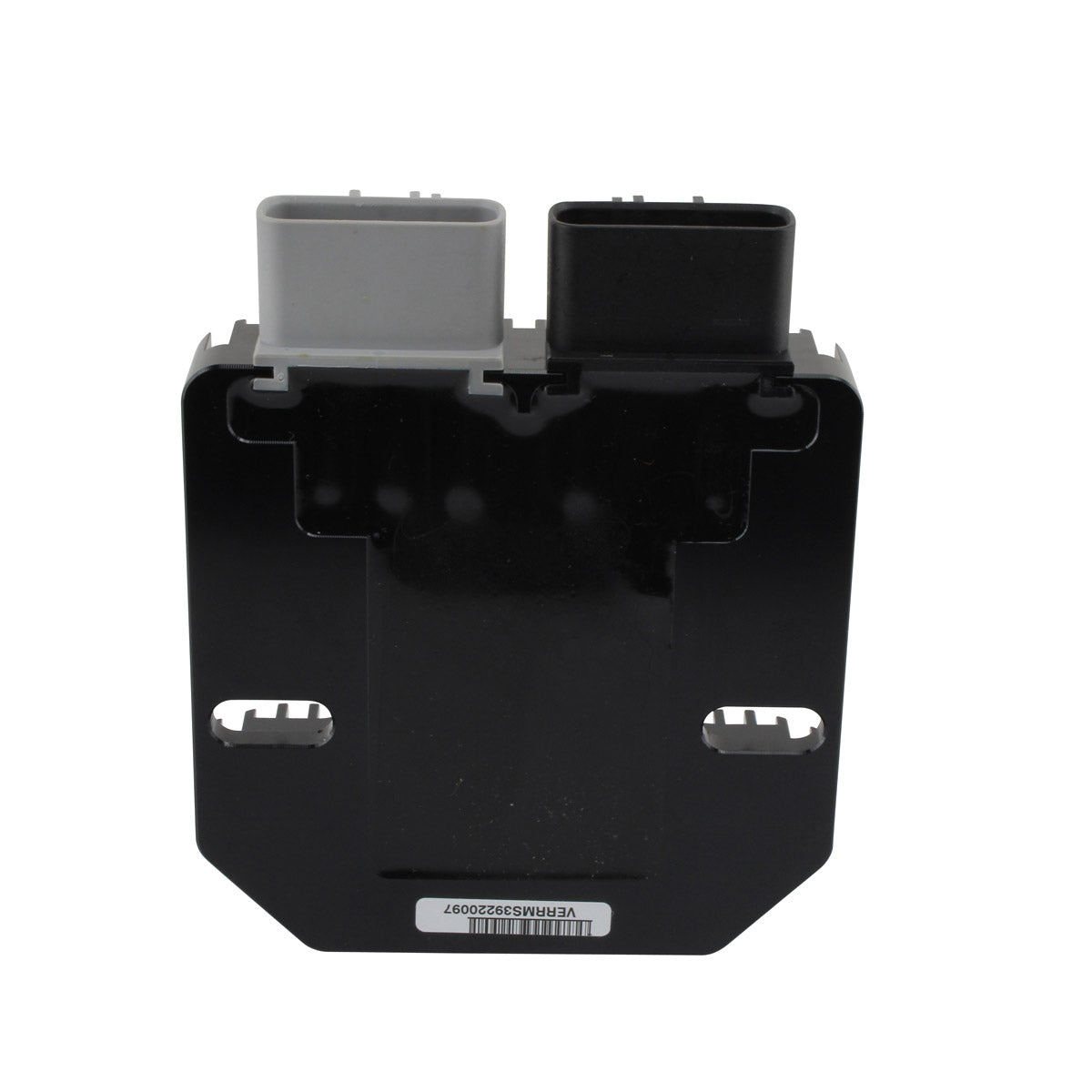

| Fixation holes, centre to centre | 78 mm |
| Number of plugs | 2 |
| Number of pins | 5 |
| Number of wires | 0 |
| Minimum charging voltage | 14.5 V +/- 0.5 V |
| Maximum charging current | 50 A / 500 W |
| Open circuit voltage | Less than 15 V |
| Operating temperature | -20 C to 85 C |
| Harness battery wire length | 720 mm |
| Harness stator wire length | 250 mm |
| Harness yellow wires | 3 |
| Harness red wires | 1 |
| Harness black wires | 1 |
| Harness plugs | 3 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Victory Cross Country | 2008-2017 |
| Victory Cross Roads | 2008-2017 |
| Victory Hard Ball | 2008-2017 |
| Victory Vision | 2008-2017 |
| Victory Magnum | 2008-2017 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 4011959 | Victory |
| 4012717 (harness) | Victory |
| 4012238 (harness) | Victory |
Frequently Asked Questions
Does it fit without modification?
It is designed as a direct replacement for the listed Victory models. The harness is supplied with the unit, giving 720 mm of battery wiring and 250 mm of stator wiring. Allow for a body measuring 103 mm by 102 mm by 26 mm with fixation holes 78 mm apart, centre to centre, when choosing the mounting position.
What is included?

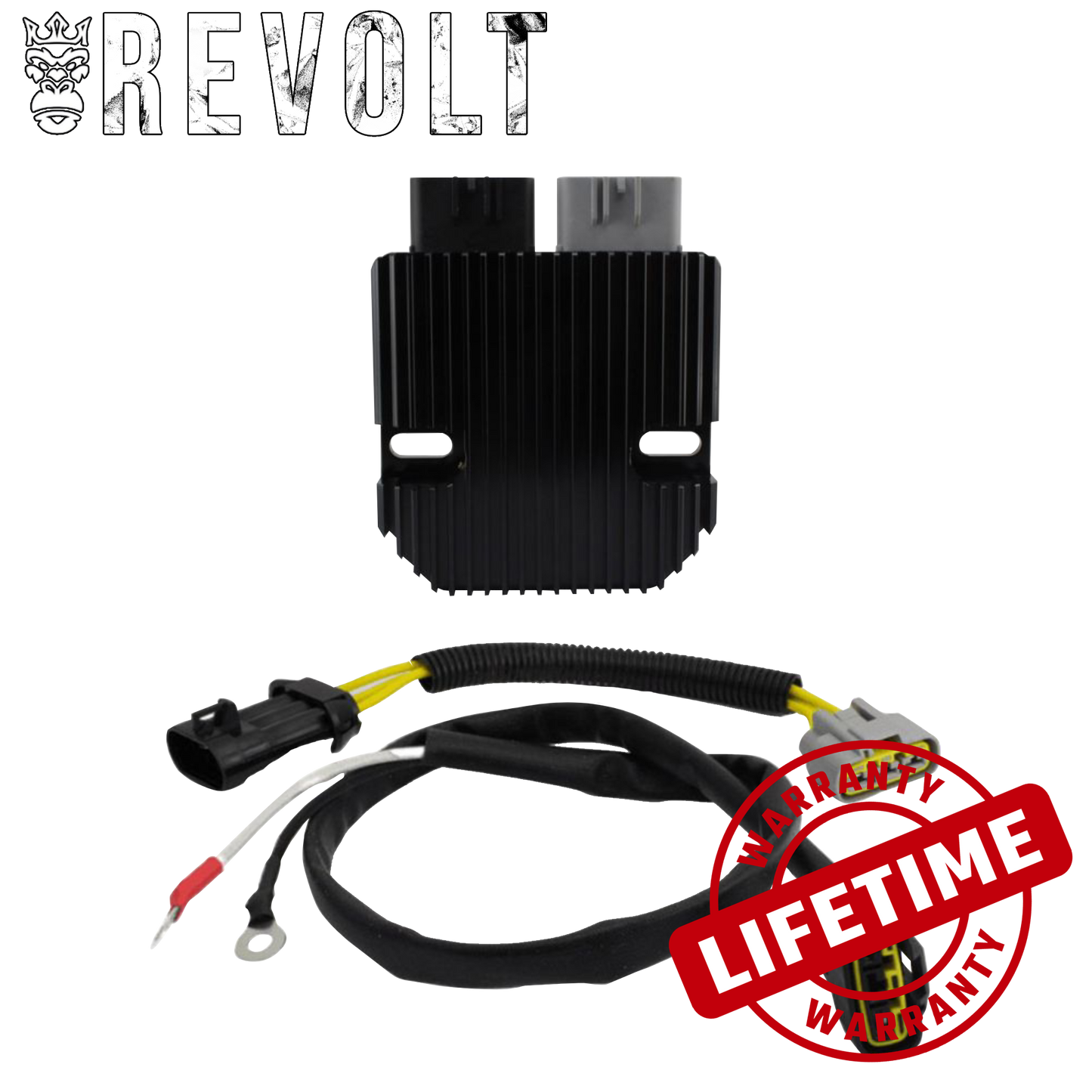

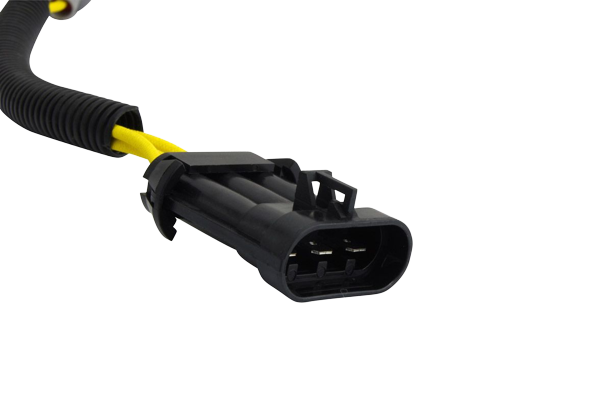

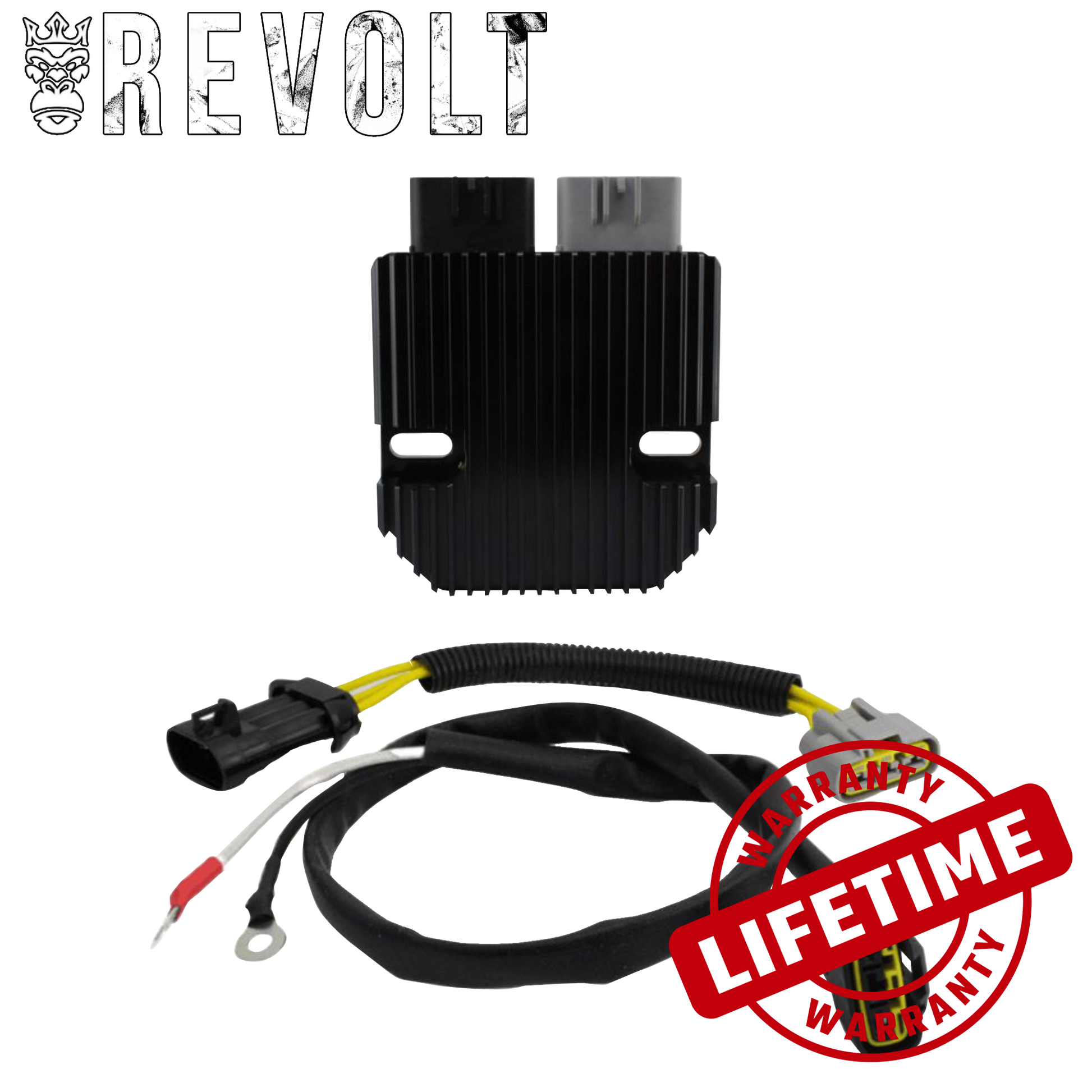

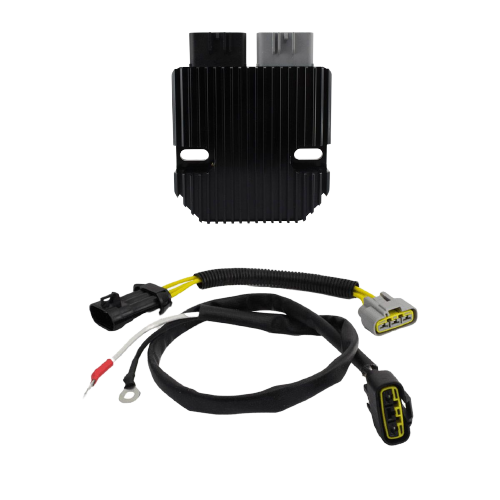

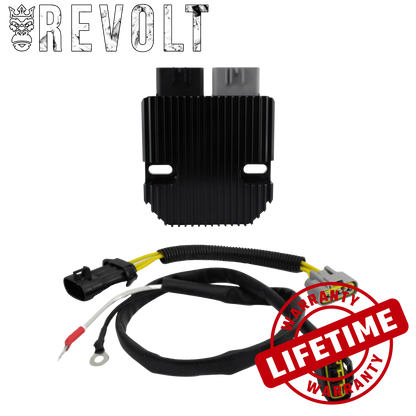

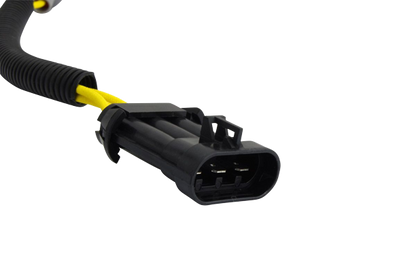

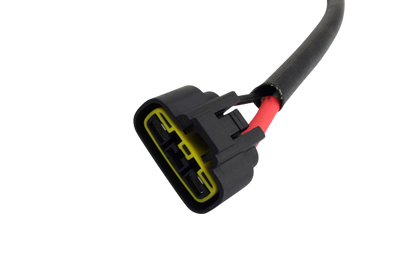

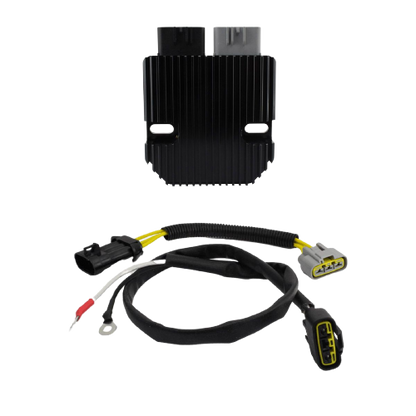

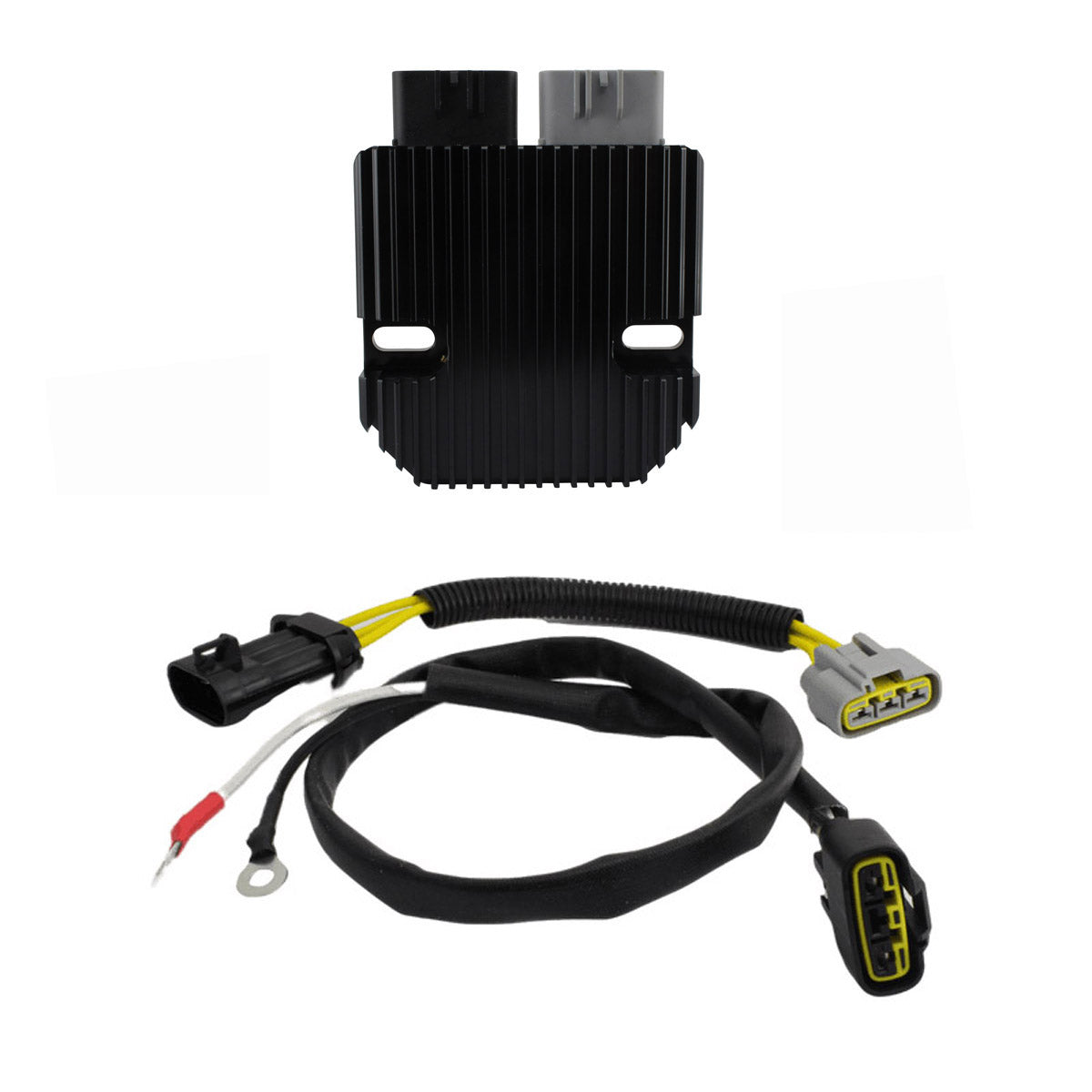

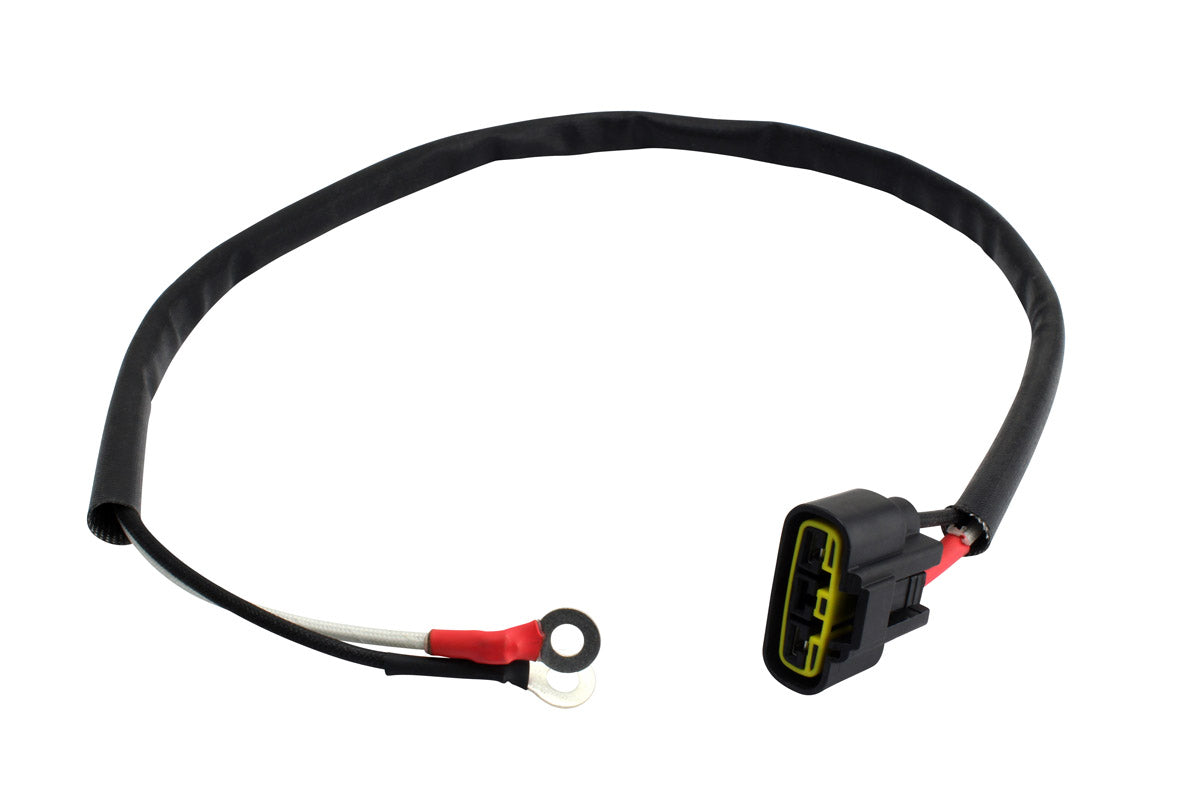

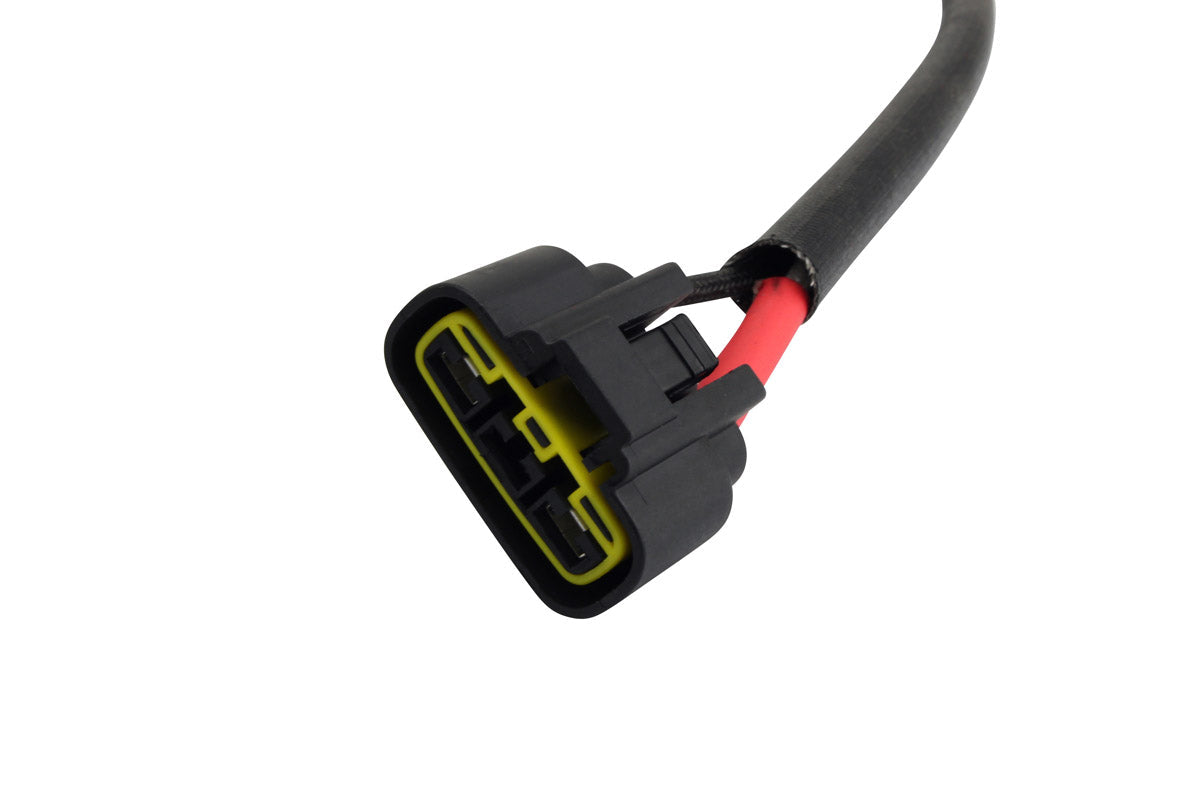

The REVOLT voltage regulator rectifier and its harness, which carries three yellow wires, one red wire, one black wire and three plugs.
How do I know my old regulator has failed?
The common signs are a battery that will not hold charge, charging voltage at the battery terminals that stays below the normal 14.5 V with the engine running, an overcharging battery, or a regulator body that becomes extremely hot in use. Heat is the usual culprit, and it is the reason REVOLT is built to run cooler.
Why does the rectifier side matter so much?
Around 85 per cent of voltage regulator rectifier failures originate on the rectifier side rather than the regulator side. Most modern designs improved only the regulator half, which is why REVOLT concentrated on rectifier reliability instead. RMSTATOR back it with a limited lifetime warranty.
