Sealed 10 AMP Circuit Breaker for Polaris Sportsman 325 400 500 & Ranger 500 1999-2019
Sealed 10 AMP Circuit Breaker for Polaris Sportsman 325 400 500 & Ranger 500 1999-2019
SKU:RMS899-108604
Free shipping over £150. Terms apply
Couldn't load pickup availability

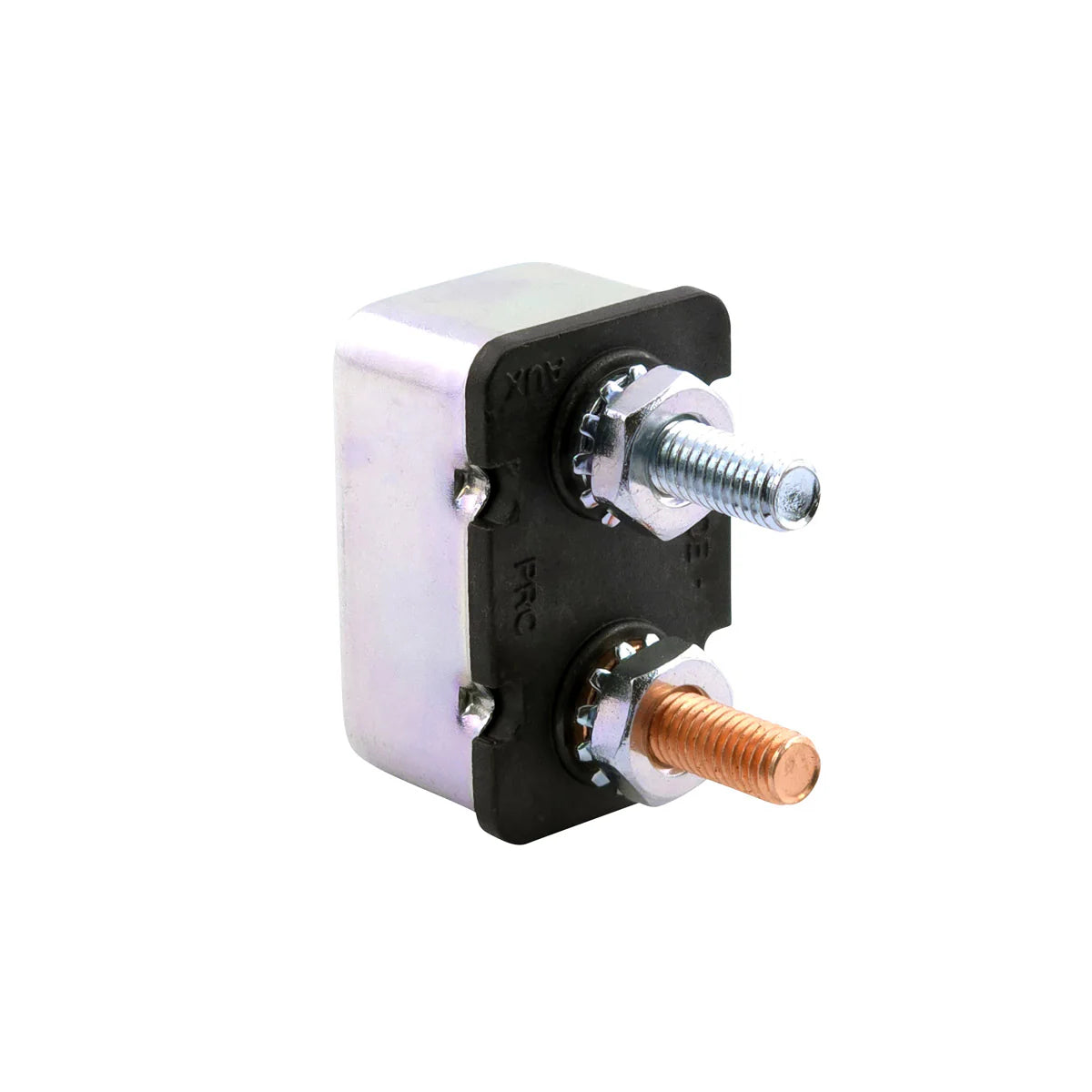

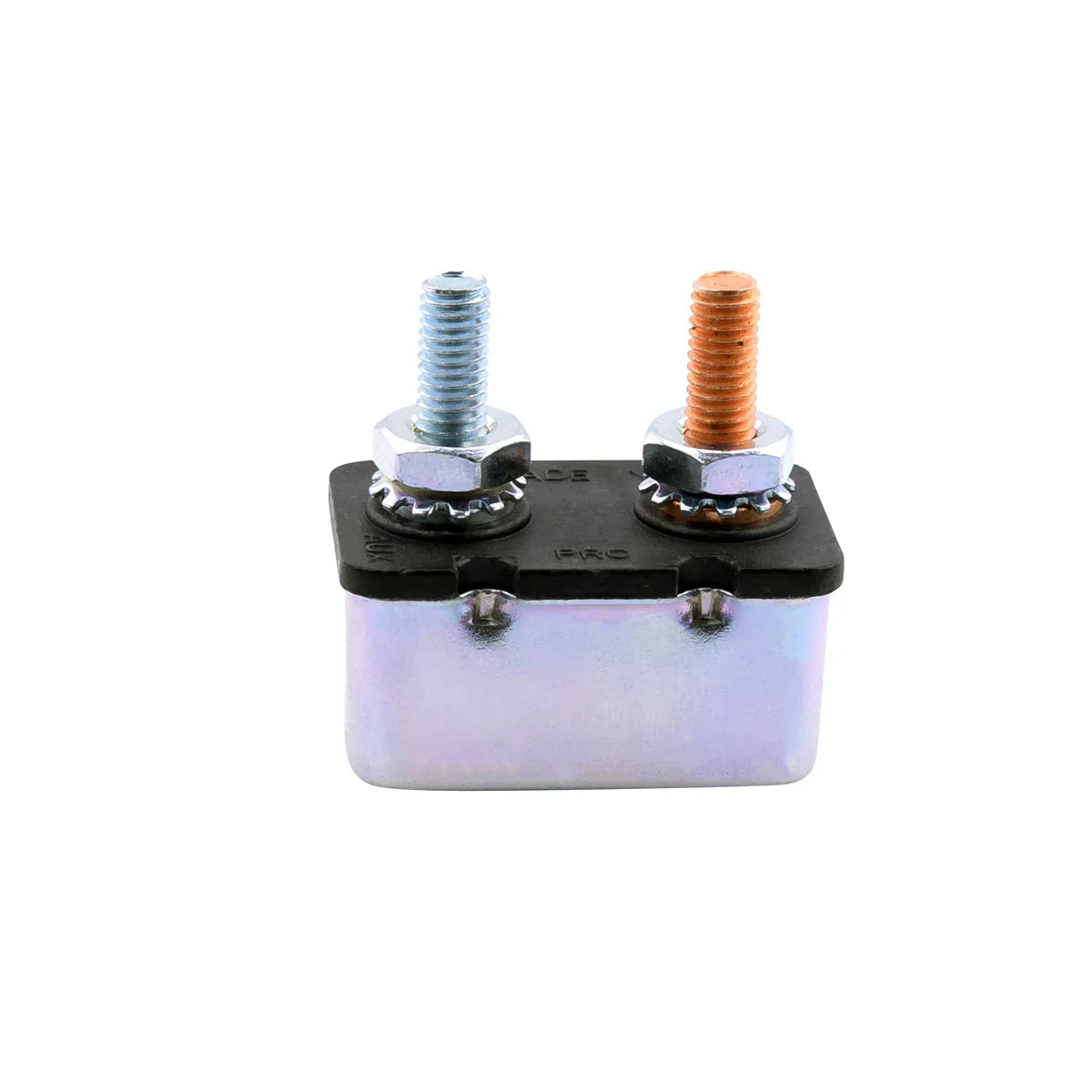

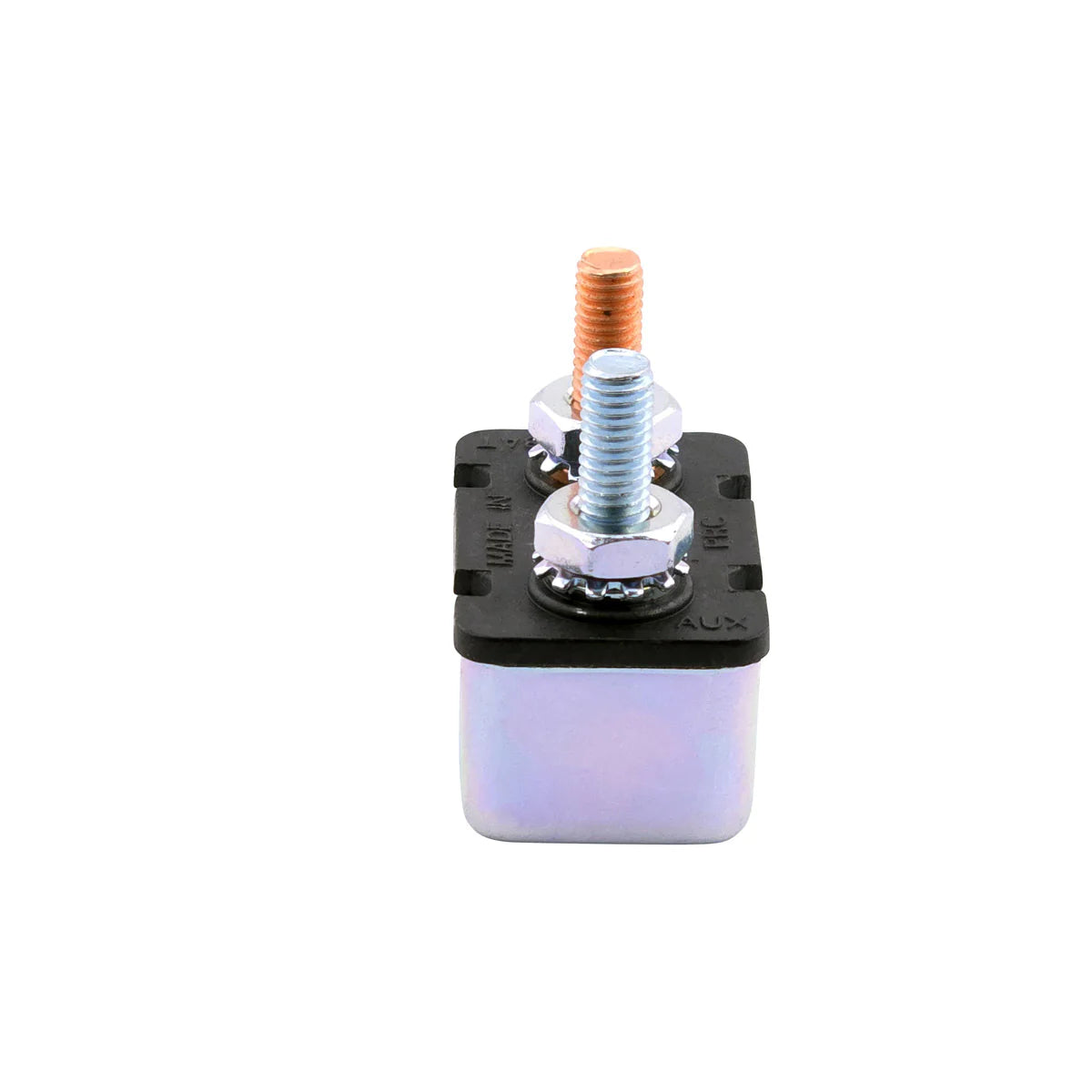

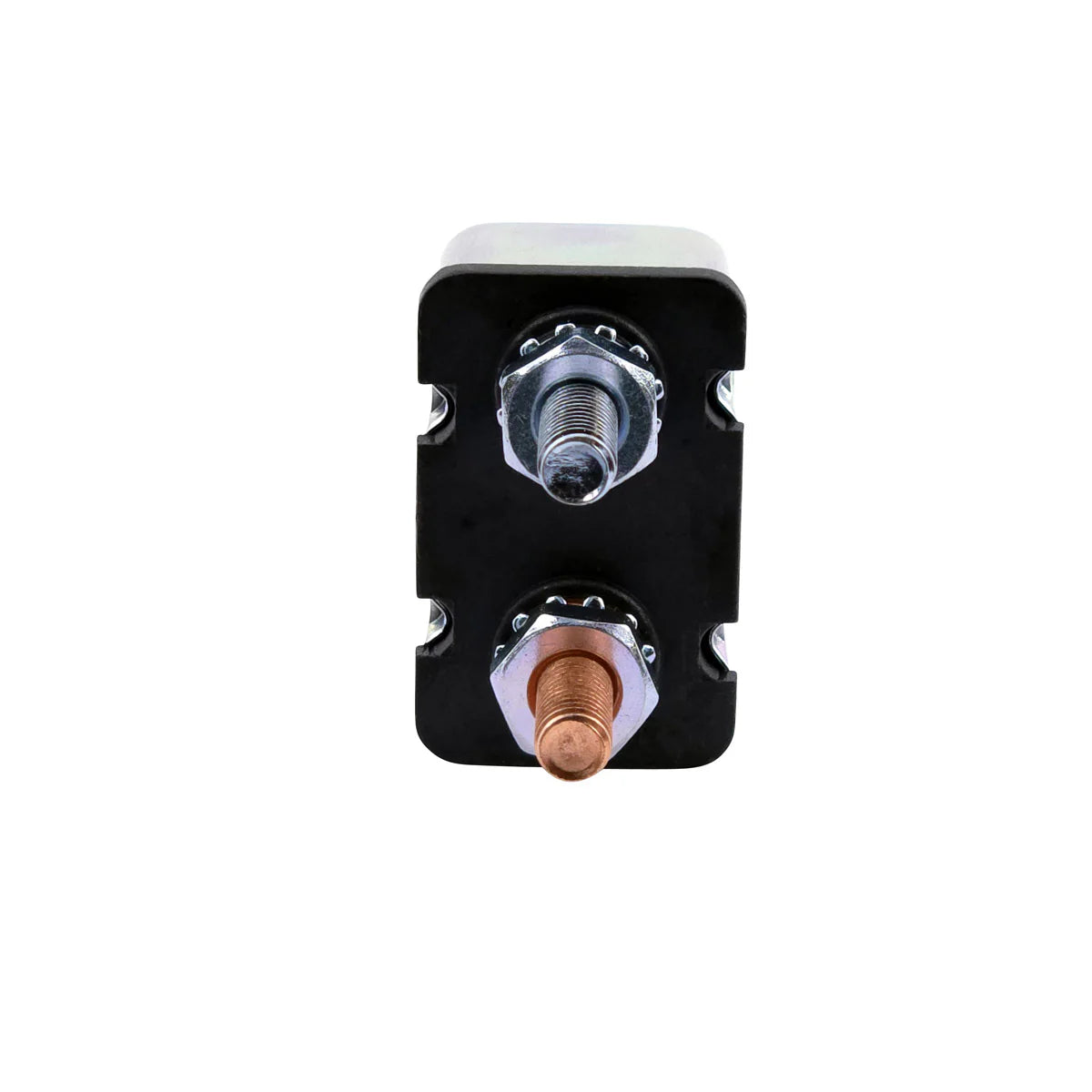

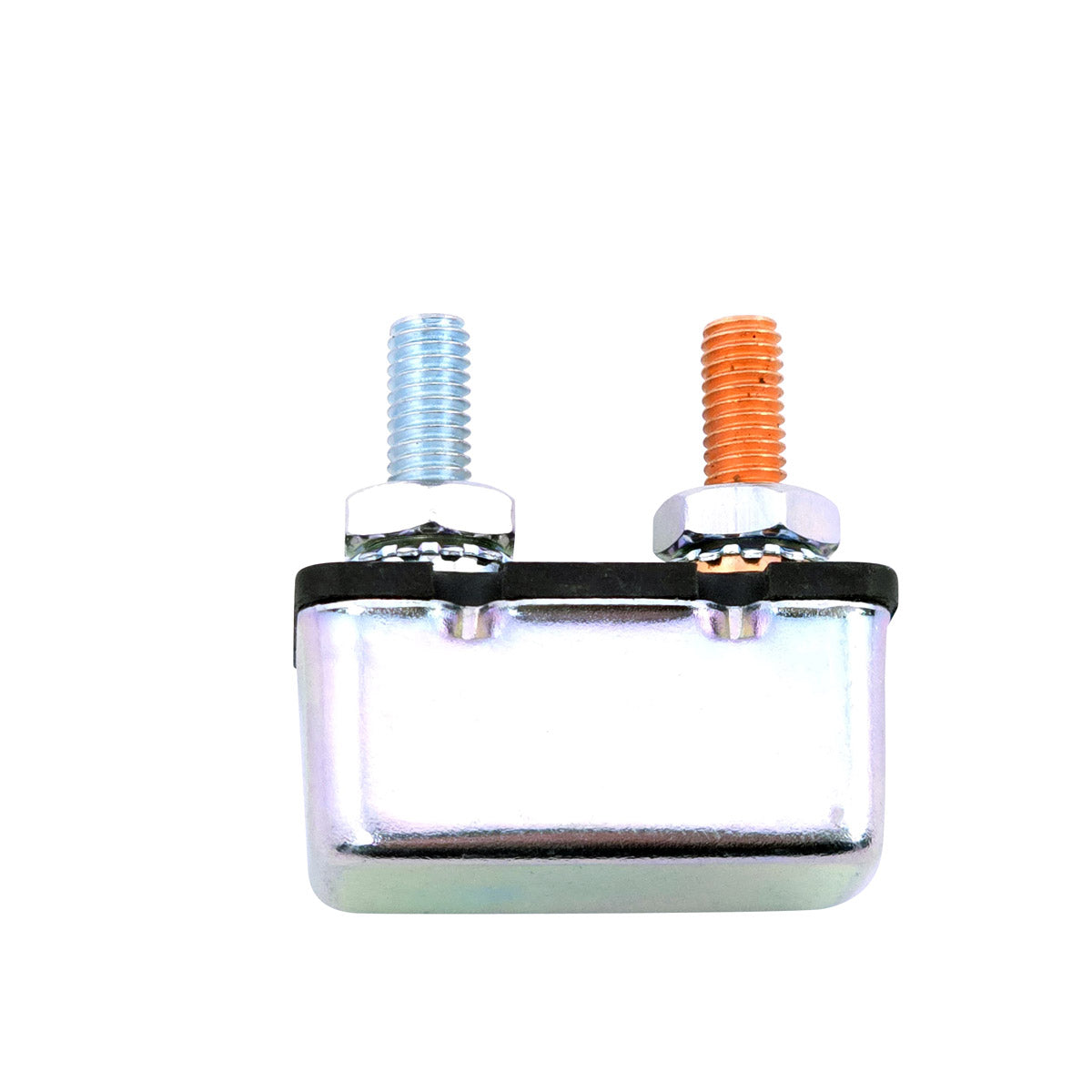

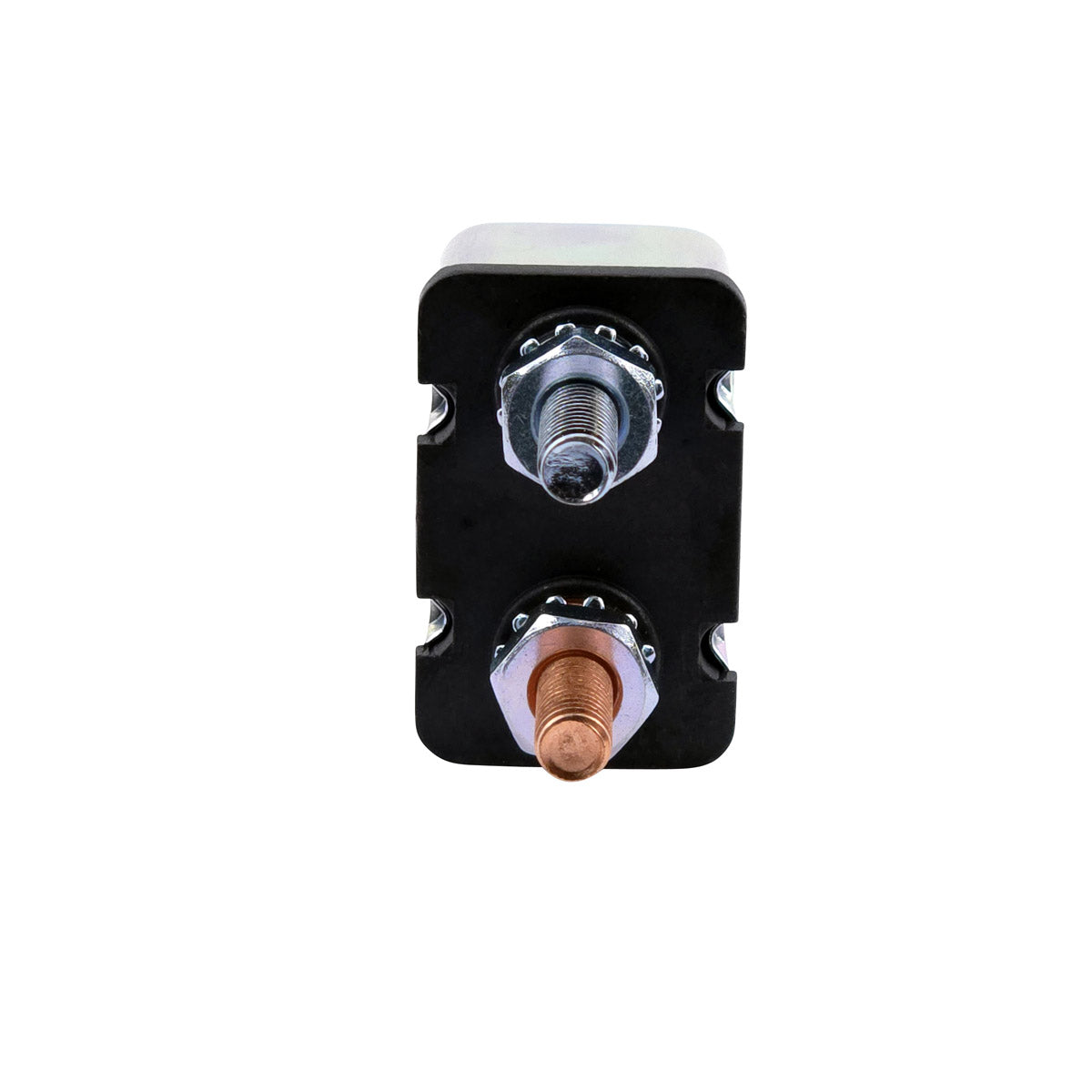

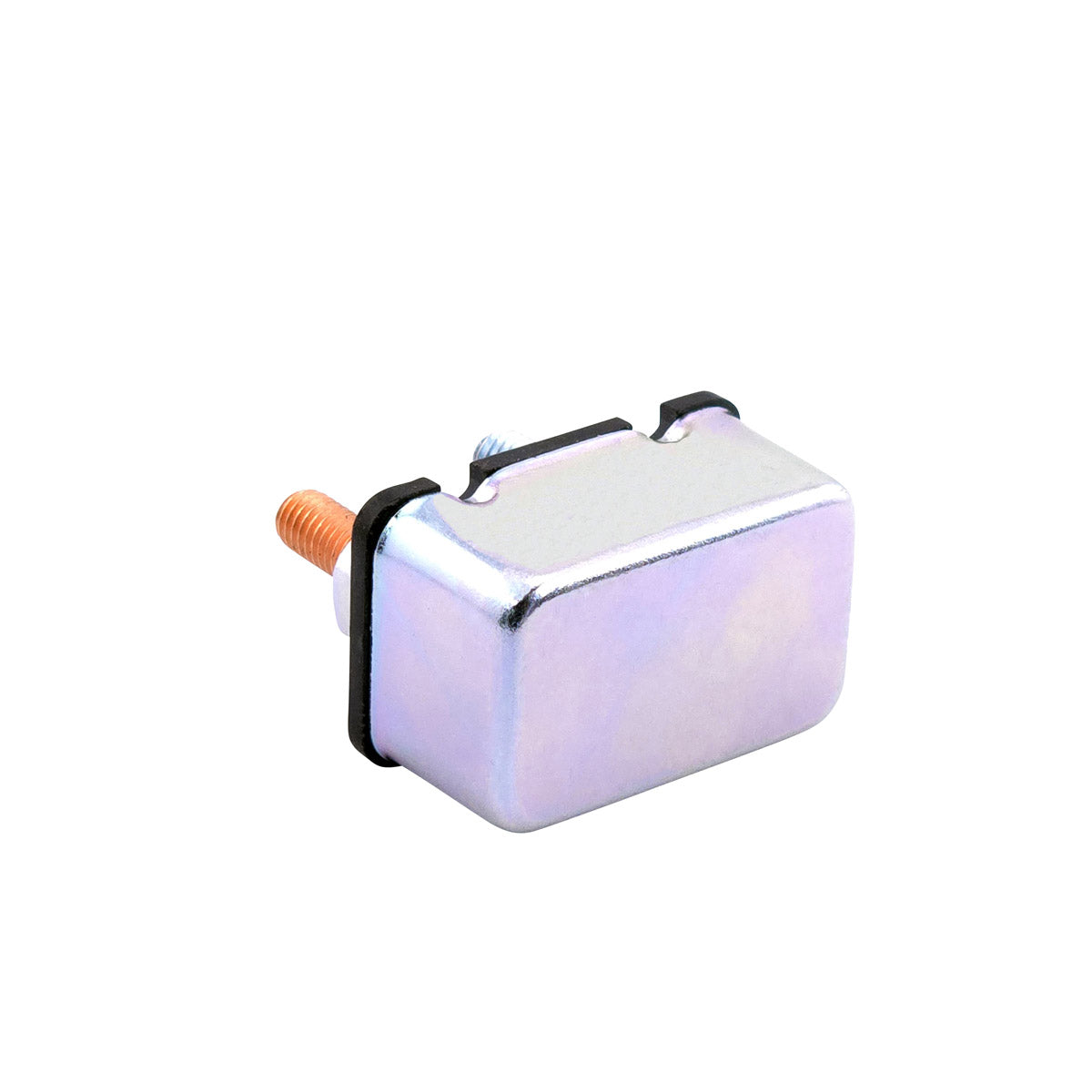

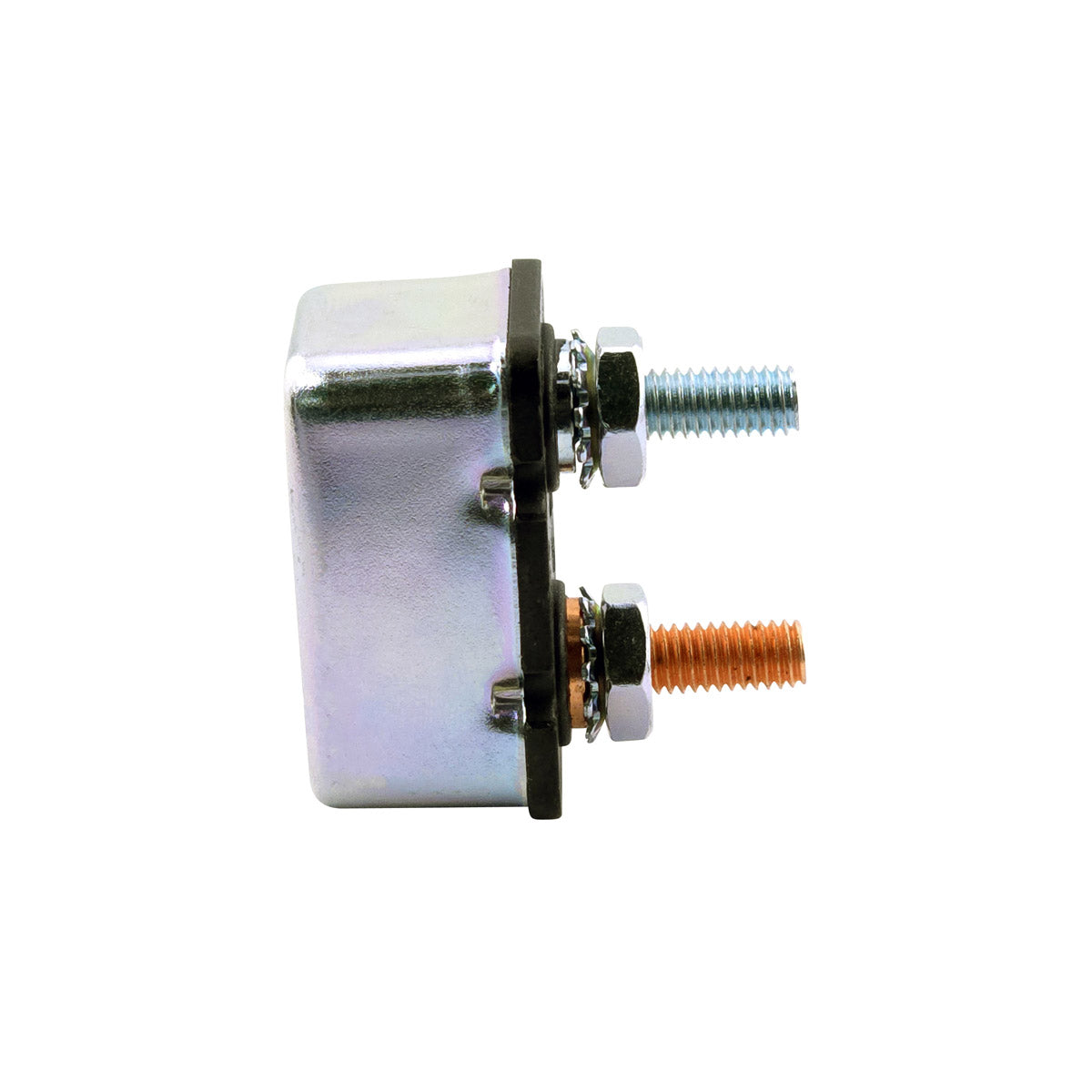

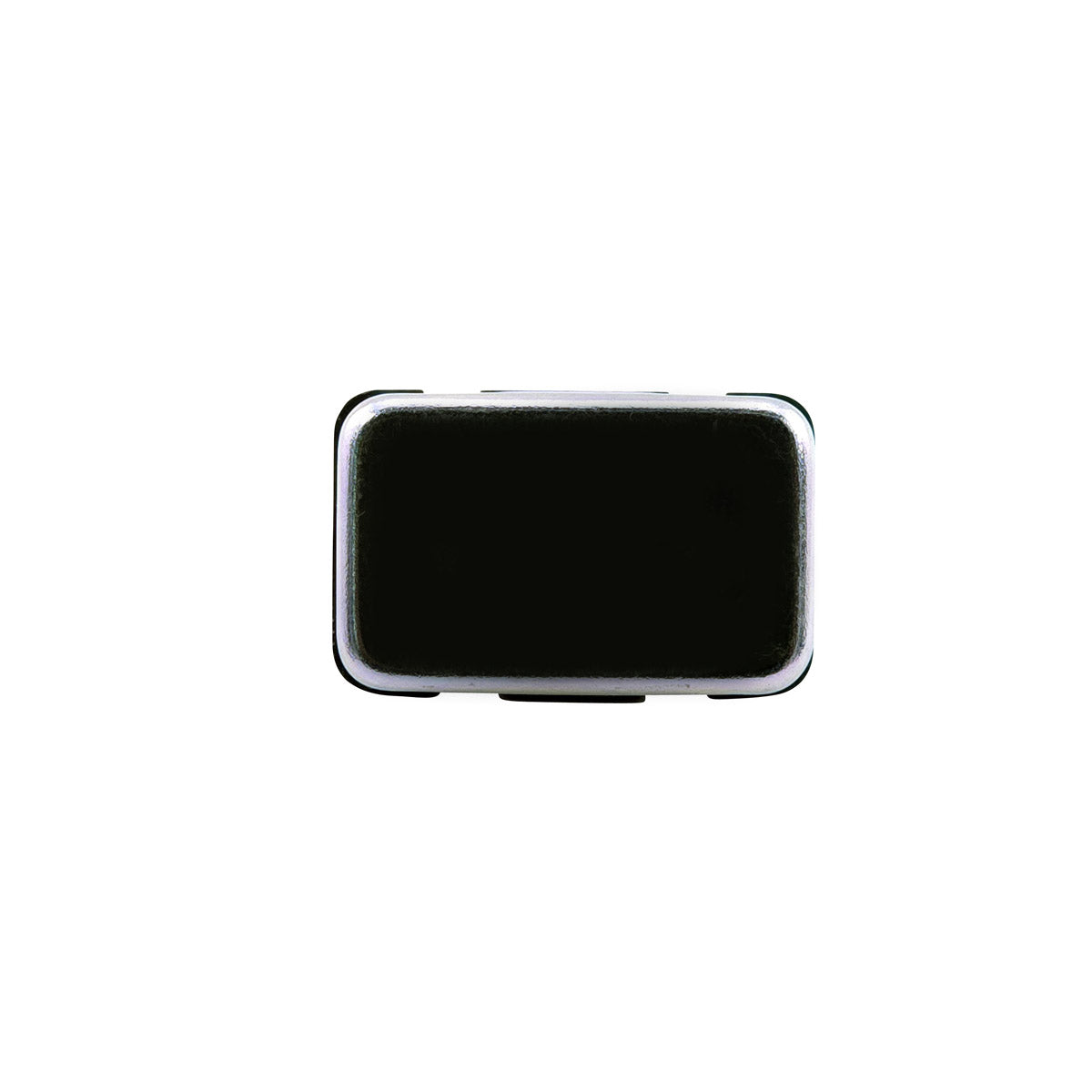

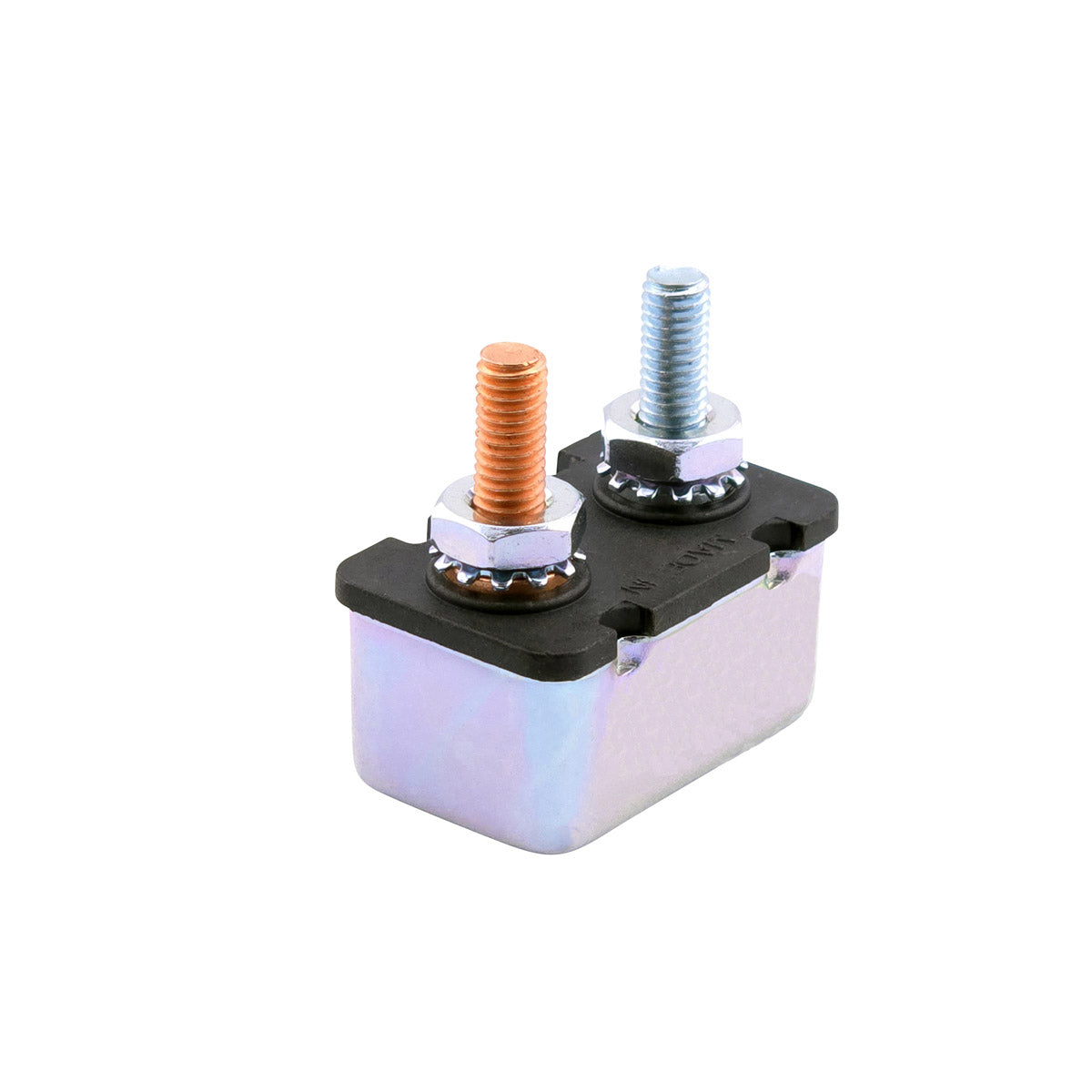

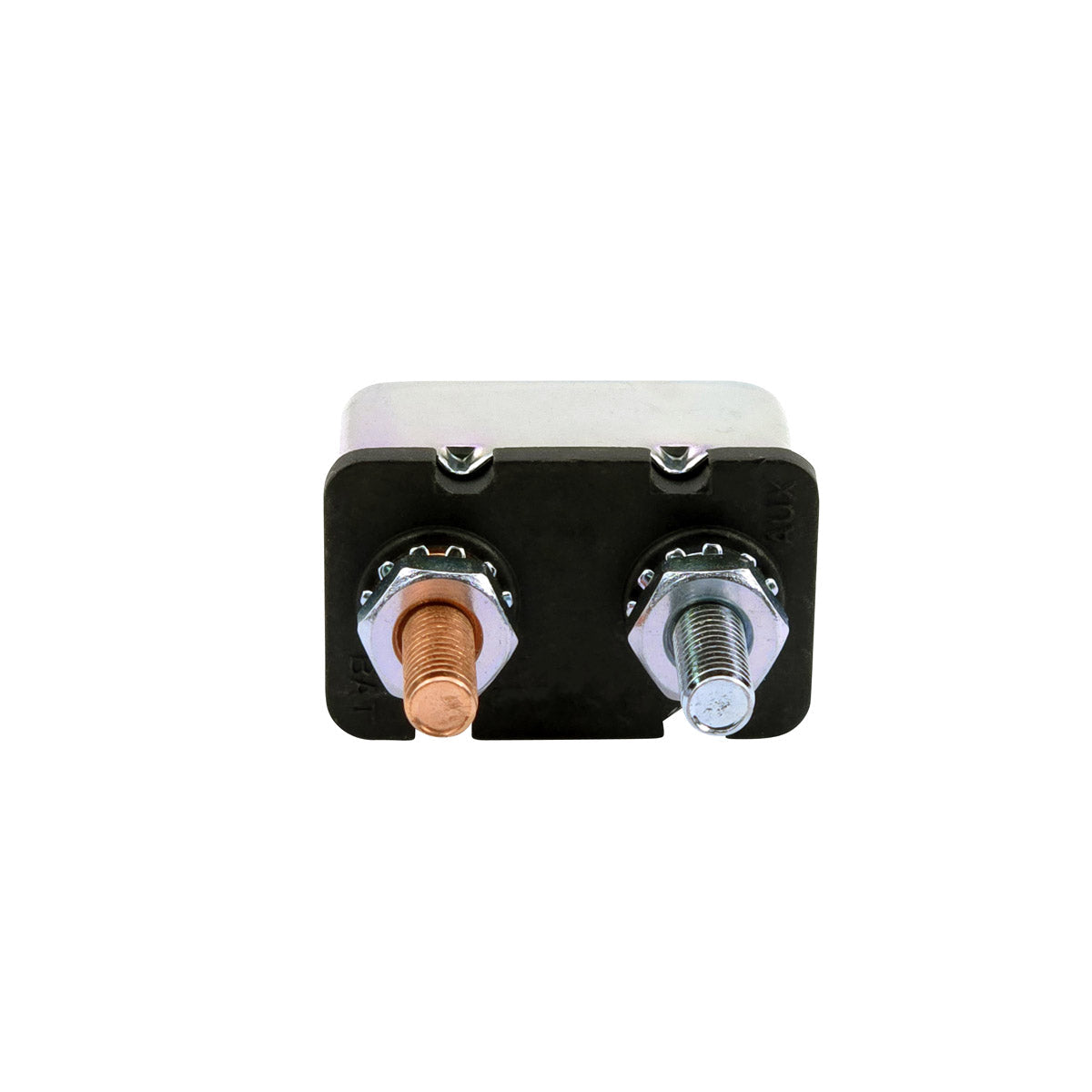

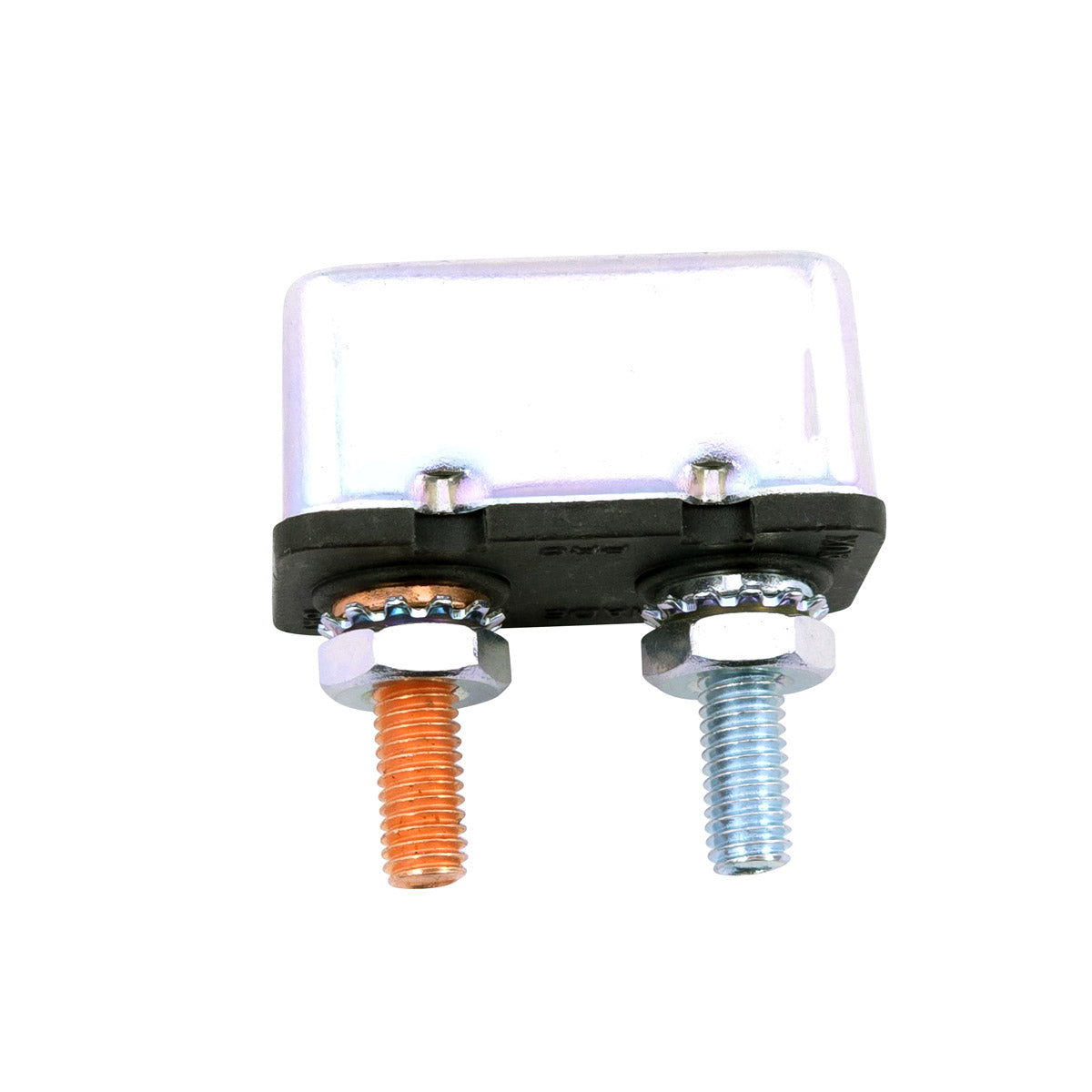

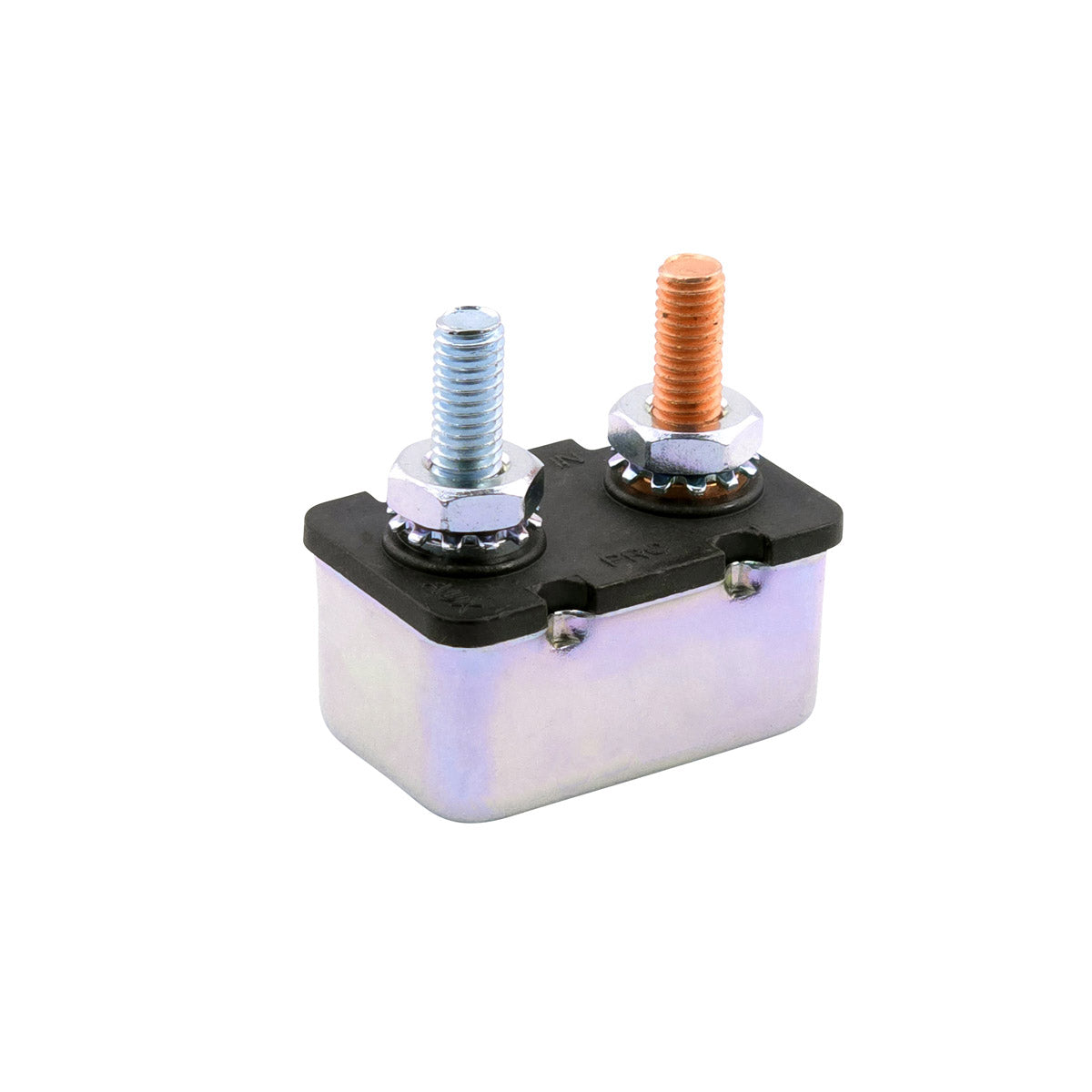

Sealed 10 AMP Circuit Breaker
Polaris Sportsman 325, 400 and 500, Ranger 500 and Indy 750 IQ - 1999 to 2019
This is a brand new sealed 10 AMP circuit breaker, built as a direct replacement for the original unit fitted to a wide range of Polaris ATVs, utility vehicles and snowmobiles produced between 1999 and 2019. It is manufactured to exceed the specification of the original equipment part, and every unit is tested before it is shipped. Fitting is a like-for-like swap onto the original mounting point, using the original posts and the original wiring - nothing has to be cut, spliced or adapted.
A circuit breaker protects a circuit from an overload in the same way a fuse does, but it does not have to be thrown away once it has done its job. It interrupts the current, then resets so the circuit can carry load again. That makes it the sensible choice on accessory and auxiliary circuits that occasionally see a surge. The sealed housing on this unit keeps water, mud, dust and road salt away from the contacts, which matters a great deal on a machine that spends its working life outdoors. The 10 AMP rating is a protection value chosen for the wiring in that circuit, so this unit must only be used to replace another 10 AMP breaker.
Key Features
- Brand new aftermarket sealed 10 AMP circuit breaker - not a repaired or reconditioned unit
- Built to exceed the original equipment specification
- Sealed housing keeps moisture, mud and road salt away from the contacts
- Resettable - the circuit is restored once the overload has cleared
- Direct replacement, no modification to the loom or the mounting point
- Compact 32 mm x 20 mm x 16 mm body with 28 mm posts
- Every unit tested before it leaves the factory
- Replaces Polaris part numbers 2410692, 2201795 and 4010369
Technical Specs
| Specification | Detail |
|---|---|
| Amperage rating | 10 AMP |
| Type | Sealed circuit breaker |
| Length | 32 mm |
| Width | 20 mm |
| Height | 16 mm |
| Post height | 28 mm |
| Condition | Brand new aftermarket replacement |
| Part number | RMS899-108604 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Polaris Sportsman 325 | 1999-2019 |
| Polaris Sportsman 400 | 1999-2019 |
| Polaris Sportsman 500 | 1999-2019 |
| Polaris Ranger 500 | 1999-2019 |
| Polaris Indy 750 IQ | 1999-2019 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 2410692 | Polaris |
| 2201795 | Polaris |
| 4010369 | Polaris |
Frequently Asked Questions
Will this circuit breaker fit without modification?
Yes. It is a direct replacement for the original sealed 10 AMP breaker, using the same post arrangement and the same mounting, so the original wiring connects straight onto it. No cutting, splicing or adapting of the loom is required. Disconnect the battery before you start work, and have the job carried out by a qualified technician if you are not confident working on the electrical system.
What is included?
One brand new sealed 10 AMP circuit breaker. The original mounting hardware and wiring are re-used, so no additional fixings or cable are supplied with the part.
How do I know my old circuit breaker has failed?
The usual signs are a circuit that trips repeatedly under normal load, an accessory circuit that is completely dead even though no fuse has blown, or intermittent power that comes back once the breaker has cooled down. Corrosion or green deposits around the posts on a breaker whose seal has been broken is another common indicator, as water in the housing will eventually stop it holding contact.
Can I fit a higher amp breaker to stop it tripping?
No. The 10 AMP rating is chosen to protect the wiring in that particular circuit, not the breaker itself. Fitting a higher rated unit removes that protection and can allow the loom to overheat. If a correctly rated breaker keeps tripping, there is a fault in the circuit and it should be traced and repaired.
