Lighting Stator for Husaberg & Husqvarna European Models 1999-2003
Lighting Stator for Husaberg & Husqvarna European Models 1999-2003
SKU:RM01193
Free shipping over £150. Terms apply
Couldn't load pickup availability
Improved Lighting Stator for SEM Replacement - Husaberg and Husqvarna 1999-2003
Husaberg and Husqvarna European models - 1999 to 2003 - SEM replacement - Part RM01193

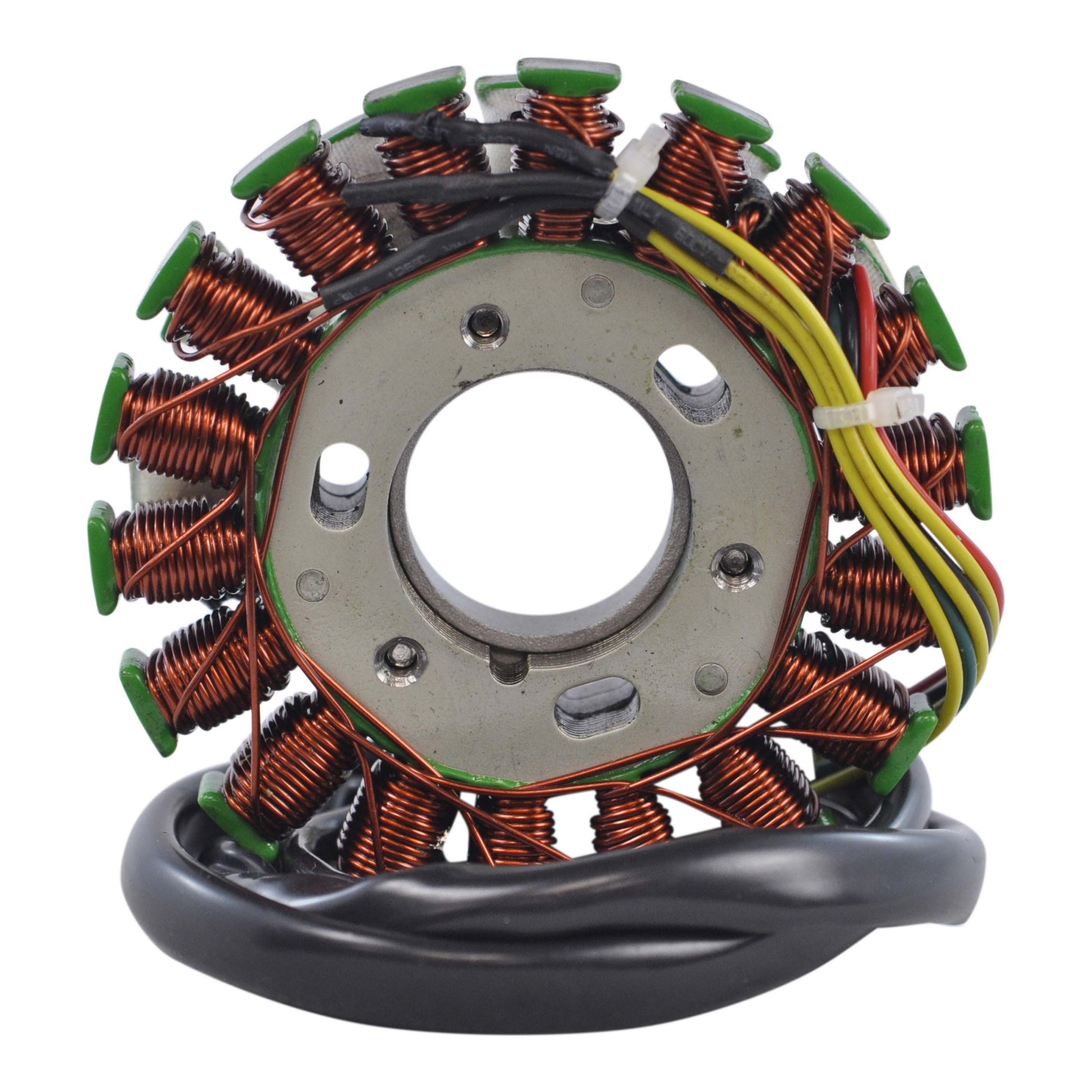

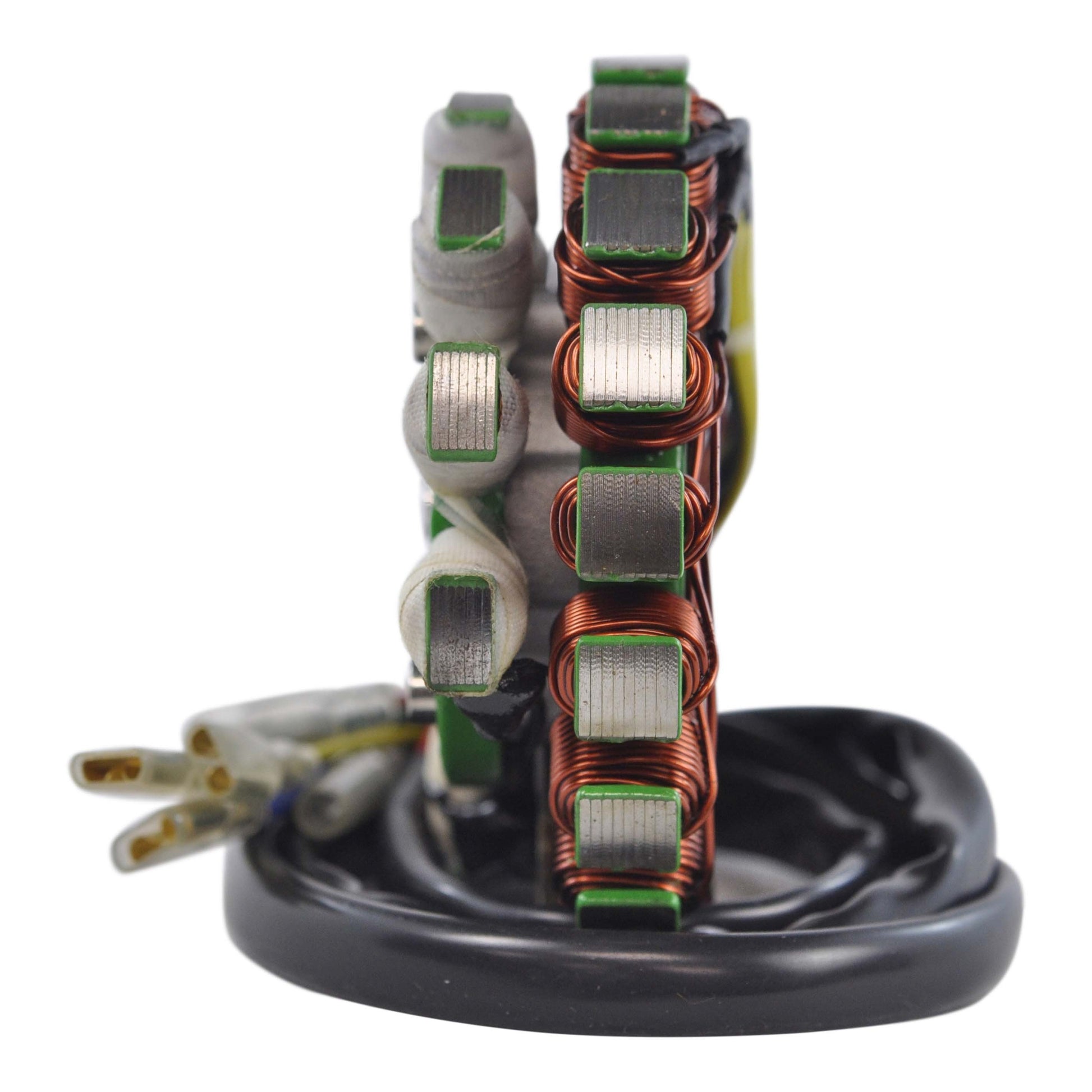

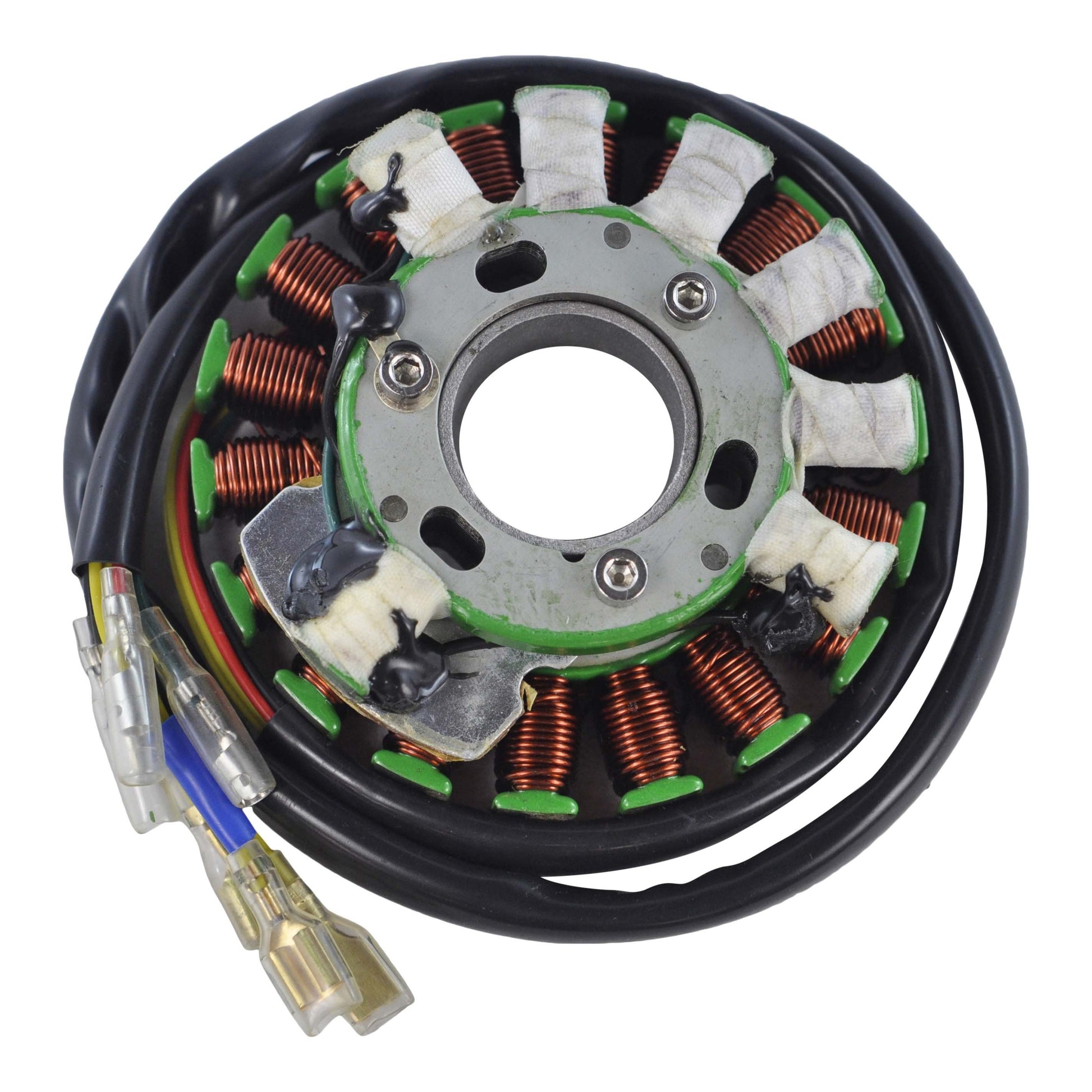

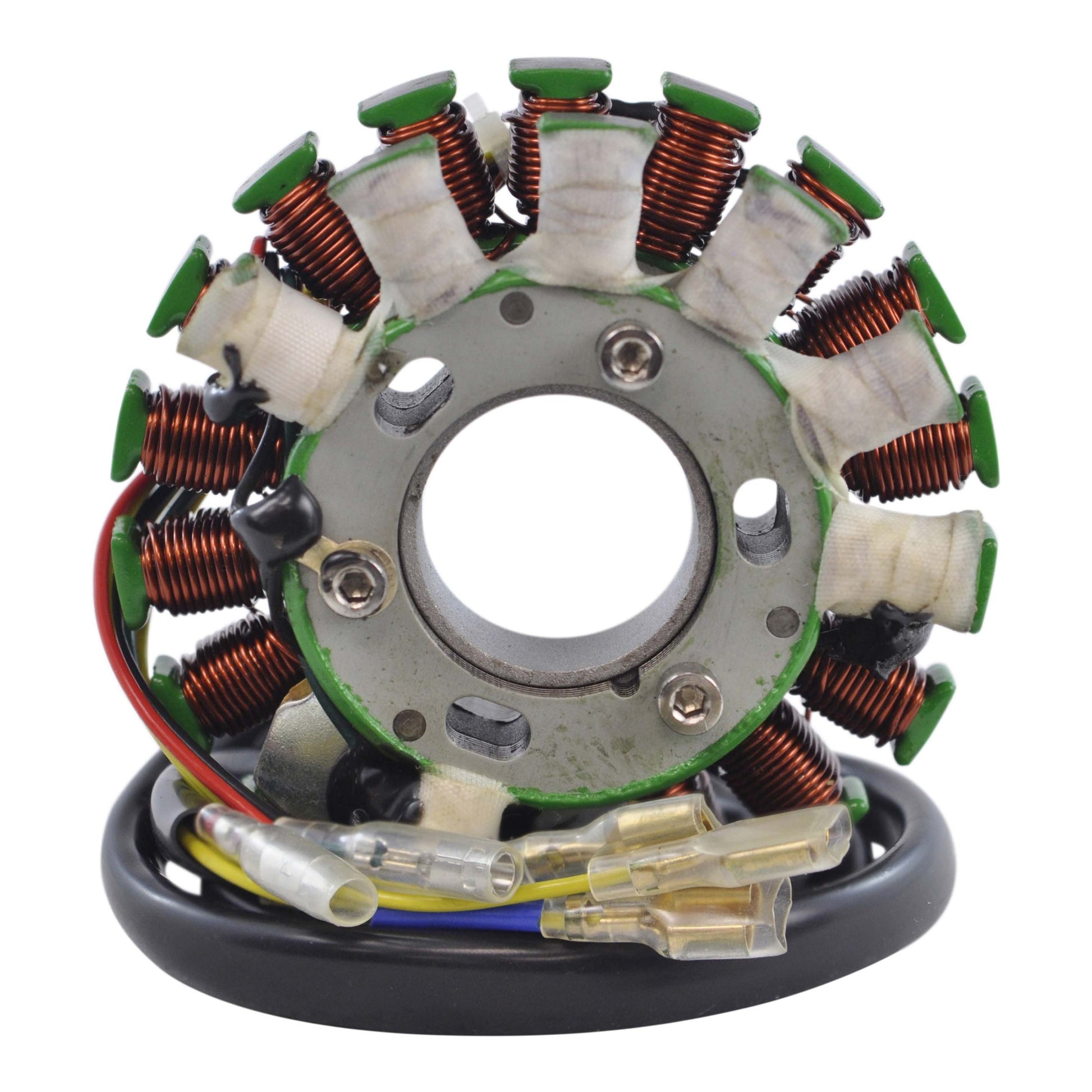

This is an improved lighting stator built as a direct replacement for the original SEM manufactured stators fitted to Husaberg and Husqvarna European models from 1999 to 2003. Although the design differs from the original unit, it provides direct fitment and installs plug-and-play, so no modification is required. The pickup coil is supplied on the assembly, which means the ignition trigger is renewed at the same time as the lighting and source windings.
The stator is built on highest grade lamination materials and wound with highest grade copper windings that are resistant to 200 degrees Celsius. It produces a stronger starting spark for more reliable starting and consistent running, and it cross references SEM part numbers 250-285-01, 250-272-01, 250-286-01 and 250-202-01. All units are factory tested before shipment. Winding resistances are listed below so you can confirm the fault on your existing part first.
Key Features
- Improved lighting stator - direct replacement for original SEM manufactured stators
- Plug-and-play installation, direct fitment
- Design differs from the original but fits directly
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- Produces a stronger starting spark
- Pickup coil included
- All units factory tested before shipment
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RM01193 |
| Variant | RM01193-R00 |
| Interior diameter | 28 mm |
| Exterior diameter | 91 mm |
| Thickness | 23 mm |

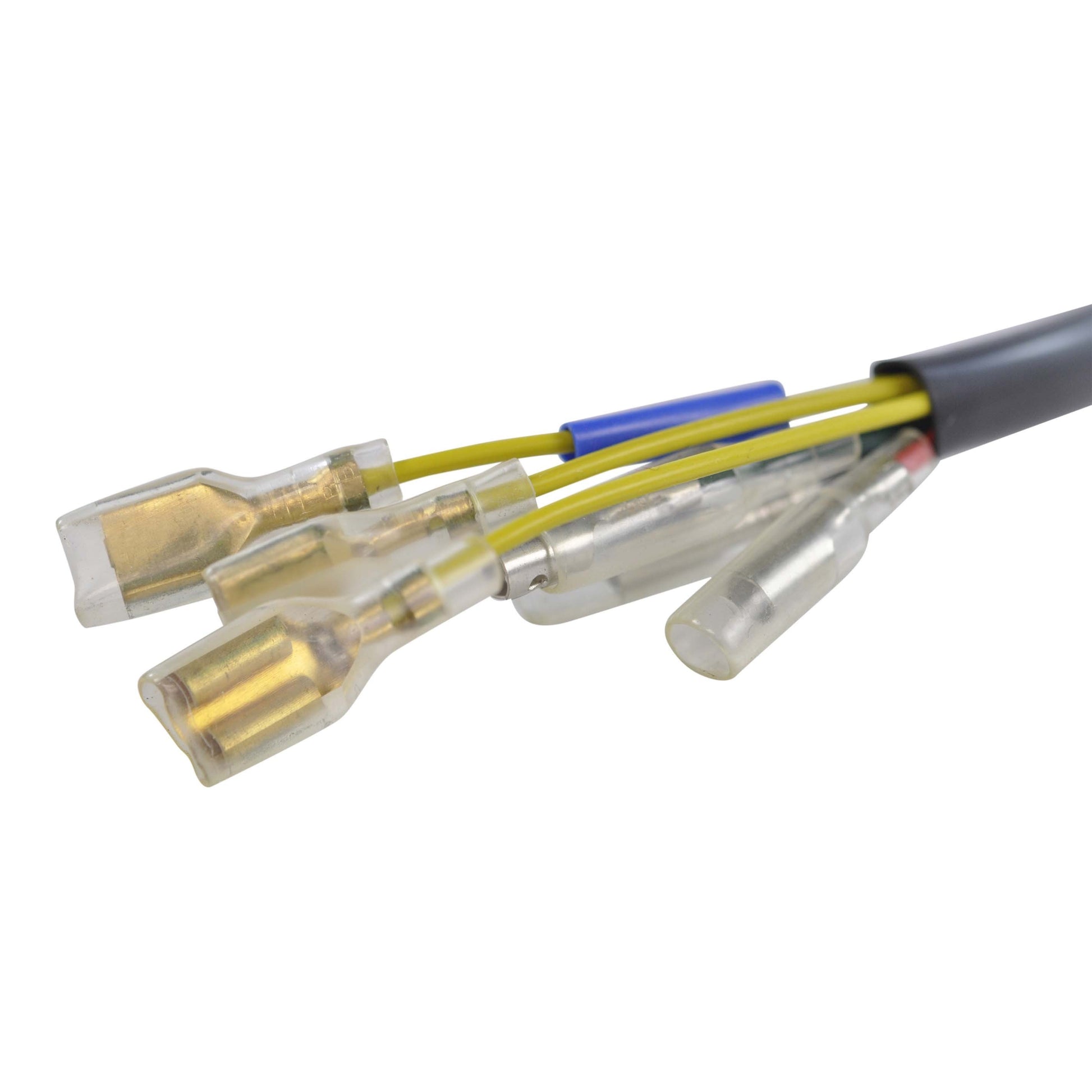

| Wire length (stator to plug) | 700 mm |
| Number of wires | 6 |
| Number of plugs | 6 |
| Number of pins | 6 |
| Alternator resistance (yellow to yellow) | 0.4 ohms +/- 20% |
| Pickup resistance (black to green) | 179 ohms +/- 20% |
| Source resistance (red to black) | 1260 ohms +/- 20% |
| Temperature rating | 200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Husaberg European models | 1999-2003 |
| Husqvarna European models | 1999-2003 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 250-285-01 | SEM |
| 250-272-01 | SEM |
| 250-286-01 | SEM |
| 250-202-01 | SEM |
Frequently Asked Questions
Does it fit without modification even though the design is different?
Yes. The construction differs from the original SEM unit, but it is a direct fitment, plug-and-play part, so it mounts and connects without modification. Confirm your original stator carries one of the SEM numbers 250-285-01, 250-272-01, 250-286-01 or 250-202-01 before ordering.
What is included?
The stator assembly with the pickup coil fitted, on a 700 mm lead to the plug. All units are factory tested before shipment.
How do I know my old stator has failed?
Common signs are no spark or a weak spark, hard starting, lights that dim or flicker, and the engine cutting out. Confirm with a multimeter: the alternator winding should read 0.4 ohms +/- 20% yellow to yellow, the pickup 179 ohms +/- 20% black to green, and the source winding 1260 ohms +/- 20% red to black. Open circuits, shorts to the engine case or readings well outside those bands confirm a failure.
What does improved lighting mean on this part?
The windings are specified to give a stronger starting spark and more reliable performance than the original SEM item, using higher grade laminations and copper rated to 200 degrees Celsius. The unit measures 28 mm inside diameter, 91 mm outside diameter and 23 mm thick, with 6 wires, 6 plugs and 6 pins.
