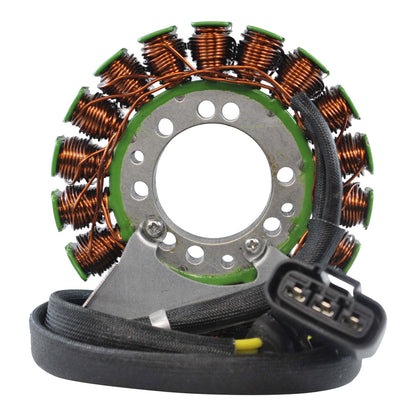

Stator for Can-Am Maverick 1000 & Ski-Doo Grand Touring, Expedition 600 2011-2023
Stator for Can-Am Maverick 1000 & Ski-Doo Grand Touring, Expedition 600 2011-2023
SKU:RM01234
Free shipping over £150. Terms apply
Couldn't load pickup availability
Stator for Can-Am Maverick 1000, Lynx 59 Yeti and Ski-Doo Grand Touring, Skandic and Expedition 600
Can-Am, Lynx and Ski-Doo - 2011 to 2023 - OEM replacement 420685635 - Part RM01234

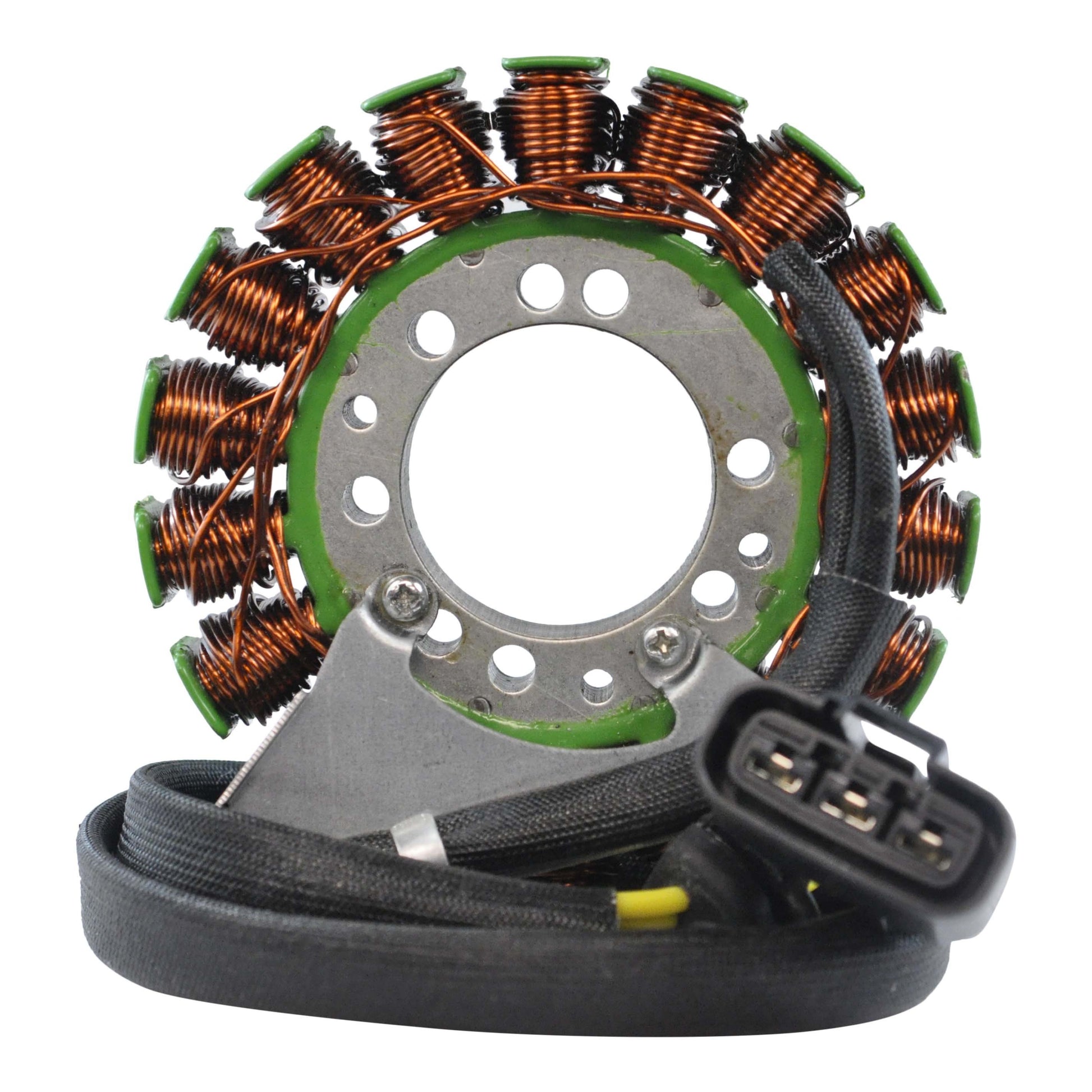

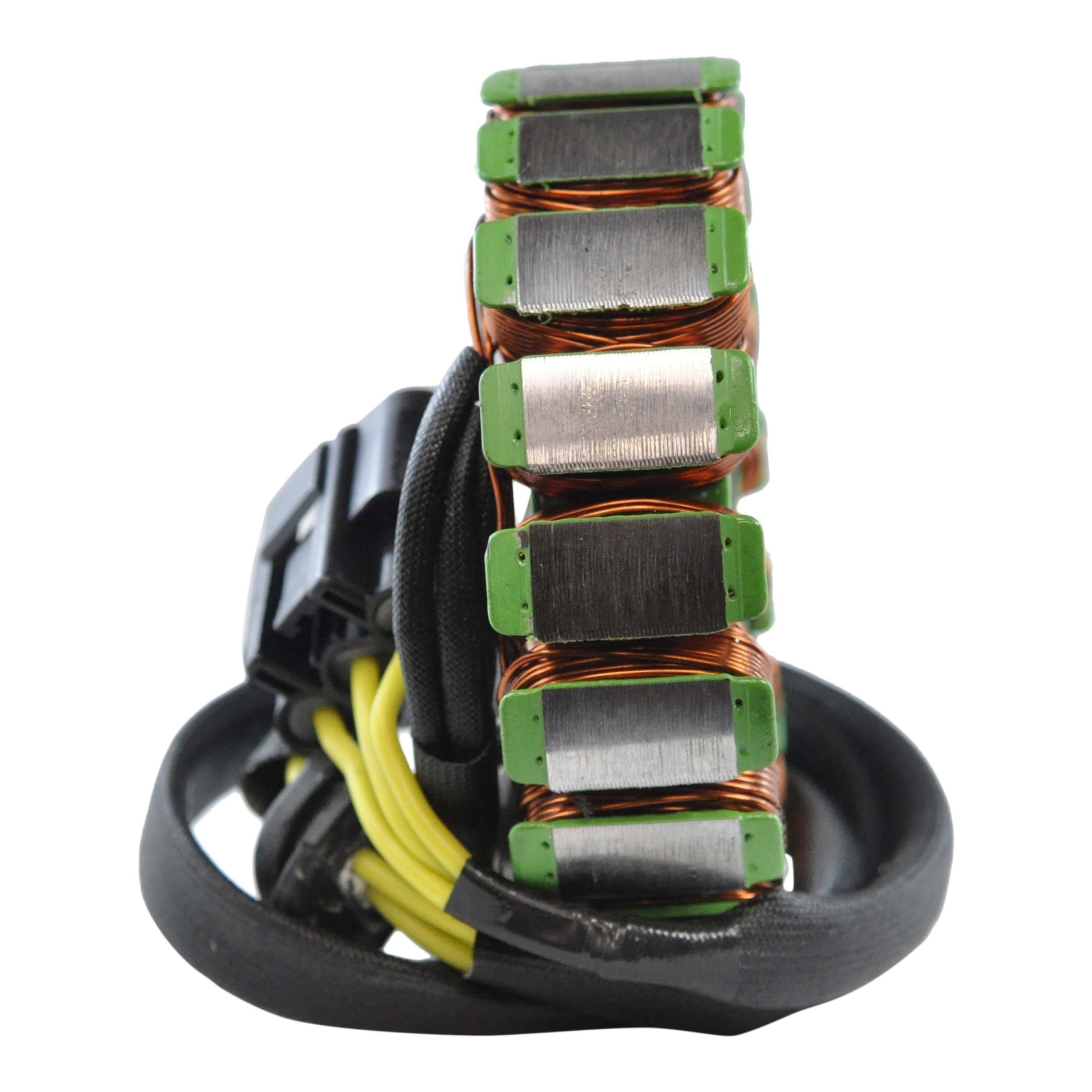

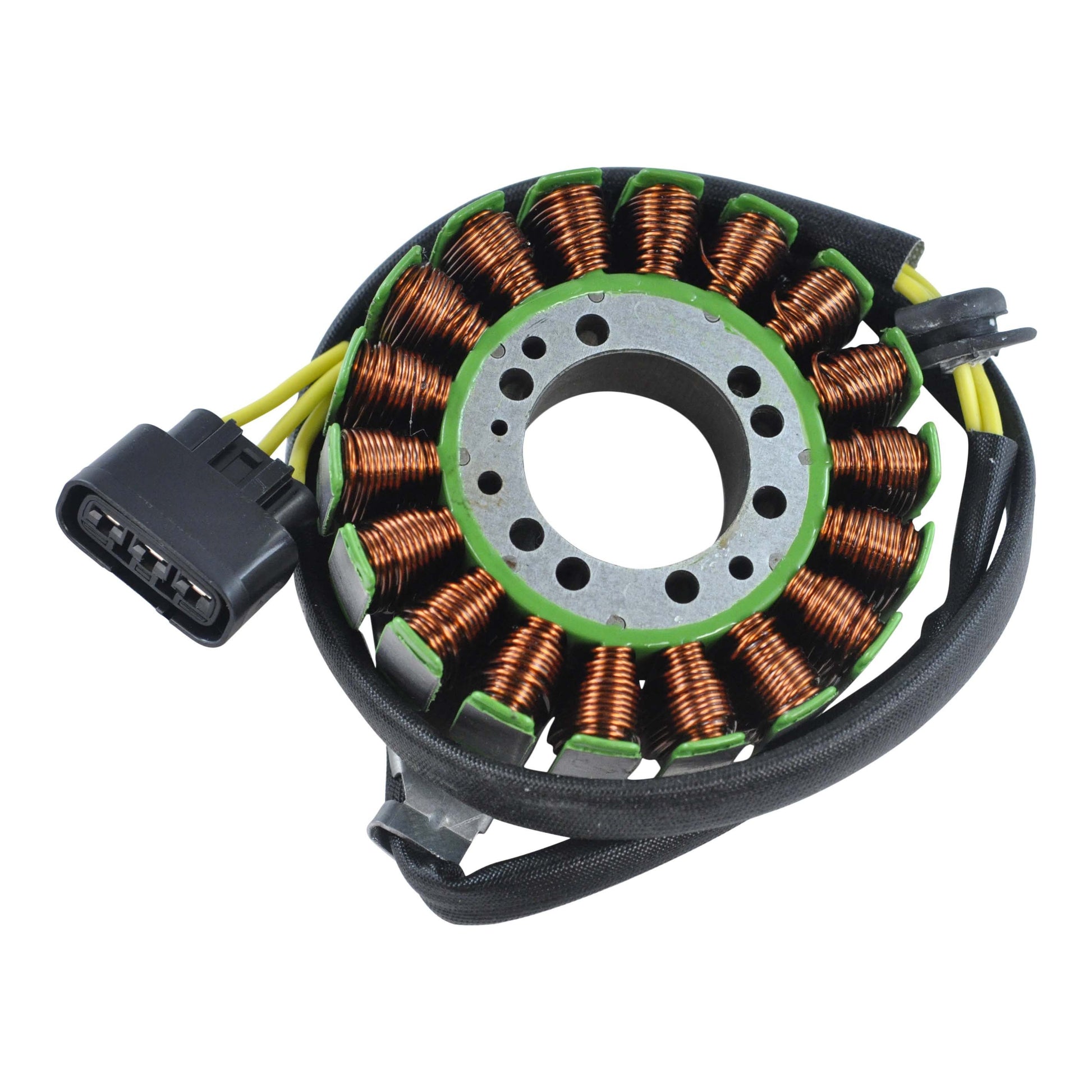

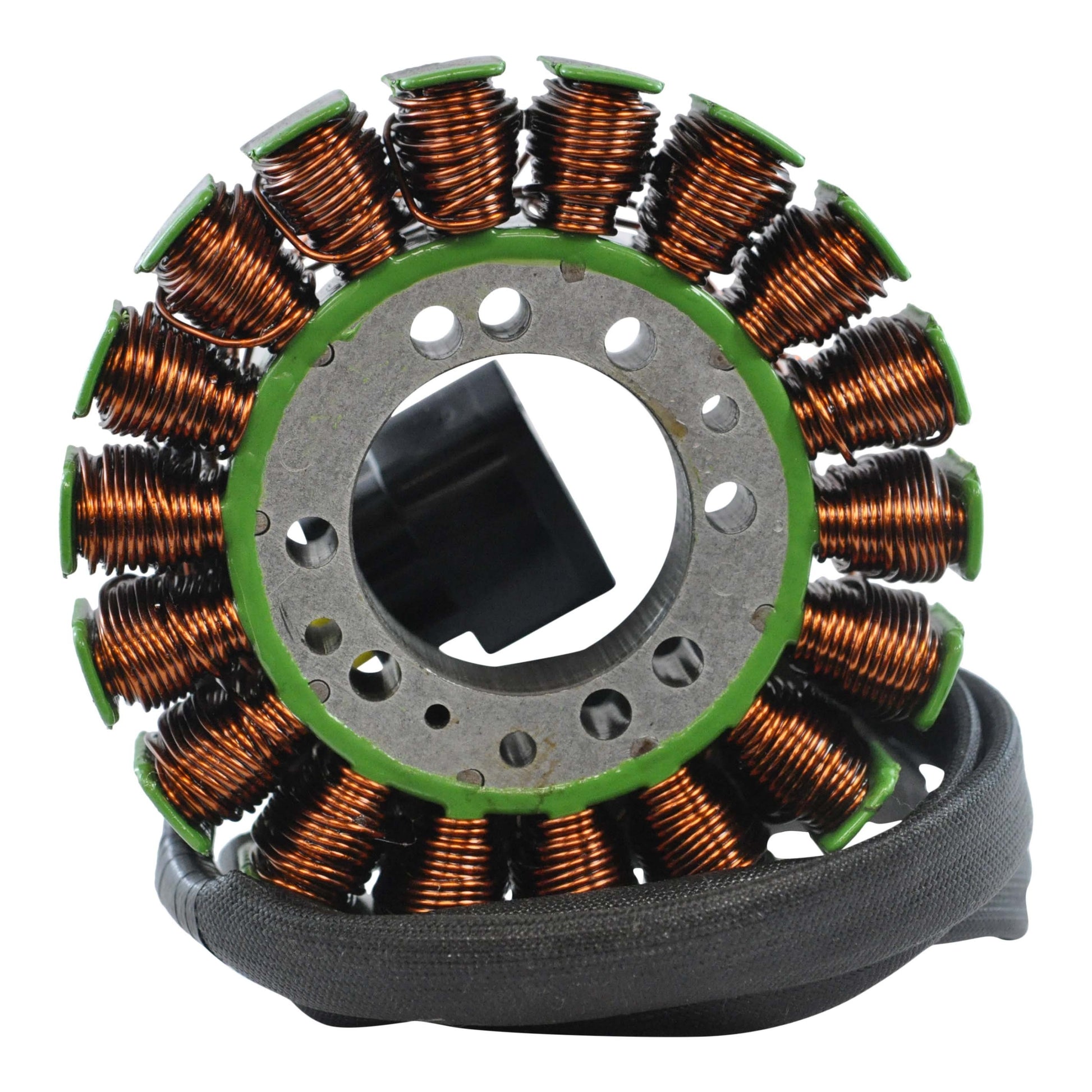

This is a brand new stator built as a direct replacement for the original charging stator used on the Can-Am Maverick 1000, the Lynx 59 Yeti and the Ski-Doo Grand Touring, Skandic and Expedition 600 across the 2011 to 2023 coverage span. It cross references OEM part number 420685635 and is a plug-and-play, direct fit item, so it mounts on the standard fixings and plugs straight into the existing harness with no cutting or splicing.
The stator is built on highest grade lamination materials and wound with highest grade copper windings rated to 200 degrees Celsius, which matters on machines that spend long periods at high engine temperature and under heavy accessory load. A connector and a rubber grommet are supplied with the unit, and every stator is tested before it is shipped. The winding resistance figure below lets you check your existing part before you order.
Key Features
- Brand new stator - direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius

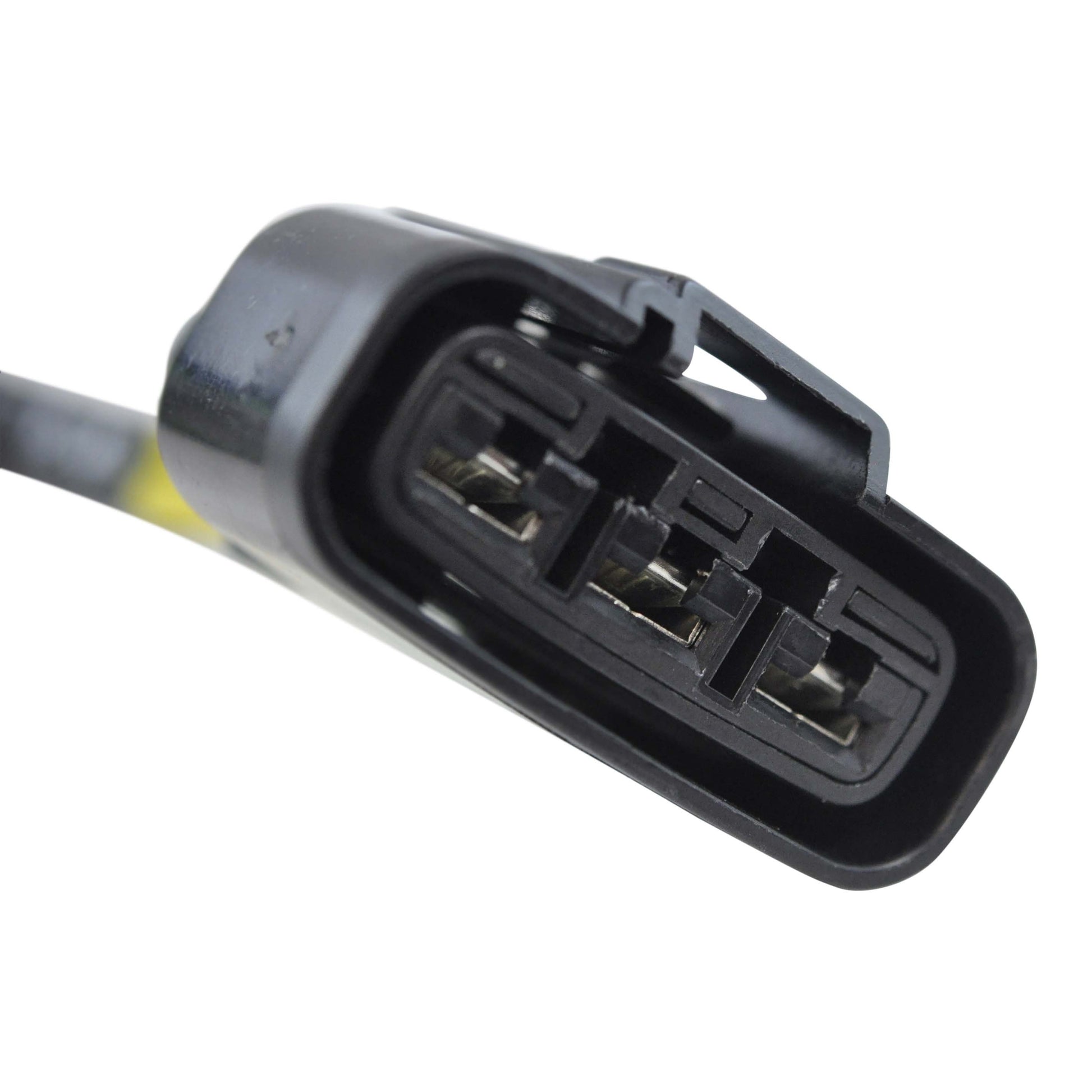

- Connector included
- Rubber grommet included
- All products tested before shipping
- Cross references OEM 420685635
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RM01234 |
| Interior diameter | 41 mm |
| Exterior diameter | 114 mm |
| Thickness | 22 mm |
| Wire length (stator to grommet) | 160 mm |
| Number of wires | 3 |
| Number of plugs | 1 |
| Number of pins | 3 |
| Wire-to-wire resistance (yellow) | 0.4 ohms +/- 20% |
| Temperature rating | 200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Can-Am Maverick 1000 | 2011-2023 |
| Lynx 59 Yeti | 2011-2023 |
| Ski-Doo Grand Touring | 2011-2023 |
| Ski-Doo Skandic | 2011-2023 |
| Ski-Doo Expedition 600 | 2011-2023 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 420685635 | Can-Am / Lynx / Ski-Doo |
Frequently Asked Questions
Will it fit without modification?
Yes. It is a direct, plug-and-play replacement that uses the original mounting points and connector, so no cutting or splicing of the harness is required. Because this part covers several models across a wide year span, check the number on your original stator against 420685635 before ordering.
What is included in the box?
The stator assembly, its connector and a rubber grommet. All products are tested before they are shipped.
How do I know my old stator has failed?
Common signs are a battery that will not hold charge, dim lights, a charging fault code, and a machine that dies out on the trail. Test the three yellow wires with a multimeter: each pair should read approximately 0.4 ohms +/- 20%. An open circuit, continuity to the engine case, or readings well outside that band point to a failed stator.
Is this the same part for both the snowmobiles and the side-by-side?
Yes. The Can-Am Maverick 1000, the Lynx 59 Yeti and the listed Ski-Doo models all share the same charging stator, identified by OEM number 420685635. The unit measures 41 mm inside diameter, 114 mm outside diameter and 22 mm thick, with a 160 mm lead from the stator body to the grommet.
