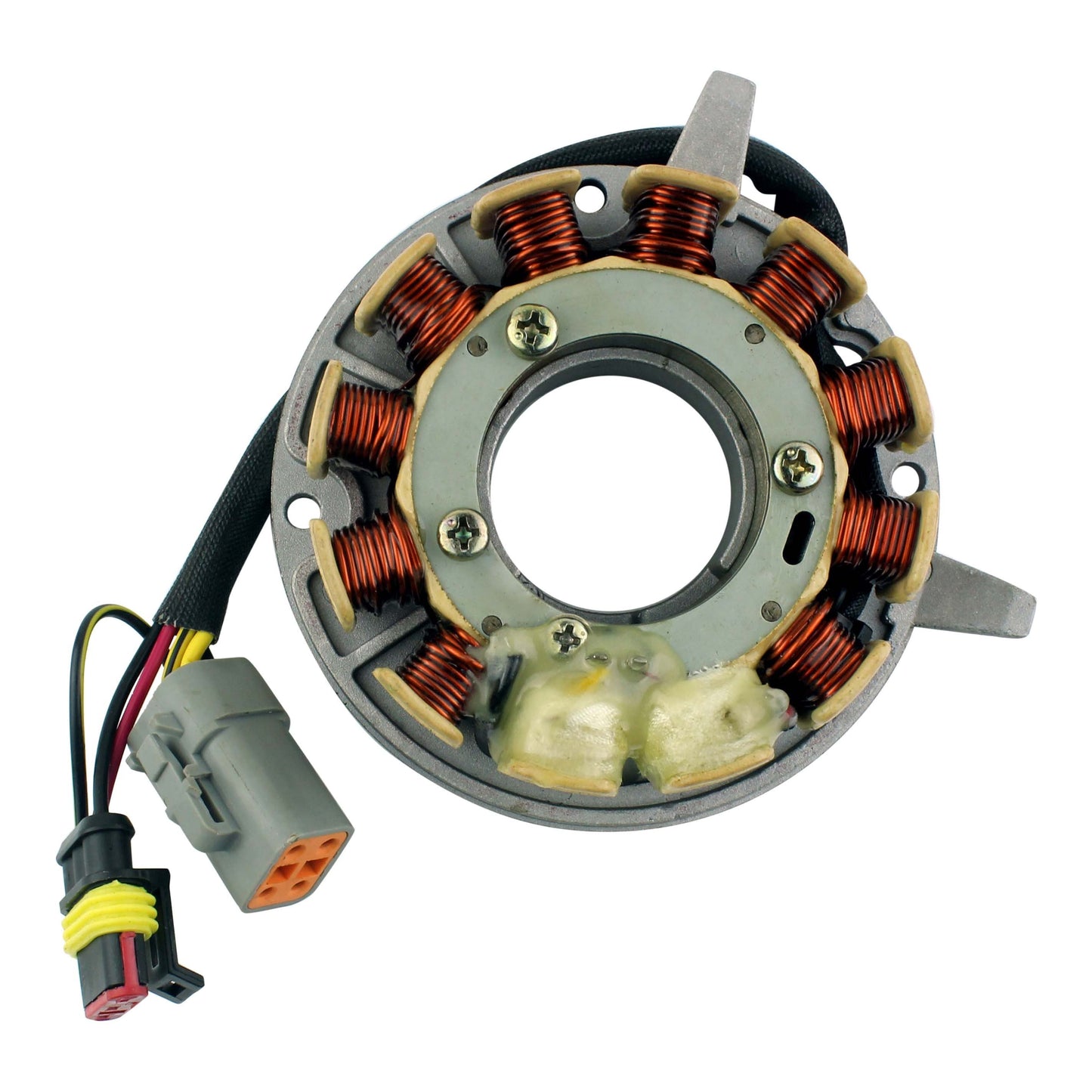

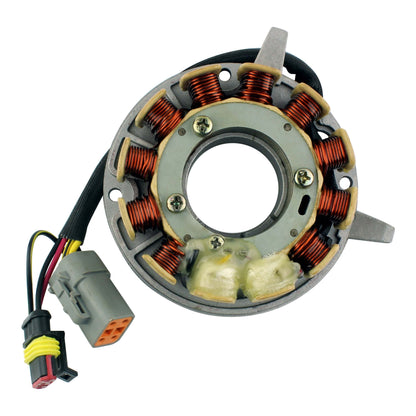

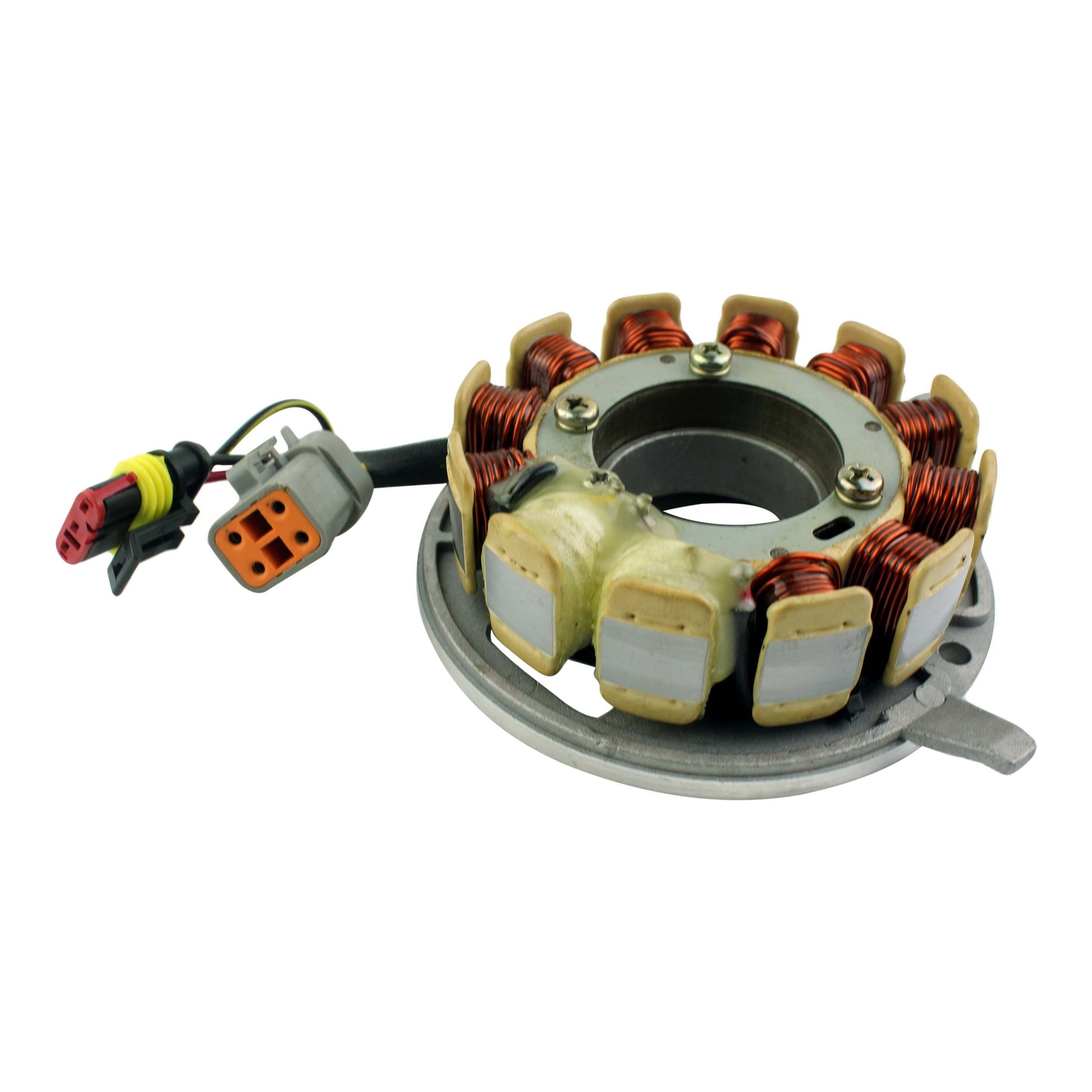

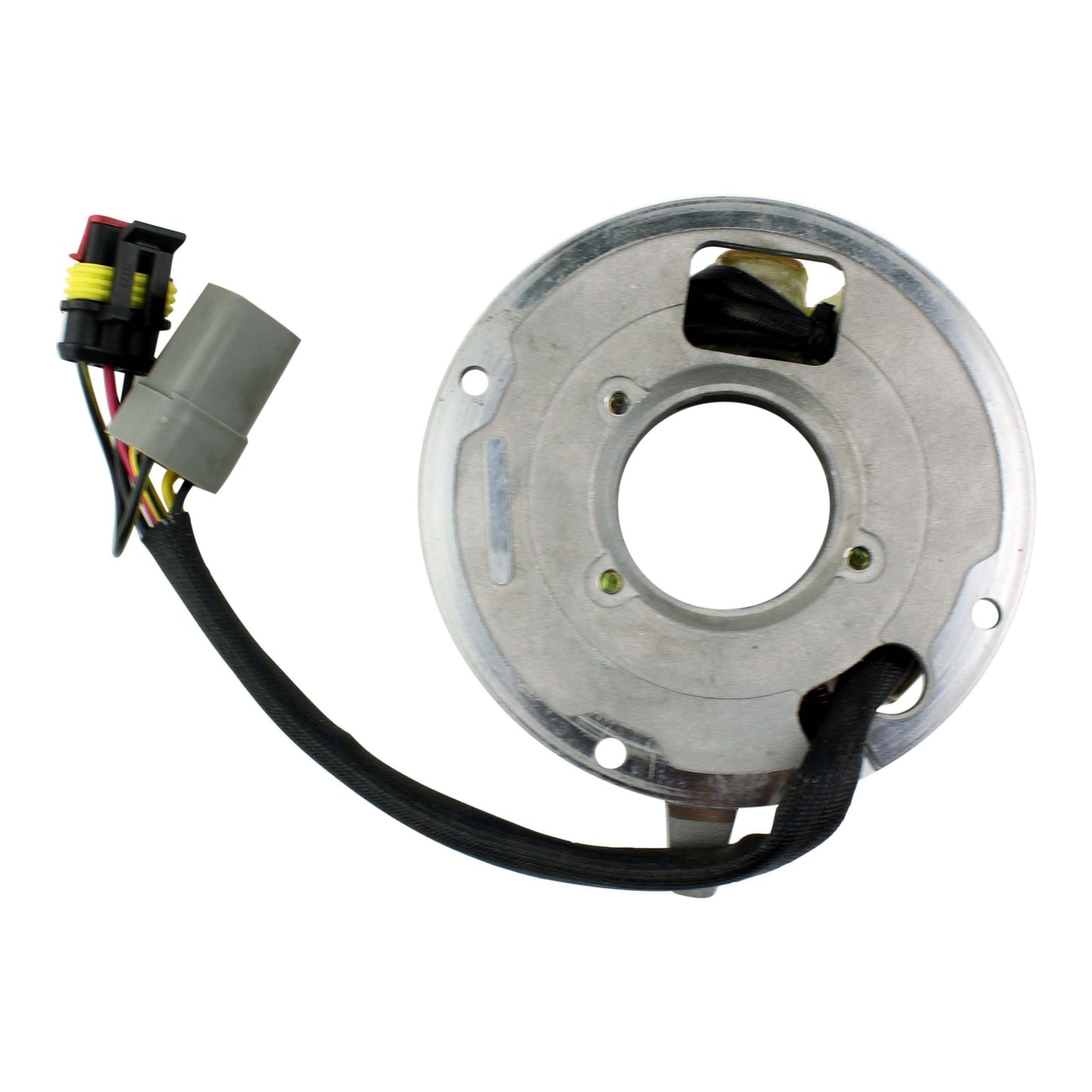

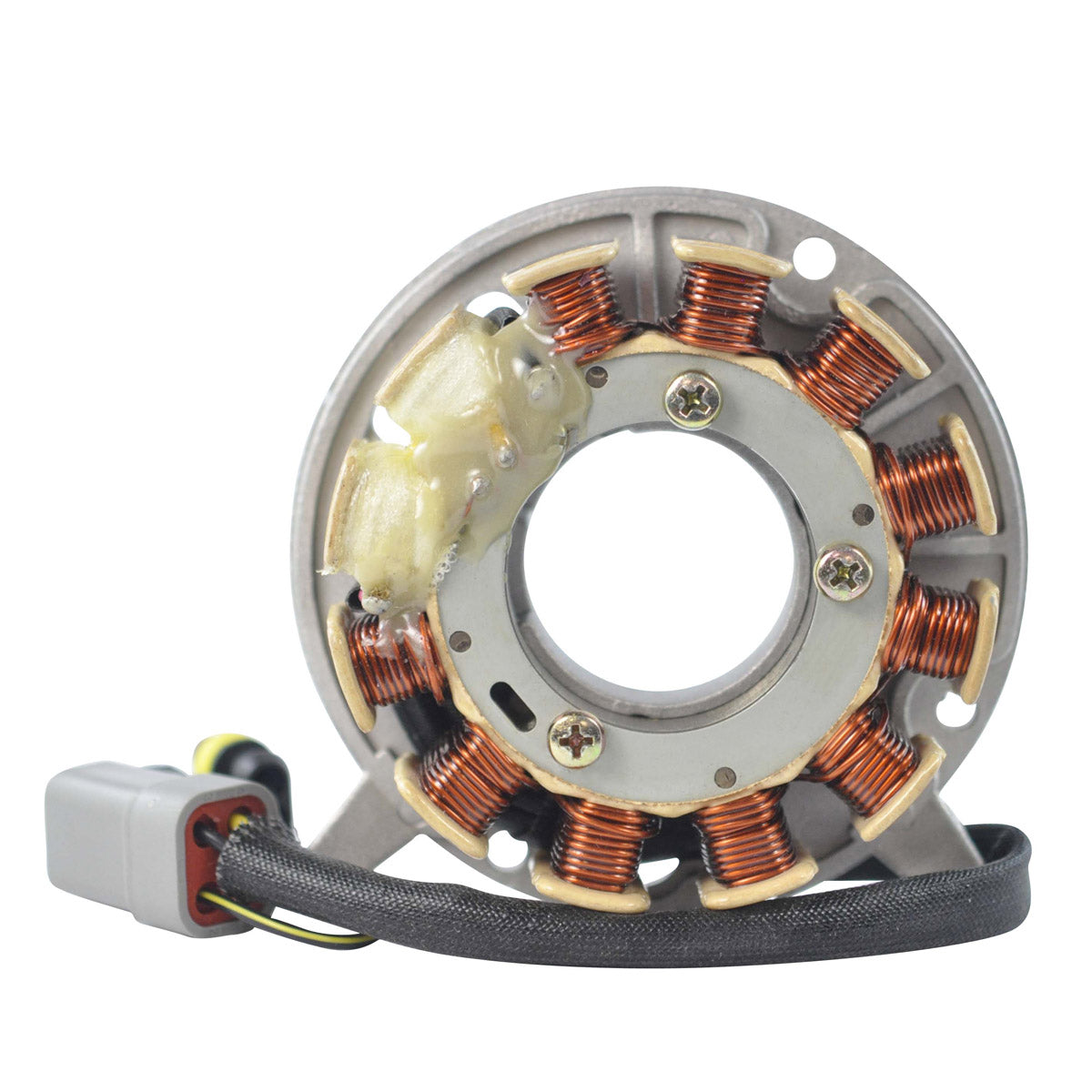

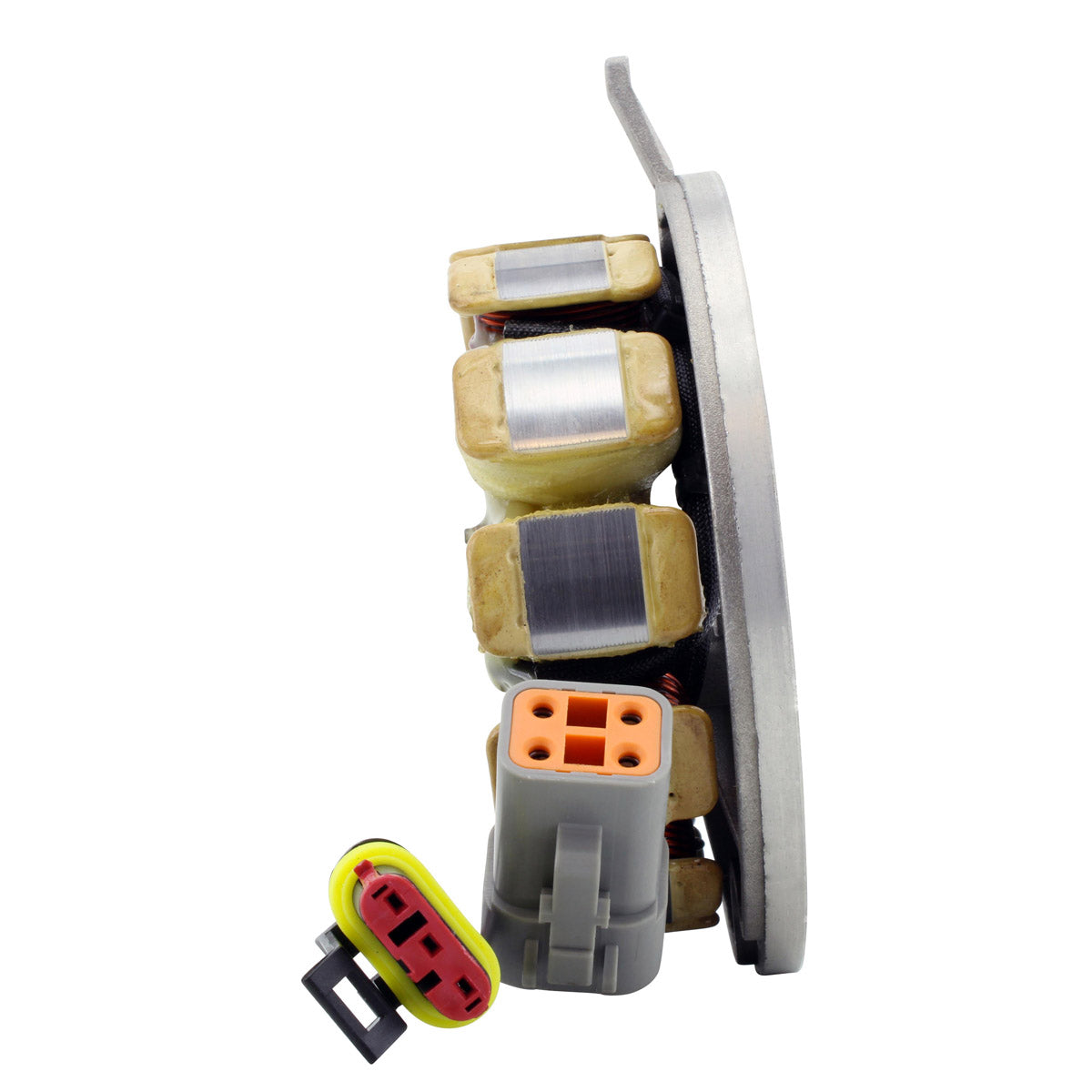

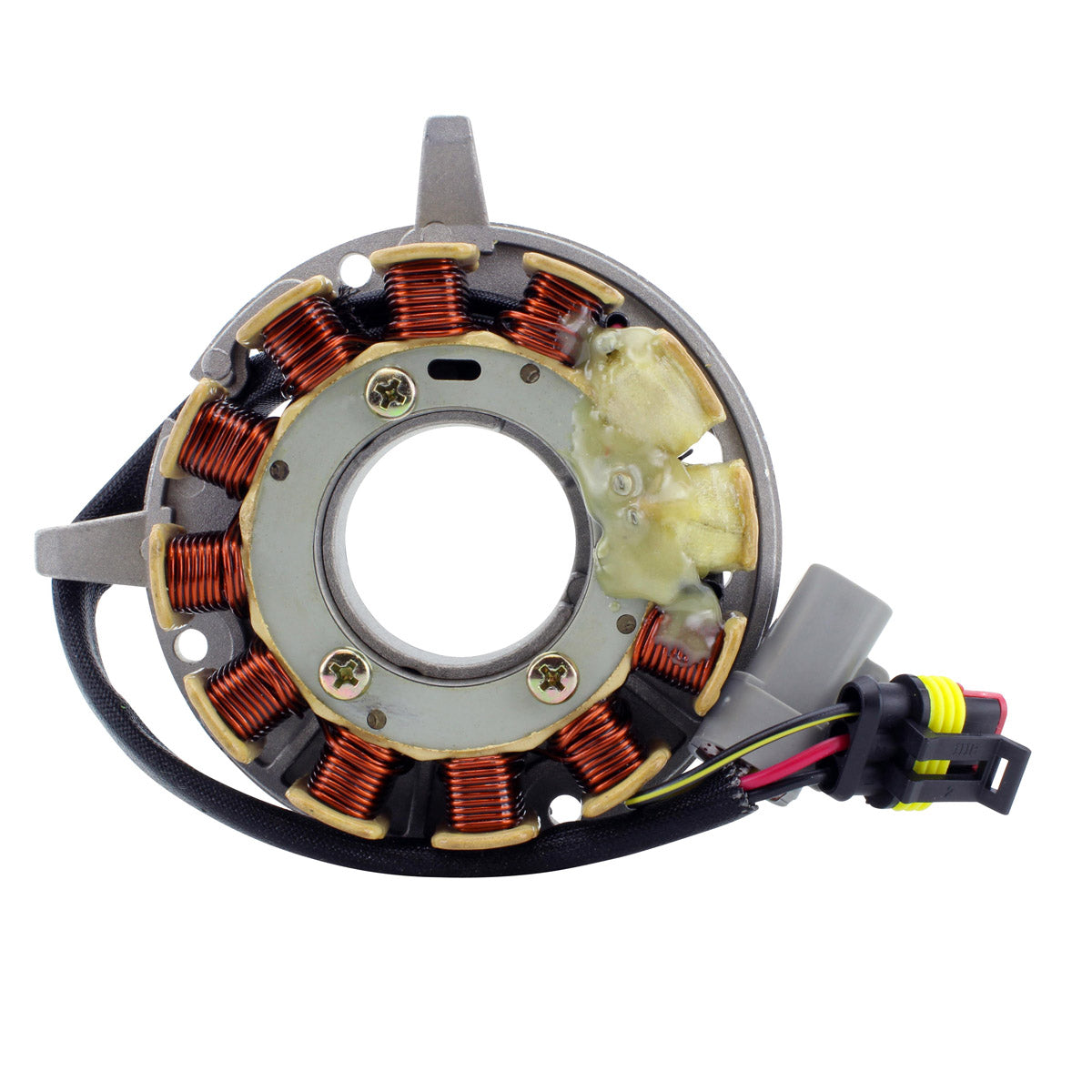

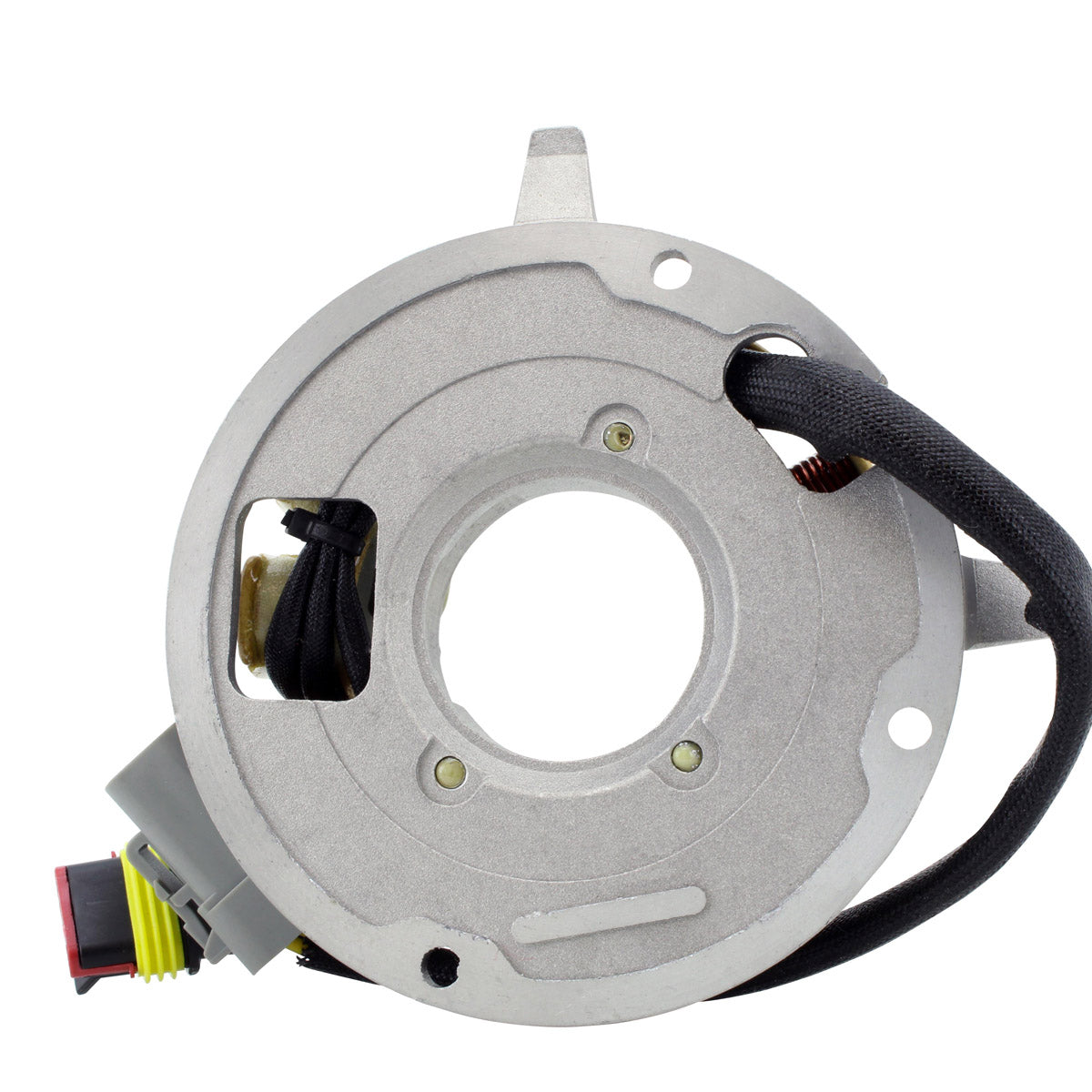

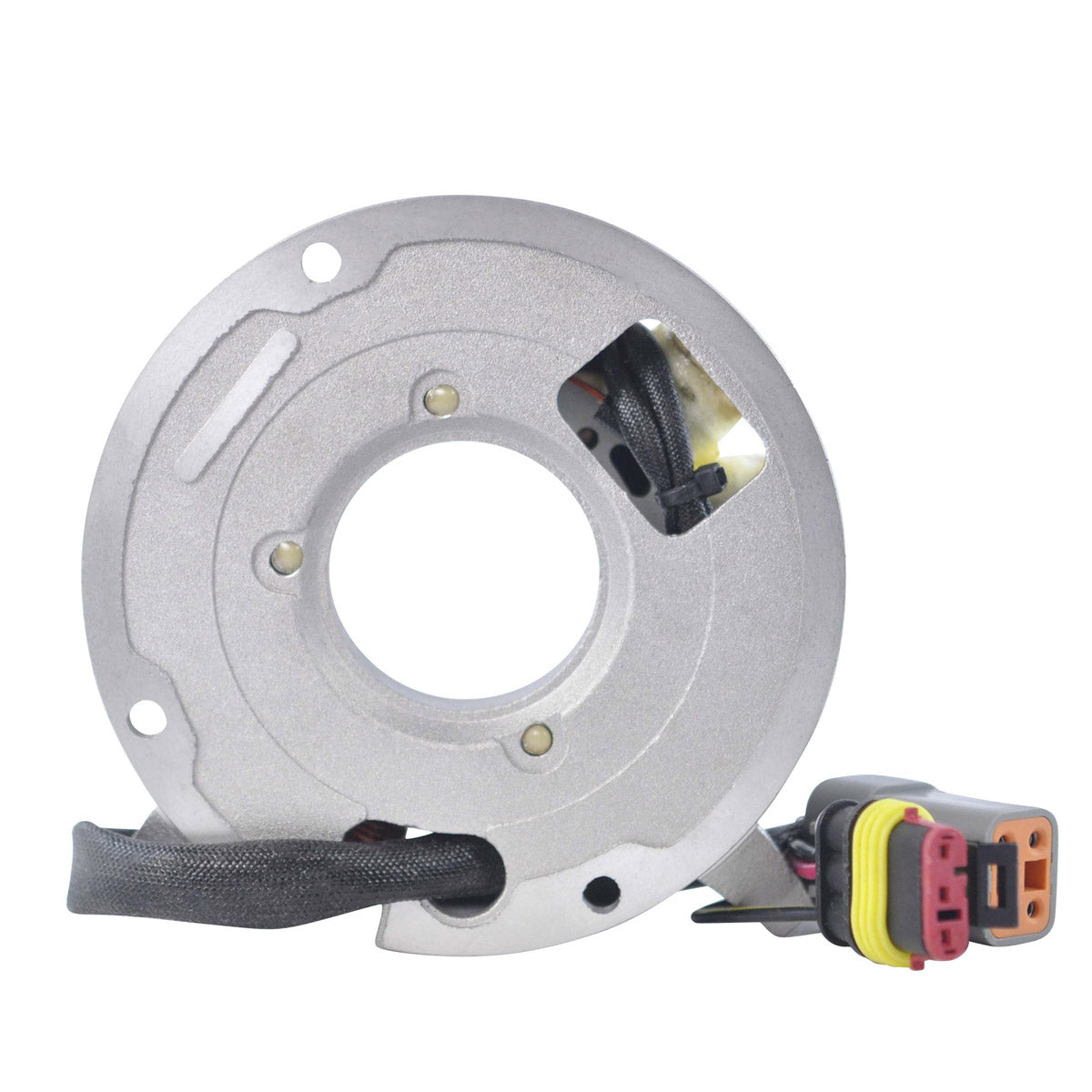

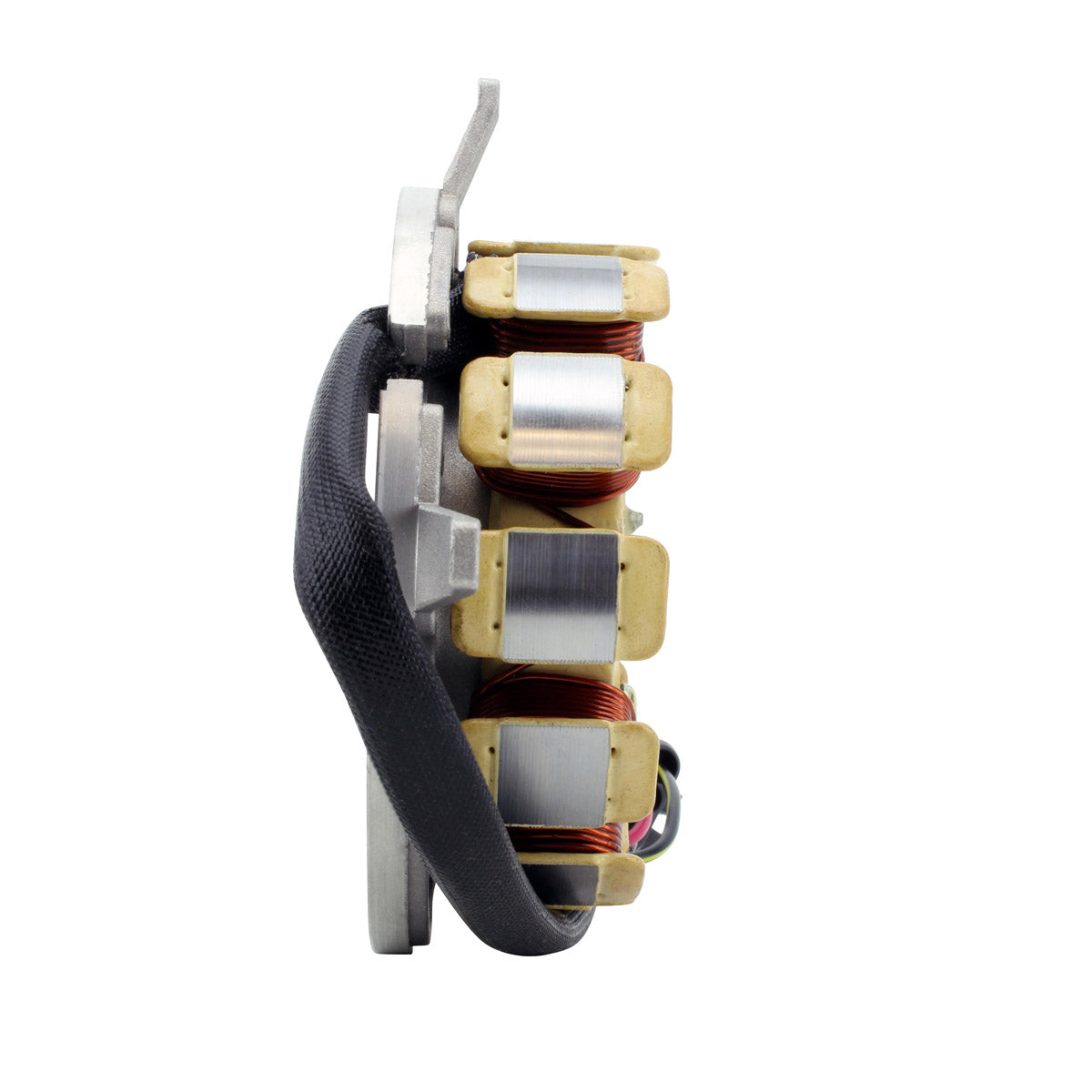

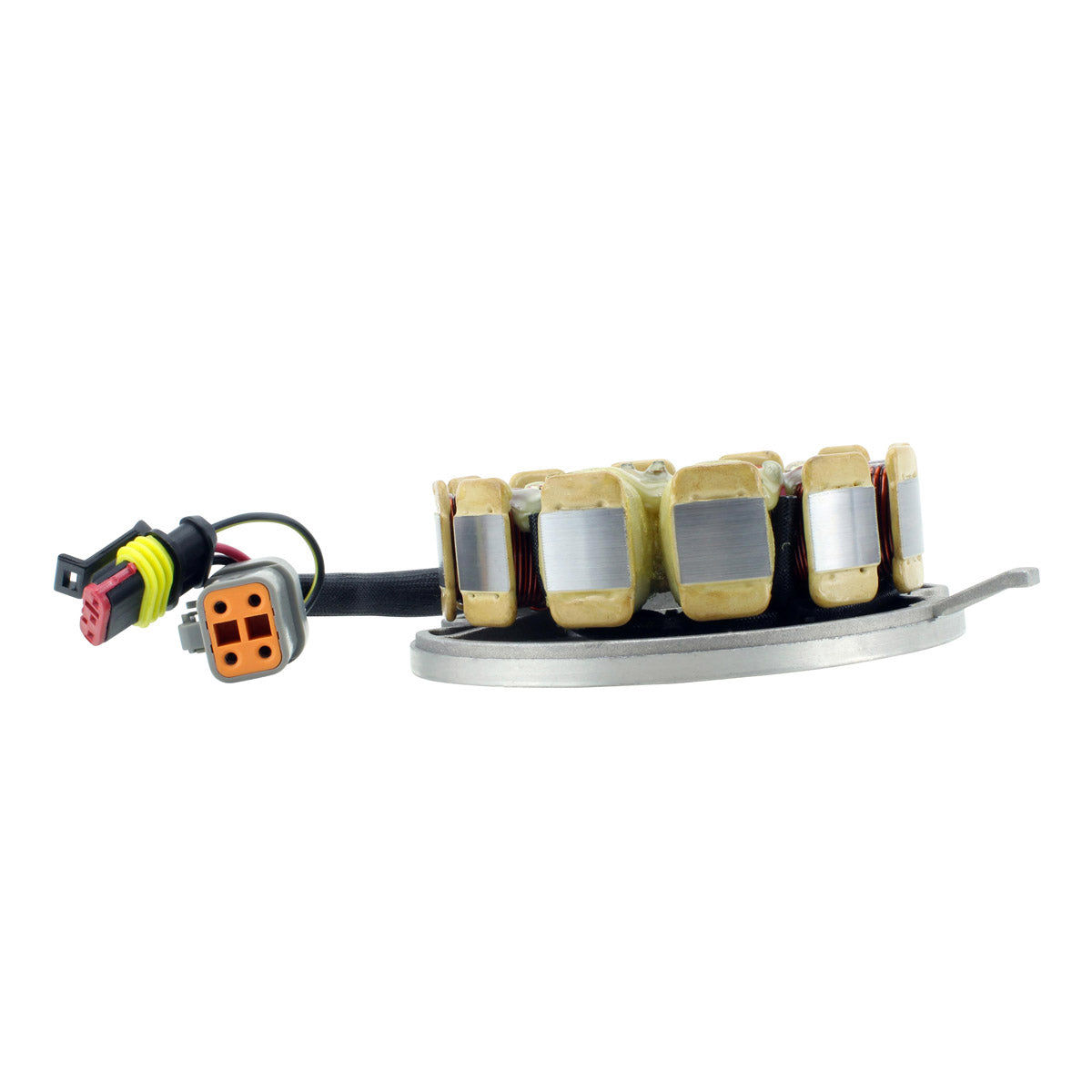

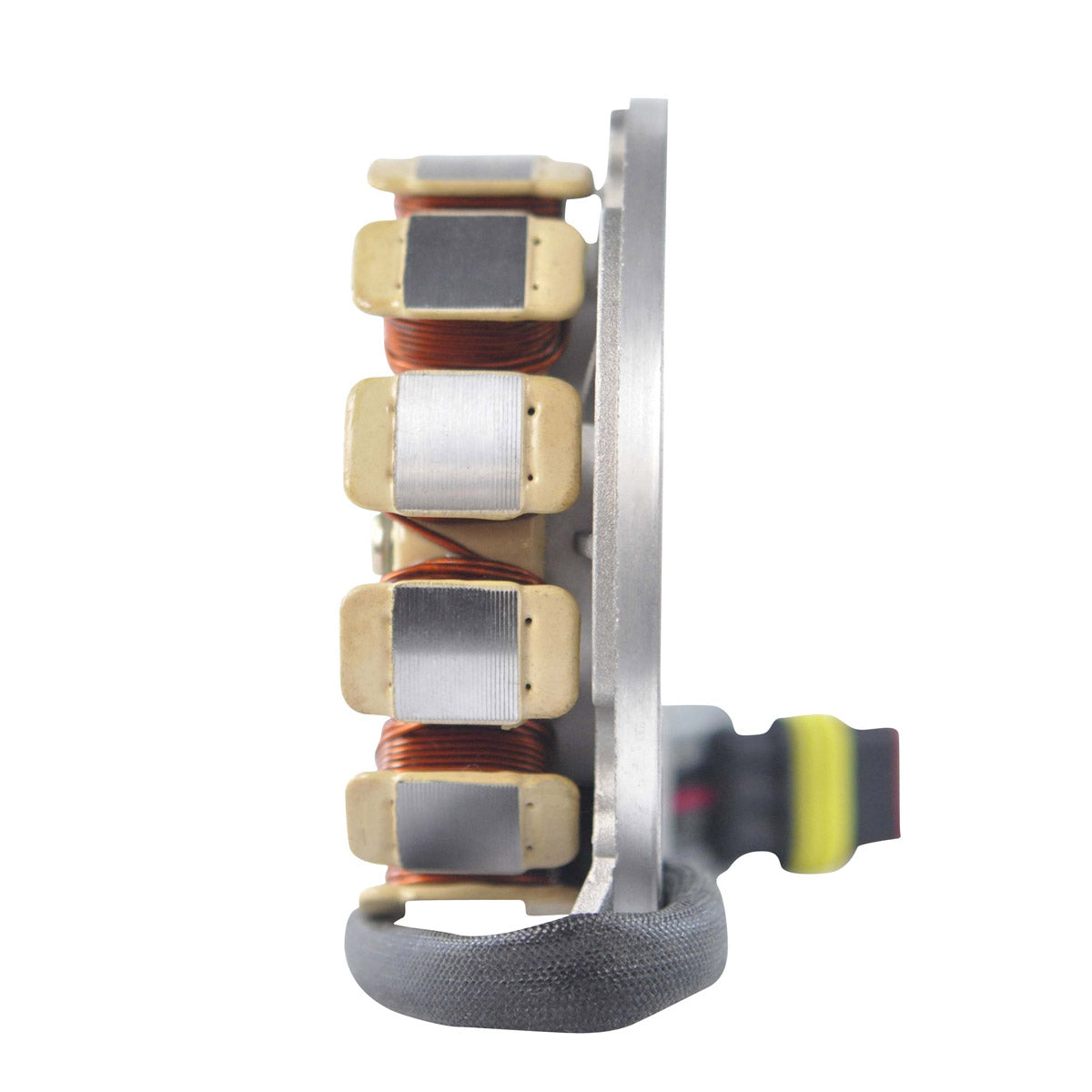

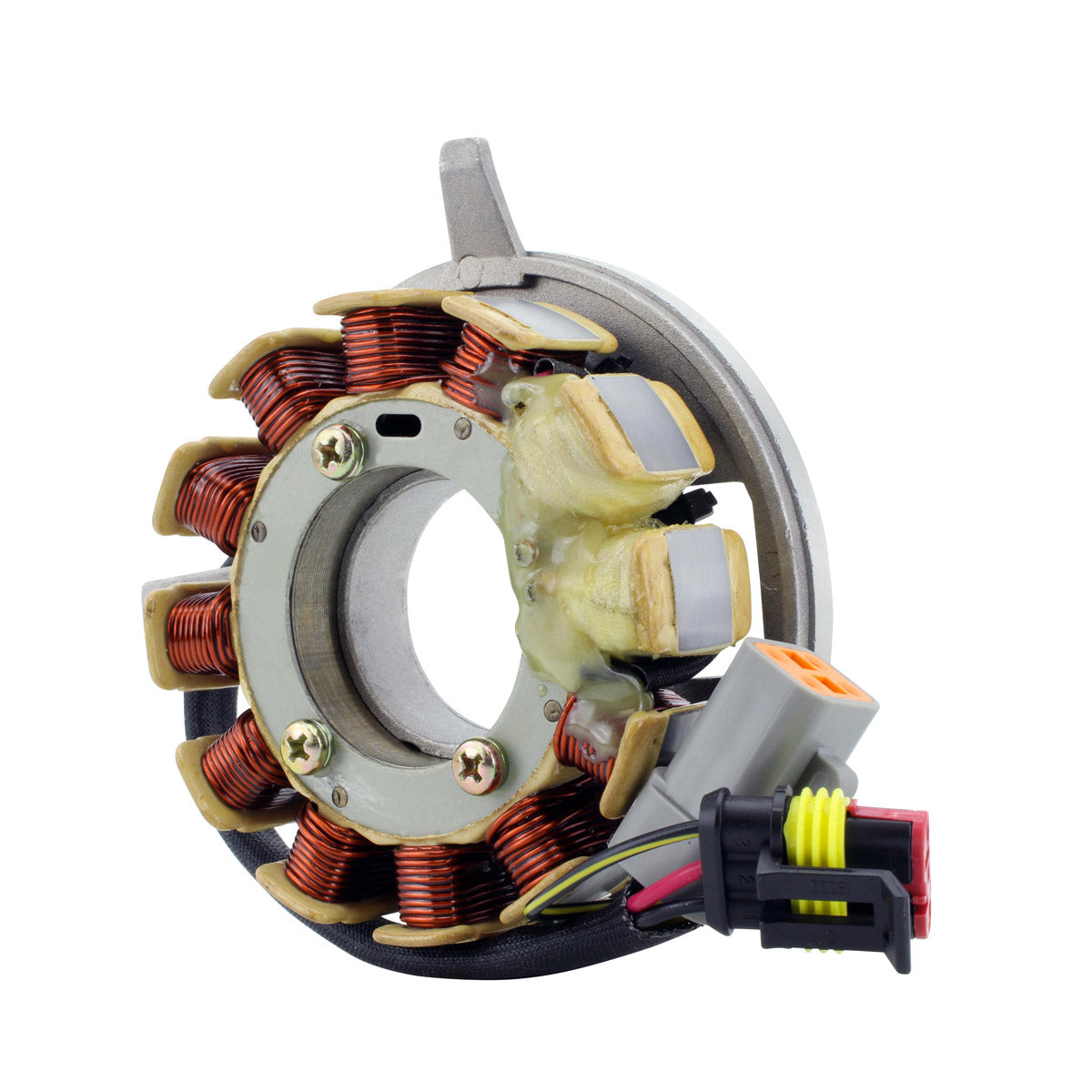

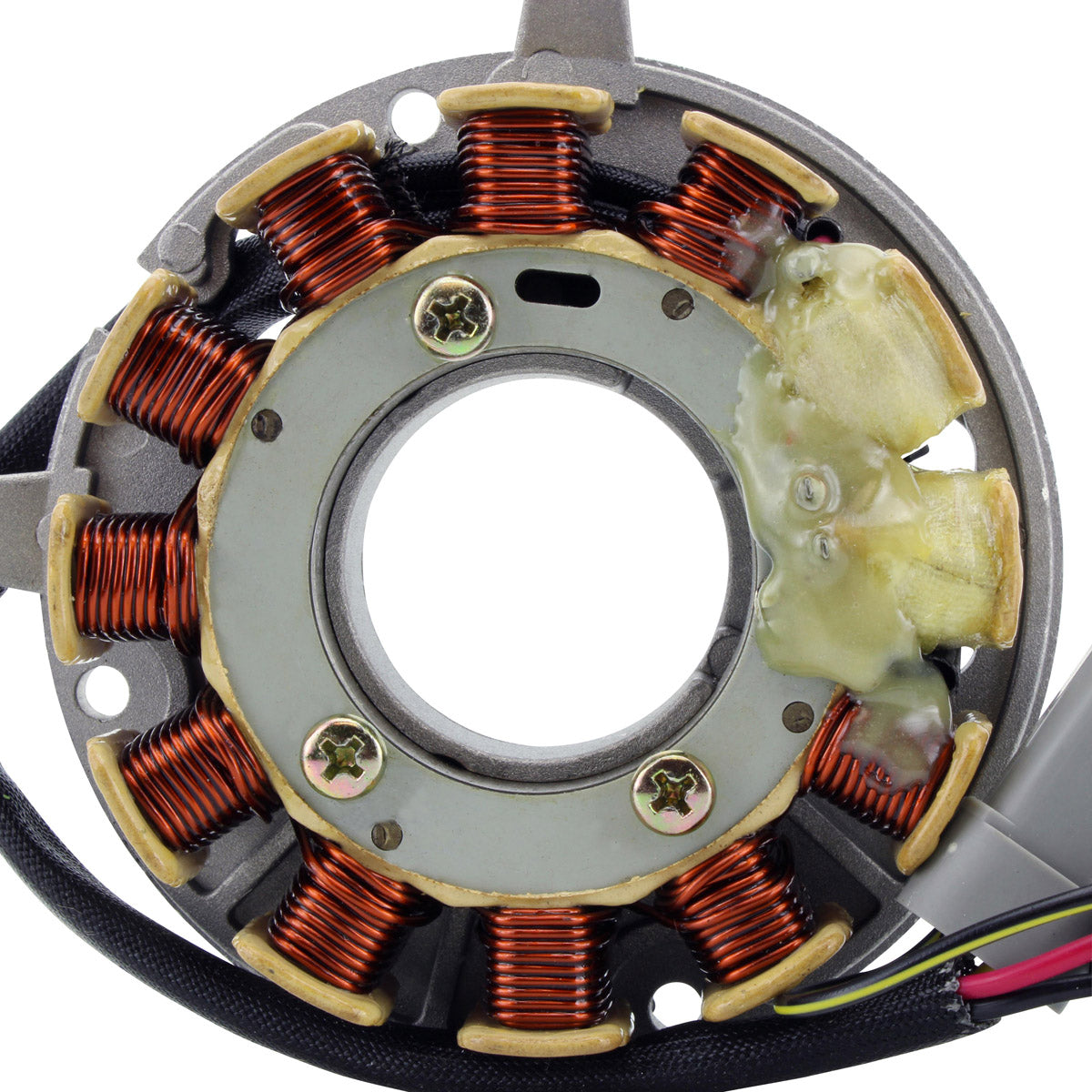

This is a brand new stator built as a direct replacement for the original unit fitted to these Ski-Doo and Lynx snowmobiles. It is plug-and-play and a direct fit, so it installs in the original position using the original mounting points and the original wiring route - no cutting, no splicing and no modification to the engine case. The connector is included and the back plate is included, which means the part goes on exactly as the old one came off.
The unit is wound with the highest grade copper windings, resistant to 200 degrees Celsius, and built on the highest grade lamination materials, so it holds its output under the sustained heat and vibration a snowmobile charging system sees in normal use. Every unit is tested before it is shipped. It is supplied under RMSTATOR part number RM01209 and replaces OEM part number 420889360.
Key Features
- Brand new stator - direct replacement for your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius

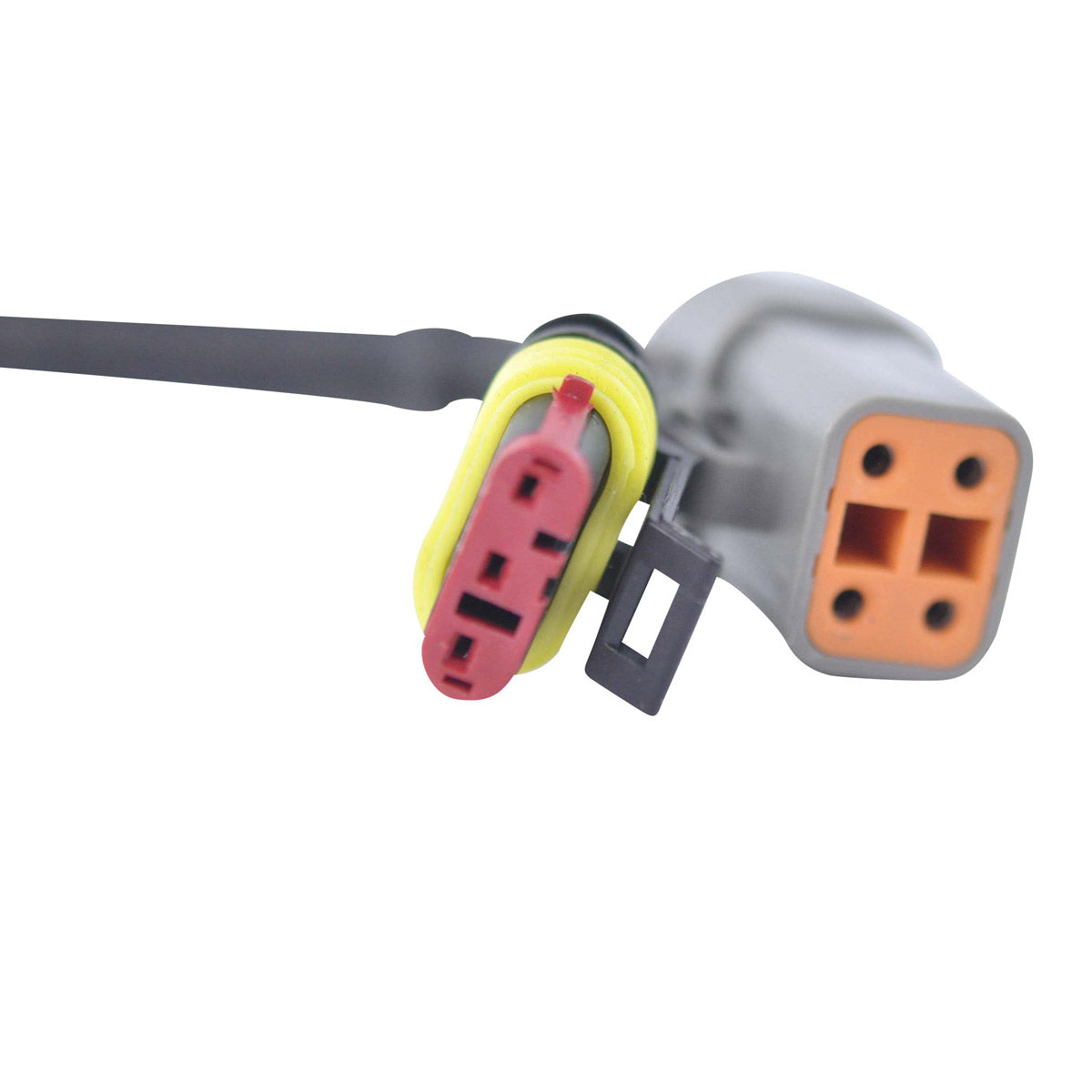

- Connector included
- Back plate included
- All products are tested before they are shipped
Technical Specs
| Specification |
Detail |
| Interior diameter |
43 mm |
| Exterior diameter |
96 mm |
| Thickness |
20 mm |
| Length of wires, stator to connectors |
160 mm and 210 mm |
| Number of wires |
6 |
| Number of plugs |
2 |
| Number of pins |
7 |
| Alternator resistance, between each yellow |
0.4 ohms +/-20% |
| Source resistance, black to red |
5.0 ohms +/-20% |
| Winding temperature rating |
200 degrees Celsius |
| RMSTATOR part number |
RM01209 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Ski-Doo Grand Touring |
2002-2003 |
| Ski-Doo Legend |
2002-2003 |
| Ski-Doo MX Z |
2002-2003 |
| Ski-Doo Skandic |
2002-2003 |
| Ski-Doo Summit |
2002-2003 |
| Lynx 5900 |
2002-2006 |
| Lynx Enduro |
2002-2006 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 420889360 |
Ski-Doo |
| RM01209 |
RMSTATOR |
Frequently Asked Questions
Will this fit without modifying my sled?
Yes. It is a direct replacement for the original unit and is plug-and-play, so it uses the original mounting points and the original wiring route. No cutting, splicing or modification to the engine case is required.
What is included?
The stator, the connector and the back plate. Every unit is tested before it is shipped.
How do I tell whether my old stator has failed?
Measure the windings with a multimeter and compare against the figures in the Technical Specs table above. The alternator windings should read 0.4 ohms +/-20% between each yellow wire and the source coil should read 5.0 ohms +/-20% from black to red. A reading far outside those values, or continuity to the stator core, points to a failed unit.
How do I check this is the right stator for my machine?
Check the OEM number stamped on your original unit against 420889360 in the cross reference table, and check the physical dimensions - 43 mm interior diameter, 96 mm exterior diameter and 20 mm thick, with 6 wires, 2 plugs and 7 pins in total.
