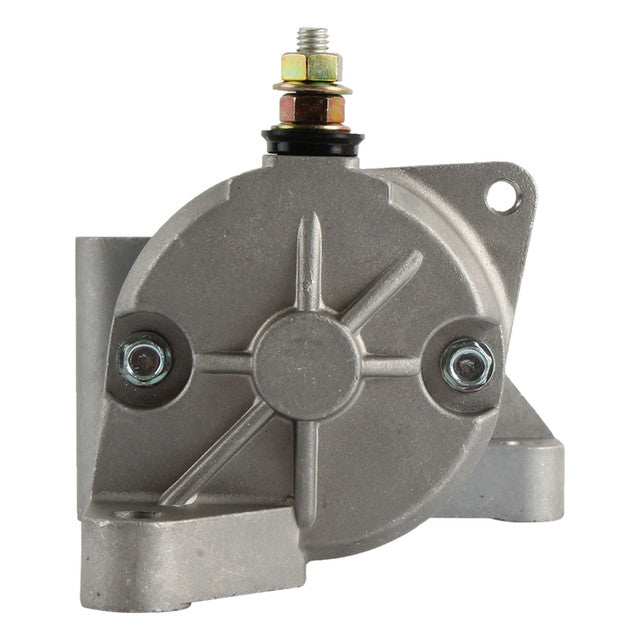

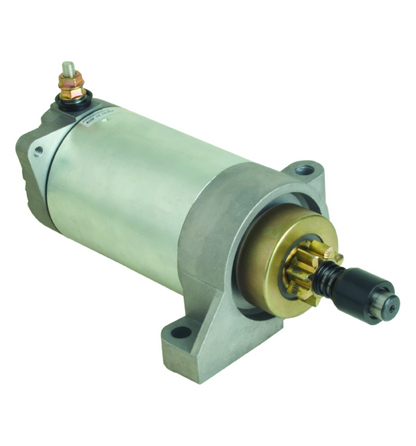

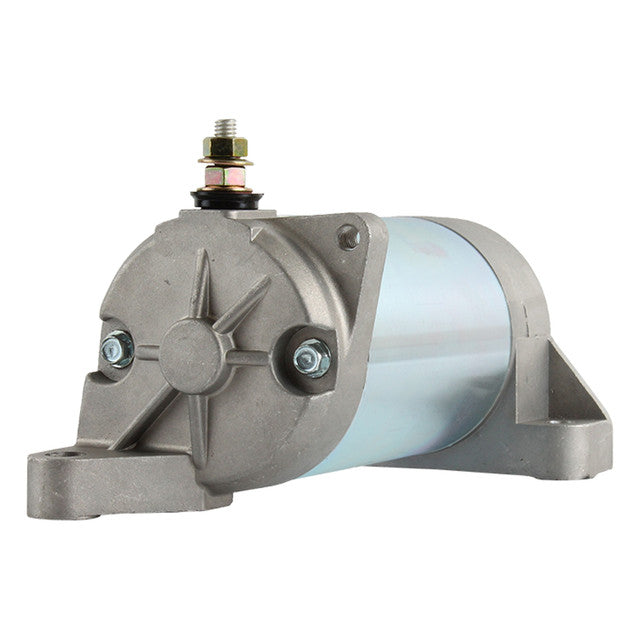

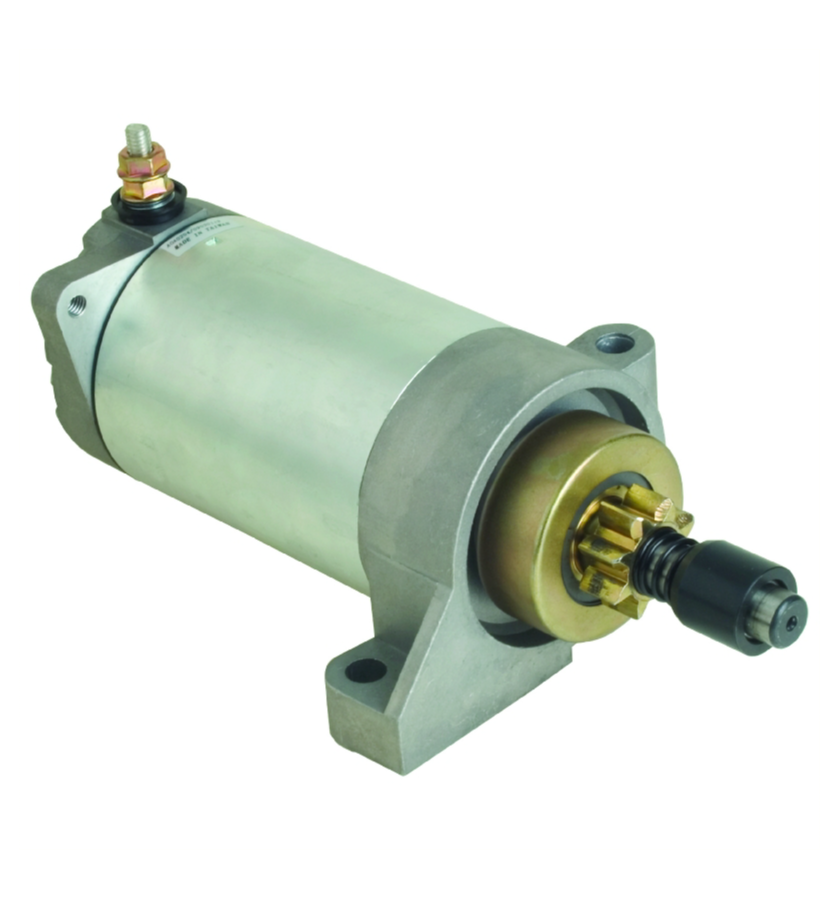

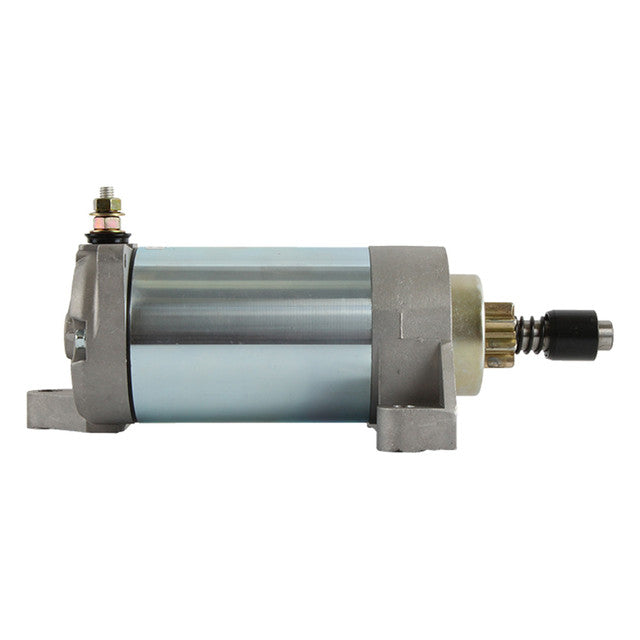

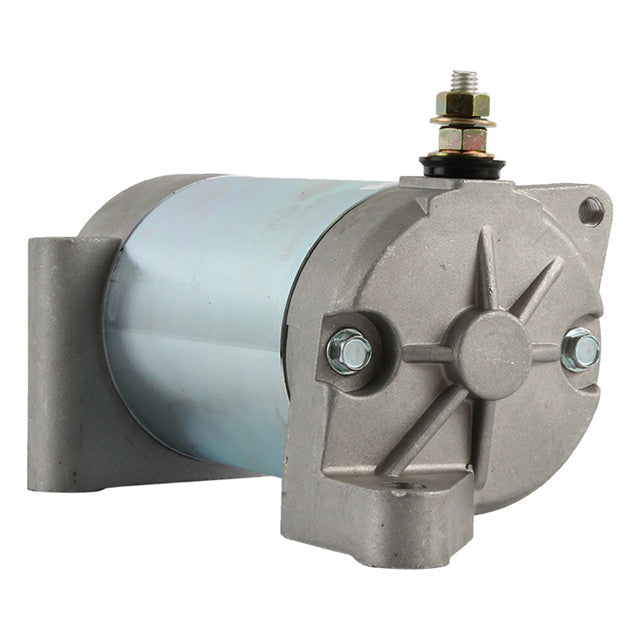

Ensure reliable starting power for your agricultural fleet with this **High Torque 3.0kW Starter Motor**. Specifically engineered for modern **Case IH** and **New Holland** tractors, this unit provides the powerful cranking speed needed for 3 and 4-cylinder diesel engines in all weather conditions.
This is a **PLGR (Planetary Gear Reduction)** starter, which offers superior torque in a compact, lightweight design compared to older direct-drive units. It features a **10-tooth** pinion gear and is a direct bolt-on replacement for the original Bosch or Iskra/Mahle starters.
HEAVY DUTY PERFORMANCE: 3.0kW power rating ensures fast starts, replacing OEM part numbers 47137538, 87311822, and 504036476.
Key Features
✔High Torque: 3.0kW PLGR design.
✔Direct Fit: Replaces Bosch & Iskra units.
✔10-Tooth Pinion: Correct mesh for flywheel.
✔Durability: Sealed against dust and moisture.
Technical Specs
Voltage:
12 Volts
Power:
3.0 kW
Rotation:
CW (Clockwise)
Teeth Count:
10 Teeth
Starter Type:
PLGR
SKU Reference:
410-24066
Vehicle Fitment Guide
Make
Model Series
Specific Models
Case IH
Farmall Series
65C, 75C, 85C, 95C, 105U
Case IH
JX Series
JX60, JX70, JX80, JX90, JX95
New Holland
T4000 Series
T4020, T4030, T4040, T4050
New Holland
TD / TN Series
TD5040, TN85, TN95
Steyr
Kompakt Series
4065, 4075, 4085, 4095
OEM Part Number Cross Reference
Case / New Holland
47137538, 47383500, 87311822, 504036476
Bosch
0001230021, 0001230026, 0001262021
Iskra / Letrika
11.131.464, AZF4591, IS1009
Iveco
504357109, 47132888
Arrowhead / WAI
410-24066, 18374N
Frequently Asked Questions
Will this fit my Case IH JX90?
Yes, this starter is the correct fit for the Case IH JX90 and most other JX series tractors requiring the 10-tooth starter.
What is PLGR?
PLGR stands for **Planetary Gear Reduction**. This modern starter design uses gears to increase torque output, allowing for faster and more reliable engine starts compared to older direct-drive units.
Is this a 3-bolt mount?
Yes, this starter features the standard 3-bolt flange mounting pattern used on these Case and New Holland engines.
Note: Please verify your existing starter has 10 teeth before purchasing. Fast shipping available across the UK and Europe.
