The starter relay solenoid is the high-current switch that connects the battery directly to the starter motor. The button on the handlebar only sends a small signal to the solenoid coil, which then closes a heavy internal contact and lets several hundred amps through for the second or two it takes to spin the engine. Those contacts take the worst of the electrical load on the machine, and once they pit or weld the quad will click, crank slowly or refuse to turn over at all.

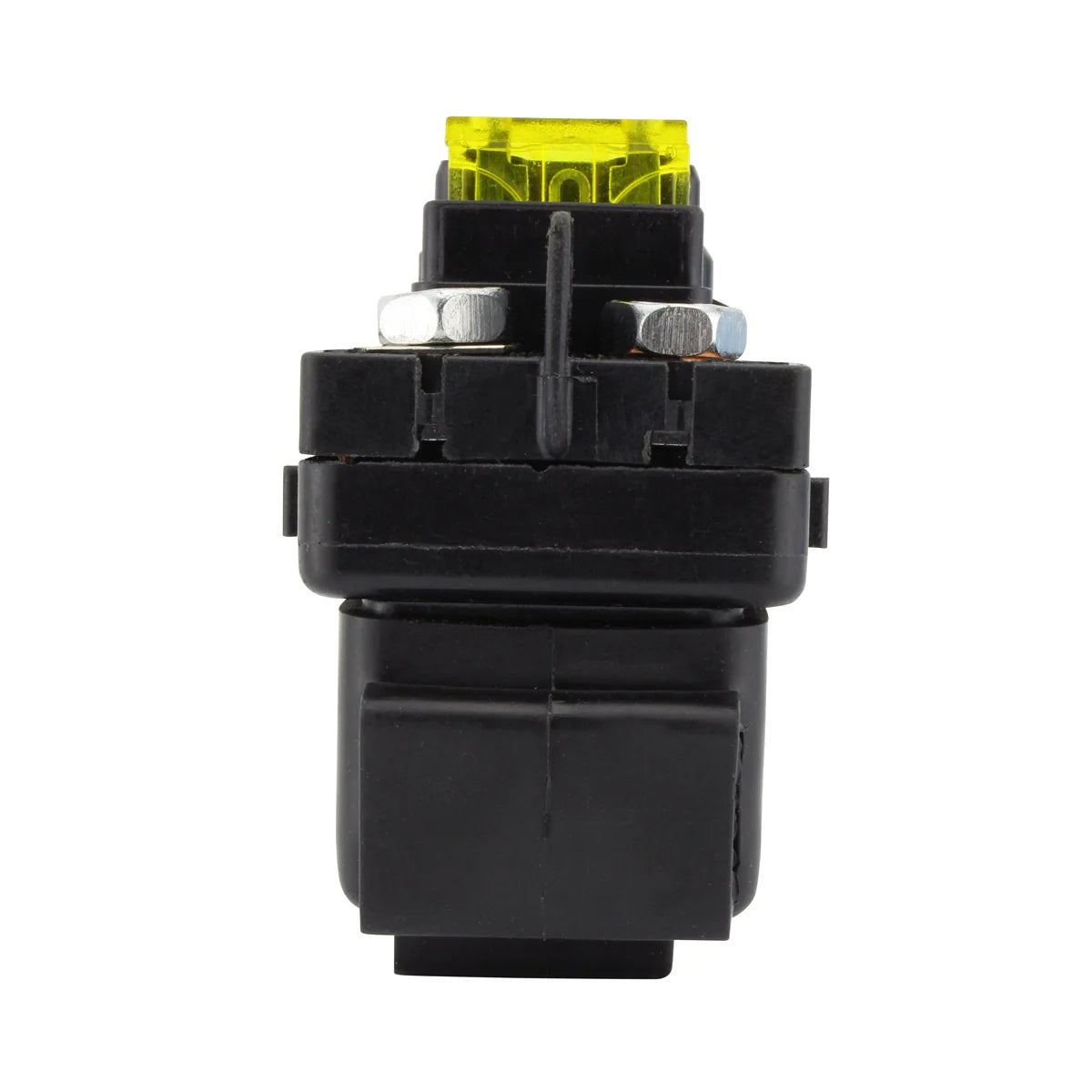

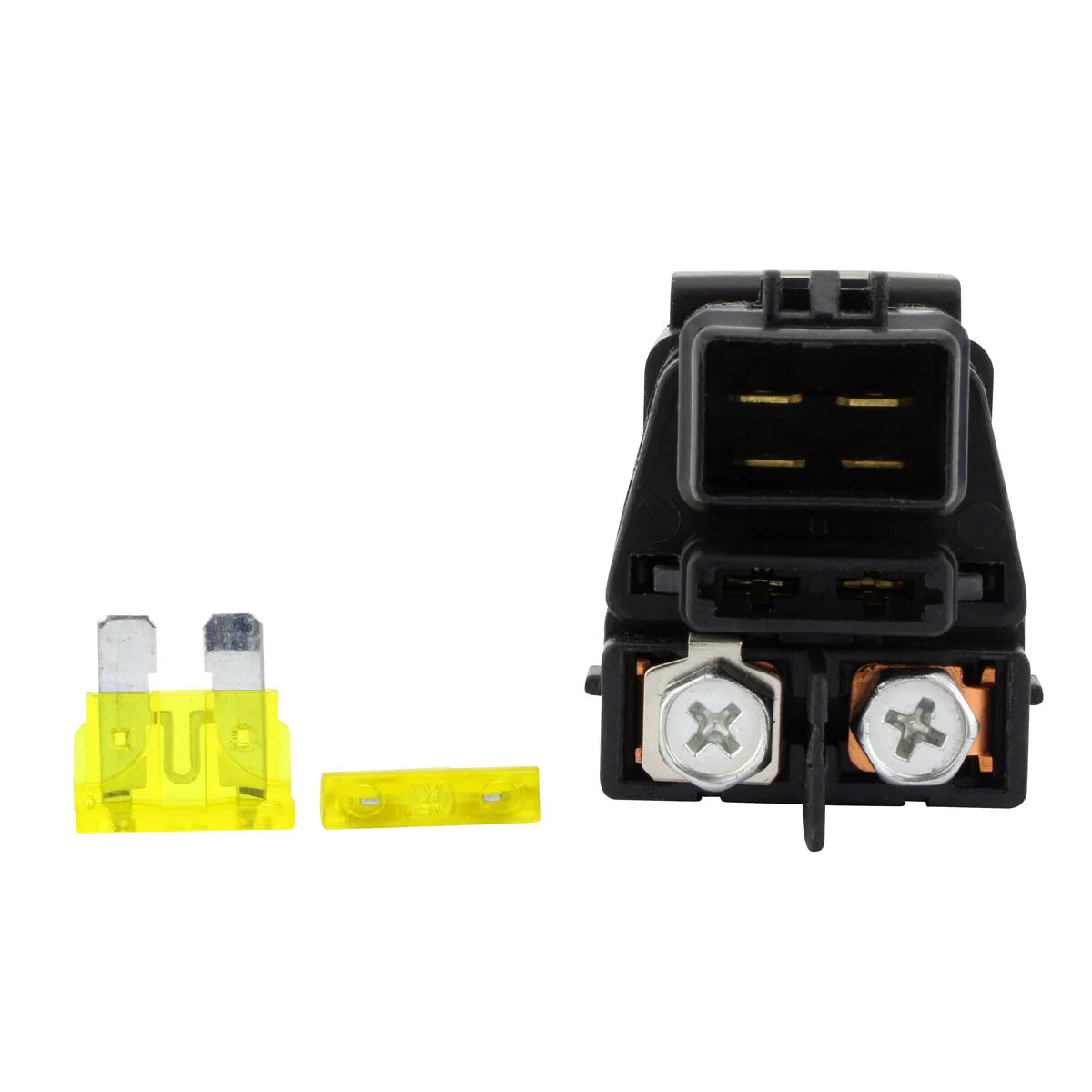

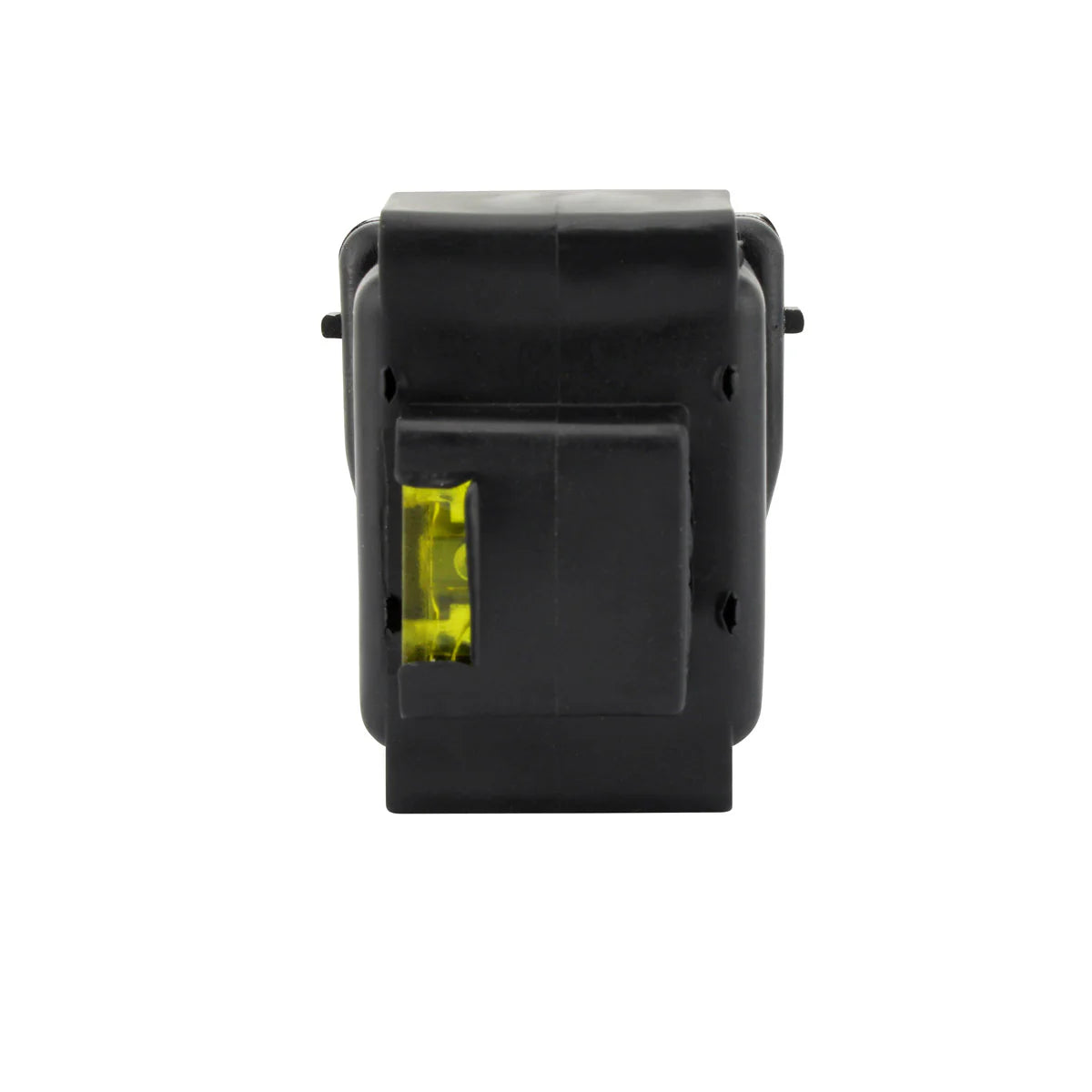

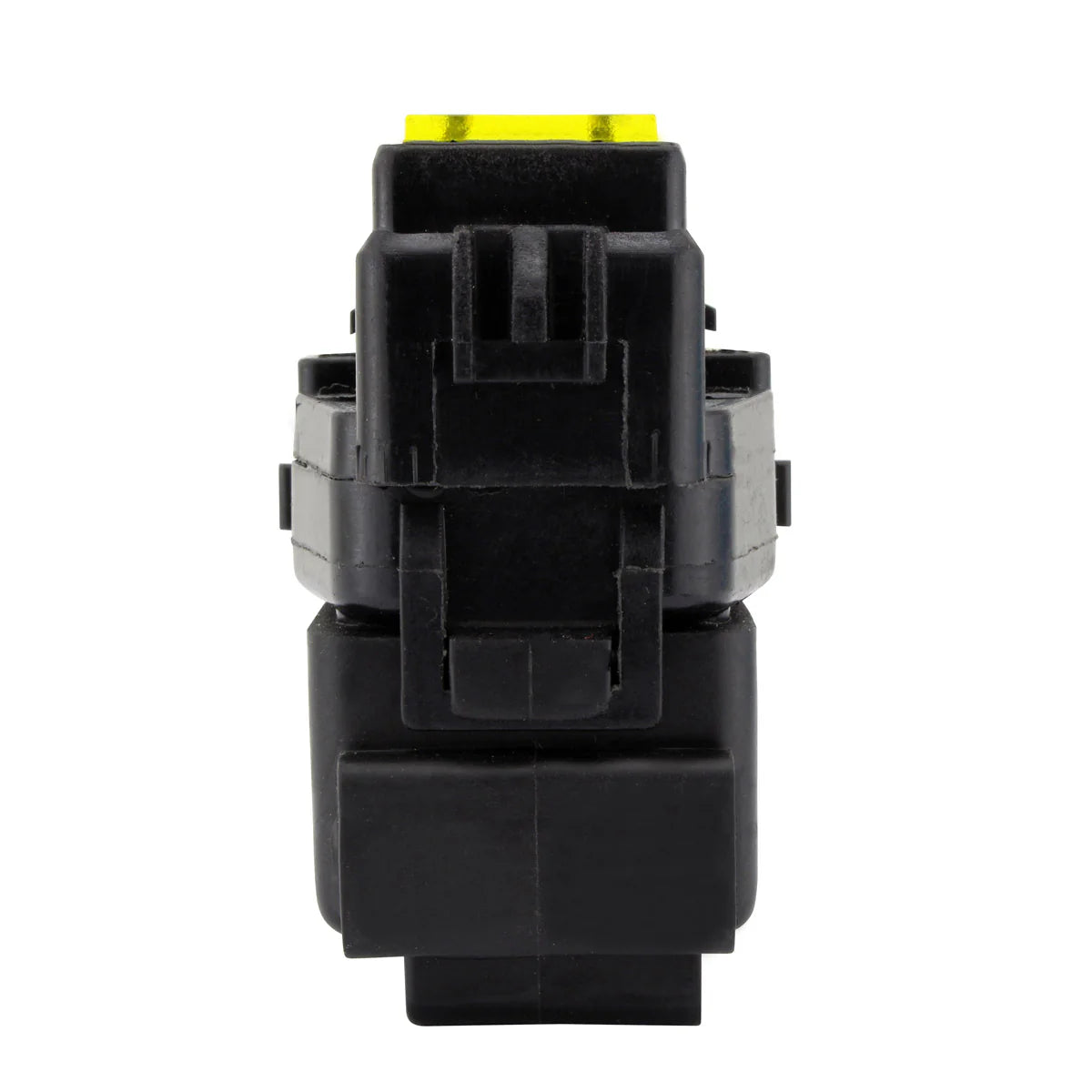

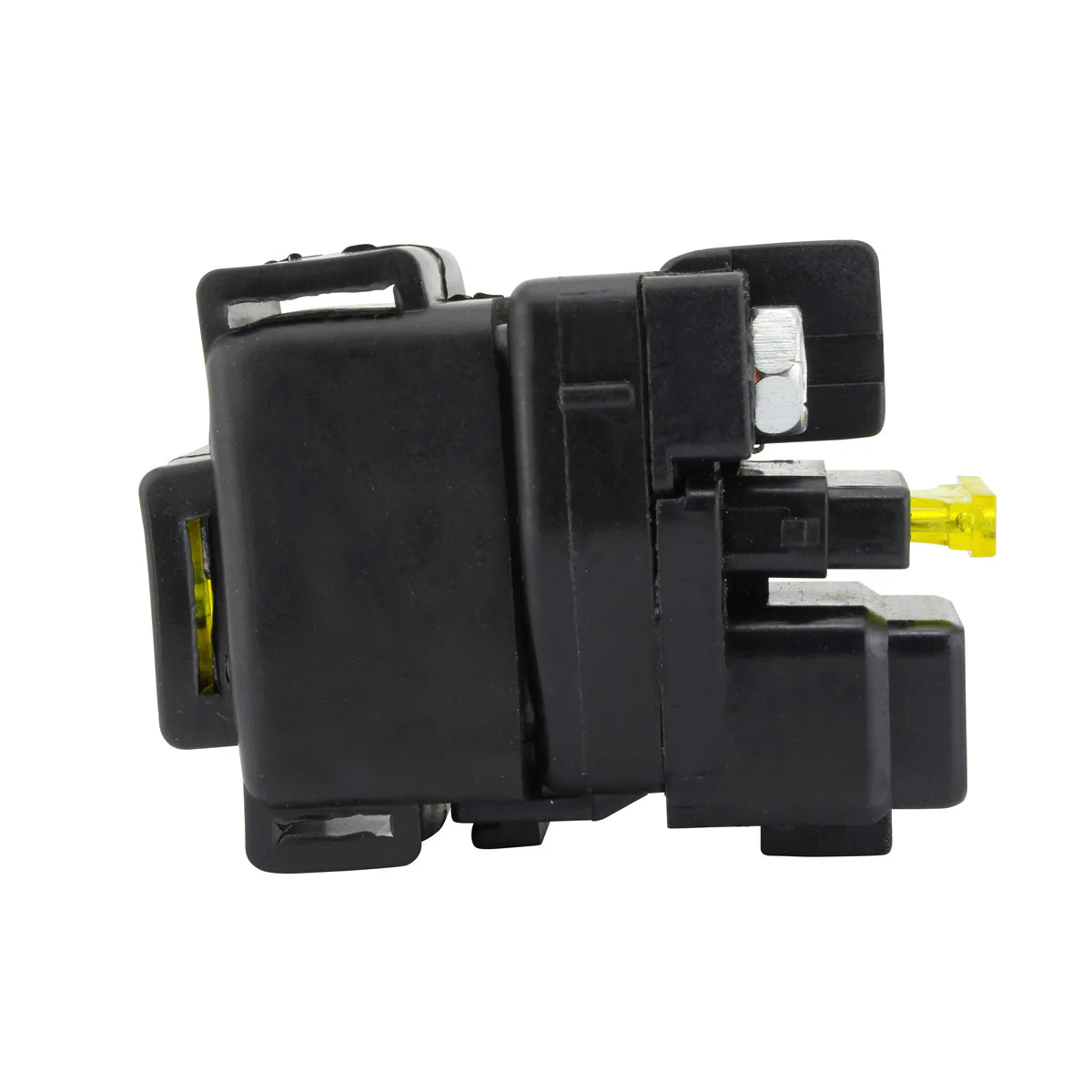

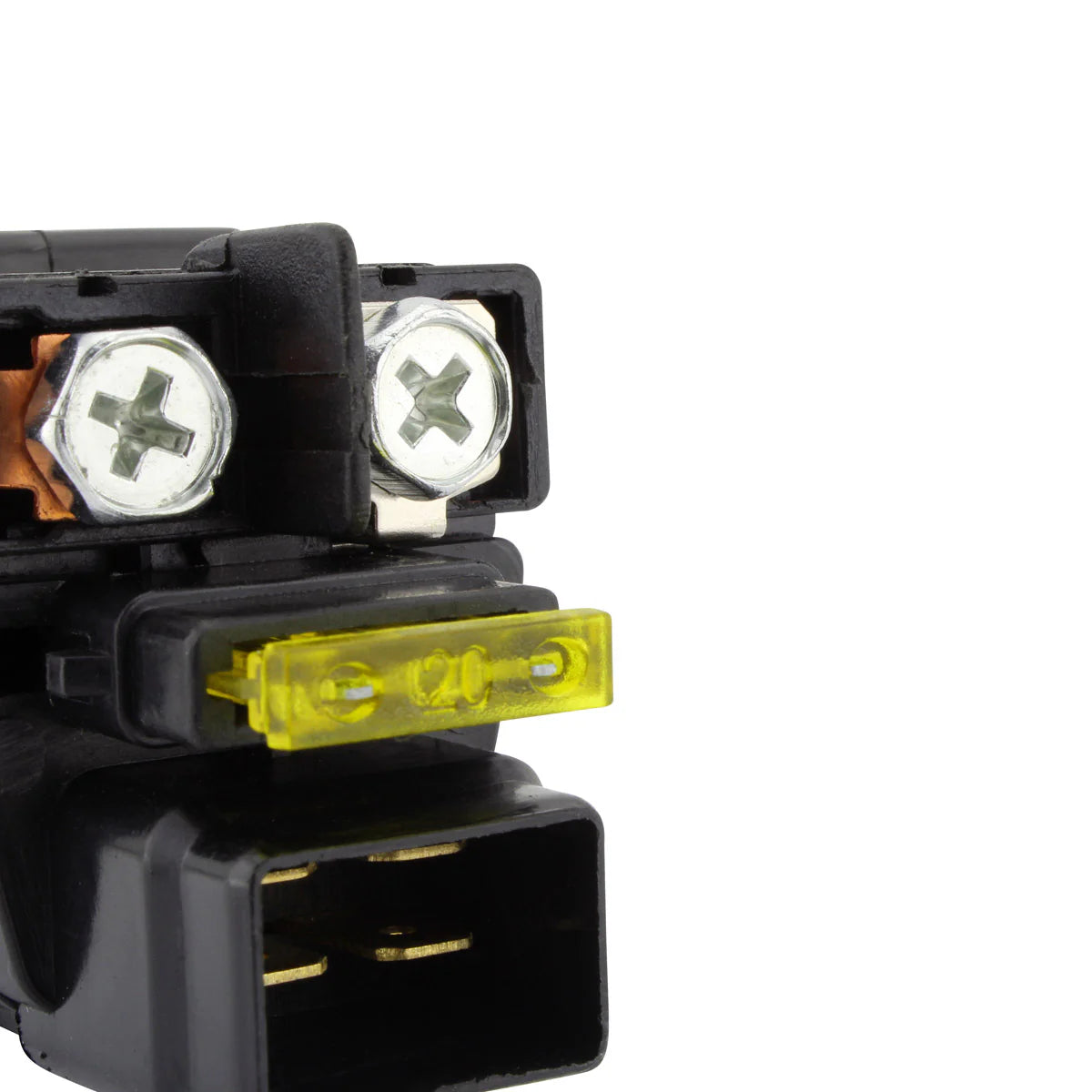

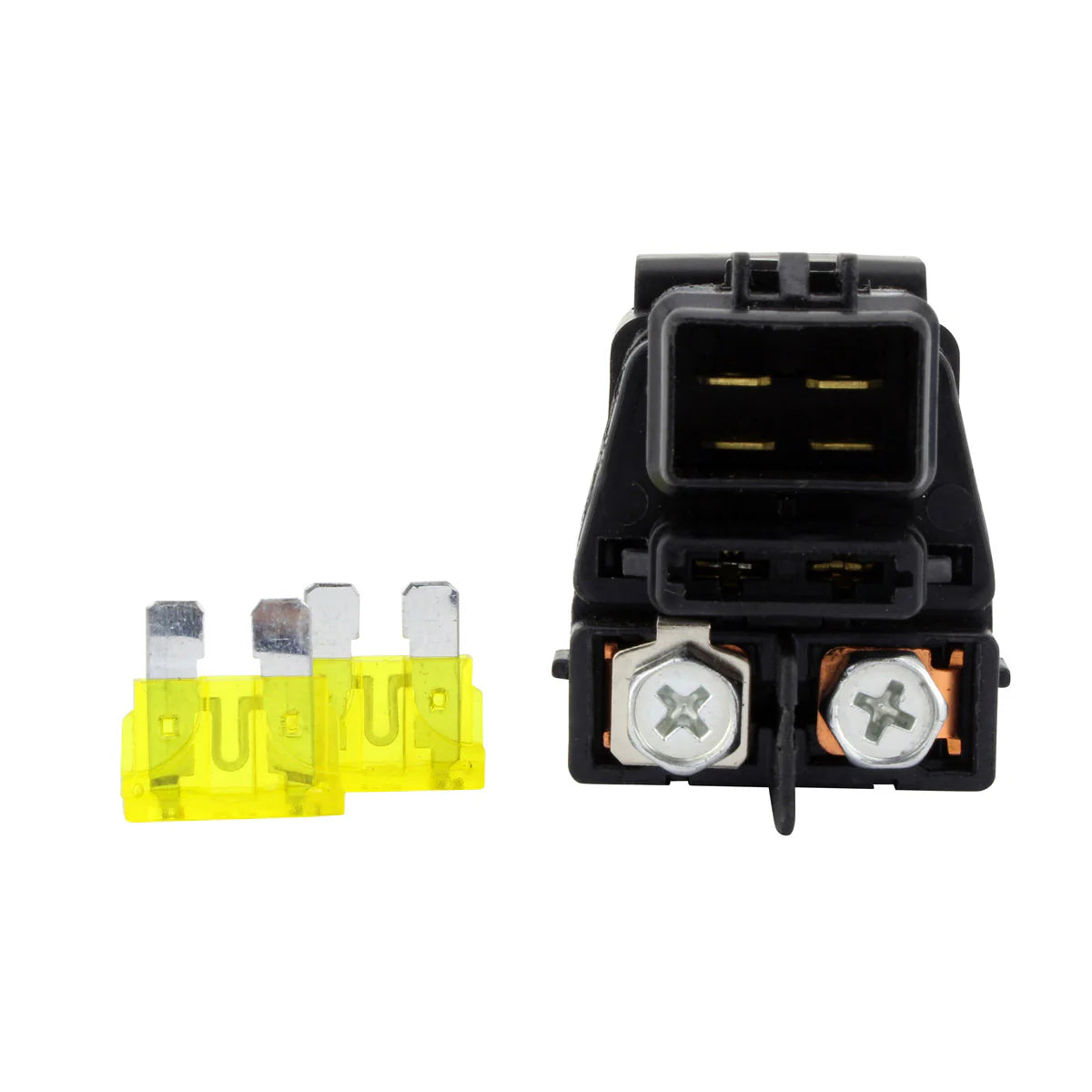

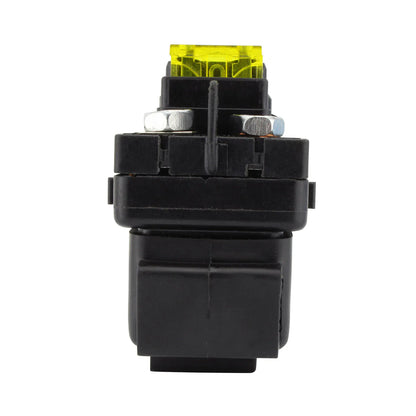

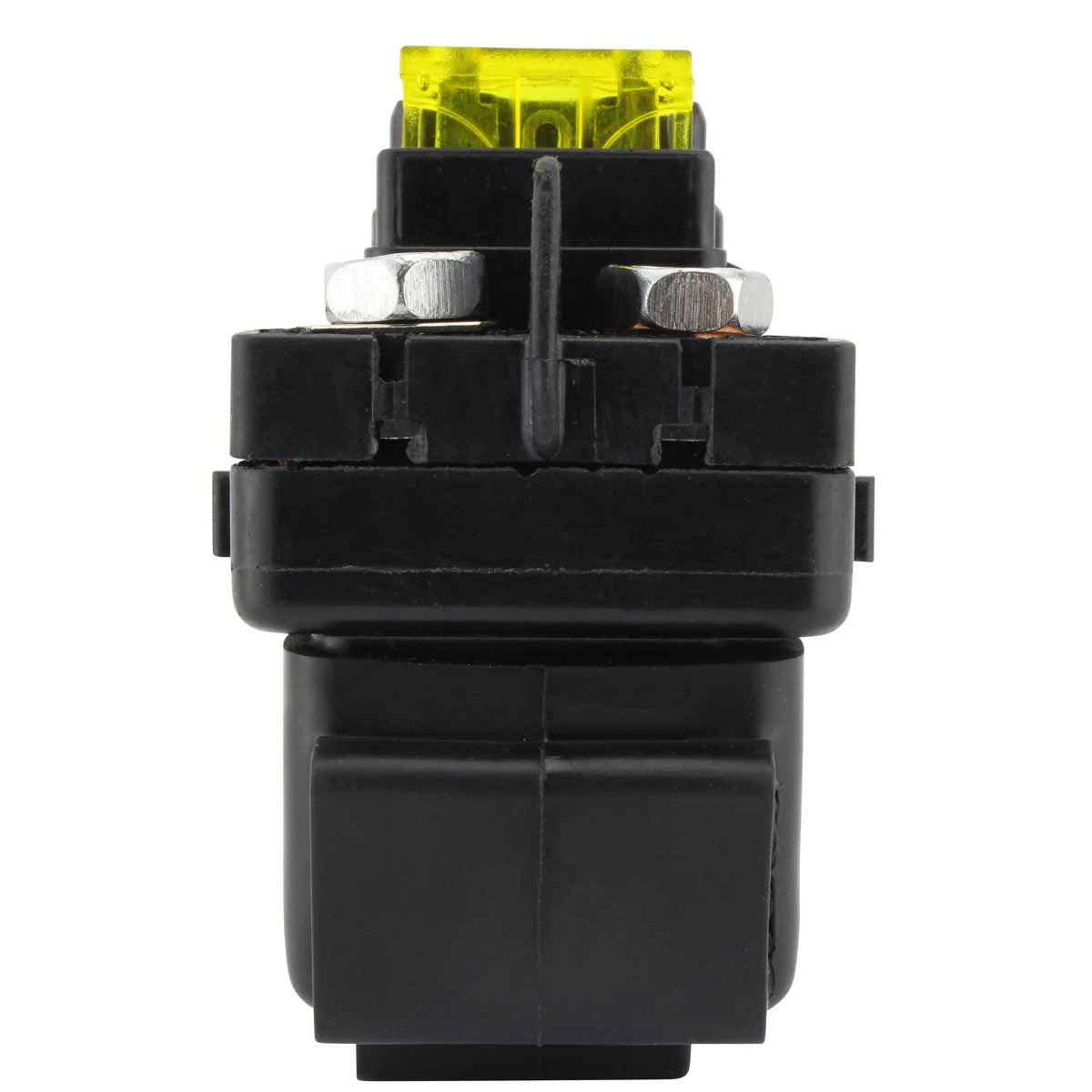

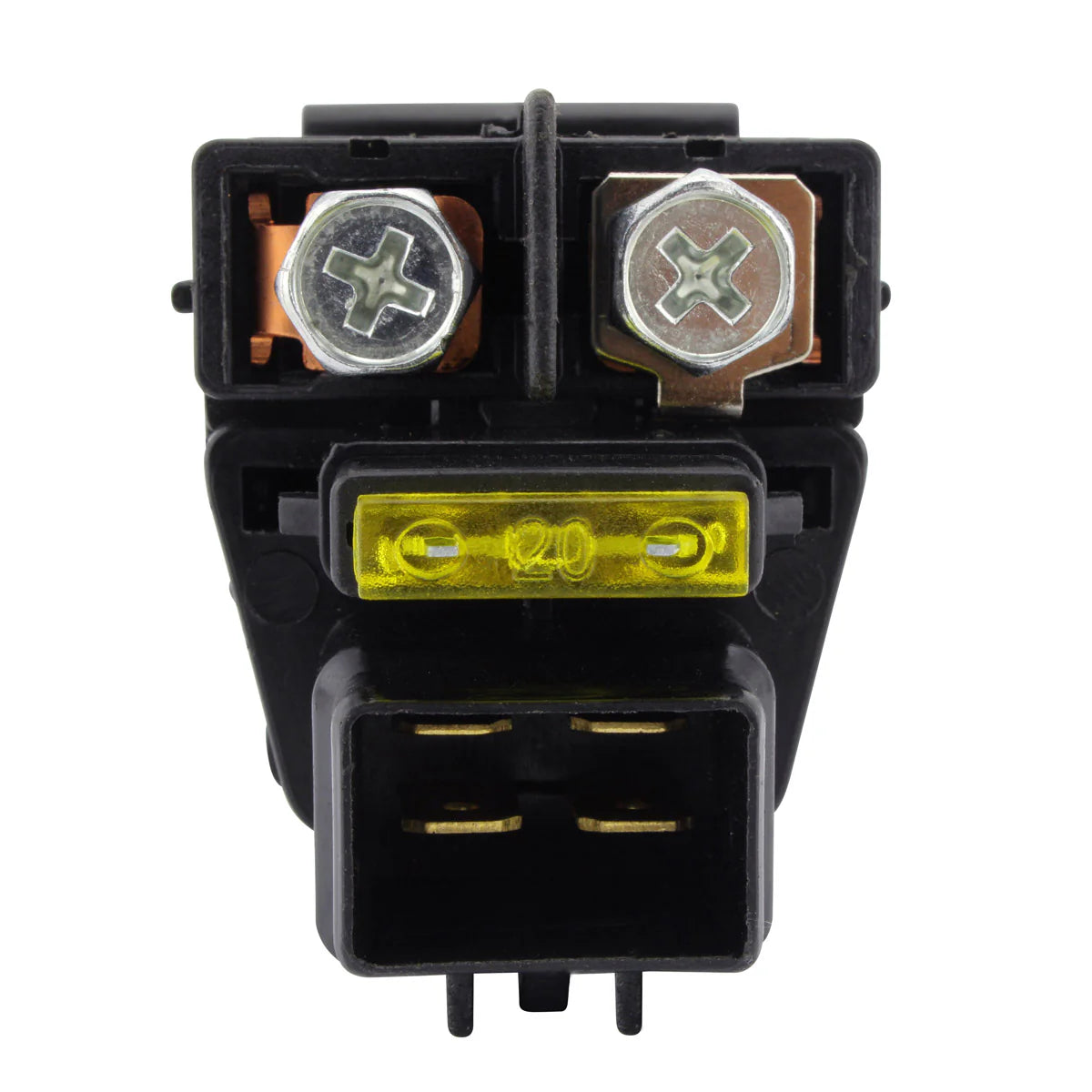

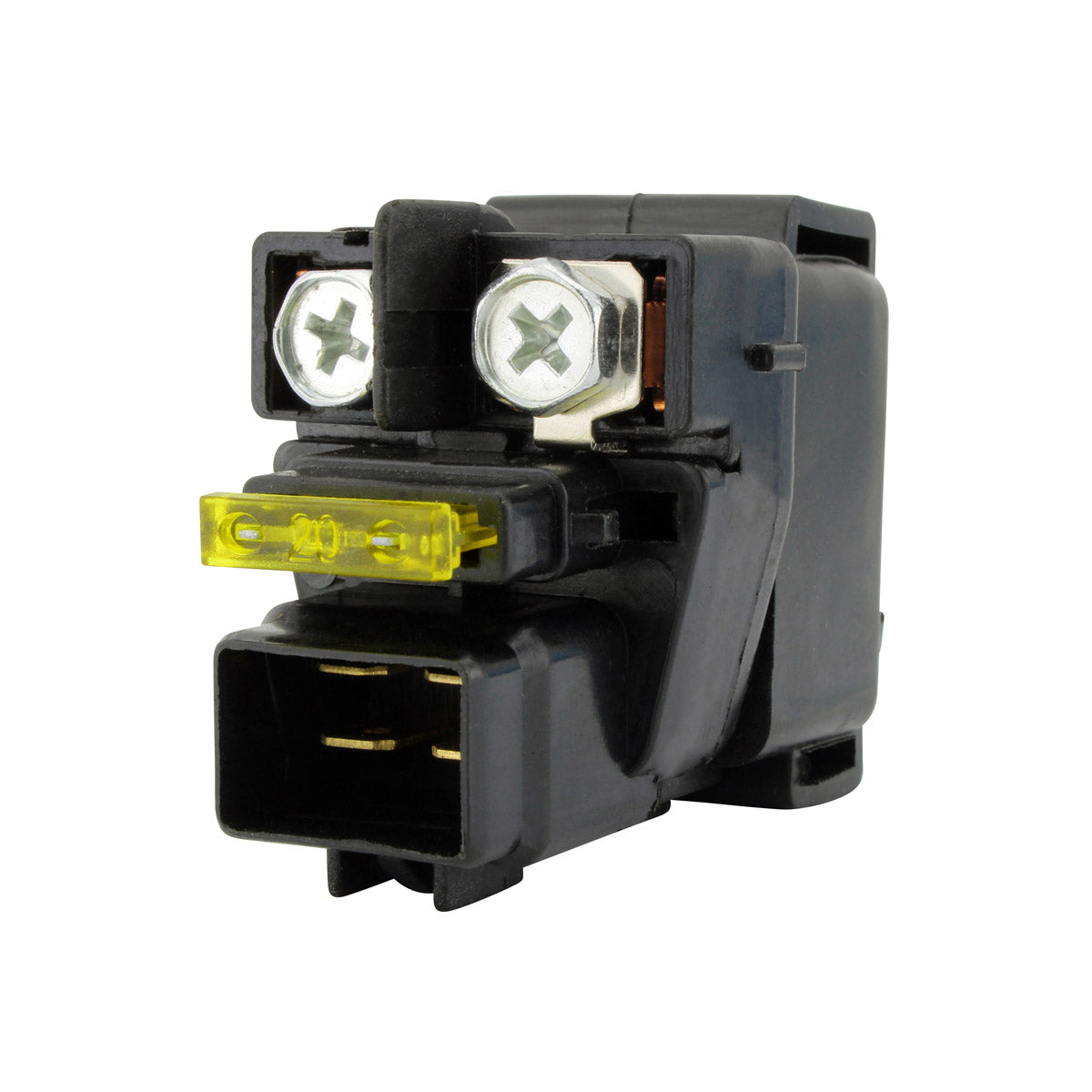

This is a brand new starter relay solenoid switch for the Suzuki LTZ 400 Quadsport Z400, built to a quality that RMSTATOR state exceeds the original equipment, and tested before it is shipped. It is a direct replacement for the original unit, with four terminals, a single plug and an integrated 150A 30S fuse. Part reference RMS090-104965.
Key Features
- Brand new starter relay solenoid switch, not a refurbished unit
- Quality that exceeds the original equipment specification
- Direct replacement for the original unit - Suzuki OEM 31800-07G00
- Four terminals and one plug, matching the standard layout
- Integrated fuse rated 150A 30S
- Every unit is tested before it is shipped
- Part number RMS090-104965
Technical Specs
| Specification |
Detail |
| Part number |
RMS090-104965 |
| Height |
64 mm |
| Length |
47 mm |
| Width |
32 mm |
| Number of terminals |
4 |
| Number of plugs |
1 |
| Fuse |
Yes - rated 150A 30S |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Suzuki LTZ 400 Quadsport |
2003-2008 |
| Suzuki Quadsport Z400 |
2003-2008 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 31800-07G00 |
Suzuki |
Frequently Asked Questions
Will this fit without modification?
Yes. It is a direct replacement for the original unit on the 2003-2008 LTZ 400 Quadsport Z400, keeping the same four terminals and single plug, so the existing loom and battery cables reconnect as they were. No cutting or rewiring is needed. Compare the number on your old solenoid against 31800-07G00 if you want to be certain.
What is included?
One brand new starter relay solenoid switch with its integrated 150A 30S fuse, tested before dispatch. You re-use your existing mounting rubber, cables and terminal nuts.
How do I know my old solenoid has failed?
A dead solenoid usually gives you one sharp click and no engine rotation, or complete silence at the button while the lights and dash stay bright. Starting that works only sometimes, or works better after tapping the solenoid body, points the same way, as does visible pitting or discolouration on the large terminals. Check the battery state of charge and the battery cable ends first, because a tired battery produces the same click.
Does it come with the main fuse?
Yes. This solenoid carries an integrated fuse rated 150A 30S, in the same position as the original Suzuki unit, so the main circuit protection is replaced along with the switch.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
