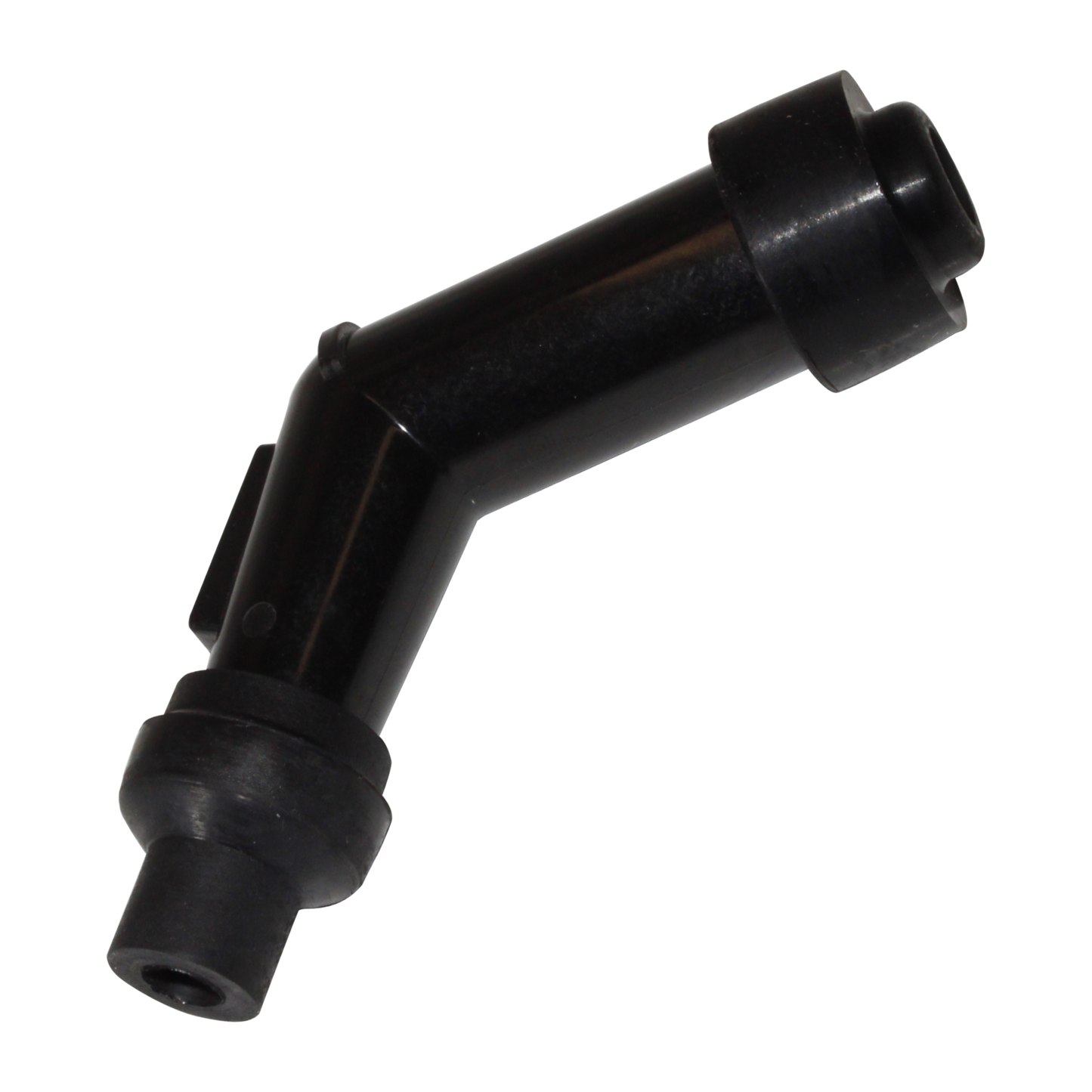

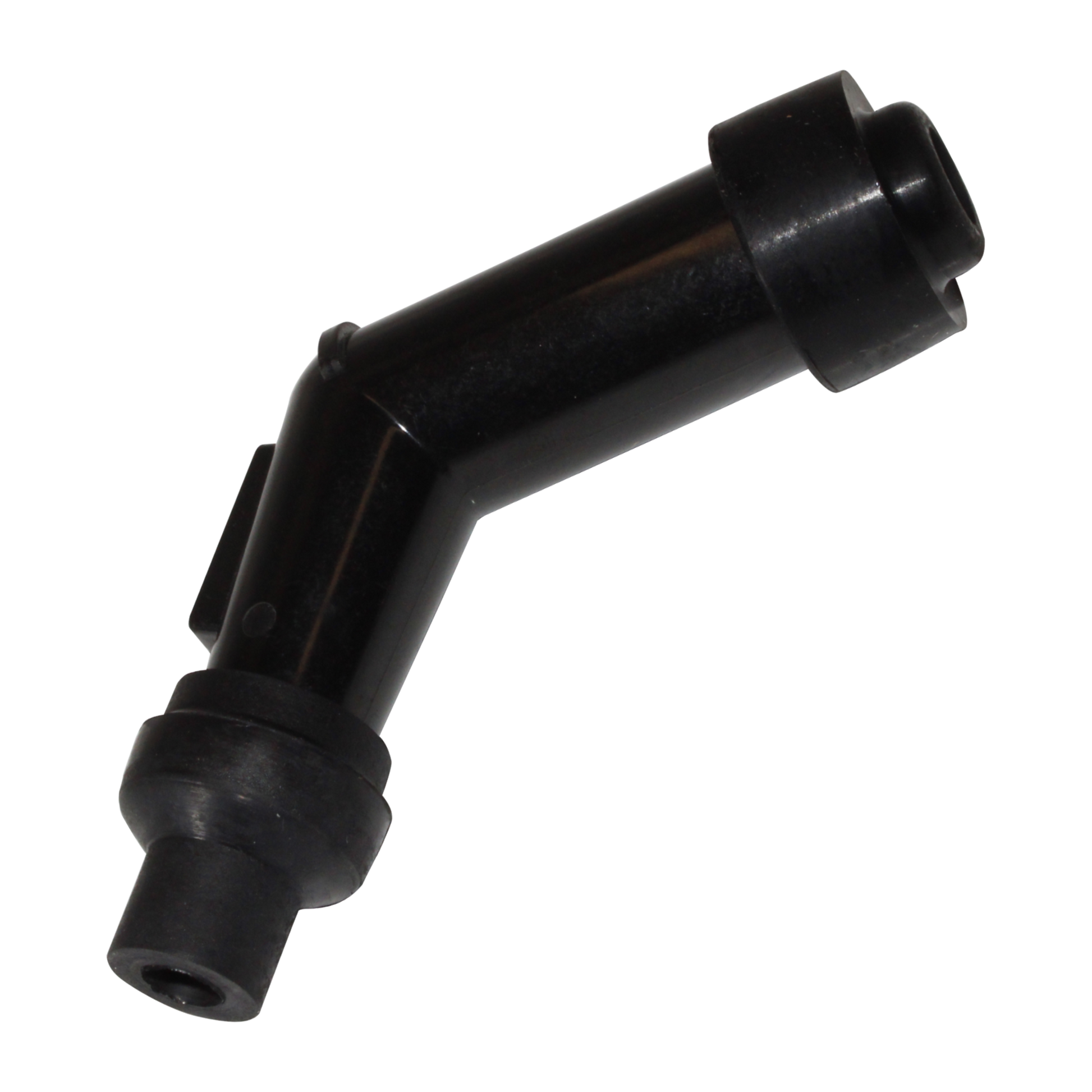

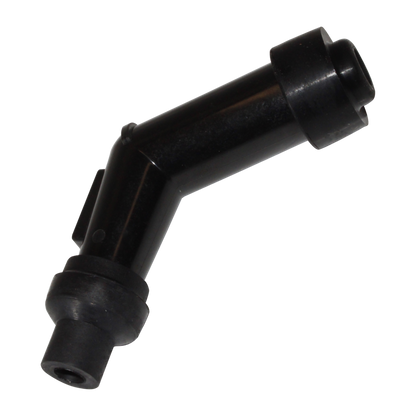

Spark Plug Cap Elbow 102 Degree
Spark Plug Cap Elbow 102 Degree
SKU:162.VD05F
Free shipping over £150. Terms apply
Couldn't load pickup availability
Spark Plug Cap 162.VD05F
Premium 120° Resistor Cover for 10mm/12mm Plugs
The 162.VD05F is a high-performance replacement spark plug cap designed for maximum reliability in high-heat motorcycle environments. This 120-degree "Long Type" elbow is constructed from durable phenolic resin, ensuring exceptional resistance to heat, vibration, and electrical leakage.
Key Features
- ✔ 120° Angle "Long" design for deep-seated plugs
- ✔ Heavy-duty Phenolic Resin construction
- ✔ Waterproof EPDM rubber seal boots
- ✔ Screws directly onto HT lead cable
Technical Specs
| Angle: | 120° Elbow |
| Resistance: | 5k Ohm (Ceramic) |
| Plug Diameter: | 10mm or 12mm |
| Terminal Type: | Threaded Stud / M4 |
| Color/Material: | Black Phenolic |
Universal Fitment Guide
| Application | Model Type | Notes |
|---|---|---|
| Motorcycles | Universal Japanese (Honda/Suzuki/Yamaha) | Fits D, C, and BC type plugs |
| Honda | GB350, GB500, CB400SF Series | OEM Replacement Grade |
| Small Engines | Generator, Kart, Mowers | Requires threaded terminal post |
OEM Cross Reference
| NGK | VD05F / 8052 |
| Honda | 30700-MEW-920 / 30700-MEW-921 / 30700-MEW-922 |
| Larsson / Aftermarket | 162.VD05F |
Questions & Answers
Is this a genuine original part?
This is a premium quality aftermarket replacement part (VD05F type), manufactured by 4Drive suppliers to meet or exceed original equipment (OE) standards for heat resistance and suppression.
How do I know if it is compatible?
Check your existing cap for the "VD05F" code. This part is specifically for 10mm/12mm spark plugs that have a threaded stud at the top (not a permanent terminal nut).
Why does it have a 5k Ohm resistor?
The resistor prevents electrical noise from interfering with on-board electronics, digital displays, and radio equipment while maintaining a strong spark.
Note: Please verify your original part number or plug clearance against the technical specs above before purchasing. Domain: 4drive.co.uk.
