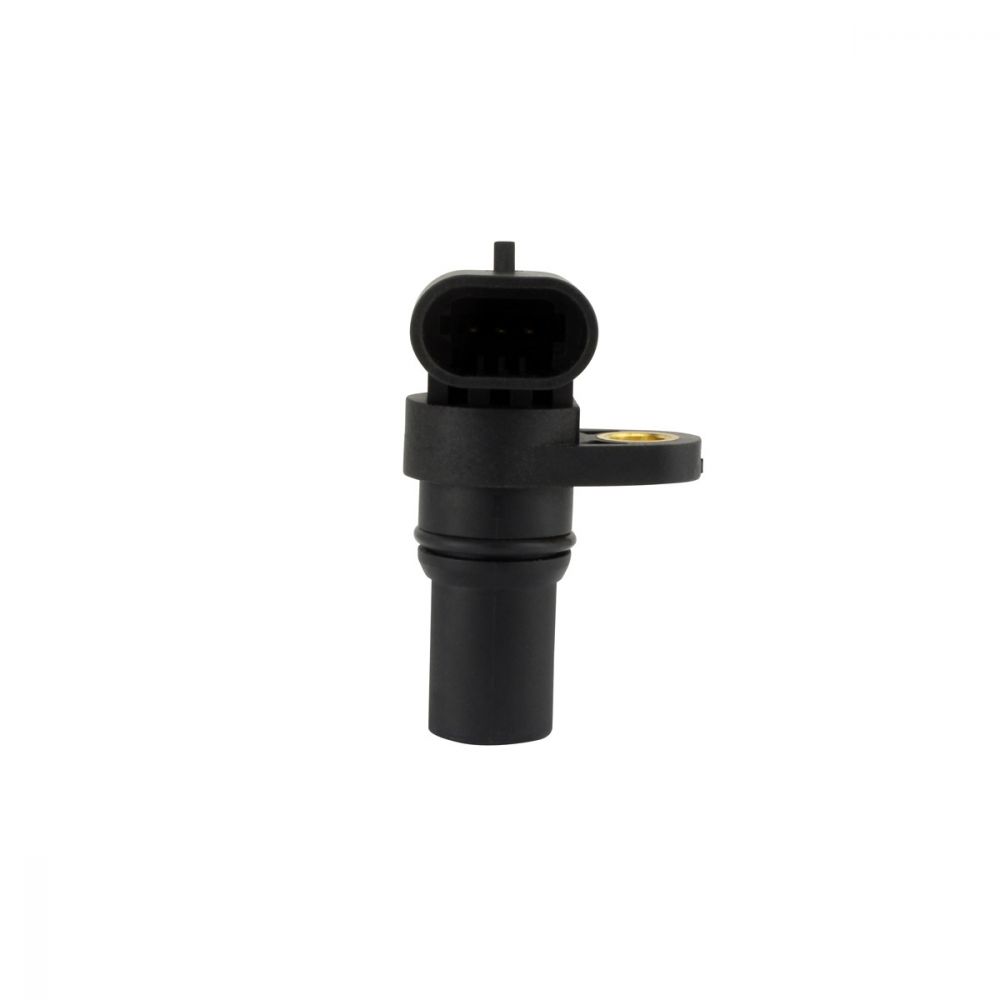

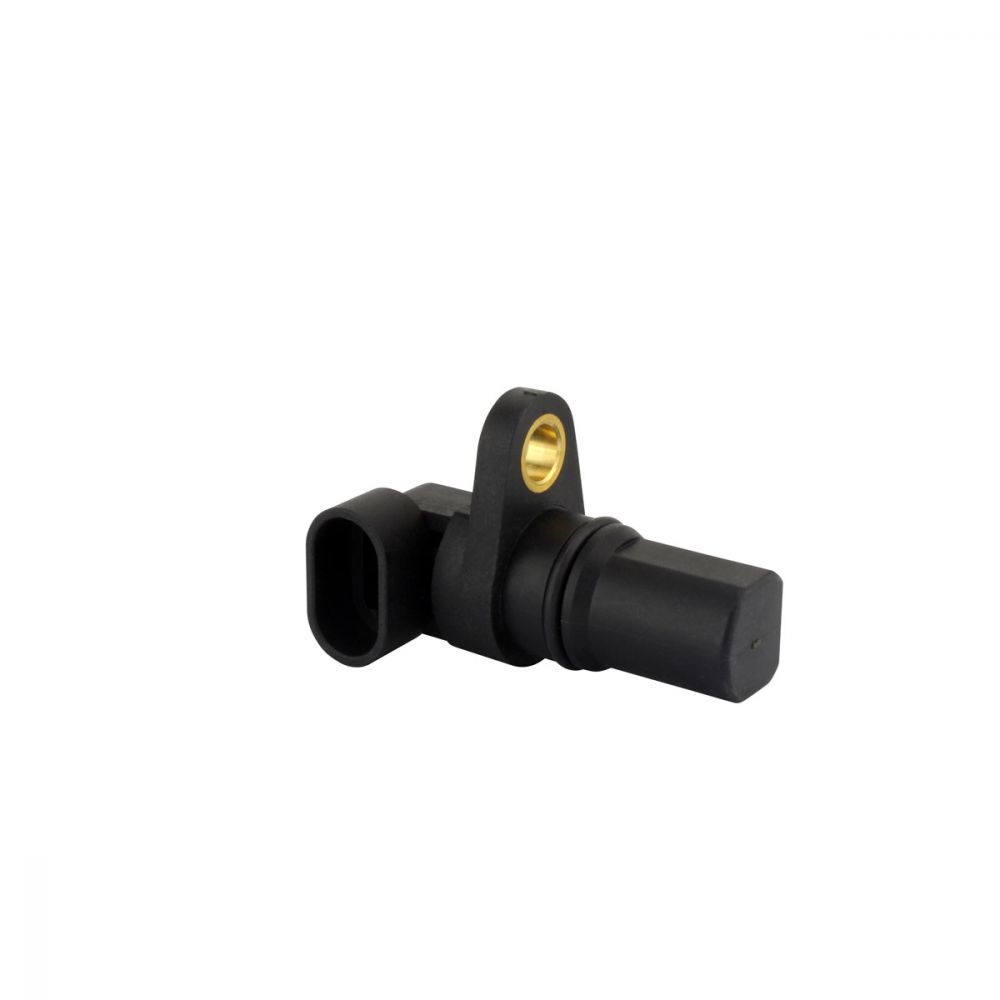

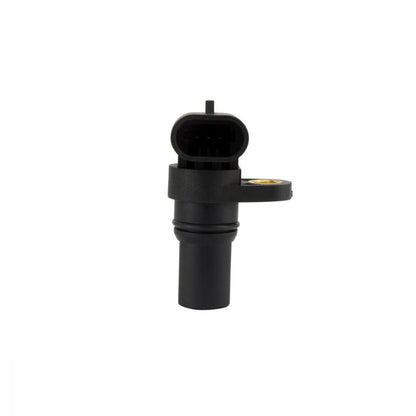

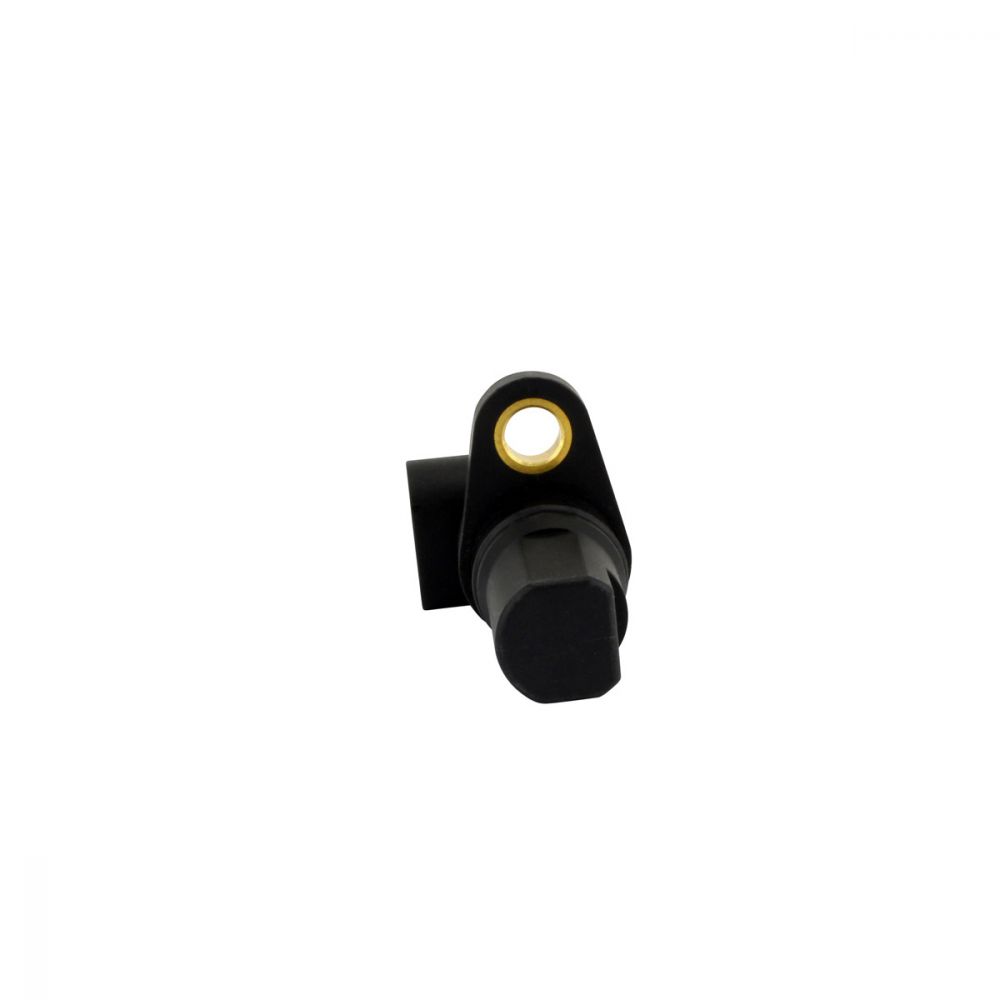

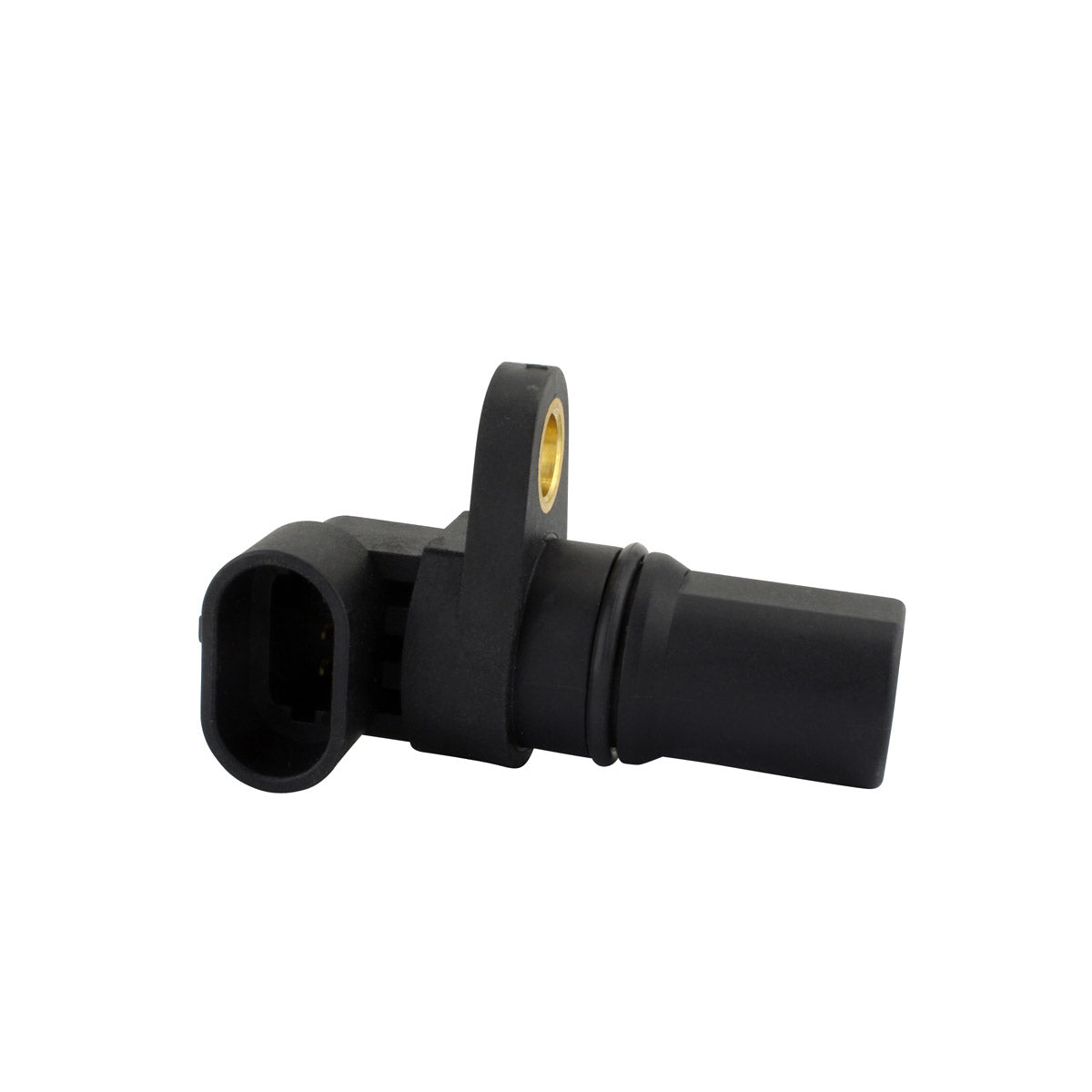

This is a brand new aftermarket speed sensor, supplied as a direct replacement for the original unit fitted to the Can-Am Commander, Maverick, Defender and Traxter. It is plug-and-play and a direct fit, so it threads into the original mounting position and connects to the standard 3-terminal plug with no modification to the loom. Every unit is tested before it is shipped.
The speed sensor reads the rotation of the gearbox output and feeds that signal to the gauge cluster and the engine management system. When it fails, the speedometer and odometer usually stop reading altogether or jump about erratically, and on many machines the fault also triggers a warning light because the ECU has lost a signal it expects to see. Because the sensor is a sealed unit exposed to heat, mud and water, it is a common wear item on a working side-by-side, and fitting a fresh one is a straightforward job.
Key Features
- Brand new aftermarket speed sensor
- Direct replacement for your original unit
- Plug-and-play, direct fit, easy installation
- Single plug with 3 terminals, as per the original
- All products shipped are tested
Technical Specs
| Specification |
Detail |
| Part number |
RMS140-107783 |
| Width |
25 mm |
| Length |
56 mm |
| Height |
35 mm |
| Sensor size |
14 x 15 x 25 mm |
| Hole diameter |
7 mm |
| Number of plugs |
1 |
| Number of terminals |
3 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Can-Am Commander 1000 |
2018-2023 |
| Can-Am Maverick 1000 |
2018-2023 |
| Can-Am Defender Max HD10 1000 |
2018-2023 |
| Can-Am Traxter Max HD10 1000 |
2018-2023 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 715900532 |
Can-Am |
| 715900571 |
Can-Am |
Frequently Asked Questions
Will it fit without modification?
Yes. It is a plug-and-play direct fit for the Can-Am models listed above. It uses the original mounting hole and the same single plug with 3 terminals, so no cutting, splicing or adapters are needed.
What is supplied?
The speed sensor itself, ready to fit. Because it matches the original in its dimensions, its 7 mm mounting hole and its 3-terminal plug, nothing else is required to install it.
How do I know my old speed sensor has failed?
The most common symptoms are a speedometer that reads zero or flickers between values while the machine is moving, an odometer that stops counting, and a fault or check engine light on the cluster. Before replacing the sensor it is worth checking the plug for corrosion and the sensor tip for a build-up of metal debris, as both can cause the same symptoms.
Which OEM numbers does it replace?
It replaces Can-Am part numbers 715900532 and 715900571. Check the number on your original sensor against those before ordering, especially if your machine has had parts changed in the past.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
