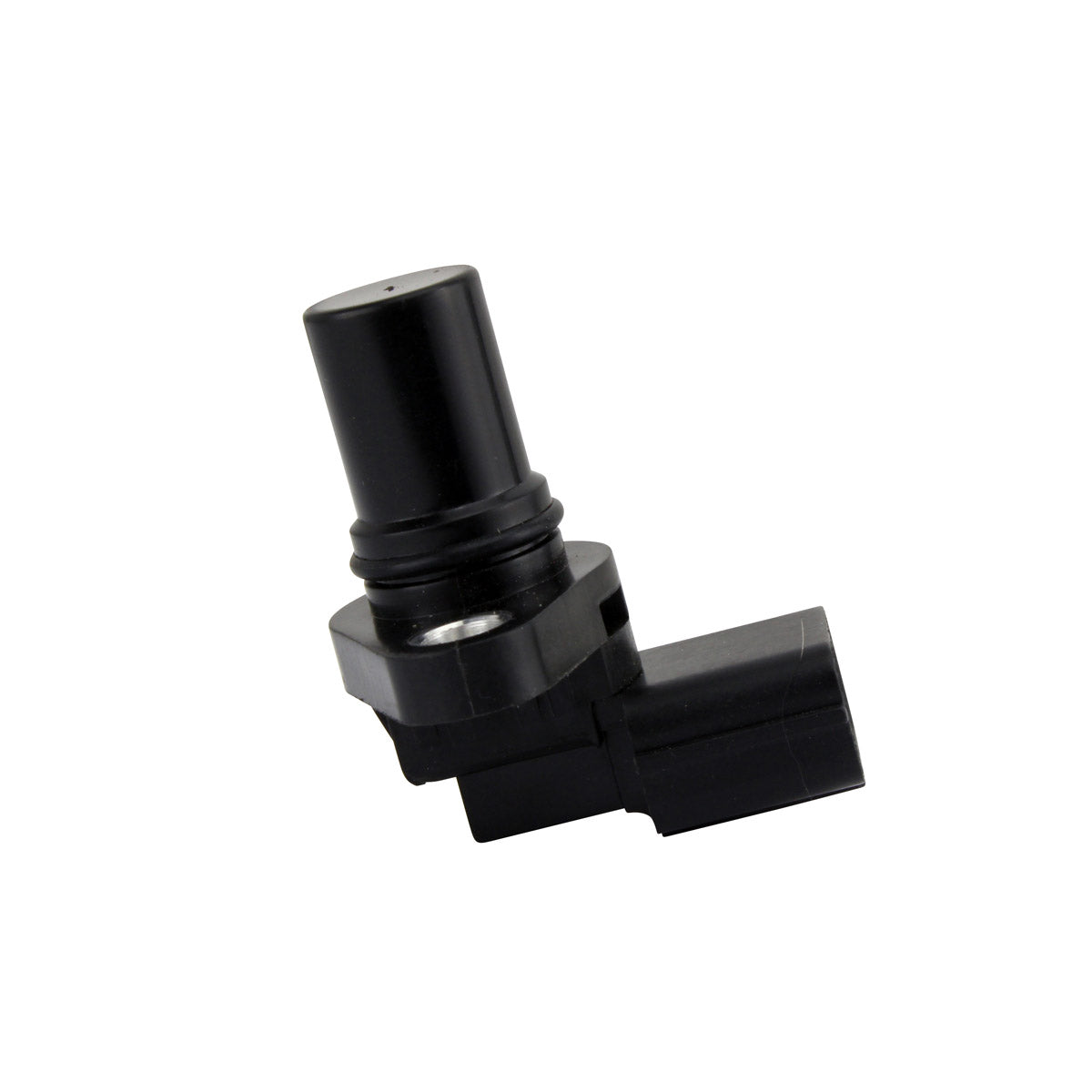

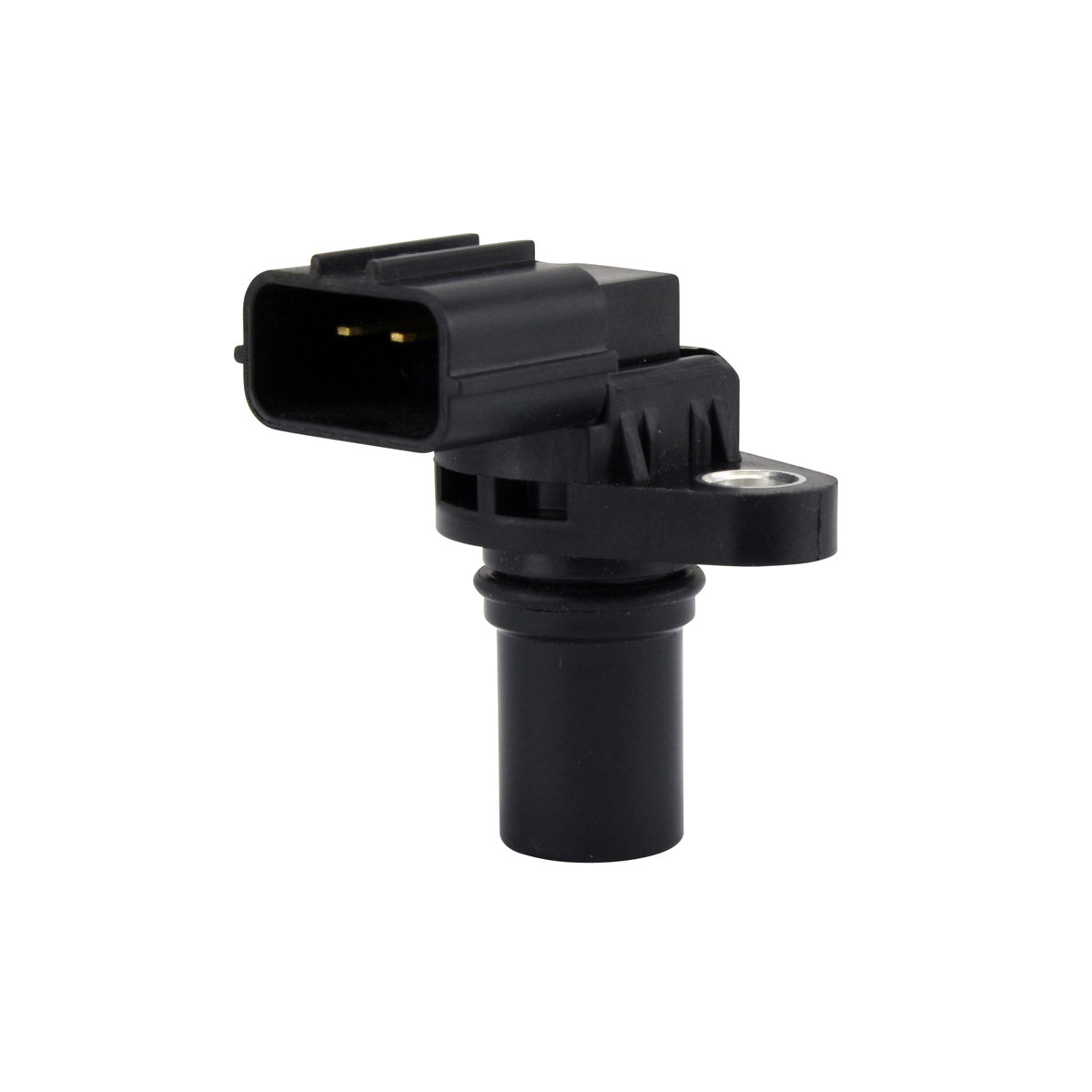

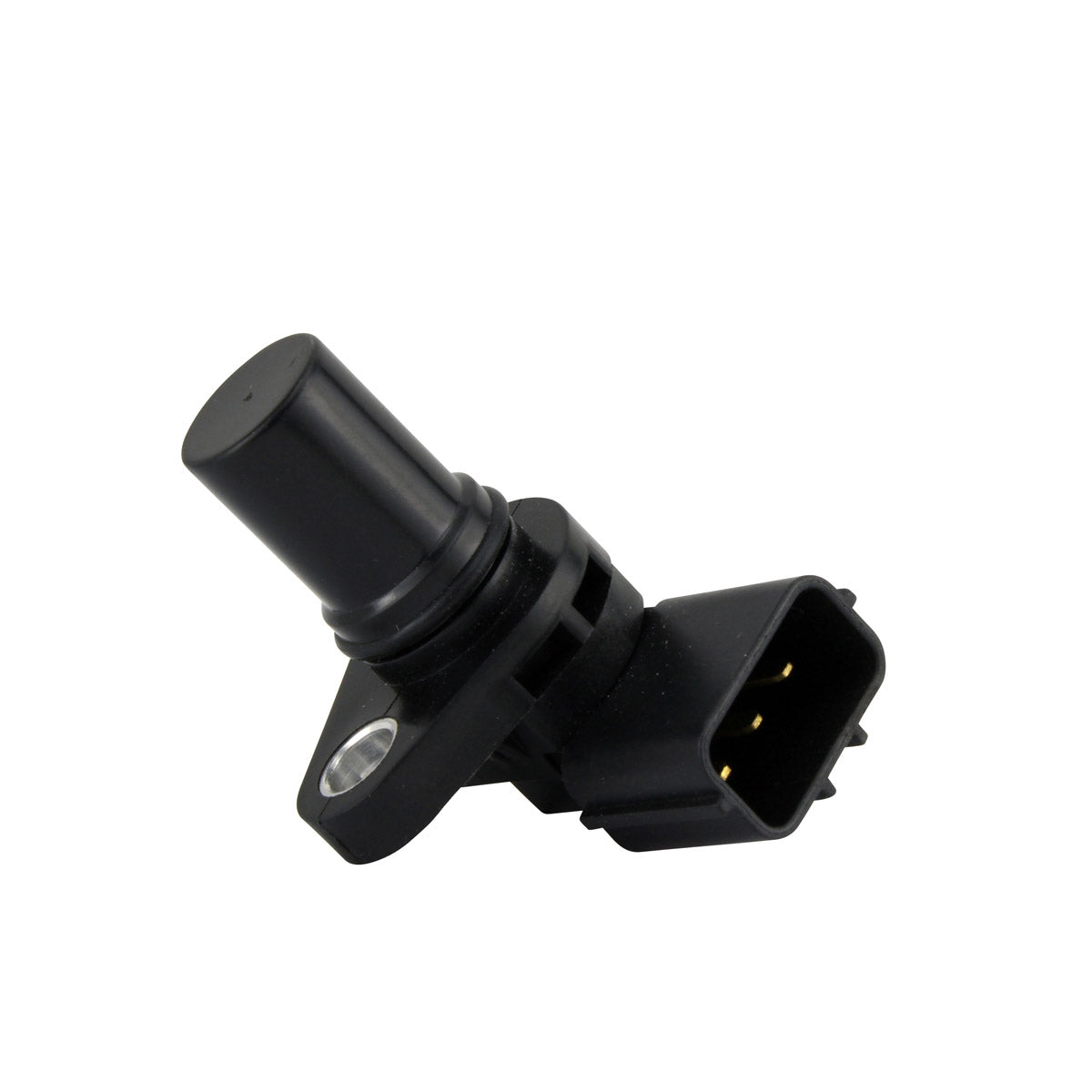

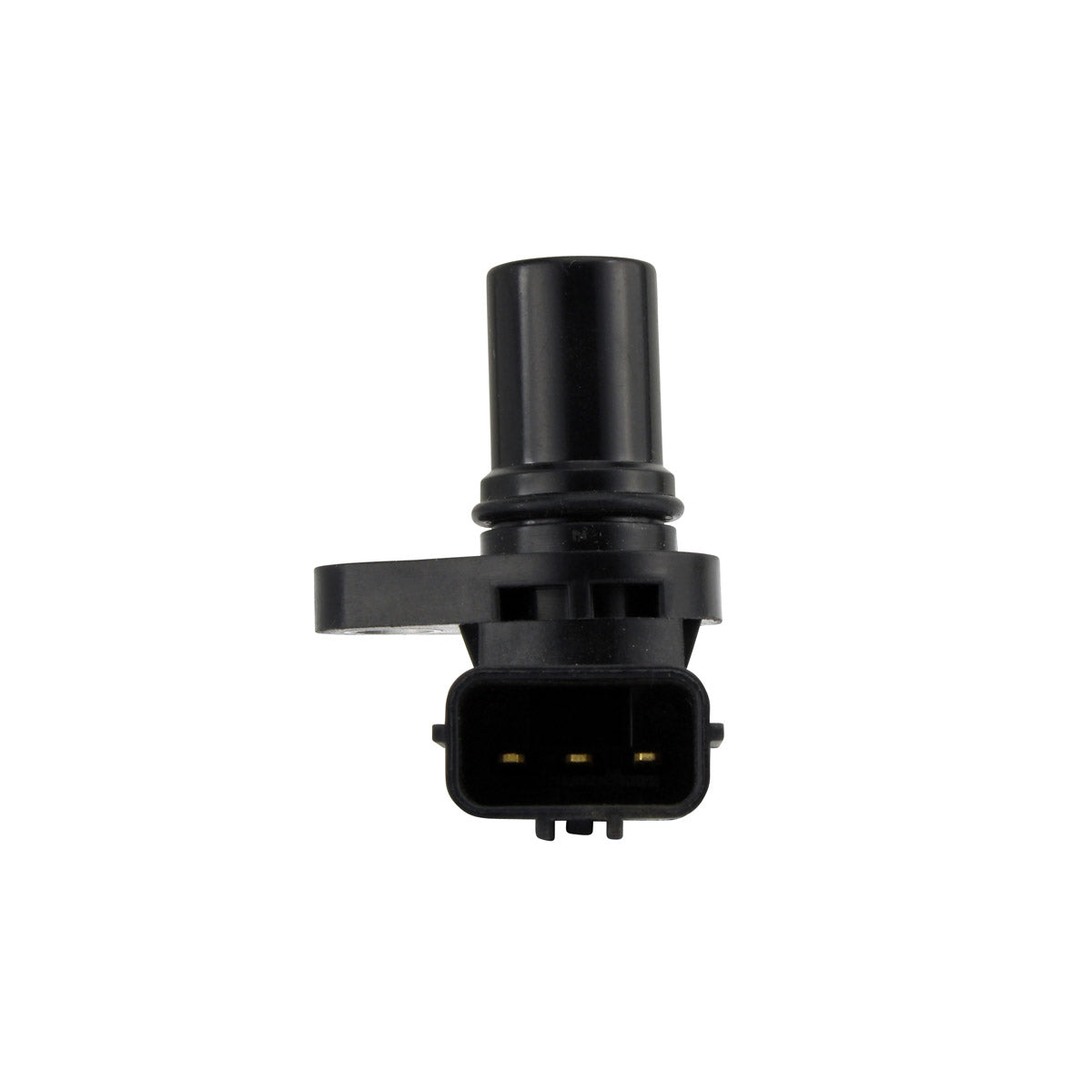

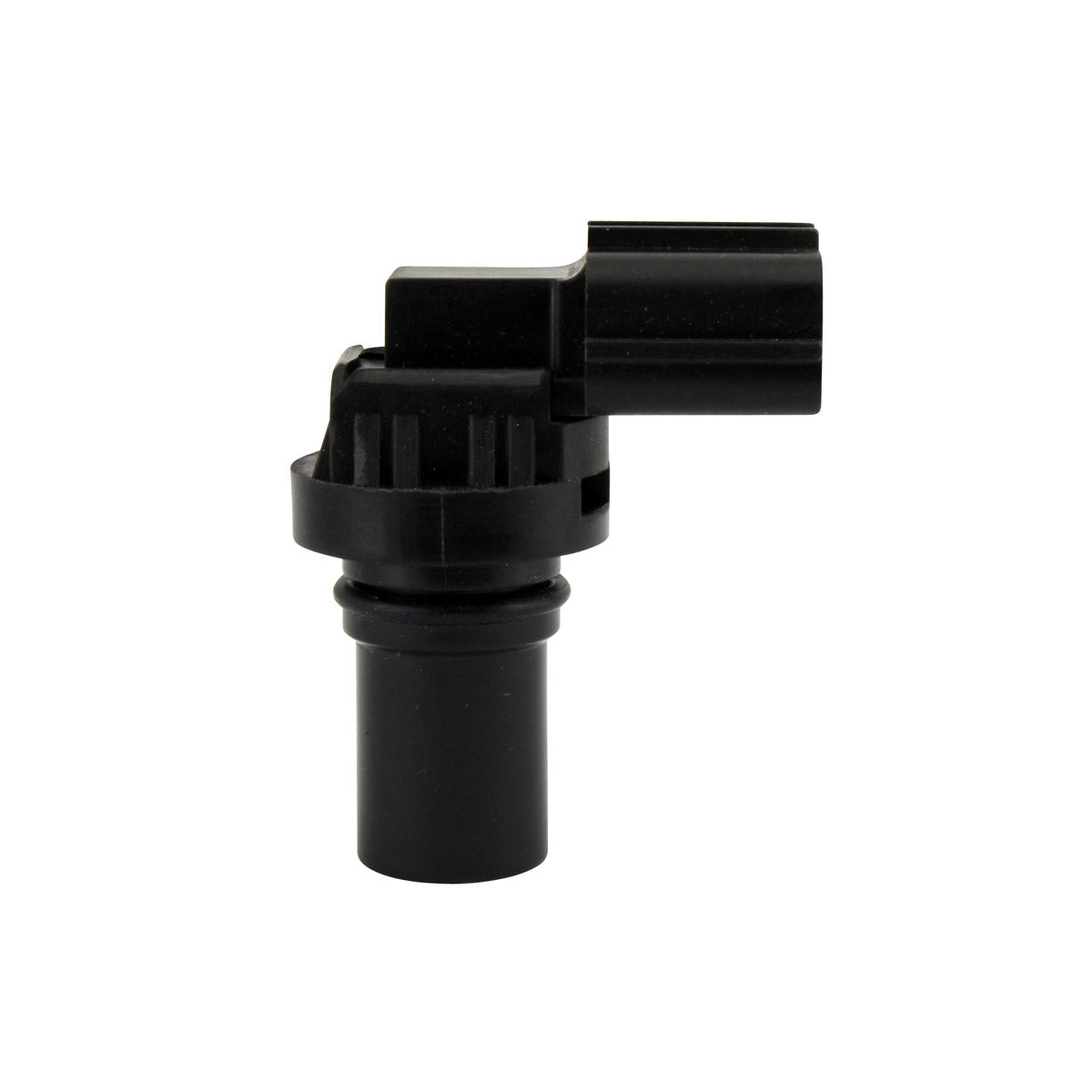

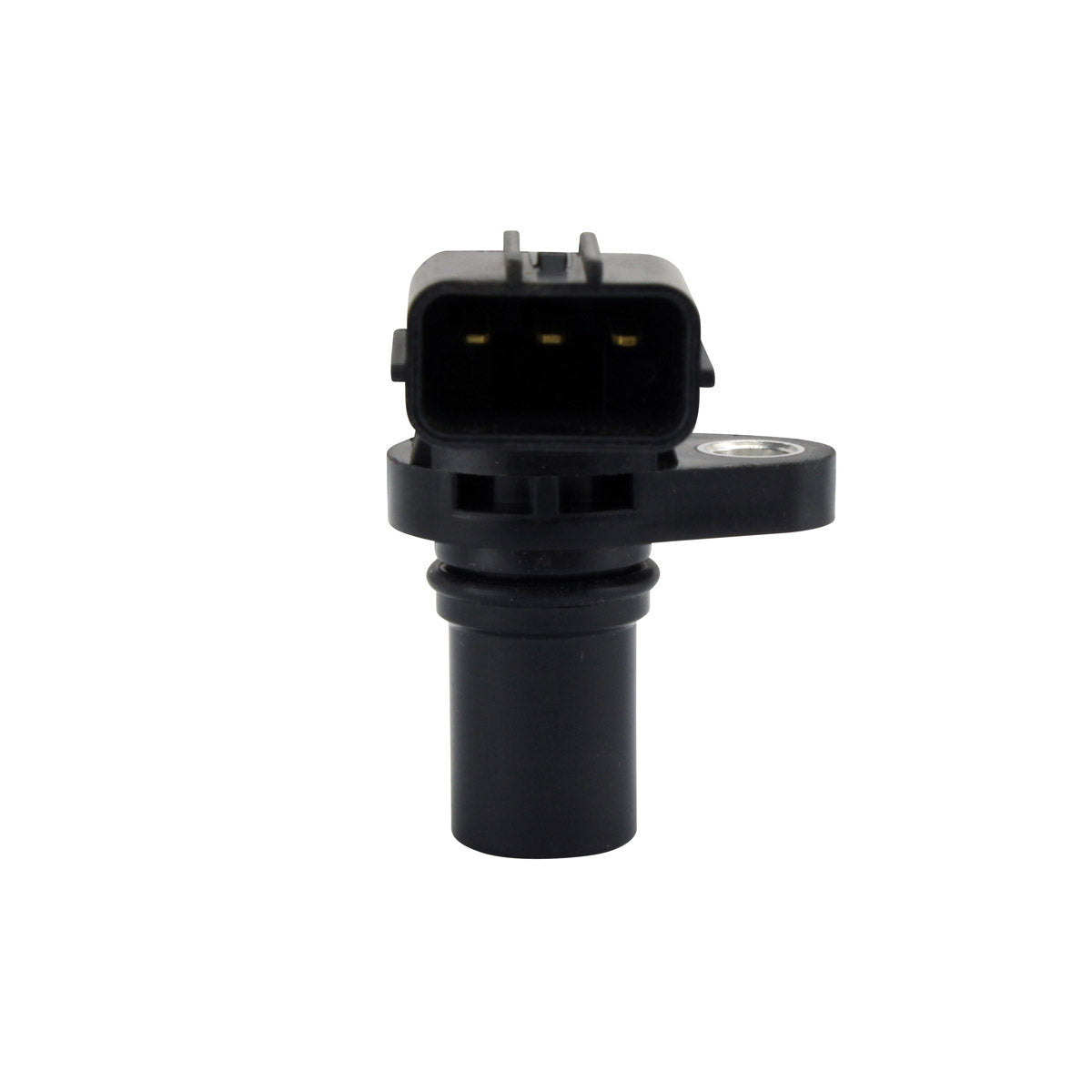

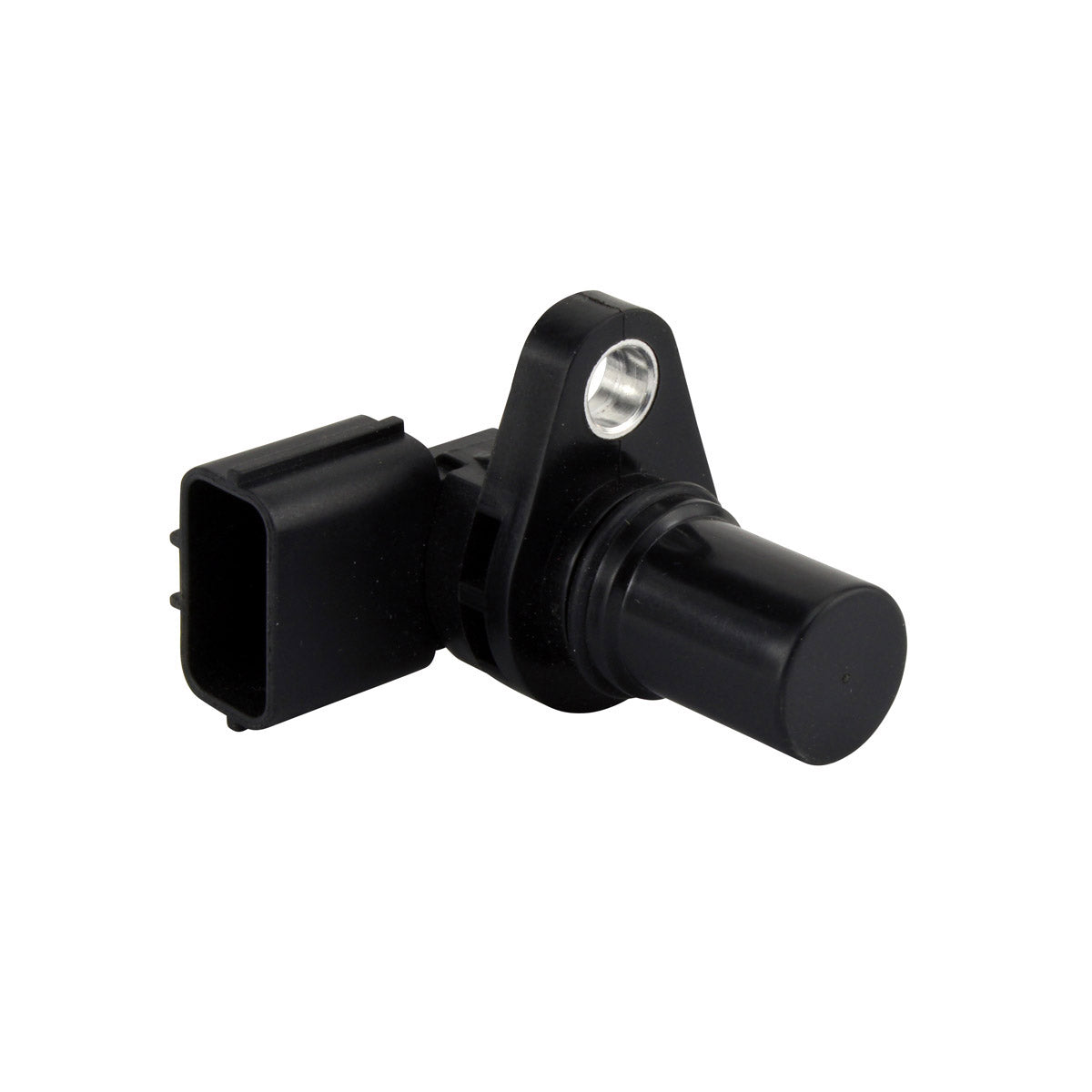

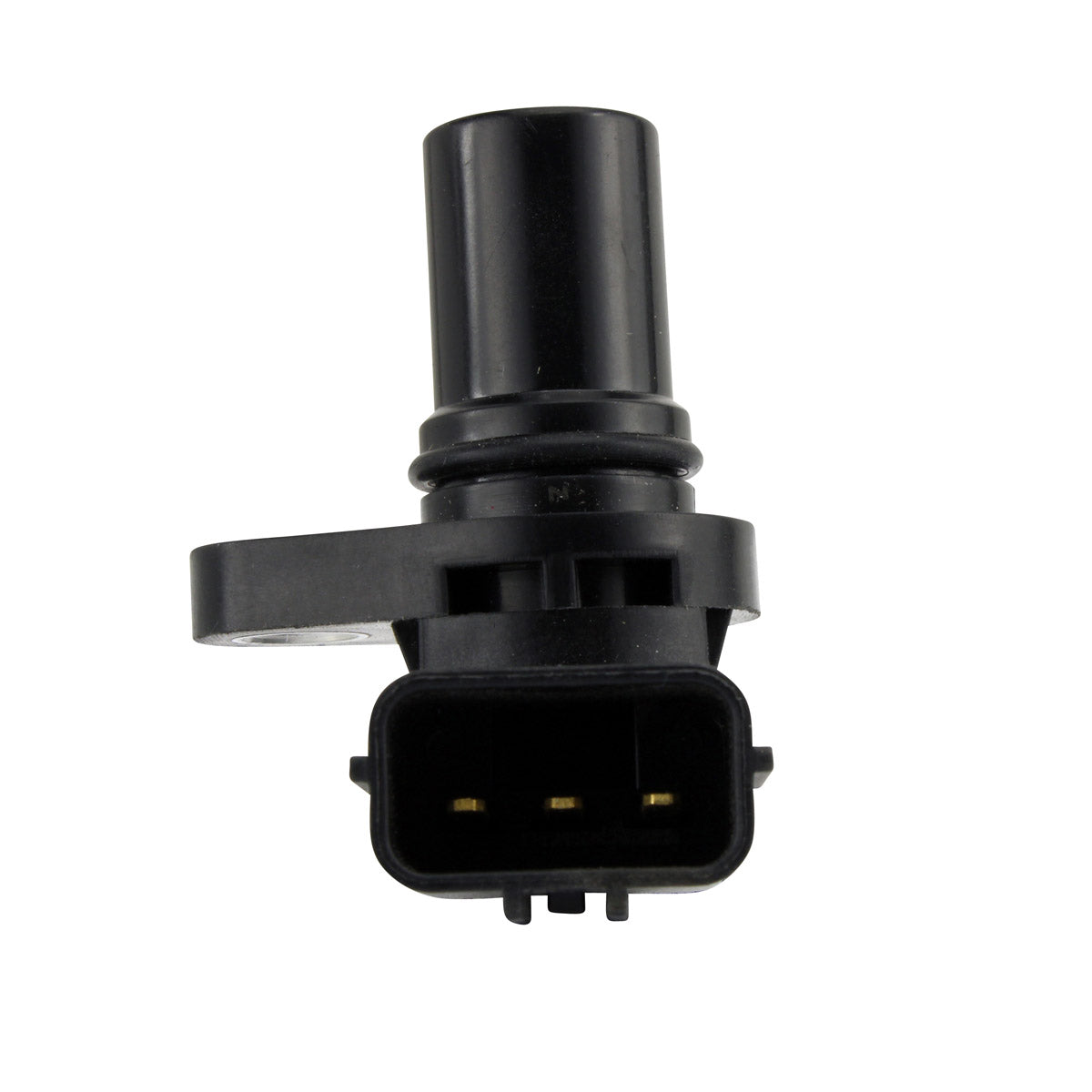

Brand new aftermarket speed sensor, built as a direct replacement for your original unit. It is a plug-and-play, direct fit part with easy installation. All products shipped are tested, and all item pictures are accurate - if in doubt, do not hesitate to compare our item to your original part before ordering.

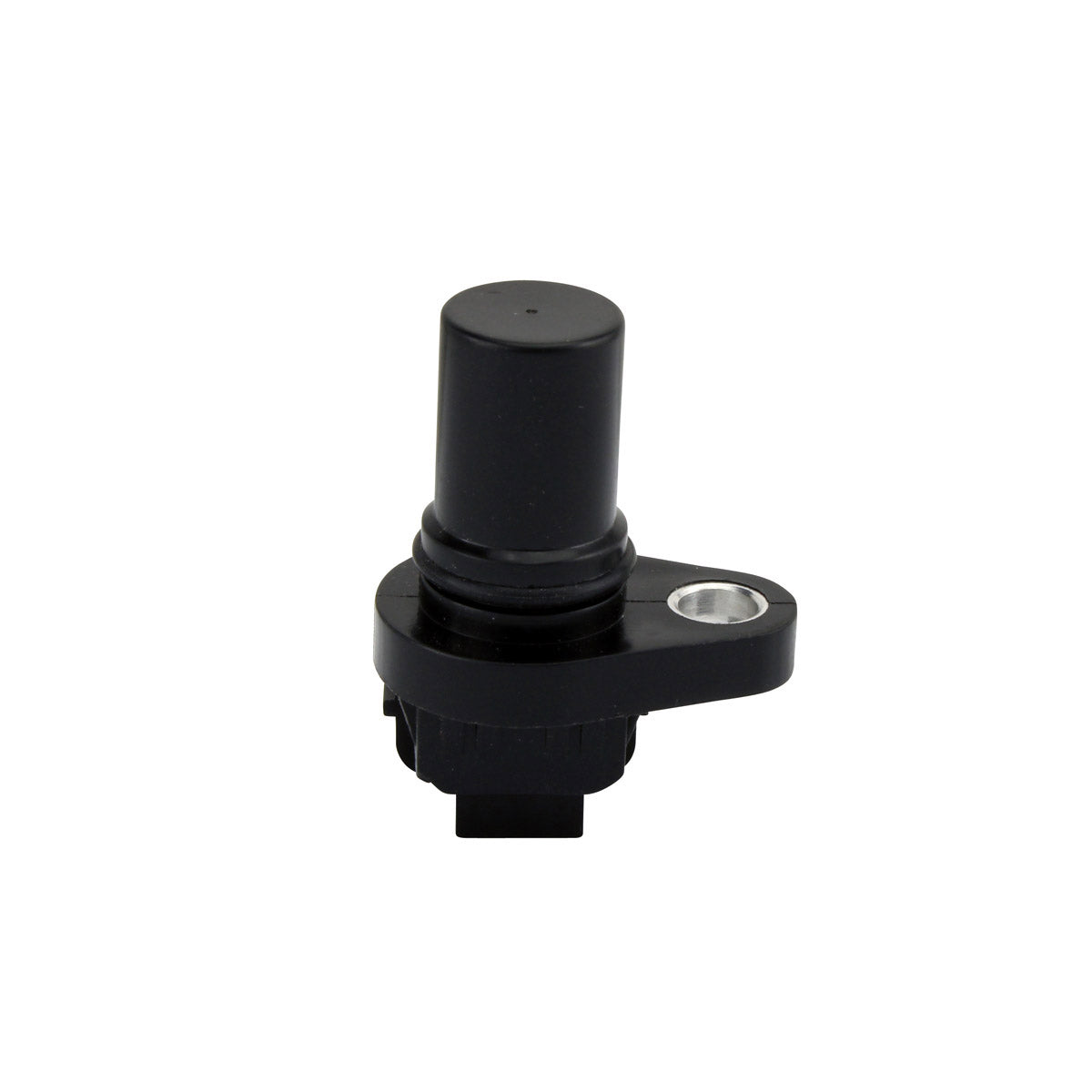

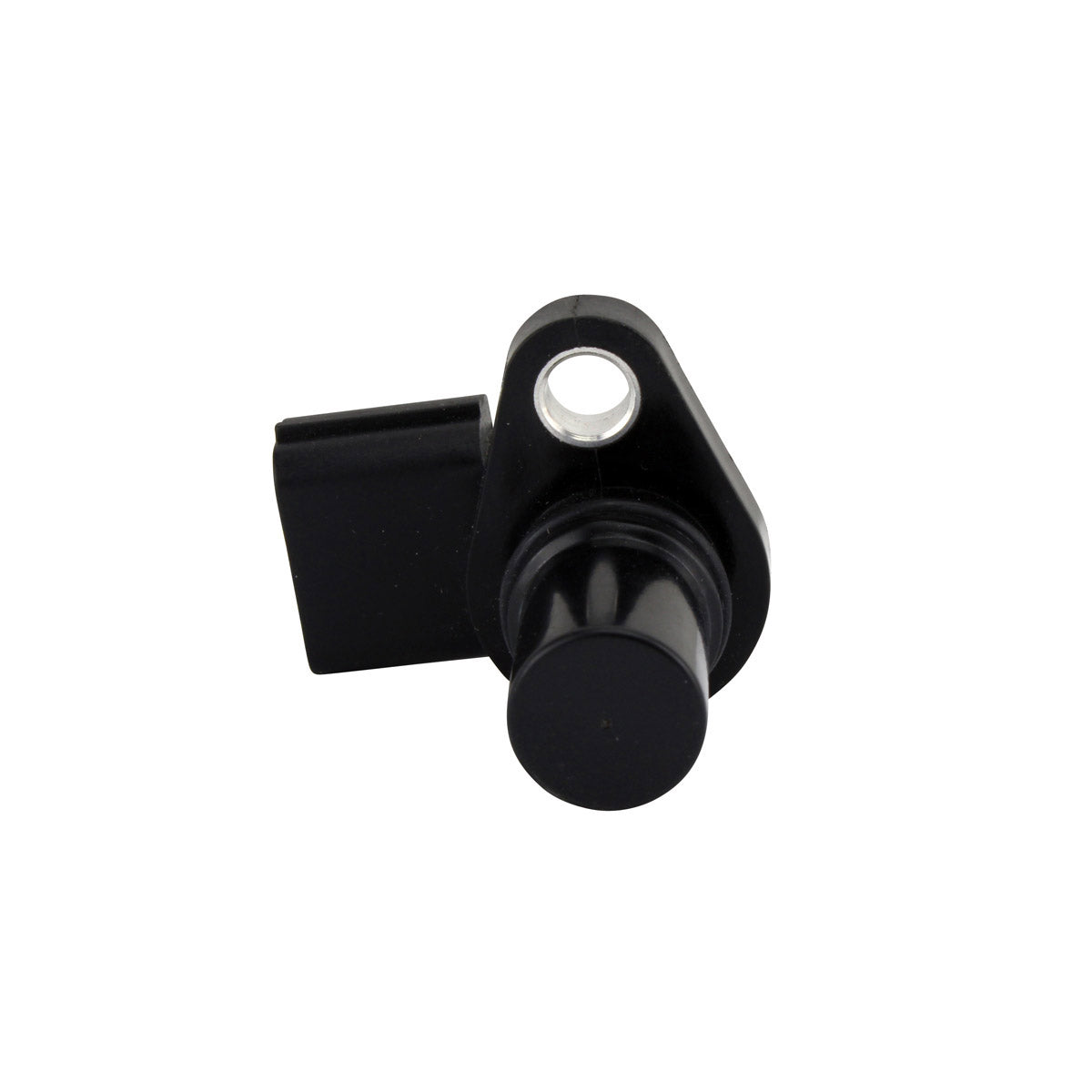

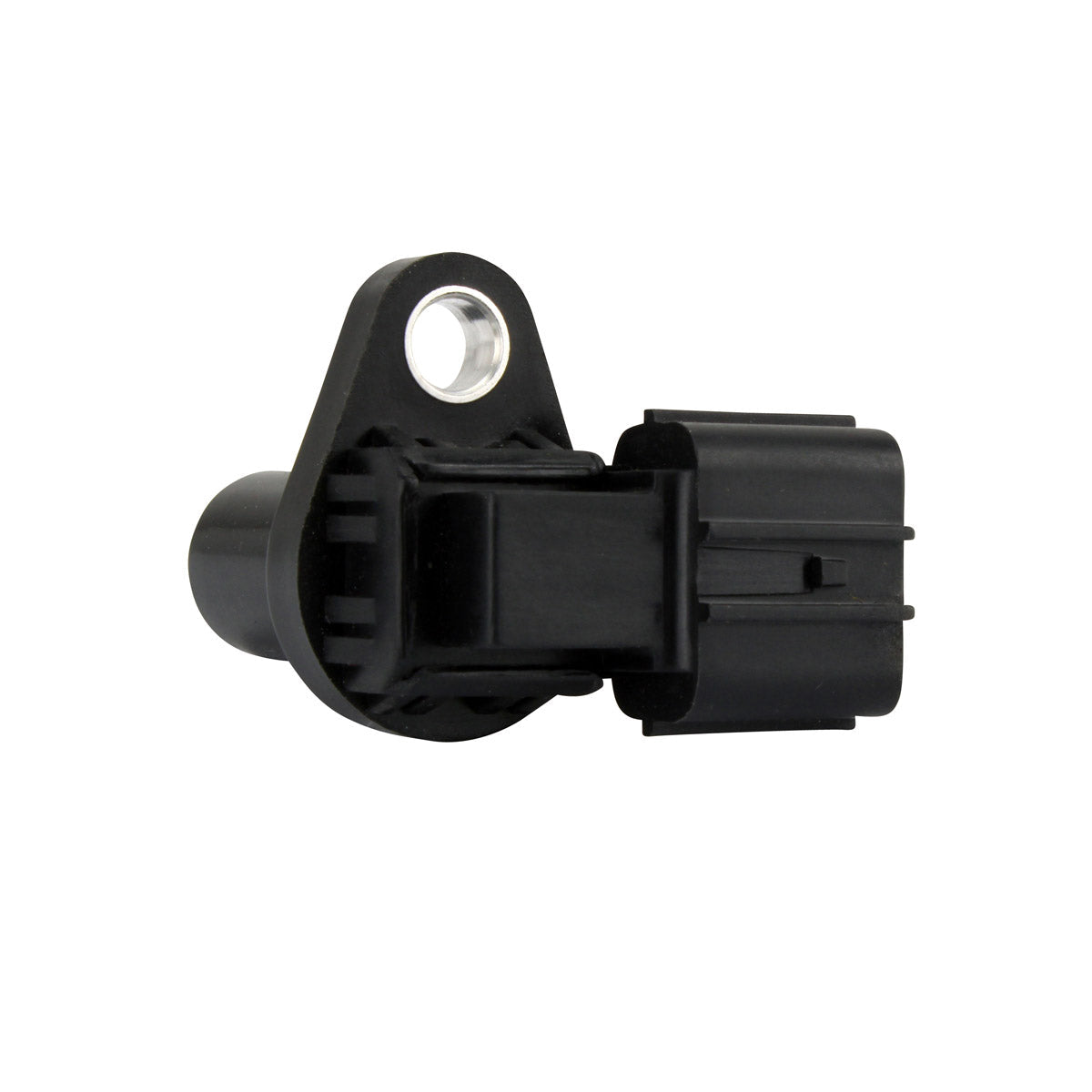

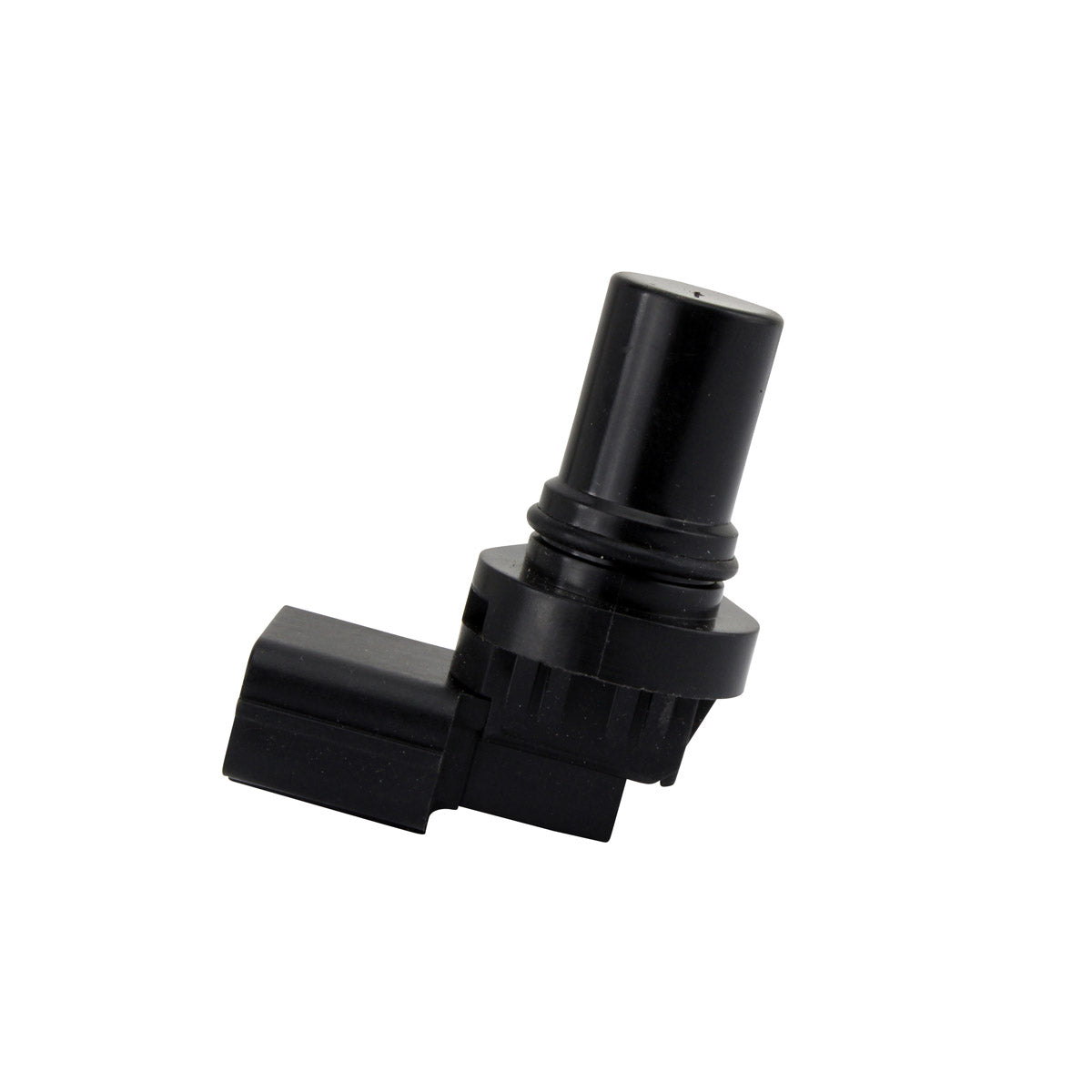

The speed sensor feeds road or ground speed to the instrument cluster and, on machines that use it, to the engine management. When it fails the speedometer and odometer typically stop reading, the trip counter freezes, or the reading becomes erratic at low speed. This unit measures 47 mm long, 27 mm high and 15 mm wide, with a 6 mm mounting hole, and uses a single plug with 3 terminals.
Key Features
- Brand new aftermarket speed sensor - not a remanufactured core
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Single plug with 3 terminals, matching the original layout
- 6 mm mounting hole diameter
- All products shipped are tested
- Dispatched from the UK with technical fitment support
Technical Specs
| Specification |
Detail |
| SKU / Part Code |
RMS140-107573 |
| Component |
Speed Sensor |
| Width |
15 mm |
| Length |
47 mm |
| Height |
27 mm |
| Mounting hole diameter |
6 mm |
| Number of plugs |
1 |
| Number of terminals |
3 |
| Condition |
New aftermarket |
| Warranty |
12 months |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Kawasaki KAF 620 950 Mule 4010 |
2002-2024 |
| Kawasaki KVF 360 Prairie |
2002-2024 |
| Kawasaki KVF 750 Brute Force |
2002-2024 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 21176-1104 |
Kawasaki |
Frequently Asked Questions
Does it fit without modification?
Yes. On the models listed above it is a plug-and-play direct fit that replaces the original sensor with no wiring changes or modification.
What is included?
The speed sensor unit itself, with its single 3-terminal plug. No other hardware is supplied with this part.
How do I tell the old sensor has failed?
The usual signs are a speedometer that reads zero, an odometer that has stopped counting, or a reading that jumps around. Before condemning the sensor, check the plug and the wiring back to the cluster for corrosion or a broken core, since a damaged harness produces the same symptoms.
How do I check this is the right sensor for my machine?
Compare the number on your original unit against 21176-1104 in the table above, and check the body against the dimensions listed - 47 mm long, 27 mm high, 15 mm wide with a 6 mm mounting hole. If the number and the shape match, this is the correct part.
