SPLYT Supercharged Stator, Regulator, 900W Flywheel & Puller Kit
Polaris Ranger 1000 and RZR 900, 2018-2025 - Part RMS900-106874 - Replaces 4017285

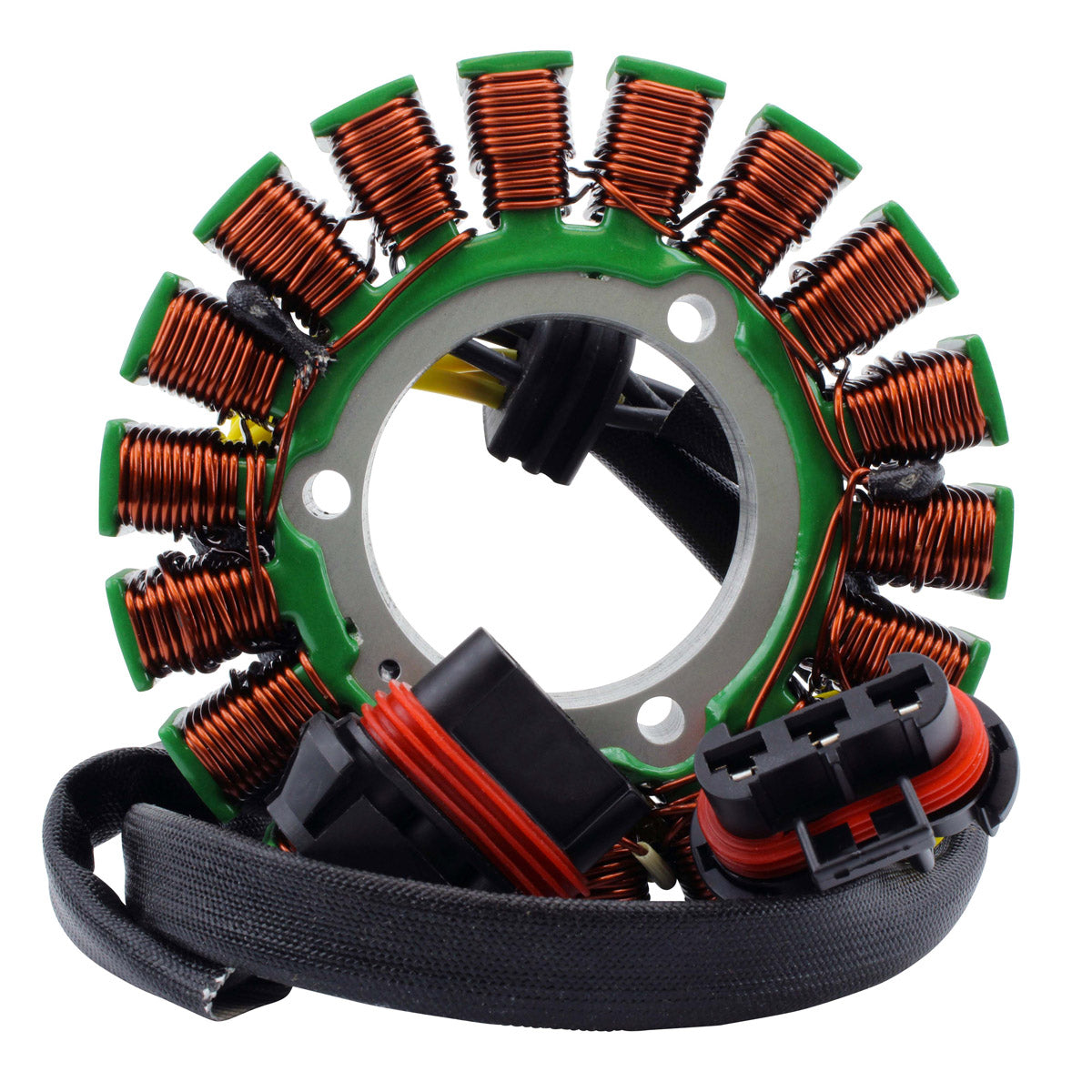

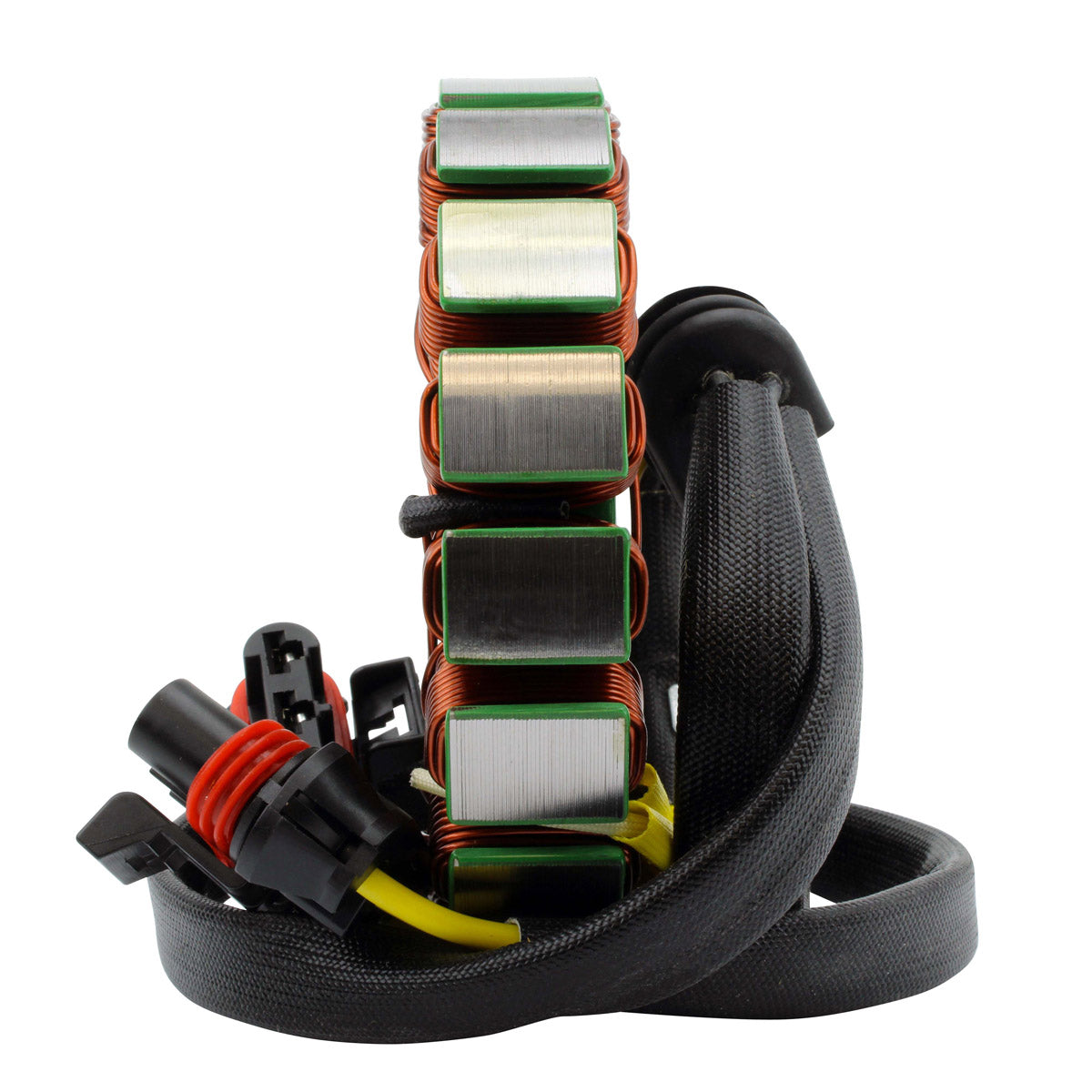

SPLYT Technology is RMSTATOR's answer to the well-known charging system failures on these machines. Rather than pushing the whole charging load through a single stator winding and a single regulator, the kit uses a dual output stator carrying two completely separate three-phase coil windings. Power is split between two separate voltage regulators, so each one carries half the original load. The result is markedly lower operating temperatures and a large increase in reliability, with both regulators running with around 40 per cent overhead for long life.

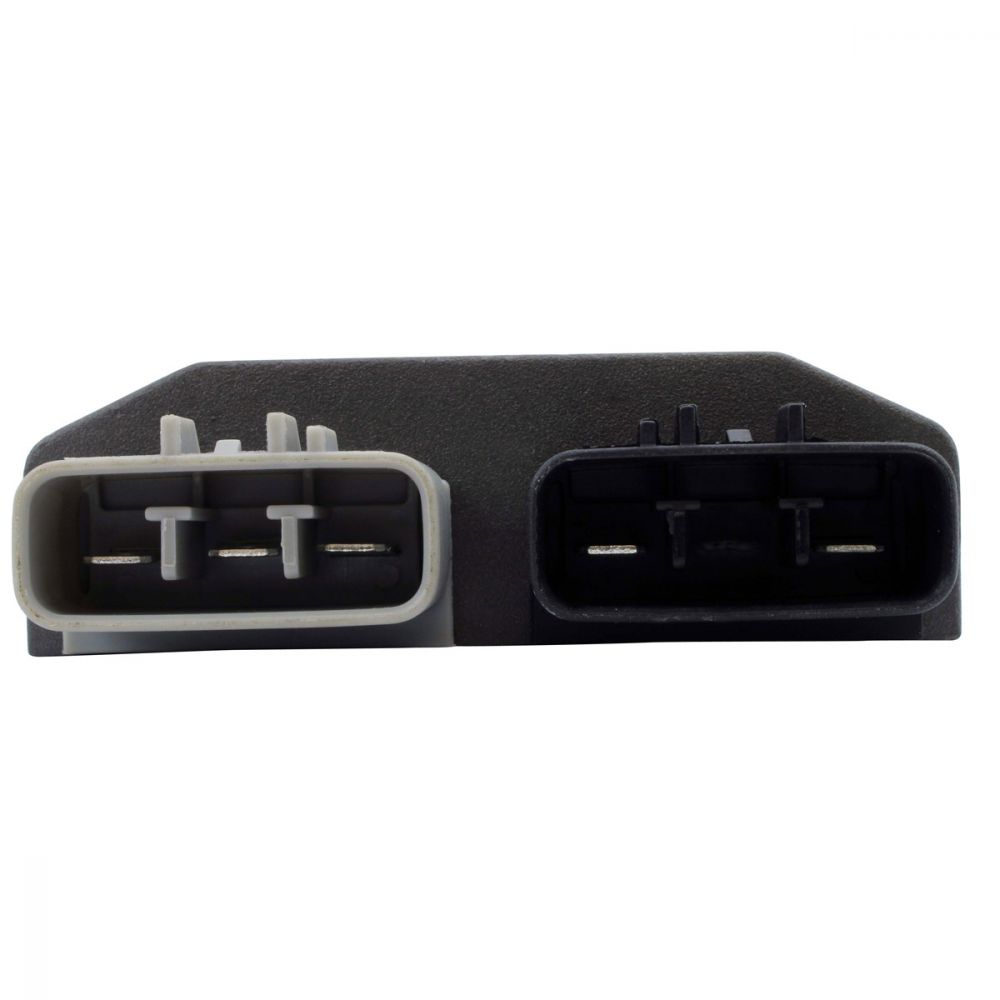

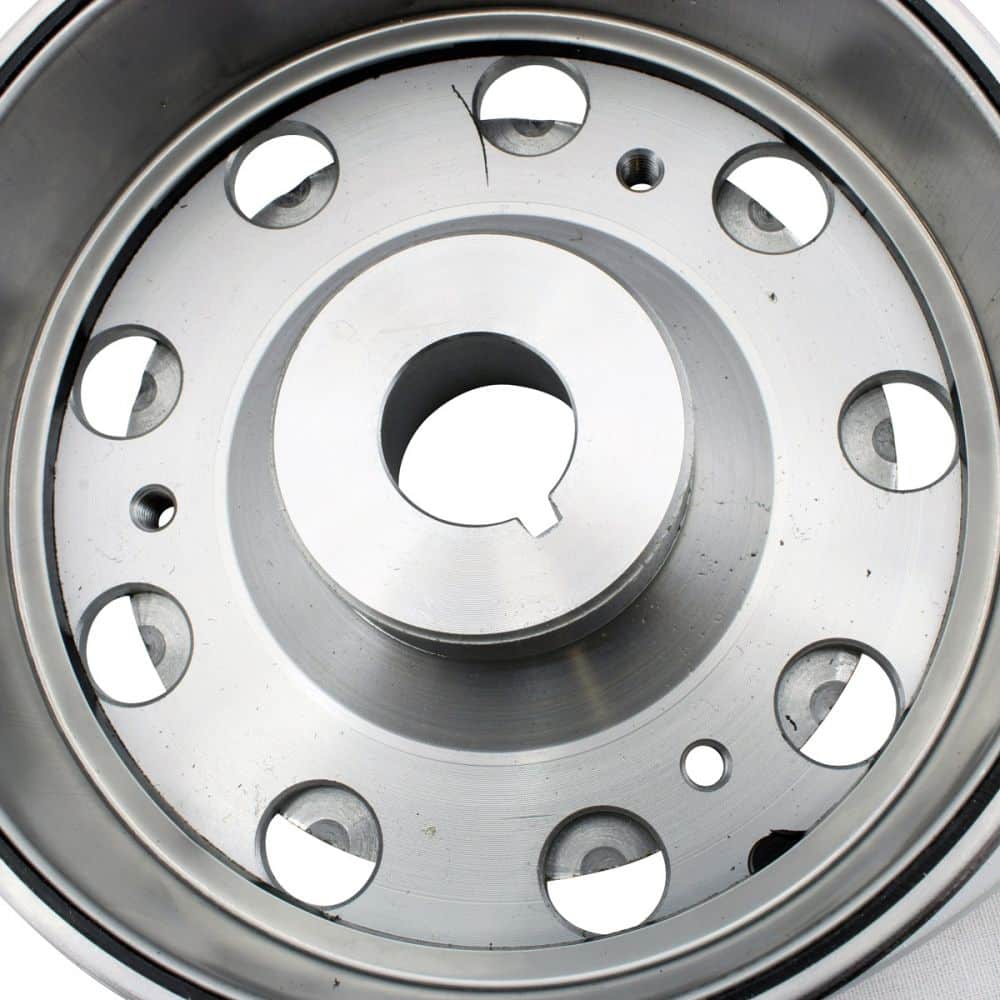

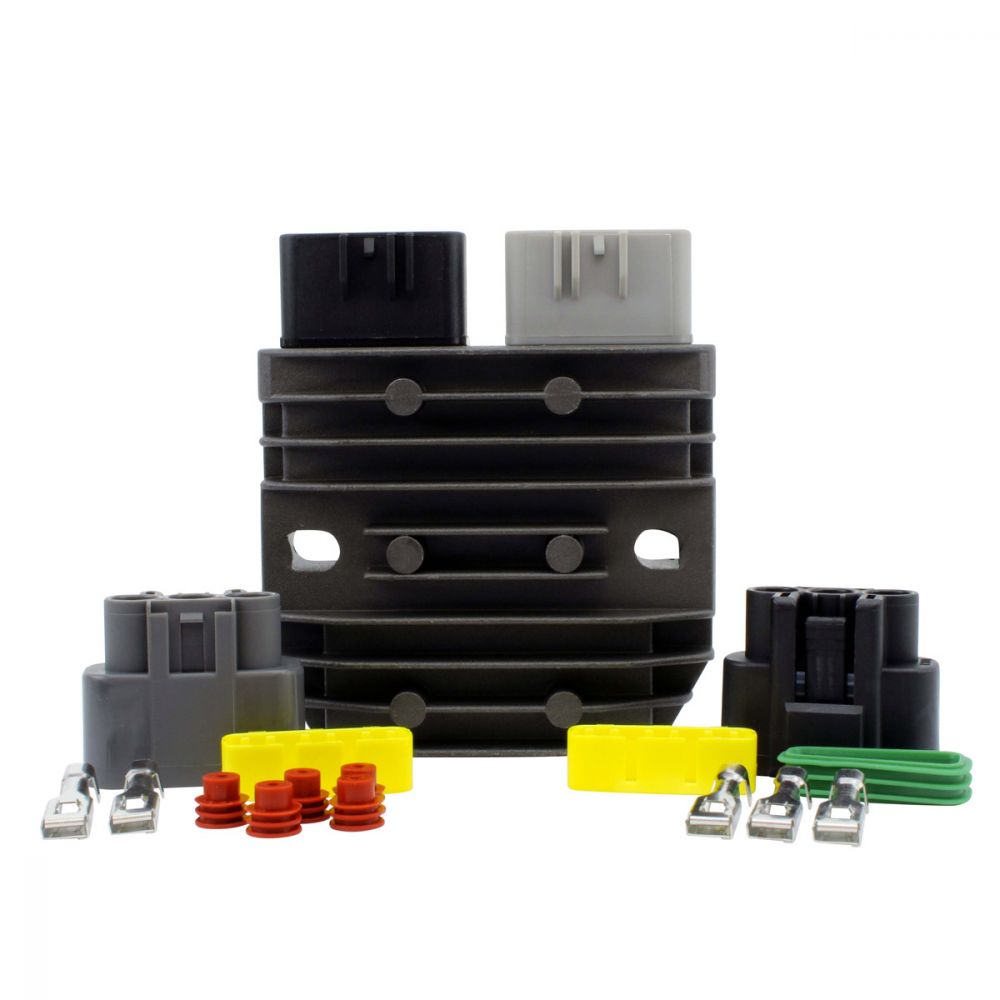

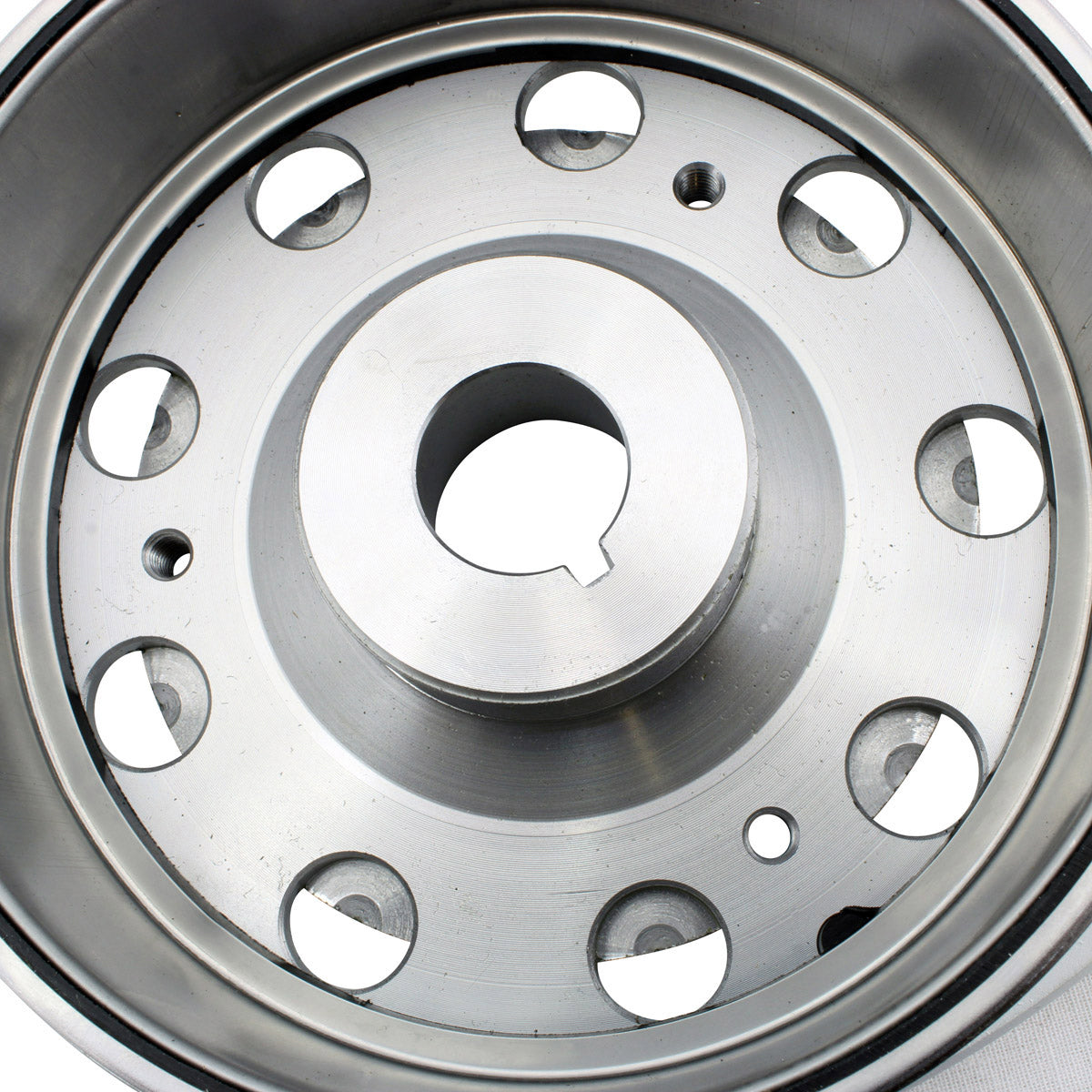

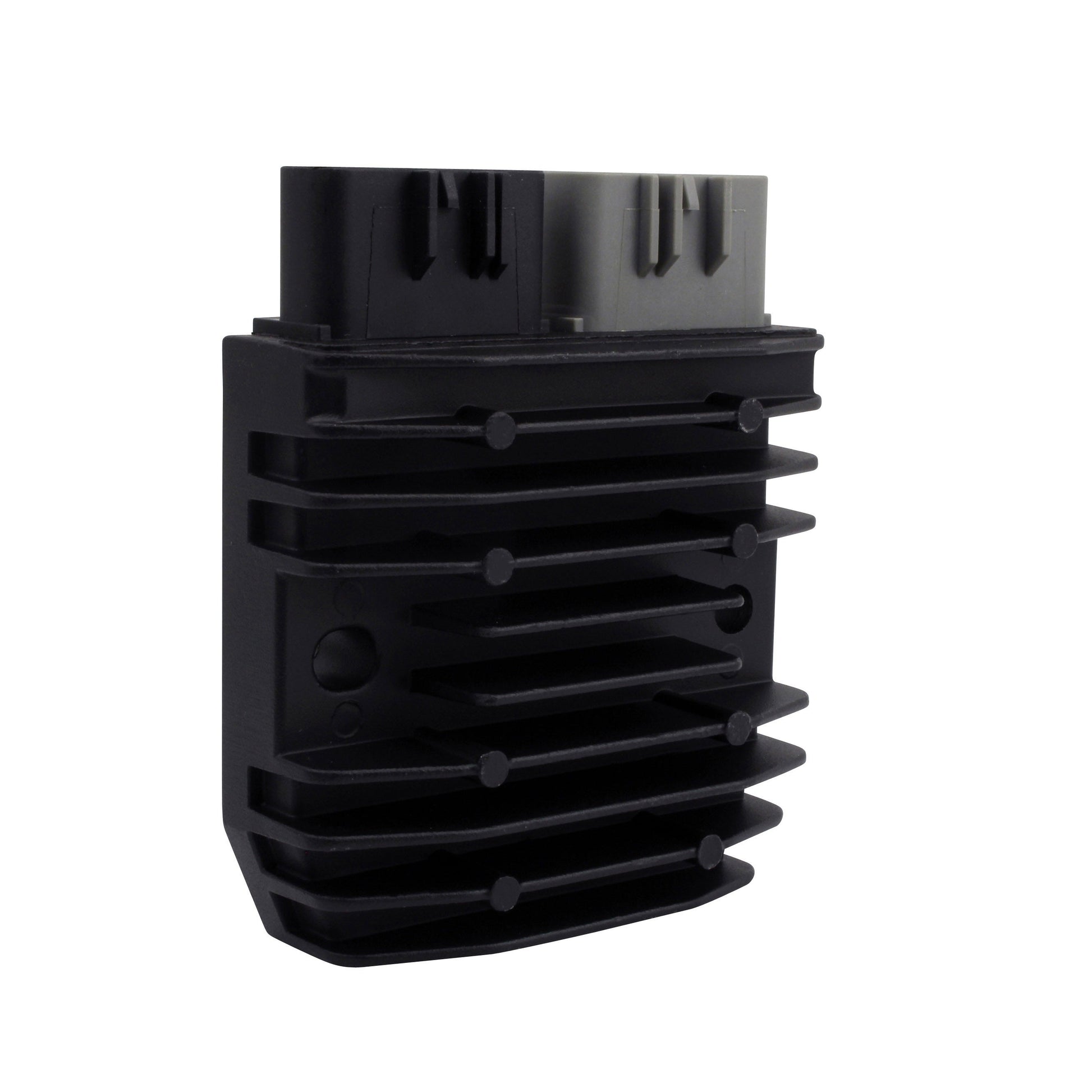

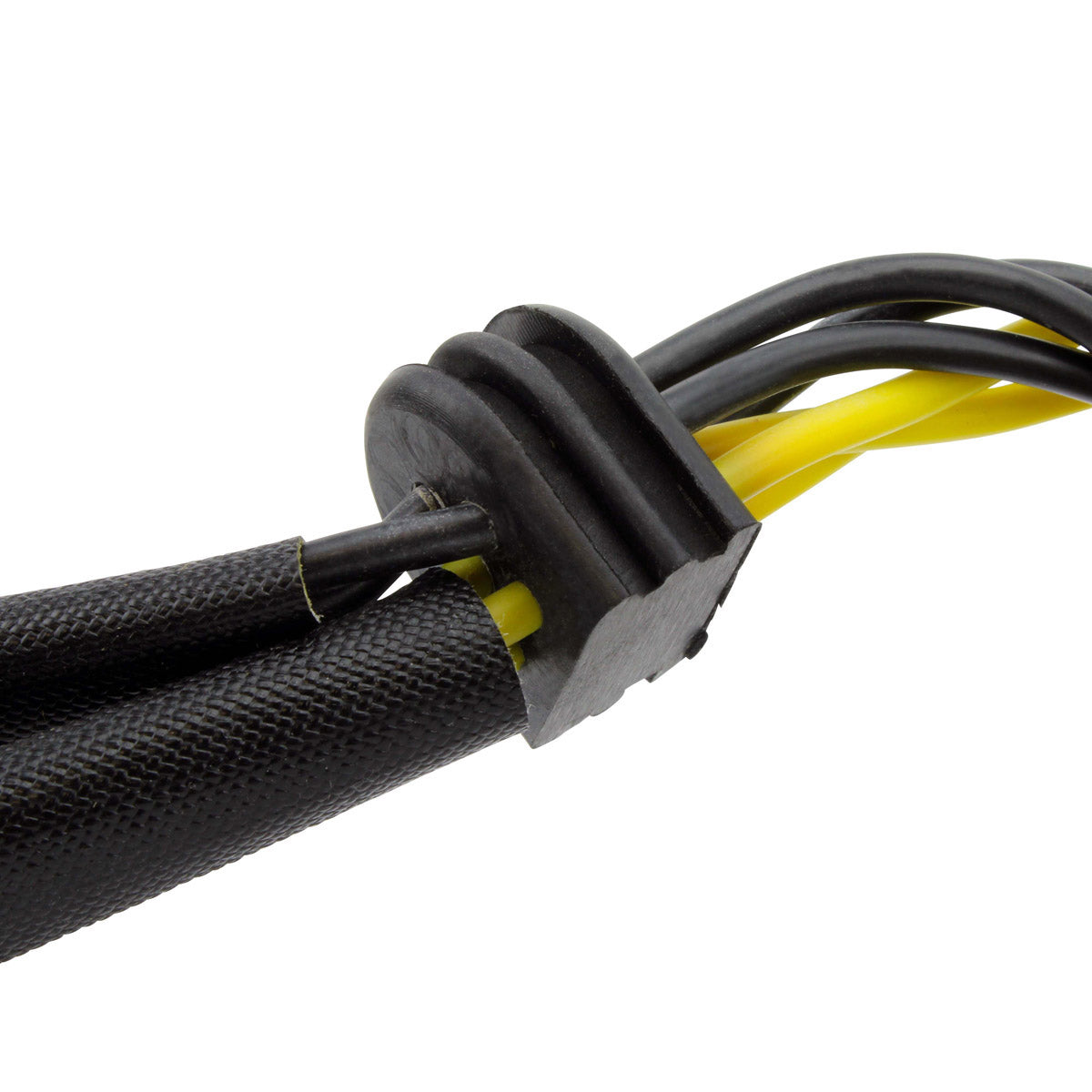

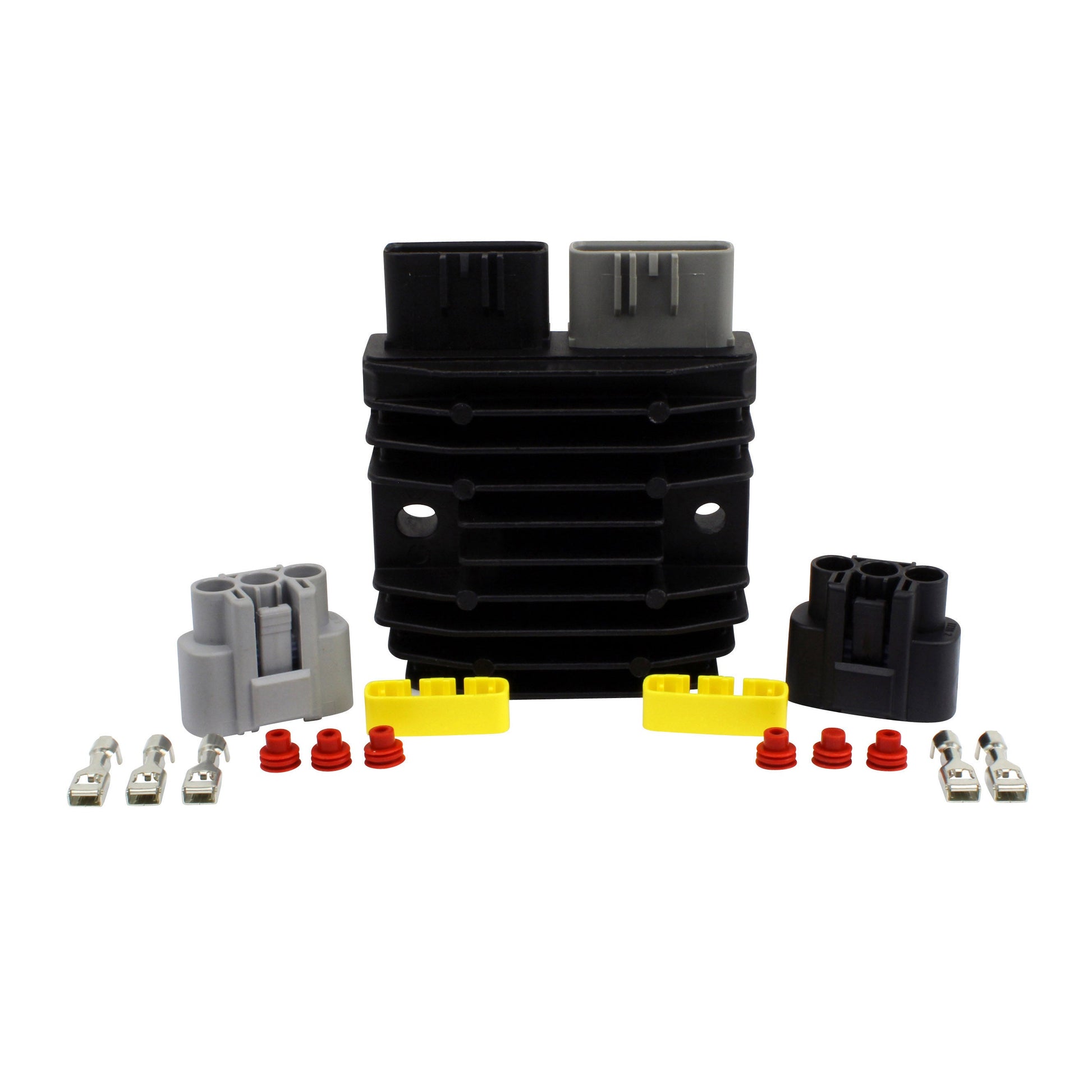

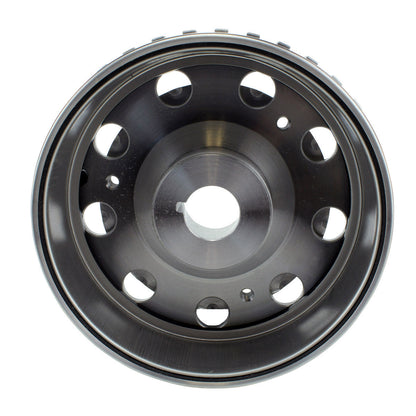

The kit uses SERIES voltage regulators. A series regulator protects the battery from high voltage by disconnecting the stator coils from the regulator and preventing current from passing on, rather than shunting the excess to earth as heat, which is why it generates significantly less heat than a typical regulator. The supplied high output flywheel raises the system output from 650 W to 900 W, giving real headroom for winches, lights, heated gear and accessories. Every part in the kit is plug and play, and two automotive-grade relocation wiring harnesses with OEM-quality heavy-duty connectors are included so the regulators can be mounted where they get proper airflow.
Key Features
- Dual output stator with two completely separate three-phase windings
- Load split across two SERIES voltage regulators, each at half the original load
- Both regulators run with roughly 40 per cent overhead for long life

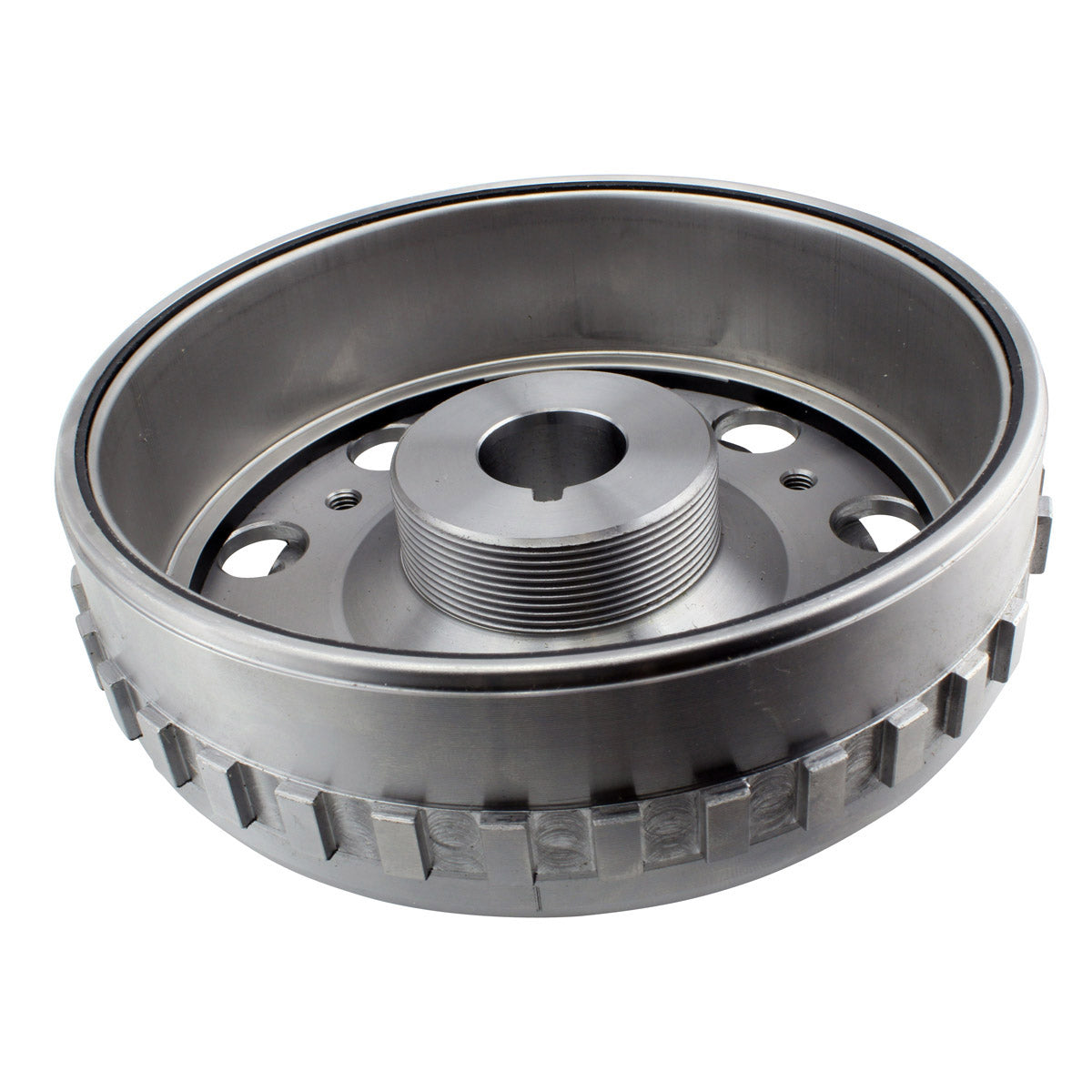

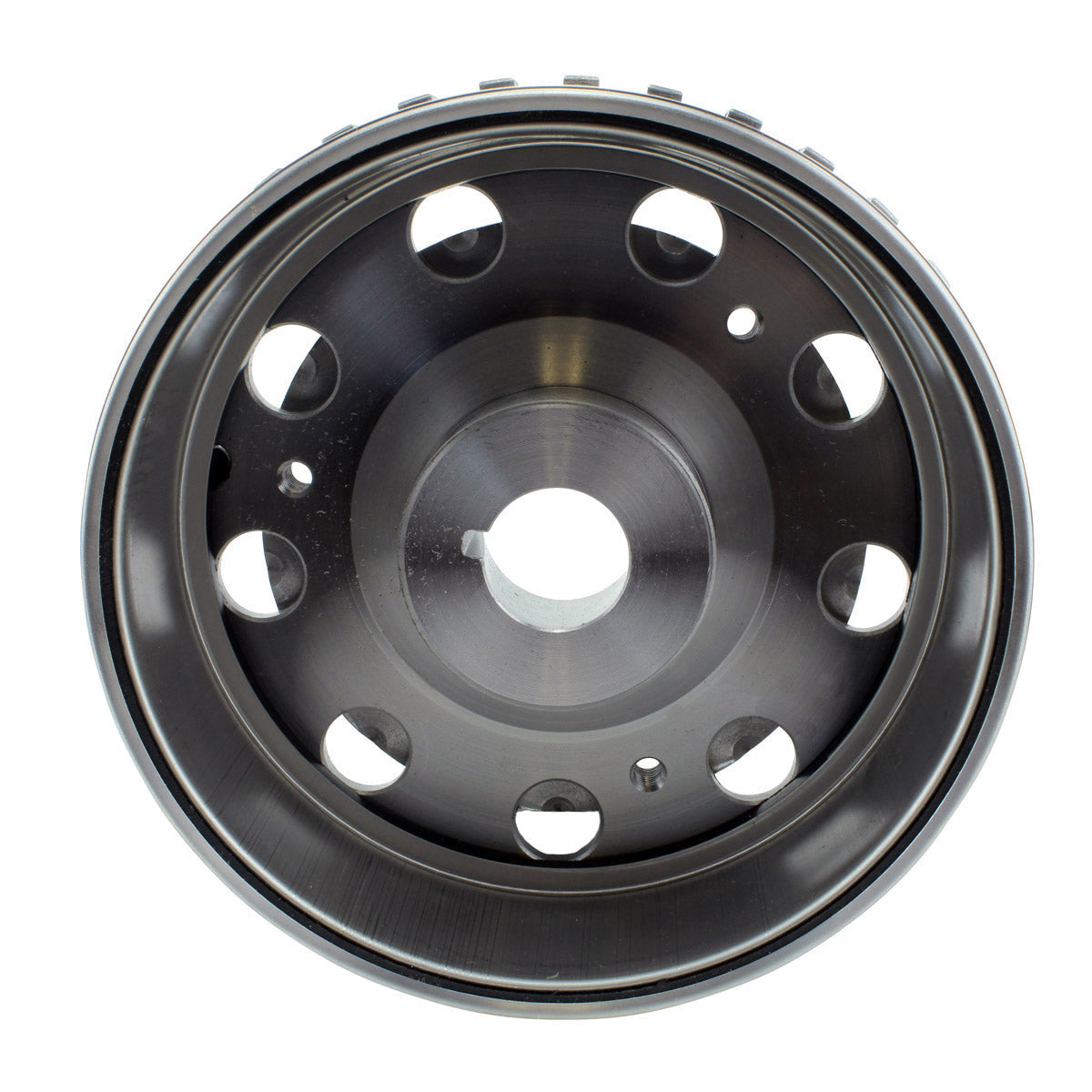

- High output flywheel lifts system output from 650 W to 900 W
- Series regulation generates far less heat than a conventional shunt regulator

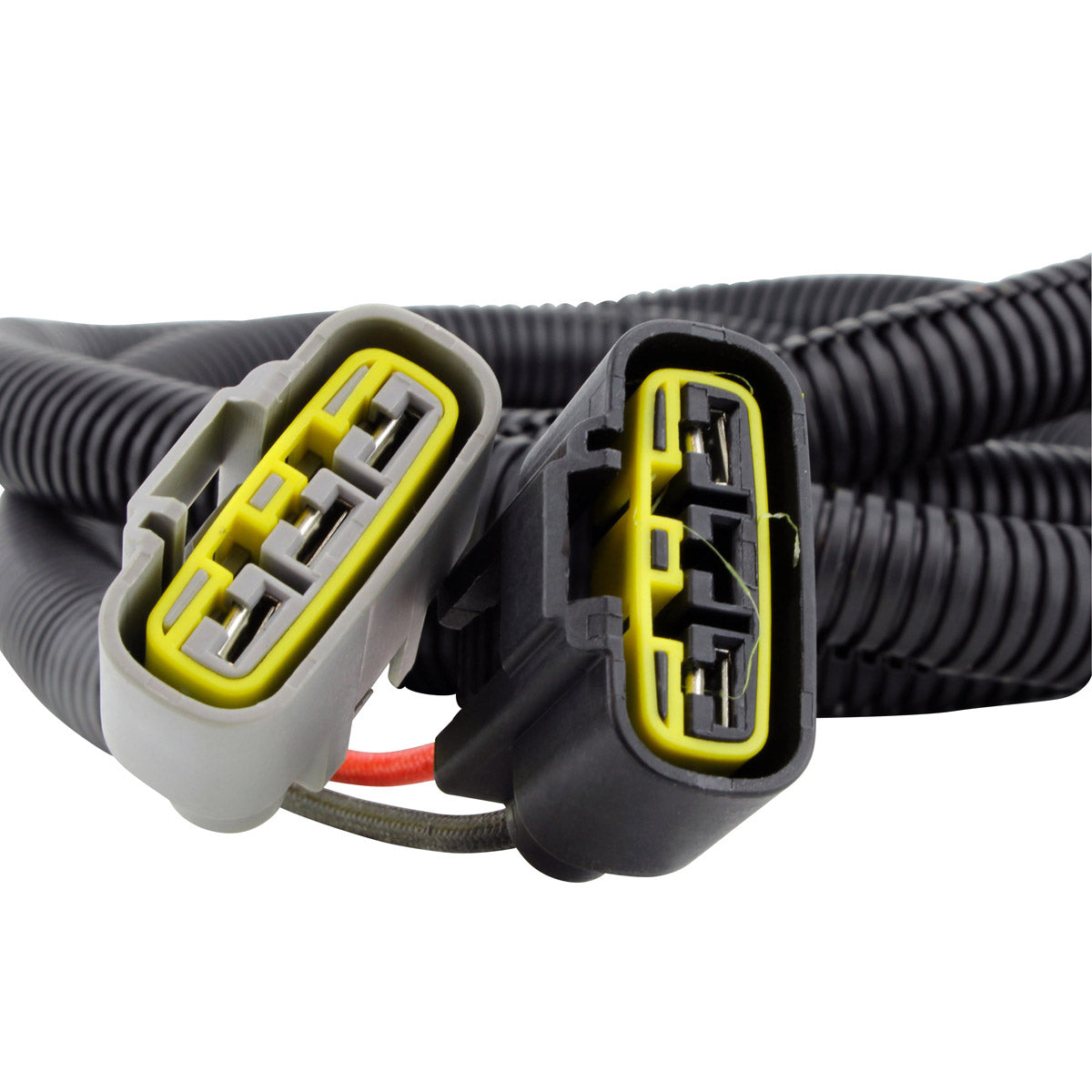

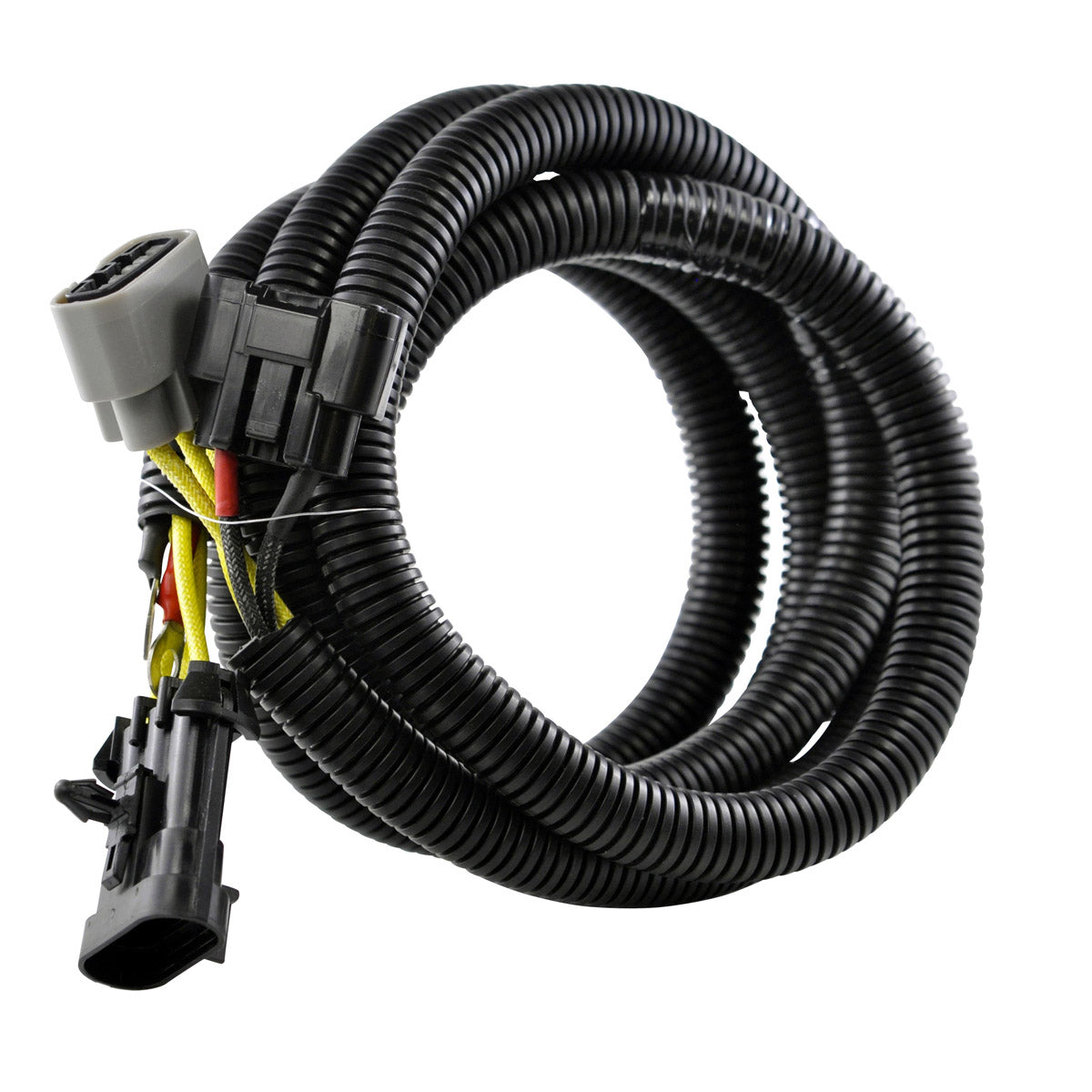

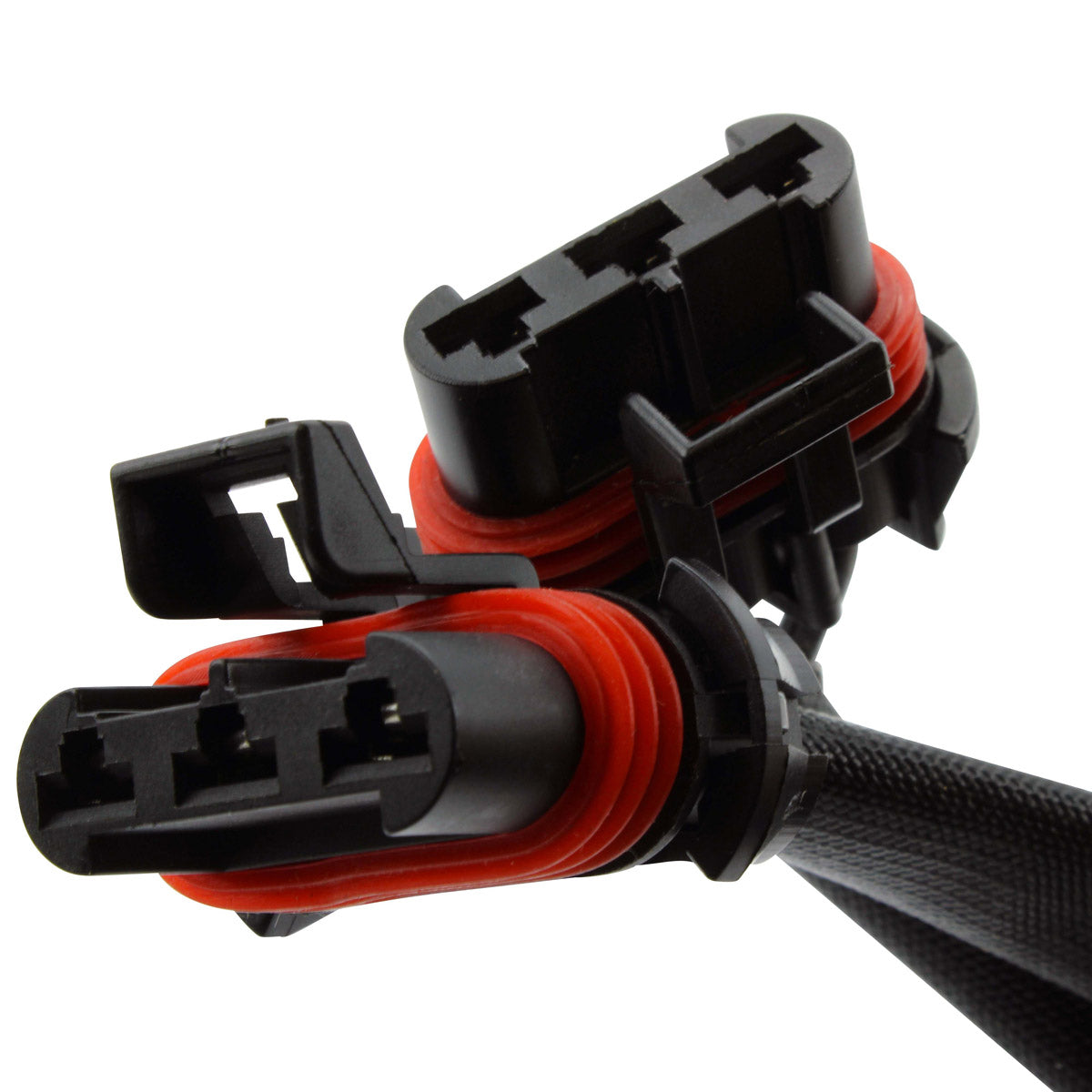

- Two automotive-grade relocation harnesses with heavy-duty OEM-quality connectors
- Flywheel puller and complete installation instructions included
- Plug and play throughout
Technical Specs
| Specification | Detail |
|---|---|
| Stator interior diameter | 53 mm |
| Stator exterior diameter | 125 mm |
| Stator thickness | 26 mm |
| Stator to grommet wire length | 125 mm |
| Grommet to plug wire length | 290 mm and 550 mm |
| Stator wires / plugs / pins | 6 wires, 2 plugs, 6 pins |
| Number of poles | 18 |
| Alternator wire to wire resistance | 0.5 ohms +/- 20 per cent |
| Regulator size | 84 mm wide, 90 mm long, 32 mm high |
| Regulator fixation holes, centre to centre | 69 mm |
| Regulator plugs / pins | 2 plugs, 5 pins |
| Minimum charging voltage | 14.5 V +/- 0.5 V |
| Maximum charging current per regulator | 50 A / 500 W |
| Open circuit voltage | Less than 15 V |
| Operating temperature | -20 C to 85 C |
| Relocation harness wire length | 3400 mm |
| Relocation harness wires | 3 yellow, 1 red, 1 black, 2 plugs |
| Flywheel exterior diameter | 140.6 mm |
| Flywheel interior diameter | 127.8 mm |
| Flywheel centre housing diameter | 22.4 mm interior, 50 mm exterior |
| Flywheel thickness | 49.3 mm exterior, 38.7 mm interior |
| Flywheel shaft diameters | 37.4 mm / 27.8 mm / 22.4 mm |
| Upgraded output | 900 W |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Polaris Ranger 1000 | 2018-2025 |
| Polaris RZR 900 | 2018-2025 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 4017285 (stator) | Polaris |
| 4081254 (stator) | Polaris |
| 4018494 (stator) | Polaris |
| 4080889 (stator) | Polaris |
| 4012941 (voltage regulator) | Polaris |
| 4017135 (flywheel) | Polaris |
| 4014856 (harness) | Polaris |
| 4015816 (harness) | Polaris |
| 4013978 (harness) | Polaris |
| 4016868 (harness) | Polaris |

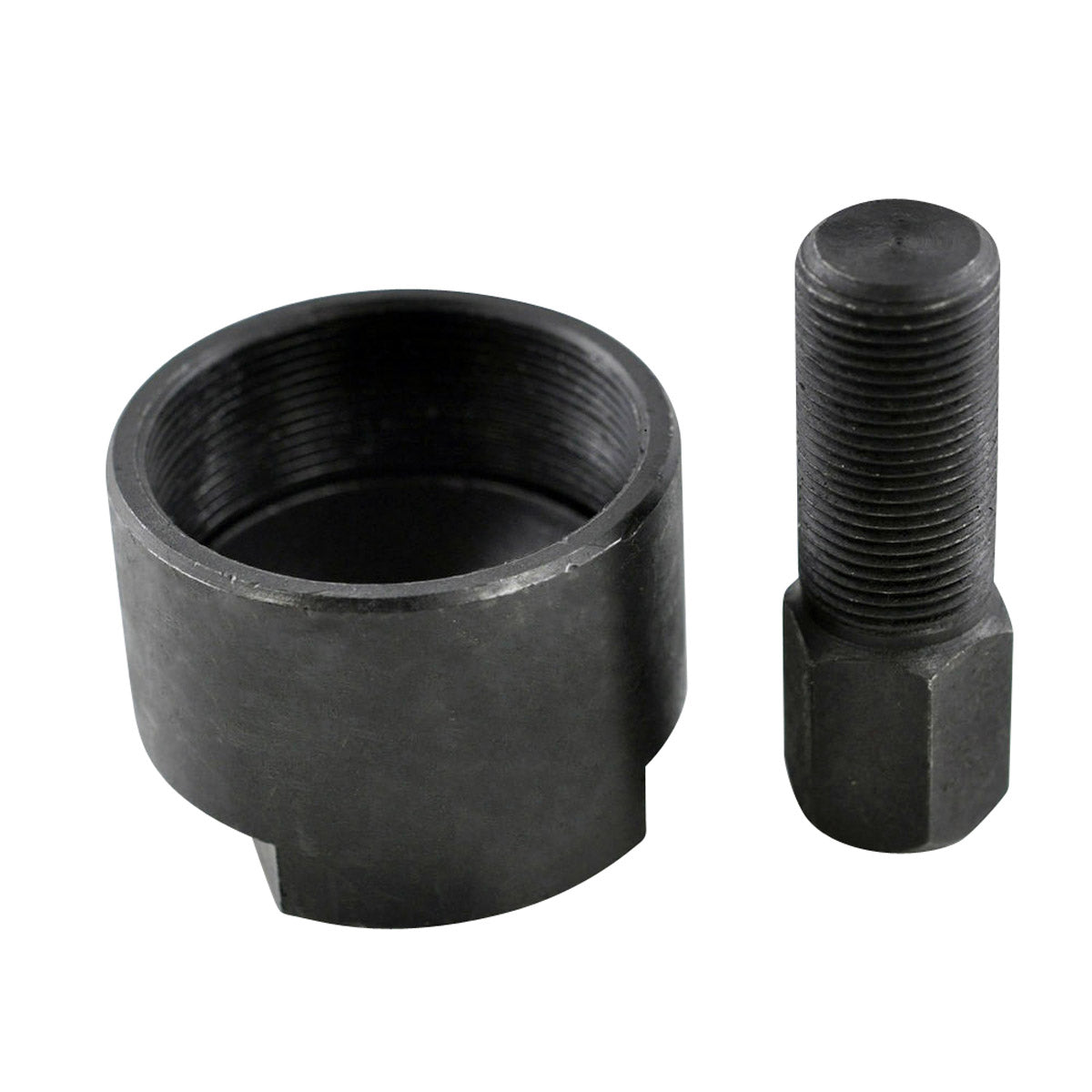

| RMS070-101994 (puller) | RMSTATOR |
Frequently Asked Questions
Does fitting the kit need modification to the machine?
All parts are plug and play, and the two relocation harnesses are supplied so the regulators can be mounted in a position with good airflow. Complete installation instructions are included in the kit.
What is in the box?

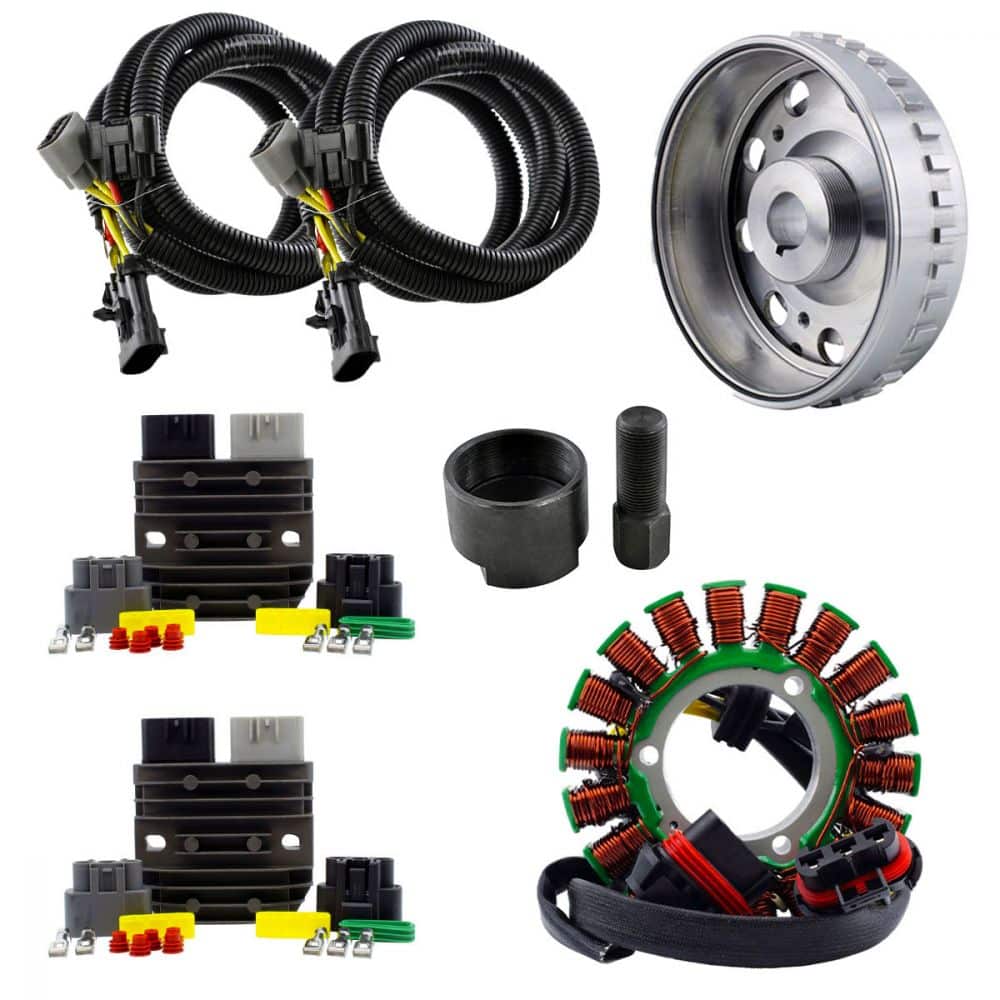

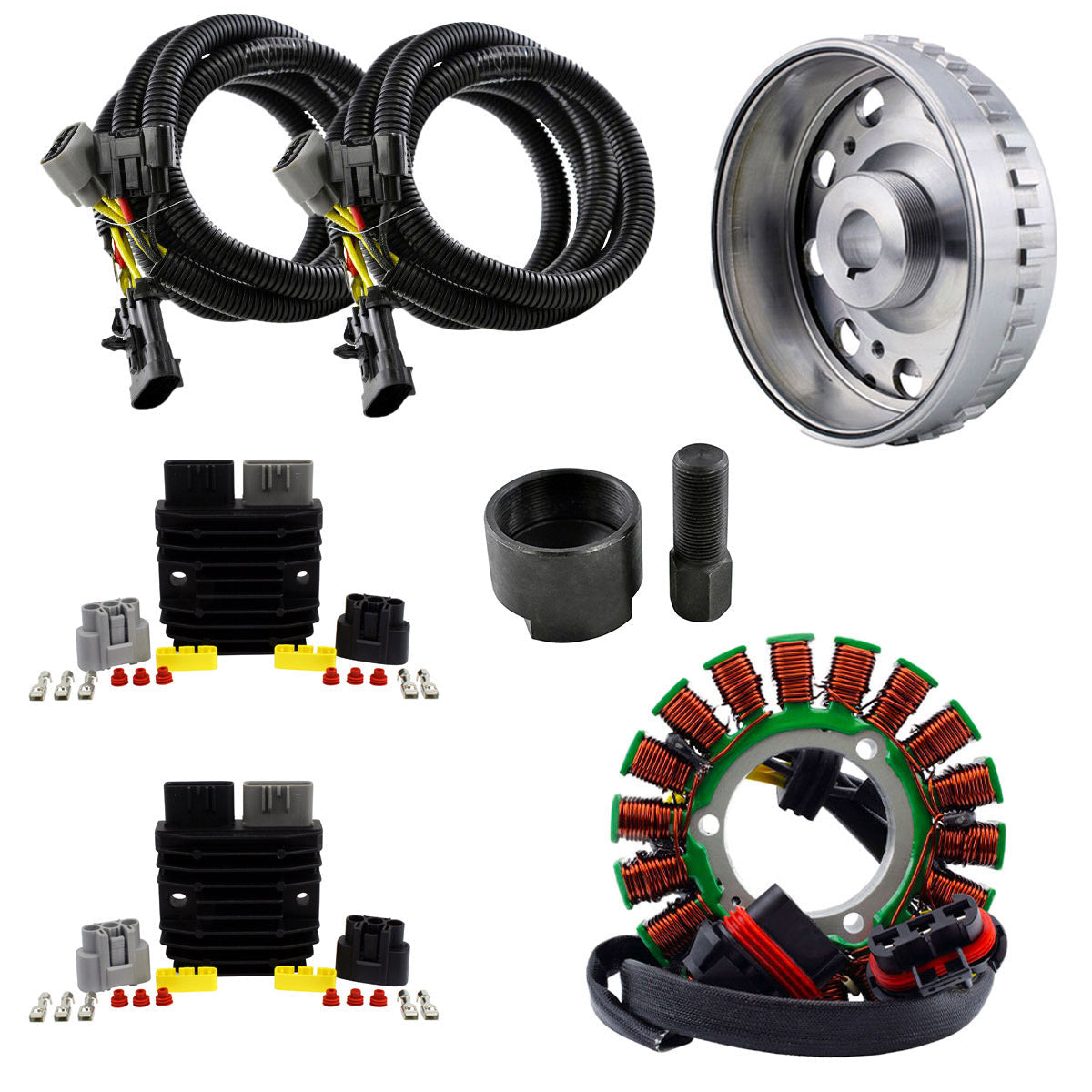

The dual output stator, two SERIES voltage regulators, the improved 900 W high output flywheel, two automotive-grade relocation wiring harnesses with OEM-quality heavy-duty connectors, the flywheel puller, and complete installation instructions.
How do I know my charging system has failed?
With the engine running the battery should see at least 14.5 V and stay below the 15 V open circuit limit. A flat battery after a day of winching or lights, a regulator too hot to touch, or a stator that fails the 0.5 ohms wire to wire resistance check are all signs the original system has given up.
What does splitting the output across two regulators achieve?
Heat is what kills charging systems. With two separate three-phase windings feeding two separate regulators, each regulator handles half the load and runs with about 40 per cent overhead. Combined with series regulation, which disconnects the coils instead of dumping surplus current as heat, the whole system runs far cooler than the original single-regulator arrangement.
