Starter 240 300 Ford F100 F150 Pickup 1965-1983, 289 302 351 Mustang 1965-1973 M/T
Starter 240 300 Ford F100 F150 Pickup 1965-1983, 289 302 351 Mustang 1965-1973 M/T
SKU:
Free shipping over £150. Terms apply
Couldn't load pickup availability

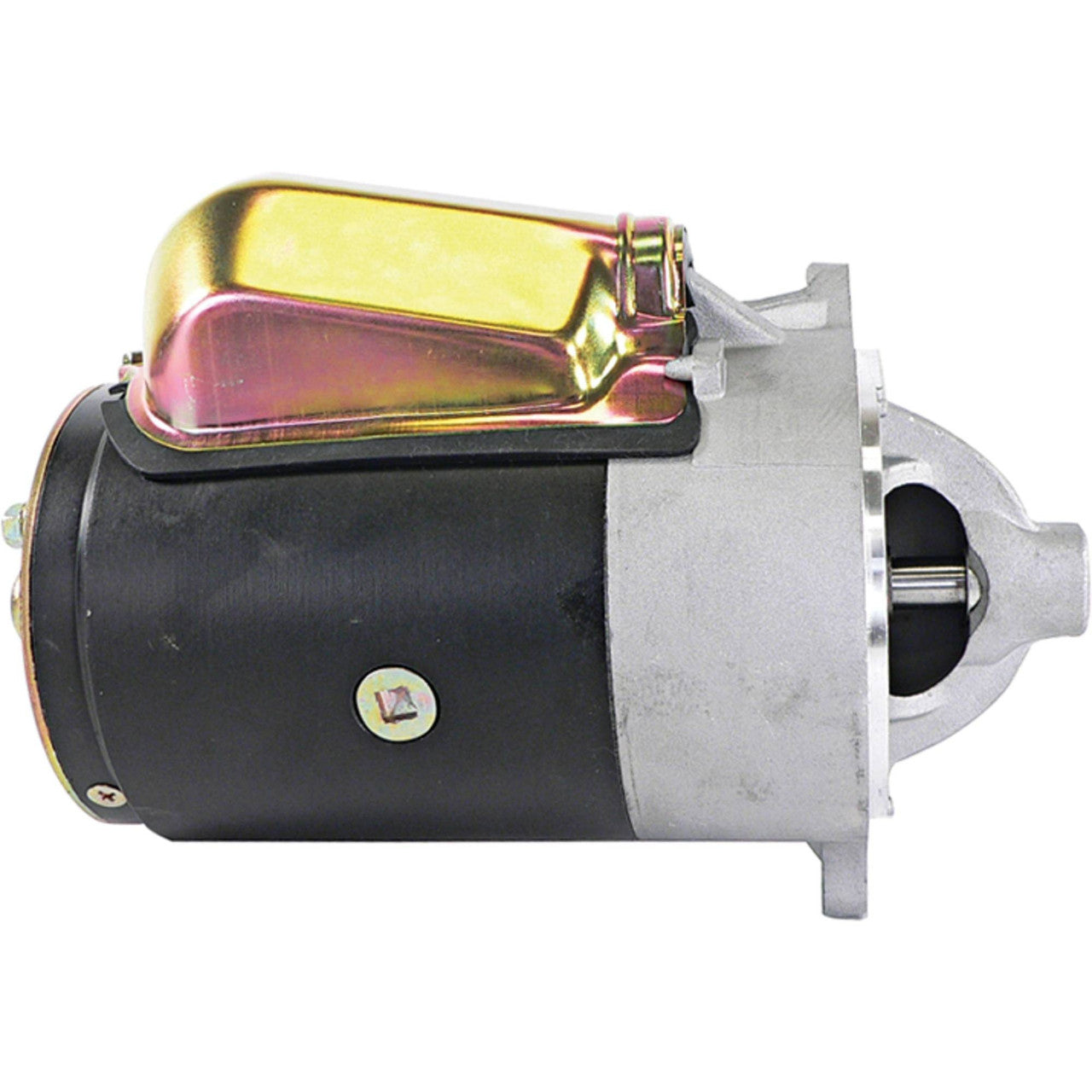

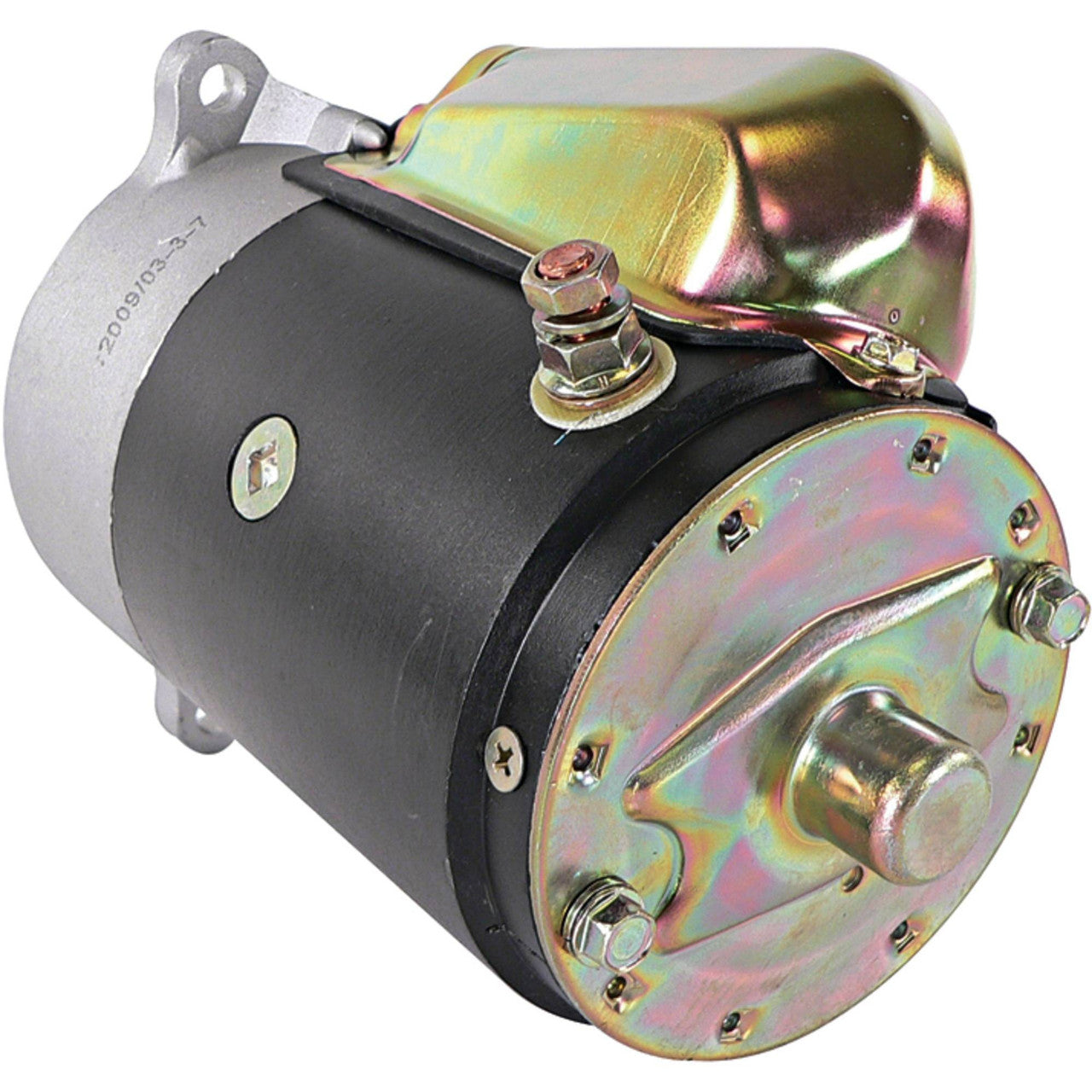

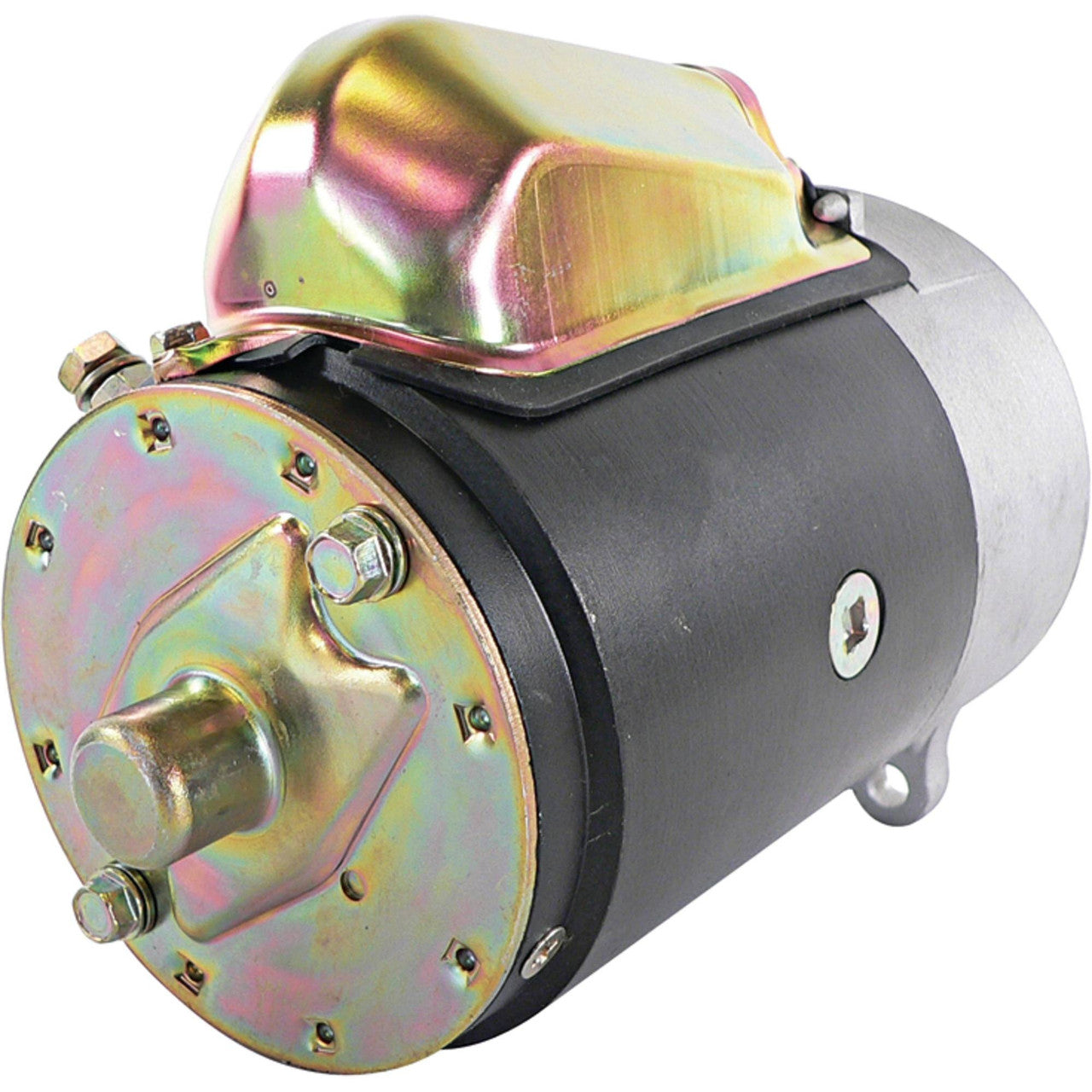

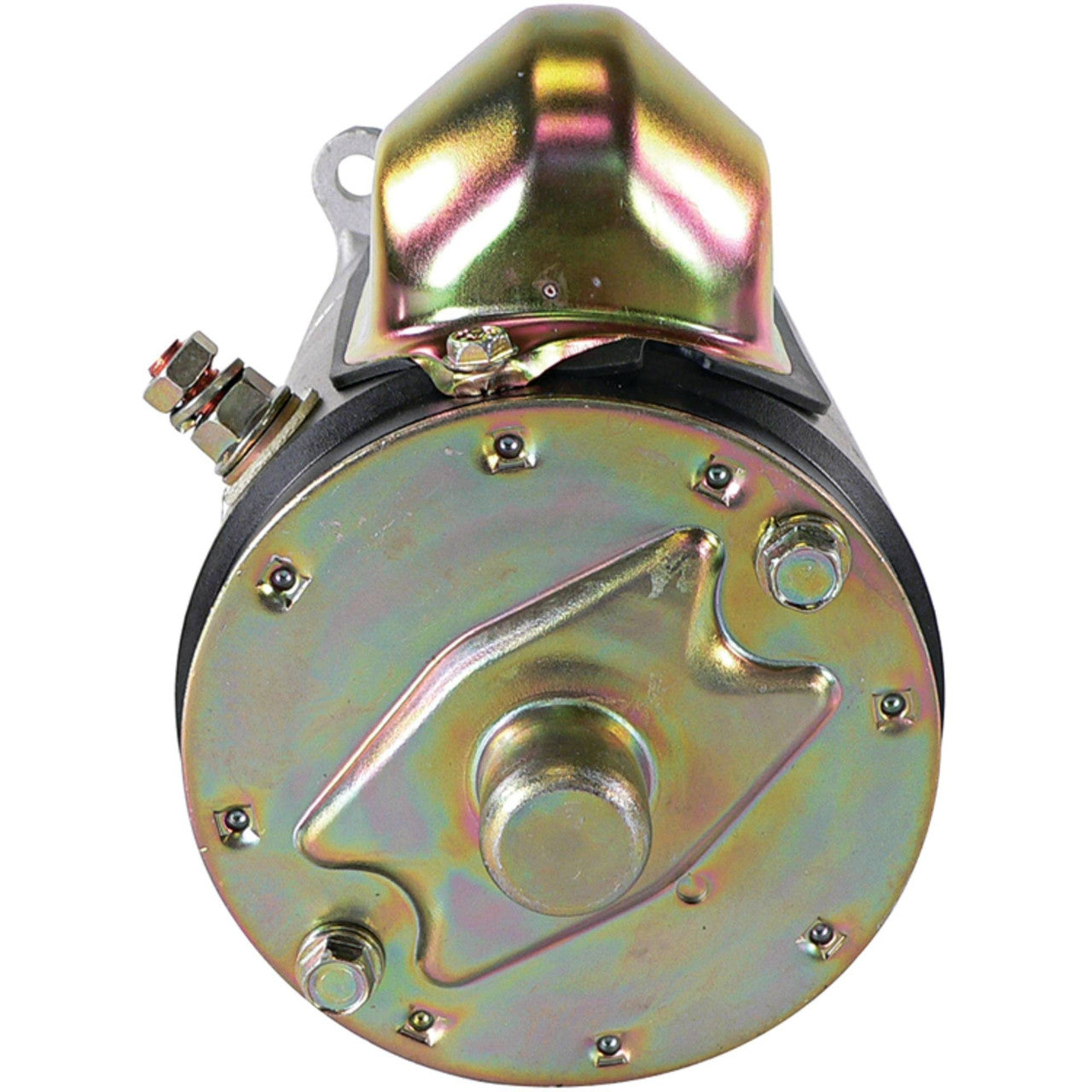

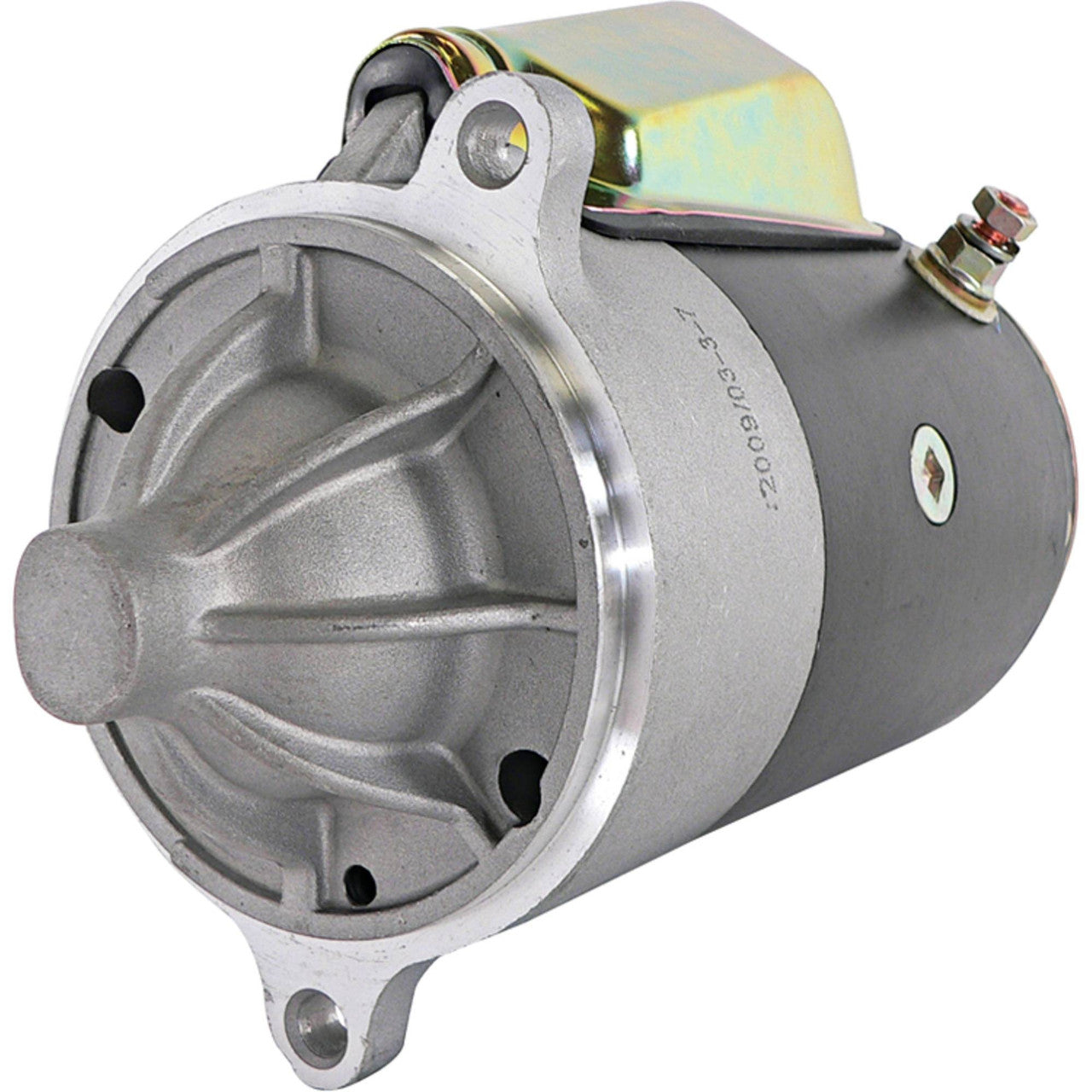

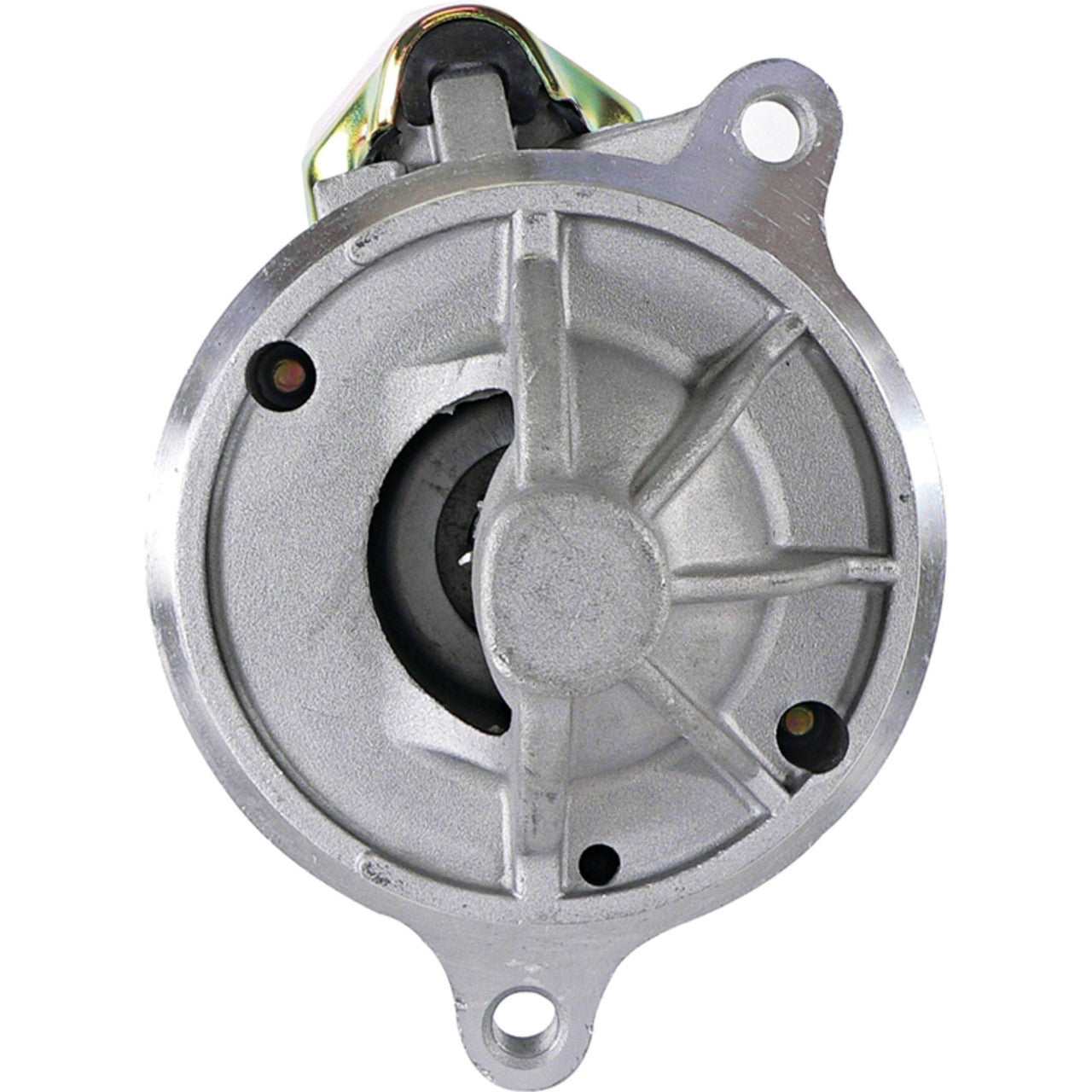

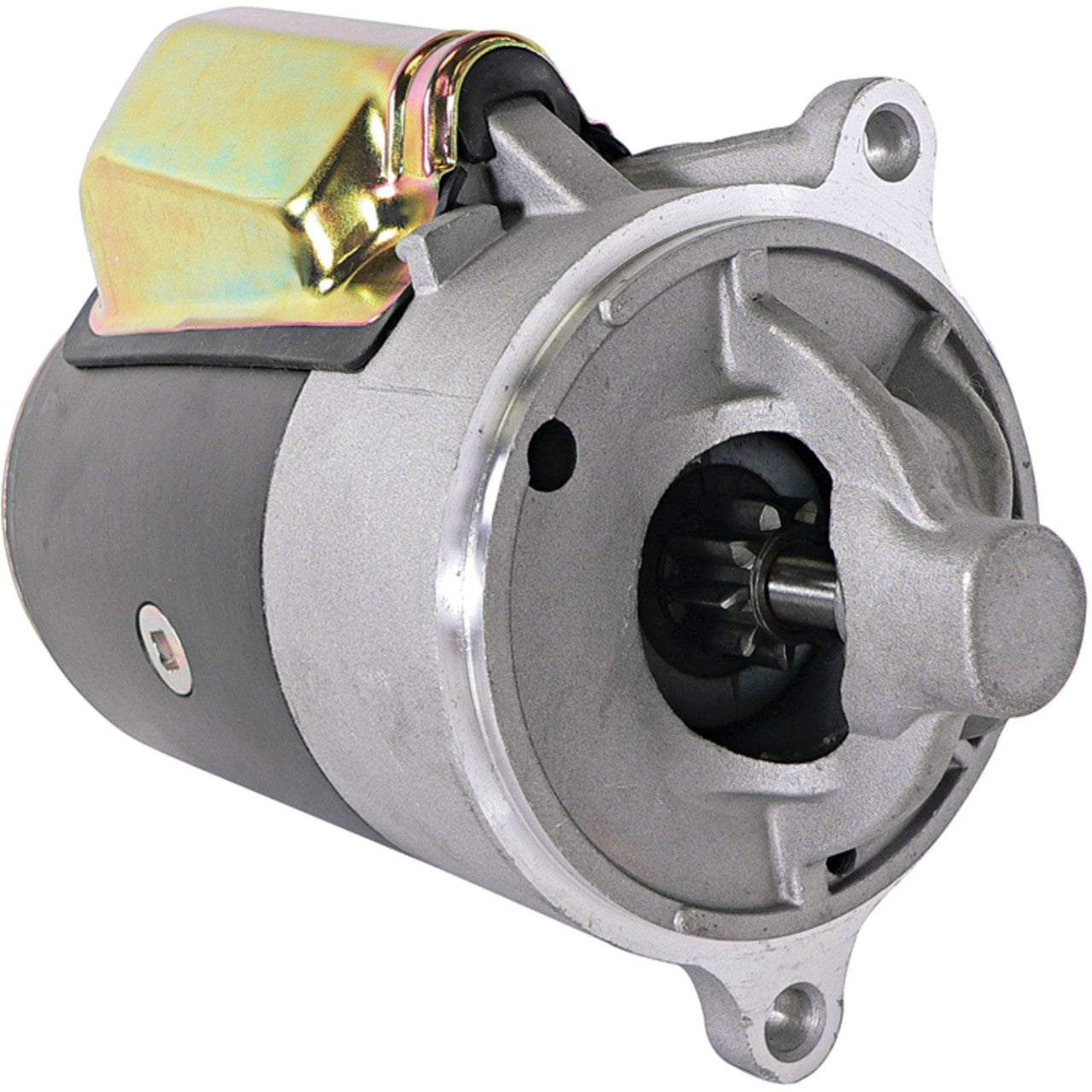

Starter Motor 3132 For Ford Manual Trans
Premium Replacement for Ford F-Series & Mustang
This high-performance replacement starter motor is engineered specifically for classic Ford vehicles equipped with manual transmissions and 164-tooth flywheels. It provides reliable, consistent cranking power for both the legendary Ford Small Block V8 (289, 302, 351) and the robust Straight-Six (240, 300) engines.
Key Features
- ✔ Direct fit for 164-tooth flywheels
- ✔ High-torque 1.4kW motor
- ✔ Precision-machined 2-bolt mount
- ✔ Specifically designed for Manual Transmission (M/T)
Technical Specs
| Voltage: | 12V |
| Power: | 1.4 kW |
| Rotation: | CW (Clockwise) |
| Teeth Count: | 9-Teeth |
| Mounting: | 2-Bolt Flange |
| Starter Style: | Standard/High Torque |
Compatibility / Fitment Guide
| Vehicle Range | Engine Application | Notes |
|---|---|---|
| Ford F100 / F150 / F250 | 3.9L 240 / 4.9L 300 / 5.0L 302 | 1965–1983 (Manual Transmission) |
| Ford Mustang | 289 / 302 / 351W / 351C | 1964.5–1973 (Manual Transmission) |
| Ford Bronco | 289 / 302 | 1966–1977 (Manual Transmission) |
| Ford Econoline | 4.9L 300 / 5.0L 302 | 1969–1977 (Manual Transmission) |
| Mercury Cougar | 289 / 302 / 351C / 351W | 1967–1973 (Manual Transmission) |
OEM Cross Reference
| Ford/Motorcraft: C5TZ-11002-A, C5AF-11001-A, C5AF-11001-B, C5TF-11001-A, D0AF-11001-C, D2AF-11001-DA, D4TZ-11002-D, D5TF-11001-AA |
| Lester Number: 3132 |
| Wilson: 91-02-5833, 91025802 |
| Other References: 11002B, 336-1008, 10465077, 19133777 |
Questions & Answers
Is this a genuine original part?
This is a premium quality 4Drive aftermarket replacement part, manufactured to meet or exceed original equipment (OE) standards for fitment and performance.
How do I know if it is compatible?
We recommend checking the SKU/MPN (Lester 3132) and the Cross Reference list. If your original part has a 3/8" offset (short nose) for a manual transmission with a 164-tooth flywheel, this is the correct unit.
What is the difference between this and the "Automatic" version?
Manual transmission Ford starters (3132) typically have a "short nose" (3/8" offset), whereas automatic/157-tooth manual starters (3124) have a "long nose" (3/4" offset). They are not interchangeable as the gear will not mesh correctly with the flywheel.
Note: Please verify your original part number or flywheel tooth count against the references above before purchasing. Domain: 4drive.co.uk.
