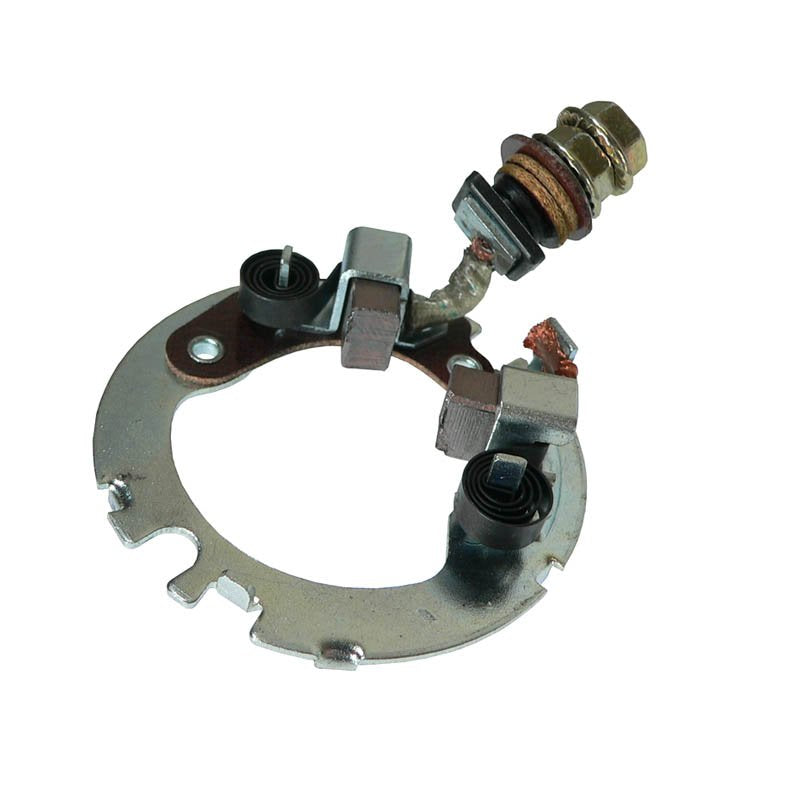

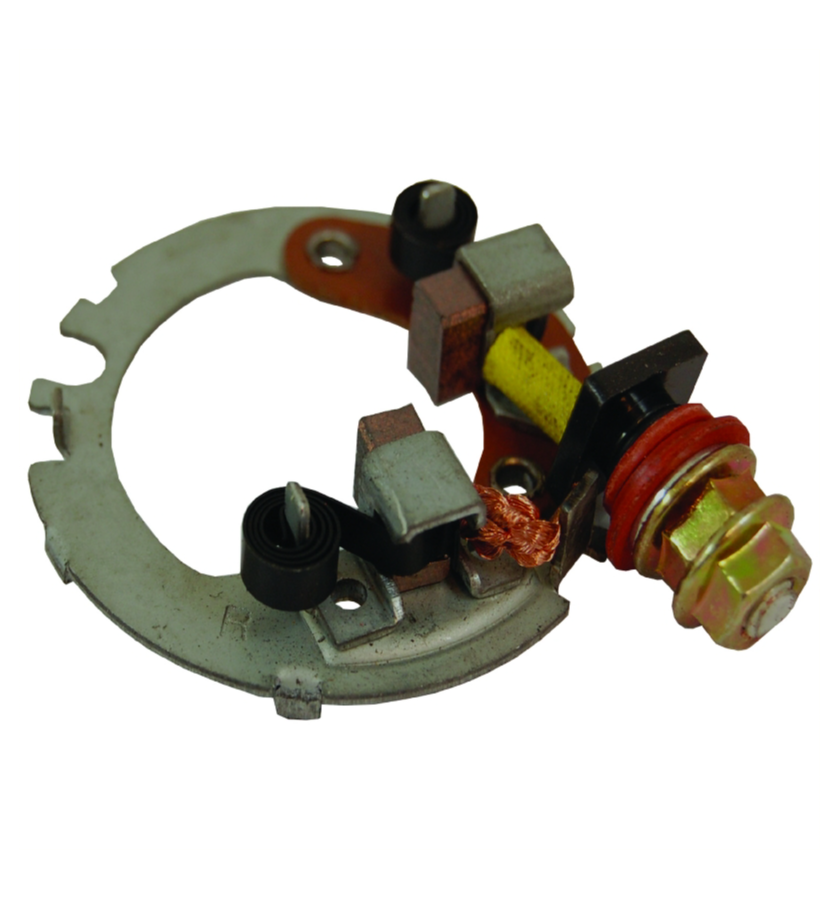

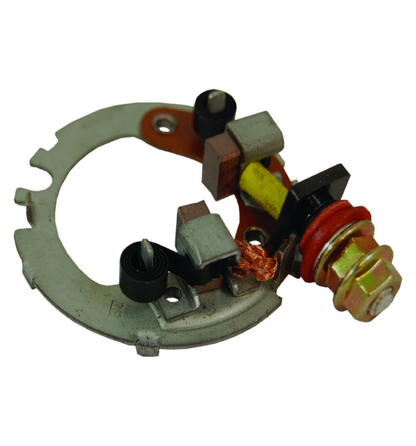

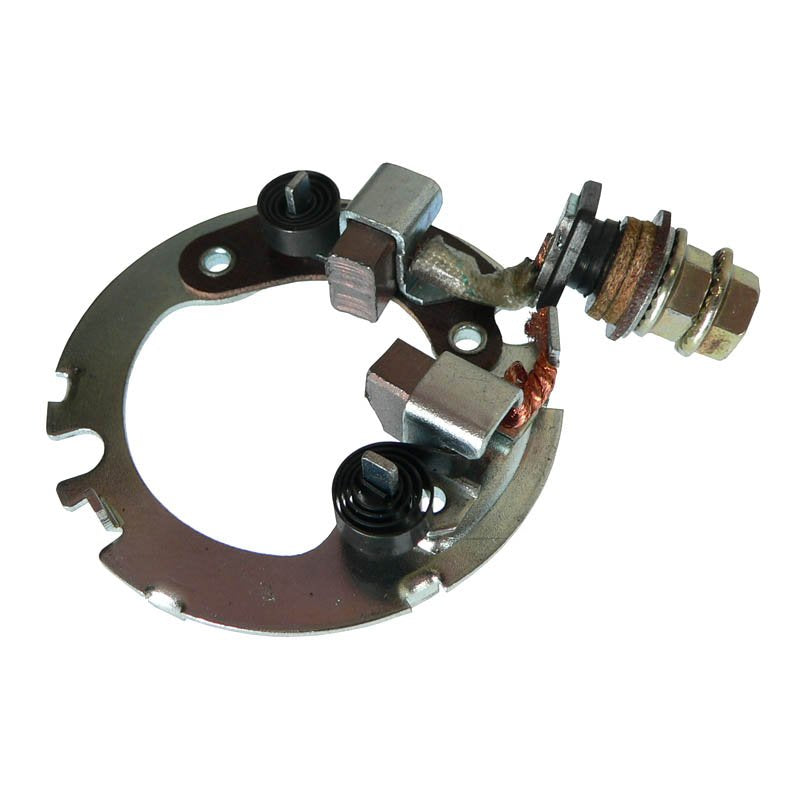

Starter Brush Repair Kit
Fits Suzuki King Quad, Eiger, DRZ400 & Kawasaki KFX
Don't replace your entire starter motor when a simple repair will do! This **Starter Brush Holder Kit** is the cost-effective solution for fixing sluggish or non-functioning starters on your **Suzuki ATV or Motorcycle**.
Designed for **Mitsuba** style starter motors found on the popular **Suzuki DR-Z400, King Quad, and Eiger** series, as well as the **Kawasaki KFX400**, this kit includes the complete brush holder plate assembly with new brushes and springs installed, ready to drop into your existing starter housing.
Key Features
- ✔ Complete Kit: Includes holder plate, brushes, and springs.
- ✔ Direct Fit: Designed for Mitsuba starter motors.
- ✔ High Quality: Durable copper-carbon brushes.
- ✔ Easy Install: Pre-assembled for quick swapping.
Technical Specs
| Part Type: | Starter Brush Holder |
| Voltage: | 12 Volts |
| Plate Diameter: | 59mm |
| Starter Make: | Mitsuba |
| SKU Reference: | 151-54009 |
Vehicle Fitment Guide
| Make | Model | Year Range |
|---|---|---|
| Suzuki | DR-Z400 (S, E, SM) | 2000 - 2015 |
| Suzuki | LT-Z400 Quadsport | 2003 - 2011 |
| Suzuki | LT-A400 / LT-F400 Eiger | 2002 - 2007 |
| Suzuki | LT-A400 / 450 / 500 / 700 / 750 King Quad | 2008 - 2018+ |
| Kawasaki | KFX400 / KLX400 | 2003 - 2006 |
| Arctic Cat | 400 DVX | 2004 - 2008 |
OEM Part Number Cross Reference
| Suzuki | 31130-13E00, 31132-13E00 |
| Kawasaki | 21163-S004 |
| Arctic Cat | 3445-033 |
| Arrowhead | SMU1313 |
Frequently Asked Questions
How do I know if I need new starter brushes?
If you hear a clicking sound when pressing the start button, or if the starter motor turns very slowly despite a fully charged battery, worn brushes are often the culprit.
Is this hard to install?
It requires removing the starter motor from the engine and opening the rear cap. While it is more involved than replacing a relay, it is a straightforward repair for anyone comfortable with basic hand tools.
Does this include the whole starter motor?
No, this is a **repair kit**. It includes the brush holder plate, brushes, and springs. You will reuse your existing starter housing and armature.
Note: Please verify your original starter is a Mitsuba unit (OEM Suzuki) before purchasing.
