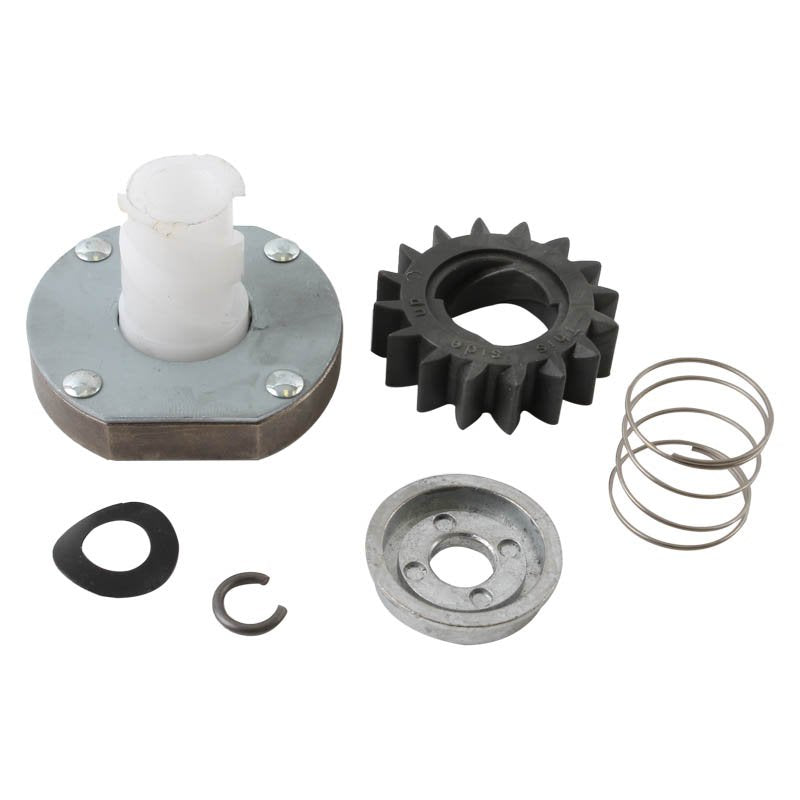

Starter Drive for Briggs & Stratton - 16-Tooth CCW Pinion
16-Tooth CCW Drive Assembly for Briggs & Stratton Starters
This starter drive assembly replaces the pinion drive on a wide range of Briggs & Stratton engines fitted with plastic or aluminium flywheels. It engages the flywheel ring gear to turn the engine over on start-up and disengages once the engine fires.
Supplied complete with a 16-tooth, counter-clockwise (CCW) rotation pinion and retainer ring, this is a direct replacement for the original equipment drive.
Key Features
- 16-tooth pinion, counter-clockwise (CCW) rotation
- Designed for Briggs & Stratton starters using plastic or aluminium flywheel designs
- Uses a retainer ring to secure the drive to the starter shaft
- Compatible with 508230 gear and 508227 clutch assemblies
- Direct OEM-equivalent replacement, no modification required
Technical Specs
| Specification | Detail |
|---|---|
| Part Type | Drive Assembly |
| Rotation | CCW |
| Teeth | 16 |
| Compatible Parts | Uses retainer ring for drive; pairs with 508230 gear and 508227 clutch |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Briggs & Stratton starters (plastic flywheel design) | - |
| Briggs & Stratton starters (aluminium flywheel design) | - |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| SBS5012 | Arrowhead |
| 3-223 | Arrowhead |
| 220-20074 | Arrowhead |
| SFD5006 | Arrowhead |
Frequently Asked Questions
Will this fit without modification?
Yes, it is a direct replacement drive assembly for Briggs & Stratton starters using the 16-tooth CCW pinion arrangement, no modification required.
What is included?
One starter drive assembly with retainer ring.
How do I know my starter drive has failed?
Signs include the starter motor spinning freely without turning the engine over, grinding noises on start-up, or the pinion failing to engage the flywheel.
Is this compatible with plastic and aluminium flywheels?
Yes, this drive is designed to work with both plastic and aluminium flywheel designs.
