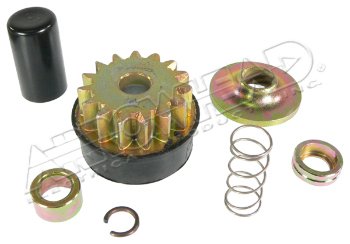

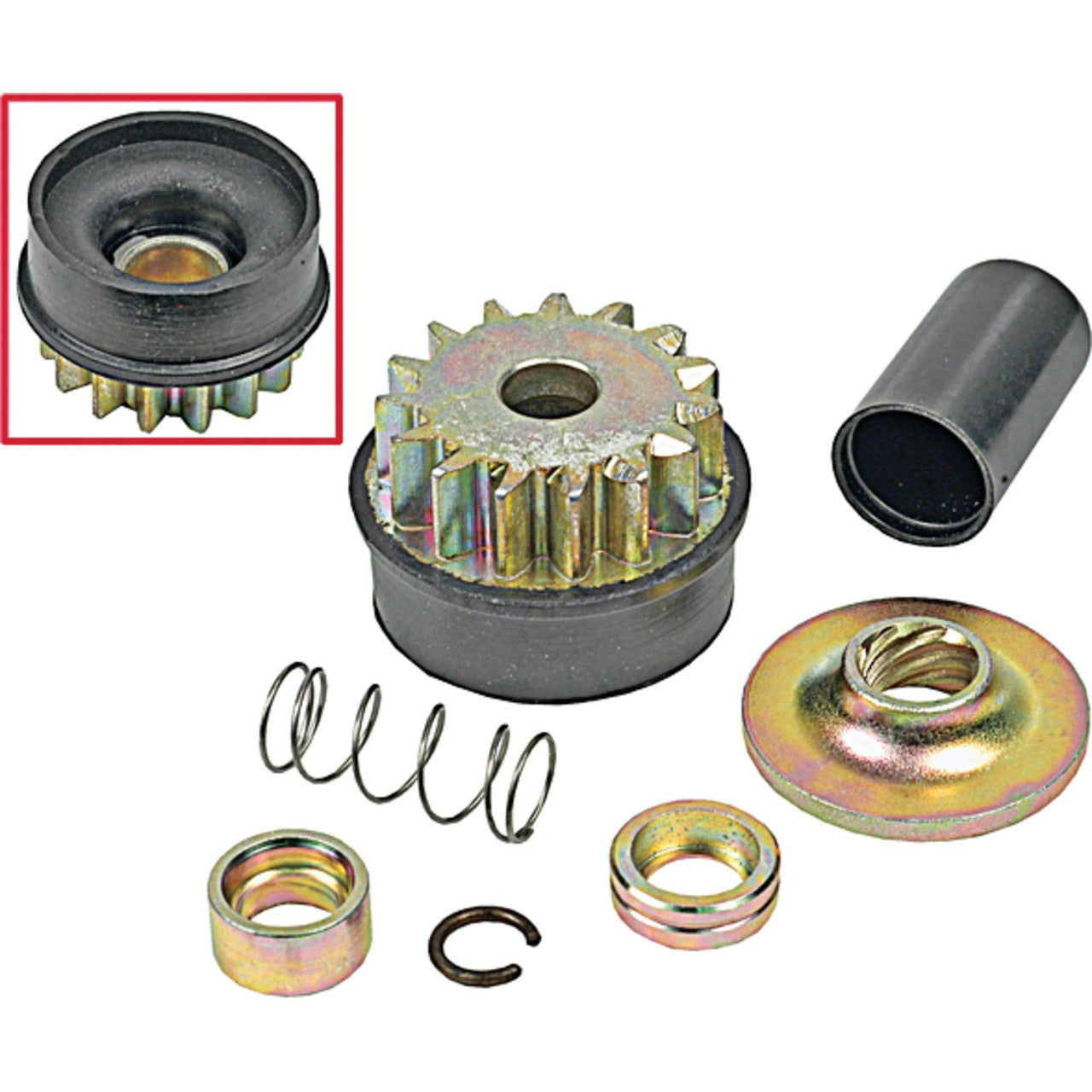

Starter Drive for John Deere - 15-Tooth CCW Steel Ring Gear Flywheel
Starter Drive for John Deere - 15-Tooth CCW Steel Ring Gear Flywheel
SKU:220-22009
Free shipping over £150. Terms apply
Couldn't load pickup availability
Starter Drive for John Deere - 15-Tooth CCW Steel Ring Gear Flywheel
Briggs & Stratton 15-Tooth CCW Drive - Steel Ring Gear Flywheel
This starter drive is a direct aftermarket replacement for Briggs & Stratton starters fitted with a 15-tooth, counter-clockwise rotation drive, designed for use on steel ring gear flywheels such as those fitted to John Deere and other Briggs & Stratton powered equipment.
Manufactured to OEM specifications with sealed housings and bearings, and a separate retaining nut on the back of the drive, engaging cleanly with the flywheel ring gear for reliable starting.
Key Features
- 15-tooth counter-clockwise (CCW) rotation drive
- Designed for steel ring gear flywheels
- Includes separate nut on the back of the drive
- Direct fit for a wide range of Briggs & Stratton engines
Technical Specs
| Specification | Detail |
|---|---|
| Part Type | Drive Assembly |
| Teeth | 15 |
| Rotation | CCW |
| Gear OD | 38.1mm |
| Gear ID | 10.6mm |
| Splines | 7 |
| Overall Length | 28.3mm |
| Note | Includes separate nut on back of drive |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Briggs & Stratton engines with steel ring gear flywheels, as used on John Deere and other equipment | See OEM cross reference below for exact engine match |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 496881 | Briggs & Stratton |
| SBS5013 | Arrowhead |
| 10877 | Rotary |
| 220-22009 | J&N Electrical Products |
Frequently Asked Questions
Will this drive fit my mower or tractor?
This drive fits Briggs & Stratton engines with a 15-tooth CCW drive on a steel ring gear flywheel, matching OEM number 496881 - check your original part number against the cross reference table above before ordering.
What's included?
The complete drive assembly with retaining nut.
How do I know my starter drive has failed?
Symptoms include the starter motor spinning freely without turning the engine over, grinding noises on start-up, or the drive failing to retract after starting.
Is this a genuine Briggs & Stratton part?
No, this is an aftermarket replacement manufactured to OEM specifications, cross-referenced against the Briggs & Stratton part number listed above.
