Starter Drive Kit for Briggs & Stratton - 16-Tooth CCW Gear & Clutch

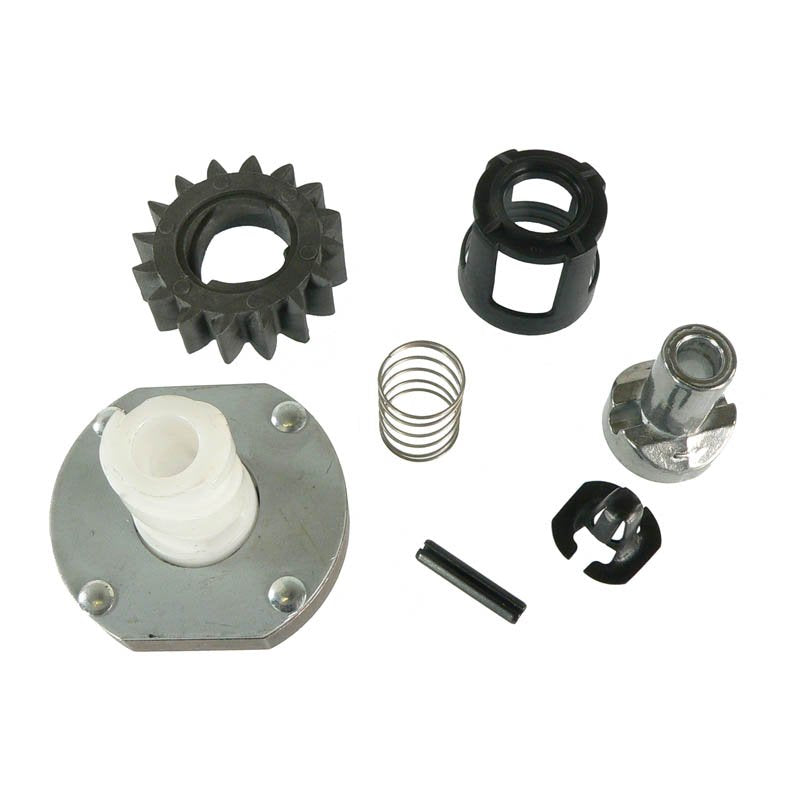

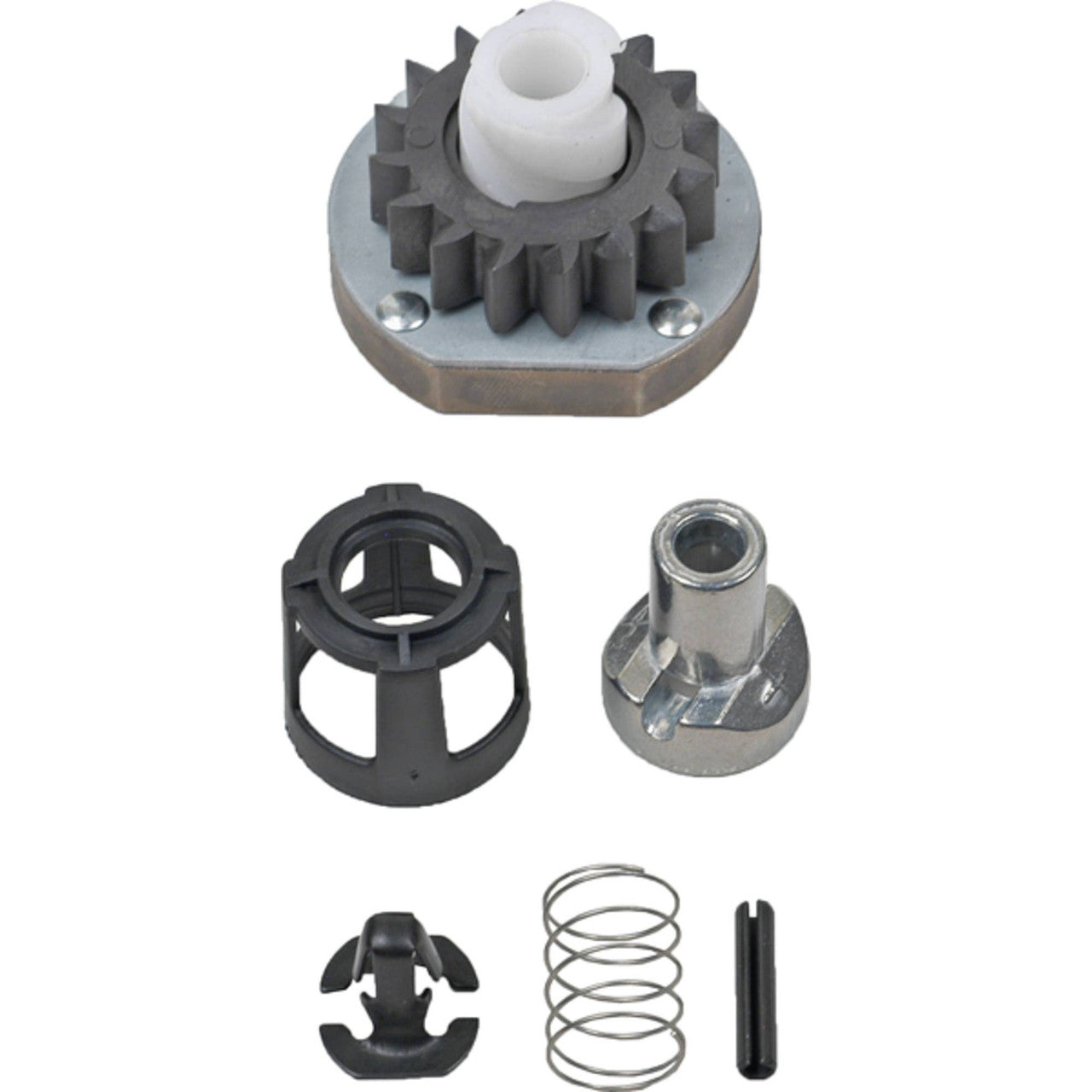

Briggs & Stratton 16-Tooth CCW Starter Drive Assembly
This starter drive kit is a direct aftermarket replacement for Briggs & Stratton starters using a 16-tooth, counter-clockwise rotation drive. The kit contains the drive gear and clutch assembly plus the mounting hardware needed for installation.
Manufactured to OEM specifications with sealed housings and bearings to keep the internal workings cleaner and drier for longer service life, engaging cleanly with the flywheel ring gear for reliable starting.
Key Features
- 16-tooth counter-clockwise (CCW) rotation drive
- Kit includes 508230 gear, 508227 clutch and hardware
- Sealed housing and bearings for a cleaner, drier mechanism
- Direct fit for a wide range of Briggs & Stratton engines
Technical Specs
| Specification | Detail |
|---|---|
| Part Type | Drive Assembly |
| Teeth | 16 |
| Rotation | CCW |
| Gear OD | 40.6mm |
| Gear ID | 20.5mm |
| Splines | 2 |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Briggs & Stratton engines (16-tooth CCW gear/plastic flywheel drive) | See OEM cross reference below for exact engine match |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 3886 | Briggs & Stratton |
| 396865 | Briggs & Stratton |
| 490421 | Briggs & Stratton |
| 495878 | Briggs & Stratton |
| 696540 | Briggs & Stratton |
| SBS5003 | Arrowhead |
| 54-7003 | WAI |
Frequently Asked Questions
Will this drive fit my Briggs & Stratton engine?
This drive kit fits Briggs & Stratton engines that use a 16-tooth CCW starter drive and match OEM numbers 3886, 396865, 490421, 495878 or 696540 - check your original part number against the cross reference table above before ordering.
What's included?
The complete drive kit - gear, clutch and mounting hardware.
How do I know my starter drive has failed?
Symptoms include the starter motor spinning freely without turning the engine over, grinding noises on start-up, or the drive failing to retract after the engine starts.
Is this a genuine Briggs & Stratton part?
No, this is an aftermarket replacement manufactured to OEM specifications, cross-referenced against the Briggs & Stratton part numbers listed above.
