Starter Motor Ruggerini MD150 MD190 12V 9 Tooth Replaces 56338 0001107058 4Drive
Starter Motor Ruggerini MD150 MD190 12V 9 Tooth Replaces 56338 0001107058 4Drive
SKU:410-40029
Free shipping over £150. Terms apply
Couldn't load pickup availability

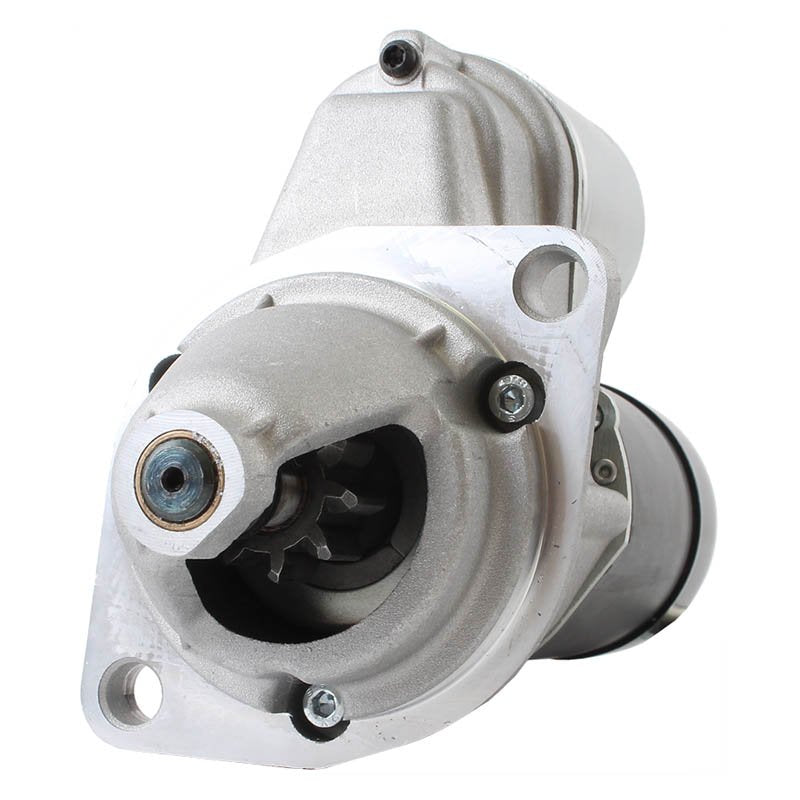

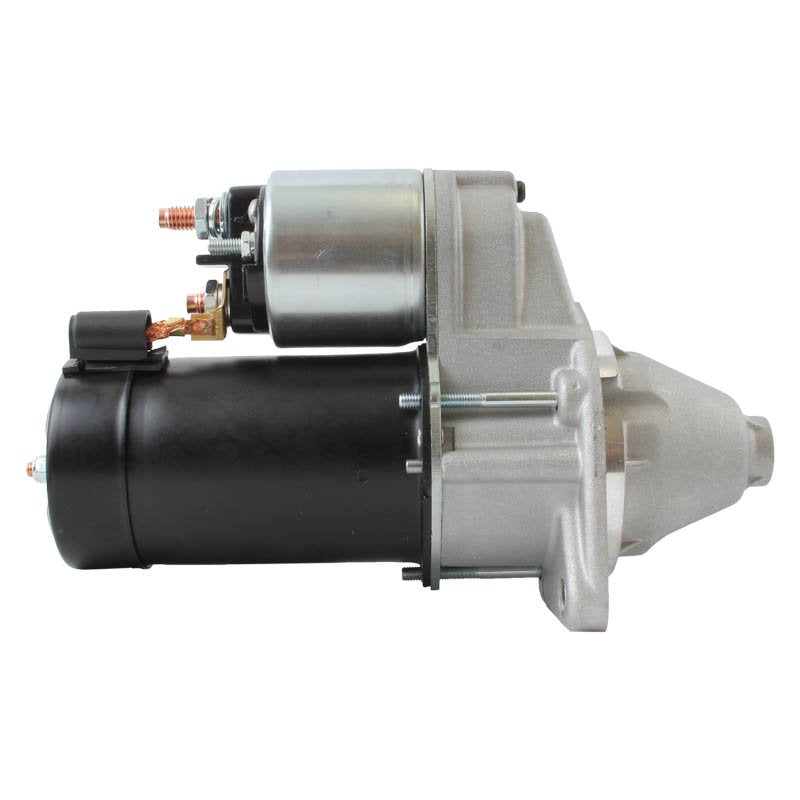

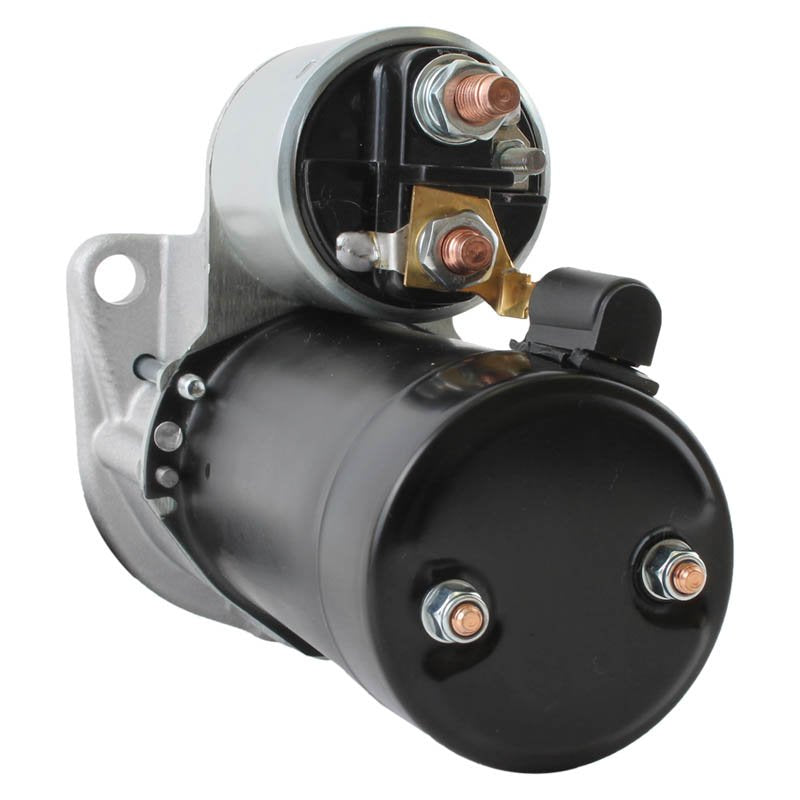

Starter Motor for Ruggerini (SKU: 56338)
Premium High-Torque PMGR Replacement
This 4Drive / Aftermarket starter motor is a precision-engineered replacement for Ruggerini diesel engines. Utilizing PMGR (Permanent Magnet Gear Reduction) technology, this unit delivers significantly higher cranking torque while being more energy-efficient and lightweight than traditional older-style starters. It is designed to withstand the high-compression demands of small-bore diesel engines in marine, industrial, and agricultural environments.
Key Features
- ✔ Direct fit replacement for OEM 56338
- ✔ Advanced Gear Reduction (PMGR)
- ✔ Tested to exceed 200,000 starts
- ✔ Sealed housing to resist corrosion

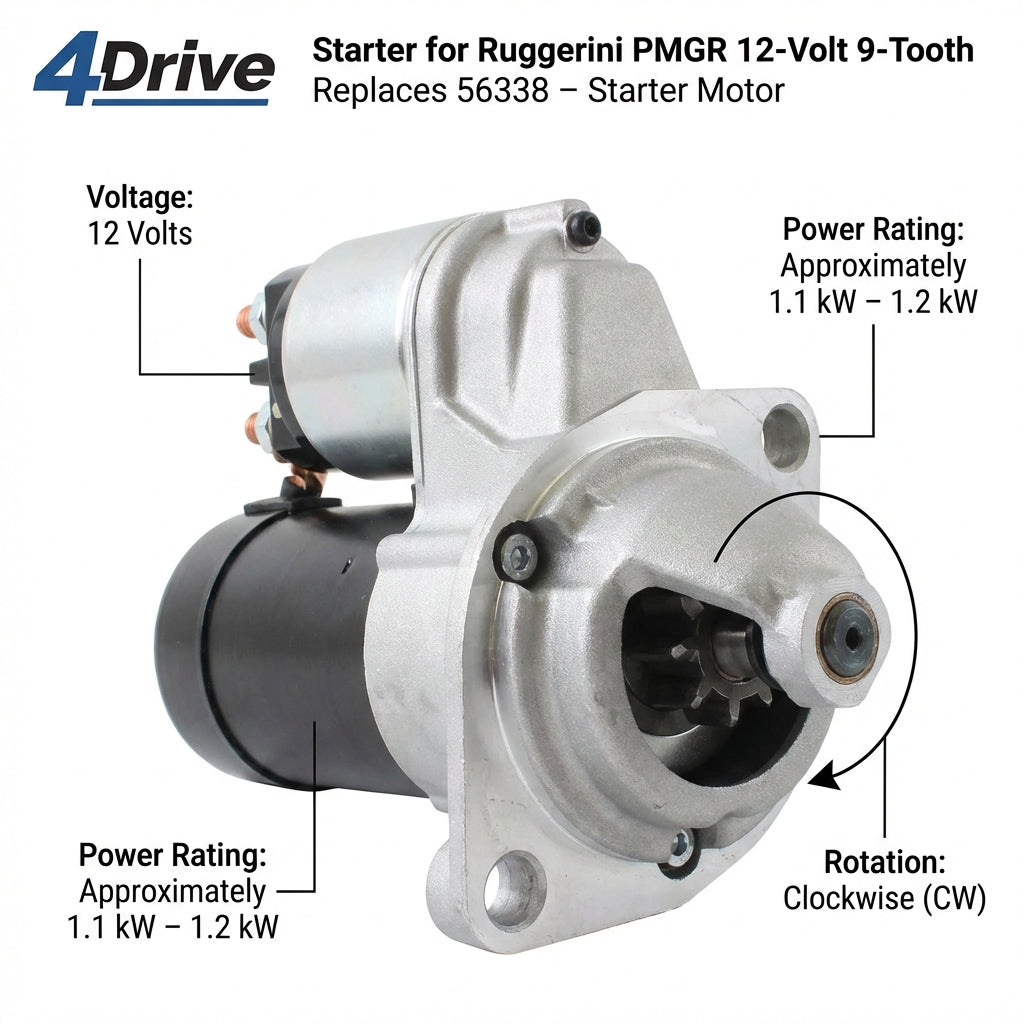

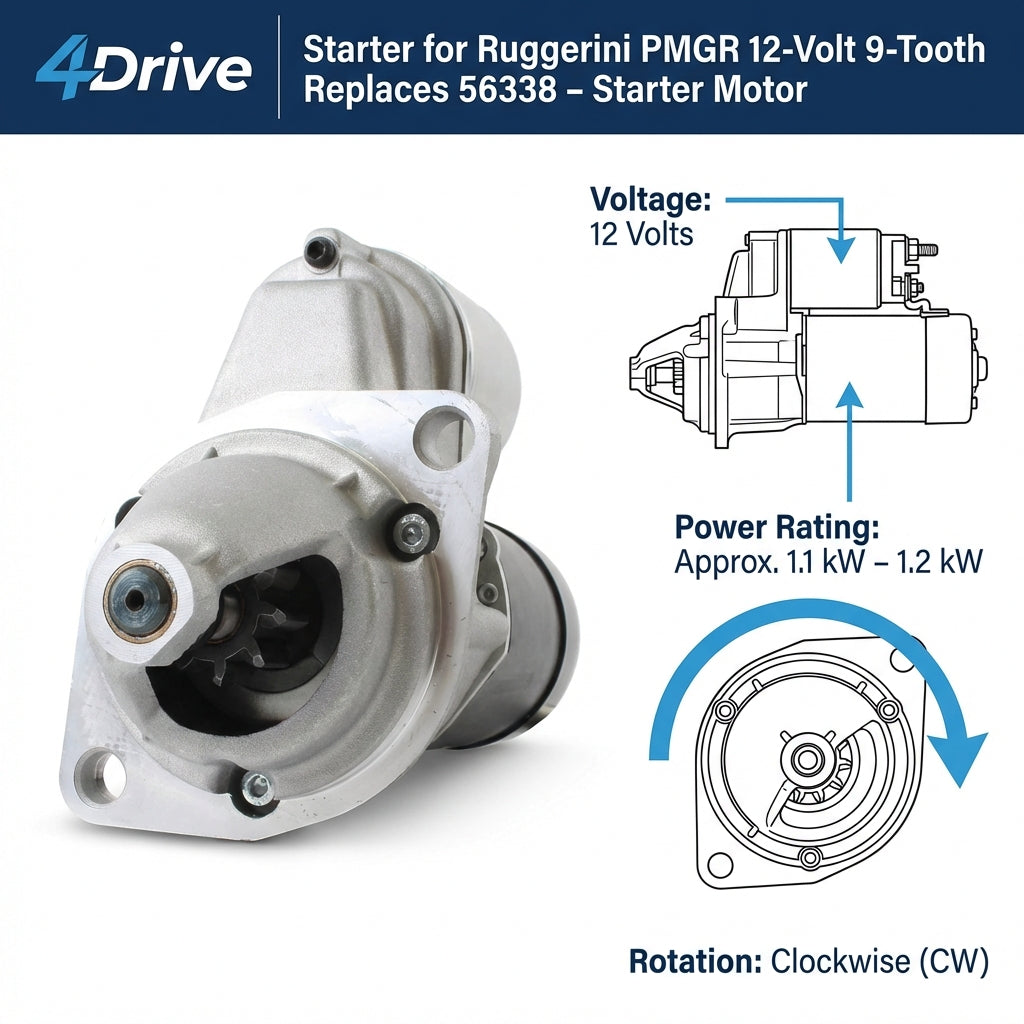

Technical Specs
| Voltage | 12V |
| Teeth | 9-Tooth |
| Power | 1.1 kW |
| Rotation | CW (Clockwise) |
| Gear OD | 29.6 mm |
| Registry OD | 76 mm |
Compatibility / Fitment Guide
| Engine Series | Models | Application Notes |
|---|---|---|
| Ruggerini MD | MD150, MD151, MD156, MD159 | Marine & Industrial |
| Ruggerini MD | MD170, MD171 | Generator / Plant |
| Ruggerini MD | MD190, MD191, MD196, MD199 | High Torque Engines |
| Ruggerini Marine | Mm150, Mm190 | Verify Rotation Before Install |
OEM Cross Reference
| Ruggerini | 563-38, 56338, 563.38 |
| Bosch | 0-001-107-058, 0001107058, 0-001-107-060 |
| Lombardini | 5840.160, 5840160 |
| Lester | 18045 |
| Valeo | D6RA60, 184456 |
Questions & Answers
Is this a genuine original part?
This is a premium quality aftermarket replacement part from 4Drive, manufactured to meet or exceed original equipment (OE) standards for fitment and performance.
How do I know if it is compatible?
We recommend checking your existing part for the number 56338 or 0001107058. If your original part number matches any in our cross-reference list, this is a guaranteed fit.
Can this be used on both 1-cylinder and 2-cylinder engines?
Yes, this starter is standard for the MD series, including the 2-cylinder MD150 and MD190 models commonly found in marine and welder applications.
Frequently Asked Questions
How do I confirm this fits?
Match the part number or OEM reference on your existing part with the details above. If you are unsure, send us your vehicle or engine model and year and we will confirm before you order.
Is this a genuine OEM part?
It is a new aftermarket part built to the original specification. OEM numbers are listed for cross-reference only.
Is it new or reconditioned?
It is brand new – no core charge and no old unit to return.
What if it does not fit?
Contact us with your vehicle details and the part number from your original unit and we will help you sort it out.
Note: Please verify your engine's rotation requirements. While SKU 56338 is typically Clockwise (CW), some marine variations use Counter-Clockwise units (56339). Contact 4drive.co.uk if you are unsure.
