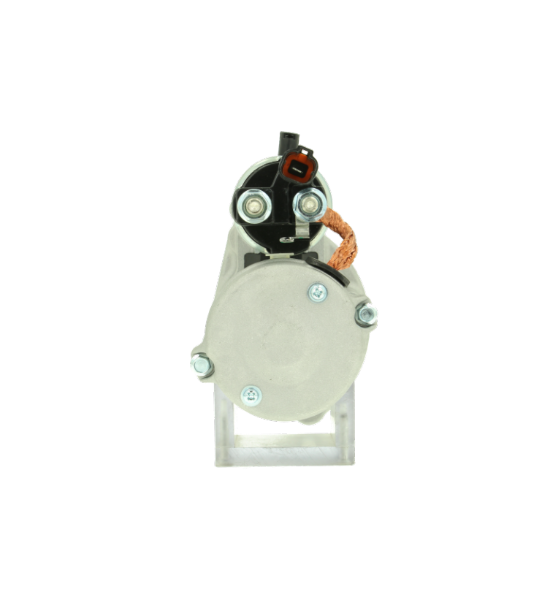

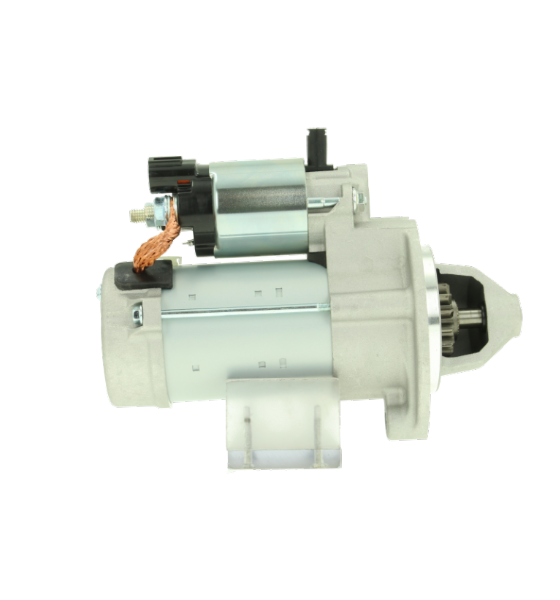

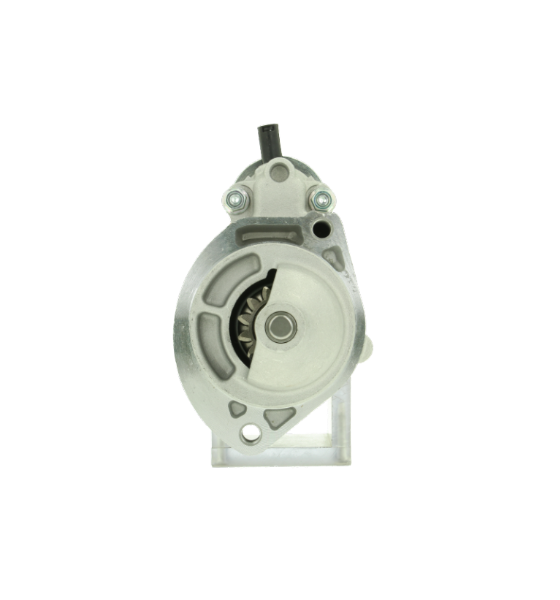

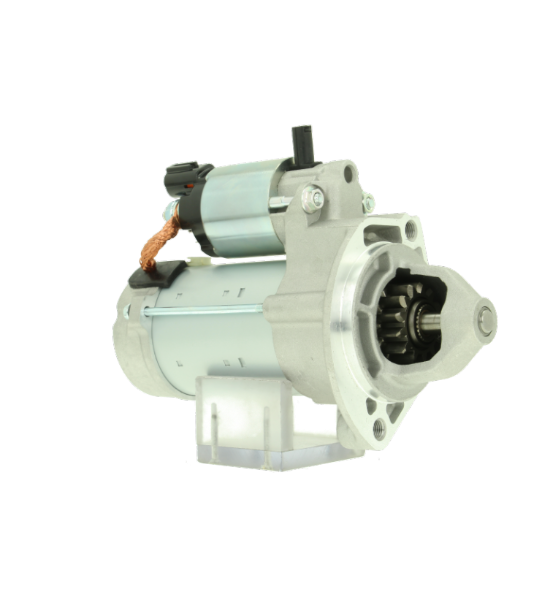

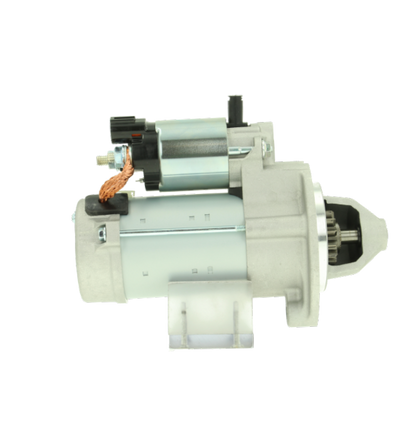

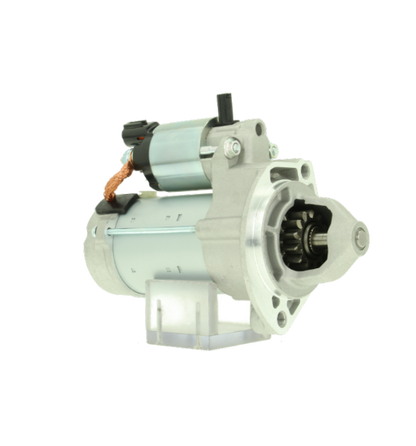

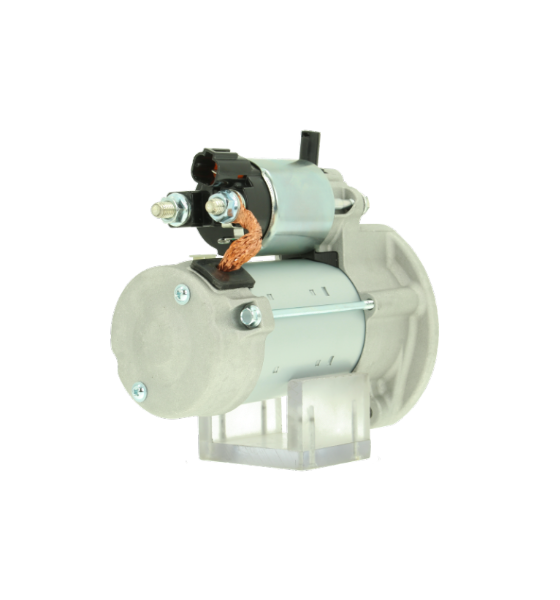

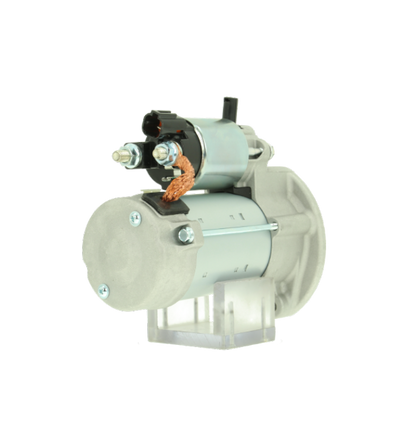

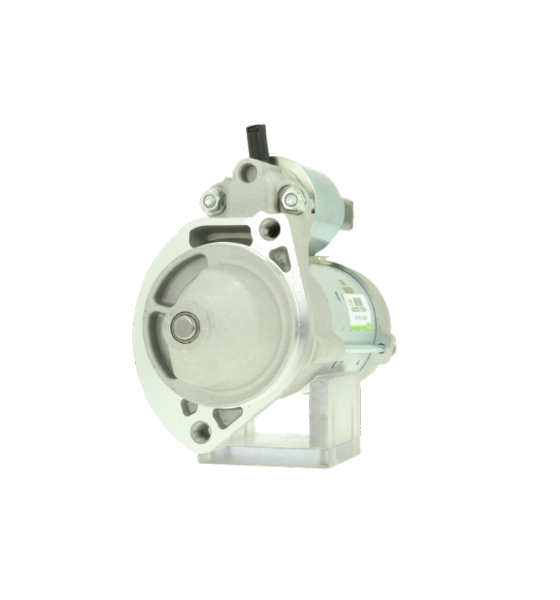

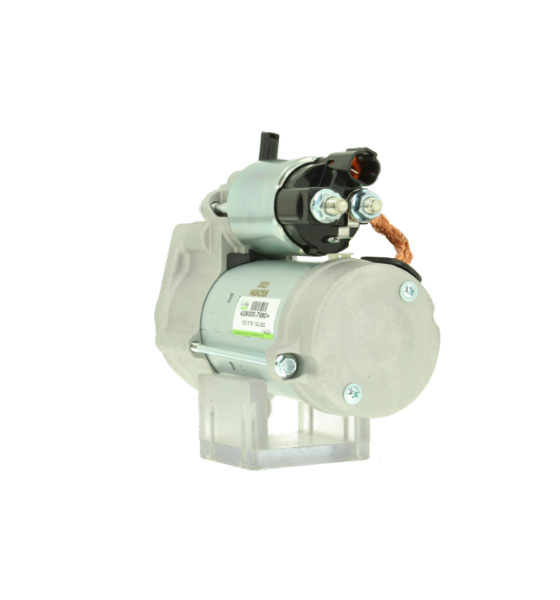

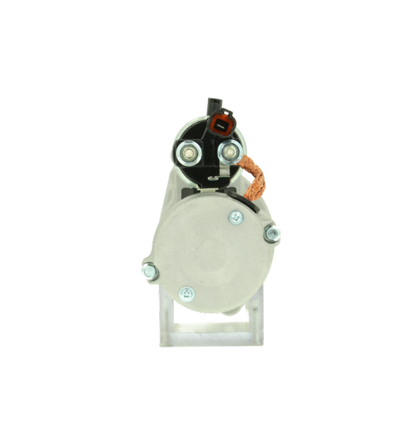

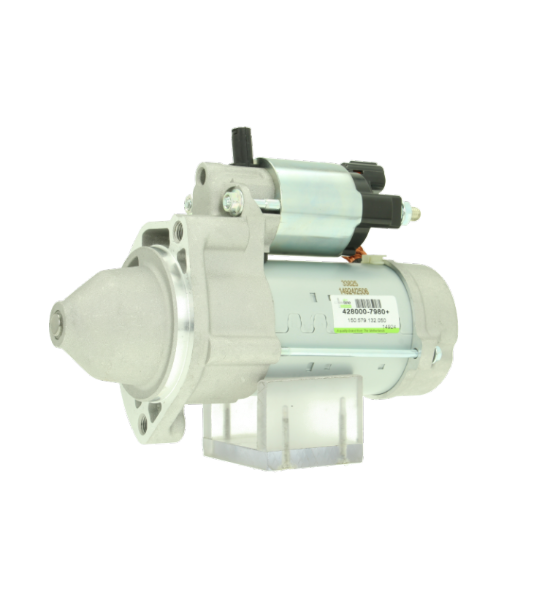

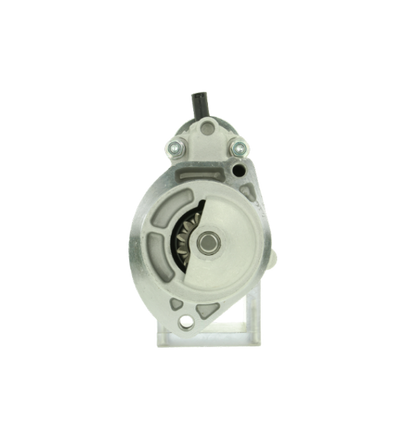

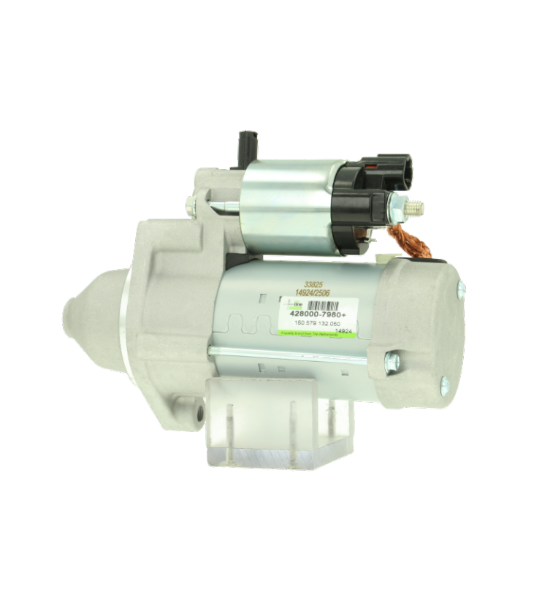

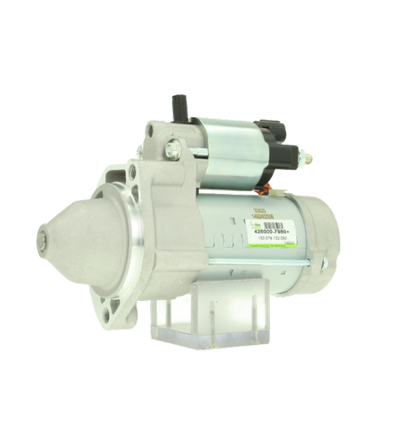

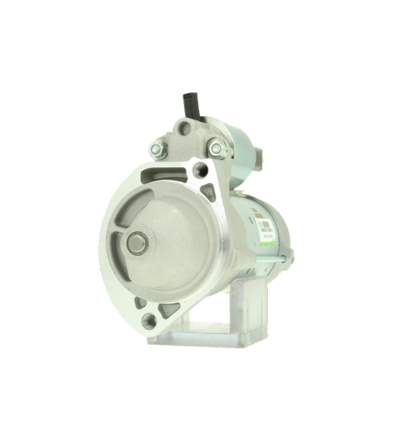

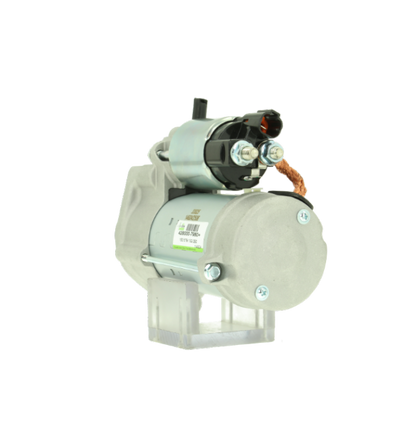

This high-performance starter motor is a direct replacement for original equipment on popular Hyundai and Kia diesel models. Engineered for the demanding start-stop requirements of the 1.7 CRDi engine, this unit delivers reliable cranking power even in cold weather conditions. Manufactured by 4Drive / Aftermarket to meet or exceed OEM specifications, ensuring a long service life and easy installation.
RELIABILITY: Built to meet or exceed OEM standards (36100-2A550 / 428000-7980) for precision performance.
Key Features
✔ Direct fit for 1.7 CRDi Diesel engines
✔ Clockwise (CW) rotation with 13-Teeth Pinion
✔ 1.9kW heavy-duty power output
✔ High-grade internal copper components
Technical Specs
Voltage
12V
Rated Power
1.9 kW
Number of Teeth
13
Rotation
Clockwise (CW)
Flange Diameter
77.0 mm
Mounting Bores
2
Compatibility / Fitment Guide
Make/Model
Year
Engine Type
Kia Sportage Mk3 (SL)
2010 - 2015
1.7 CRDi (116 HP)
Kia Sportage Mk4 (QL, QLE)
2015 - 2018
1.7 CRDi (116-141 HP)
Hyundai ix35 (LM, EL)
2010 - 2015
1.7 CRDi (116 HP)
Hyundai i40 (VF)
2011 - 2019
1.7 CRDi (116-141 HP)
Kia Carens IV (RP)
2013 - 2019
1.7 CRDi (116-141 HP)
Kia Optima (TF)
2010 - 2015
1.7 CRDi (136 HP)
OEM Cross Reference
Hyundai / Kia
36100-2A550, 361002A550, 36100-2A830
Denso
428000-7980, 4280007980, DSN1226
Bosch
0986029220
Lucas / Elstock
LRS02656, 25-4328
Other References
AEY2656, S6257, 33600OS, 116255, 220760
Questions & Answers
Is this a genuine original part?
This is a premium quality aftermarket replacement part, manufactured to meet or exceed original equipment (OE) standards for fitment and performance.
How do I know if it is compatible?
We recommend checking the SKU/MPN and Cross Reference list provided above. If your original part number matches any of these (specifically 36100-2A550), it is a guaranteed fit.
Does it fit the 1.7 CRDi engine with Start-Stop?
Yes, this starter motor is designed specifically for the 1.7 CRDi D4FD engine codes used across the Hyundai and Kia range from 2010 to 2019, including ISG (Idle Stop & Go) applications where applicable.
Note: Please verify your original part number against the references above before purchasing. Domain: 4drive.co.uk
