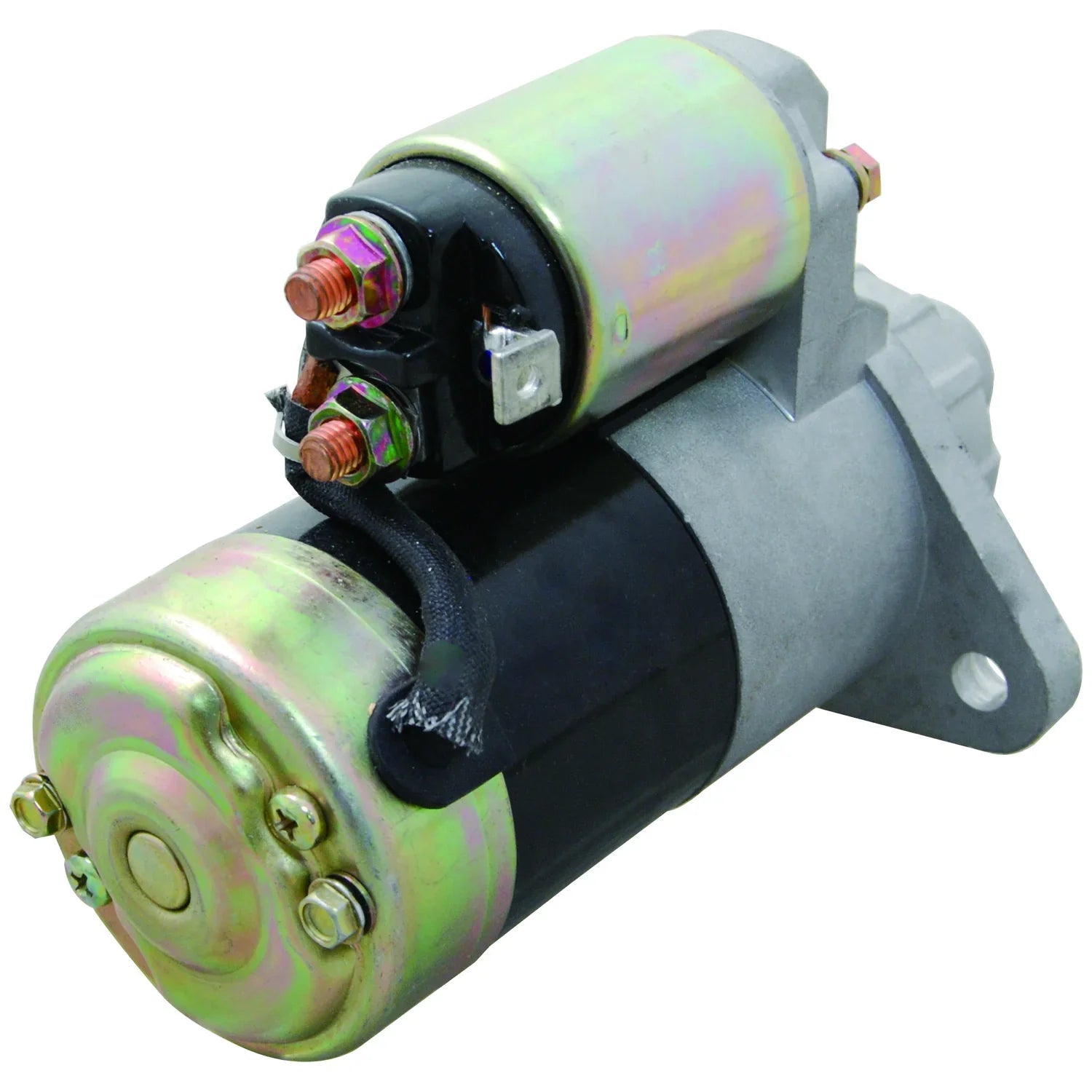

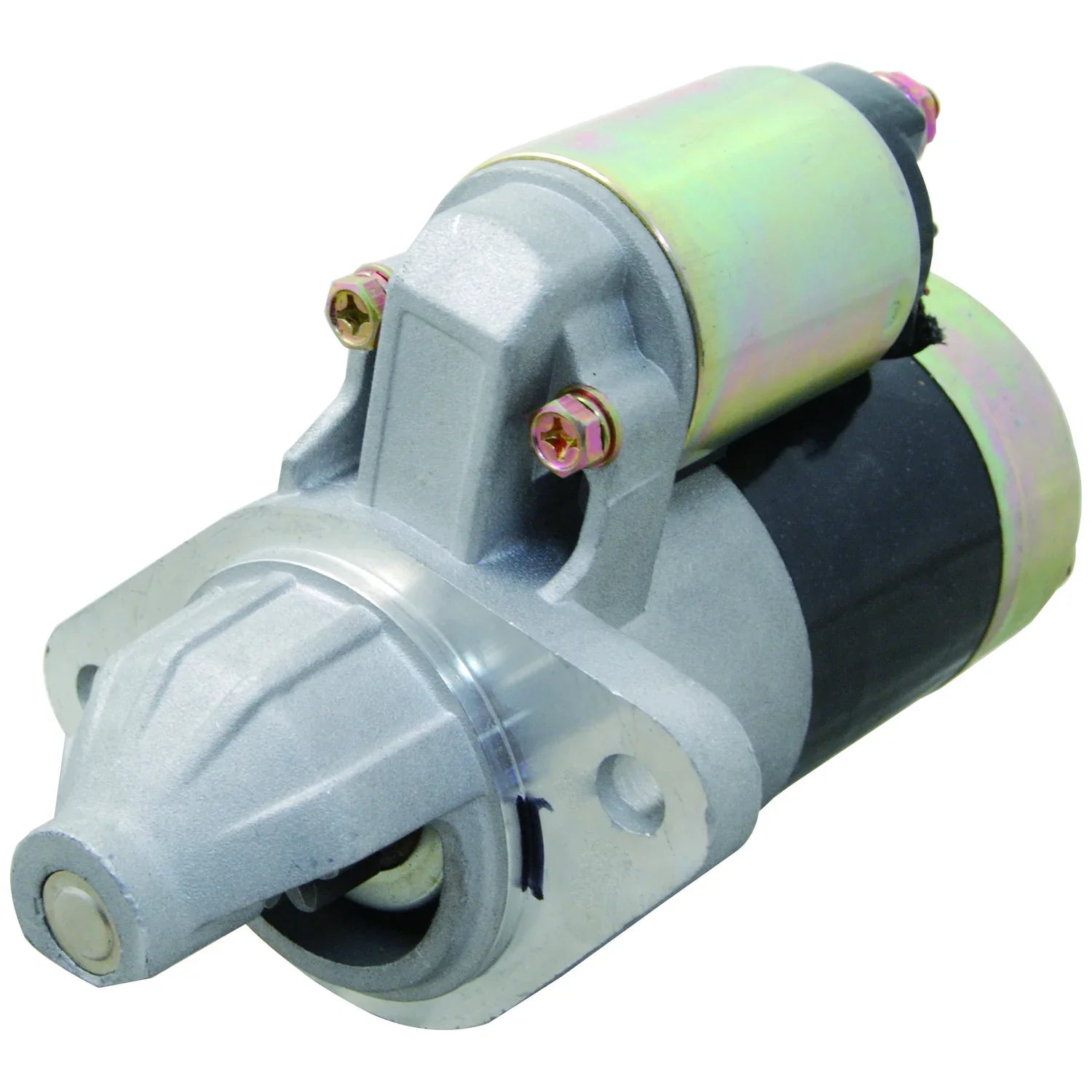

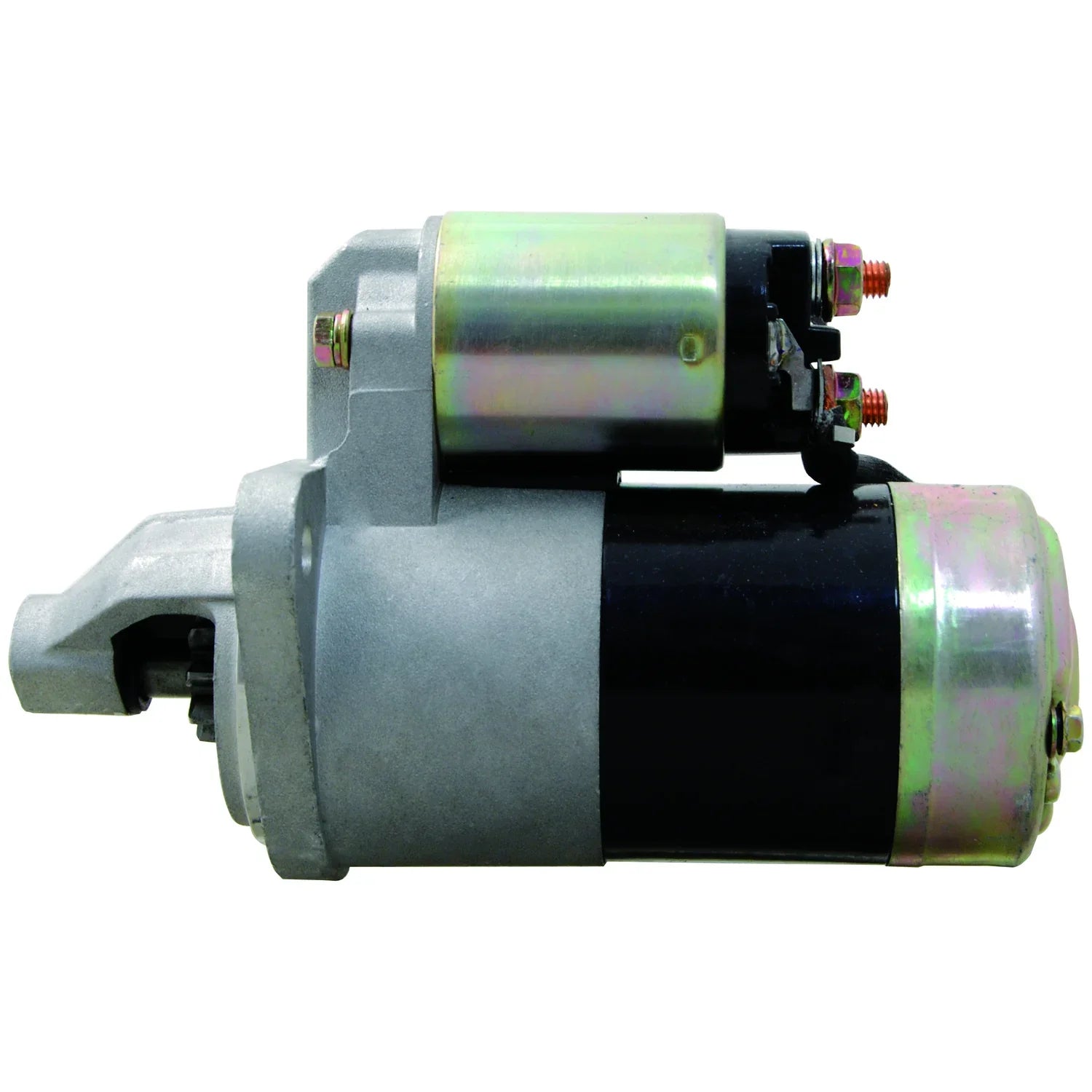

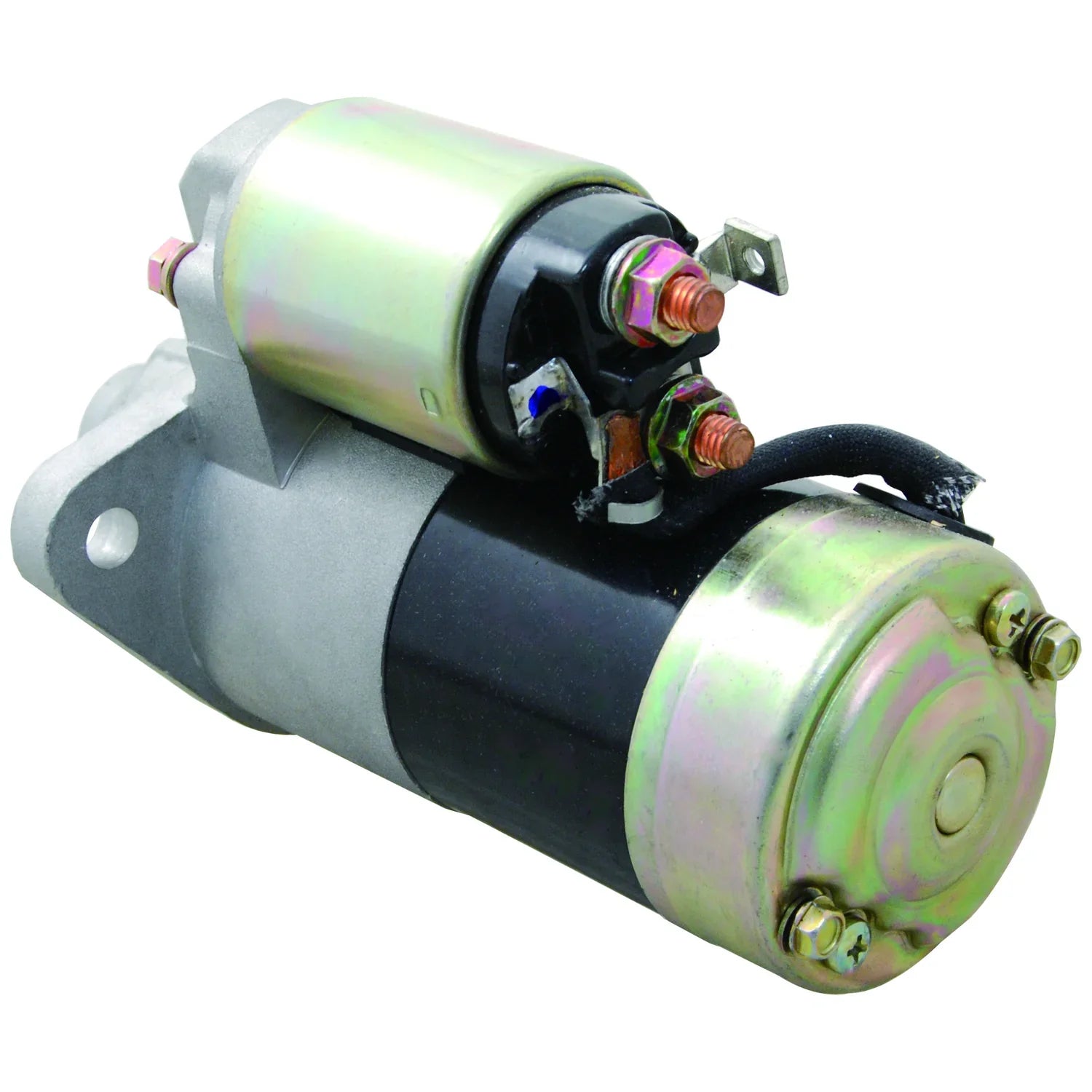

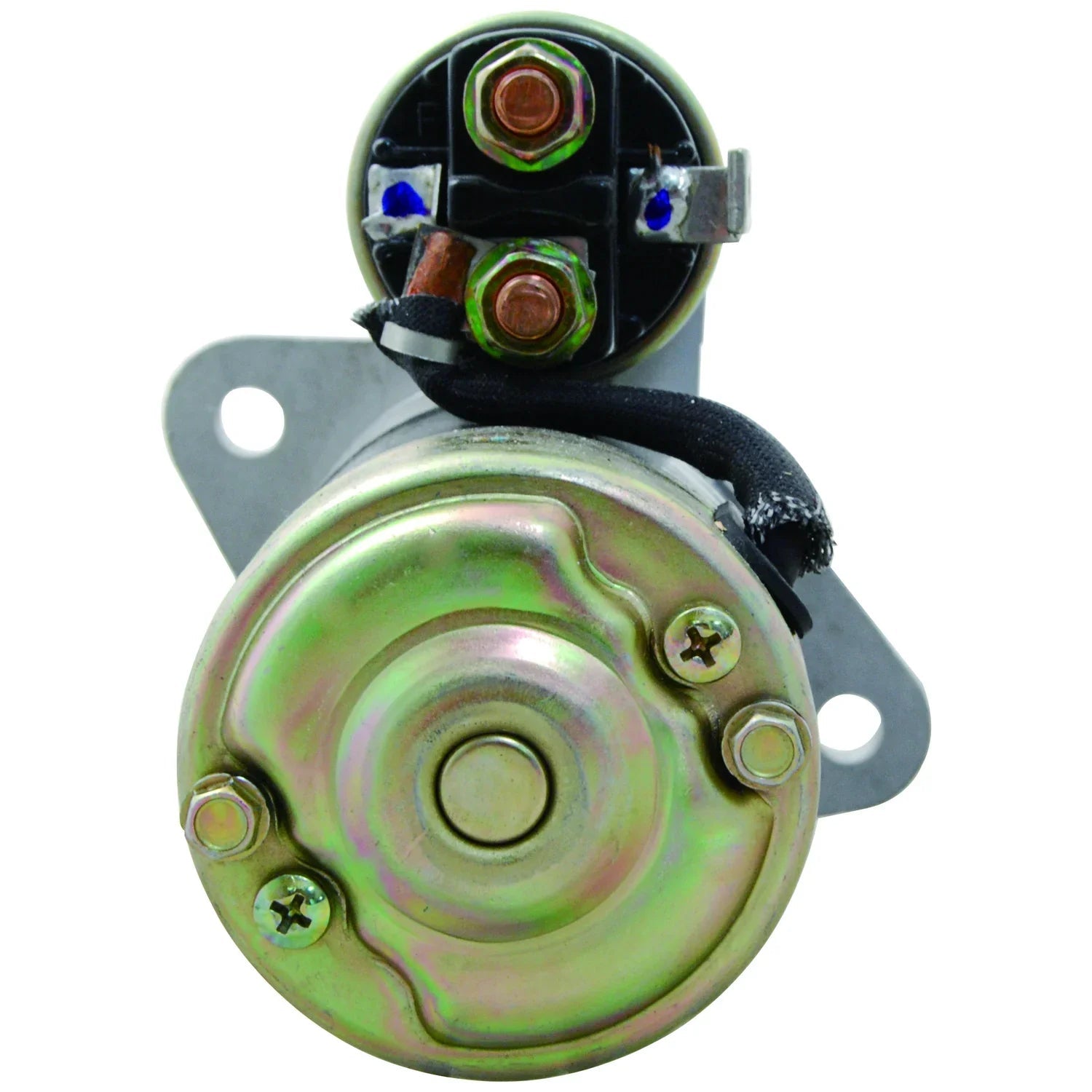

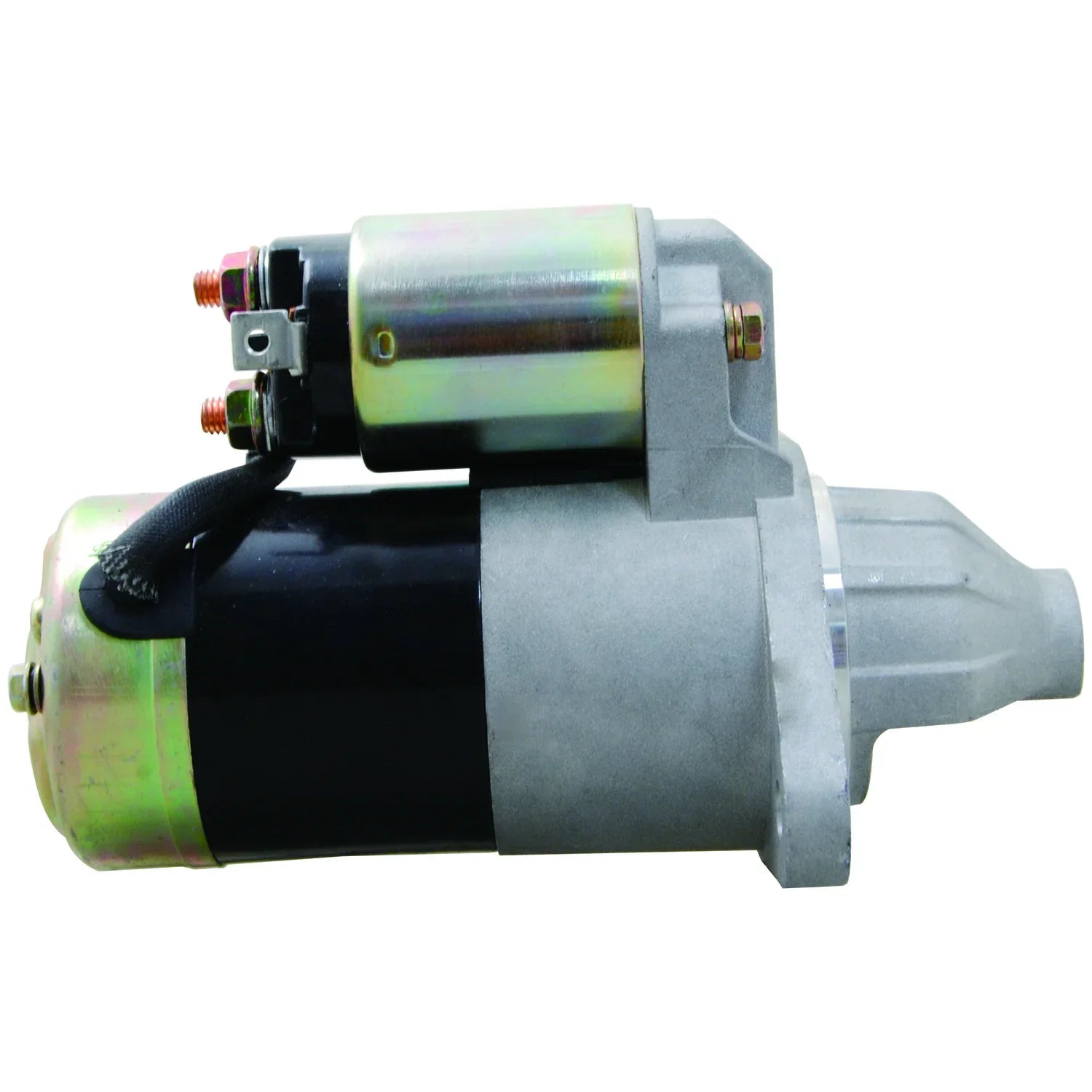

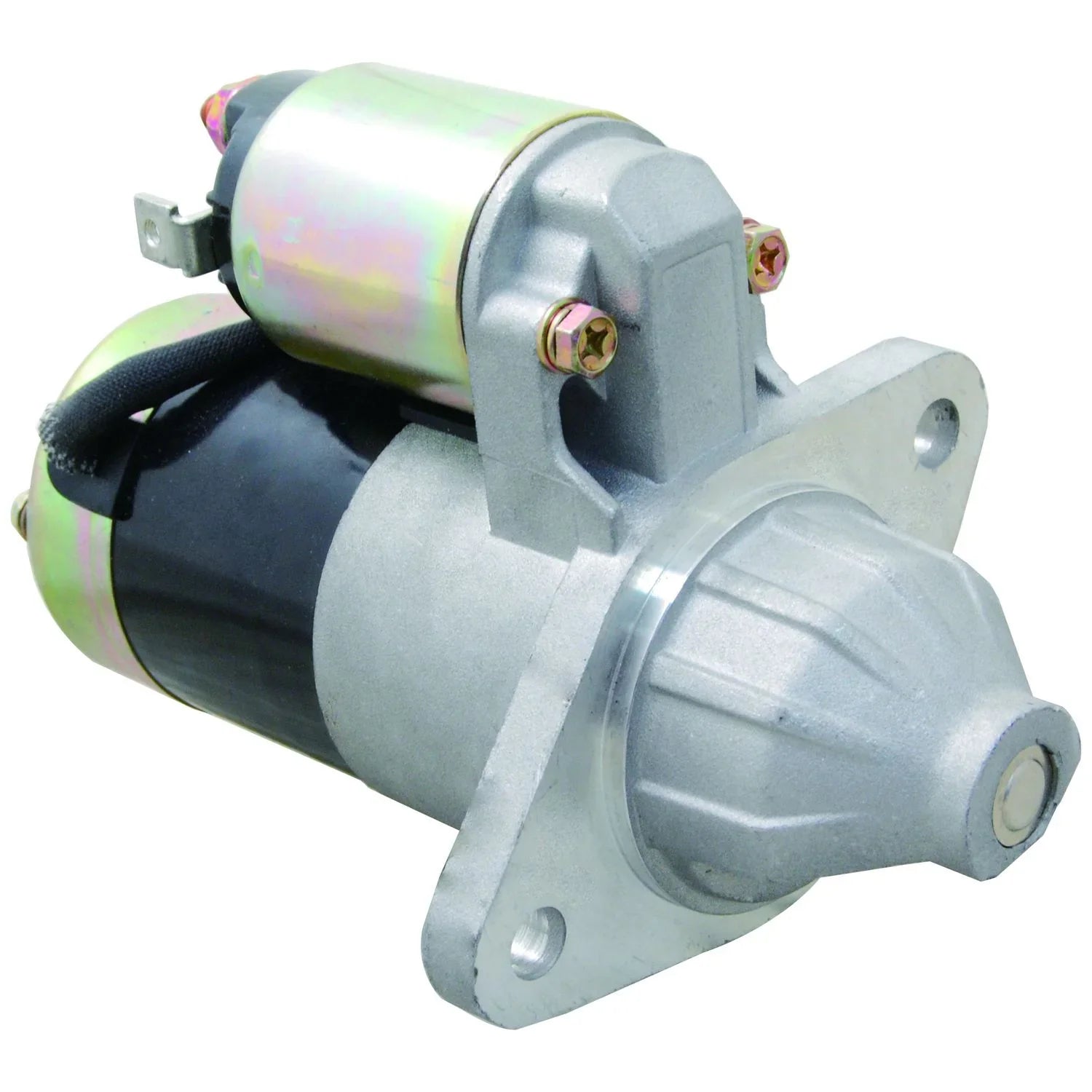

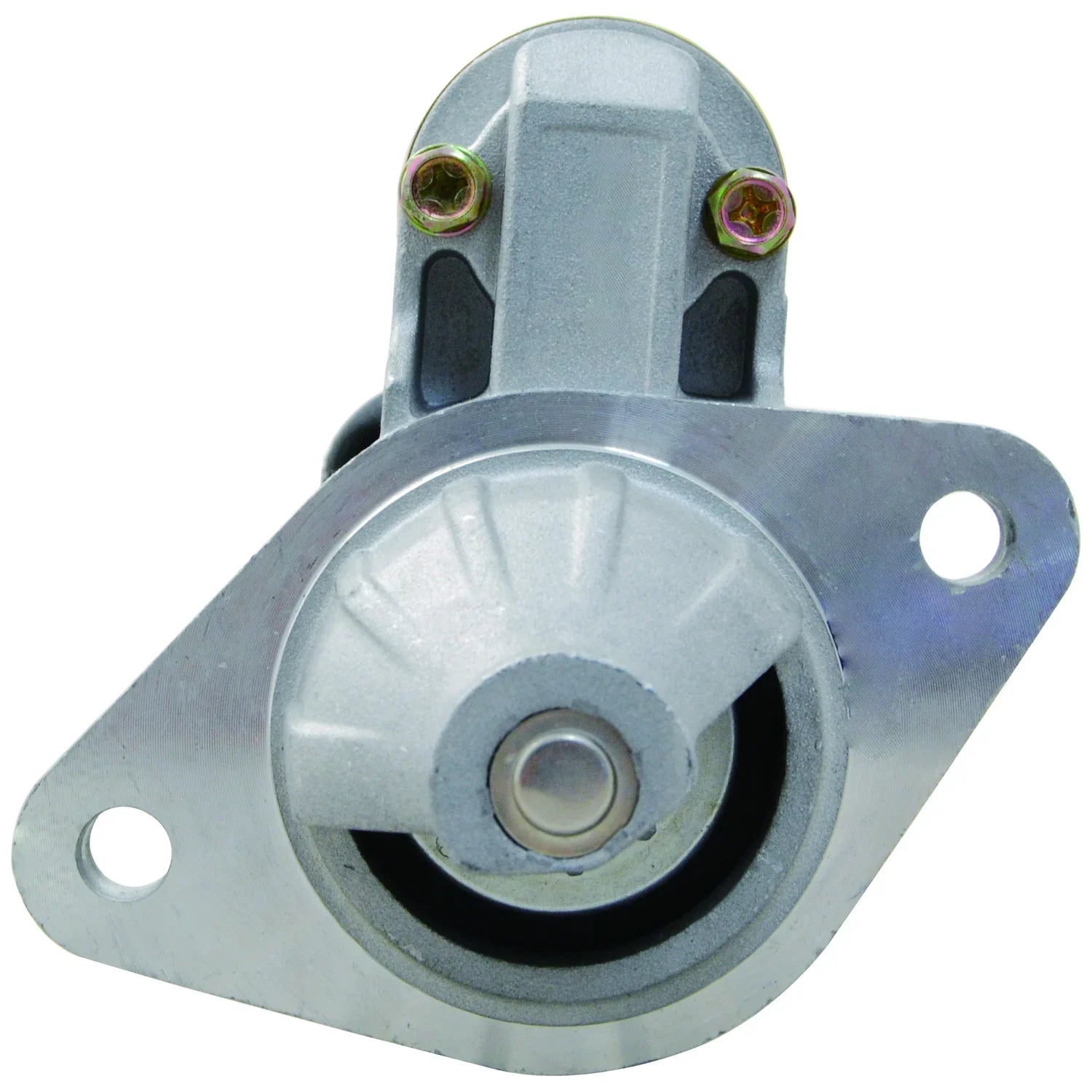

Yanmar 1GM 2GM 3GM Marine Diesel Starter Motor 128170-77010 12V 1kW 9T
Yanmar 1GM 2GM 3GM Marine Diesel Starter Motor 128170-77010 12V 1kW 9T
SKU:200-601
Free shipping over £150. Terms apply
Couldn't load pickup availability
Premium Starter Motor for Yanmar Marine Engines
Reliable Starting Power for Yanmar 1GM, 2GM, and 3GM Series Diesels (1980-Up)
Ensure dependable ignition for your marine vessel with our high-quality replacement starter motor, specifically engineered for Yanmar 1GM, 2GM, and 3GM series diesel engines. Designed to meet the rigorous demands of the marine environment, this starter delivers consistent and powerful starts, essential for peace of mind on the water. It's a perfect fit for a wide range of Yanmar models produced from 1980 onwards.
Crafted with precision and built from durable materials, this starter motor is a cost-effective alternative to OEM parts without compromising on performance or longevity. It replaces the original Yanmar part number 128170-77010 and related cross-references, providing a direct-fit solution that makes installation straightforward and hassle-free.
Key Features
- ✔ OEM Grade Replacement: Manufactured to match or surpass original equipment standards for fit and performance.
- ✔ Robust Marine Construction: Durable components designed to withstand harsh saltwater conditions.
- ✔ Consistent & Powerful Starts: High-quality magnets and field coils deliver ample torque for quick, efficient engine ignition.
- ✔ Corrosion Resistant: Features sealed housings, epoxy-coated armatures, and top-grade bearings for extended life in wet environments.

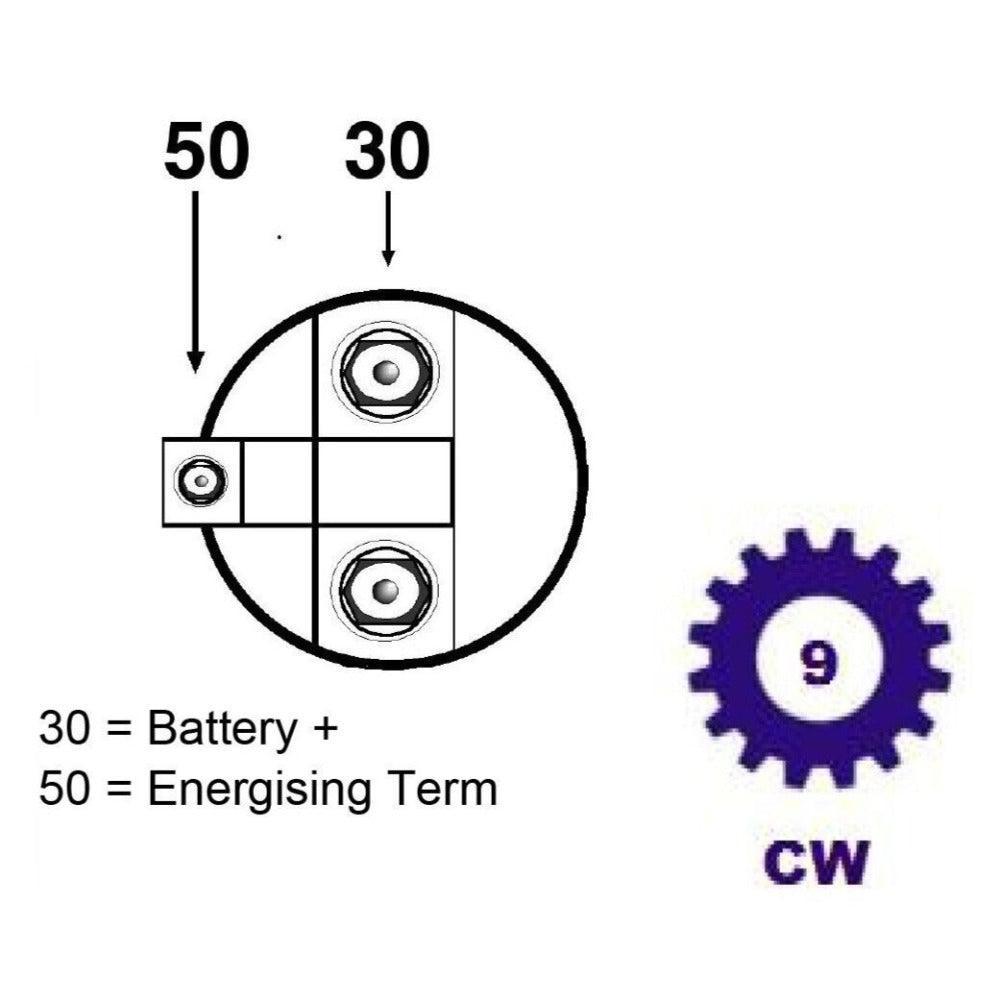

Technical Specs
| Voltage: | 12V |
| Power Output: | 1.0 kW |
| Number of Teeth: | 9 |
| Rotation: | Clockwise (CW) |
| Mounting Holes: | 2 |
| Mounting Flange (A): | ~70 mm |
| Gear Type: | PMGR (Permanent Magnet Gear Reduction) |
Vehicle Fitment Guide
| Make | Model | Year Range |
|---|---|---|
| Yanmar | 1GM, 1GM10, 1GM10C | 1980 - On |
| Yanmar | 2GM, 2GM20, 2GM20F, 2GMF | 1980 - On |
| Yanmar | 3GM, 3GM30, 3GMD, 3GMF | 1980 - On |
| Yanmar | KM2A, KM2C, KM2P, KM3A, KM3P, KM3V | All Years |
OEM Part Number Cross Reference
| Yanmar | 128170-77010, 128170-77010D, 128170-77010-01 |
| Hitachi | S114-303, S114-303A |
| API Marine | 17000 |
| Arco Marine | 98180 |
| CARGO | 111706 |
| Lucas | LRS01128 |
| Protorque | PH140-0008 |
| WAI / J & N | 18209, 18209N, 410-44031 |
Frequently Asked Questions
What Yanmar engines is this starter motor compatible with?
This starter motor is designed for Yanmar 1GM, 1GM10, 1GM10C, 2GM, 2GM20, 2GM20F, 2GMF, 3GM, 3GM30, 3GMD, 3GMF series marine diesel engines, as well as various KM series models (KM2A, KM2C, KM2P, KM3A, KM3P, KM3V) from 1980 onwards.
Is this an OEM Yanmar part?
This is a high-quality aftermarket replacement starter motor, manufactured to meet or exceed the original equipment specifications. It provides a reliable and cost-effective alternative to genuine Yanmar parts.
What are the key electrical specifications of this starter?
It operates on a 12-volt system, delivers 1.0 kW of power, features 9 teeth on the pinion, and rotates clockwise (CW).
Note: Please verify your bike's model and year before purchasing.
Fast shipping available across the UK and Europe.
