Starter Motor 24V 7.5kW 12T KHD Deutz Bosch 0001330014
Starter Motor 24V 7.5kW 12T KHD Deutz Bosch 0001330014
SKU:410-24266
Free shipping over £150. Terms apply
Couldn't load pickup availability

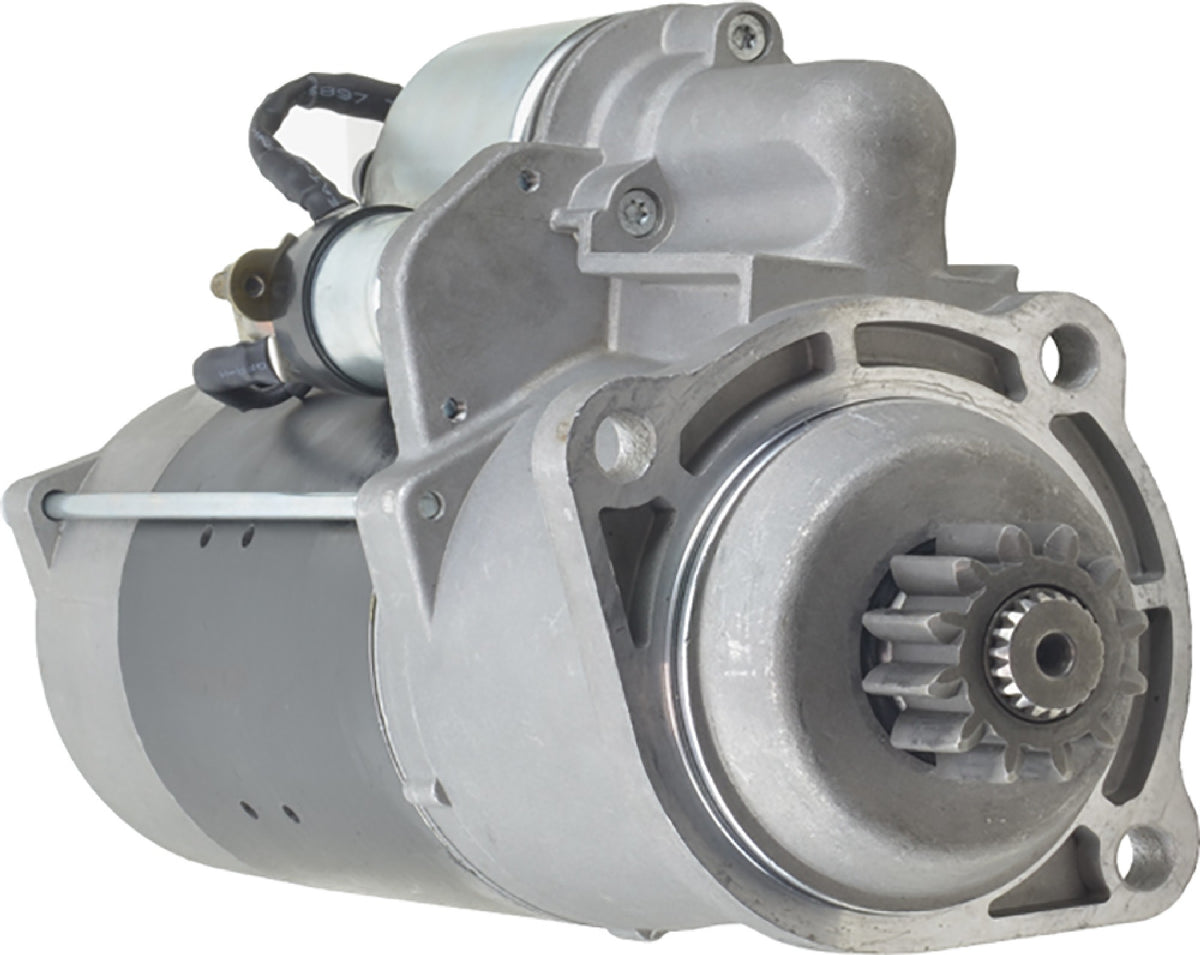

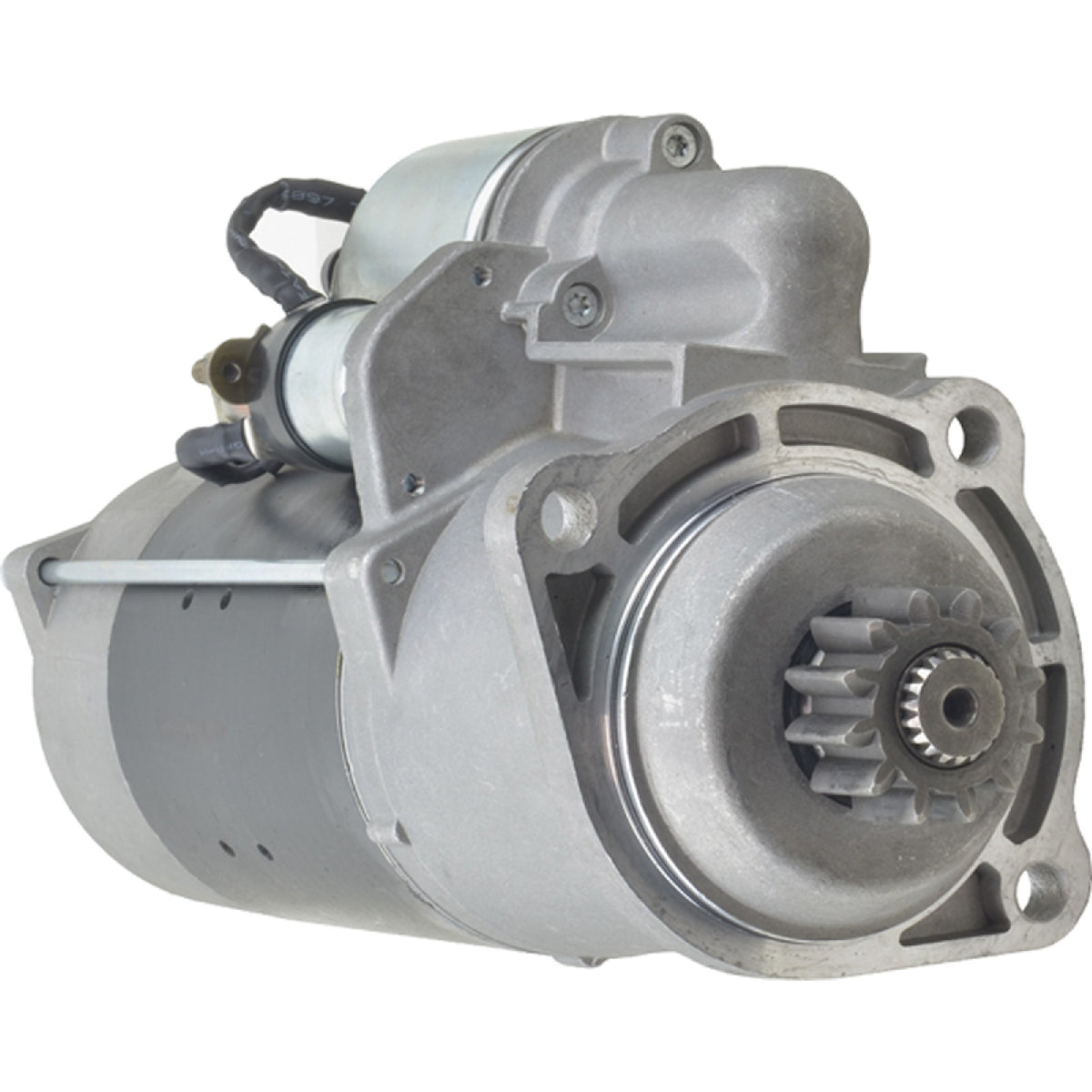

Starter Motor 24V 7.5kW 12T KHD Deutz Bosch 0001330014
24V 7.8kW 12-tooth · Replaces Bosch 0001330014 · Brand new unit
A brand new 24V 7.8kW 12-tooth starter motor, built as a direct-fit replacement for the original Bosch unit (OE 0001330014). It suits Liebherr applications – see the fitment guide below for models, engines and years.
Every unit is brand new, with no core charge and no old unit to return. It is tested before dispatch and backed by our 12-month warranty, with fitment support from our UK technical team.
Key Features
- 24-volt, 7.8 kW output
- 12-tooth pinion, clockwise (CW)
- 3 mounting holes
- Direct replacement for Bosch 0001330014
- Brand new – no core charge
Technical Specs
| Specification | Detail |
|---|---|
| Unit Type | Starter motor |
| Voltage | 24V |
| Power | 7.8 kW |
| Rotation | Clockwise (CW) |
| Teeth | 12 |
| Mounting Holes | 3 |
| Oil Sealed | Yes |
| Starter Type | PLGR |
| Condition | New aftermarket |
| Warranty | 12 months |
| Part Code | 410-24266 |
Vehicle Fitment Guide
Please confirm against the OEM part number on your original unit before ordering.
| Make | Model | Engine | Years |
|---|---|---|---|
| Liebherr | LH30C 10.5 | D936 | 2012–on |
| Liebherr | LH30M 10.5 | D936 | 2012–on |
| Liebherr | LH30C 12.0 | D946 | 2012–on |
| Liebherr | LH30M 12.0 | D946 | 2012–on |
OEM Part Number Cross Reference
Aftermarket replacement. OEM and cross-reference part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 0001330014 / 0001330071 / 0001330072 | Bosch |
| 10410932 / 11386645 | Liebherr |
Frequently Asked Questions
Will this fit without modification?
Yes – it is a bolt-in replacement for the original 24V starter on the applications listed. Compare the tooth count, rotation and OEM number with your old unit.
Is it a brand new unit?
Yes – it is 100% new, with no core charge and no old unit to return.
How do I know my starter has failed?
Common signs are a single click with no crank, slow or labouring cranking, grinding on engagement, or no response at all with a healthy battery.
Can you confirm fitment before I order?
Yes – send us your vehicle or machine model, engine and the number from your original unit and we will confirm.
