Starter Motor for John Deere Tractors & Marine Engines - Delco 28MT 12V CW

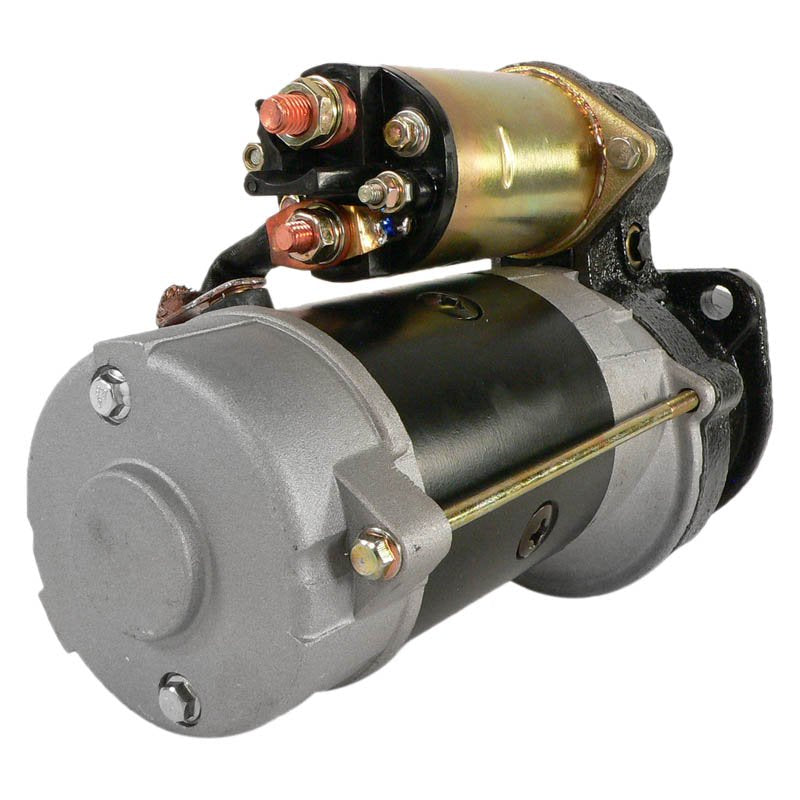

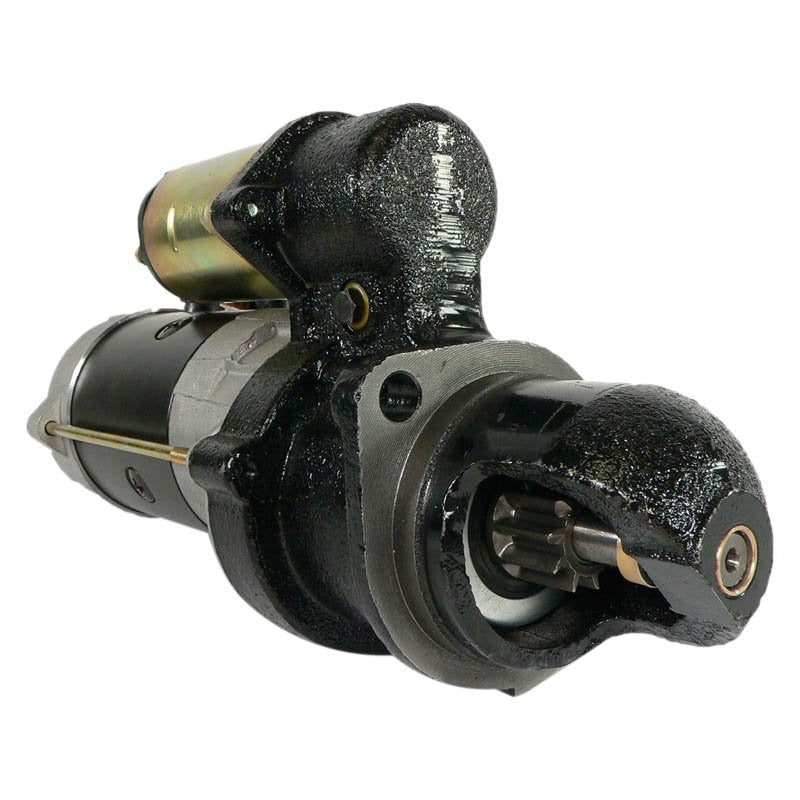

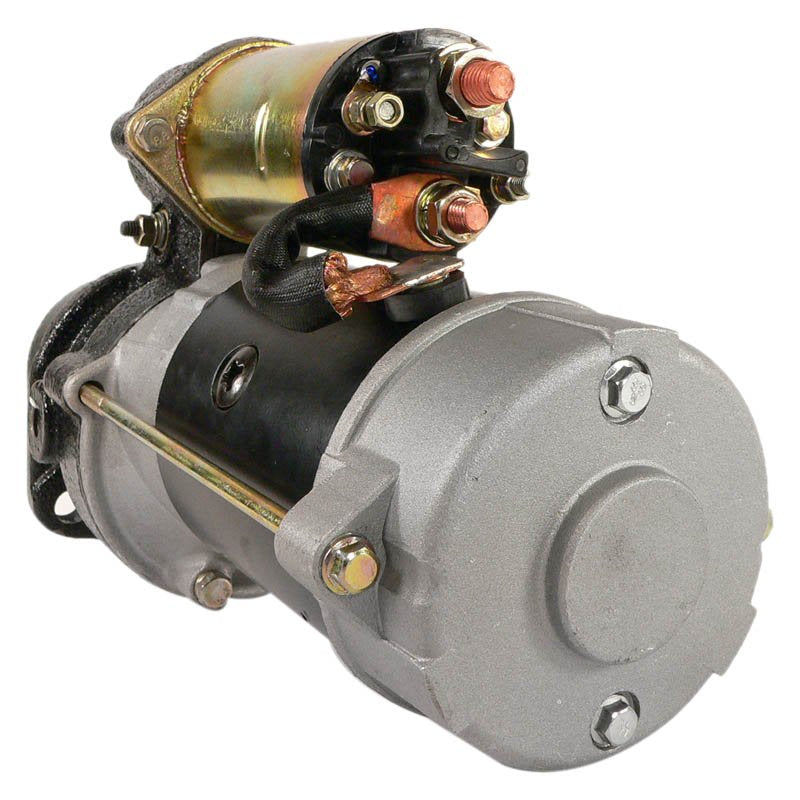

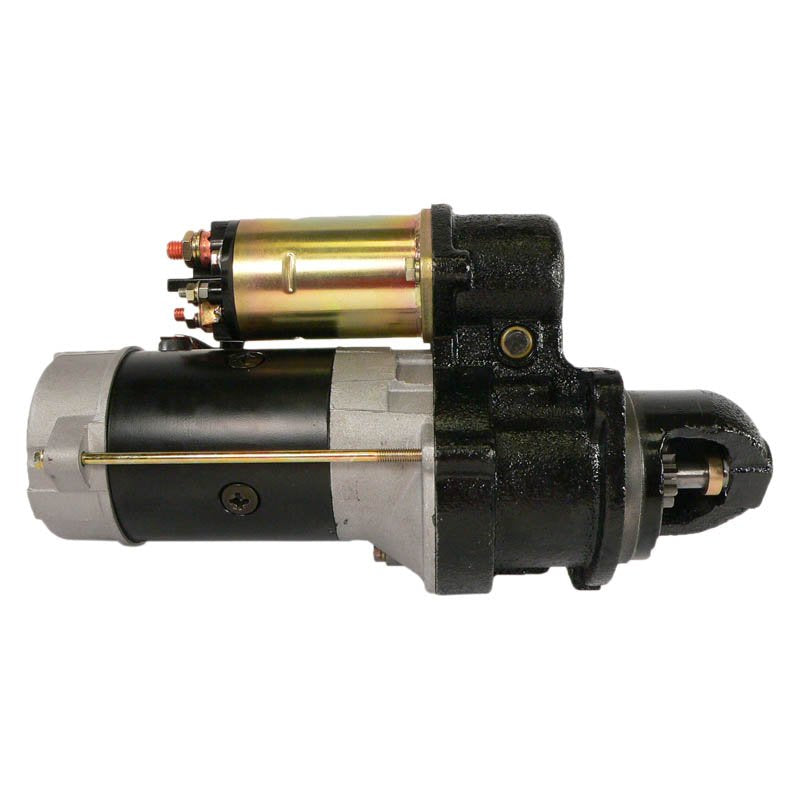

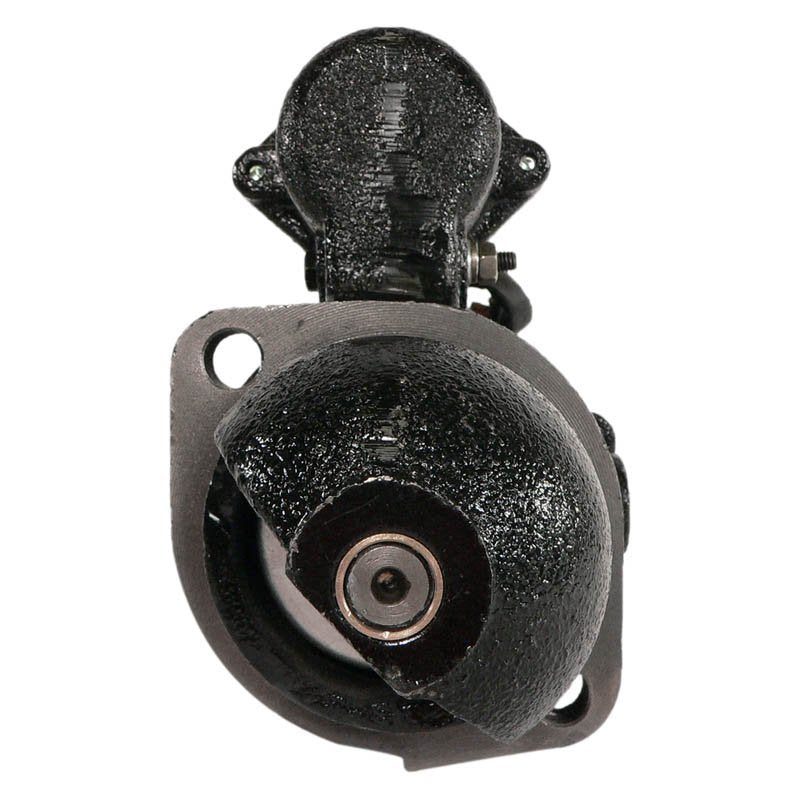

Delco 28MT Series OSGR Starter - 12V, 3kW, CW, 10-Tooth
This starter motor is a direct replacement in the Delco 28MT series, fitted across John Deere agricultural and industrial tractors, crawlers, lift trucks, skid steers and 4039/4045 marine engines. It is built to OEM specifications for fit and function and bolts straight into the existing mounting points.
It is a 12-volt unit with clockwise (CW) rotation, a 10-tooth drive gear and a 3kW (4.02HP) output. The OSGR (Offset Gear Reduction) design uses a 4-terminal switch and a dry clutch drive with a wet clutch seal, with a 31.8mm OD drive gear (drive part 509410) and two 12mm unthreaded mounting holes, so the existing wiring and flywheel housing can be reused without modification.
Key Features
- 12-Volt, 3kW output, Clockwise (CW) rotation
- 10-Tooth drive gear
- Delco 28MT family, OSGR (Offset Gear Reduction) design
- 4-Terminal switch, dry clutch with wet clutch seal
- Two 12mm unthreaded mounting holes, B mounting configuration
Technical Specs
| Specification | Detail |
|---|---|
| Voltage | 12V |
| Power Output | 3kW (4.02HP) |
| Rotation | CW |
| Teeth | 10 |
| Series / Family | Delco 28MT |
| Drive Type | OSGR (Offset Gear Reduction), Dry Clutch |
| Switch | 4-Terminal |
| Drive Gear OD | 31.8mm (1.252in) |
| Mounting | Configuration B, 2 holes, 12mm unthreaded |
| Weight | 10.01kg |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| John Deere 6100 Agricultural Tractor (4-239 Diesel) | 1992-1996 |
| John Deere 450E Crawler (4-219 Diesel) | 1986-1992 |
| John Deere 455E Crawler | 1982-1990 |
| John Deere 4039DFM Marine Engine (3.9L) | All years |
| John Deere 4045DFM50 / 4045TFM Marine Engines (4.5L) | All years |
| John Deere 4045DFM70 / 4045TFM75 Marine Engines (4.5L) | 2004-2007 |
| John Deere 482C Lift Truck | 1986-1997 |
| John Deere JD380 / JD480 / JD480A Lift Trucks (JD135G Gas, JD152D Diesel) | 1972-1982 |
| John Deere JD480B Lift Truck (JD135G Gas, JD152D Diesel) | 1974-1981 |
| John Deere JD480C Lift Truck (Diesel) | 1981-1986 |
| John Deere 8875 Skid Steer Loader (61HP Turbo Diesel) | 1994-1998 |
| John Deere 400G Industrial Tractor (4039D Diesel) | 1988-2005 |
| John Deere 2640 Utility Tractor (276 Diesel) | 1976-1982 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| SE501400 | John Deere |
| RE62916 | John Deere |
| TY24305 | John Deere |
| 10461471 | Delco |
| 10479628 | Delco |
Frequently Asked Questions
Will this starter motor fit without modification?
Yes, this is a direct OEM-fit replacement built to the original Delco 28MT specification, so no modification is required for installation - the 4-terminal switch, 12mm mounting holes and 31.8mm drive gear match the original layout.
What's included?
You will receive one complete starter motor unit, ready to fit. Your existing wiring loom connects directly to the 4-terminal switch.
How can I tell my old starter motor has failed?
Common signs include a clicking noise when starting, a slow or labouring crank, smoke or a burning smell from the starter, or no response at all when the key is turned.
What does OSGR mean?
OSGR stands for Offset Gear Reduction - a starter design that uses reduction gearing to increase torque from a smaller, lighter motor, which is why the drive gear tooth count and OD matter when confirming fitment.
My machine isn't listed - will this still fit?
Check the number on your existing starter against SE501400, RE62916, TY24305, 10461471 or 10479628 in the table above. The 28MT was used very widely, so a matching number is the most reliable confirmation.
