Starter Motor Arctic Cat 550 650 700 Prowler Thundercat 0825-011 0825-013 18882
Starter Motor Arctic Cat 550 650 700 Prowler Thundercat 0825-011 0825-013 18882
SKU:410-22038
Free shipping over £150. Terms apply
Couldn't load pickup availability

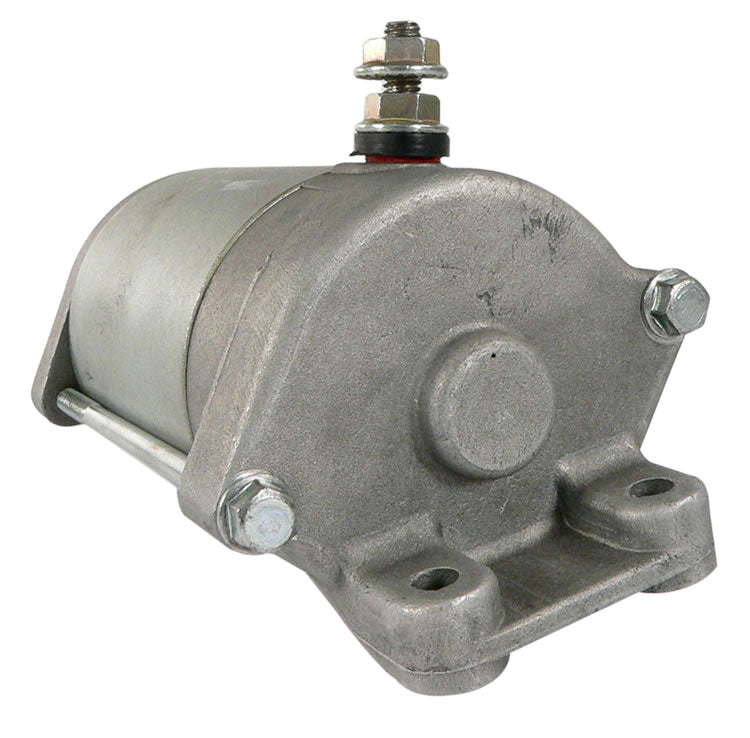

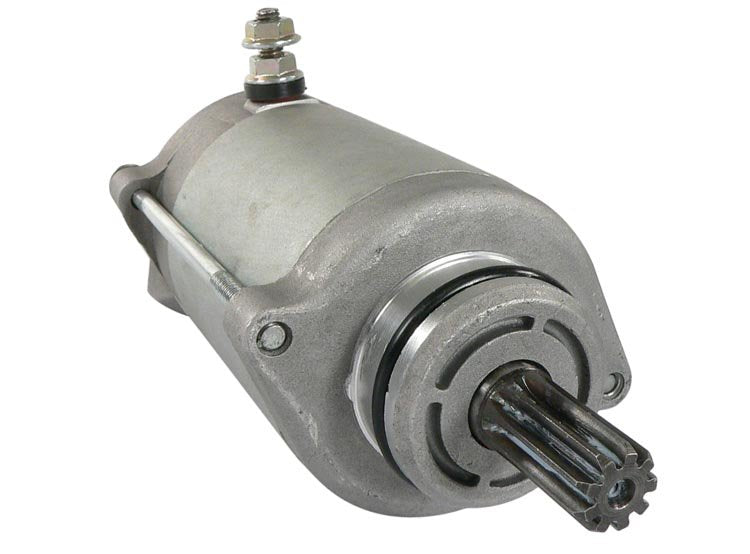

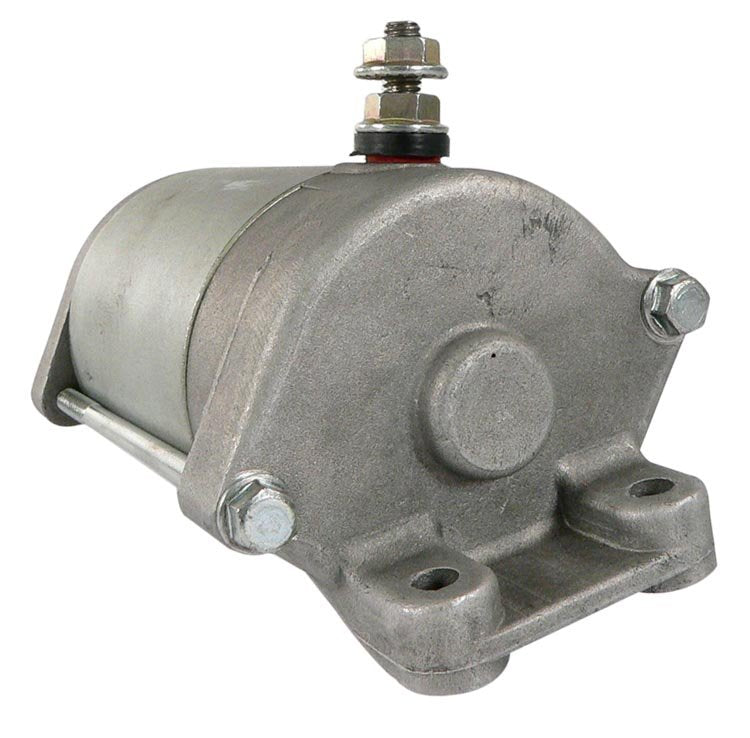

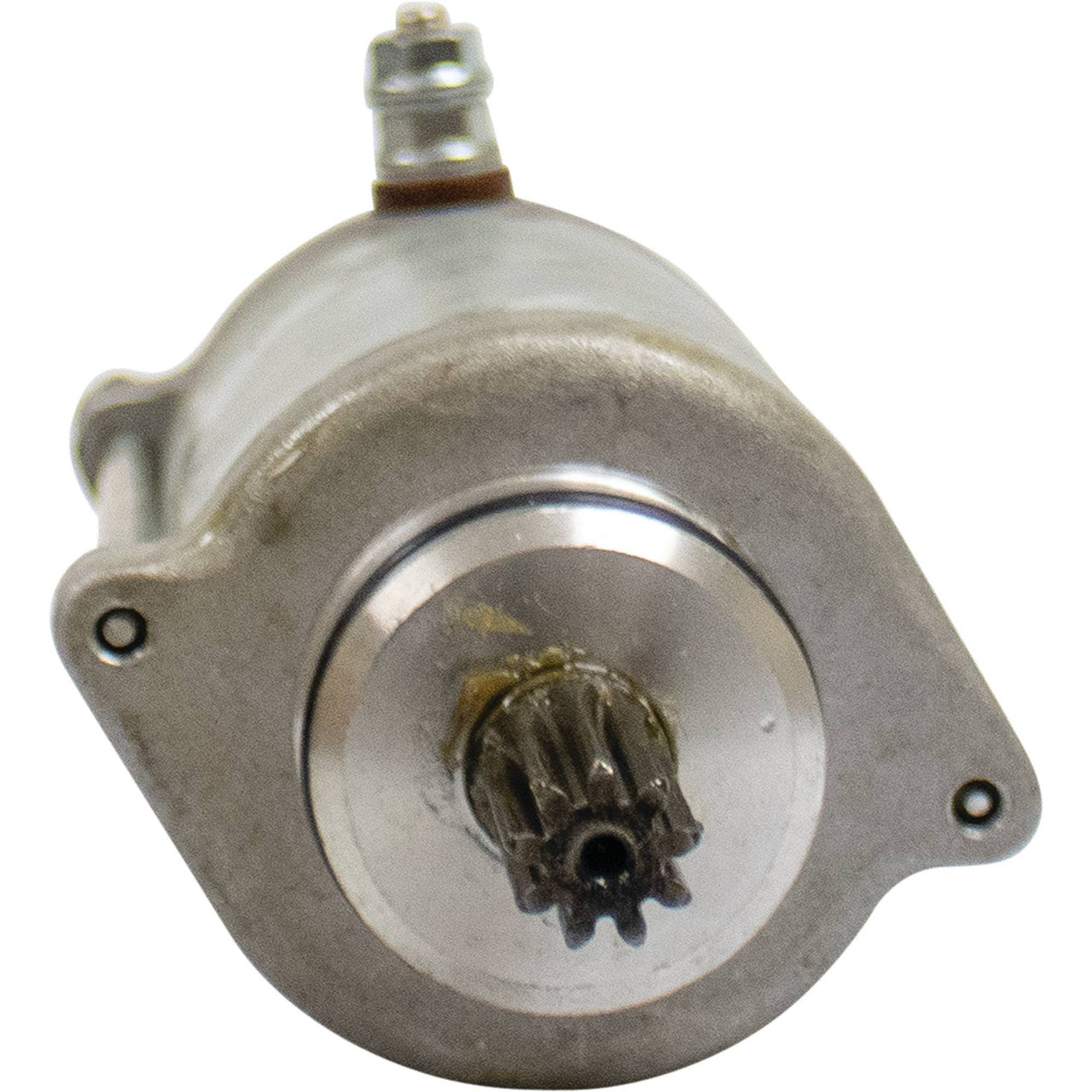

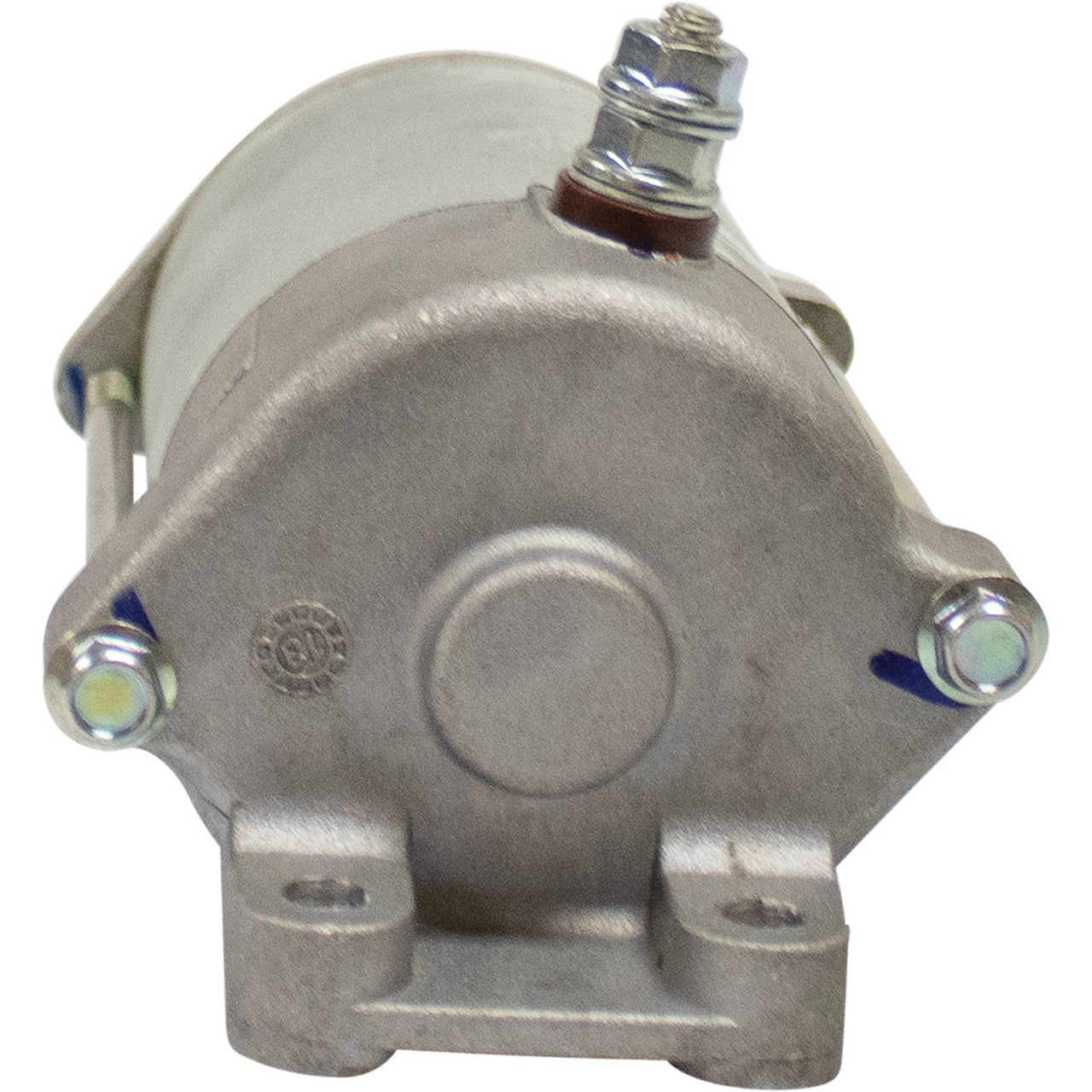

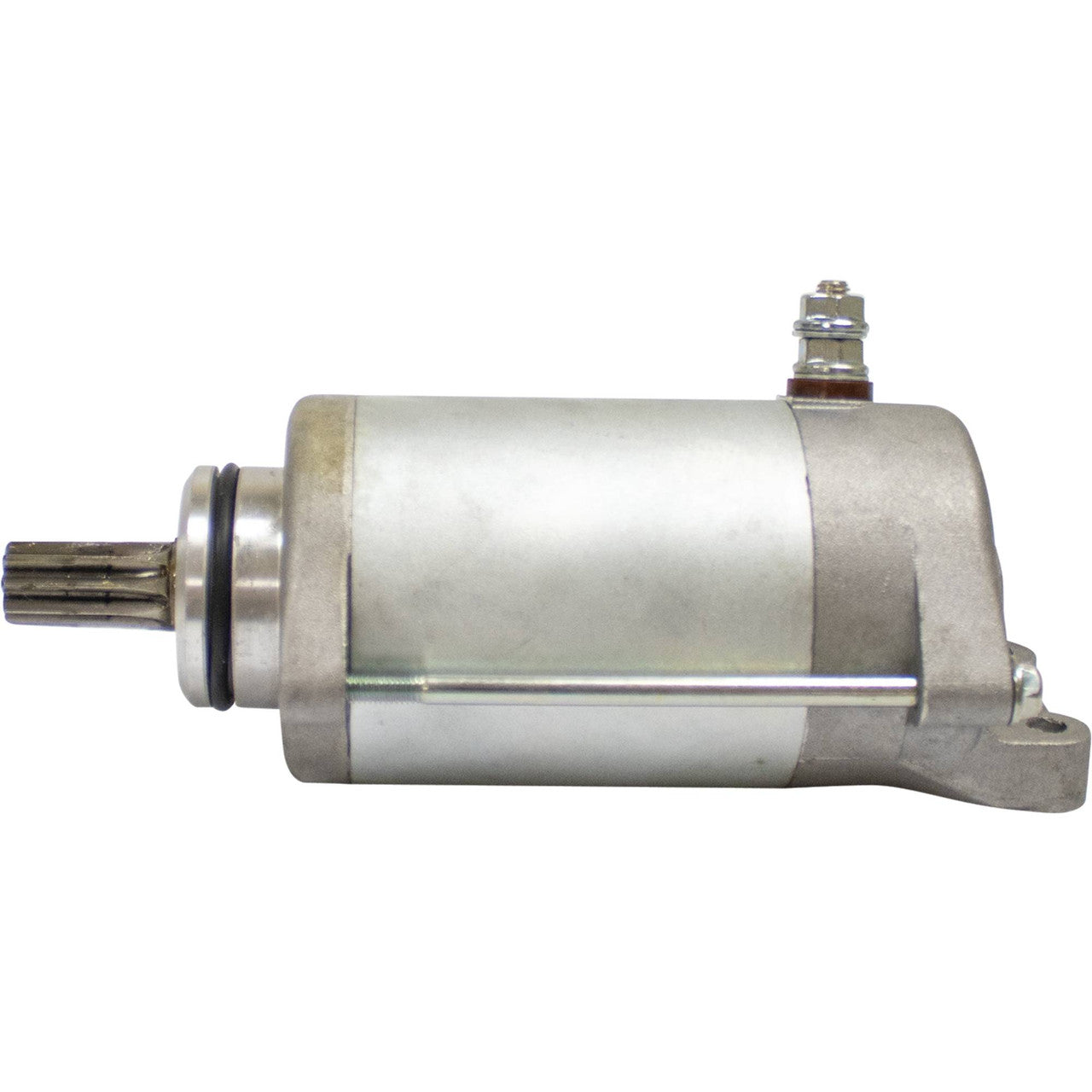

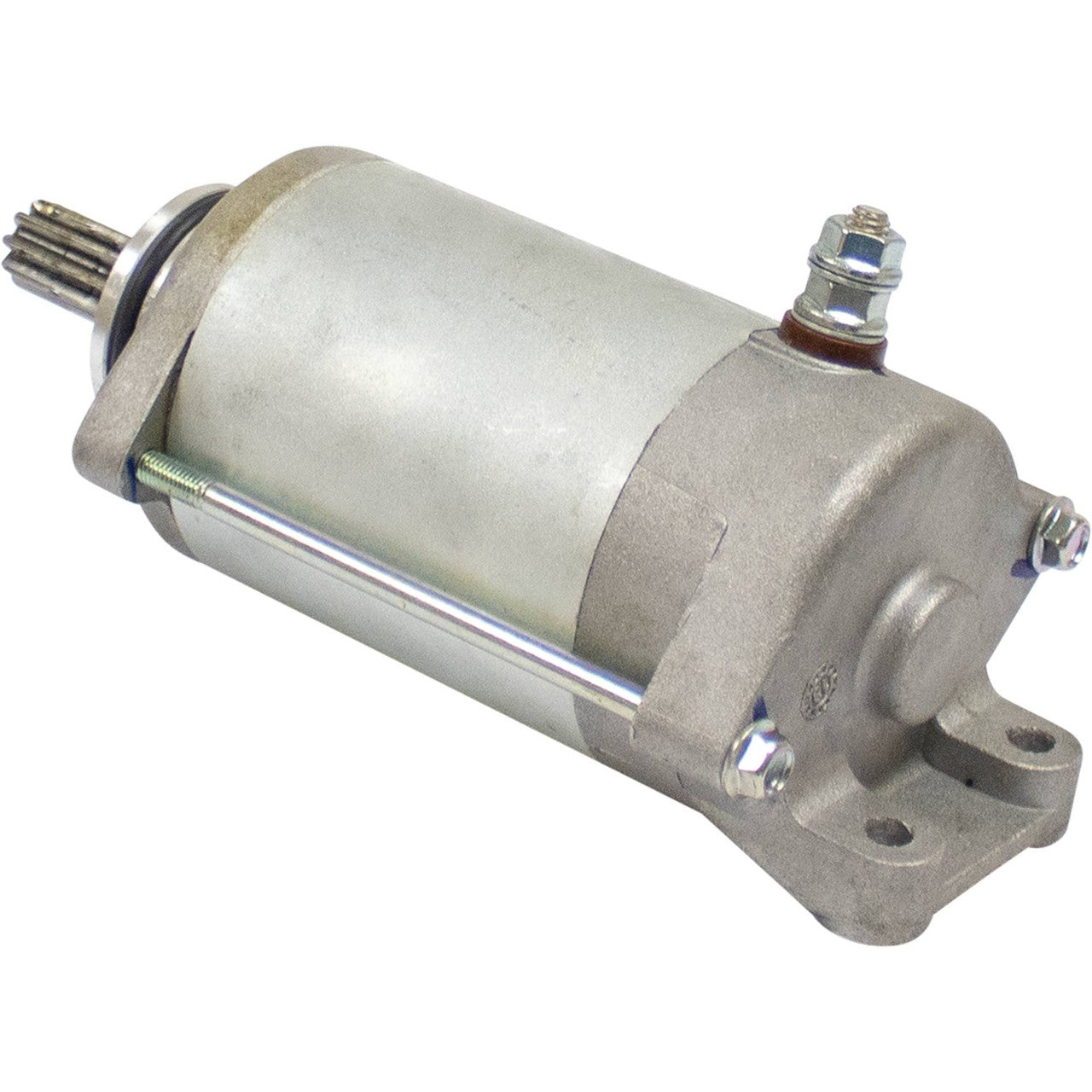

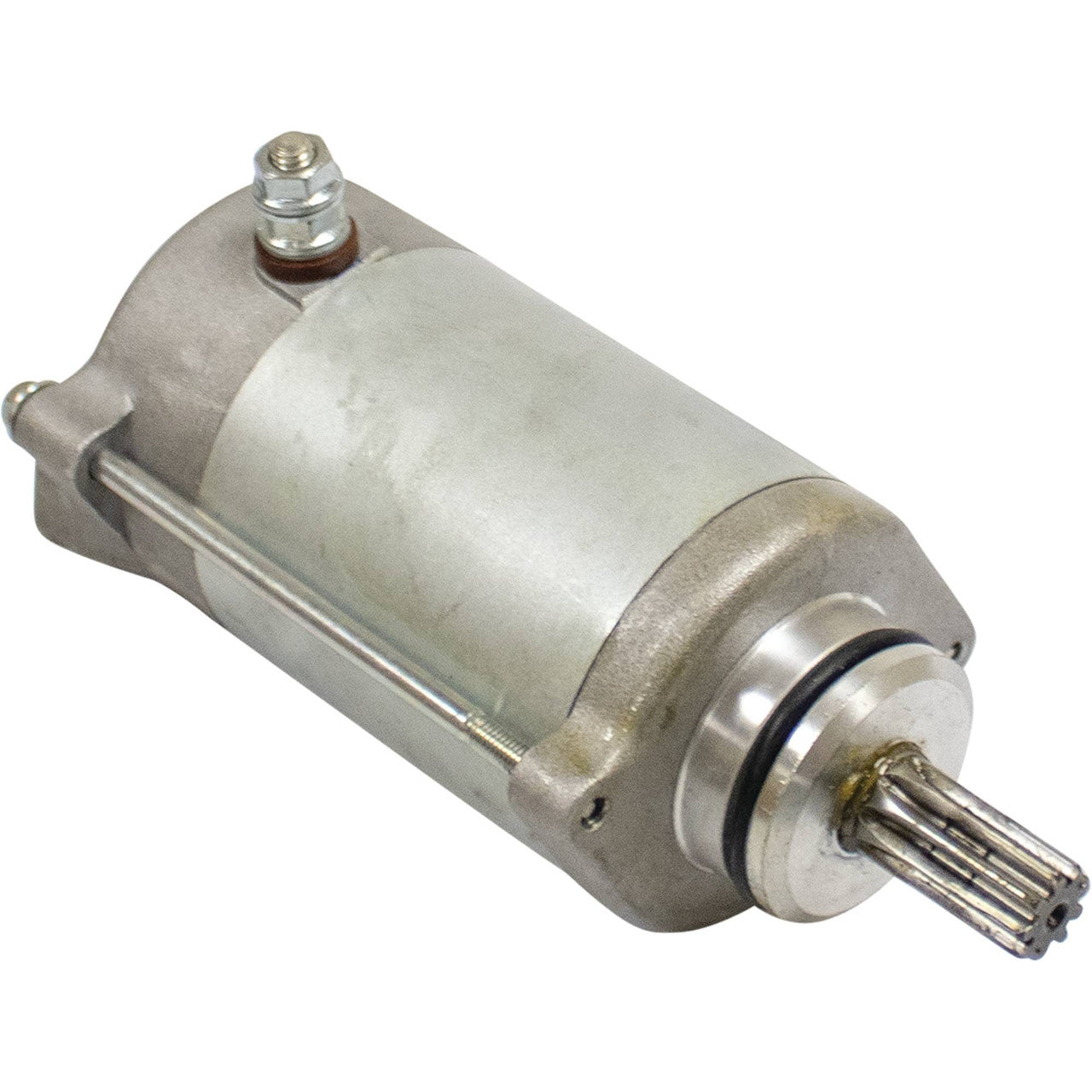

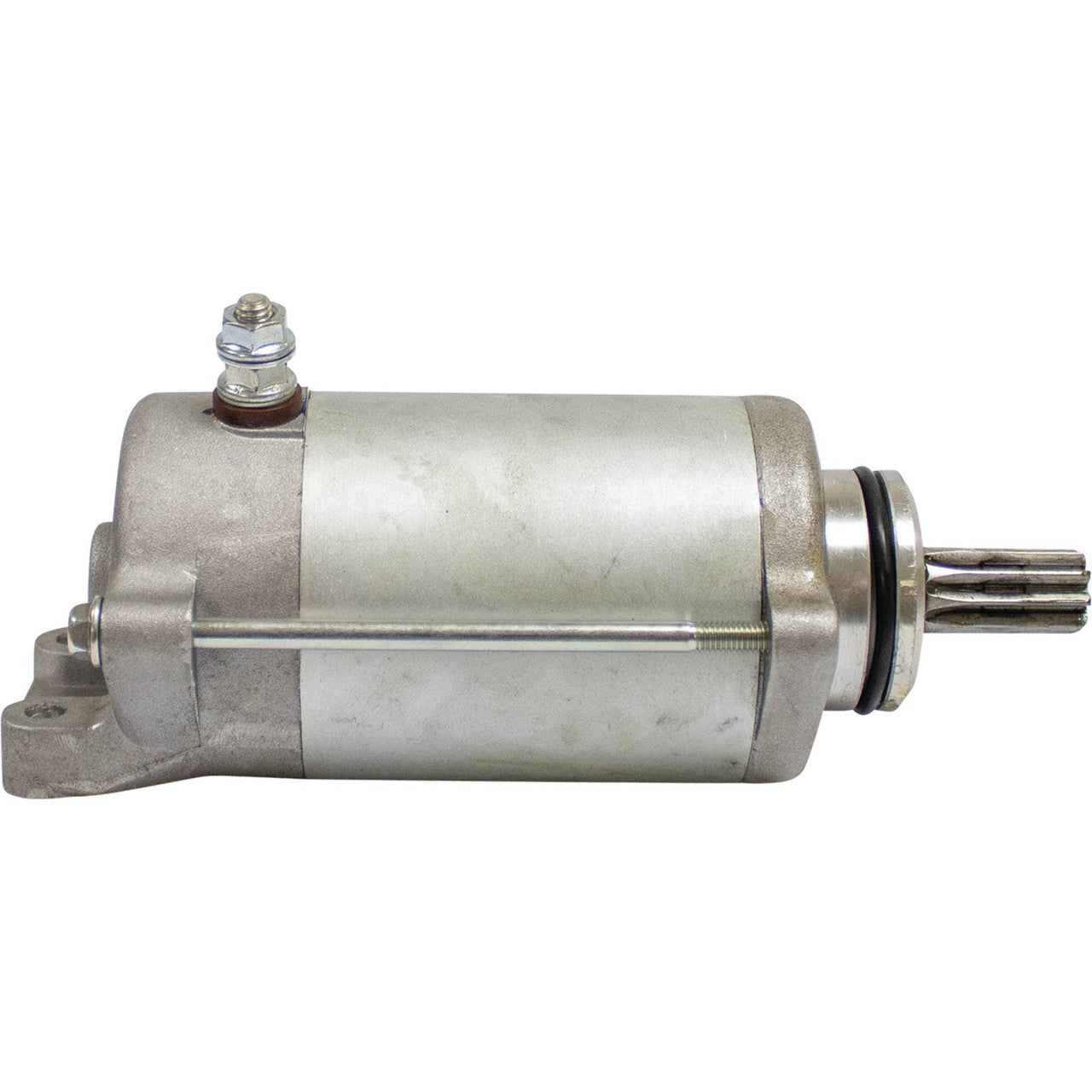

Starter Motor 410-22038 for Arctic Cat
Premium Quality Replacement Part for ATV & UTV
This 4Drive / Aftermarket starter motor is precision-engineered to provide fast, efficient engine starts for your Arctic Cat ATV or UTV. Designed as a direct-fit replacement, it features high-quality magnets and field coils that deliver superior torque compared to standard aftermarket units. The sealed housing construction ensures that internal components remain protected from moisture and trail debris, significantly extending the service life of the unit.
Key Features
- ✔ Direct fit replacement - no modifications needed
- ✔ 14.3mm (0.56in) Gear Outer Diameter
- ✔ High-torque PMDD design
- ✔ Sealed housings to block performance-robbing residue
- ✔ Precision 9-tooth drive gear
Technical Specs
| Voltage | 12V |
| Rotation | CW (Clockwise) |
| Teeth | 9 |
| Type | PMDD |
| Torque | 2.5 Nm |
| Shaft O.D. | 14mm |
Compatibility / Fitment Guide
| Make | Model/Application | Years |
|---|---|---|
| Arctic Cat ATV | 550 / 550i / H1 / S H1 / LTD / GT / XT / XR | 2009-2015 |
| Arctic Cat ATV | 650 H1 4x4 Auto / FIS / TRV / TBX / Mud Pro | 2008-2011 |
| Arctic Cat ATV | 700 H1 4x4 Auto / FIS / LE / M4 / TBX / Mud Pro | 2008-2011 |
| Arctic Cat ATV | 700 / 700i / XT / GT / LTD / Mud Pro / TBX | 2012-2017 |
| Arctic Cat ATV | Alterra 700 / XT / Mud Pro / LTD / TBX | 2016-2018 |
| Arctic Cat ATV | Thundercat 1000 4x4 Auto / TRV 1000 Cruiser | 2008-2009 |
| Arctic Cat UTV | Prowler 550 4x4 / XT / 650 H1 / XT | 2008-2015 |
| Arctic Cat UTV | Prowler 700 / HDX / XTX / XT / SE / Crew | 2008-2017 |
NOTE: Does NOT fit VLX 700 models. Fits 14mm shaft versions only. Please verify your original shaft size before ordering.
OEM Cross Reference
| Arctic Cat | 0825-011, 0825-013, 0825-024 |
| Mitsuba | SM64 |
| Lester | 18882 |
| J&N | 410-22038 |
| Arrowhead | SMU0433 |
Questions & Answers
Is this a genuine original part?
This is a premium quality aftermarket replacement part, manufactured to meet or exceed original equipment (OE) standards for fitment and performance.
How do I know if it is compatible?
We recommend checking the SKU/MPN and Cross Reference list provided above. If your original part number matches any of these, it is a guaranteed fit.
Why are there two shaft sizes for these models?
Arctic Cat used two different shaft configurations (12mm and 14mm) across their engine range. This specific unit is the 14mm version (410-22038). If your engine requires a 12mm shaft, this unit will not be compatible.
Note: Please verify your original part number against the references above before purchasing. All technical data is verified for 4drive.co.uk.
