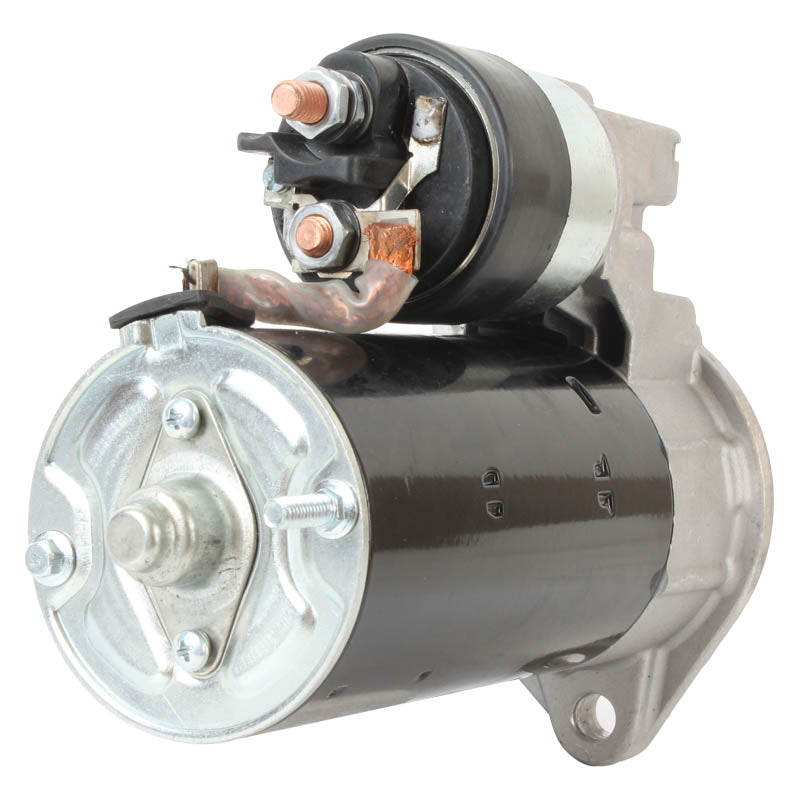

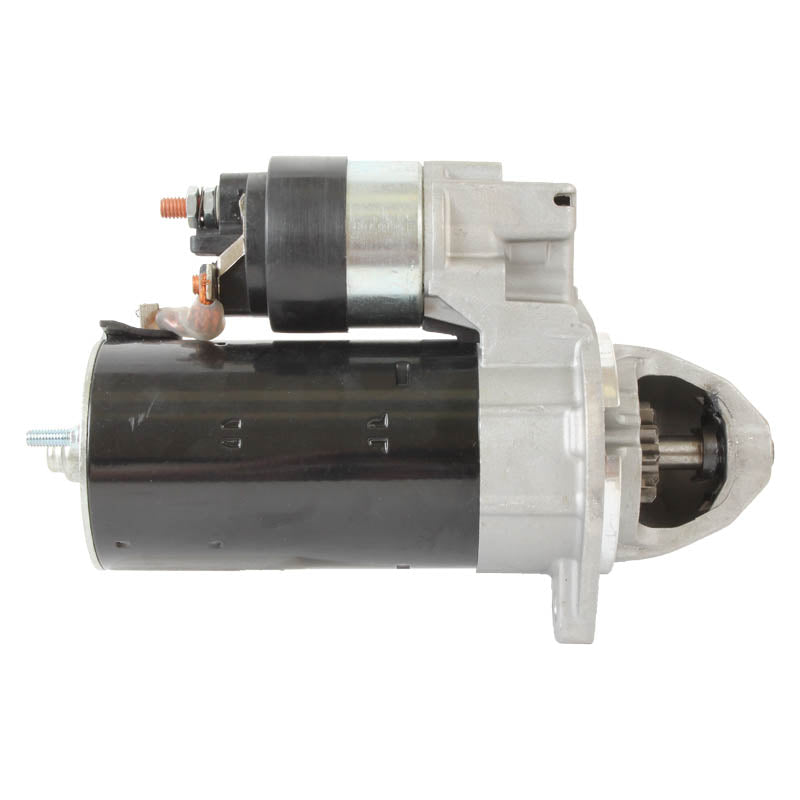

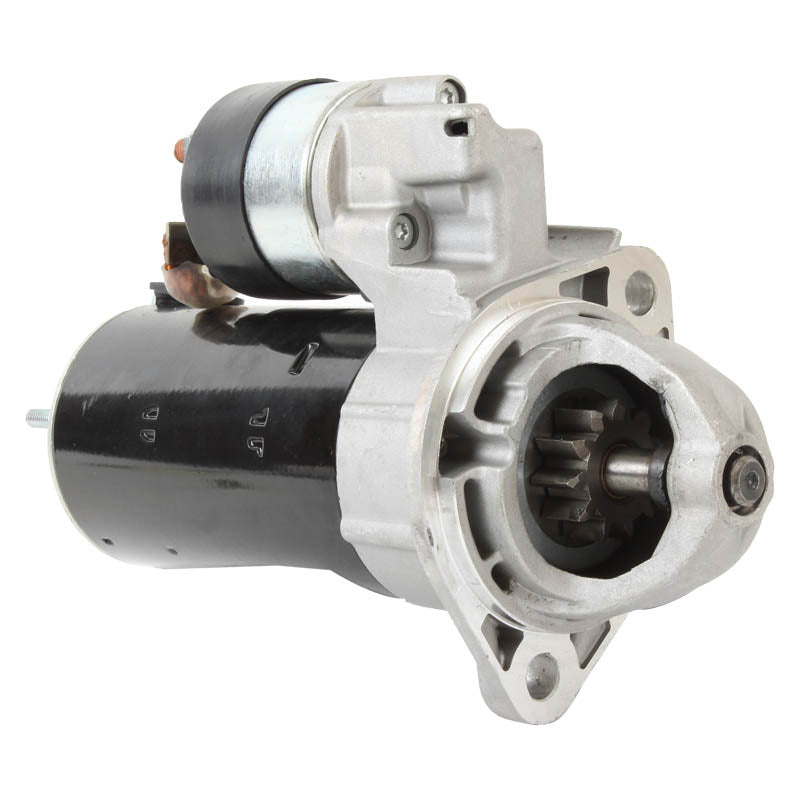

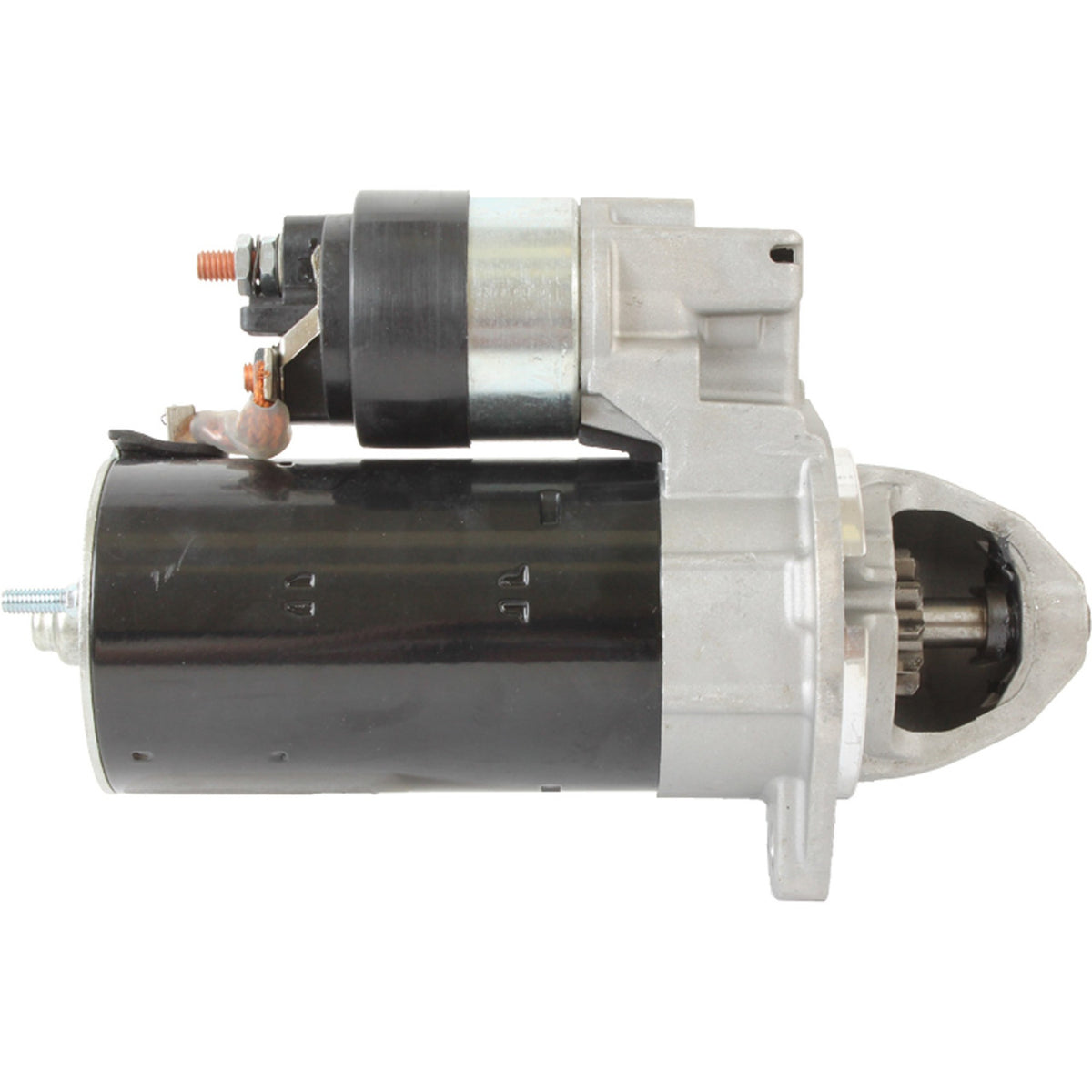

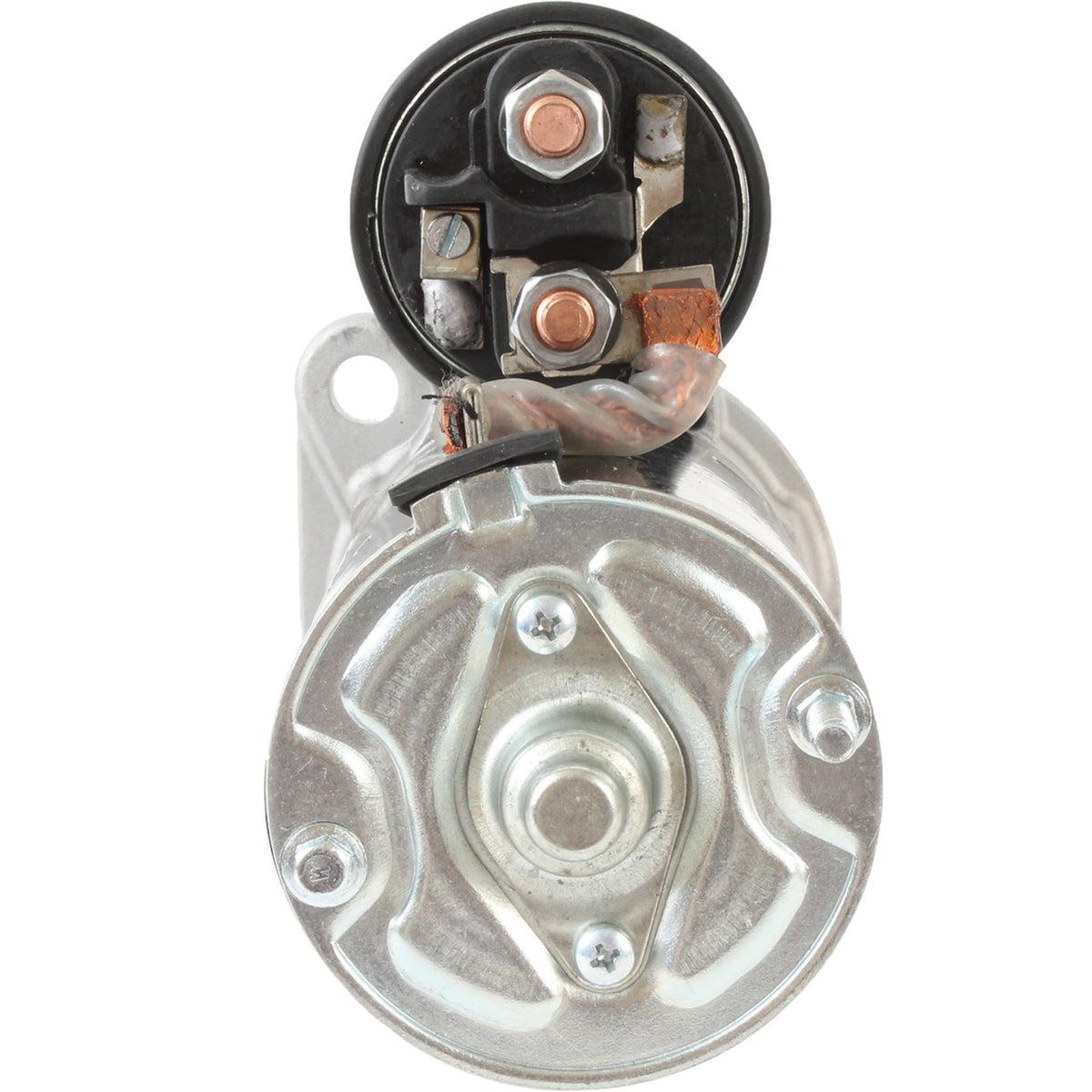

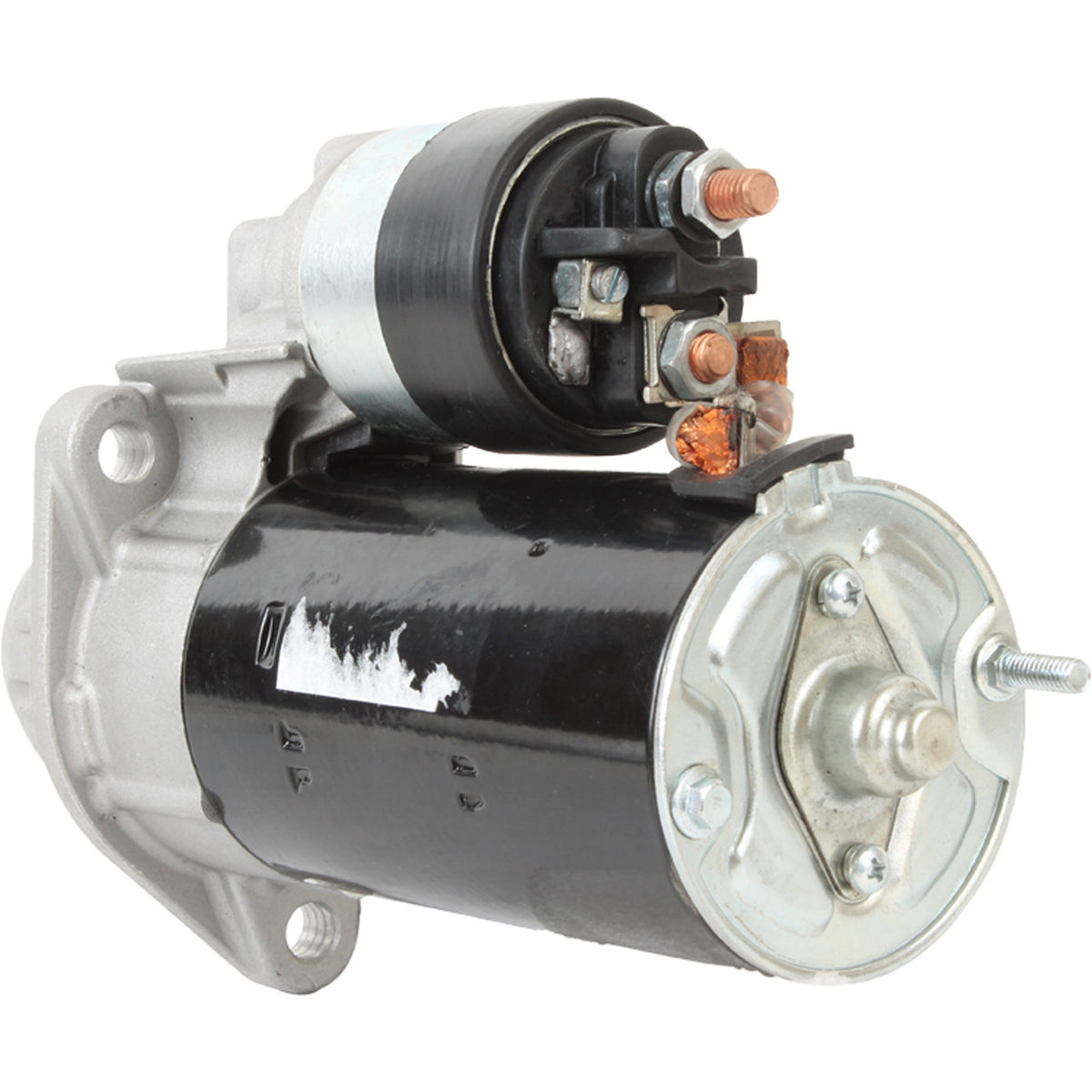

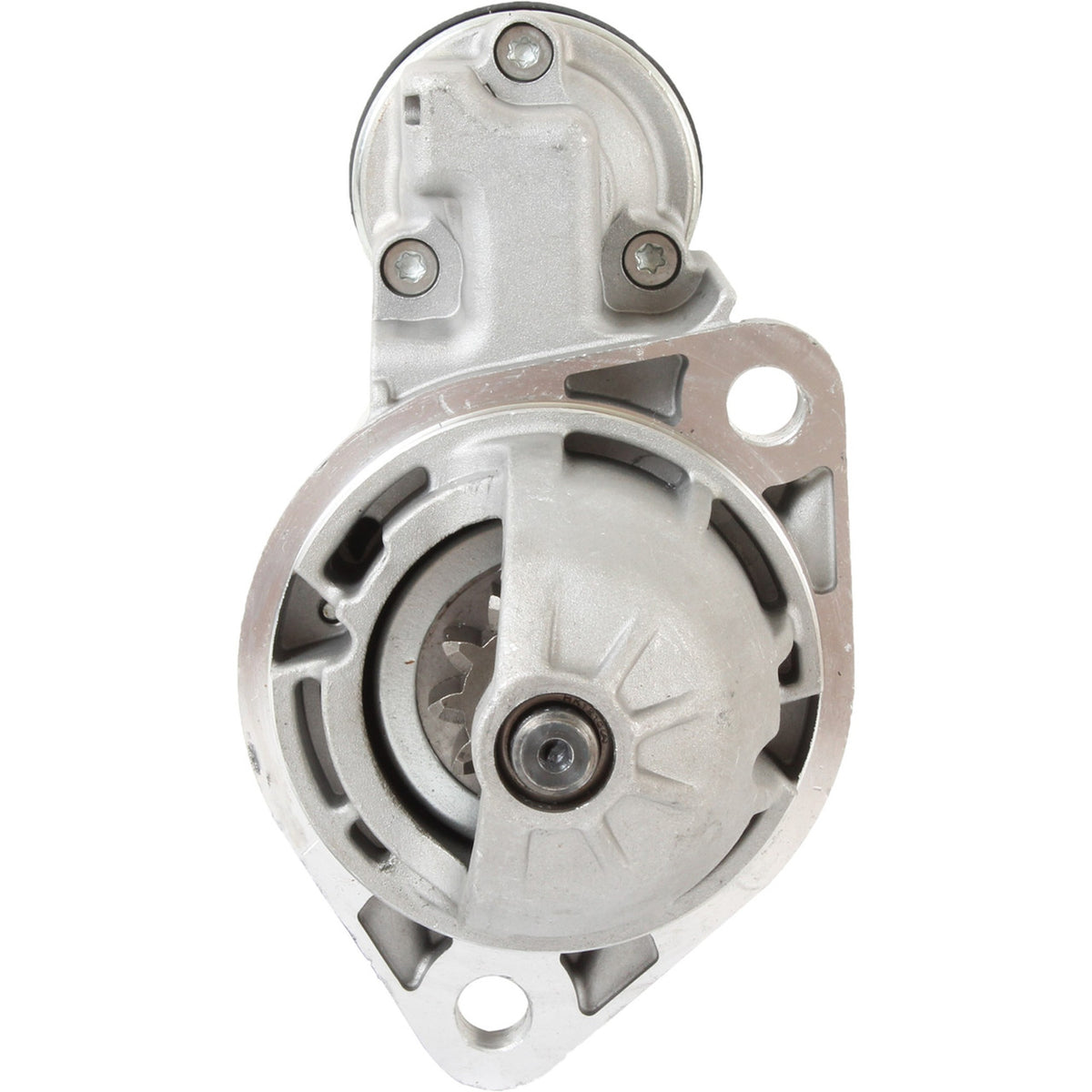

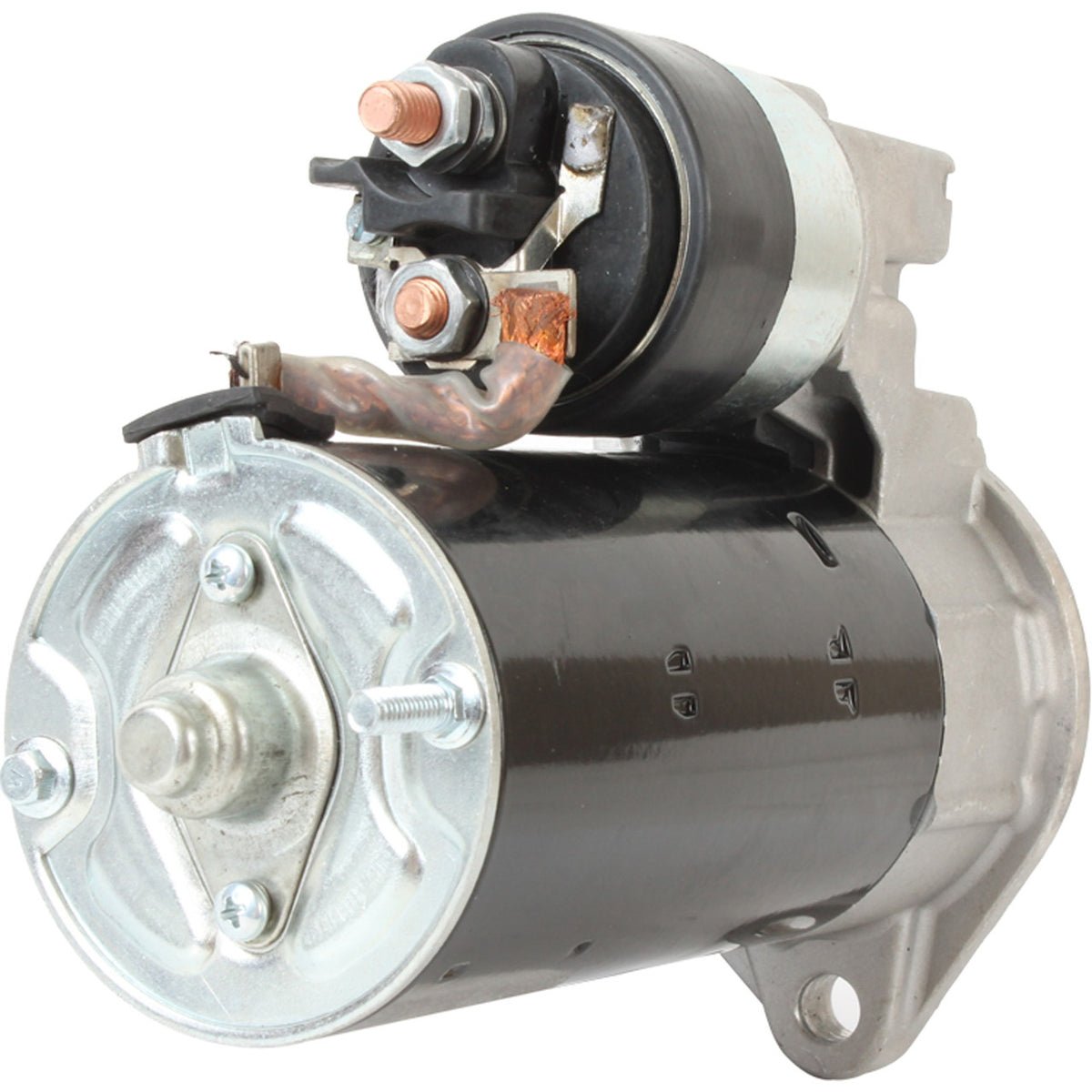

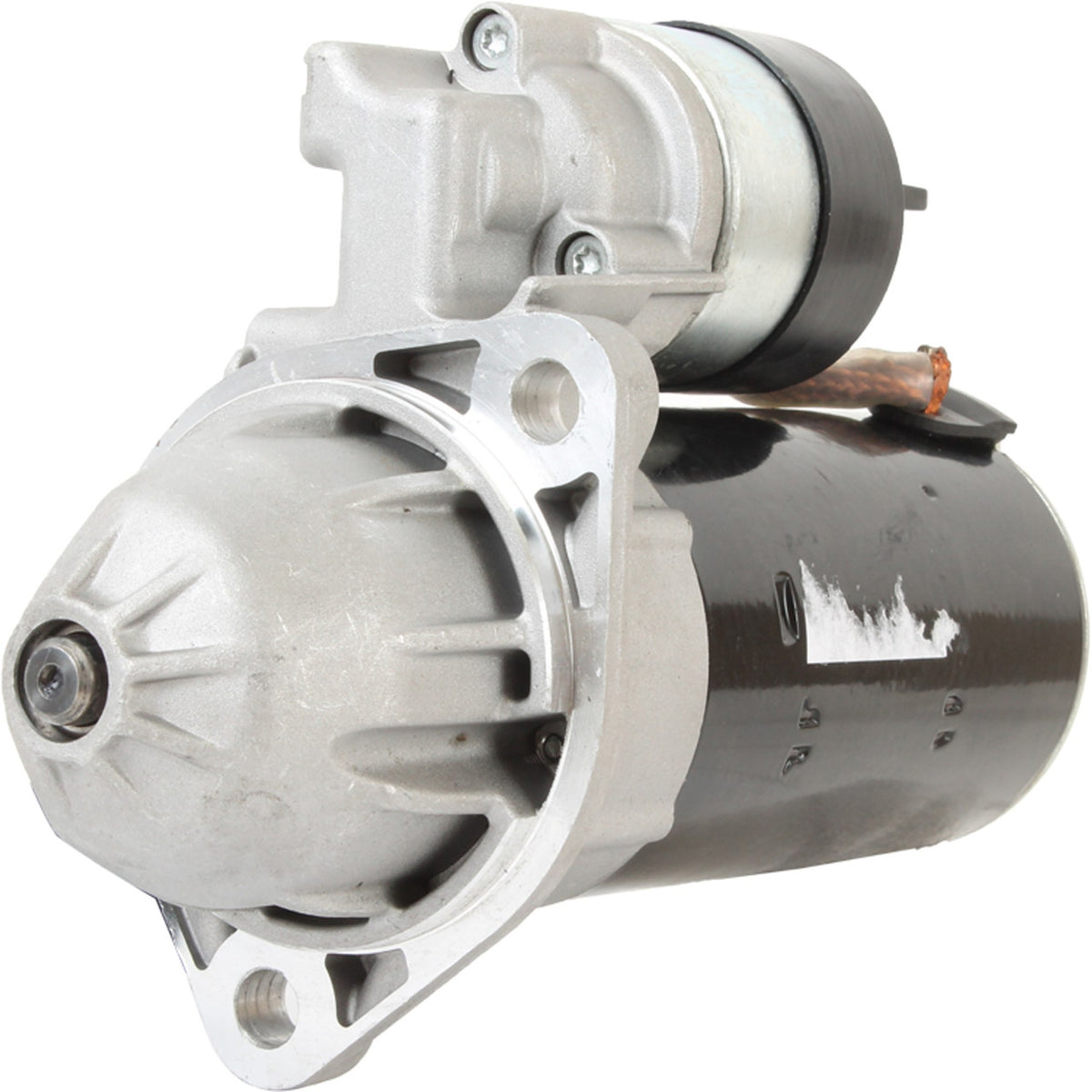

Deutz / KHD Starter Motor 12V 11-Tooth PMGR
Clockwise rotation | Permanent magnet gear reduction | Bosch 0-001-109-370 replacement
A new 12-volt, 11-tooth PMGR starter motor for Deutz and KHD diesel engines, built as a direct replacement for the Bosch 0-001-109-370 unit.
PMGR (permanent magnet gear reduction) design gives higher cranking torque from a lighter, more compact body than the older direct-drive starters, which matters on Deutz air-cooled diesels where engine bay space and heat are both tight.
Key Features
- 100% new aftermarket unit - not a remanufactured core
- PMGR design - more cranking torque from a lighter body
- 12 volts, 11-tooth pinion, clockwise rotation
- Direct replacement for Bosch 0-001-109-370 / Deutz 2934613
- Suits Deutz, KHD and JLG / Gradall applications
- Dispatched from the UK with technical fitment support
Technical Specs
| Specification | Detail |
|---|---|
| SKU / Part Code | 410-24114 |
| Component | Starter Motor |
| Voltage | 12 Volts |
| Tooth Count | 11 Teeth |
| Rotation | CW (clockwise) |
| Motor Type | PMGR - permanent magnet gear reduction |
| Condition | New aftermarket |
| Original Equipment Type | Bosch |
| Warranty | 12 months |
Application / Fitment Guide
| Engine / Equipment Make | Application |
|---|---|
| Deutz | Diesel engines using the Bosch PMGR starter - OE ref 2934613 |
| KHD (Klöckner-Humboldt-Deutz) | Industrial diesels - OE ref 293-4613 |
| JLG / Gradall Industries | Access and material handling equipment - OE ref 7040608 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 0-001-109-370 | Bosch |
| 1109370 | Bosch |
| 2934613 | Deutz |
| 293-4613 | KHD |
| 7040608 | JLG / Gradall Industries |
| B0001109370 | Arrowhead |
| SBO0278 | Arrowhead |
| 19156 | Lester |
| IS1072 | Mahle |
| 120-6414 | Pic Picture ID |
Frequently Asked Questions
What does PMGR mean?
Permanent Magnet Gear Reduction. Permanent magnets replace the heavy field coils and an internal reduction gearset multiplies torque, so the starter is lighter and more compact than an equivalent direct-drive unit while cranking harder.
How do I check rotation and tooth count?
This unit is clockwise (CW) with an 11-tooth pinion, viewed from the drive end. Both must match your original - the wrong rotation or tooth count will not engage the ring gear correctly.
Will it fit any Deutz engine?
Only those originally fitted with the Bosch 0-001-109-370 PMGR starter. Deutz used several starter designs across its range, so match the number on your existing unit against the table above.
Is the solenoid included?
Yes - it is supplied as a complete assembly with the solenoid fitted.
