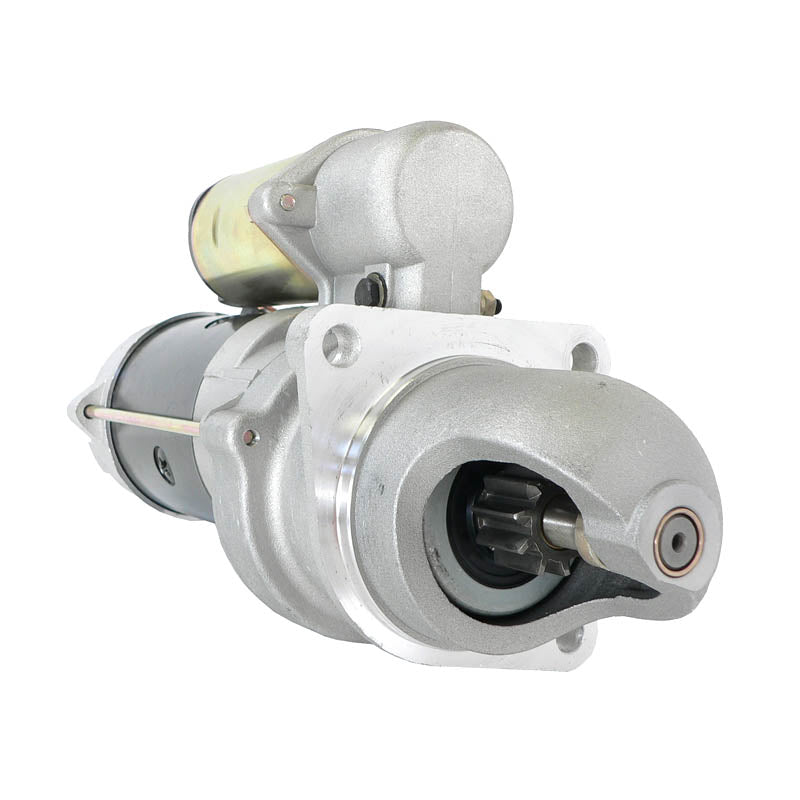

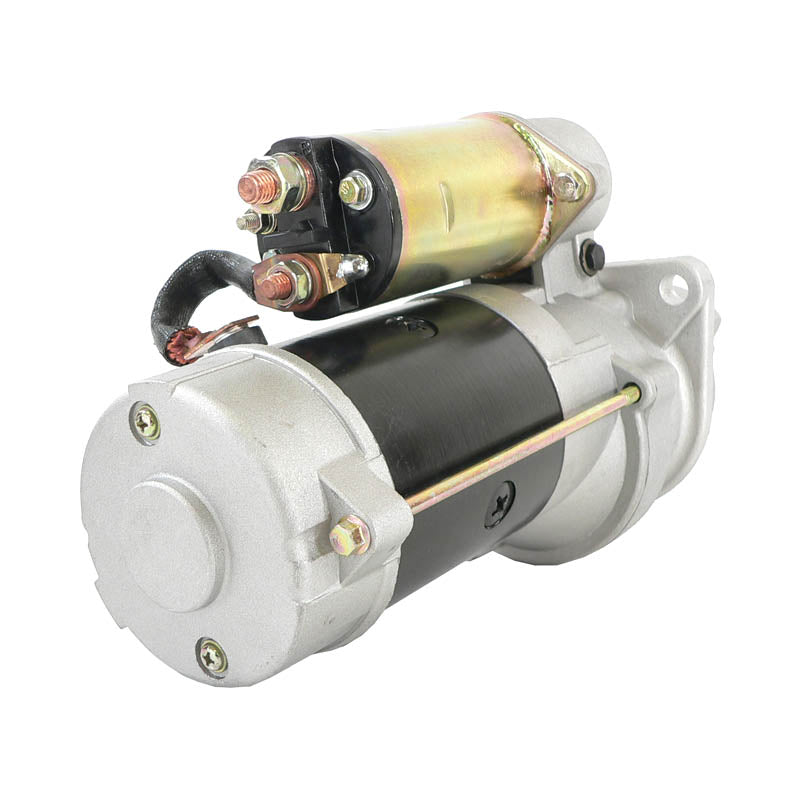

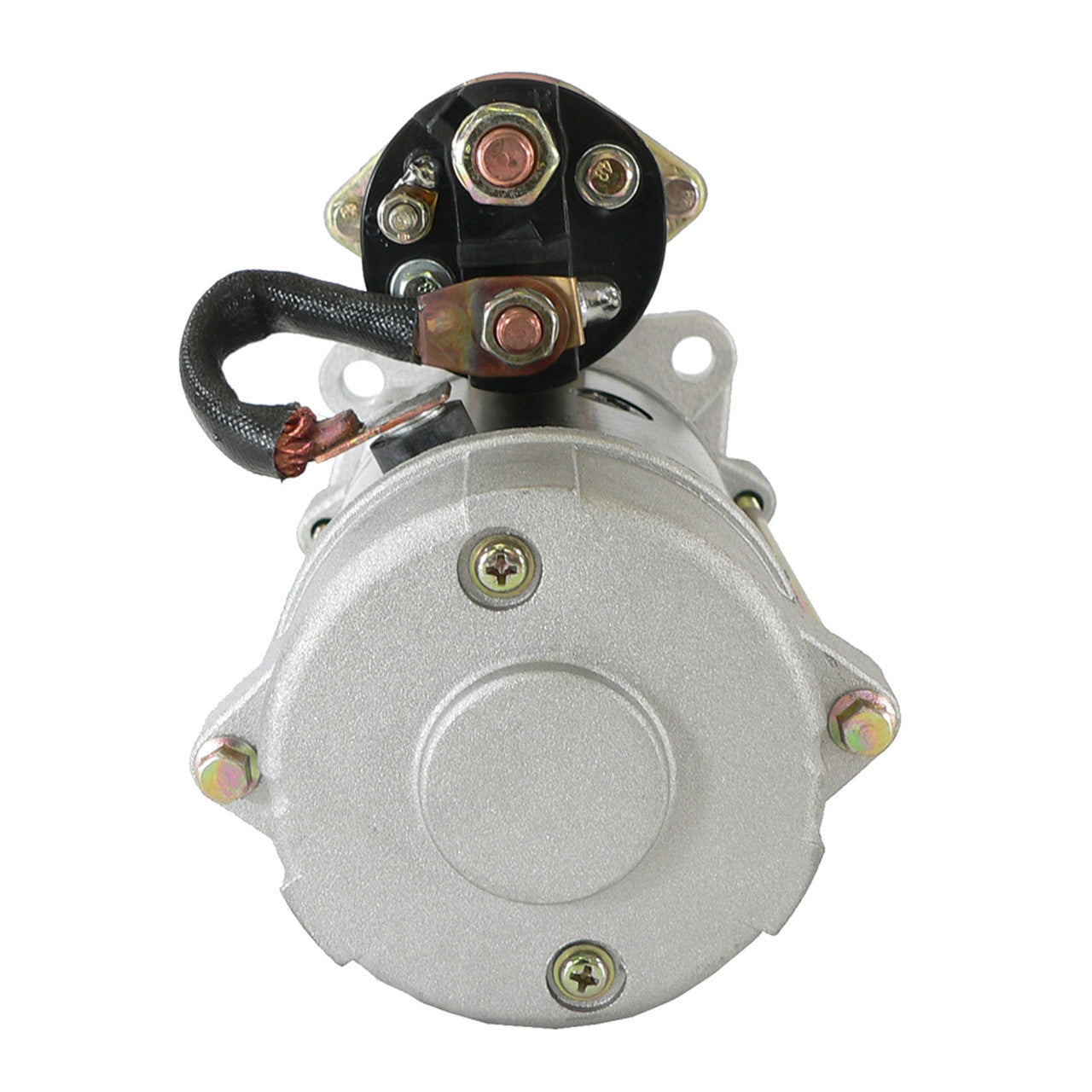

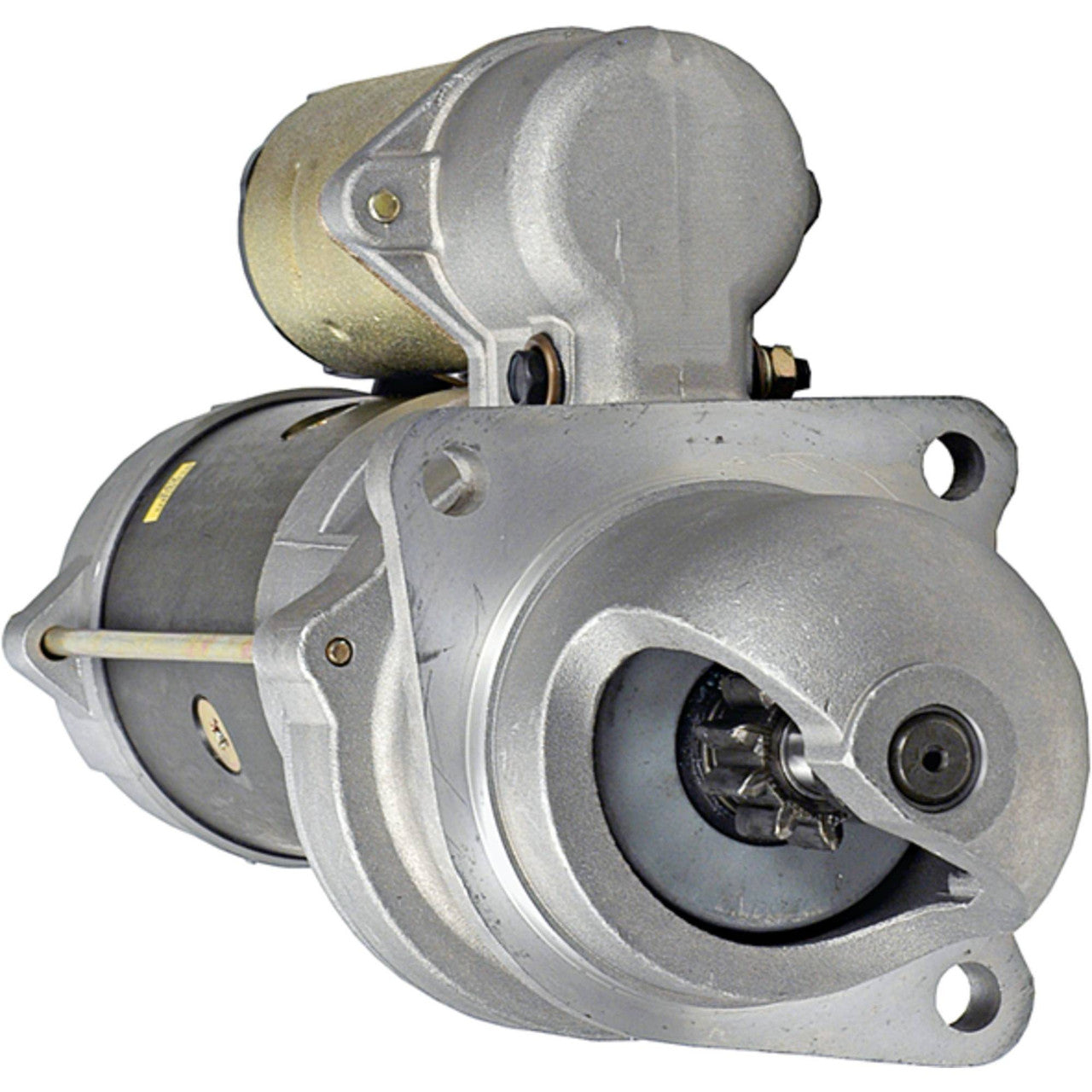

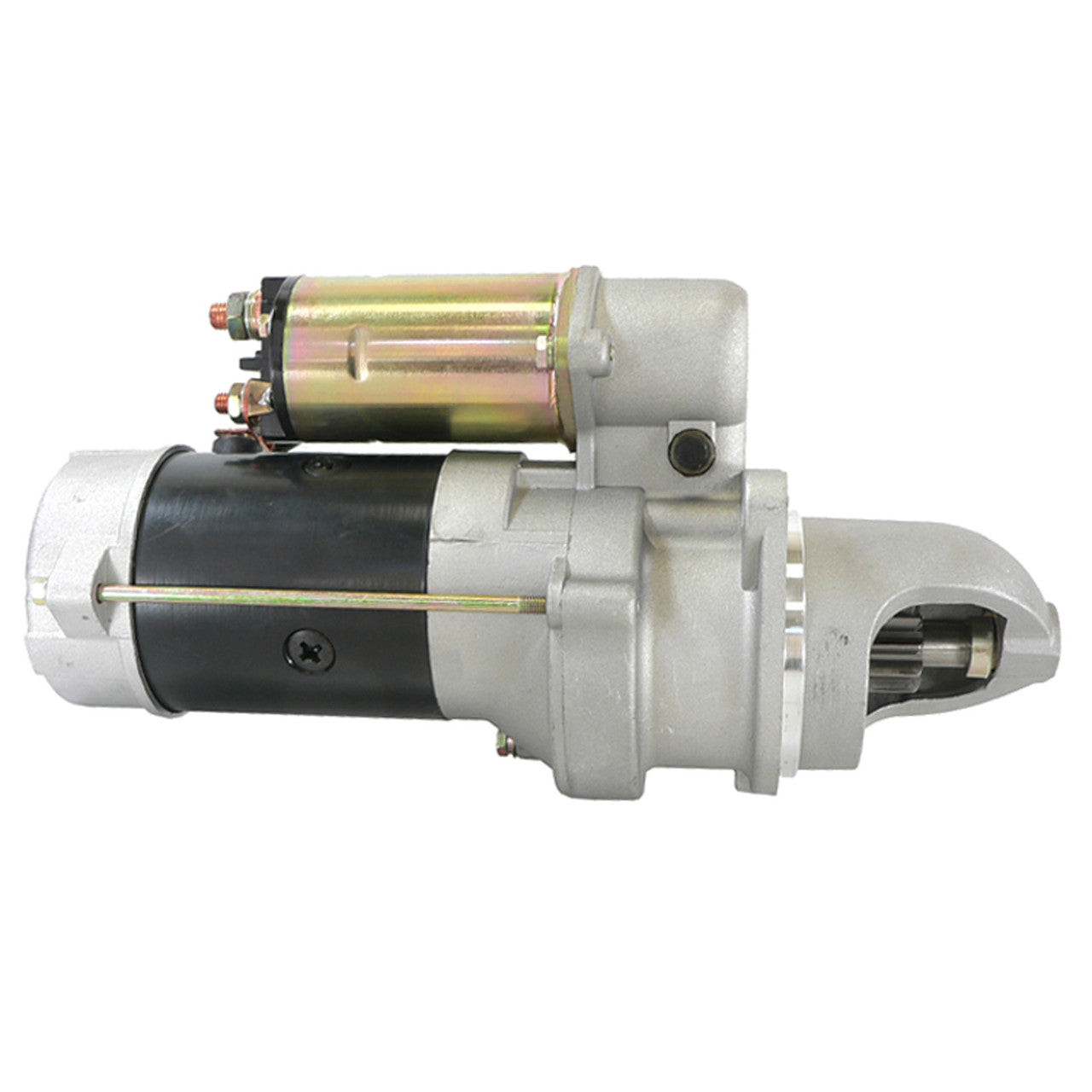

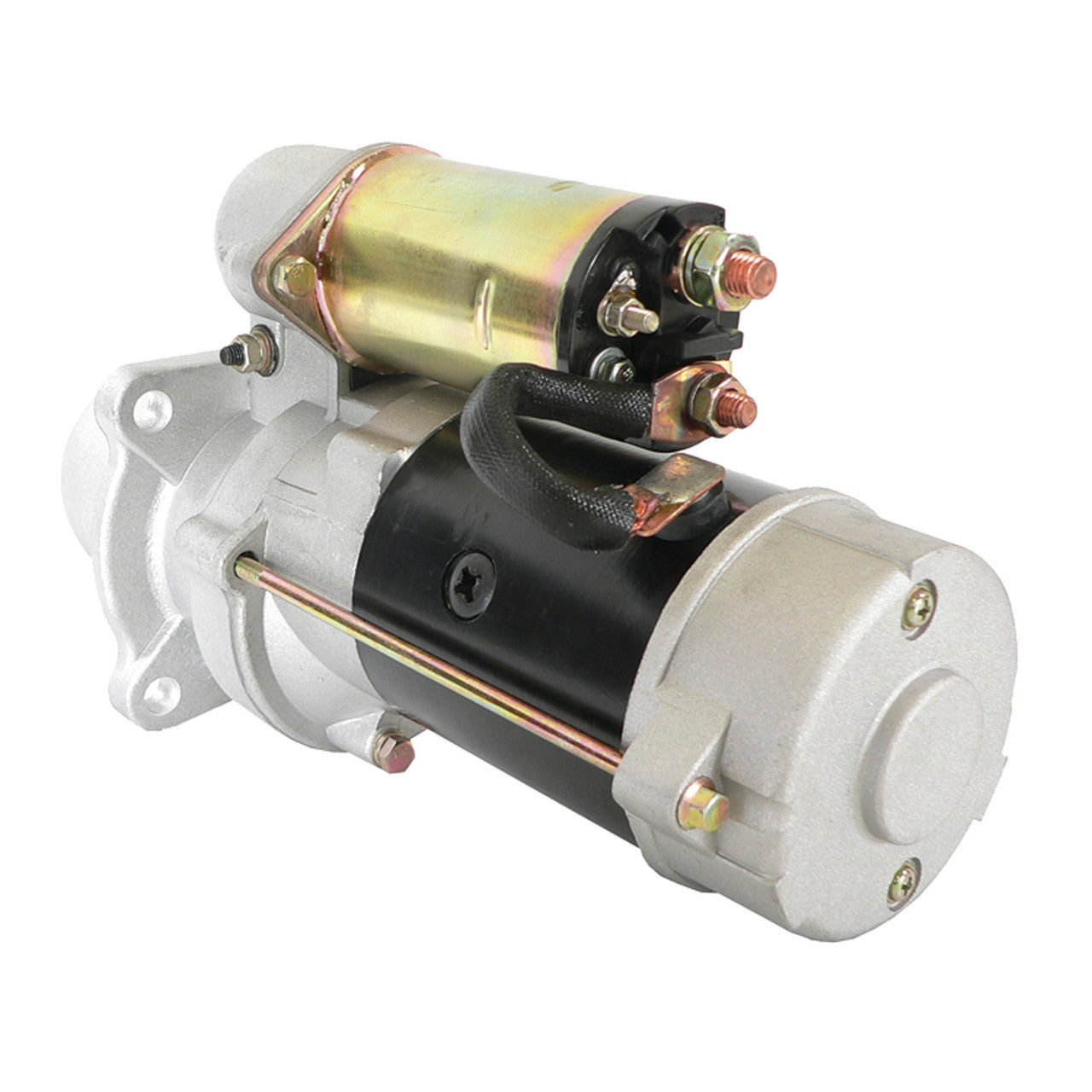

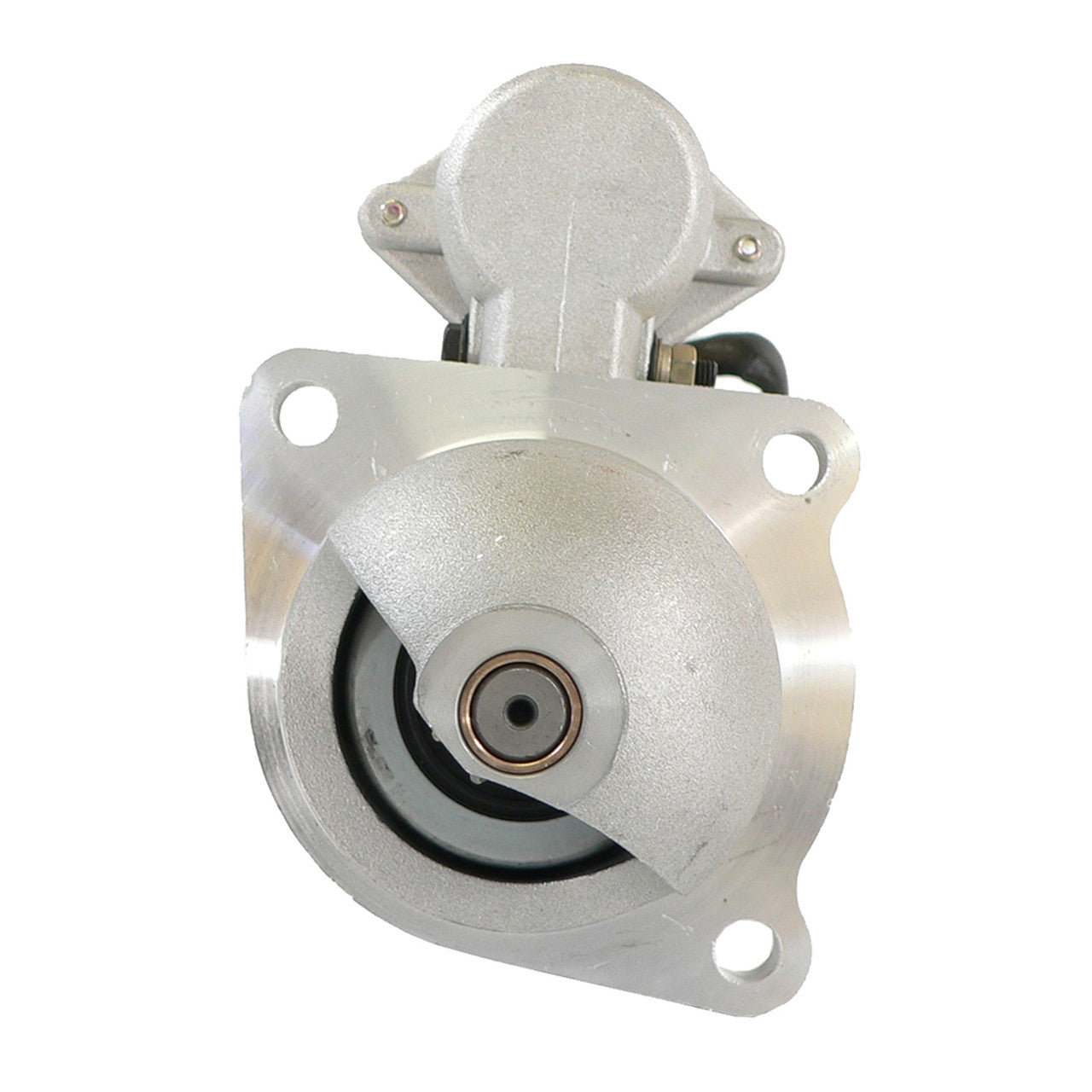

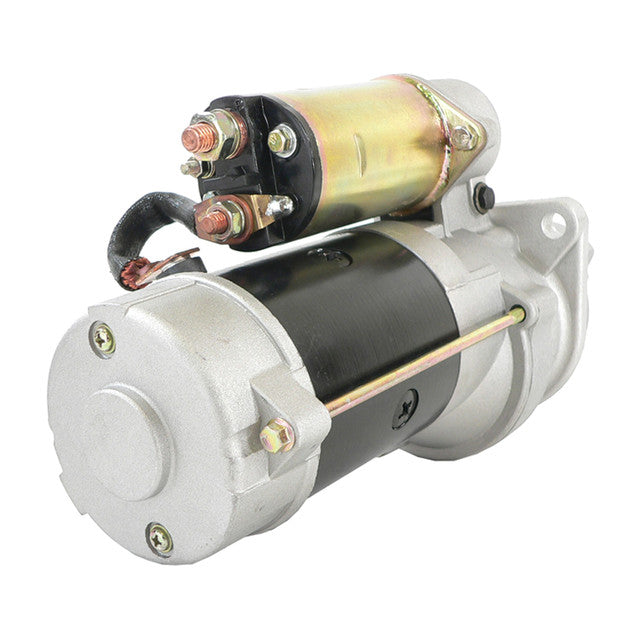

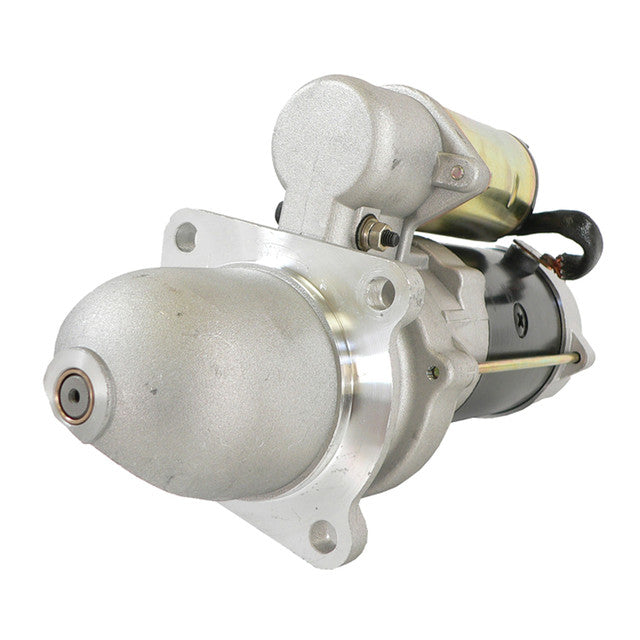

Starter Motor For 28MT Series OSGR 24-Volt CW 10-Tooth
Starter Motor For 28MT Series OSGR 24-Volt CW 10-Tooth
SKU:410-12111
Free shipping over £150. Terms apply
Couldn't load pickup availability
Starter Motor for 28MT Series
24V 10-Tooth OSGR | Premium Replacement
This 4Drive premium aftermarket starter motor is a heavy-duty replacement for the Delco Remy 28MT series. Specifically engineered for 24-volt systems, this 10-tooth unit features an Offset Gear Reduction (OSGR) design, providing higher torque and more efficient cranking power than traditional direct-drive models, especially in cold weather environments.
Key Features
- ✔ High Torque OSGR Design: Superior cranking for medium-duty engines.
- ✔ 10-Tooth Pinion: Precision-cut for perfect ring gear engagement.
- ✔ Wet Clutch Compatible: Replaces dry clutch applications for enhanced durability.
- ✔ Direct Fit: No modifications required for listed applications.
Technical Specs
| Voltage | 24V |
| Power Output | 4.0 kW |
| Rotation | CW (Clockwise) |
| Tooth Count | 10 Tooth |
| Design Type | OSGR |
| Pinion OD | 32mm |
Compatibility / Fitment Guide
| Engine / System | Equipment / Models | Notes |
|---|---|---|
| Cummins B-Series | 4BT, 6BT, 3.9L, 5.9L | Common Industrial Engines |
| Champion | Graders 710, 710A, 716A | Years 1989-1998 |
| Samsung | Excavator SE130 | 3.9L Diesel |
| Timberjack | 608 Feller Buncher | Cummins 5.9L Engine |
OEM Cross Reference
| Delco Remy | 1113291, 1113294, 10461465, 10479616, 10461285 |
| Cummins | 3604677PX, 3926932X, 3926932R |
| Lester | 6592, 6594, 6346, 6541, 6598 |
| WAI / J&N | 140-918, 140-918N, 410-12143 |
Questions & Answers
Is this a genuine original part?
This is a premium quality aftermarket replacement part, manufactured to meet or exceed original equipment (OE) standards for fitment and performance.
How do I know if it is compatible?
We recommend checking the SKU/MPN and Cross Reference list provided above. If your original part number matches any of these, it is a guaranteed fit.
What is the benefit of the OSGR design?
The Offset Gear Reduction (OSGR) design uses a smaller, faster motor and a gear reduction set to produce much higher torque than older direct-drive designs, making it more reliable for heavy-duty Cummins engines.
Frequently Asked Questions
How do I confirm this fits?
Match the part number or OEM reference on your existing part with the details above. If you are unsure, send us your vehicle or engine model and year and we will confirm before you order.
Is this a genuine OEM part?
It is a new aftermarket part built to the original specification. OEM numbers are listed for cross-reference only.
Is it new or reconditioned?
It is brand new – no core charge and no old unit to return.
What if it does not fit?
Contact us with your vehicle details and the part number from your original unit and we will help you sort it out.
Note: Please verify your original part number against the references above before purchasing. Domain: 4drive.co.uk
