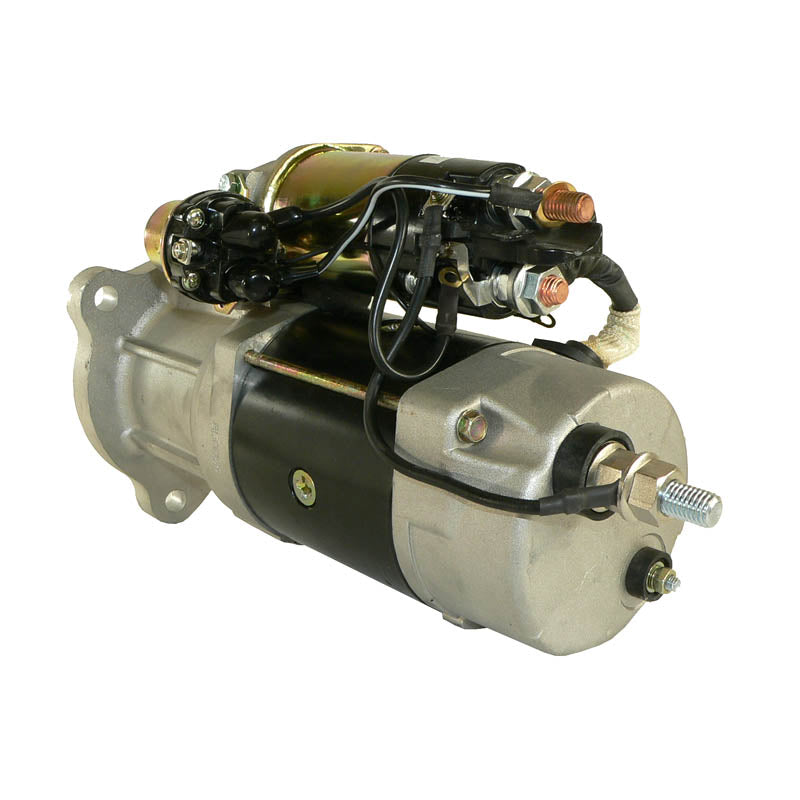

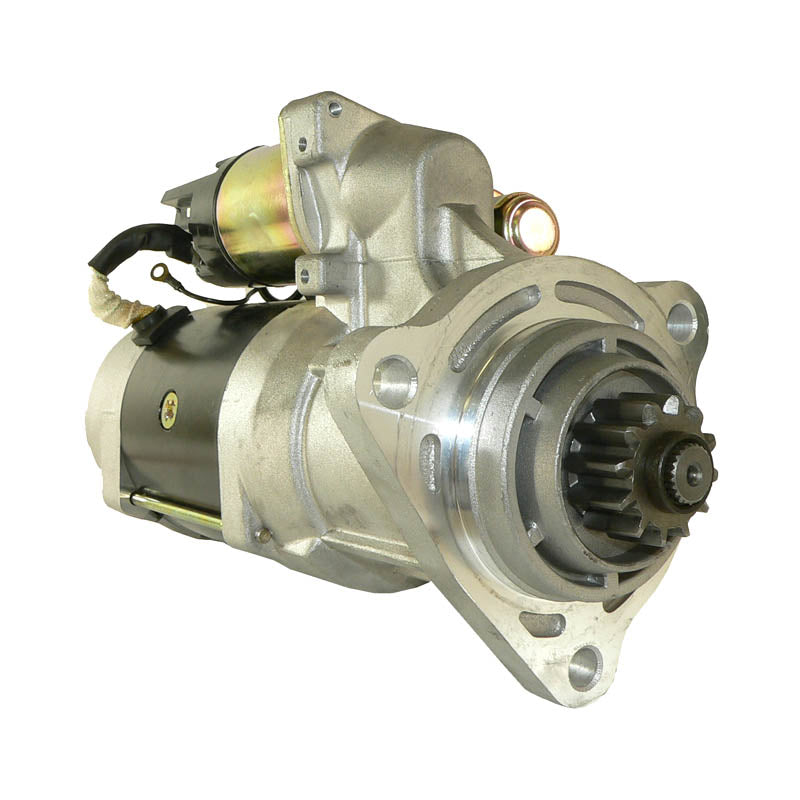

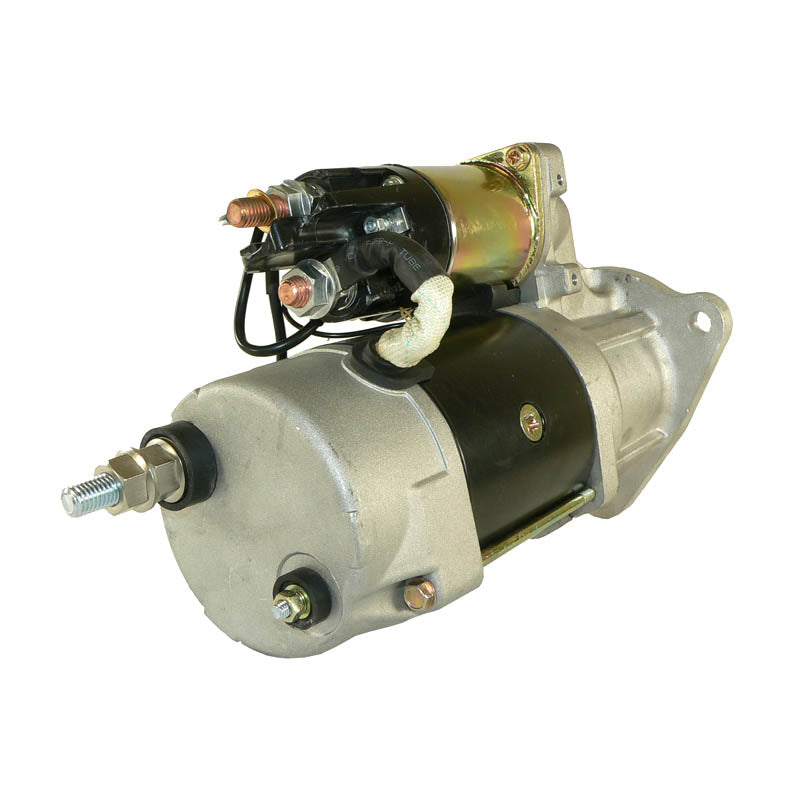

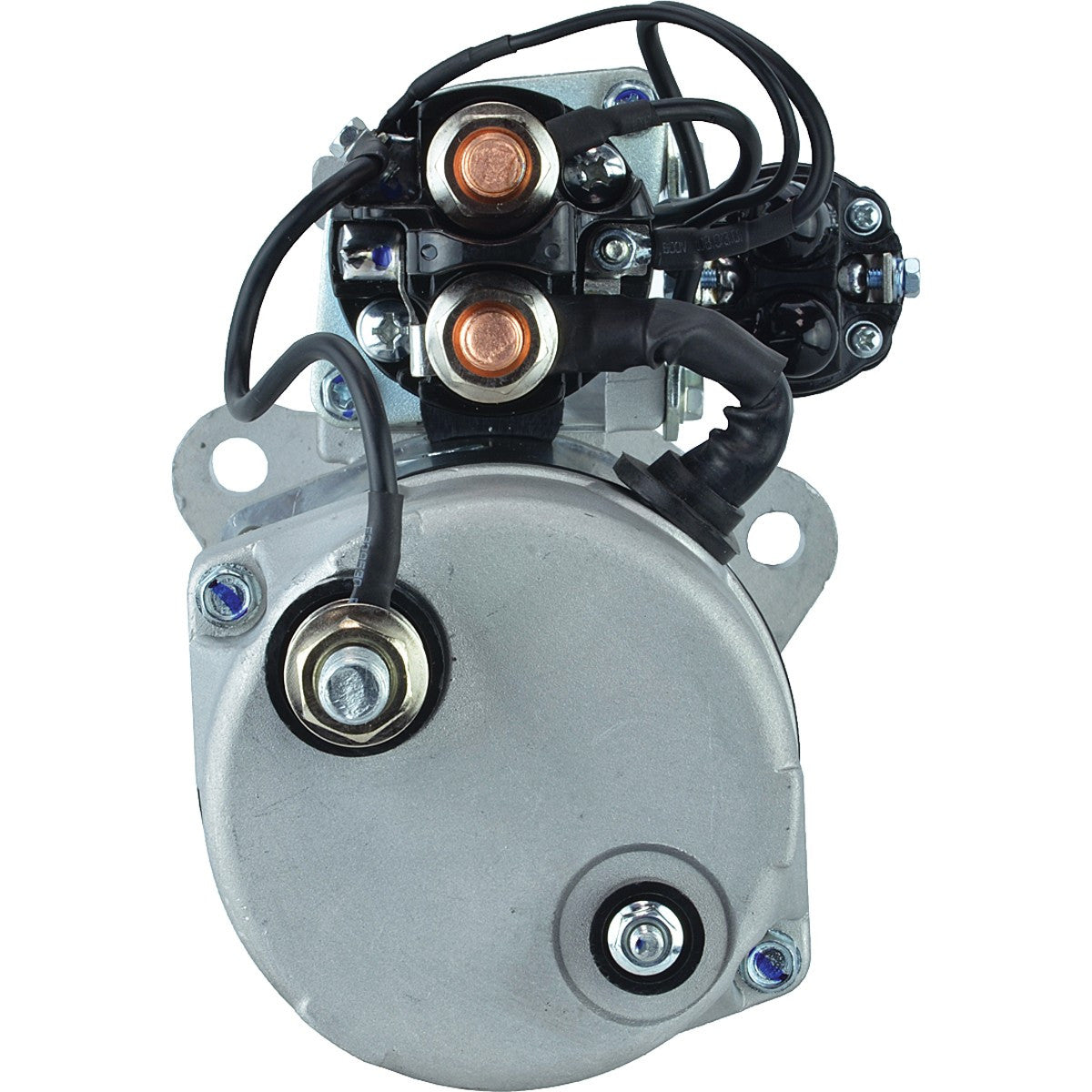

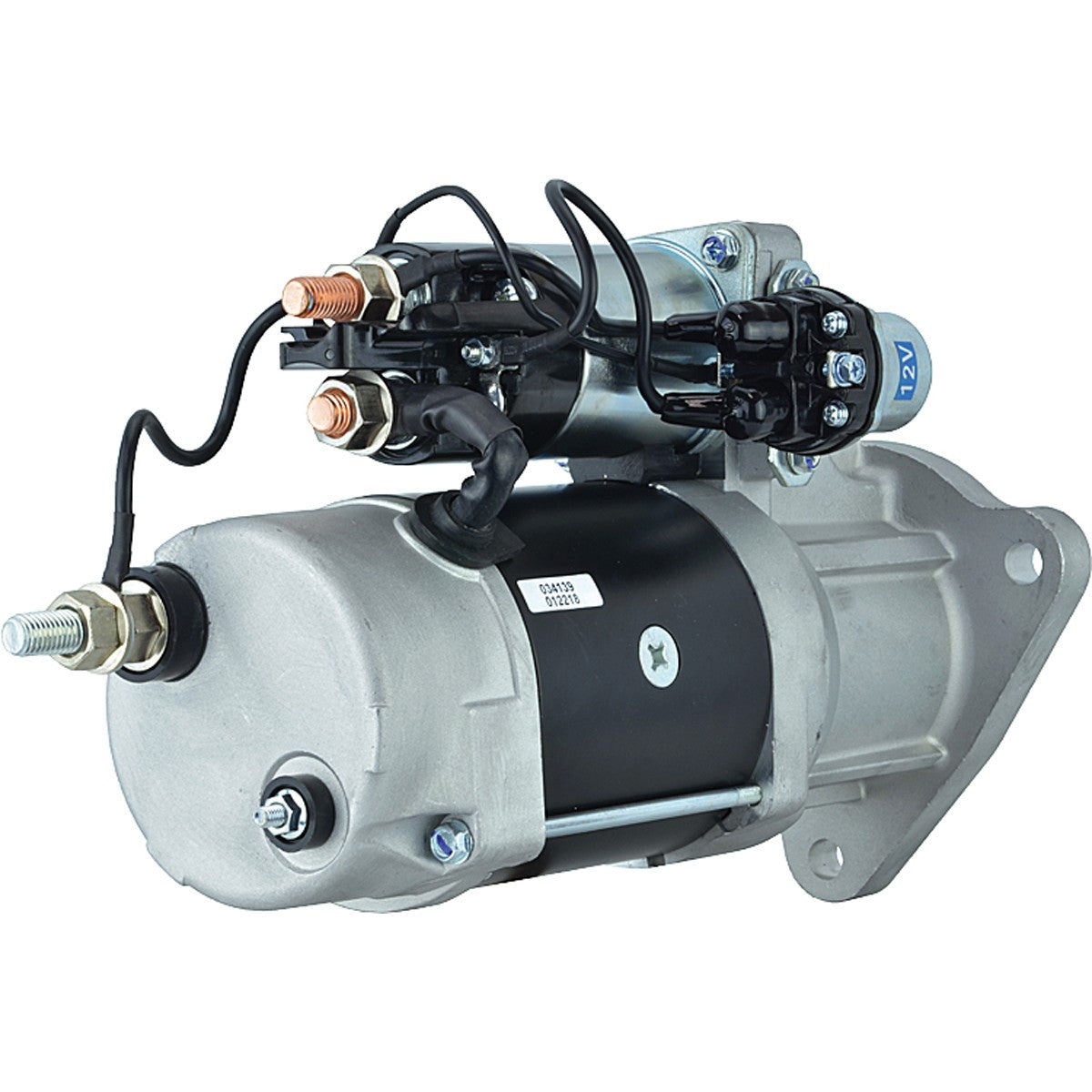

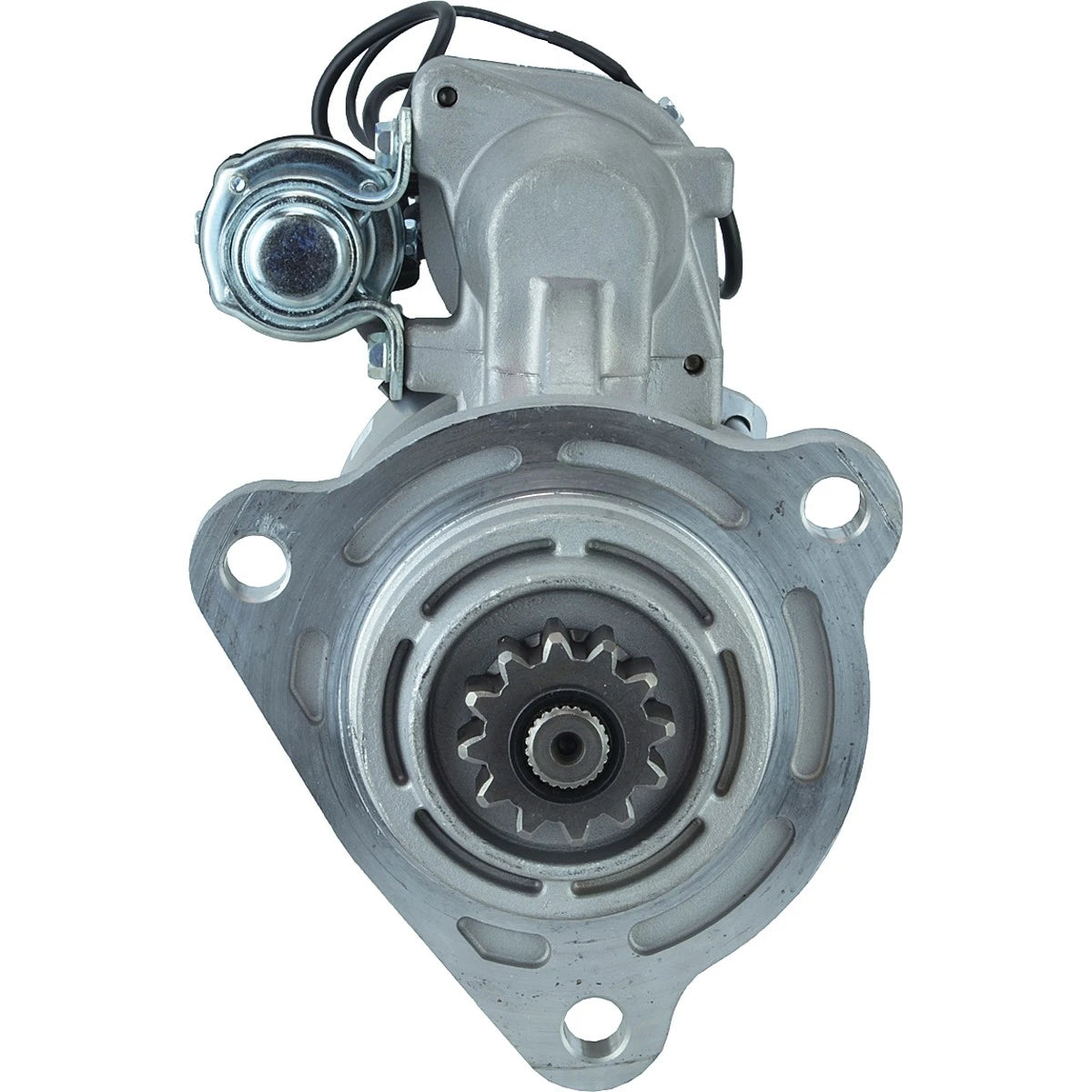

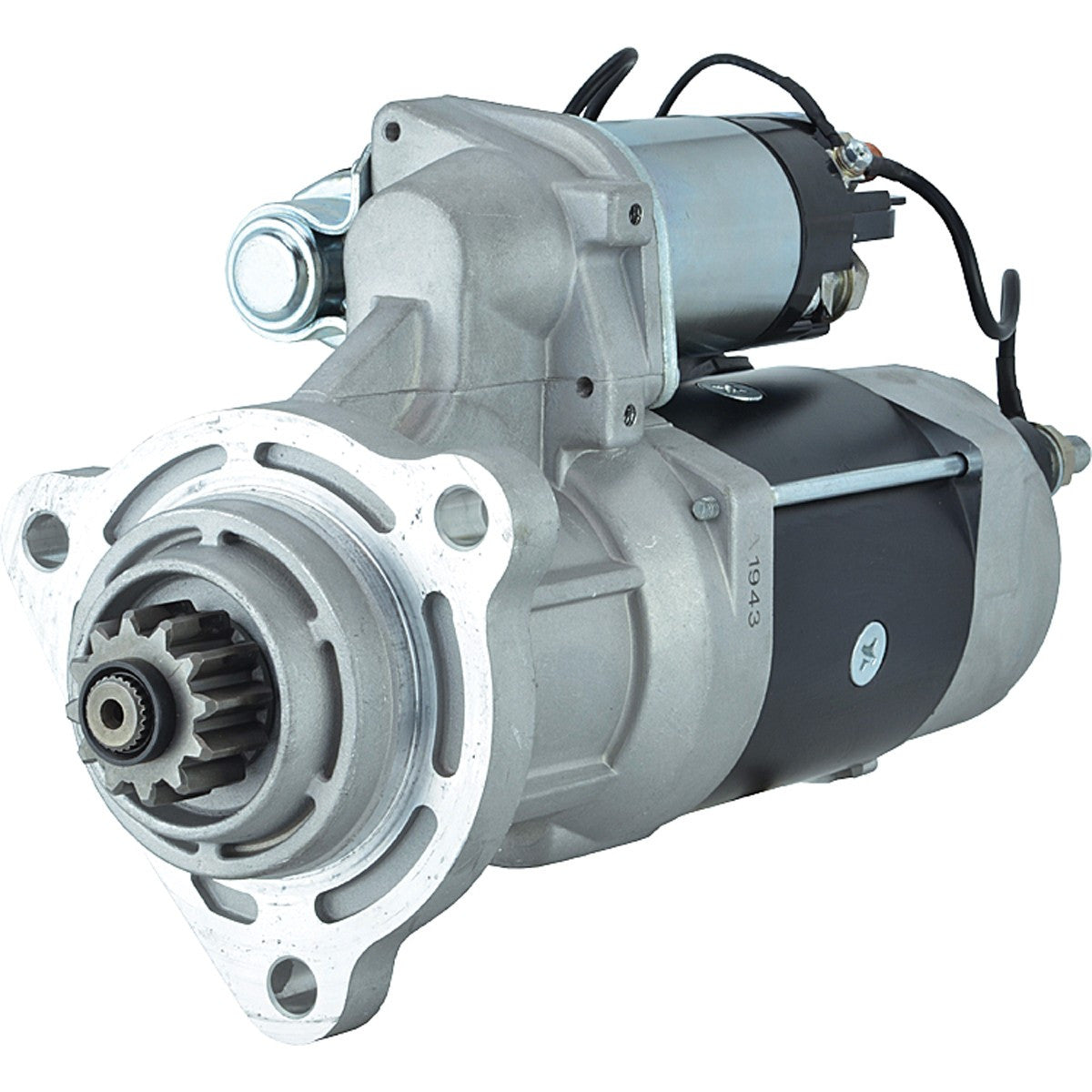

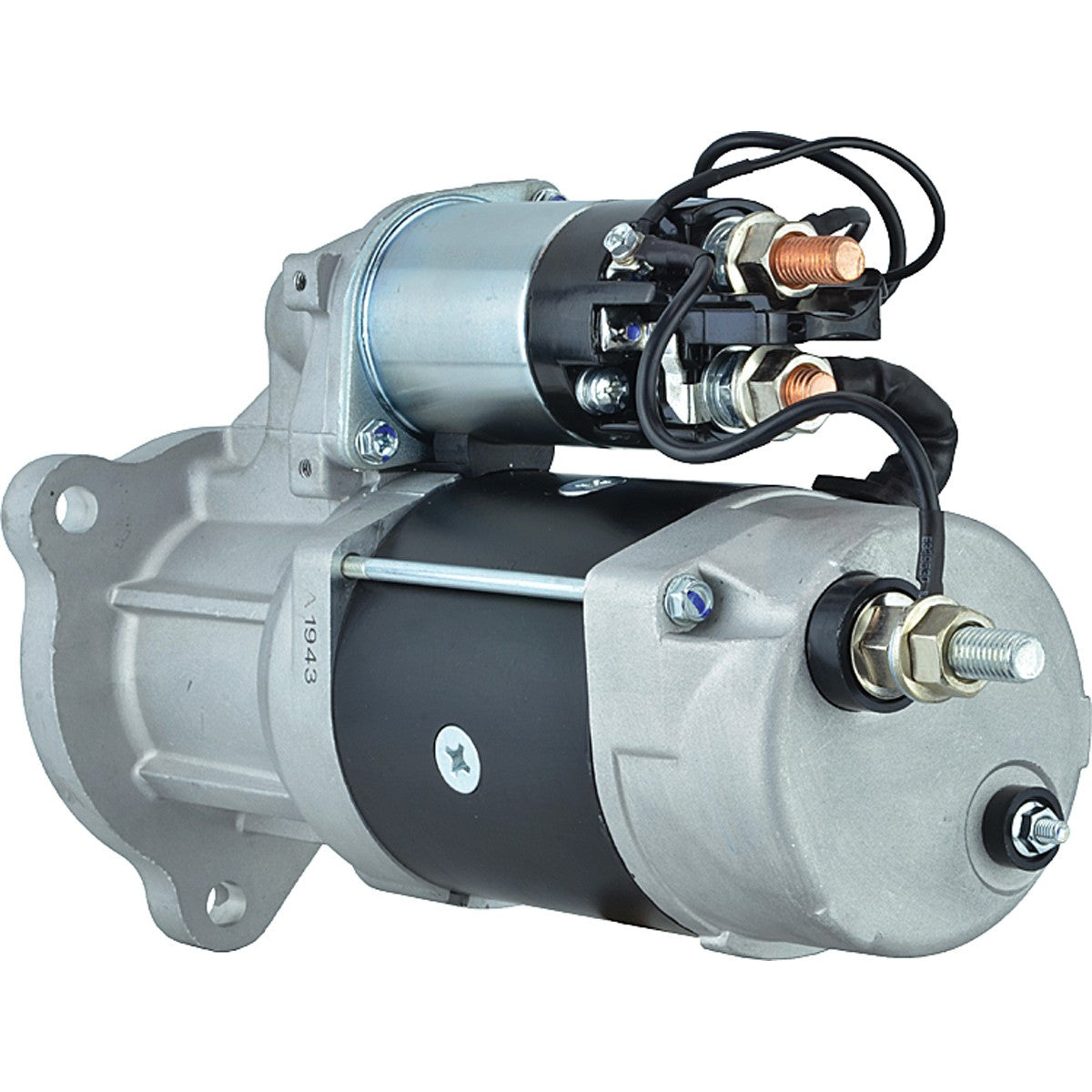

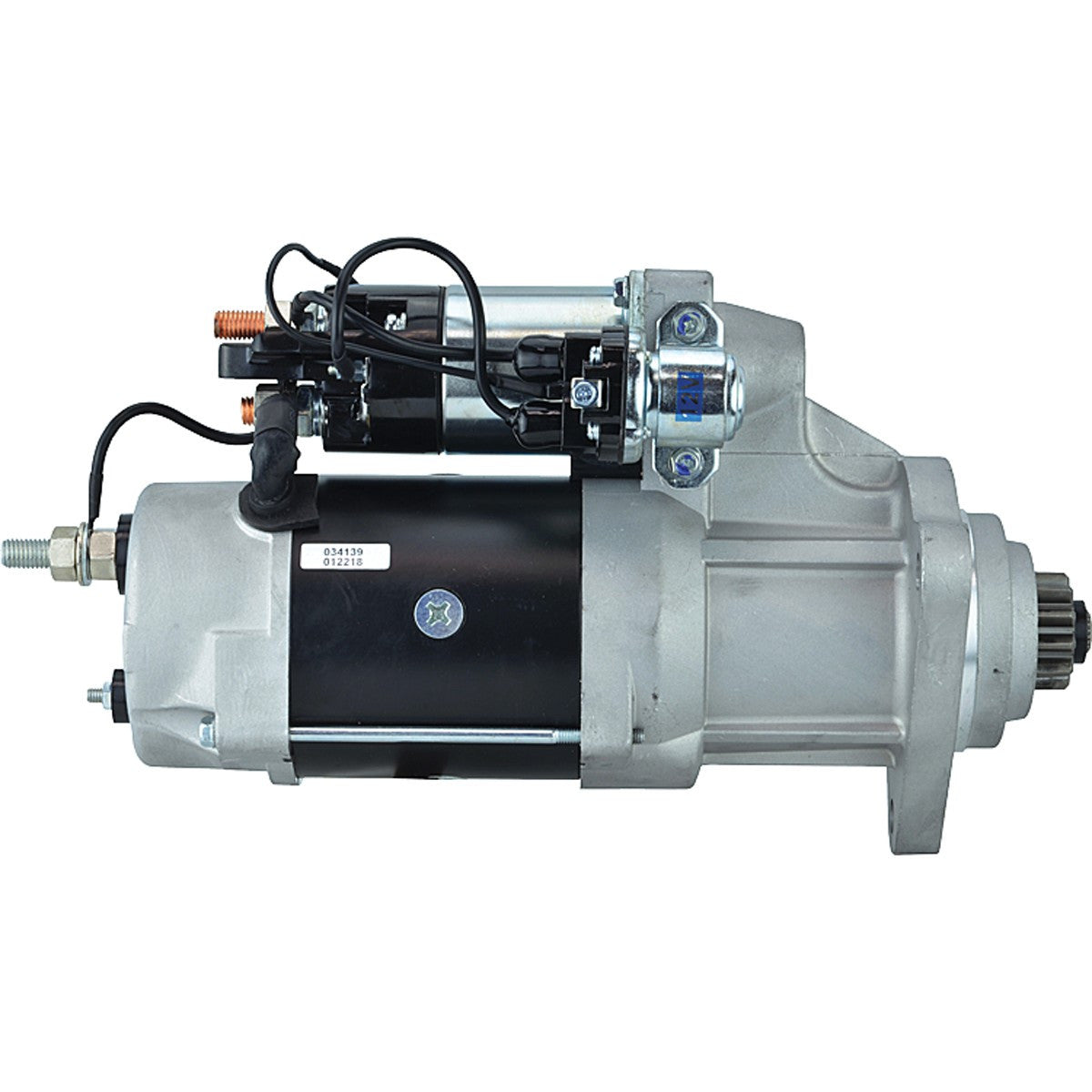

Delco 39MT Starter Motor 12V 12-Tooth PLGR
Cummins | Volvo | Paccar | Freightliner | Versatile - heavy duty truck and industrial diesels
A new 12-volt, 12-tooth PLGR starter motor from the Delco 39MT series, used across heavy duty truck and industrial diesel applications from Cummins, Volvo, Paccar, Freightliner and Versatile.
The 39MT is Delco's planetary gear reduction design for big-bore diesels: the gearset multiplies motor torque so a compact starter can turn a large engine, and the sealed construction stands up to road salt and washdowns on commercial vehicles.
Key Features
- 100% new aftermarket unit - not a remanufactured core
- Delco 39MT series PLGR - planetary gear reduction for high torque
- 12 volts, 12-tooth pinion, clockwise rotation
- Sealed construction for road salt, spray and washdown exposure
- Very wide Delco, Cummins, Volvo and Paccar cross-reference
- Dispatched from the UK with technical fitment support
Technical Specs
| Specification | Detail |
|---|---|
| SKU / Part Code | 410-12641 |
| Component | Starter Motor |
| Series | Delco 39MT |
| Voltage | 12 Volts |
| Tooth Count | 12 Teeth |
| Rotation | CW (clockwise) |
| Motor Type | PLGR - planetary gear reduction |
| Condition | New aftermarket |
| Warranty | 12 months |
Application / Fitment Guide
| Make | Application |
|---|---|
| Cummins | Heavy duty diesel engines - OE ref 3102919 |
| Volvo | Truck and industrial engines - OE refs 20520903, 21001825 |
| Paccar | Kenworth / DAF / Peterbilt applications - OE ref D61-6002-003 |
| Freightliner | OE ref MITIN1378 |
| Versatile | Agricultural tractors - OE ref 86054031 |
| Delco | Original equipment 39MT series starter |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only. This is a selection of the most common references - contact us if your number is not listed.
| Part Number | Manufacturer / Brand |
|---|---|
| 19011510 | Delco |
| 19011517 | Delco |
| 19011526 | Delco |
| 10461769 | Delco |
| 10461757 | Delco |
| 10461760 | Delco |
| 8200433 | Delco |
| 8200291 | Delco |
| 8200639 | Delco |
| 8200672 | Delco |
| 8300015 | Delco |
| 3102919 | Cummins |
| 282-0109 | Denso |
| M009T70279 | Mitsubishi |
| M9T72078 | Mitsubishi |
| 9460R | Mitsubishi |
| D61-6002-003 | Paccar |
| 20520903 | Volvo |
| 21001825 | Volvo |
| 86054031 | Versatile |
| MITIN1378 | Freightliner |
| SDR0471 | Arrowhead |
| 6805 / 6811 / 6815 / 6820 / 6821 / 6907 / 6914 | Lester |
Frequently Asked Questions
What is the difference between the 11-tooth and 12-tooth 39MT?
The pinion tooth count must match the flywheel ring gear. This is the 12-tooth version; we also stock the 11-tooth 39MT under part 410-12712. Count the teeth on your old starter before ordering.
What does PLGR mean?
Planetary Gear Reduction. An internal planetary gearset multiplies the motor's torque, letting a smaller, lighter starter crank a large diesel - the standard design on modern heavy duty applications.
My truck cranks slowly and the lights dim heavily - is the starter faulty?
Check the batteries and cables first: on 12V heavy duty systems, a bad earth strap or corroded terminal causes the same symptom. If voltage at the starter stud holds above 10V while cranking and it still turns slowly, the starter is drawing excess current and needs replacing.
Is the solenoid included?
Yes - supplied as a complete assembly with the solenoid fitted.
