Starter Motor for Arctic Cat Snowmobiles 1987-2008 - 12V CW 9-Tooth
Jag, Panther, Bearcat, Pantera, Puma, Prowler, Z and more - replaces Arrowhead SAB0150
This 12V starter motor is built to OEM specifications for Arctic Cat snowmobiles built between 1987 and 2008, and is supplied as a permanent magnet direct drive (PMDD) unit for a direct, bolt-in fit. PMDD construction keeps the housing compact while still delivering the cranking torque needed to turn over a cold engine reliably.

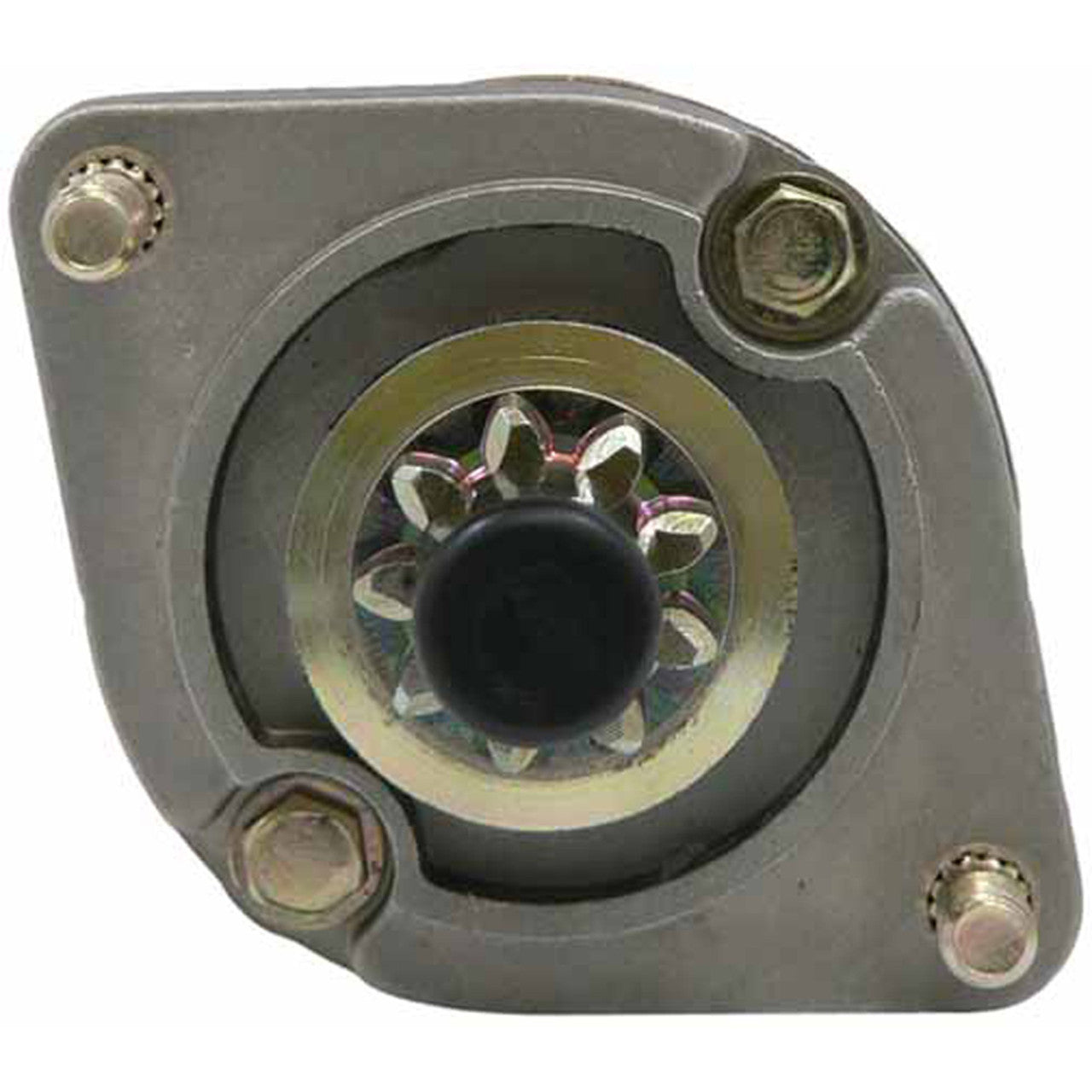

It turns clockwise (CW) with a 9-tooth drive pinion of 29.1mm (1.146 inch) outside diameter, and mounts on two 5/16-18 studs exactly as the factory unit does. Weighing 2.73kg (6lbs), it is a straightforward swap for a worn or failed original starter motor, with no modification required to the mounting bracket, drive gear or wiring loom. As with any starter replacement, it is worth checking the OEM part number stamped on your original unit against your machine's parts diagram before ordering, to confirm this is the correct variant for your specific model year.
Key Features
- 12V permanent magnet direct drive (PMDD) starter
- Clockwise (CW) rotation to match OEM spec
- 9-tooth drive pinion, 29.1mm gear outside diameter
- Two 5/16-18 mounting studs, as per original
- Housing weight 2.73kg (6lbs)
- 12-month warranty as standard
Technical Specs
| Specification | Detail |
|---|---|
| Voltage | 12V |
| Rotation | CW (Clockwise) |
| Teeth | 9 |
| Gear Outside Diameter | 29.1mm (1.146 in) |
| Mounting | Two 5/16-18 studs |
| Starter Type | PMDD |
| Weight | 2.73kg (6lbs) |
| Part Number | 410-21068 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Arctic Cat Bearcat 340 / 440 | 1995-2000 |
| Arctic Cat Cheetah 340 / 440 | 1991-1994 |
| Arctic Cat Cougar 440 | 1991-1992 |
| Arctic Cat El Tigre EXT 530 | 1989-1991 |
| Arctic Cat Jag 340 / 440 | 1987-1999 |
| Arctic Cat Super Jag 440 | 1987-1992 |
| Arctic Cat Lynx 340 | 1991-1993 |
| Arctic Cat Pantera 440 | 1988-1992 |
| Arctic Cat Panther 340 / 370 / 440 | 1989-2008 |
| Arctic Cat Prowler 440 | 1990-1992 |
| Arctic Cat Puma 340 | 1994-1997 |
| Arctic Cat Z 370 / 440 | 2000-2008 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 0745-018, 0745-030, 0745-052, 0745-257, 0745-357 | Arctic Cat |
| SAB0150 | Arrowhead |
| 5944 | Lester |
| 5944N | WAI |
| 71-09-5944 | Wilson |
Frequently Asked Questions
Will this fit without modification?
Yes, this is a direct replacement for the original Arctic Cat starter motor - mounting points, drive gear and wiring connections match the factory part, so no cutting, drilling or rewiring is needed.
What's included?
One 12V PMDD starter motor, ready to fit. Mounting bolts and wiring are reused from your original unit.
How do I know my old starter has failed?
Common signs include a single clicking noise with no engine turnover, a slow or labouring crank that gets weaker as the battery drains, unusual grinding when the key is turned, or no response at all when starting.
How do I tell this apart from the similar Arctic Cat starter?
Arctic Cat used more than one starter across this era. This one is the clockwise, 9-tooth unit with 5/16-18 mounting studs, replacing Arctic Cat 0745-018, 0745-030, 0745-052, 0745-257 and 0745-357 and cross-referencing to Lester 5944.
Is this starter new or reconditioned?
This is a new aftermarket unit built to OEM specifications, not a reconditioned or rebuilt part, so you are not inheriting wear from a previous life on another machine.
