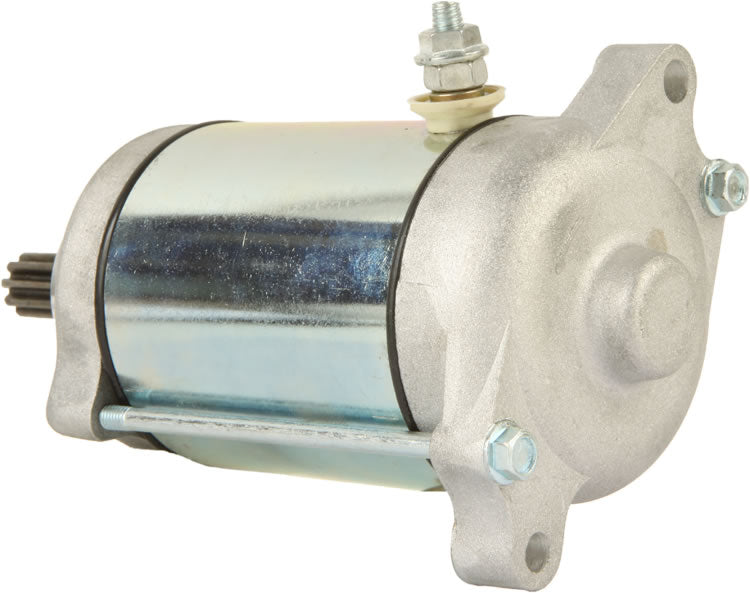

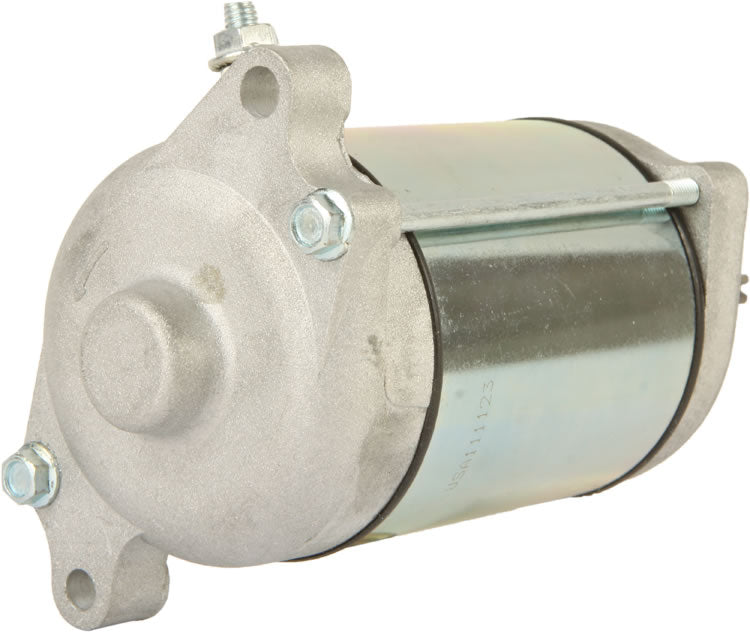

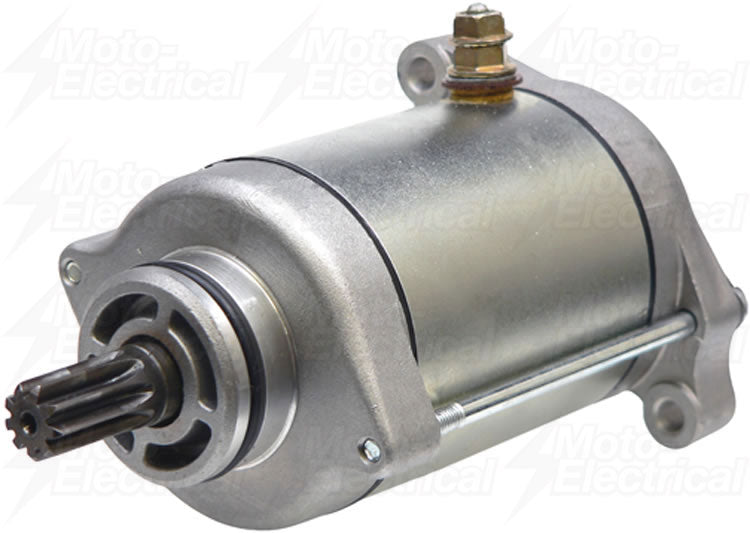

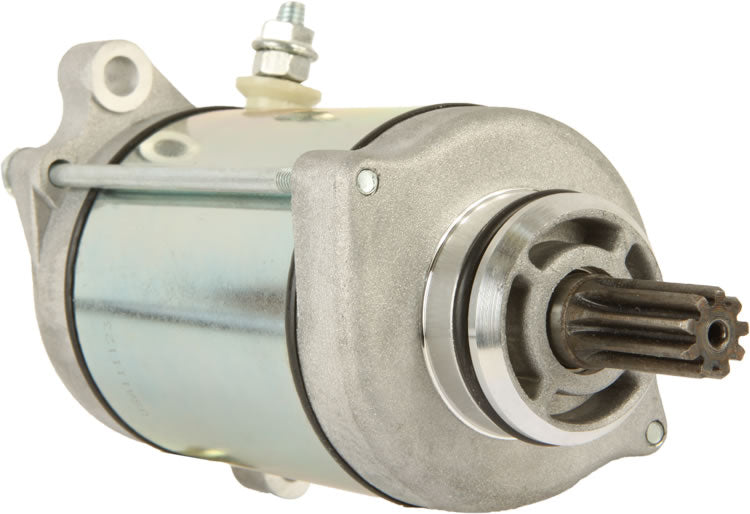

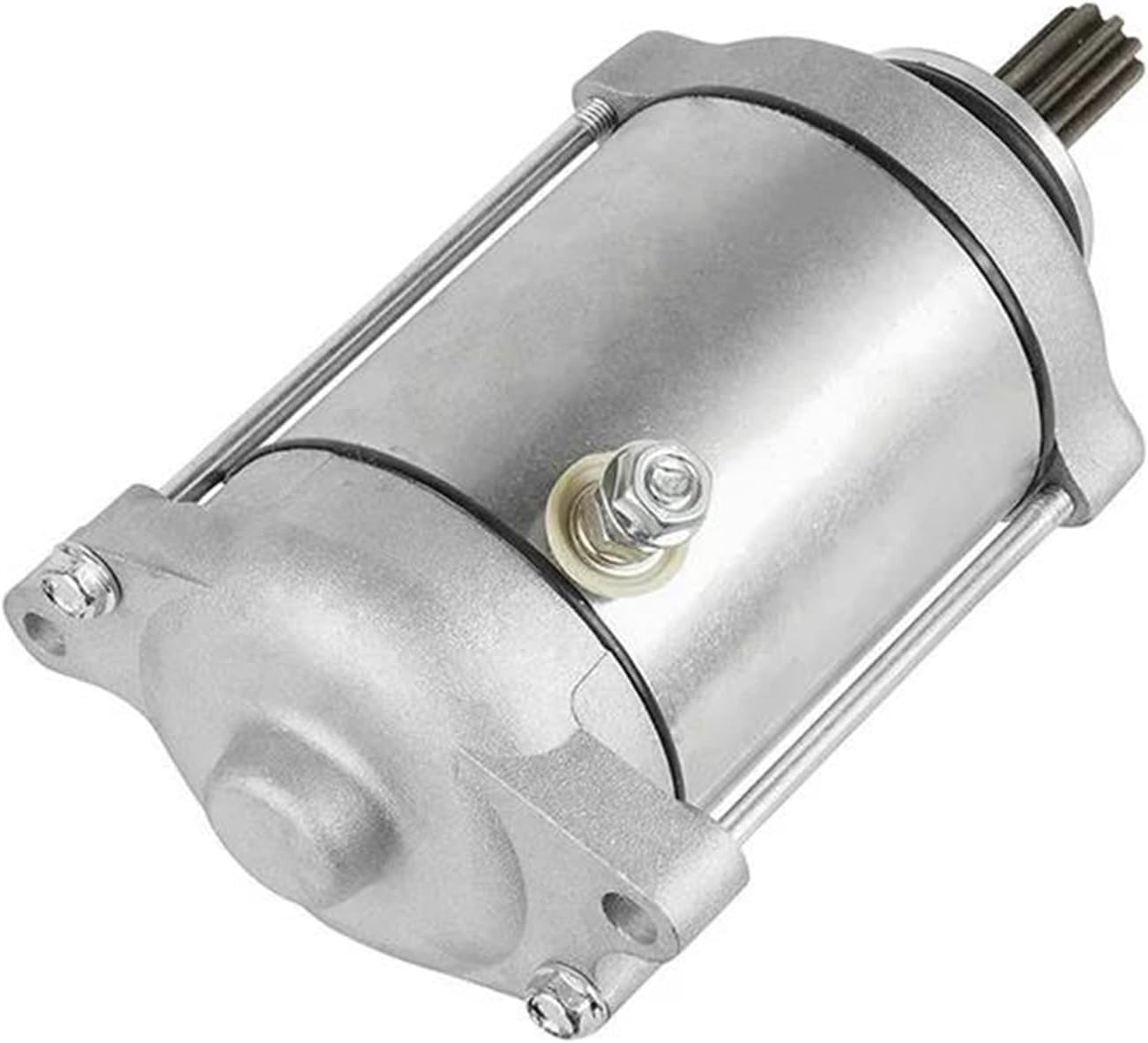

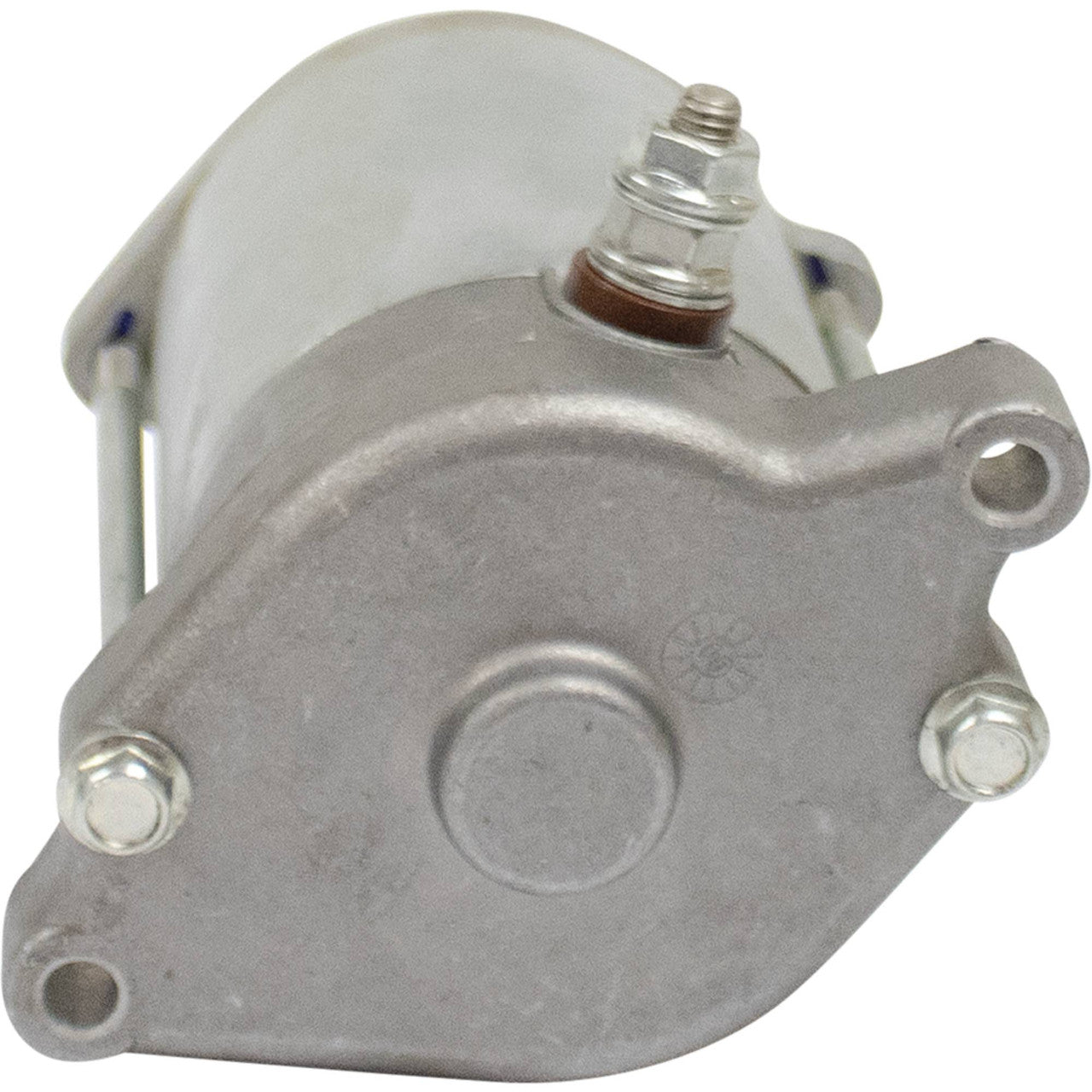

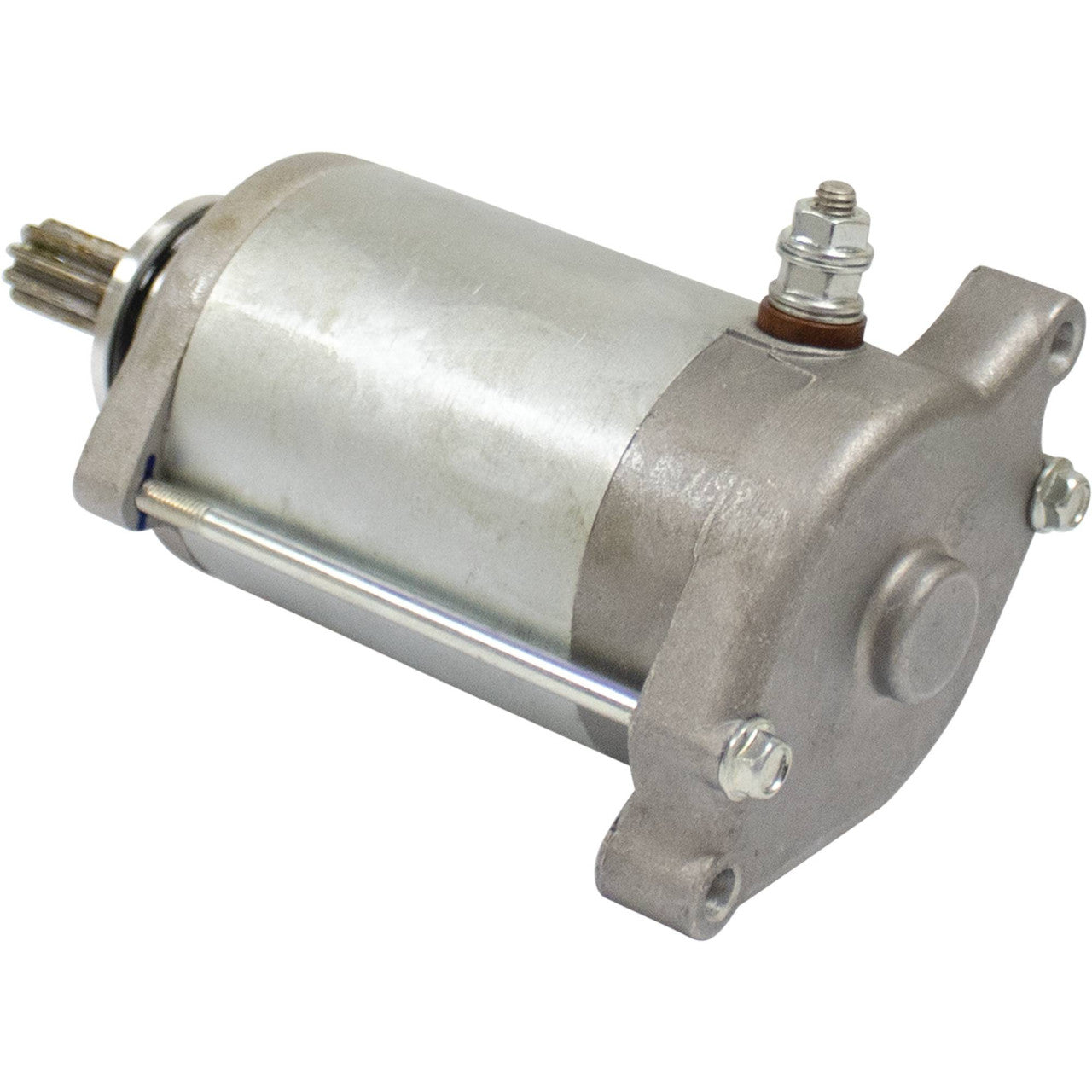

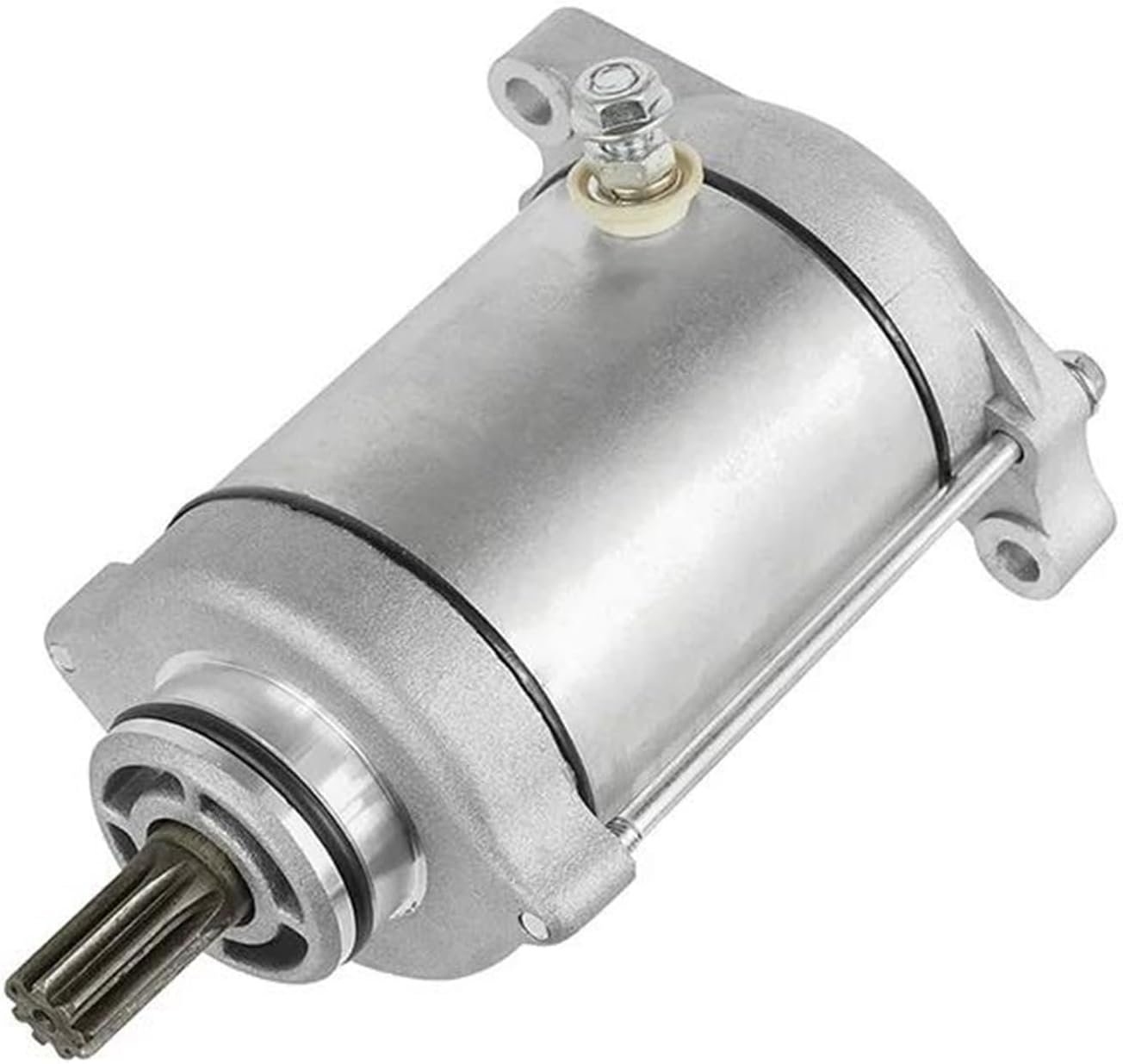

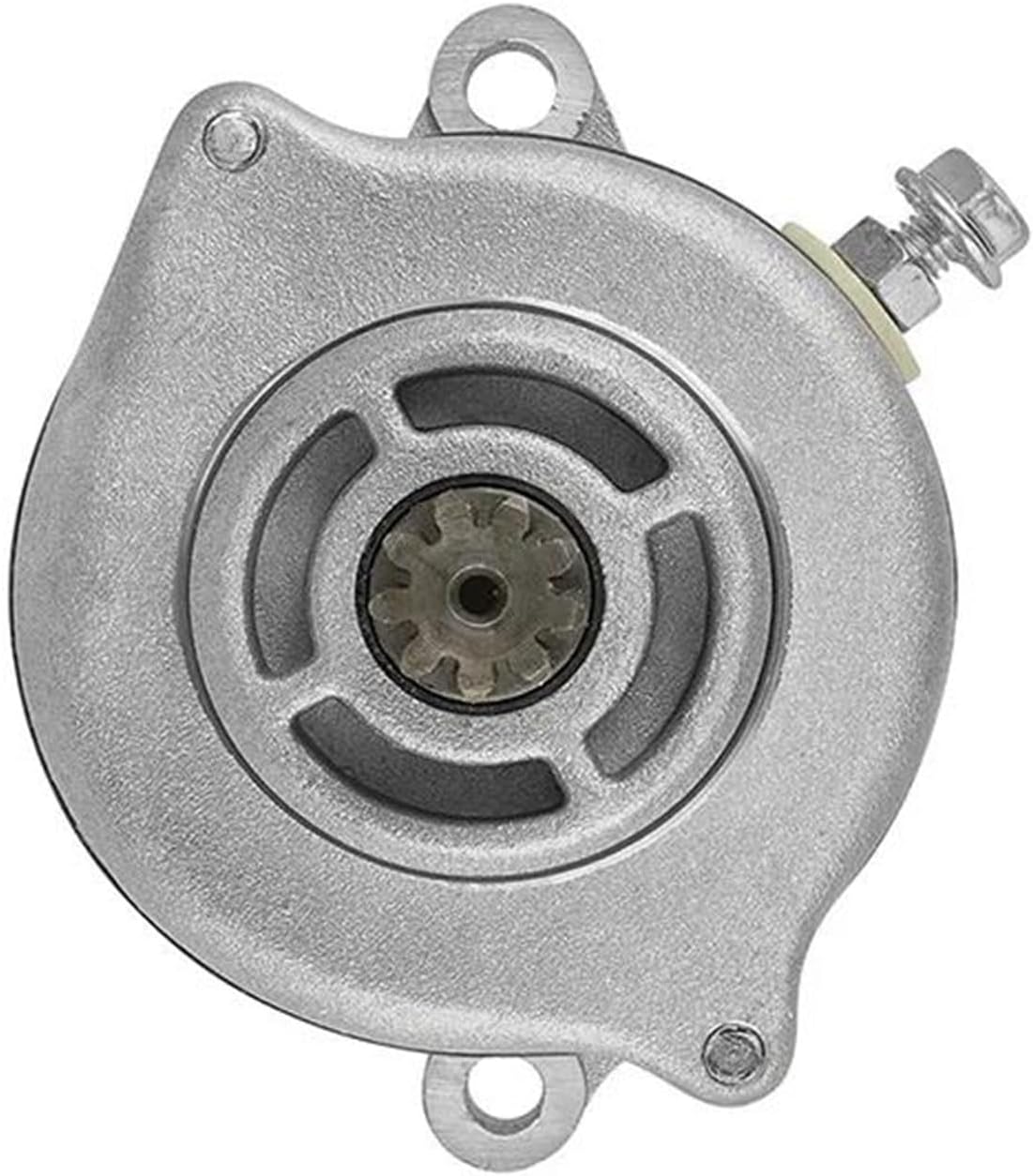

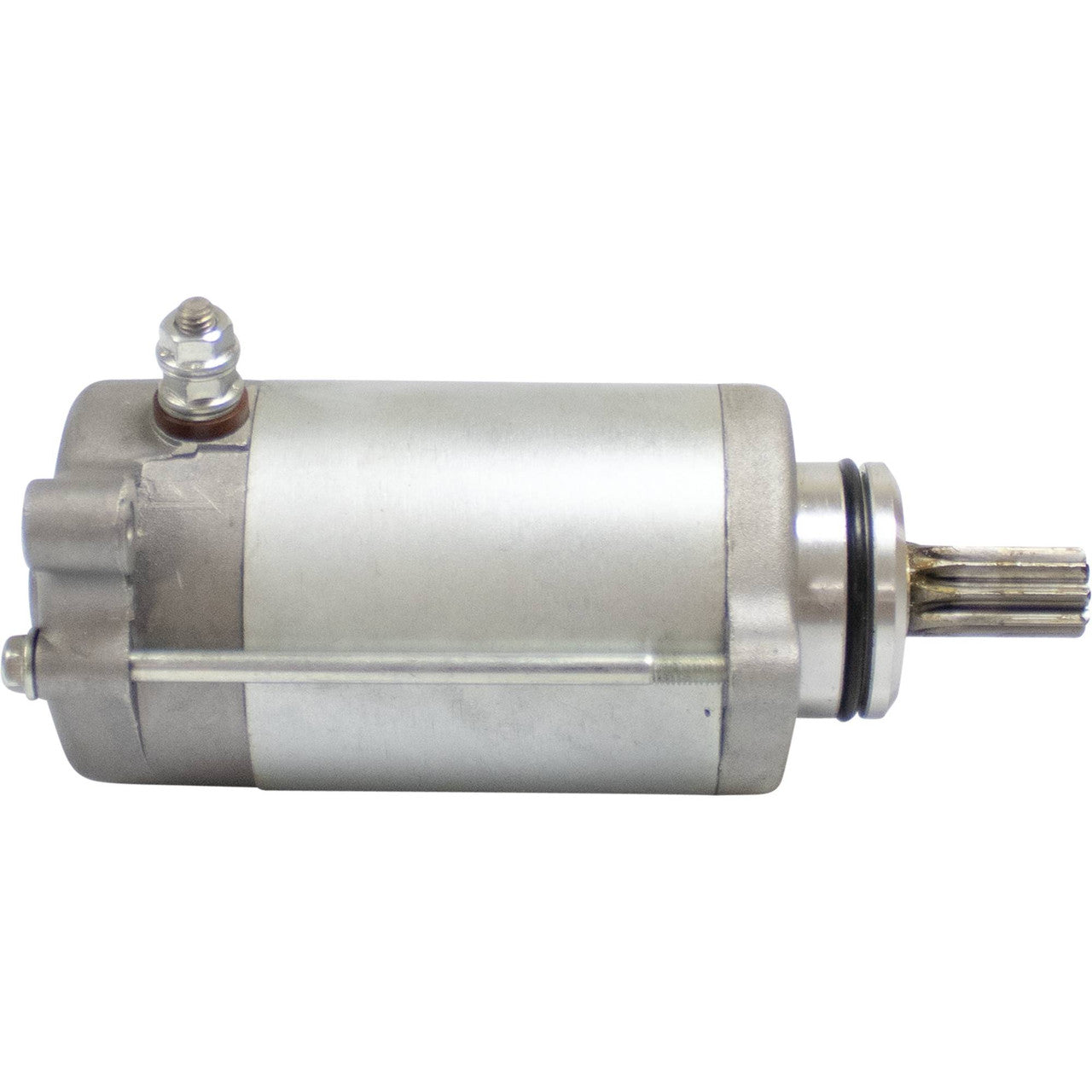

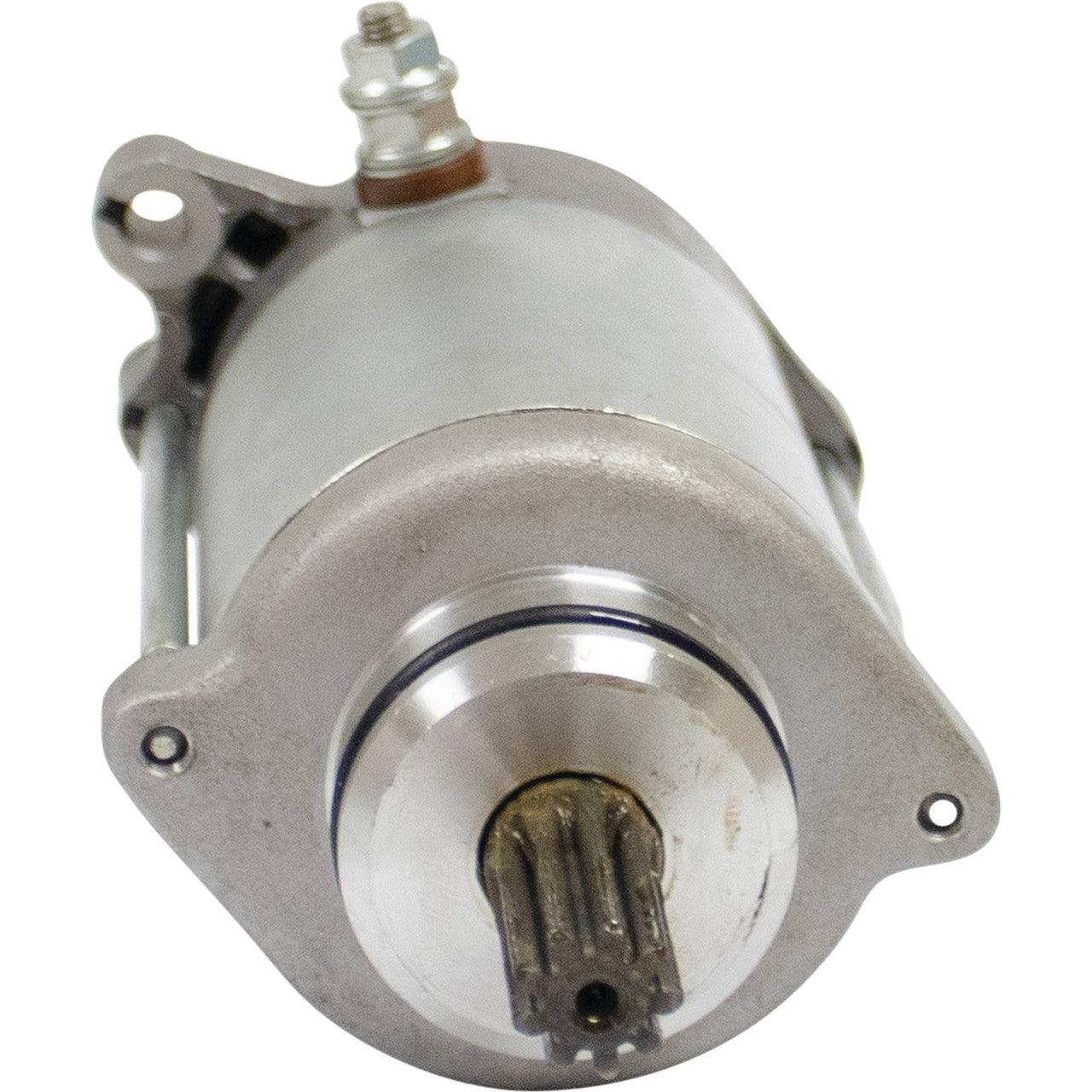

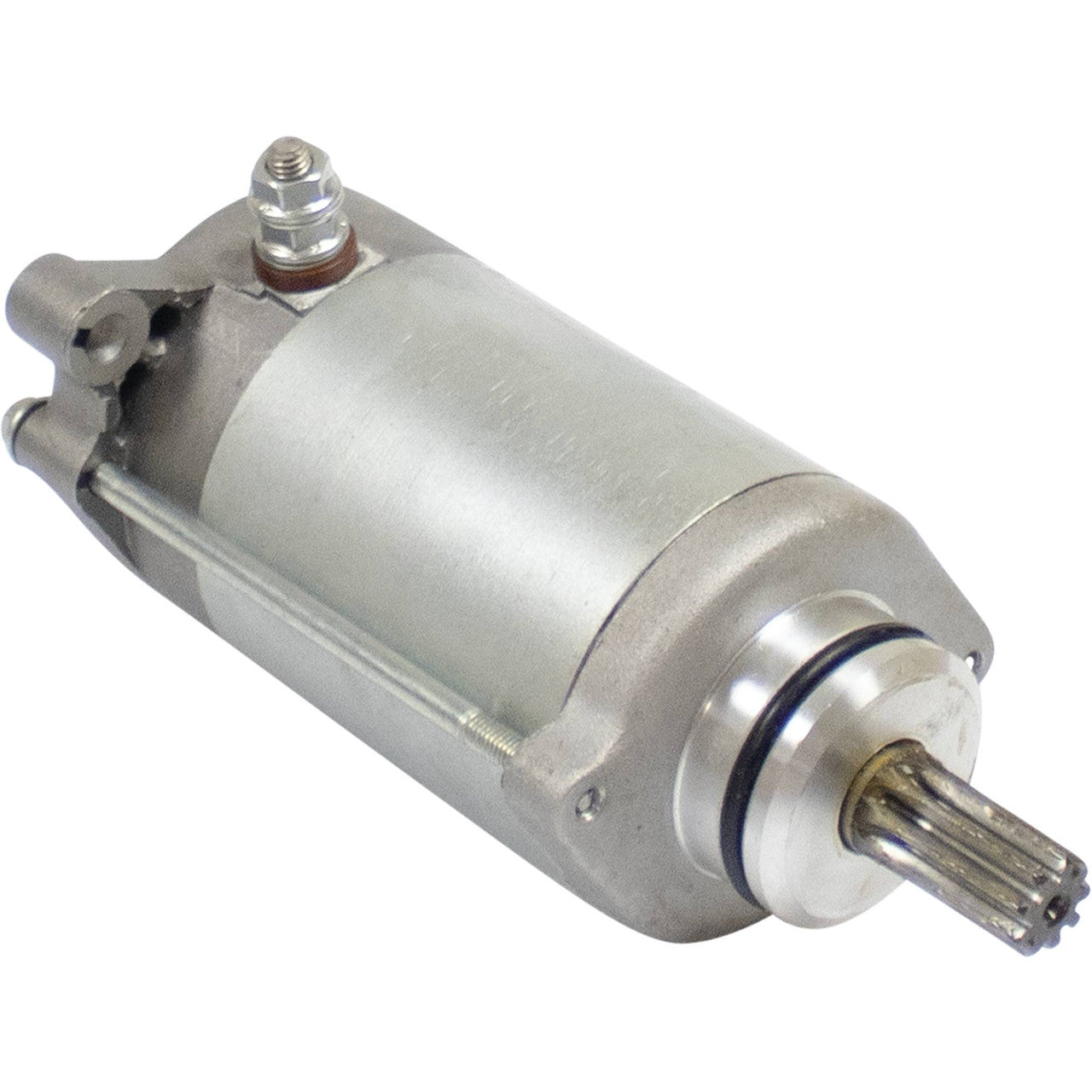

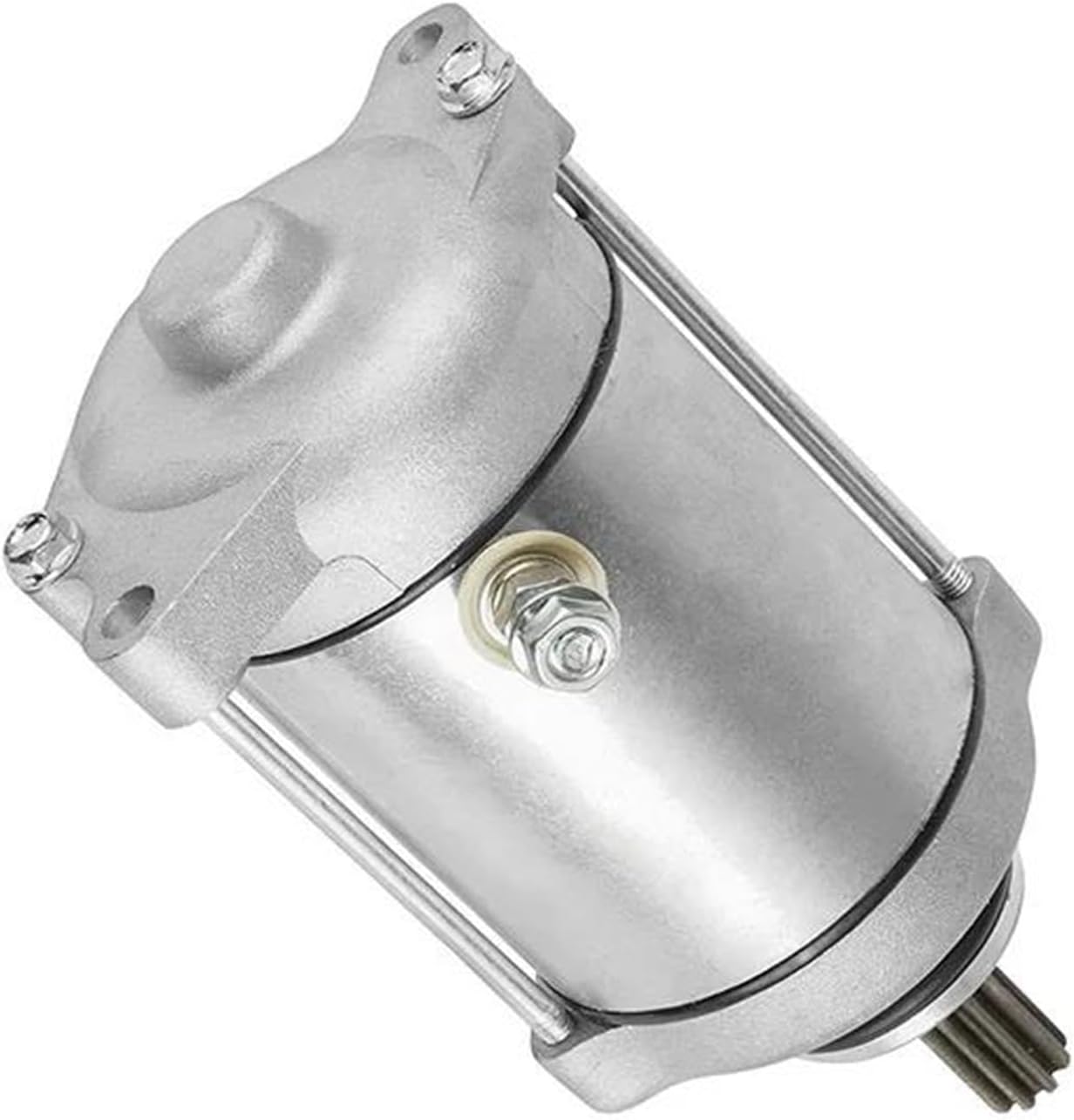

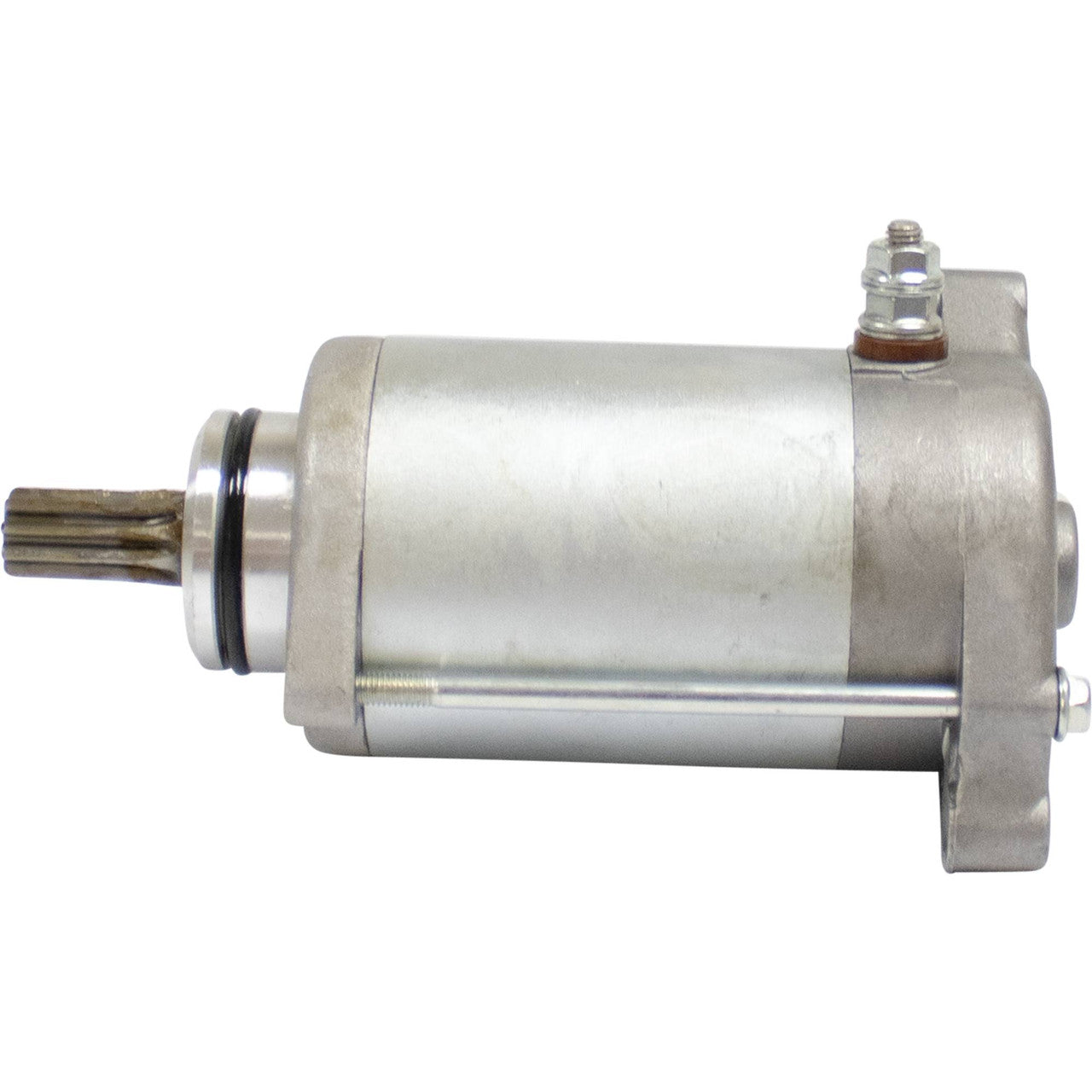

This heavy-duty starter motor is a direct aftermarket replacement for the original equipment installed on Arctic Cat ATVs and UTVs. Engineered to provide reliable cranking power in all conditions, this unit features high-quality magnets and field coils to deliver maximum torque for fast, efficient engine starts.
RELIABILITY: Precision-manufactured and tested for long service life, meeting or exceeding original manufacturer specifications.
Key Features
✔ Direct bolt-on replacement
✔ Sealed housing to keep moisture out
✔ High-torque 9-Spline shaft design
✔ Durable copper and silver contacts

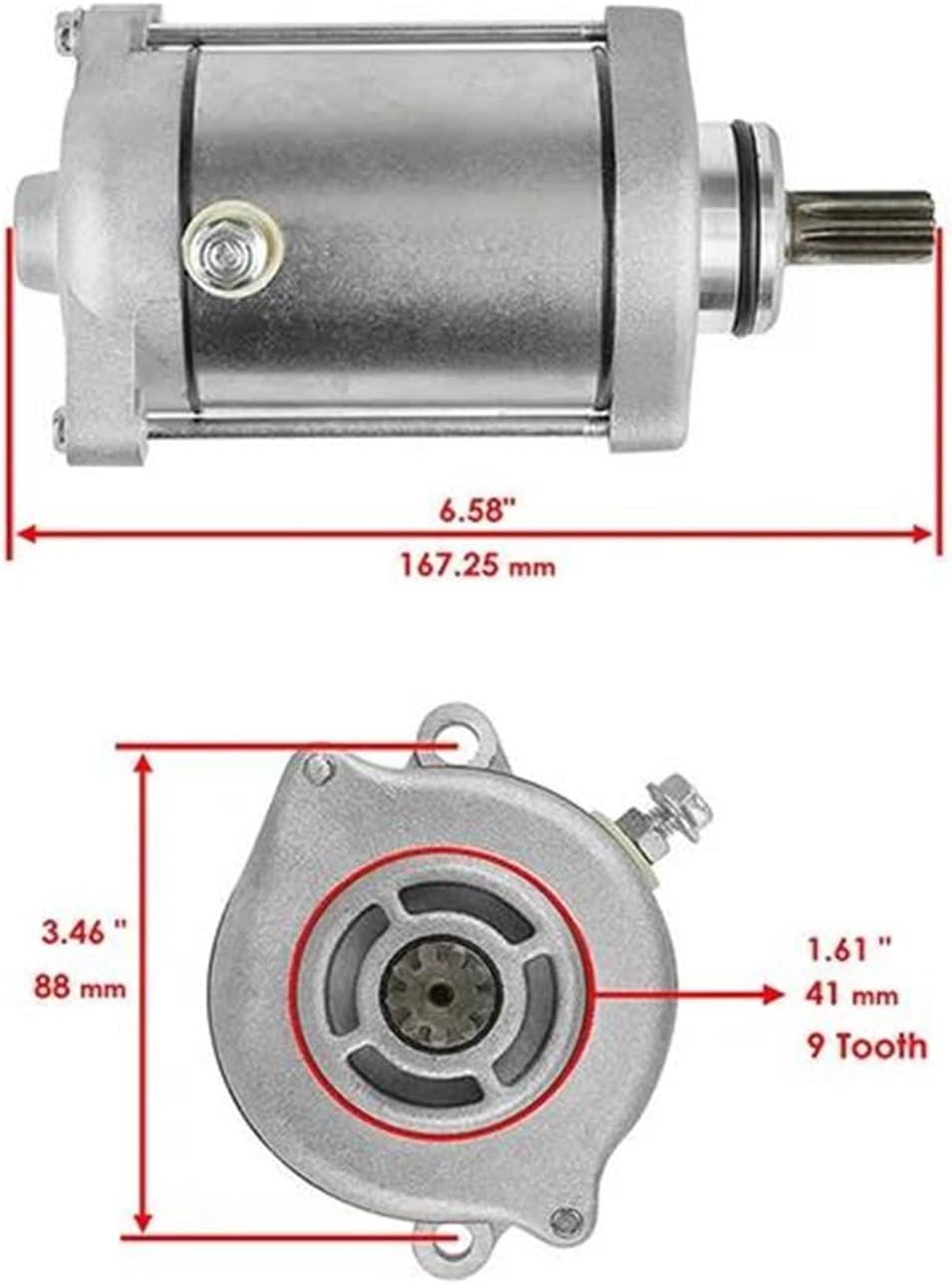

Technical Specs
Voltage
12V
Rotation
CW (Clockwise)
Teeth/Splines
9
Starter Type
PMDD
Gear OD
14.3mm / 0.56in
Compatibility / Fitment Guide
Application
Model Range
Notes
Arctic Cat 400
1998 - 2008
All Automatic & Manual models
Arctic Cat 500
1998 - 2009
4x4, FIS, TBX, TRV models
Arctic Cat 550
2009 - 2017
H1, TRV, GT, XT, Prowler
Arctic Cat 650
2004 - 2012
Single Cylinder H1 (Excl. V2)
Arctic Cat 700
2008 - 2017
EFI, H1, MudPro, Prowler
Arctic Cat Prowler
2006 - 2017
550, 650, 700 XT/HDX models
OEM Cross Reference
Arctic Cat: 0825-013, 0825-011, 0825-024
Lester: 18882, 18796
Arrowhead: SMU0433
Mitsuba: SM64
J&N: 410-22038
Other: 3545-016, 3545-012
Questions & Answers
Is this a genuine original part?
This is a premium quality aftermarket replacement part from 4Drive, manufactured to meet or exceed original equipment (OE) standards for fitment and performance.
How do I know if it is compatible?
Please check your original part number against the OEM Cross Reference list provided. If your part matches 0825-013, 0825-011, or 0825-024, this is the correct unit for your vehicle.
Will this fit the 650 V2 (Kawasaki engine) models?
No. This starter is specifically for the Arctic Cat H1 and Single-cylinder engines used in the 400-700 range. The 650 V-Twin (V2) uses a different starter motor.
Note: Professional installation is recommended. Please verify fitment before purchasing. 4drive.co.uk
