Fits Case IH JX Series & New Holland T4000 (10 Tooth)

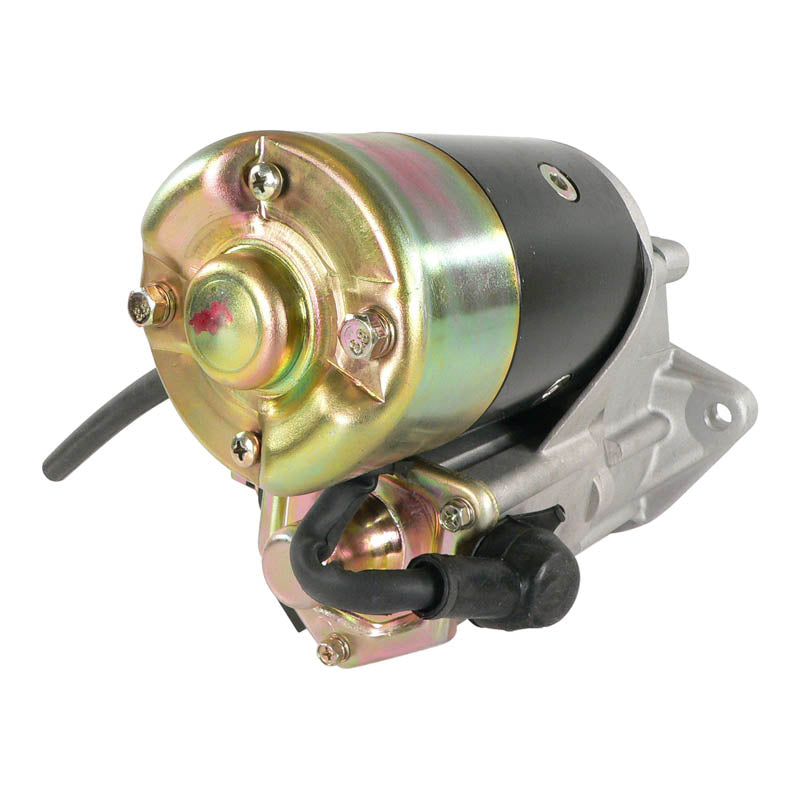

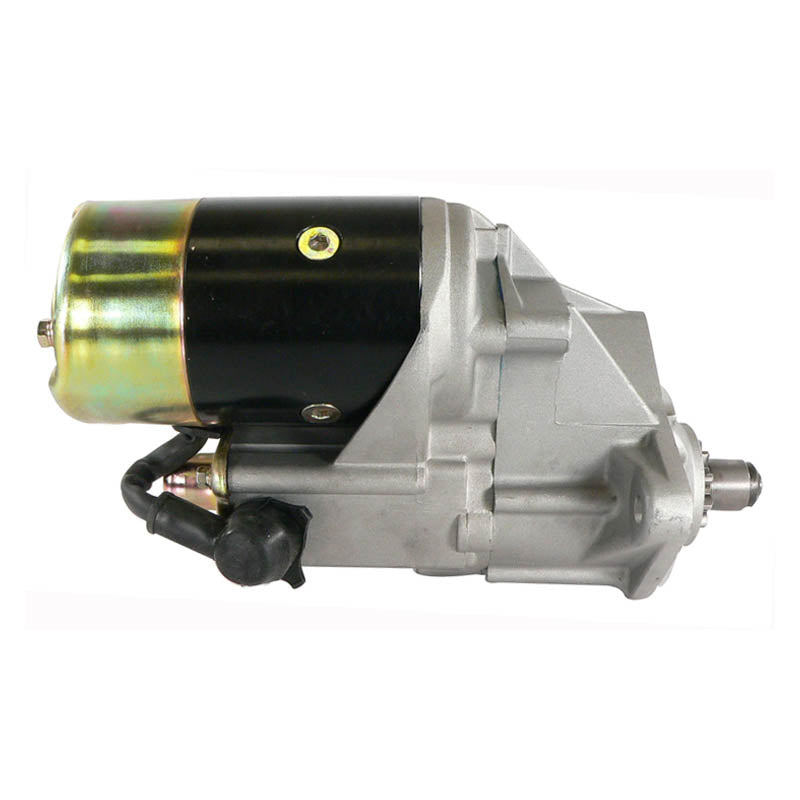

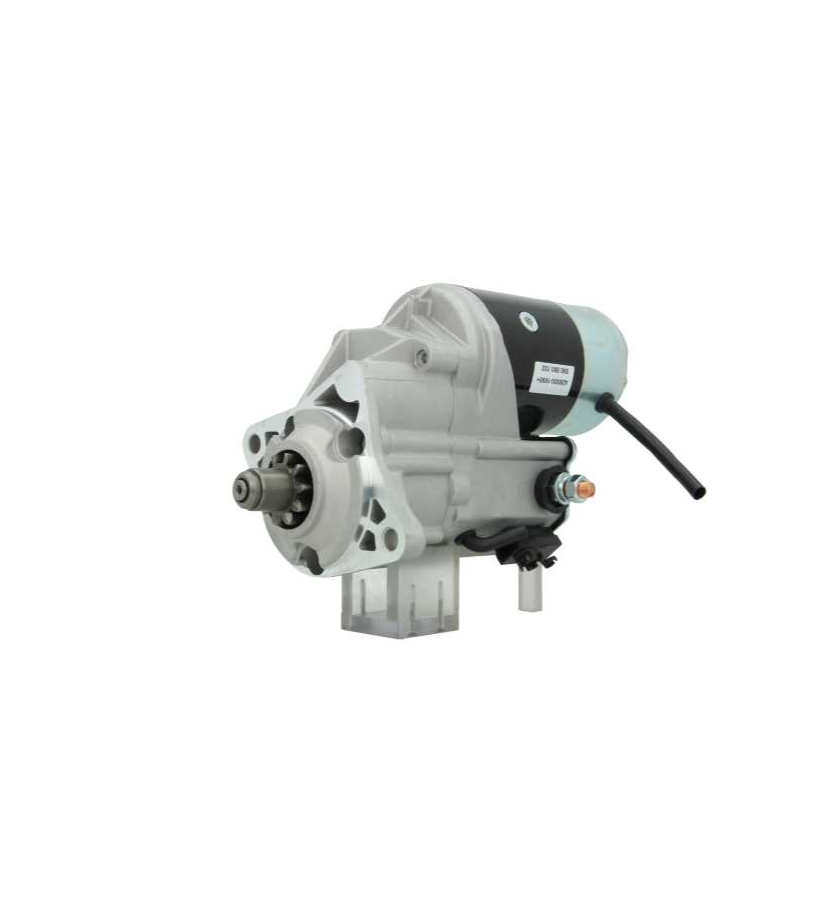

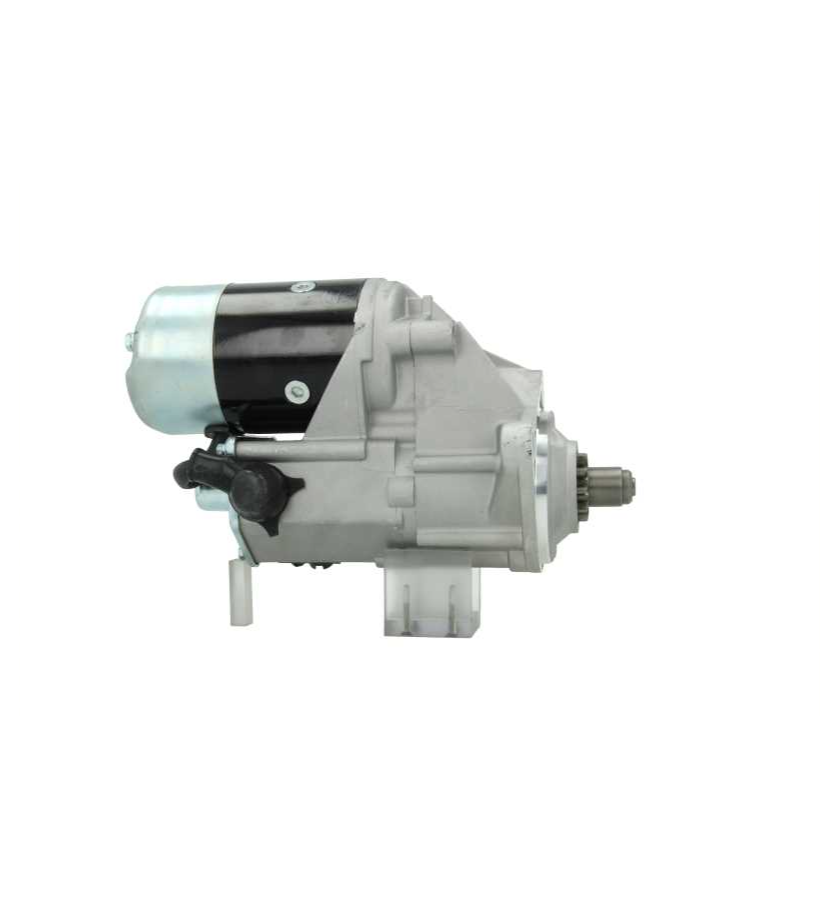

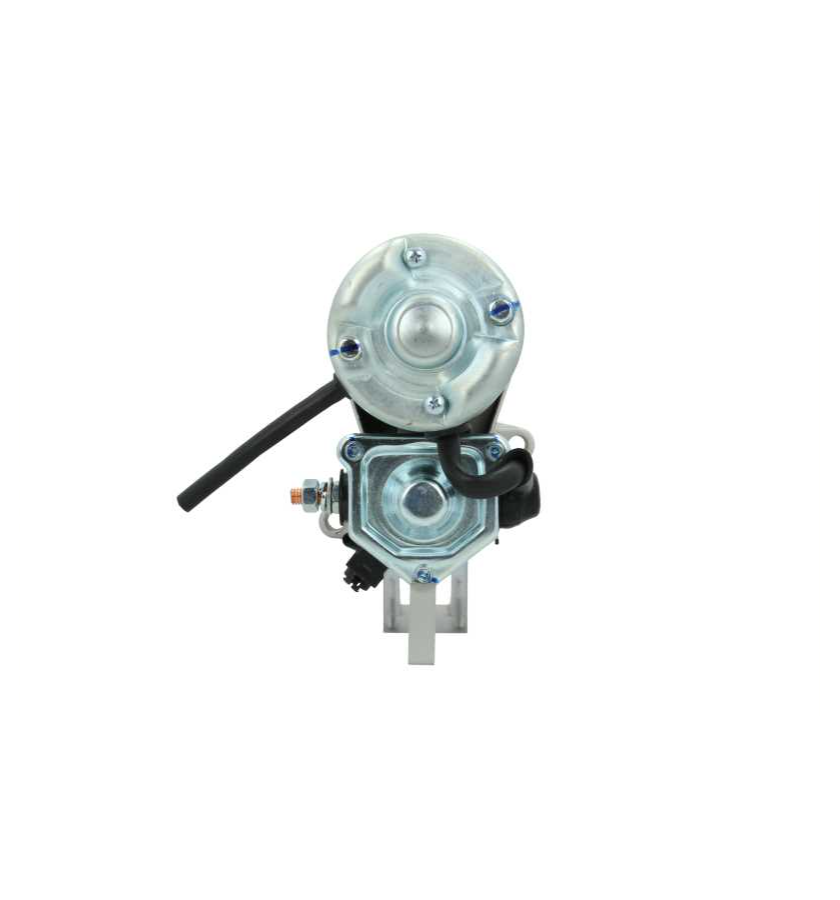

Ensure reliable starting for your agricultural equipment with this high-performance replacement **Starter Motor**. Designed for modern **Case IH** and **New Holland** tractors powered by 3-cylinder and 4-cylinder diesel engines, this unit delivers the cranking power needed for daily farm operations.

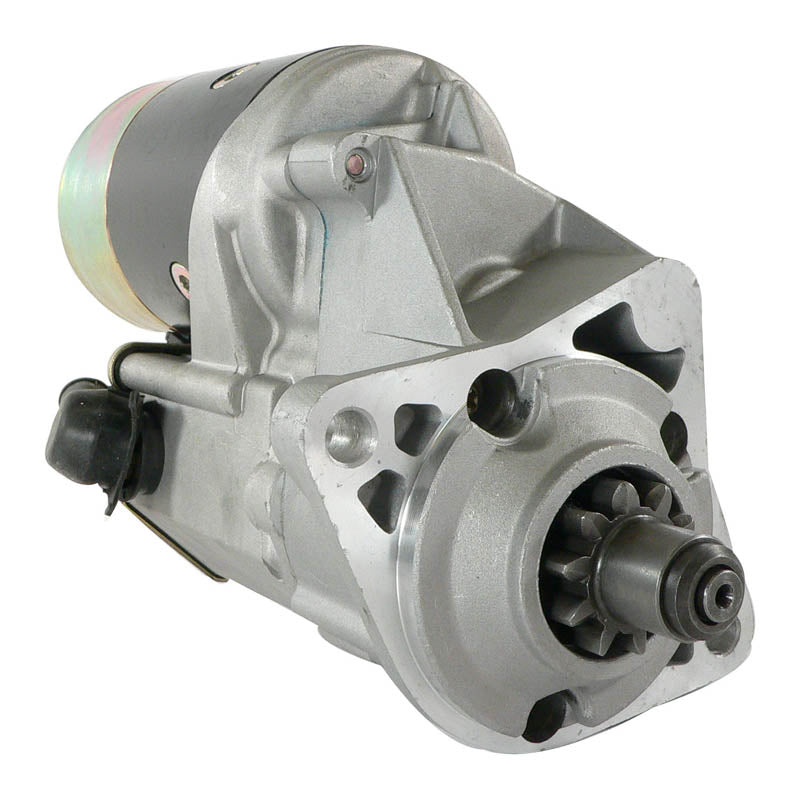

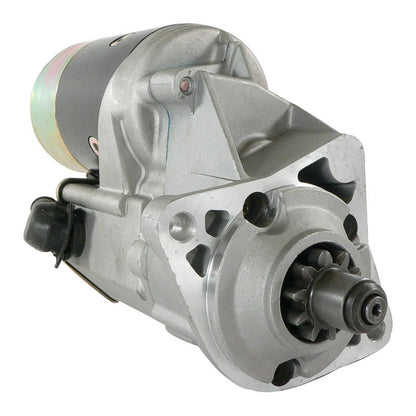

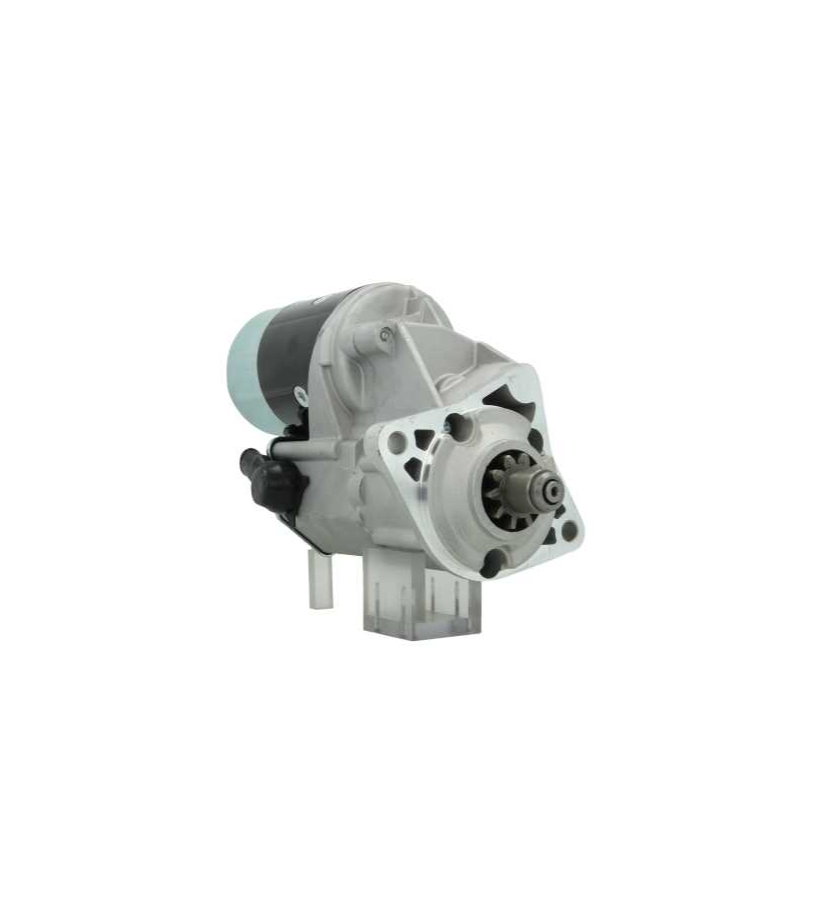

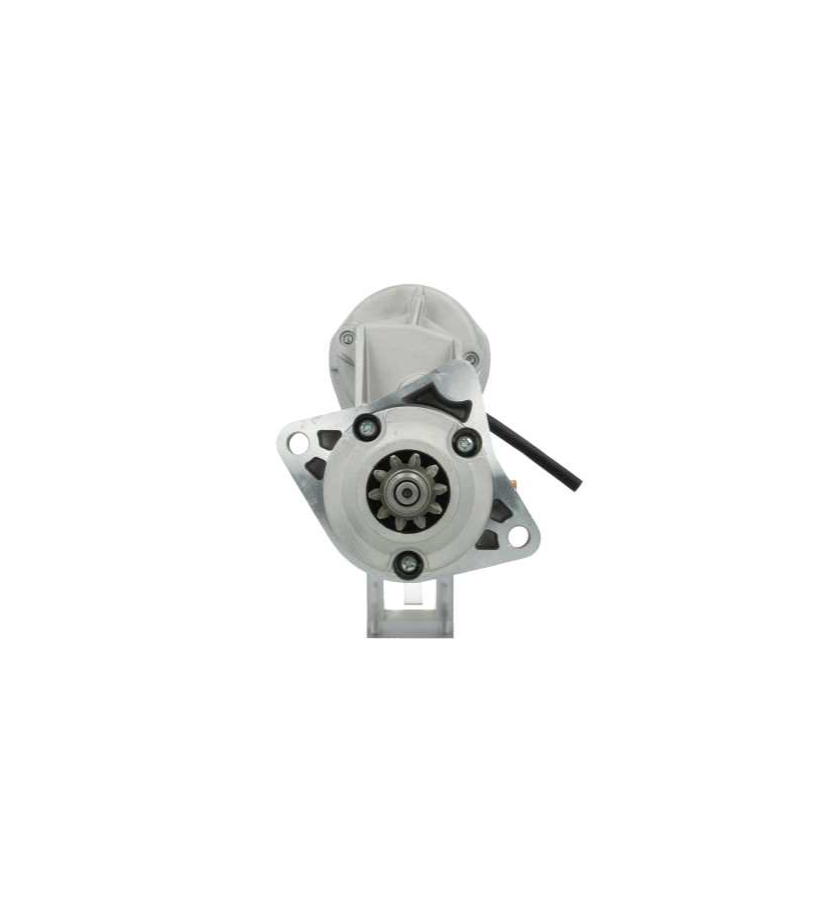

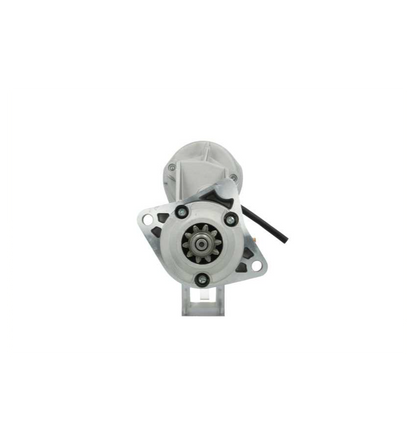

This is a **PLGR (Planetary Gear Reduction)** starter, which offers superior torque in a compact design compared to older direct-drive units. It features a **10-tooth** pinion gear and is a direct replacement for the original Bosch or Iskra/Mahle starters found on the JX and T4000 series.
HIGH TORQUE: 3.0kW Gear Reduction design ensures fast cranking even in cold weather, replacing OEM part numbers 47137538 and 504036476.
Key Features
✔Gear Reduction: Efficient high-torque design.
✔Direct Fit: Replaces Bosch & Iskra units.
✔10-Tooth Pinion: Correct mesh for flywheel.
✔Heavy Duty: Sealed against dust and moisture.
Technical Specs
Voltage:
12 Volts
Power:
3.0 kW
Rotation:
CW (Clockwise)
Teeth Count:
10 Teeth
Starter Type:
PLGR
SKU Reference:
410-24066
Vehicle Fitment Guide
Make
Model Series
Specific Models
Case IH
JX Series
JX60, JX70, JX80, JX90, JX95
Case IH
Farmall Series
65C, 75C, 85C, 95C, 105U
New Holland
T4000 Series
T4020, T4030, T4040, T4050
New Holland
TD & TN Series
TD5040, TN85, TN95
Steyr
Kompakt
4065, 4075, 4085, 4095
OEM Part Number Cross Reference
Case / New Holland
47137538, 47132037, 2859528, 87311822
Bosch
0001230021, 0001230026, 0001262021
Iskra / Letrika
11.131.464, AZF4591, IS1009
Iveco
504036476, 504357109
Arrowhead / WAI
410-24066, 18374N
Frequently Asked Questions
Will this fit my Case JX90?
Yes, this starter is the correct fitment for the Case IH JX90 and most other JX series tractors with the 10-tooth starter.
What does PLGR mean?
PLGR stands for **Planetary Gear Reduction**. This modern starter design uses gears to increase torque output while keeping the motor compact and lightweight, providing faster starts.
Is this a 3-bolt mount?
Yes, this starter features a standard 3-bolt flange mounting pattern used on these engines.
Note: Please verify your existing starter has 10 teeth before purchasing. Fast shipping available across the UK and Europe.
