Starter Motor 9 Teeth for Chinese ATV Quad 125cc 150cc 200cc 250cc Vertical Engine
Starter Motor 9 Teeth for Chinese ATV Quad 125cc 150cc 200cc 250cc Vertical Engine
SKU:410-58009
Free shipping over £150. Terms apply
Couldn't load pickup availability
9 Teeth Starter Motor for Chinese ATV
Premium Quality 12V Replacement Part
Restore your vehicle's ignition reliability with this heavy-duty 9-teeth starter motor. Specifically engineered for the Chinese 125cc - 250cc vertical engine class (CG Series), this motor provides the high-torque output required for consistent, fast starts even in cold weather conditions.
Key Features
- ✔ 9-Teeth / 9-Spline Drive Gear
- ✔ Heavy-duty aluminum housing
- ✔ Direct fit for 125cc-250cc Vertical Engines
- ✔ Clockwise rotation (CW)

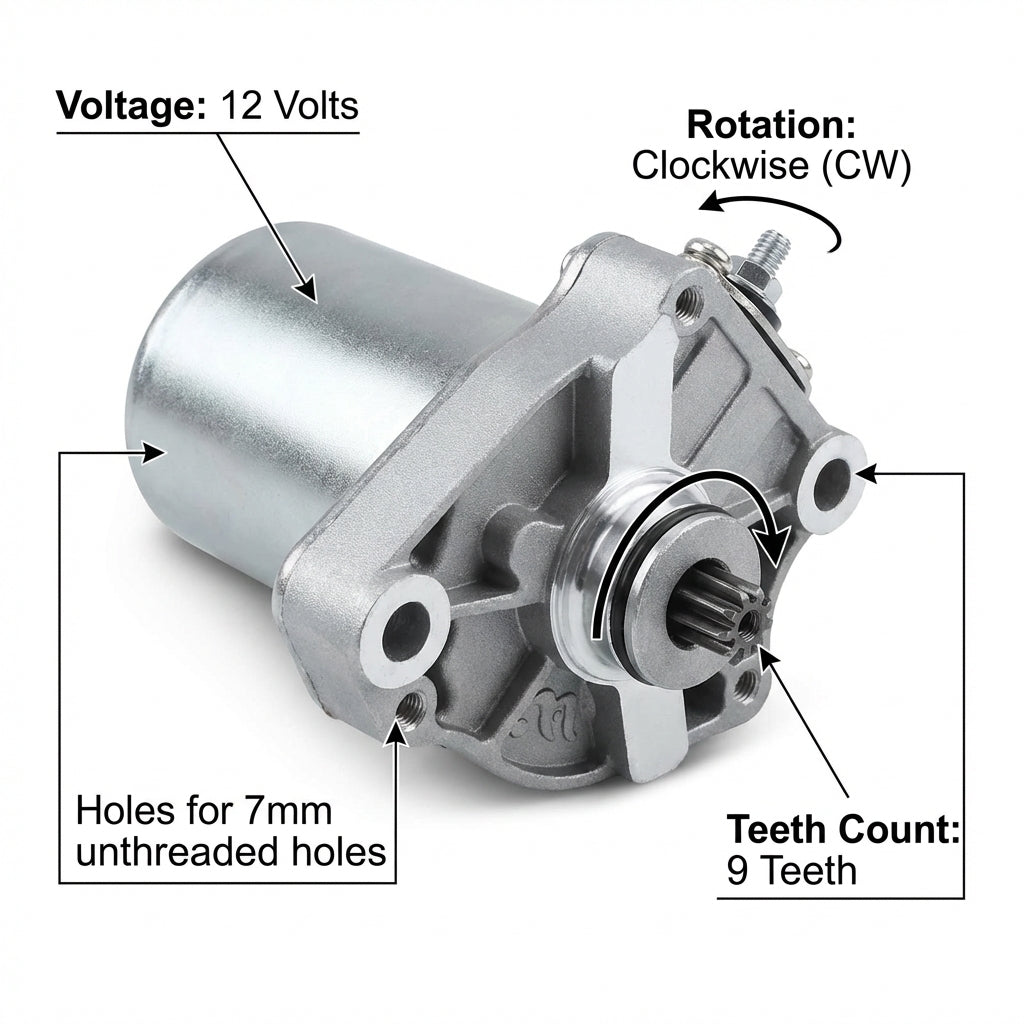

Technical Specs
| Voltage: | 12V |
| Number of Teeth: | 9 |
| Mounting Holes: | 2-Bolt |
| Hole Spacing (C-to-C): | 52mm - 53mm |
| Insert Diameter: | 30mm |
| Spline Diameter: | ~11.75mm |
Compatibility / Fitment Guide
| Engine Type | Common Brands | Notes |
|---|---|---|
| 125cc - 250cc Vertical | TaoTao Rhino, Coolster, Roketa | Vertical air-cooled only |
| CG Series (Pushrod) | Lifan, Zongshen, Loncin | Standard 9-teeth drive |
| 250cc Quad / Dirt Bike | TaoTao ATA250D, Rhino 250 | Verify 52mm spacing |
OEM Cross Reference
| Reference Number | 11608A906, 31200-003-0000, 2110-ST280-40 |
| Common Part ID | STTR-CG250-9T, LH-STA-MT-25 |
Questions & Answers
Is this a genuine original part?
This is a premium quality aftermarket replacement part from 4Drive, manufactured to meet or exceed original equipment (OE) standards for fitment and performance.
How do I know if it is compatible?
We recommend checking the number of teeth on your current motor and the mounting hole spacing. This model is a 9-tooth starter with 52mm bolt spacing. If your original has 11 or 12 teeth, this part will not be compatible.
Will this fit a 50cc-110cc horizontal engine?
Most 50cc-110cc horizontal engines use a 12-tooth starter. This 9-tooth model is primarily designed for larger vertical engines (CG125-CG250). Please verify your tooth count before ordering.
Note: Please verify your original part number and physical dimensions against the specs above before purchasing. Domain: 4drive.co.uk.
