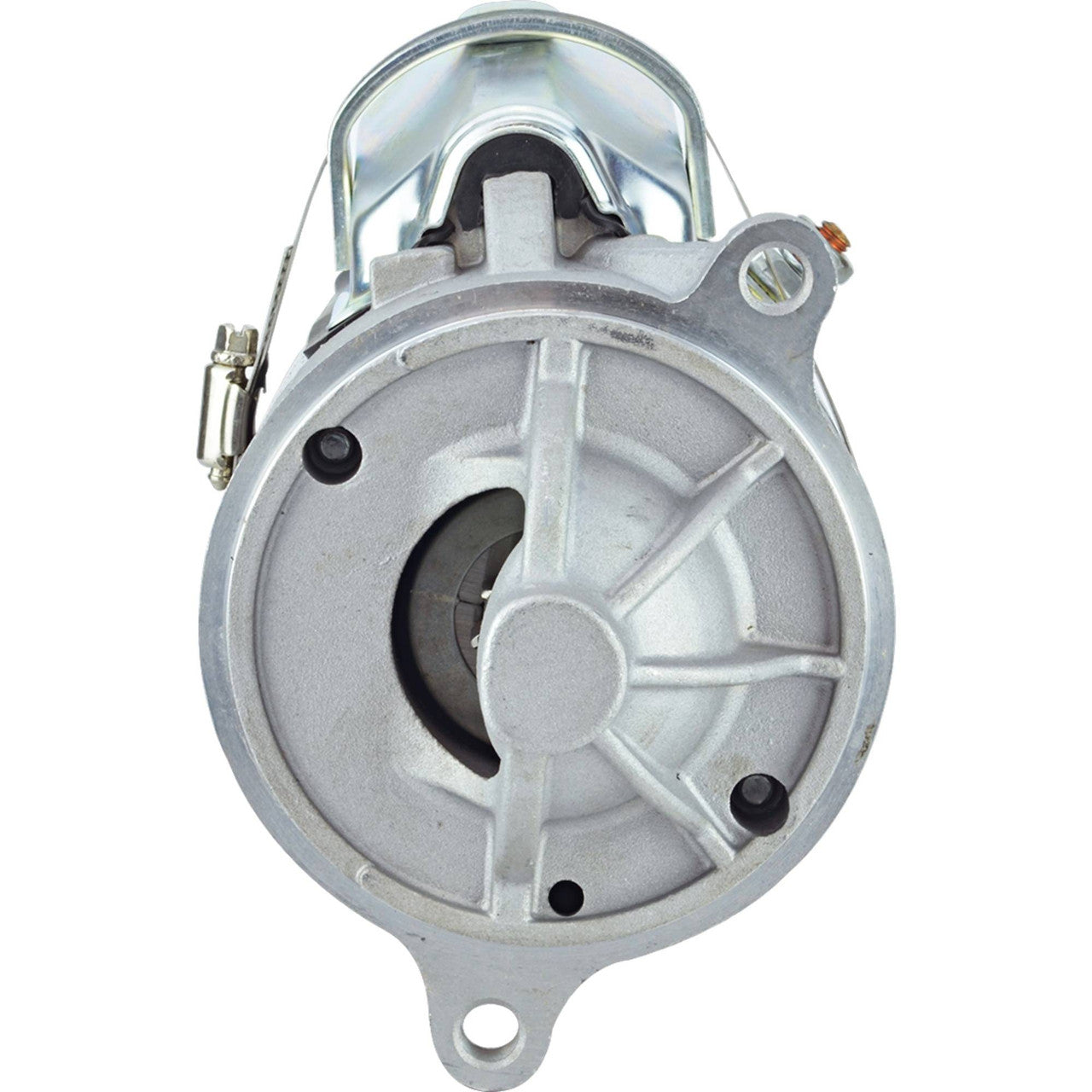

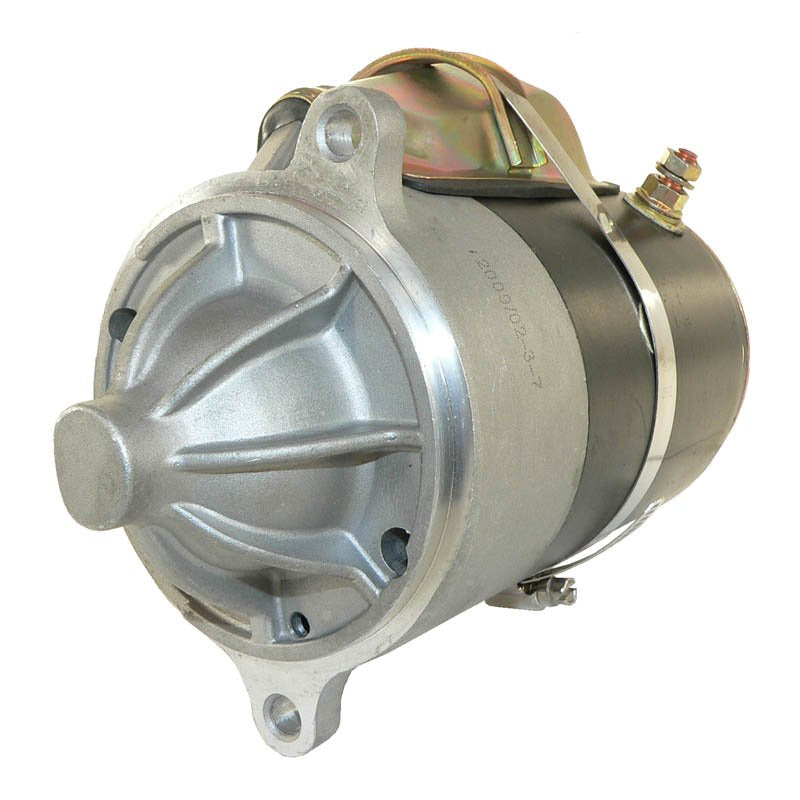

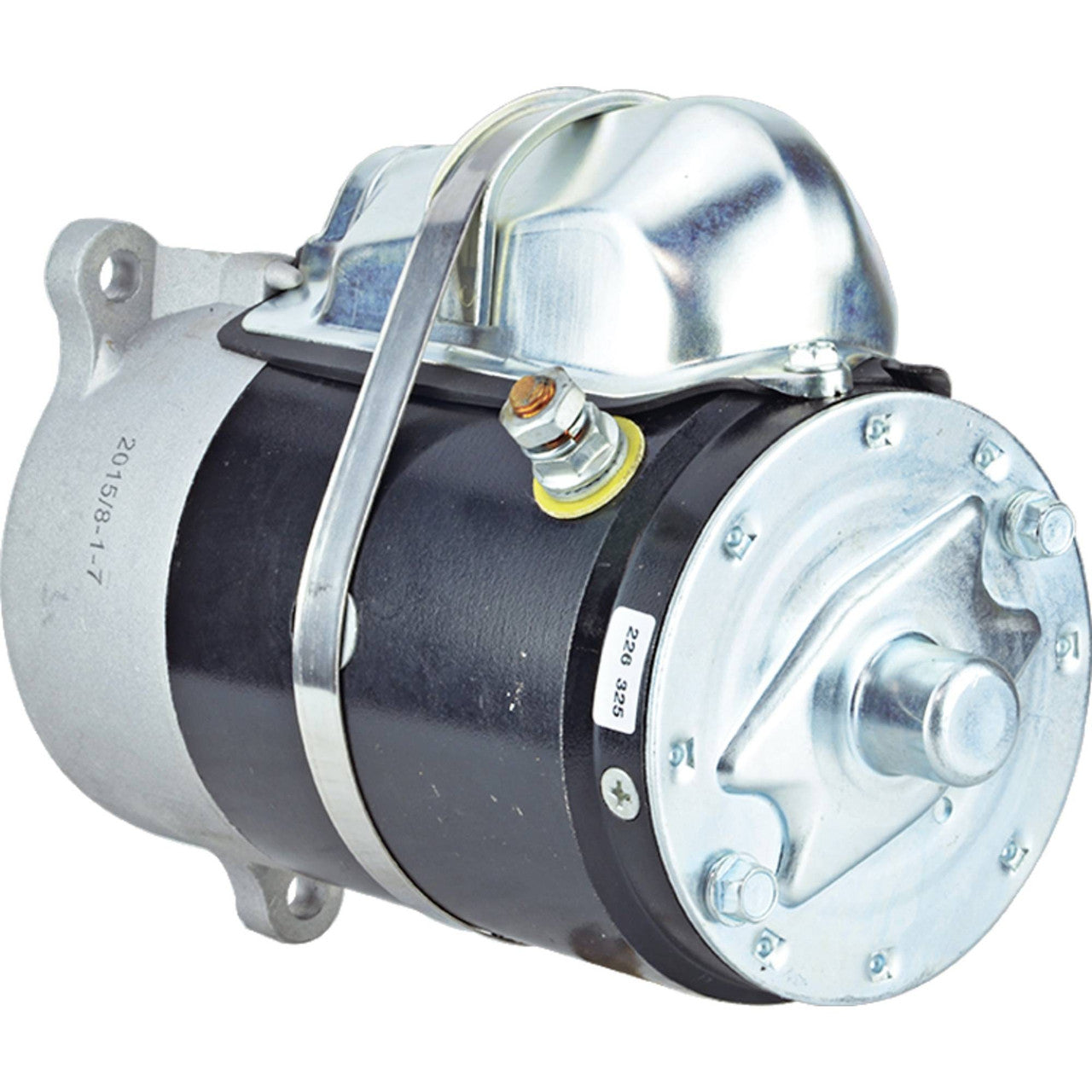

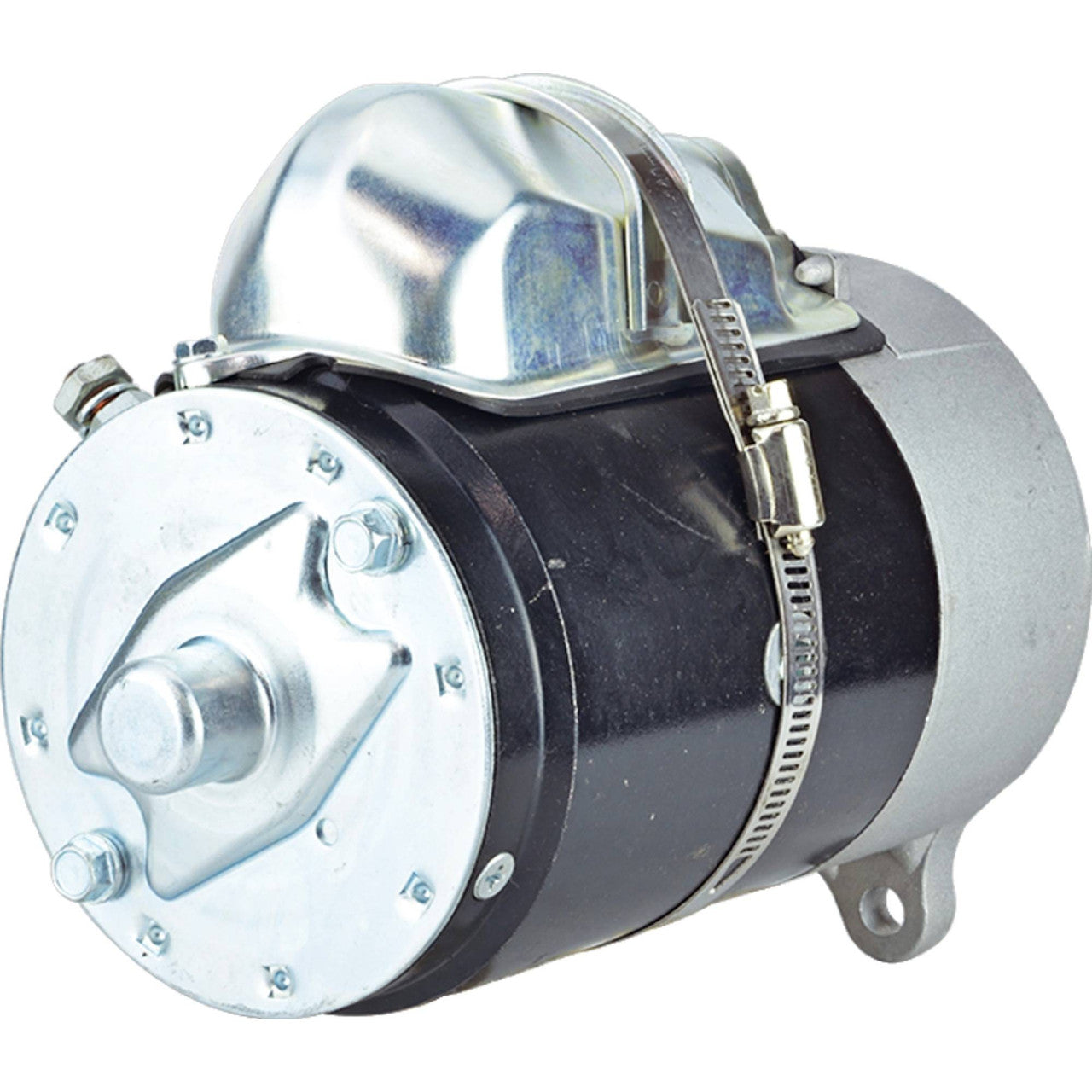

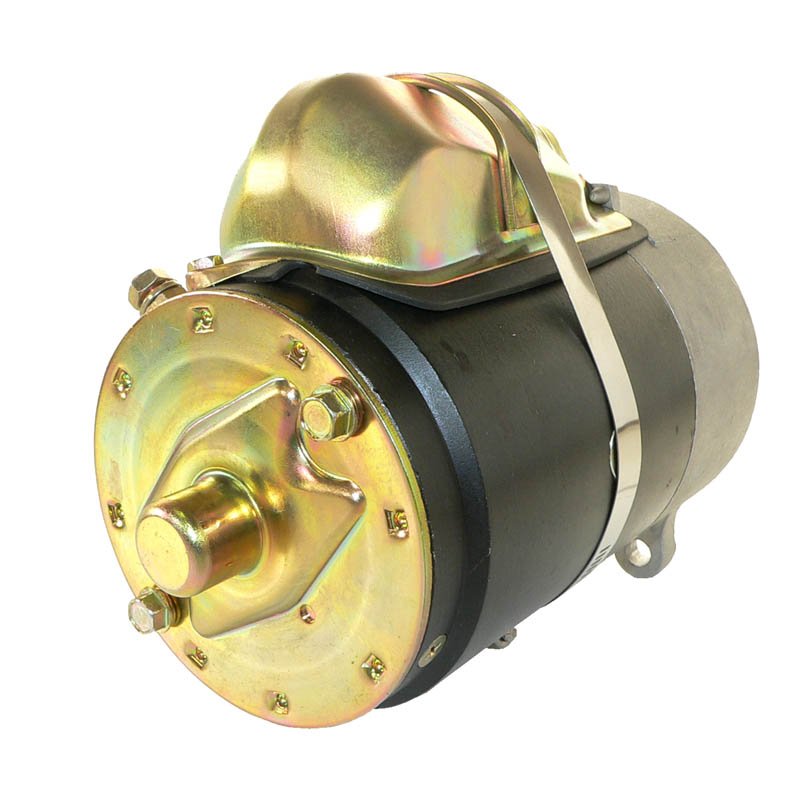

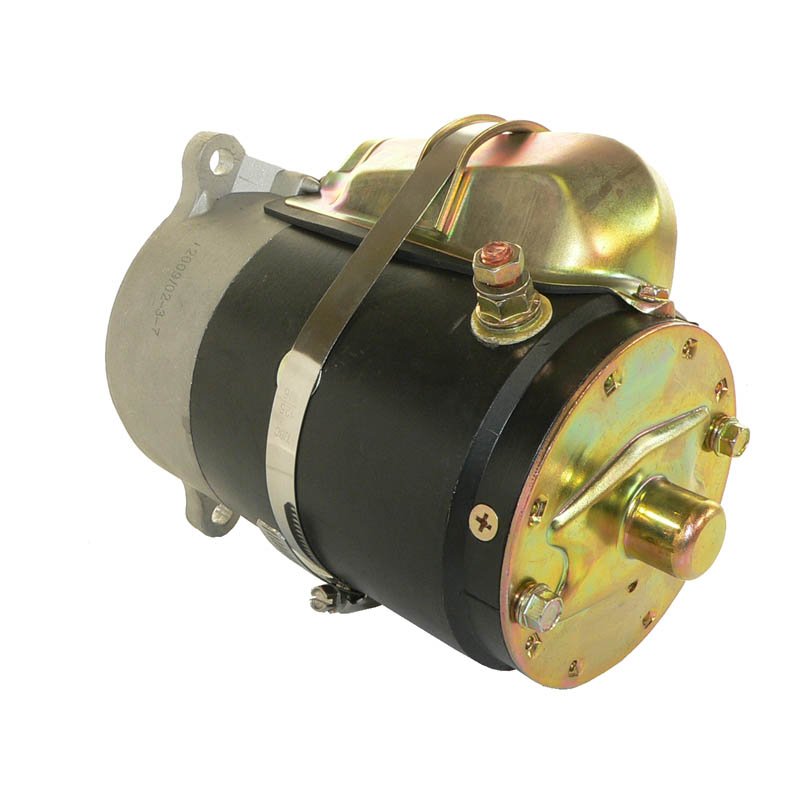

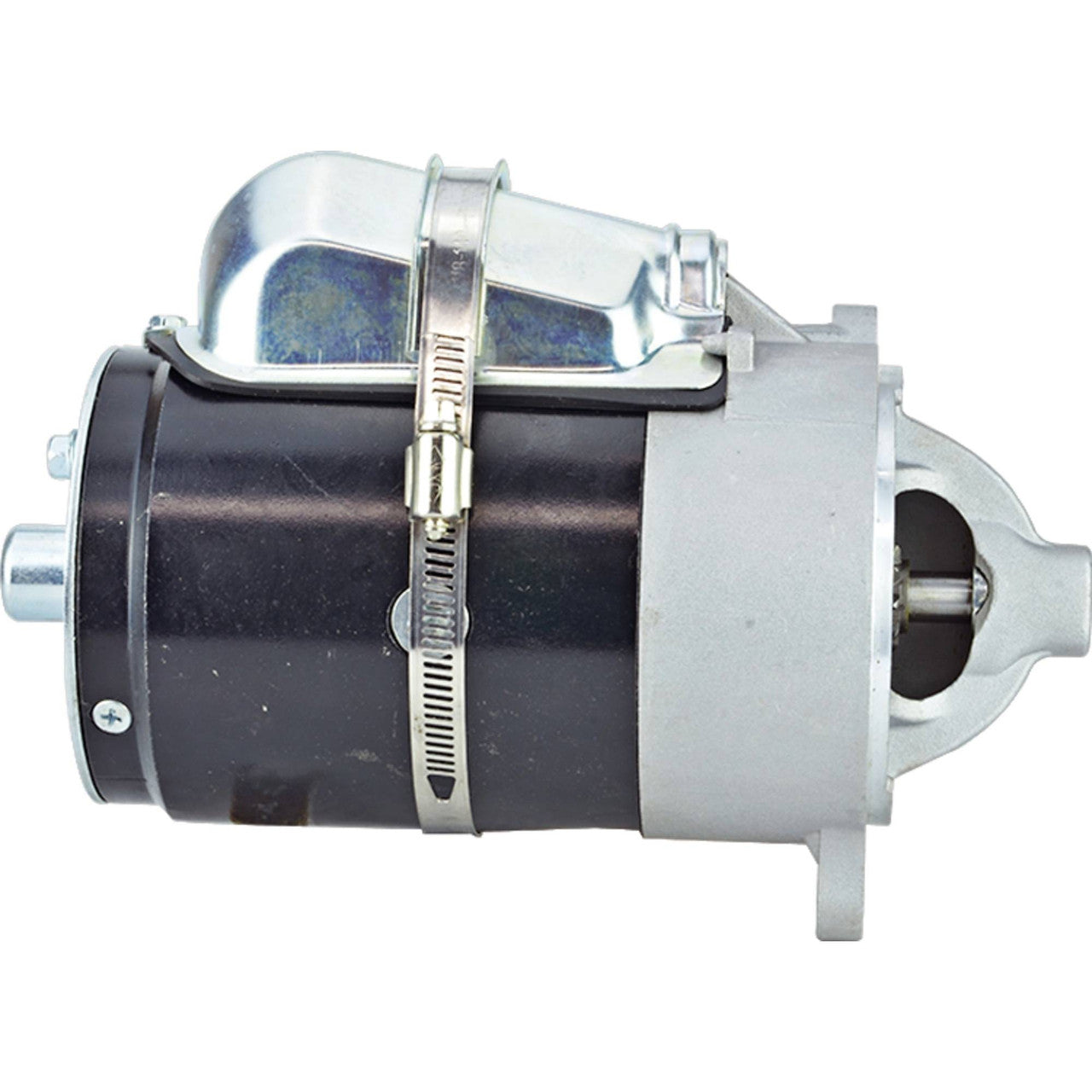

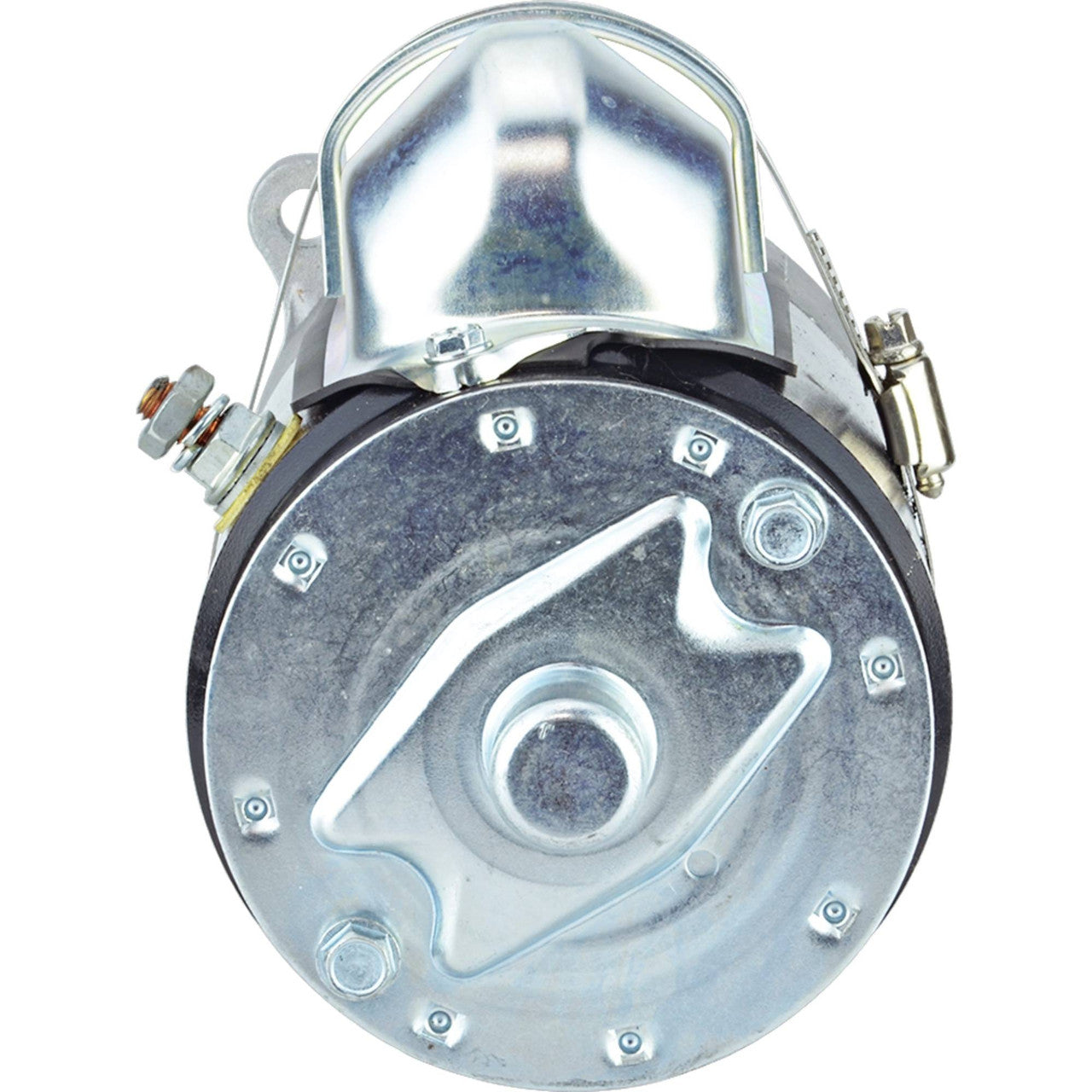

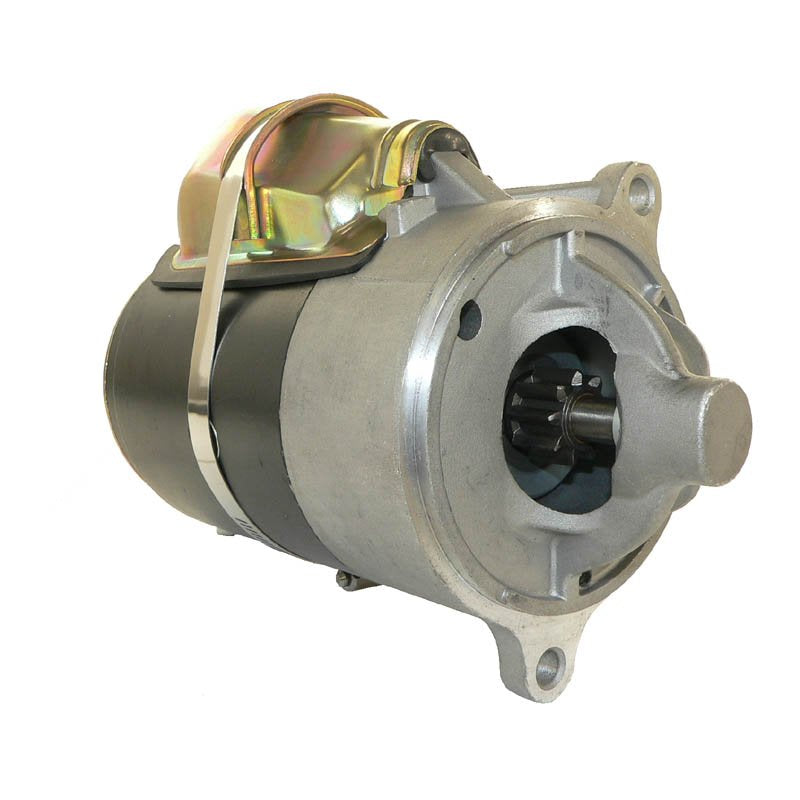

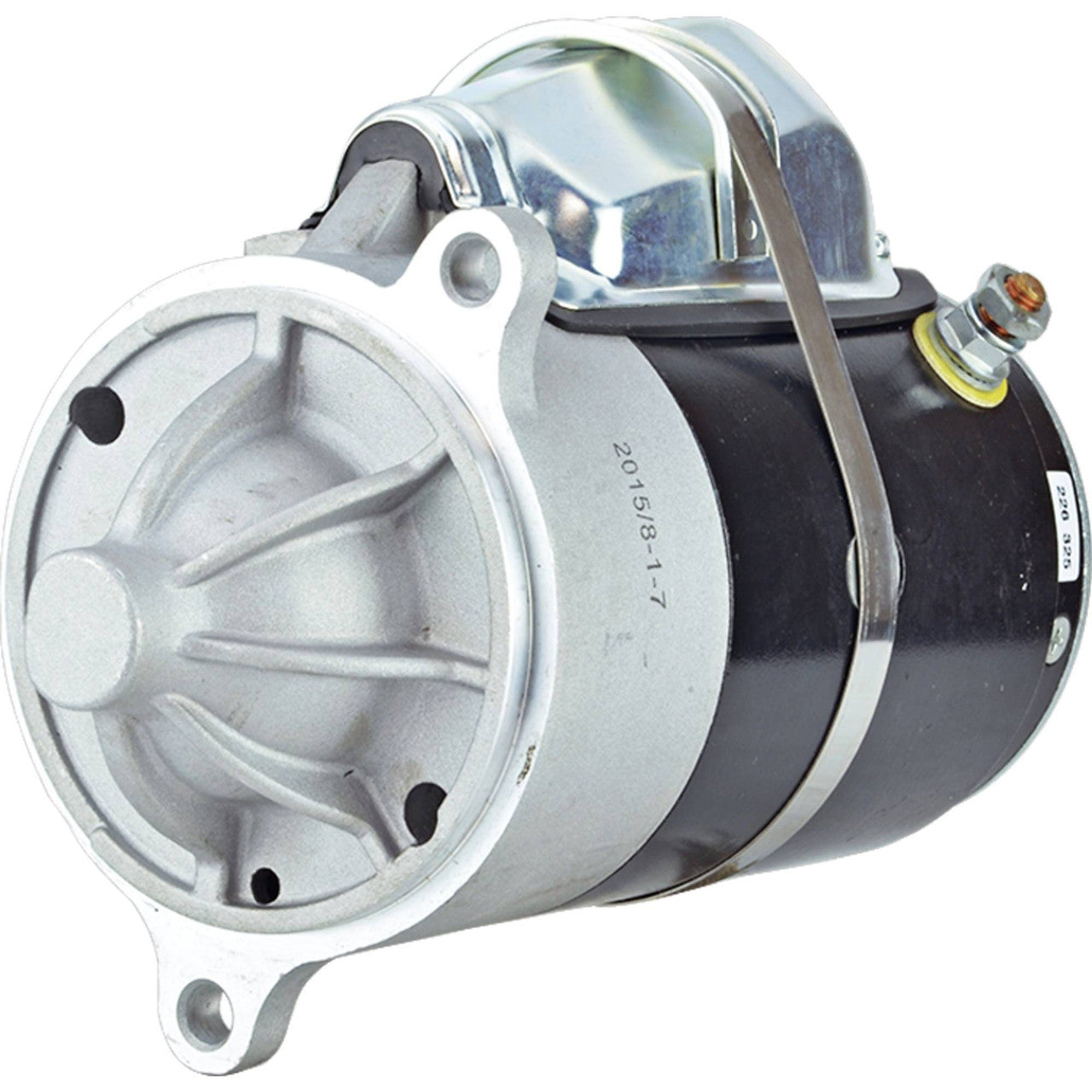

Starter Motor for Crusader & Ford Marine Engines - CW Rotation
Crusader Inboard & Sterndrive and Ford-based marine engines - 12V, CW, 9-Tooth
A starter motor is the component that cranks the engine over to begin combustion. If it fails to engage, spins without turning the engine, or does not respond at all when the key is turned or the start button is pressed, the engine will not start. This starter motor is built for Crusader inboard and sterndrive units and other Ford-engined marine applications with the B+ stud terminal, engineered as a direct replacement that matches the original unit's fit, mounting and function.
It is a 12V direct drive unit with clockwise (CW) rotation and a 9-tooth drive pinion, fitted with a 4.5in case. The drive-end housing extends 2in into the flywheel housing, matching the original Ford marine configuration. It replaces ARCO Marine 70106 and API Marine 10032 among the numbers listed below.
Key Features
- Direct fit for Crusader and Ford-based marine engine applications
- 12V starter motor, clockwise (CW) rotation
- 9-tooth drive pinion, direct drive design
- 4.5in case with B+ stud terminal
- 12-month warranty as standard
Technical Specs
| Specification | Detail |
|---|---|
| Voltage | 12V |
| Rotation | Clockwise (CW) |
| Teeth | 9 |
| Starter Type | Direct Drive (DD) |
| Case Size | 4.5in |
| Drive End Housing | Extends 2in into flywheel |
| Terminal | B+ Stud |
| Lester References | 3126, 3129 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Crusader Inboard & Sterndrive - Ford engined models | All years |
| Ford Marine Engines with B+ stud starter | All years |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 70106 | ARCO Marine |
| 10032, ST32 | API Marine |
| SFD0060, IMI106NM | Arrowhead |
| 4-1172XMP | EMP Parts |
| 3126, 3129 | Lester |
| 481636 | OEM / Interchange - CW Version, B+ Tab |
| 481638 | OEM / Interchange - CCW Version, B+ Stud |
| 481643 | OEM / Interchange - CCW Version, B+ Tab |
| 481685 | OEM / Interchange - CW Automotive Version |
Frequently Asked Questions
Will this fit without modification?
Yes, this starter motor is built to match the original Crusader/Ford marine unit's case size, rotation and terminal layout, so it installs as a direct swap.
What's included?
One new 12V starter motor, ready to fit. No mounting hardware is substituted - use your existing bolts and terminal connections.
How do I know my old starter has failed?
Common signs are a single click with no crank, a slow or straining crank, or no response at all when the key is turned or the start button pressed.
How do I check I have the right rotation?
This version is clockwise (CW) rotation. A counter-clockwise (CCW) version of this same application is also available - check your original unit's rotation marking or the OEM numbers above before ordering.
My engine isn't listed by name - will this fit?
This unit covers Ford-engined marine applications with the B+ stud terminal generally, rather than a fixed model list. Check the number on your existing starter against ARCO 70106, API 10032 or Lester 3126/3129 in the table above.
