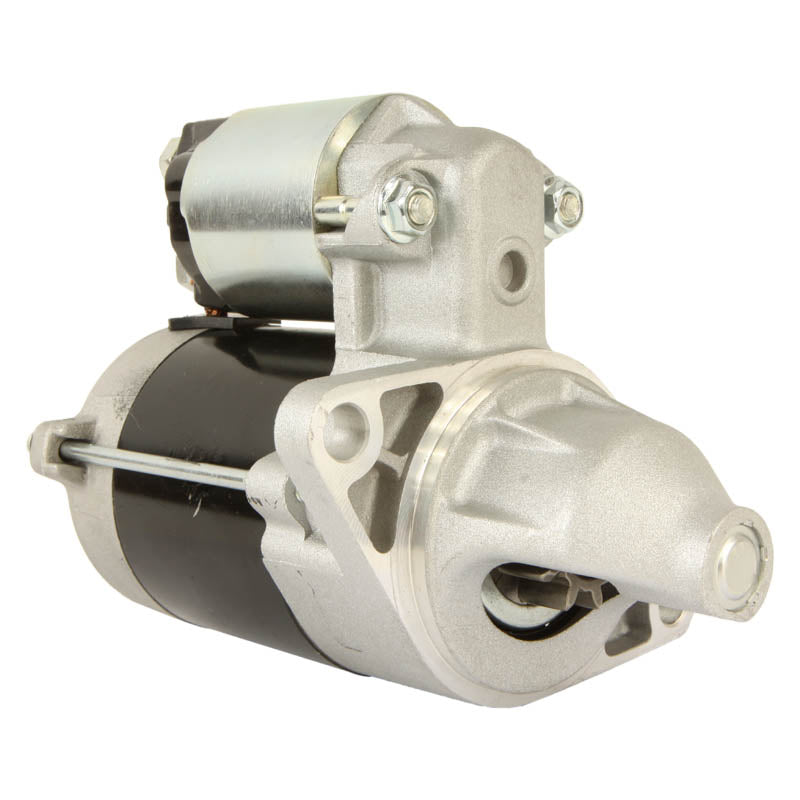

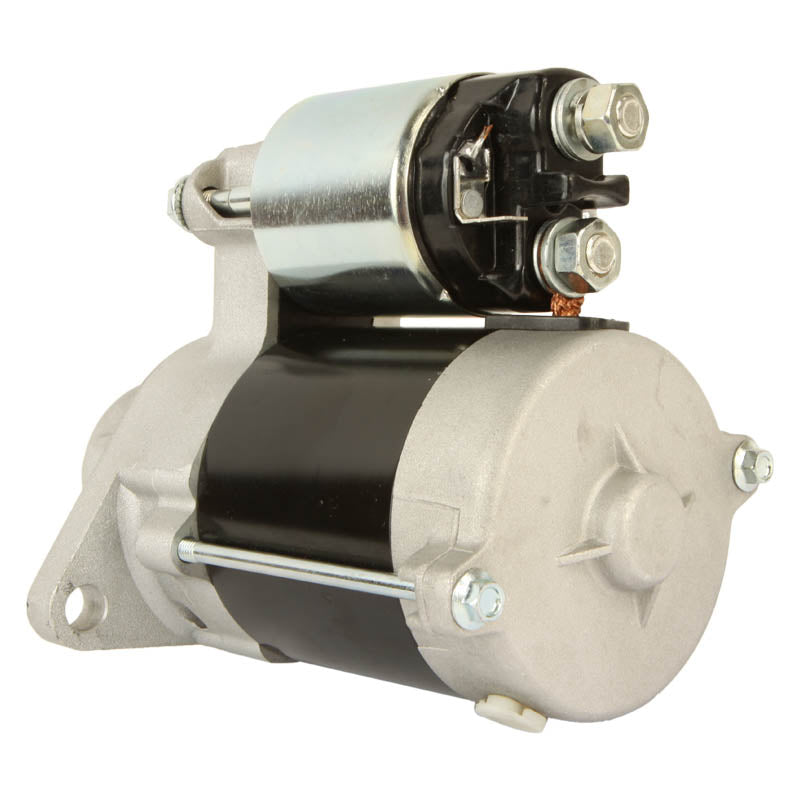

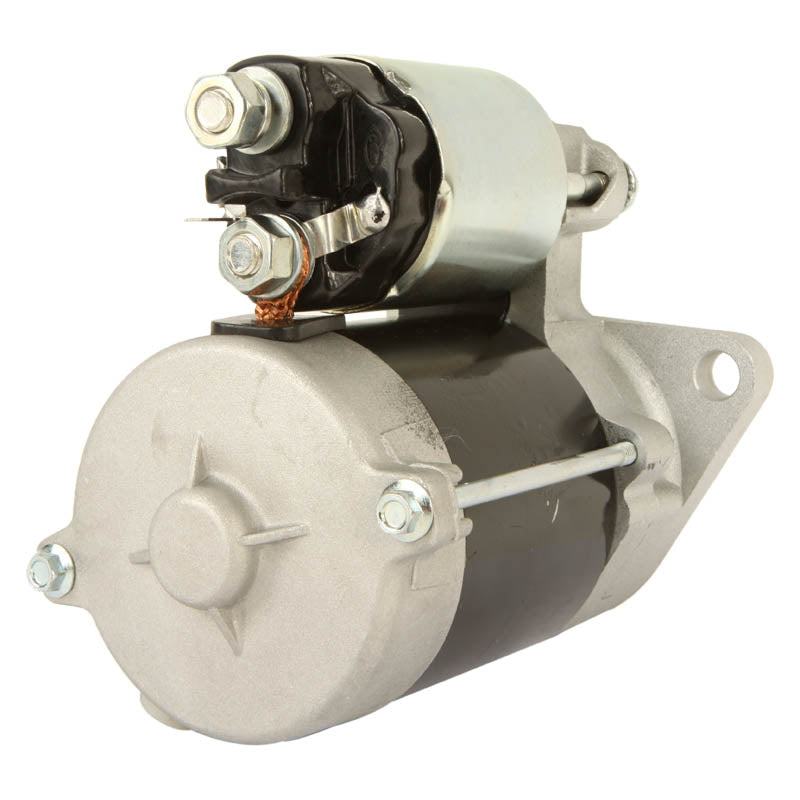

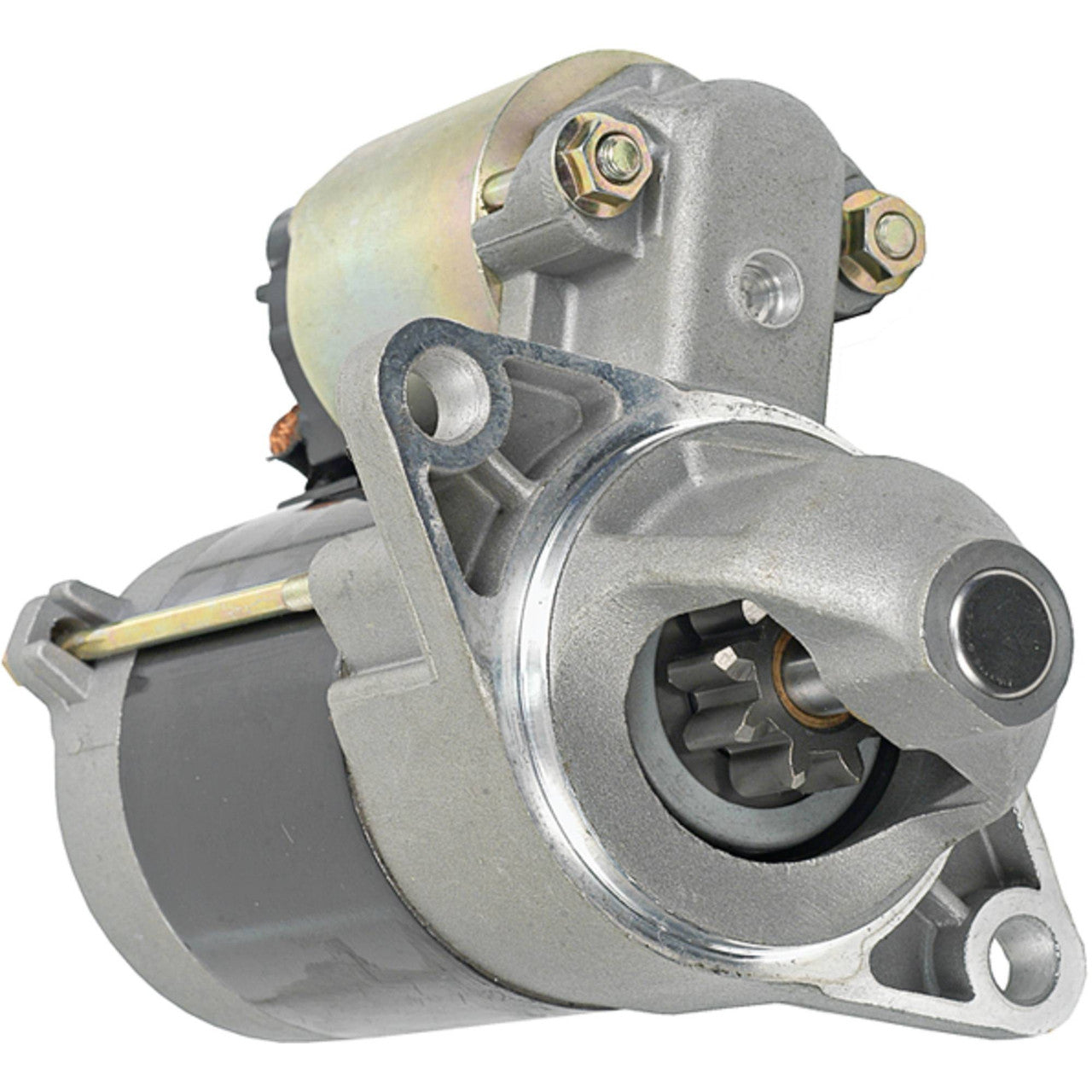

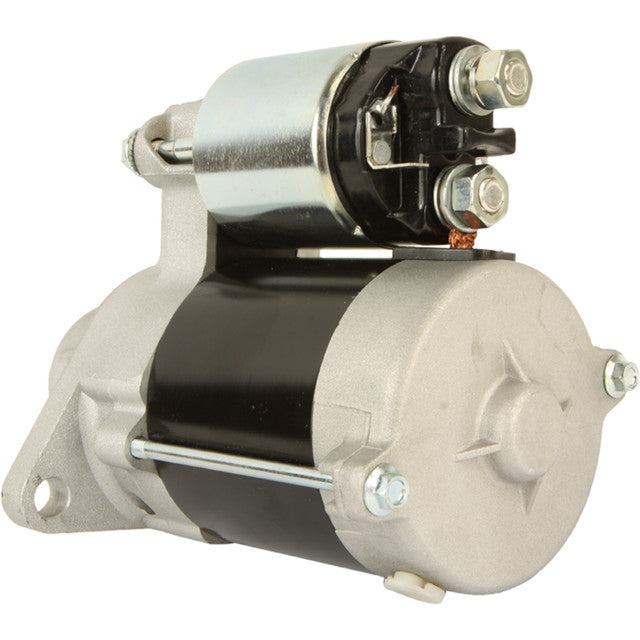

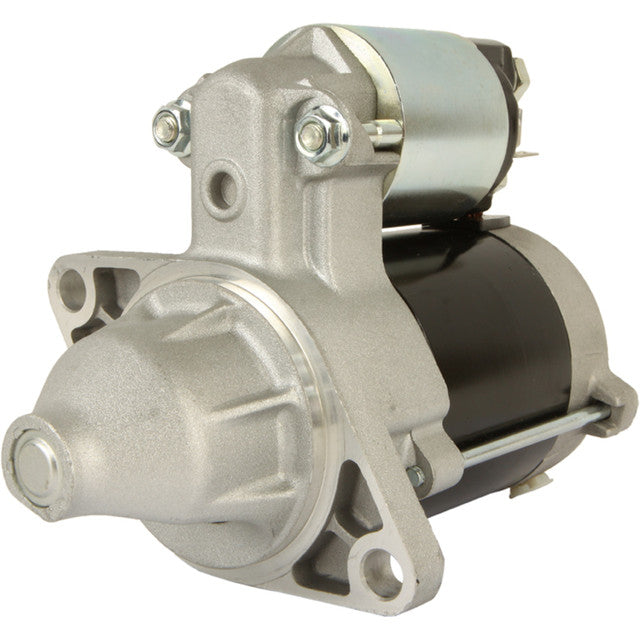

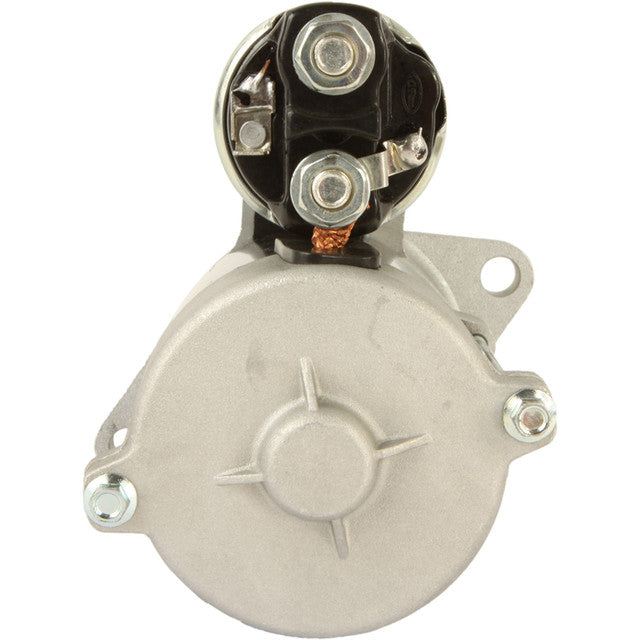

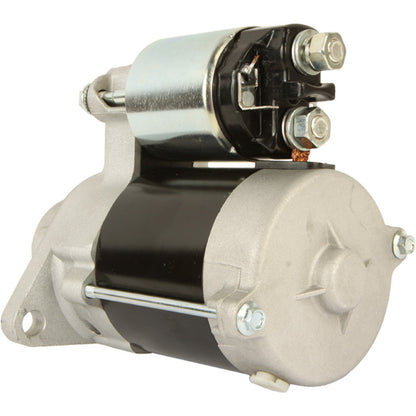

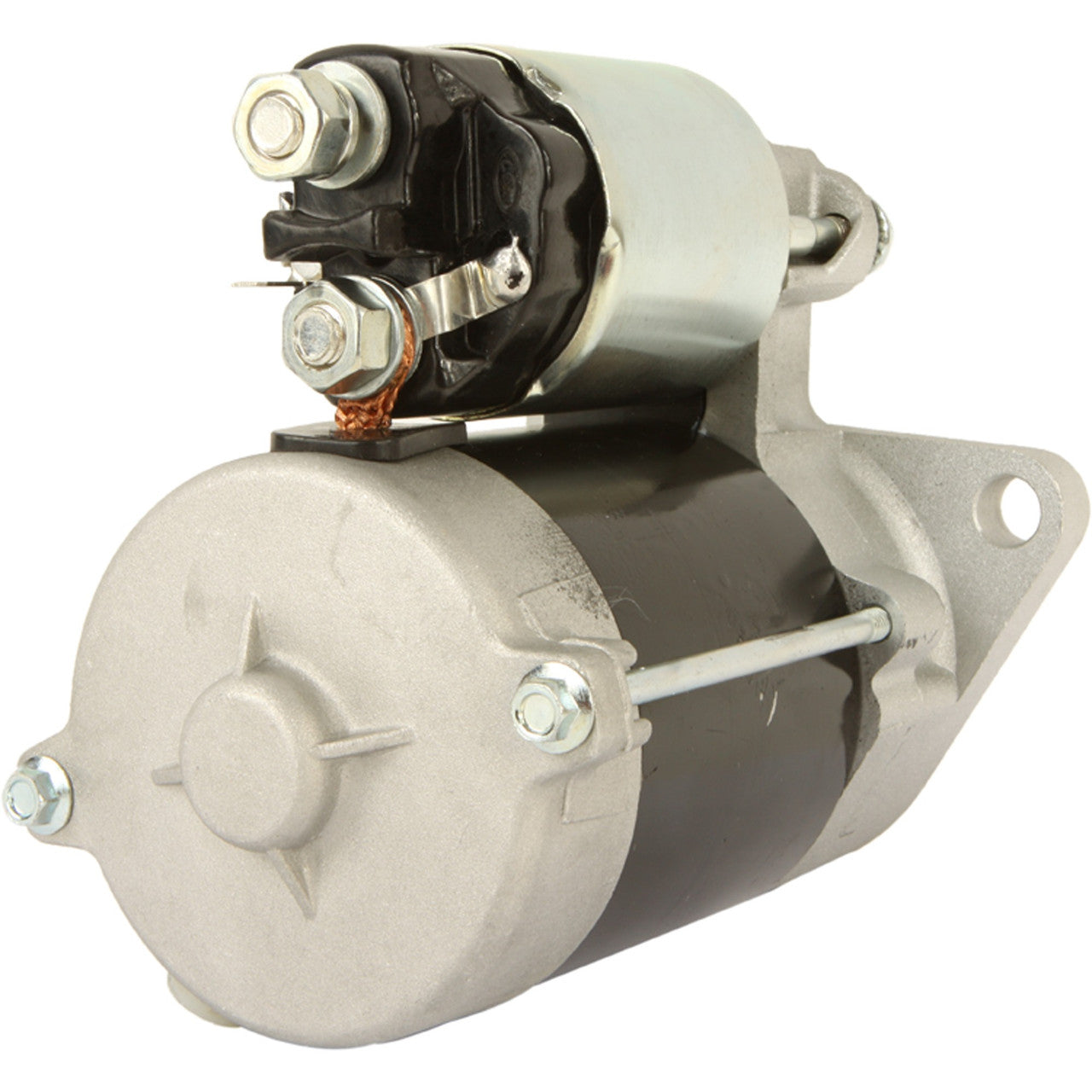

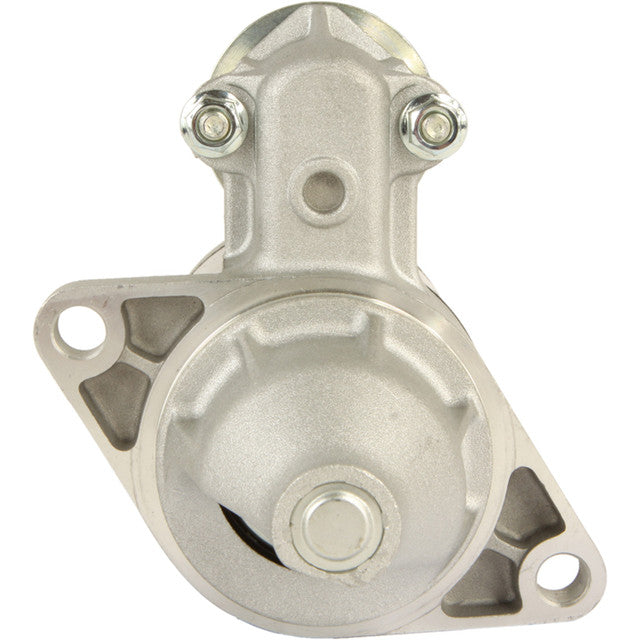

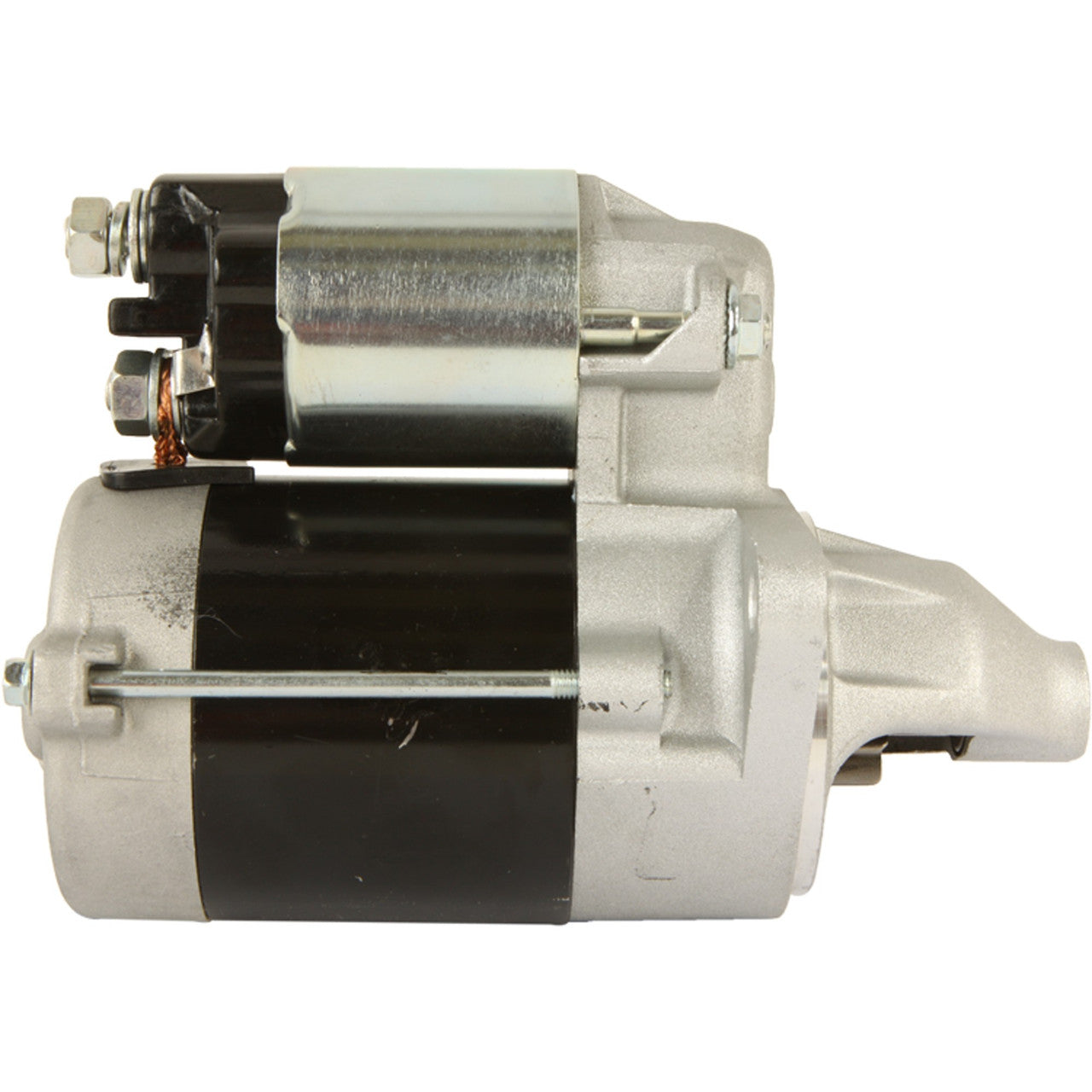

New Starter for Kawasaki Mule 500 520 550 KAF300 12V 9-Teeth 21163-2109 18450N
New Starter for Kawasaki Mule 500 520 550 KAF300 12V 9-Teeth 21163-2109 18450N
SKU:410-52080
Free shipping over £150. Terms apply
Couldn't load pickup availability
Starter Motor 410-52080
Premium Quality Replacement for Kawasaki Mule KAF300 Series
Ensure your Kawasaki Mule starts reliably every time with this heavy-duty 4Drive aftermarket starter motor. Engineered specifically for the KAF300 engine series used in the Mule 500, 520, and 550, this unit is a 100% brand new replacement designed to meet or exceed original equipment (OE) performance. This Direct Drive (DD) unit provides the high torque necessary for quick engine ignition in all weather conditions.
Key Features
- ✔ Direct fit replacement - no modifications required
- ✔ High-grade copper windings for superior conductivity
- ✔ Sealed housings to block moisture and debris
- ✔ 100% New unit (Not remanufactured)
Technical Specs
| Voltage | 12V |
| Rotation | CW (Clockwise) |
| Teeth | 9 |
| Power | 0.6 KW |
| Type | Direct Drive (DD) |
| Pinion OD | 29.5mm |
Compatibility / Fitment Guide
| Make | Model / Application | Years |
|---|---|---|
| Kawasaki | Mule 500 (KAF300-A1, B1, B2) | 1991 - 1995 |
| Kawasaki | Mule 520 (KAF300-D1, D2) | 2000 - 2001 |
| Kawasaki | Mule 550 (KAF300-C1 to C7) | 1997 - 2004 |
| Cub Cadet | Big Country 4x2 UTV (Kawasaki 9.5HP) | 2003 - 2005 |
OEM Cross Reference
| Kawasaki | 21163-2109, 21163-2148 |
| Denso | 128000-9980, 128000-9981, 028000-9980 |
| Lester | 18450 |
| Arrowhead | SND0401, SMU0180 |
| WAI | 2-2667-ND |
Questions & Answers
Is this a genuine original part?
This is a premium quality 4Drive aftermarket replacement part, manufactured to meet or exceed original equipment (OE) standards for fitment and performance.
How do I know if it is compatible?
We recommend checking the Cross Reference list above. If your original part number is 21163-2109 or 128000-9980, this is the correct direct-fit replacement for your Mule.
Does this fit the Mule 2510 or 3010?
No, this specific starter is for the 286cc KAF300 engines found in the 500, 520, and 550 models. The larger Mule models typically require the 410-52048 or similar high-power variants.
Note: Please verify your original part number against the references above before purchasing to ensure 100% fitment. Visit 4drive.co.uk for support.
