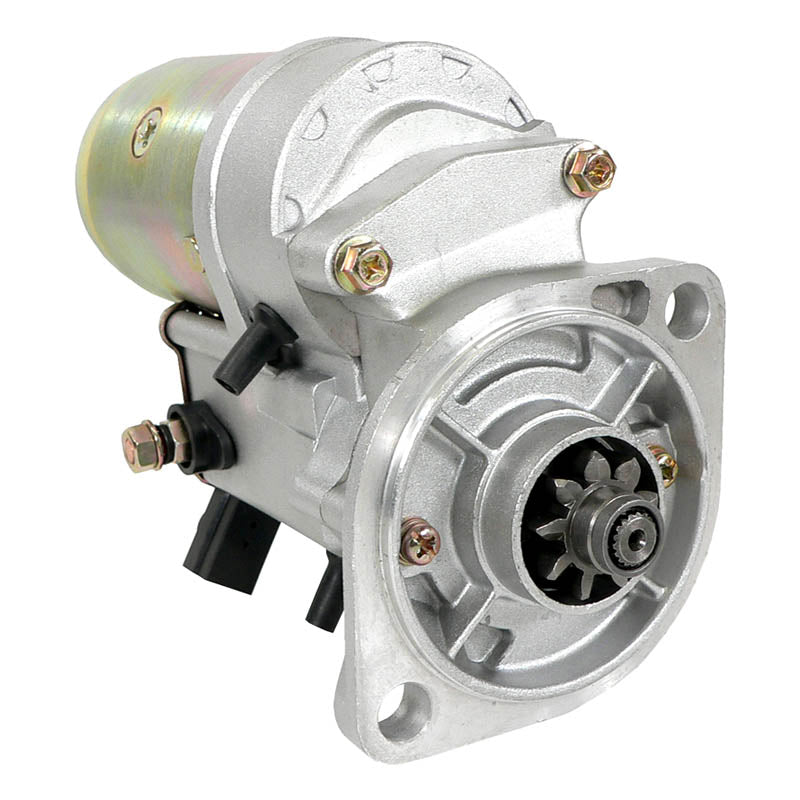

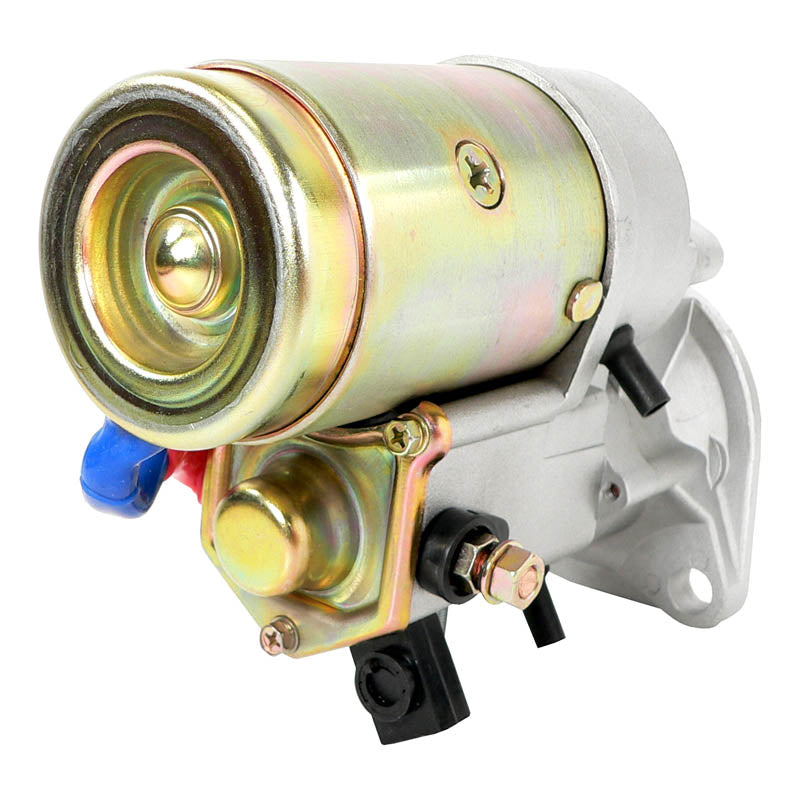

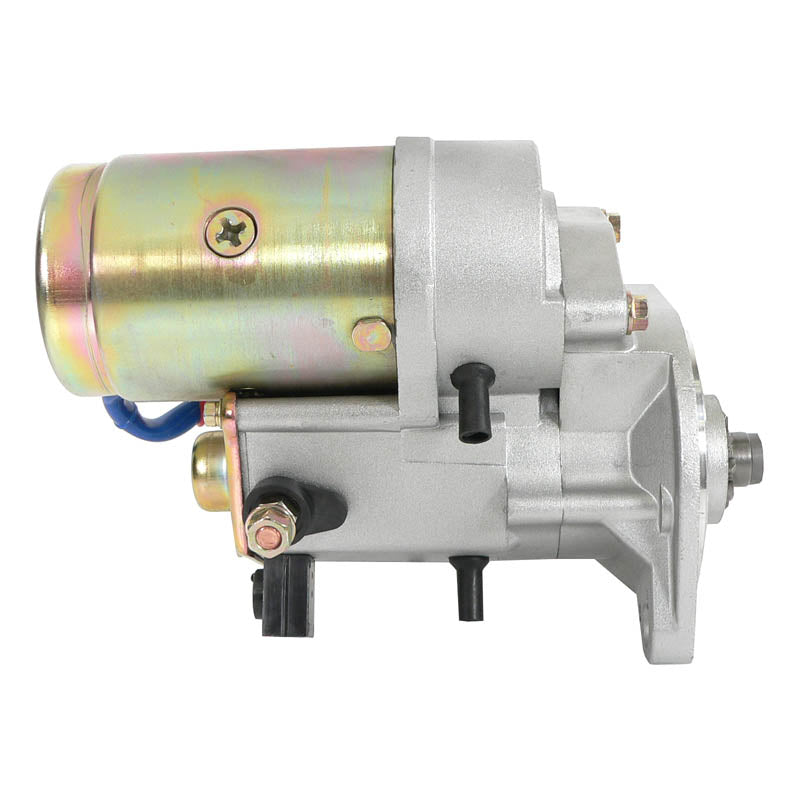

Starter Motor for Cummins Engines 12V OSGR CW 9T - Heavy Duty Replacement
Starter Motor for Cummins Engines 12V OSGR CW 9T - Heavy Duty Replacement
SKU:410-52217
Free shipping over £150. Terms apply
Couldn't load pickup availability
Heavy Duty Starter Motor
Reliable 12V OSGR CW 9-Tooth Starter for Cummins Engines
Ensure powerful and consistent engine starts with our high-quality aftermarket Starter Motor, specifically engineered for Cummins Engines. This 12-volt OSGR (Offset Gear Reduction) unit delivers the robust cranking power needed for demanding applications, making it an ideal replacement for worn or faulty original equipment. Crafted to meet or exceed OEM specifications, you can trust in its durability and performance.
Designed for straightforward installation, this clockwise rotation starter features a precise 9-tooth pinion, guaranteeing optimal engagement with your engine's flywheel. Whether you're in agricultural, industrial, or other heavy-duty sectors, this starter motor provides the reliability required to keep your Cummins engine running smoothly, minimising downtime and maximising productivity.
Key Features
- ✔ Premium Aftermarket Quality: Manufactured to high standards for exceptional reliability and extended service life.
- ✔ Robust OSGR Design: Offset Gear Reduction type ensures strong cranking power for large engines.
- ✔ Optimised Performance: Provides consistent, fast starts even in challenging conditions.
- ✔ Durable Construction: Built with high-quality materials to withstand the rigours of heavy-duty operation.
- ✔ Easy Installation: Designed for direct replacement, simplifying the fitting process.
Technical Specs
| Voltage: | 12 Volts |
| Power: | 2.2 KW / 2.95 HP |
| Rotation: | Clockwise (CW) |
| Teeth on Drive: | 9 Teeth |
| Starter Type: | OSGR (Offset Gear Reduction) |
| Gear OD: | 1.394in / 35.4mm |
| Mounting Ear Holes: | 13.6mm Unthreaded |
| Weight: | 13.805 lbs / 6.28 kg |
Vehicle Fitment Guide
| Make | Model | Year Range |
|---|---|---|
| Cummins | Various Engines (e.g., REM Misc. Equipment 2100D B 3.3L Diesel) | Please refer to OEM numbers |
| REM Misc. Equipment | 2100D B 3.3L Diesel | 2004-2009 |
OEM Part Number Cross Reference
| DENSO | 2280009010 |
| DENSO FIRST TIME FIT | 2808022 |
| KOMATSU | 6008631310 |
| WILSON HEAVY DUTY | 91295564 |
| WOOD AUTO SUPPLIES | STR30030 |
| ARROWHEAD | SHI0150, 72099061 |
| ALLIS CHALMERS | 72099448 |
| BOSCH | SR140X |
| HITACHI | S114-258A, S114-254A, S114-268, S114-254DAM, S114-254, S114-254B, S114-254C, S114-254D, S114-258 |
| OTHER | 16584 |
Frequently Asked Questions
What is an OSGR starter motor?
OSGR stands for Offset Gear Reduction. This type of starter uses a set of internal gears to increase torque, allowing a smaller, lighter motor to produce significant cranking power, making it highly efficient for heavy-duty engines.
How do I know if this starter motor fits my Cummins engine?
To ensure fitment, always cross-reference the OEM part number from your original starter with the numbers provided in our 'OEM Part Number Cross Reference' table. You can also check the specifications such as voltage, teeth on drive, and rotation against your engine's requirements. If unsure, please contact our expert support team.
Is this a new part or a reconditioned one?
This is a brand new, aftermarket starter motor. We primarily supply new aftermarket parts designed to perform as well as, or better than, the original equipment.
Note: Please verify your bike's model and year before purchasing.
Fast shipping available across the UK and Europe.
