24V Starter Motor for Ottawa Cummins 8.3L 3283814 228000-5630 Samsung SE240
24V Starter Motor for Ottawa Cummins 8.3L 3283814 228000-5630 Samsung SE240
SKU:410-52088
Free shipping over £150. Terms apply
Couldn't load pickup availability

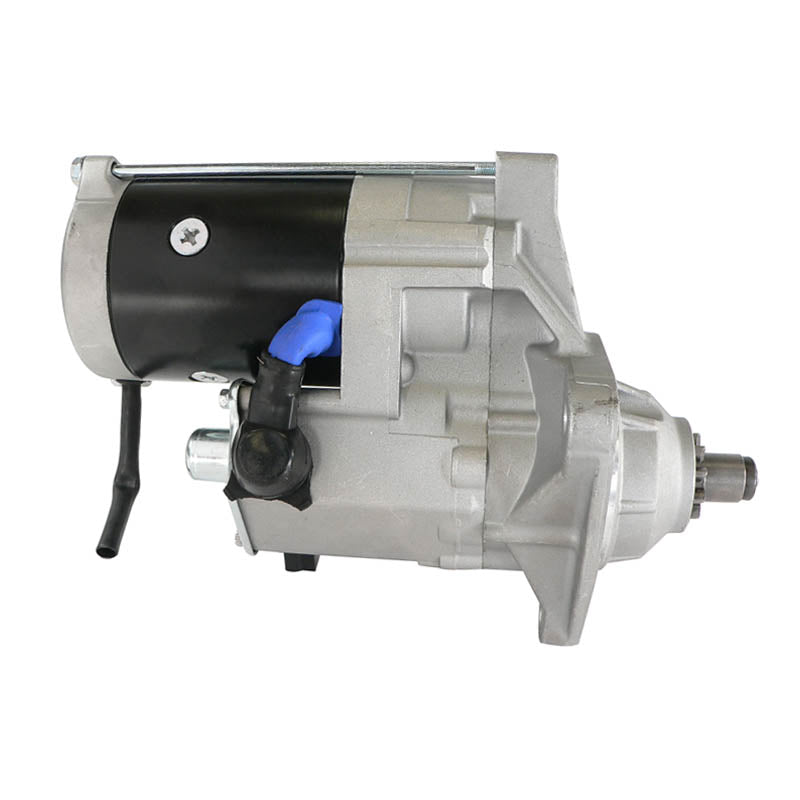

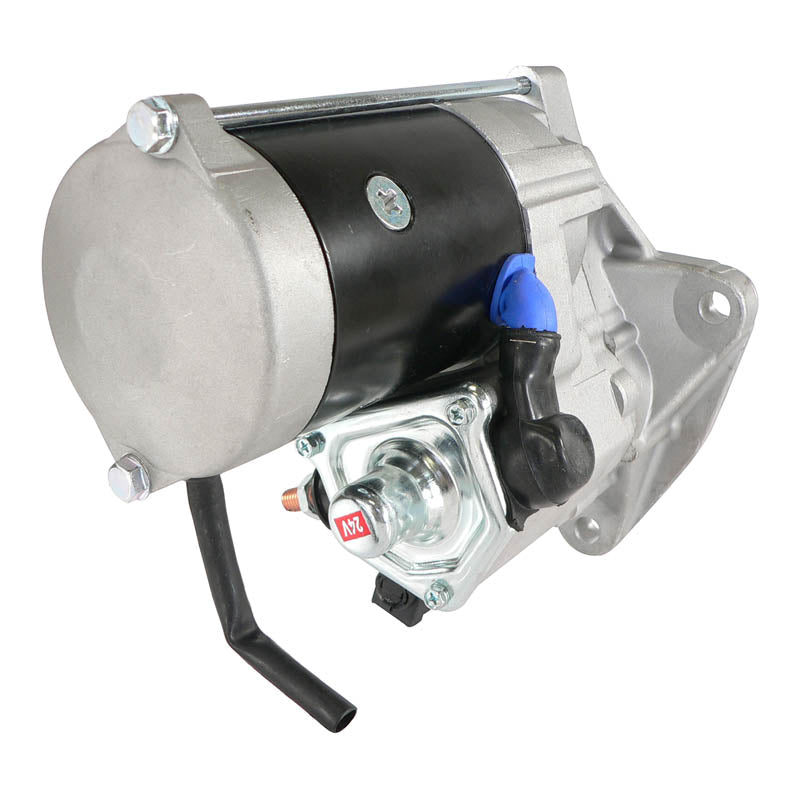

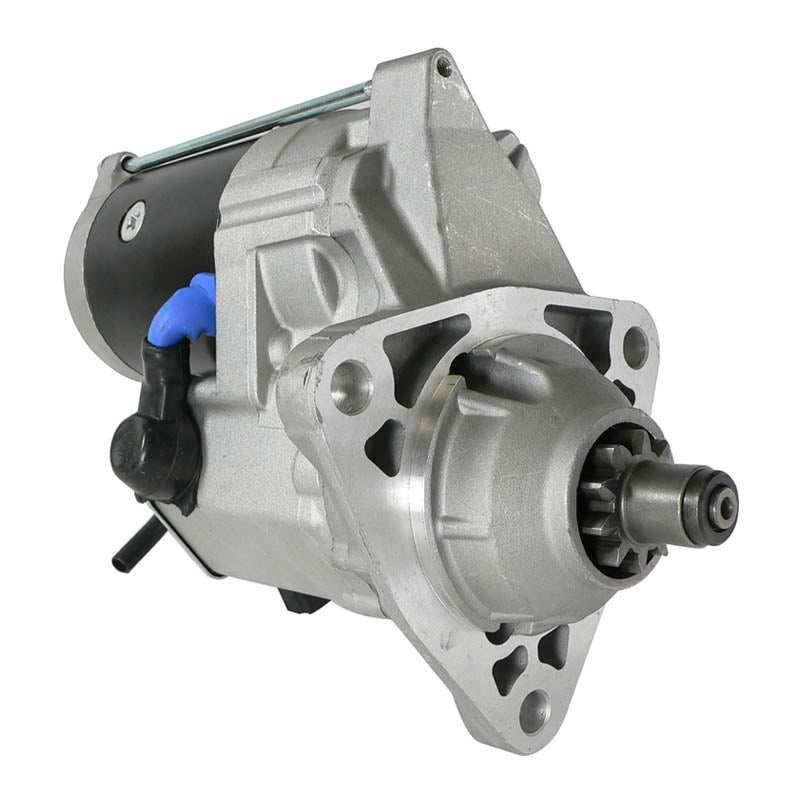

Starter Motor 24V | SKU: 3283814
High-Torque Performance for Heavy Duty Systems
This premium 24-volt starter motor is engineered for heavy-duty industrial and commercial applications, specifically targeting the 8.3L Cummins diesel engines used in Ottawa terminal tractors and Samsung excavators. Featuring a high-output 7.5kW motor and Offset Gear Reduction (OSGR) design, it delivers the necessary torque for reliable ignition in demanding environments.
Key Features
- ✔ Direct fit for Cummins 6C/8.3L engines
- ✔ High-output 7.5kW OSGR architecture
- ✔ Sealed housings for residue protection
- ✔ Precision 10-tooth pinion gear
Technical Specs
| Voltage: | 24V |
| Power: | 7.5 kW |
| Rotation: | CW (Clockwise) |
| Teeth: | 10 |
| Starter Type: | OSGR |
| Weight: | Approx. 12 kg |
Compatibility / Fitment Guide
| Make/Application | Engine Model | Years |
|---|---|---|
| Ottawa Terminal Tractors (YT30, YT50, YT60) | Cummins 8.3L Diesel | 1990-2007 |
| Samsung Excavators SE240 | Cummins 8.3L Diesel | 1992-1998 |
| Samsung Excavators SE280 | Cummins 8.3L Diesel | 1992-1998 |
| Case Industrial Equipment | 8.3L DSL Systems | Various |
OEM Cross Reference
| Cummins | 3283814, 3675247RX, 3920329, 3957597 |
| Denso | 228000-5630, 228000-5631, 228000-7380, 228000-7381, TG228000-7381 |
| Delco Remy | 10465538 |
| Case/New Holland | 223900A2, 223900A1 |
| Lester | 18535 |
Questions & Answers
Is this a genuine original part?
This is a premium quality aftermarket replacement part from 4Drive, manufactured to meet or exceed original equipment (OE) standards for durability and high-torque performance.
How do I know if it is compatible?
Please verify that your existing unit is a 24-volt system. We recommend cross-referencing the SKU 3283814 or the Denso part number 228000-5630 found on your original starter label.
Can this be used on a 12V system?
No, this unit is specifically designed for 24V electrical systems. Using it on a 12V system will result in insufficient power and may damage the unit.
Note: Please verify your original part number against the references above at 4drive.co.uk before purchasing.
