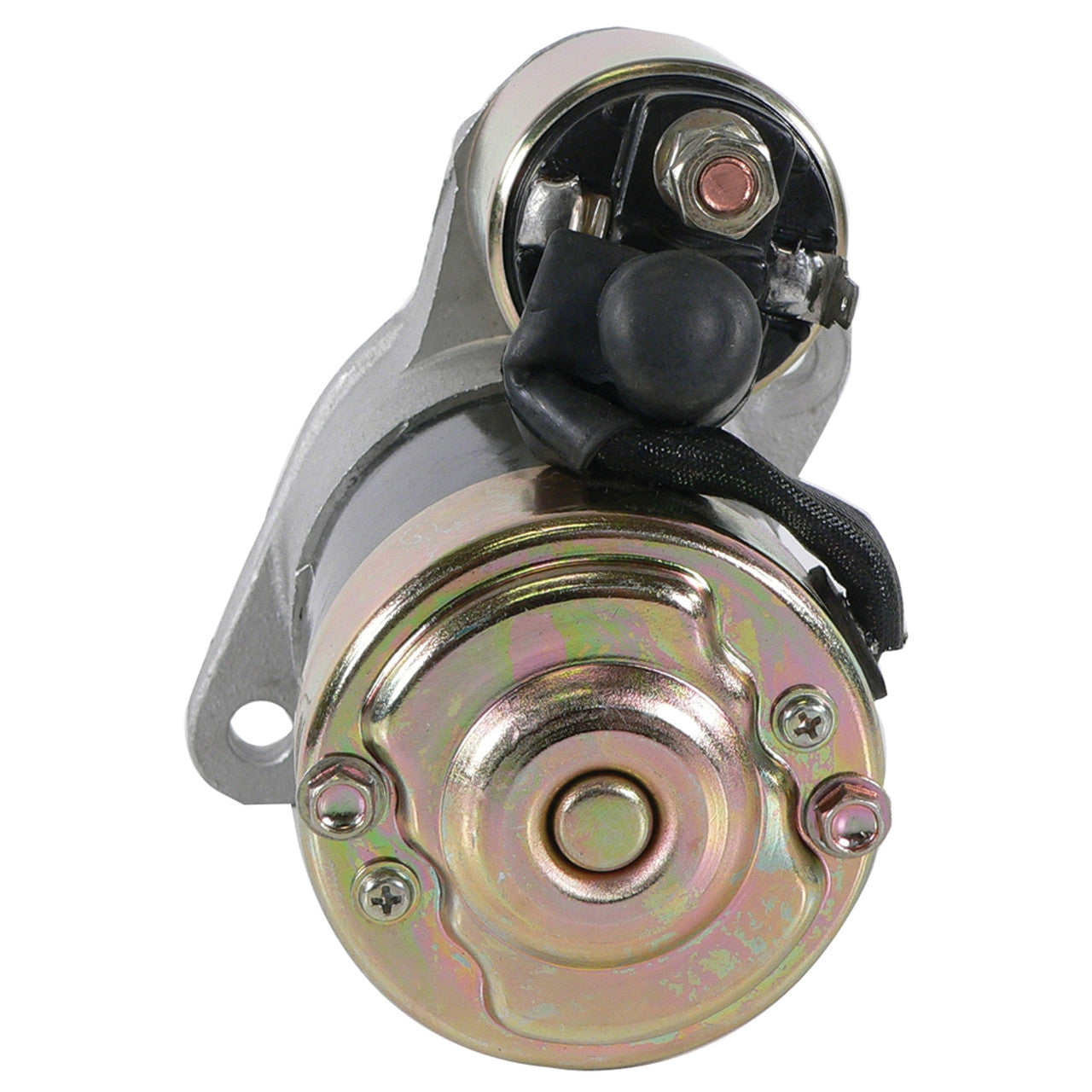

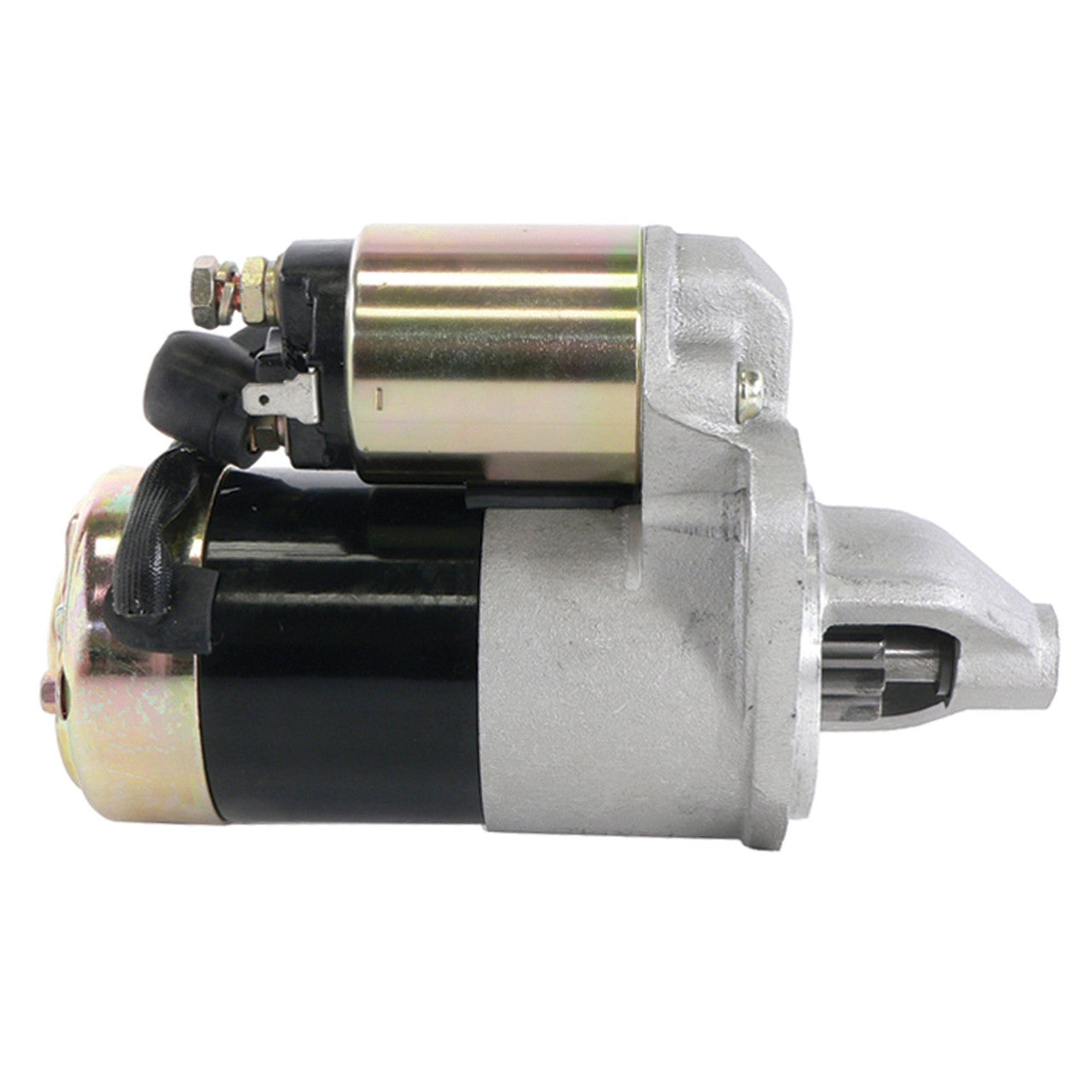

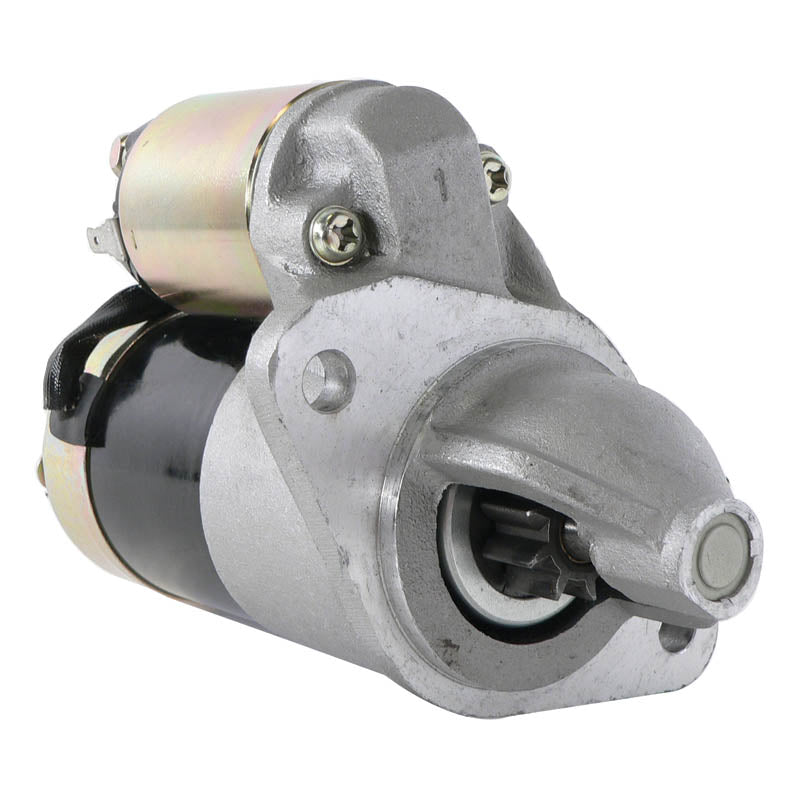

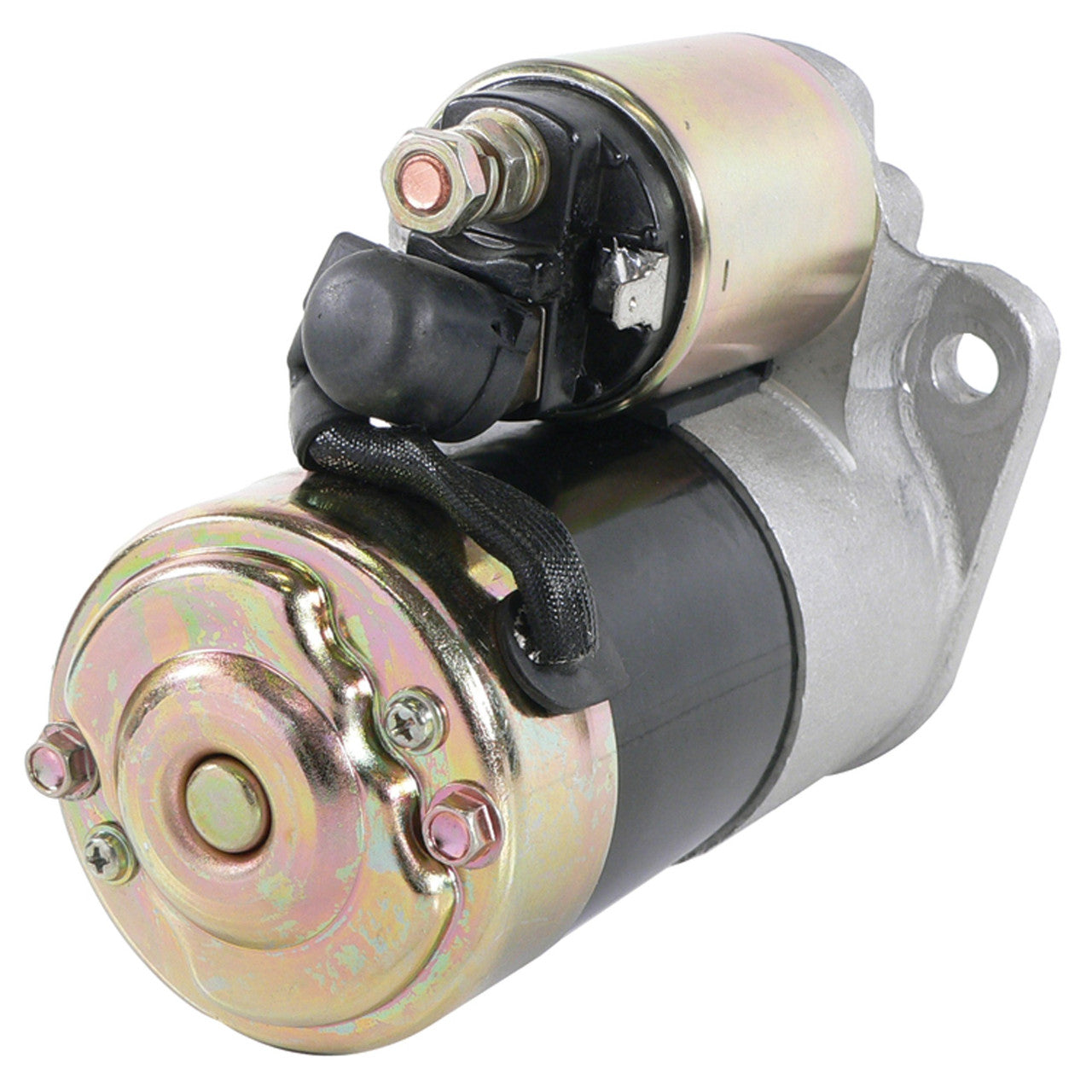

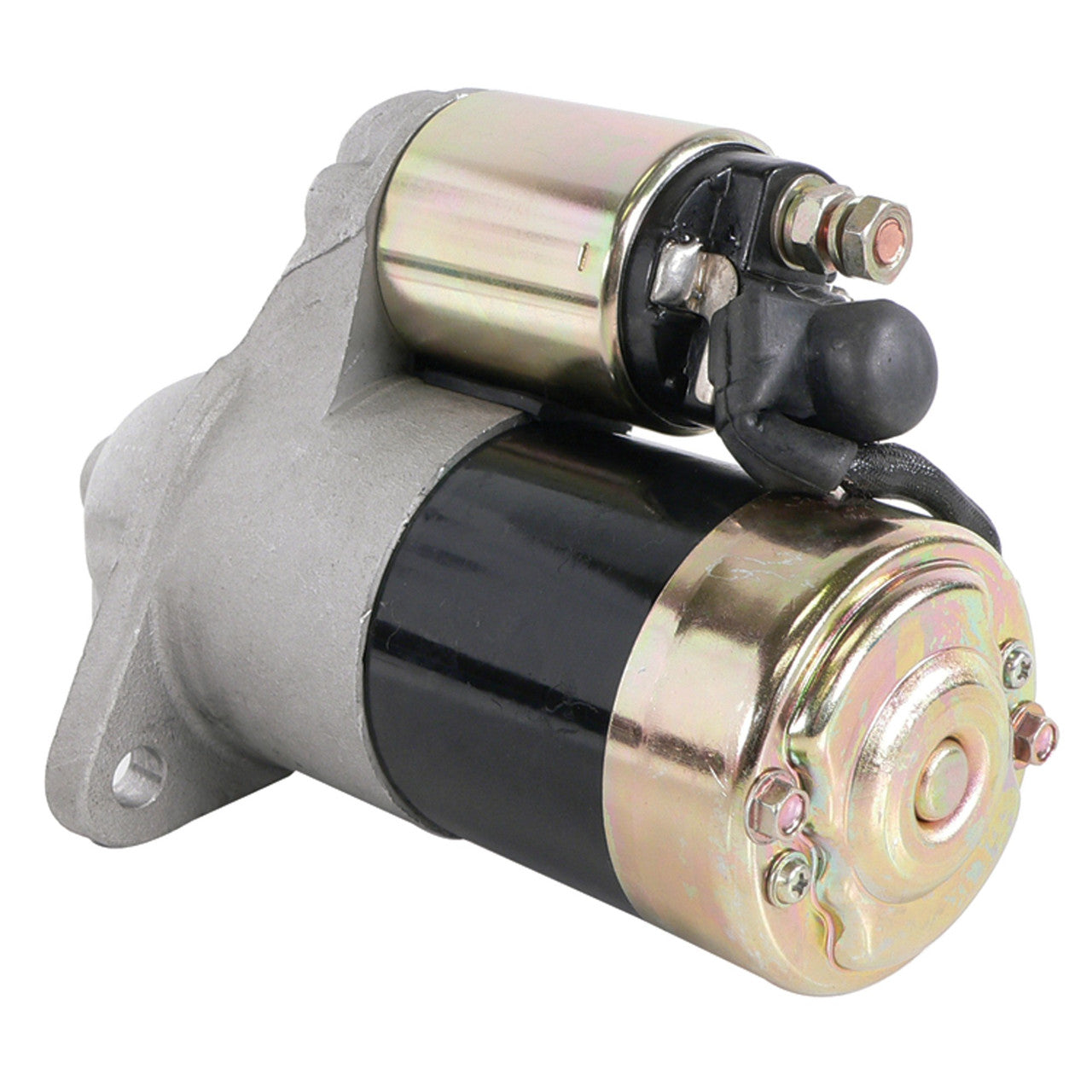

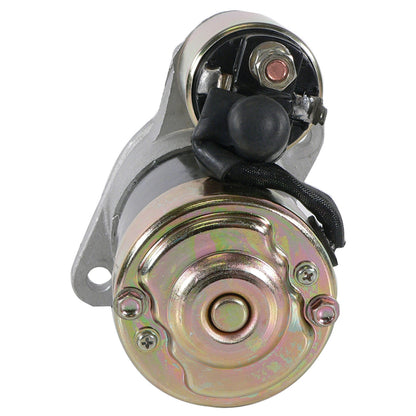

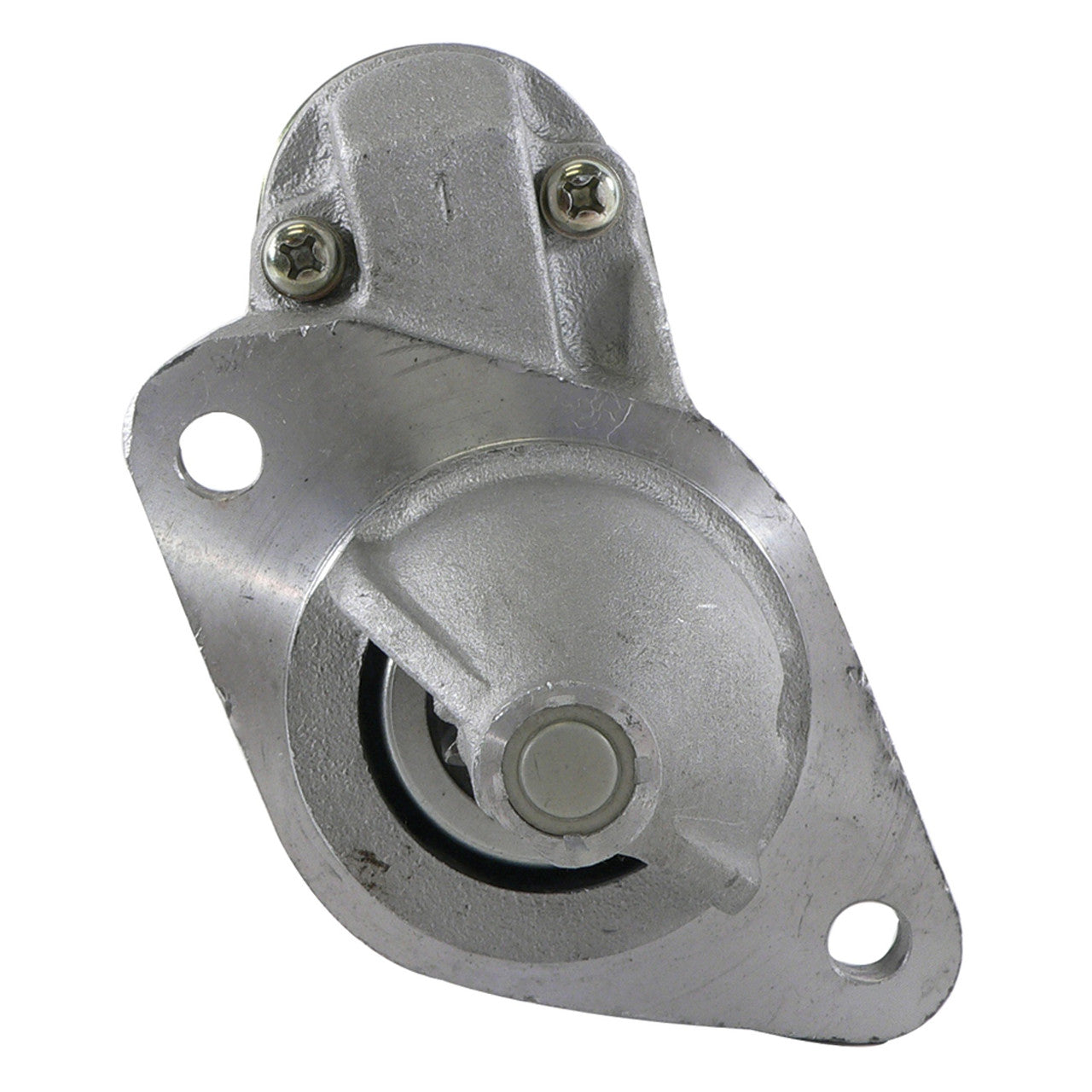

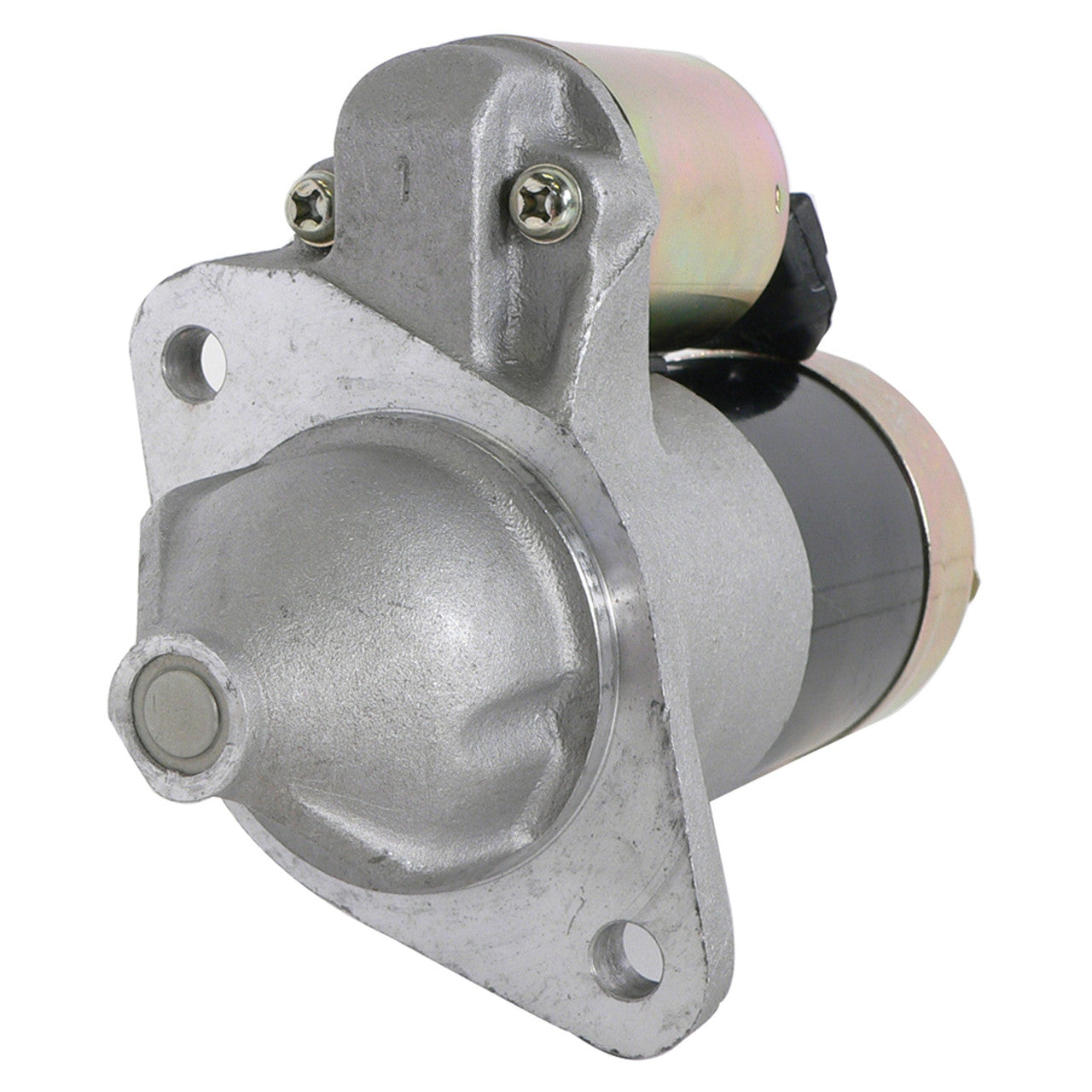

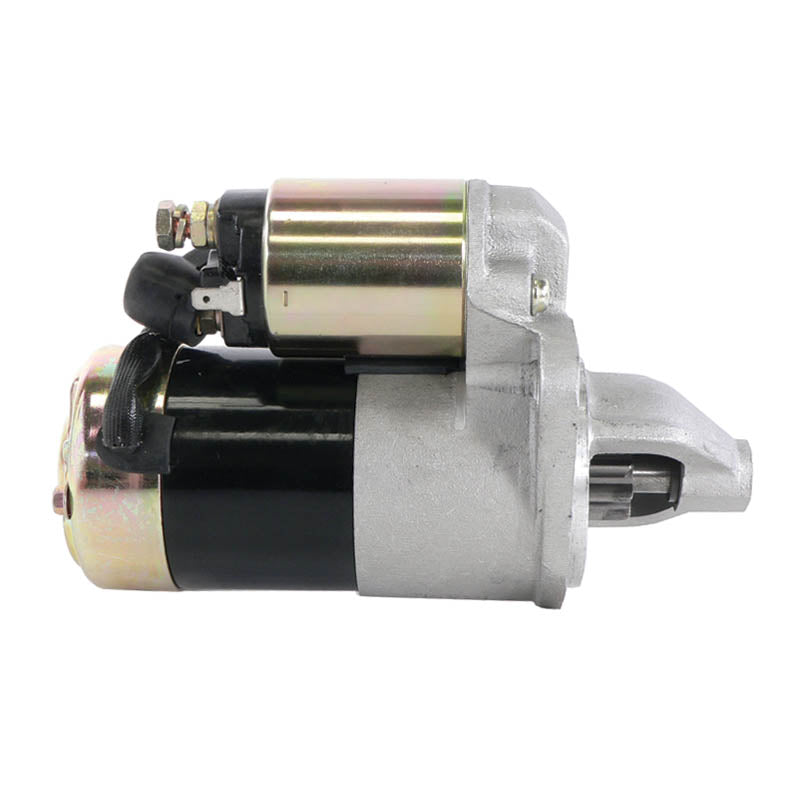

This starter motor is a direct-fit replacement for Nissan forklifts and lift trucks fitted with the D11 engine, including the NFG101 and 75 series from 1975 onwards. It is built to the same mounting, output and mechanical specification as the original equipment unit so it bolts straight into place.
It runs on 12 volts with a 0.8kW output, turns clockwise (CW) and uses a 9-tooth direct drive pinion with a 29mm (1.142 in) gear outside diameter, matching the original Hitachi specification. The drive gear engages the flywheel ring gear only while cranking and retracts automatically once the engine fires, so no adjustment is needed after fitting.
Key Features
- Direct OEM fit and function for Nissan D11-engined lift trucks
- 12-volt, 0.8kW direct drive motor
- Clockwise (CW) rotation, 9-tooth drive gear
- 29mm (1.142 in) pinion outside diameter
- Cross-references Nissan 23300-09600 and Hitachi S114-150
- 12-month warranty as standard
Technical Specs
| Specification |
Detail |
| Voltage |
12V |
| Output |
0.8kW |
| Rotation |
CW |
| Drive Teeth |
9 |
| Starter Type |
DD (direct drive) |
| Pinion OD |
29mm (1.142 in) |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Nissan Forklift / Lift Truck NFG101 with D11 Engine |
1975-On |
| Nissan Forklift / Lift Truck 75 Series with D11 Engine |
1975-On |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 23300-09600, 23300-09601, 23300-47601, 23300-48300, 23300-48301, 23300-B0700 |
Nissan |
| S114-150, S114-151, S114-151L, S114-164, S114-164A, S114-164AR |
Hitachi |
| SHI0145 |
Arrowhead |
| 280-9000, 281-9000 |
Denso |
| 16197, 16207, 16271 |
Lester |
| LRS02190 |
Lucas Electric |
| IMI213, IMI213-001 |
IMI Hi Torque |
| 110156 |
Cargo |
| 410-44015, 410-44015R |
J&N Electrical |
Frequently Asked Questions
Will this starter fit my lift truck without modification?
Yes, provided your truck runs the Nissan D11 engine with a 12-volt, clockwise, 9-tooth starter. Cross-check the number stamped on your original unit against the reference list above.
What's included?
The starter motor unit only, complete with its drive gear ready to fit.
Does the rotation direction matter?
Yes. This unit turns clockwise (CW) as viewed from the drive end. Fitting a counter-clockwise unit will not engage correctly.
How can I tell my old starter has failed?
Common signs include a clicking noise when you turn the key, the engine failing to crank, the starter freewheeling without turning the engine, or a burning smell from the motor.
