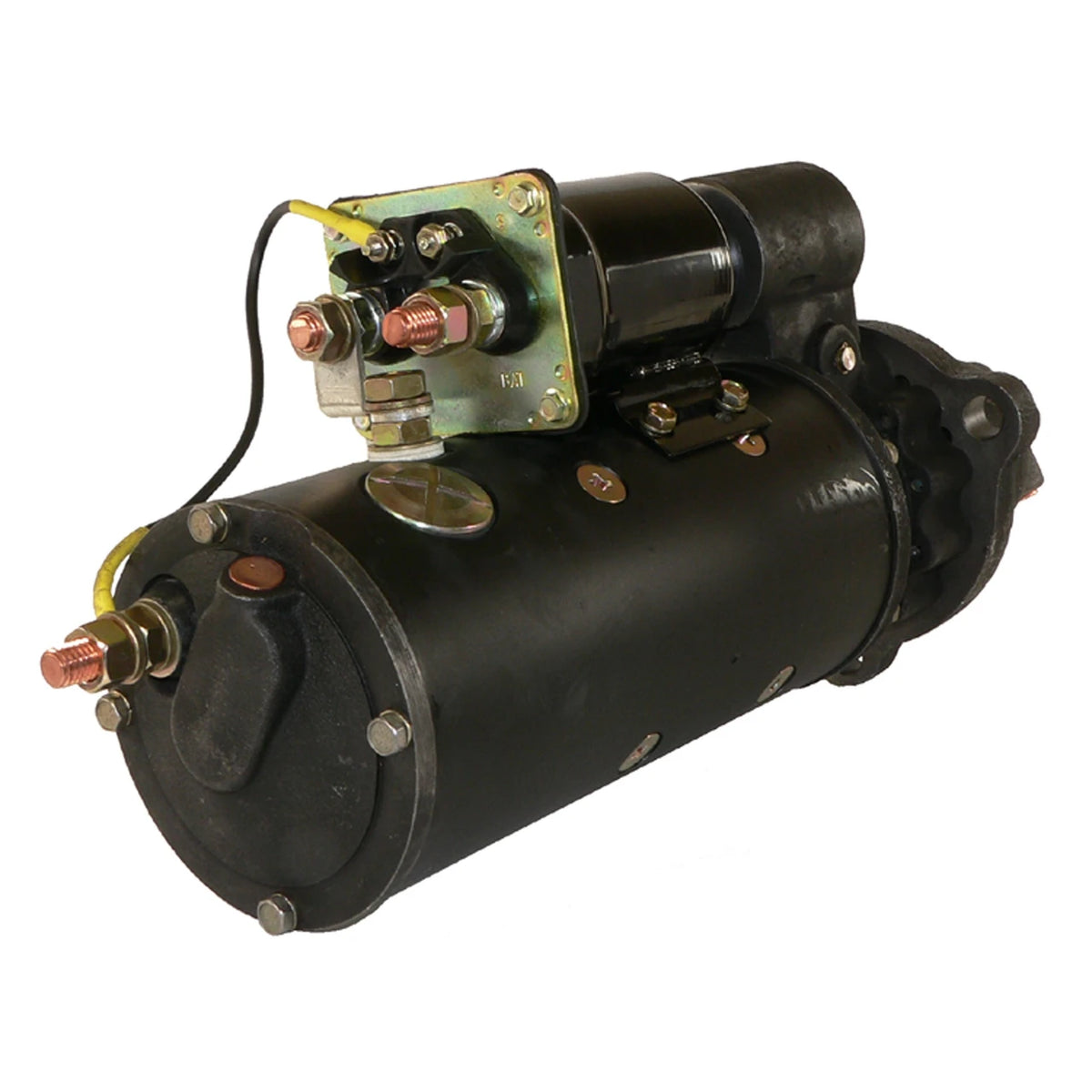

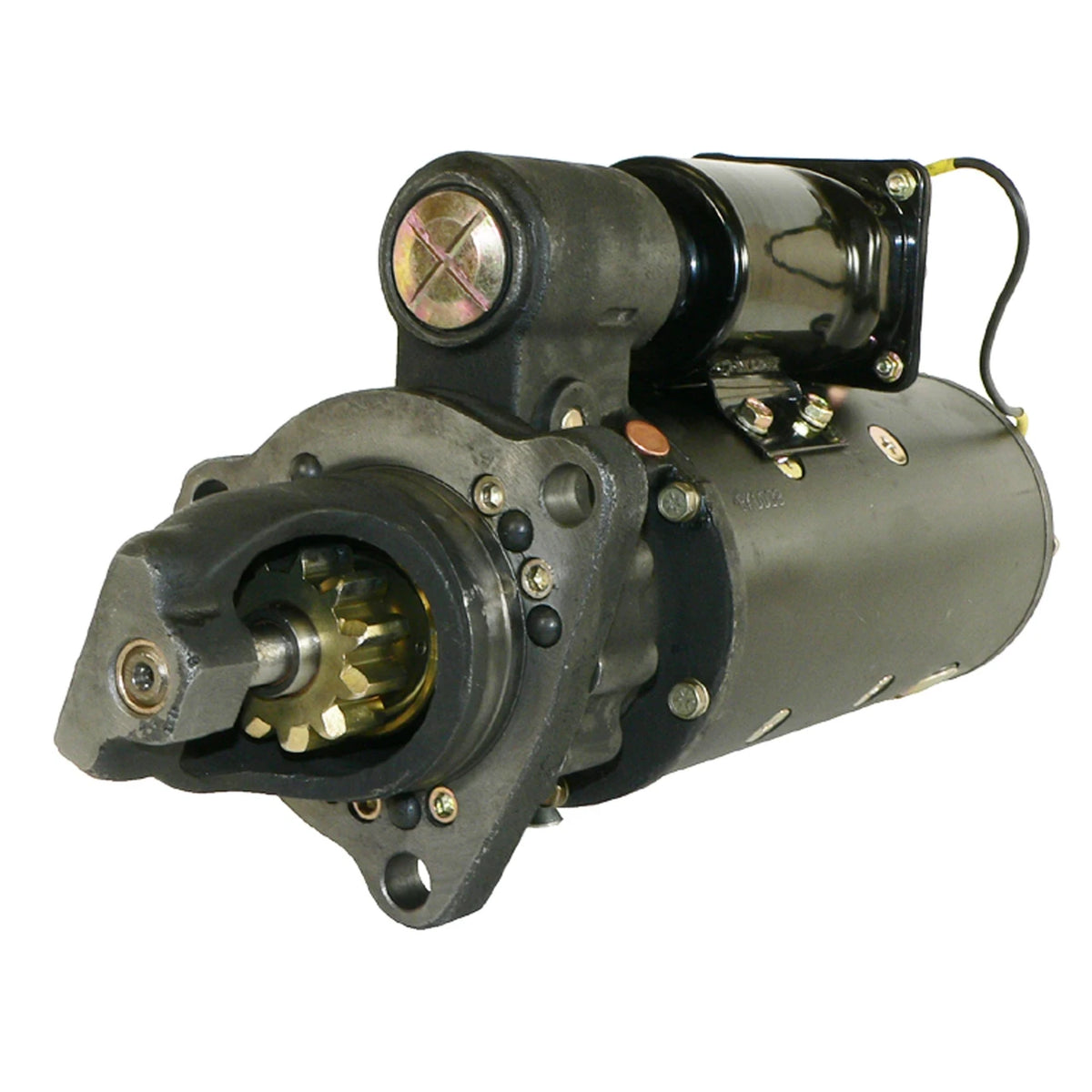

Starter Motor 24V 11-Tooth for Case IH, Caterpillar & Cummins - Replaces Delco 1113786 / 3021036
Starter Motor 24V 11-Tooth for Case IH, Caterpillar & Cummins - Replaces Delco 1113786 / 3021036
SKU:410-12049
Free shipping over £150. Terms apply
Couldn't load pickup availability

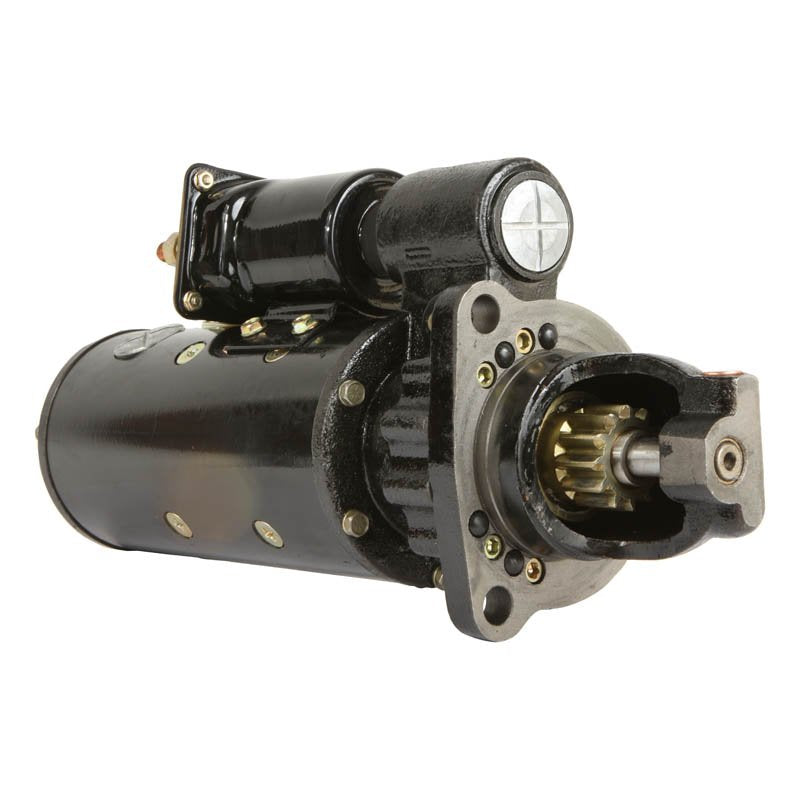

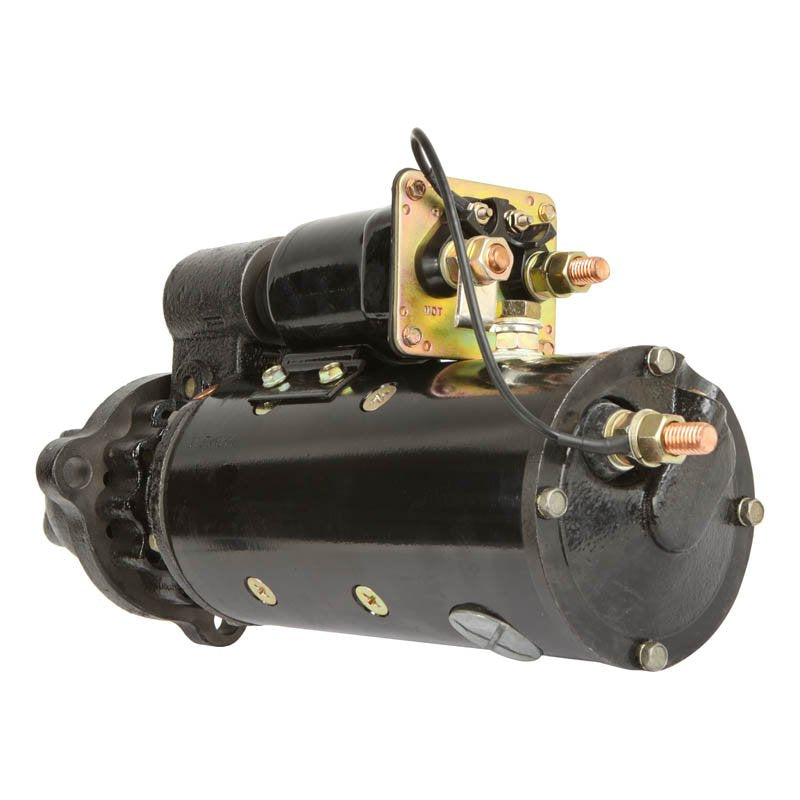

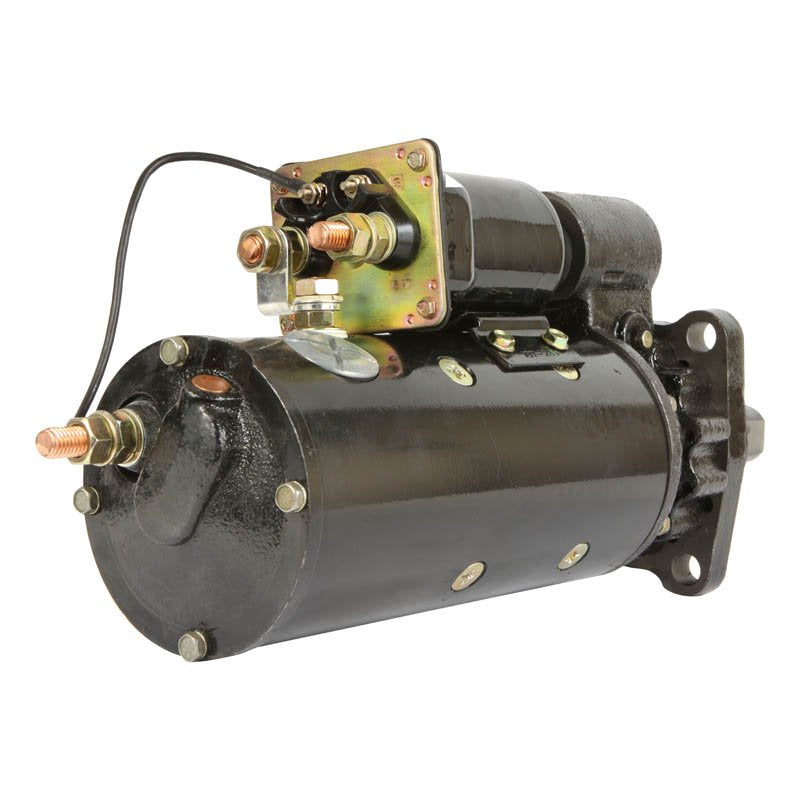

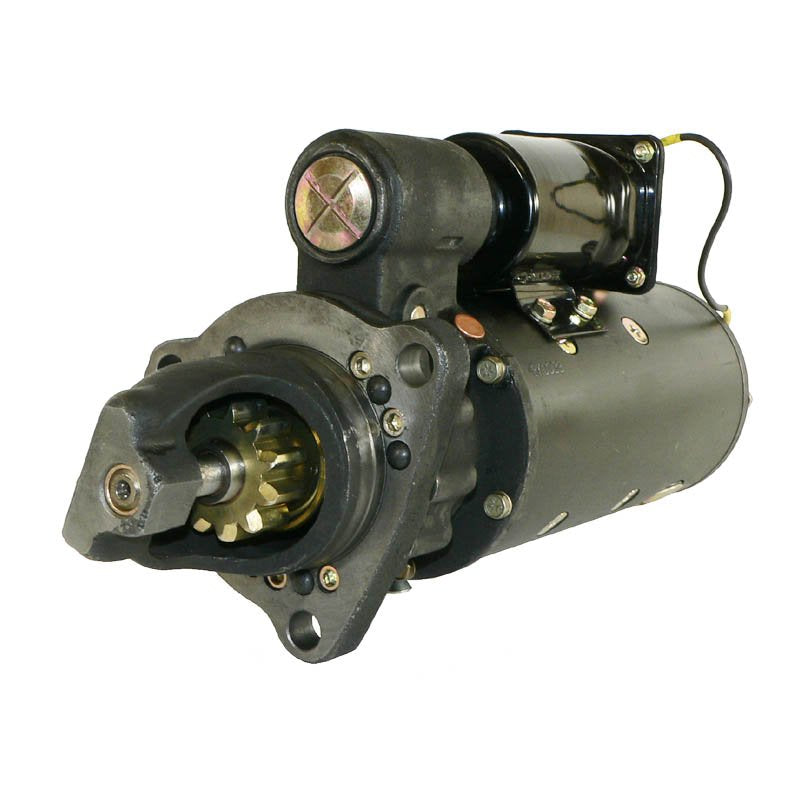

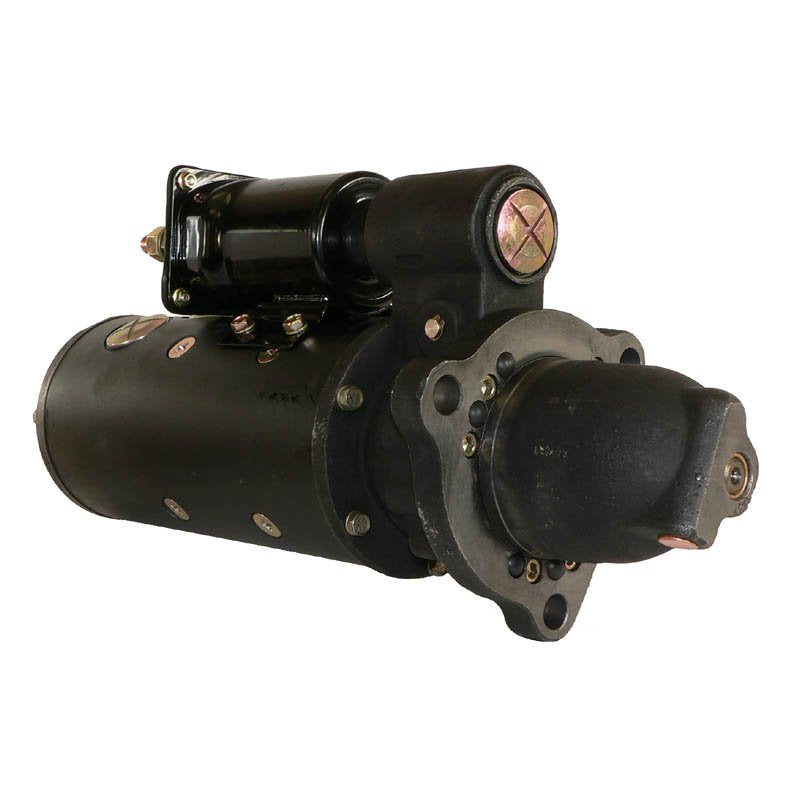

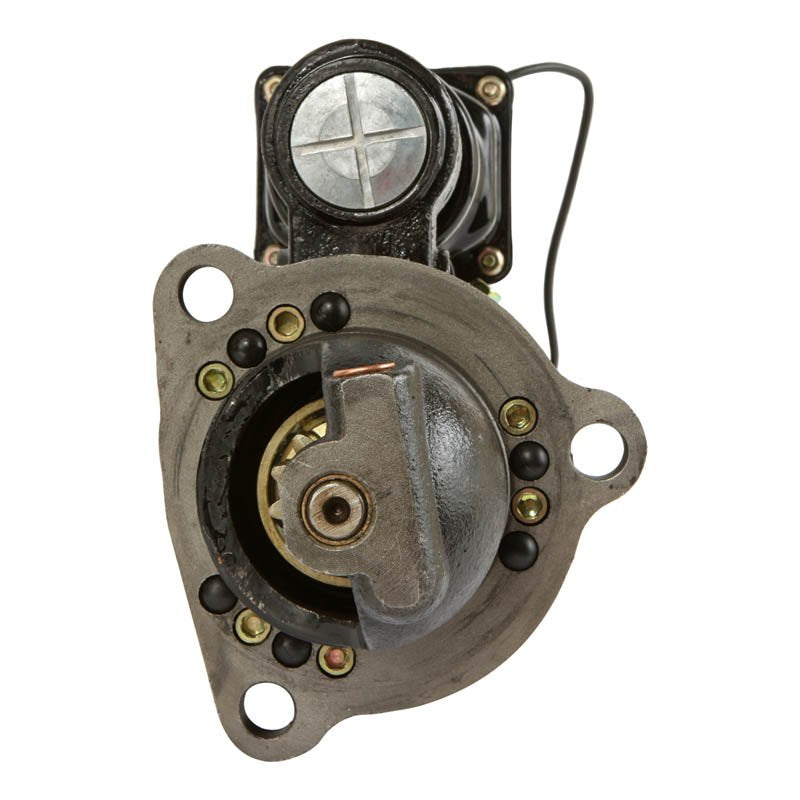

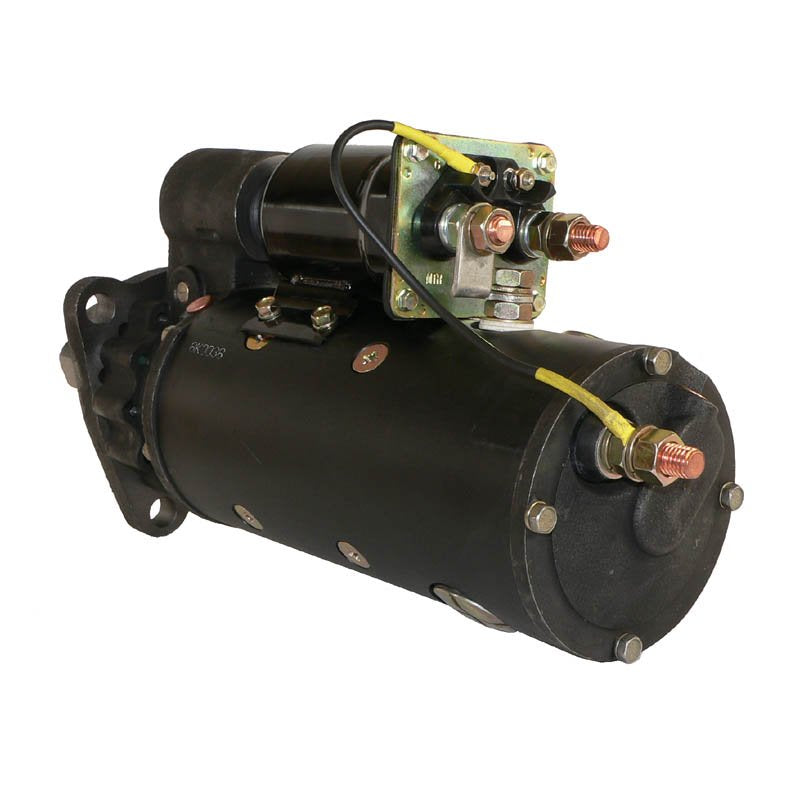

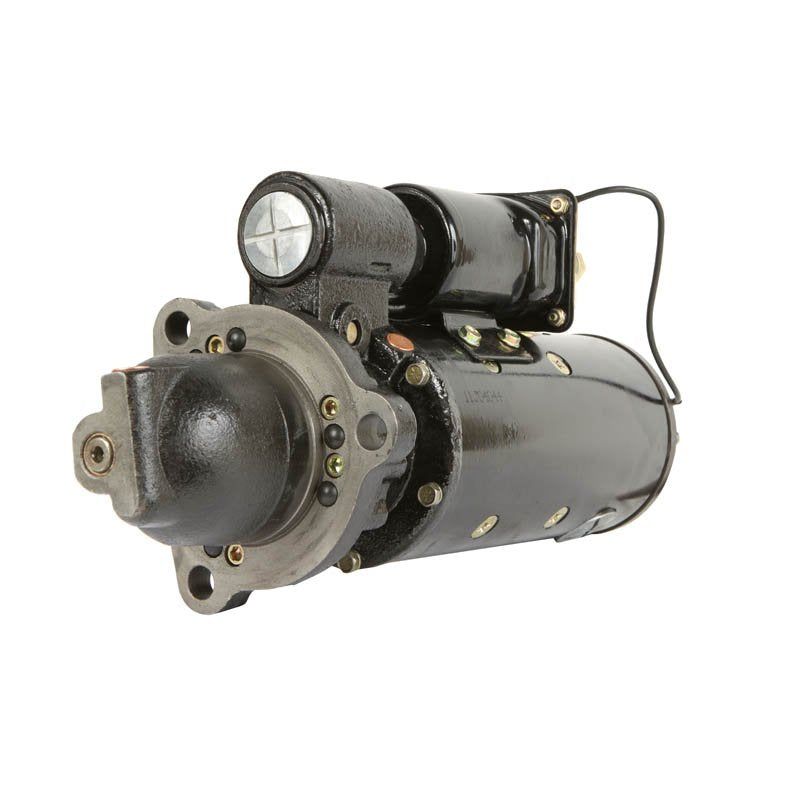

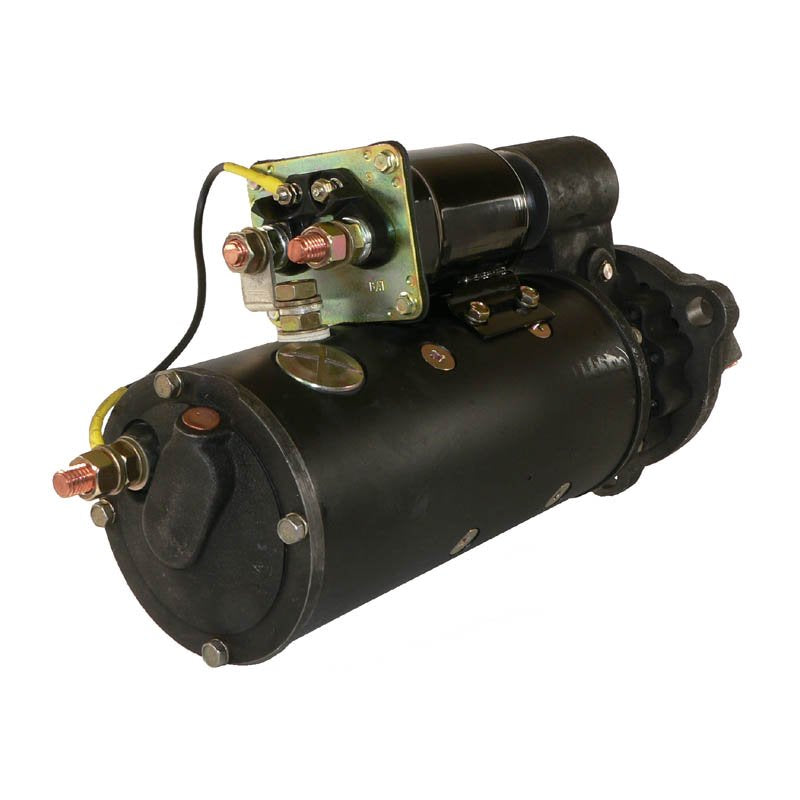

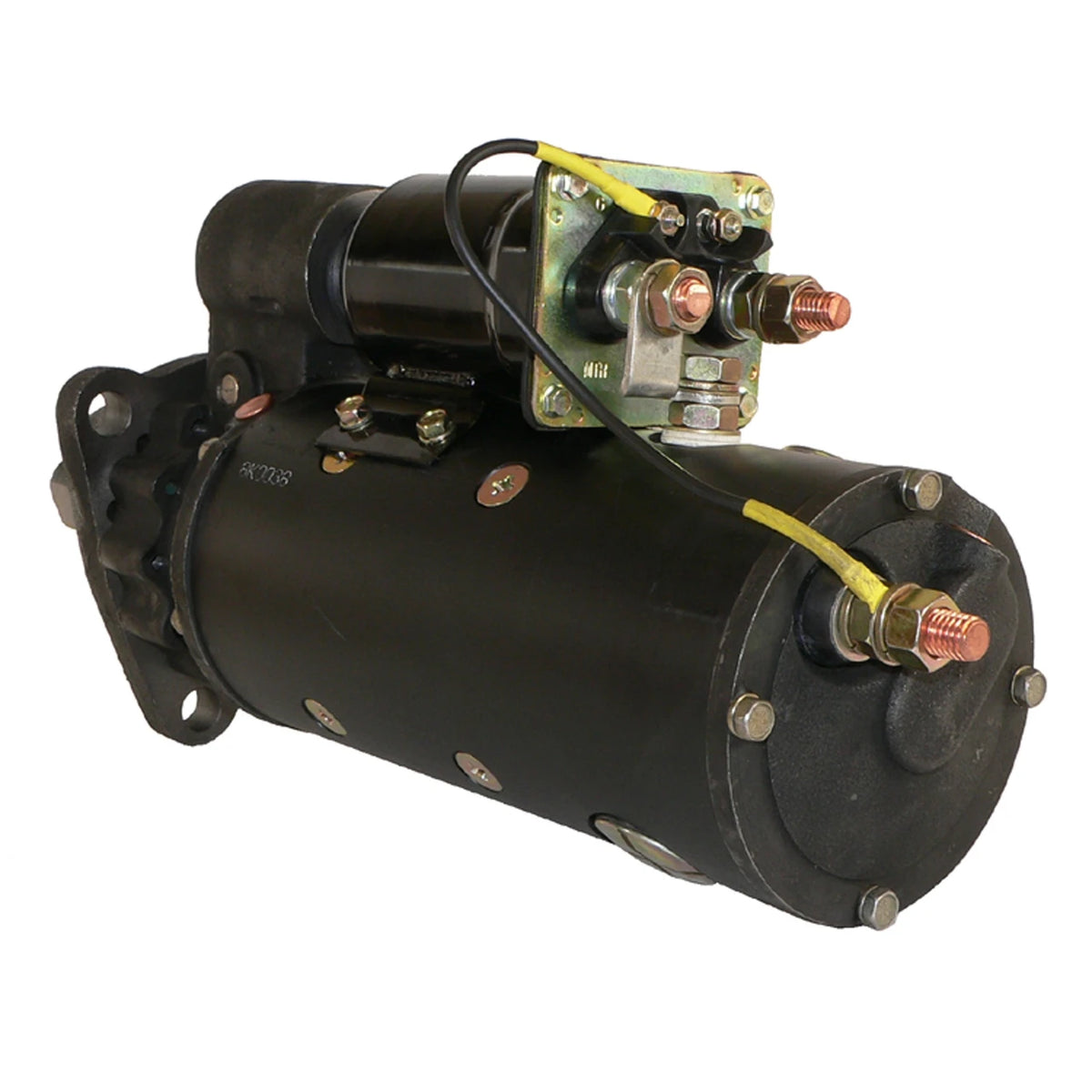

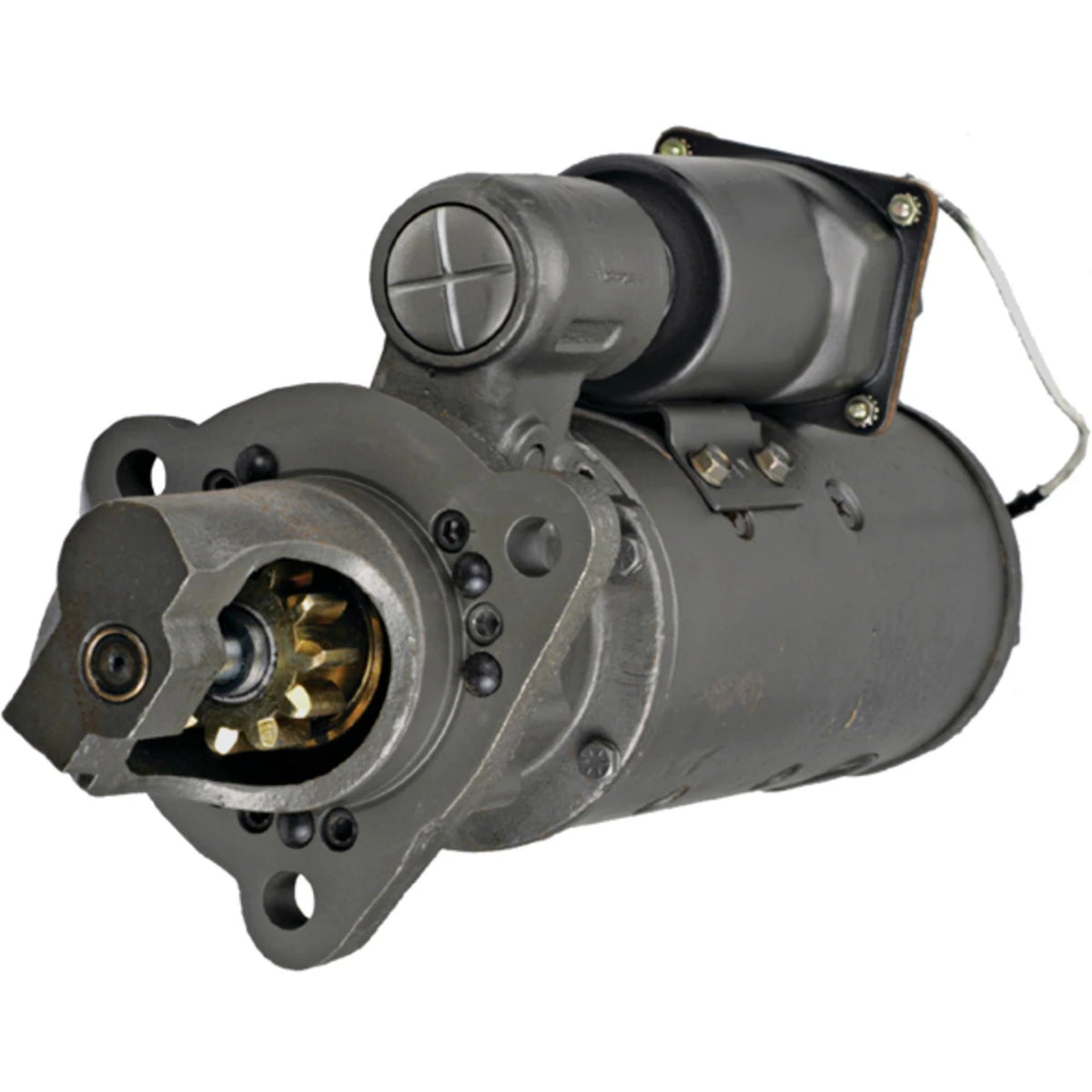

Heavy Duty Starter Motor 24V 11-Tooth
Case IH | Caterpillar | Cummins | Delco replacement for heavy plant and agricultural diesels
A 24-volt, 11-tooth heavy duty starter motor for the large diesel engines used in Case IH agricultural machinery, Caterpillar plant and Cummins industrial applications - a direct replacement for the Delco unit fitted as original equipment.
Large-displacement 24V diesels need high breakaway torque, especially on cold mornings and after long shutdowns. This unit is built to the original Delco specification for mounting, rotation and pinion engagement, so it fits the existing bracket and wiring without modification.
Key Features
- 100% new aftermarket unit - not a remanufactured core
- 24-volt system with 11-tooth pinion
- High breakaway torque for large-displacement diesels
- Built for the vibration, dust and heat of plant and agricultural duty
- Cross-references to Case IH, Caterpillar, Cummins and Delco numbers
- Dispatched from the UK with technical fitment support
Technical Specs
| Specification | Detail |
|---|---|
| SKU / Part Code | 410-12049 |
| Component | Starter Motor |
| Voltage | 24 Volts |
| Tooth Count | 11 Teeth |
| Approx. Weight | 12 lbs (5.4 kg) |
| Condition | New aftermarket |
| Original Equipment Type | Delco |
| Warranty | 12 months |
Application / Fitment Guide
| Equipment Make | Application |
|---|---|
| Case IH | Agricultural tractors and combines - OE refs 755496C91, 317941R92, 690400C91, 307822R92 |
| Caterpillar | Plant and industrial diesels - OE refs 0R5209, 1M6132, 3T2646, 3T3152, 5L537 |
| Cummins | Industrial and truck engines - OE refs 3021036, 3603862RX, 706620 |
| Delco | Original equipment starter - 1113786, 1113792, 1113956, 10461047 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 1113786 | Delco |
| 1113792 | Delco |
| 1113956 | Delco |
| 10461047 | Delco |
| 3021036 | Cummins |
| 3603862RX | Cummins |
| 706620 | Cummins |
| 0R5209 | Caterpillar |
| 1M6132 | Caterpillar |
| 3T2646 | Caterpillar |
| 3T3152 | Caterpillar |
| 5L537 | Caterpillar |
| 755496C91 | Case IH |
| 317941R92 | Case IH |
| 690400C91 | Case IH |
| 307822R92 | Case IH |
| SDR0017 | Arrowhead |
Frequently Asked Questions
Is this a 12V or 24V starter?
It is a 24-volt unit. Fitting a 24V starter to a 12V system, or the reverse, will damage the motor - check your machine's system voltage before ordering.
How do I confirm it fits my machine?
Match the number stamped on your existing starter against the cross-reference table above, and confirm the pinion has 11 teeth. If the tag is unreadable, send us the engine model and machine serial number and we will confirm before you order.
Why does my machine crank slowly in cold weather?
Cold thickens the oil and reduces battery capacity at the same moment the engine needs the most torque. If the batteries test good under load and the cables and earth straps are clean, persistent slow cranking usually means worn starter brushes or a failing solenoid.
Is the solenoid included?
Yes - the starter is supplied complete with the solenoid fitted. Reuse your existing bolts and terminal hardware.
