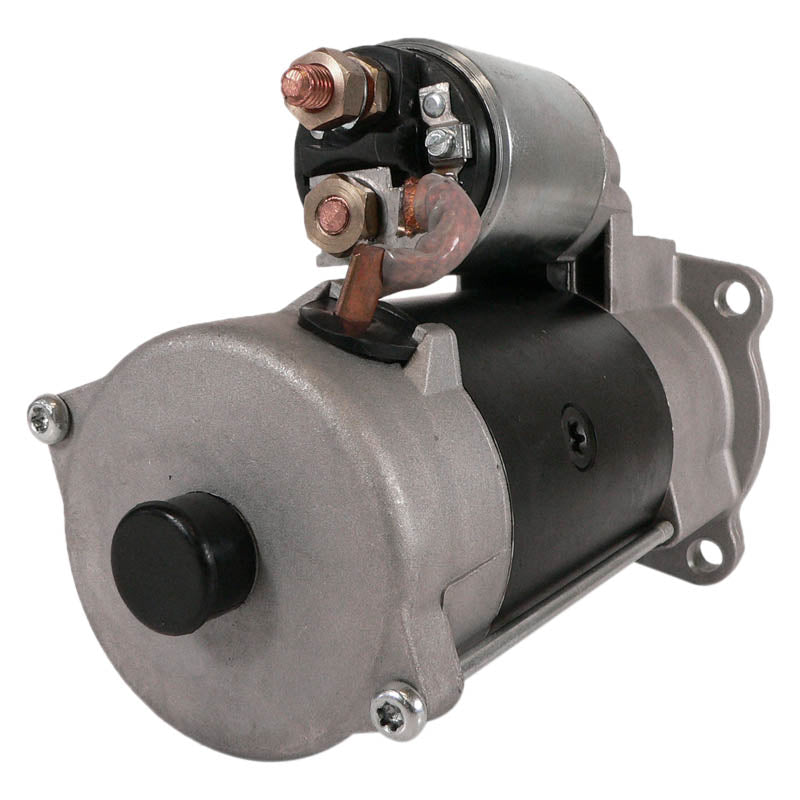

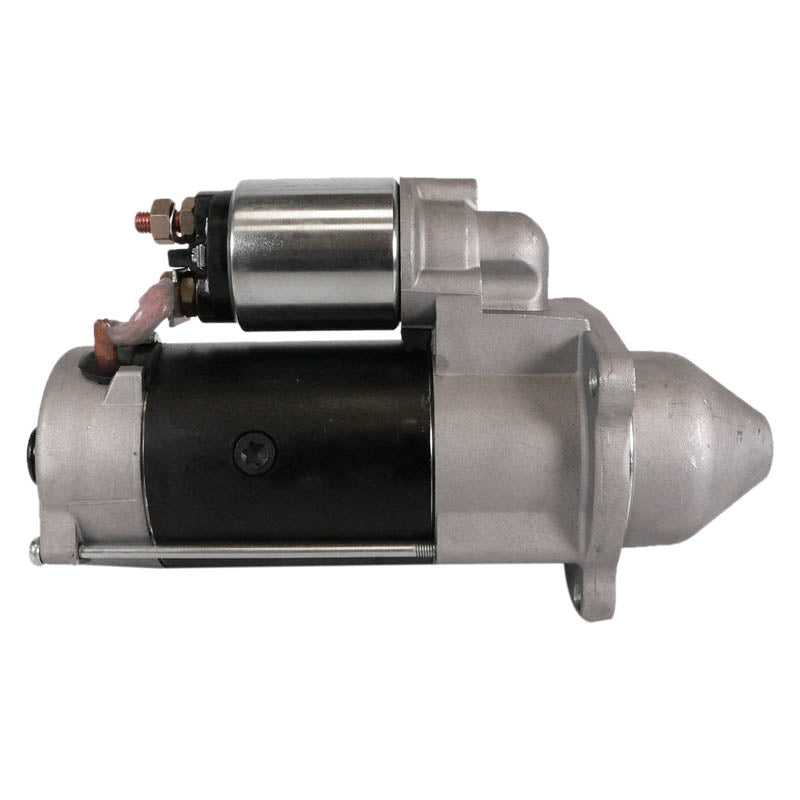

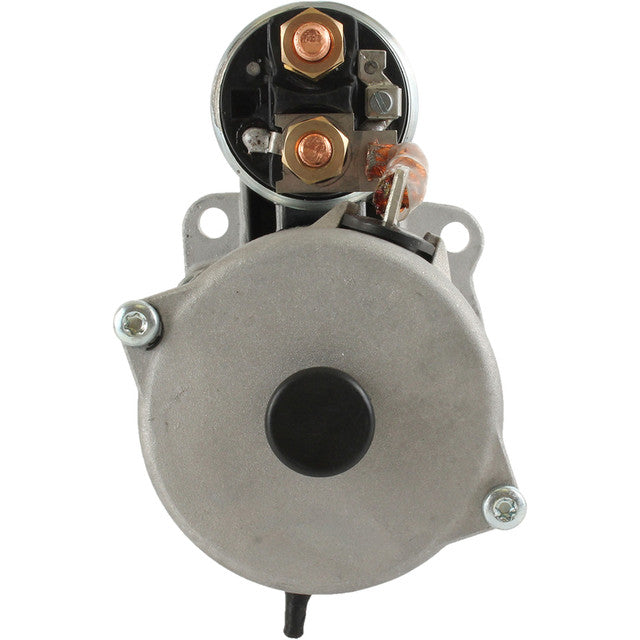

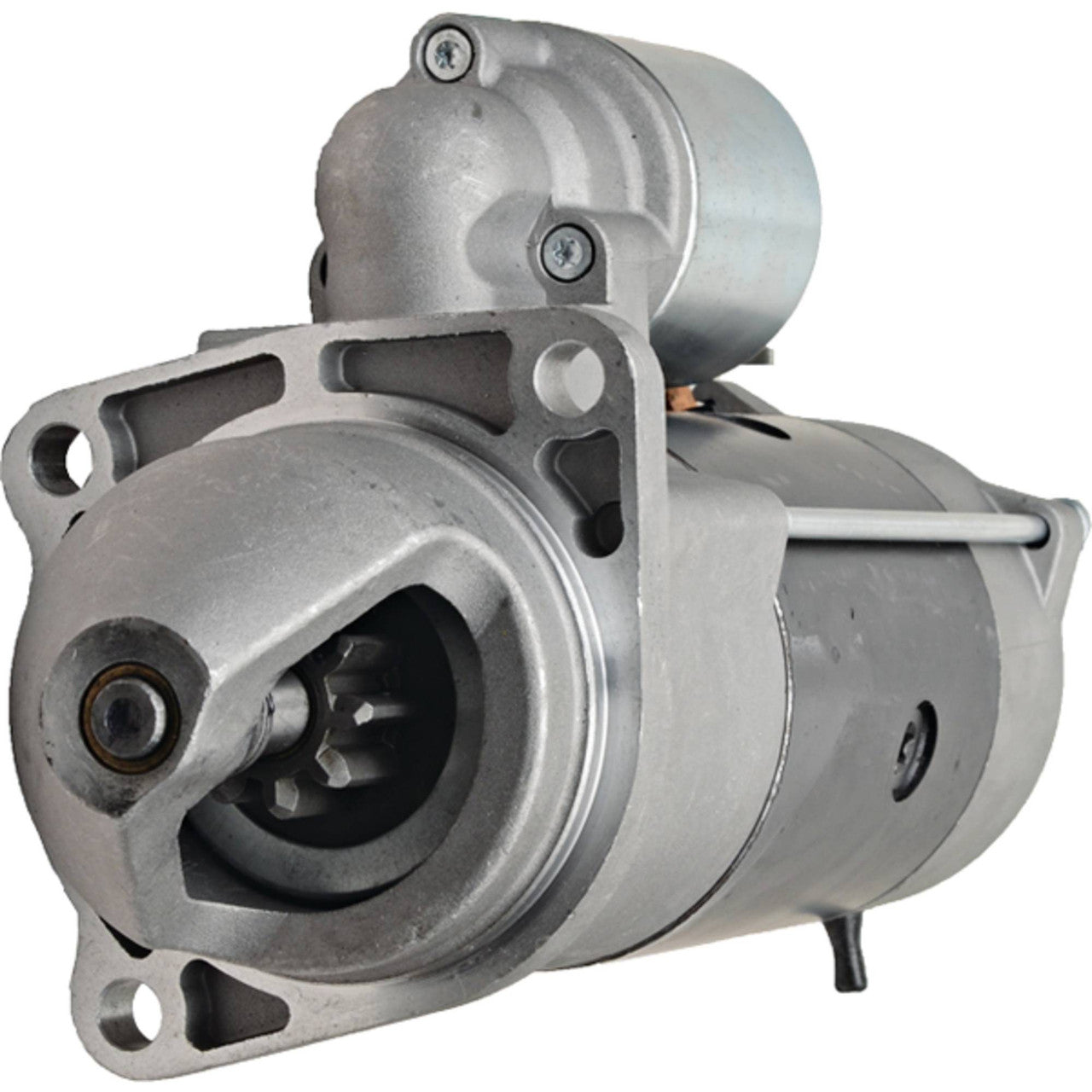

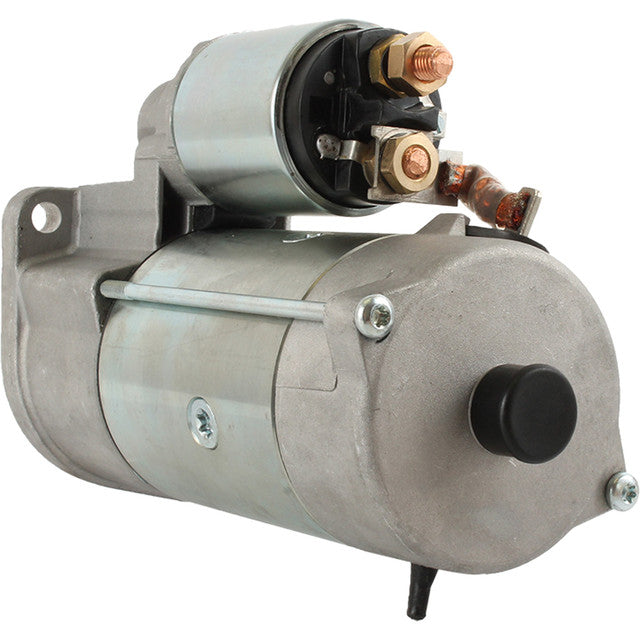

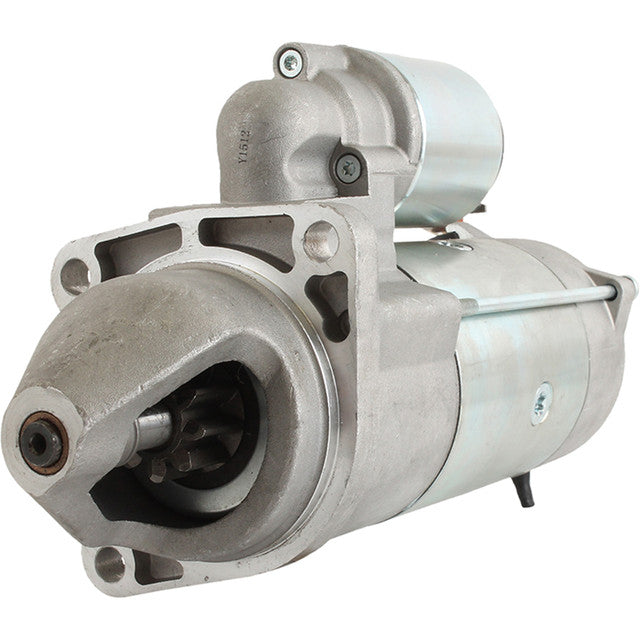

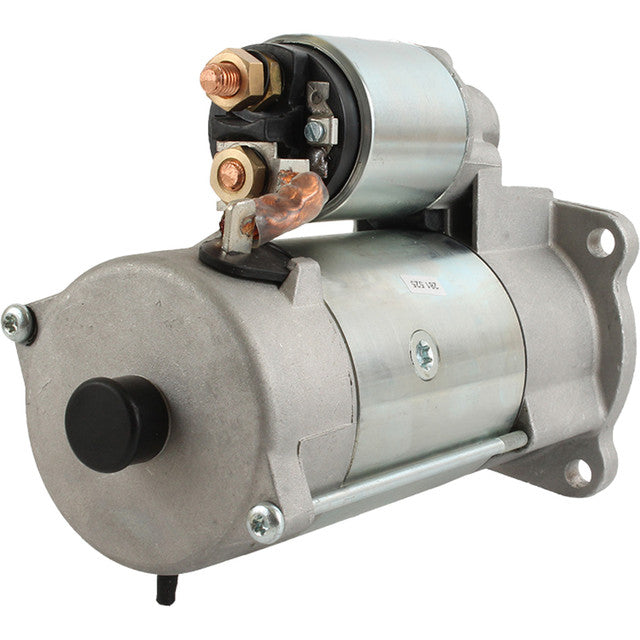

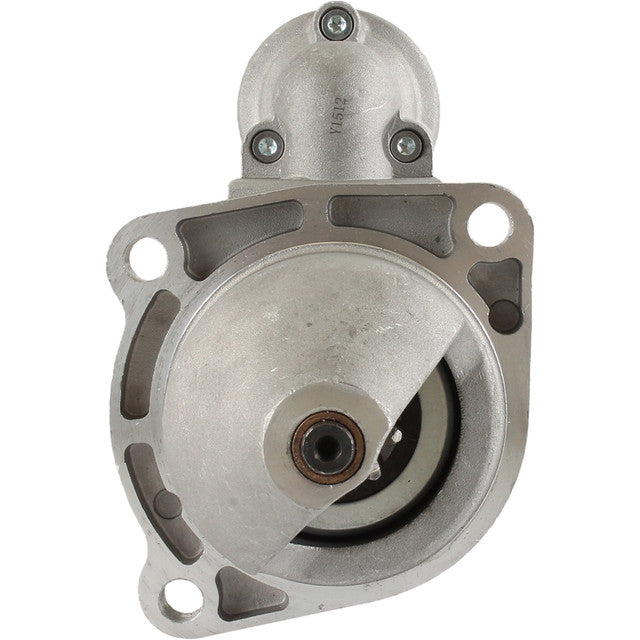

Deutz Starter Motor 12V 3.0kW 9T 0001262002 01180928 for KHD Bomag Fendt
Deutz Starter Motor 12V 3.0kW 9T 0001262002 01180928 for KHD Bomag Fendt
SKU:410-24142
Free shipping over £150. Terms apply
Couldn't load pickup availability

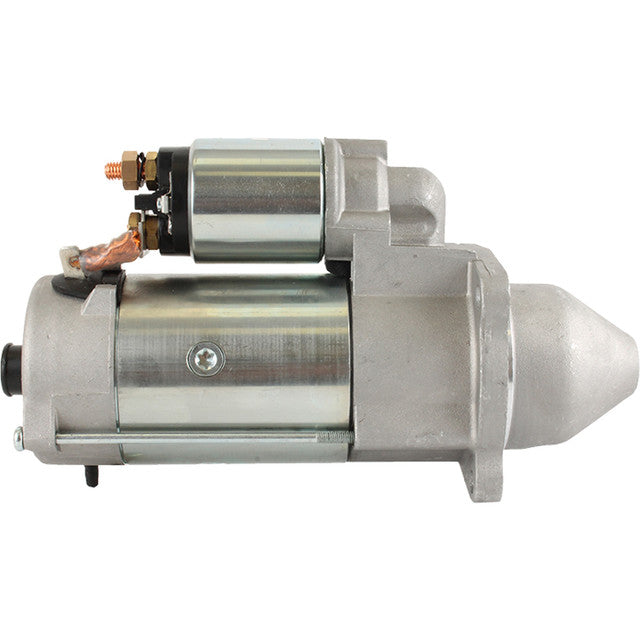

Starter Motor - Deutz / KHD Equipment - 0001262002
Reliable Performance & Precise Fitment
This heavy-duty starter motor is engineered as a direct replacement for Deutz KHD engines operating on a 12-volt system. Commonly found in industrial equipment, agricultural machinery, and construction vehicles such as Bomag rollers, Atlas Copco compressors, and Fendt tractors, this unit matches the rigorous demands of commercial use. It delivers a powerful 3.0 kW output to ensure reliable cold-weather starting for diesel engines including the BF4M1012, BF4M1013, and the F-series (912/913/914).
Verified Technical Data
| Voltage | 12 Volts |
| Kilowatts (kW) | 3.0 kW |
| Teeth | 9 |
| Rotation | Clockwise (CW) |
| Flange Diameter | 89 mm |
| Mounting Holes | 3 x 11mm (Unthreaded) |
| Pinion Rest Position | 28 mm / 29 mm |
| Design Type | PLGR (Planetary Gear Reduction) |
OEM Cross Reference
| Brand | Part Number |
|---|---|
| Bosch | 0001262002, 0001262001, 0001230006, 0001230014, 0986019020 |
| Deutz / KHD | 01180928, 01181976, 01182233, 01182925, 01183120, 01183235, 01183712 |
| HC-Cargo | 112071 |
| Wood Auto | SBO0280 |
| Iskra / Letrika | IS1254, AZF4514, MS446, 11.131.254 |
| Lucas | LRS01603, LRS1603 |
Vehicle Compatibility
| Make / Equipment | Model / Engine |
|---|---|
| Deutz Engines | BF4M1012, BF4M1013, BF6M1013 (12V applications only) F3L912, F4L912, F5L912, F6L912, F6L913 (12V applications only) |
| Atlas Copco | Compressors XAS146, XAHS106 |
| Bomag | Compactors BW211, BW212, BW213, BW214, BW216 (D-4 / PD-4 Series) |
| Fendt | Farmer 307 (Check existing voltage) |
| Same | Rubin 120, Rubin 135, Rubin 150 |
Questions & Answers
Will this fit my Deutz engine if it is 24V?
No. This starter is strictly for 12-Volt systems. Many Deutz engines are available in both 12V and 24V configurations. Please verify your old starter's label or the vehicle battery setup before ordering. Using this on a 24V system will damage the unit.
How do I verify if this part replaces my old one?
Check the 'OEM Cross Reference' section above. If the number from your original Bosch, Iskra, or Deutz unit appears there, this unit is the correct replacement. The most common identifier for this unit is Bosch 0 001 262 002.
Does this starter come with the solenoid?
Yes, this is a complete unit including the solenoid, ready for installation.
Please double-check your original part number against the cross-references provided to ensure a correct fit.
