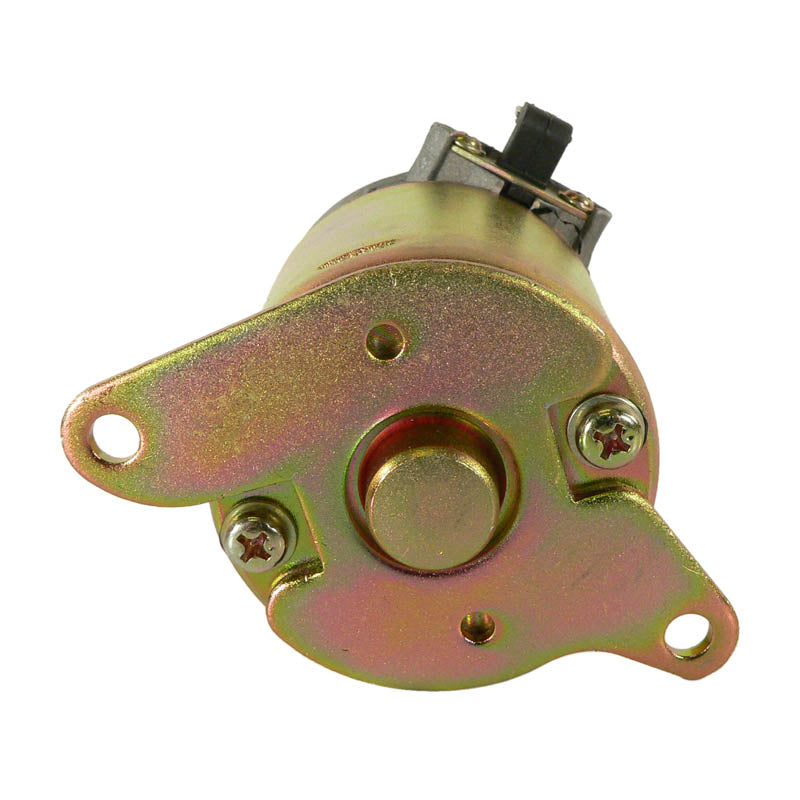

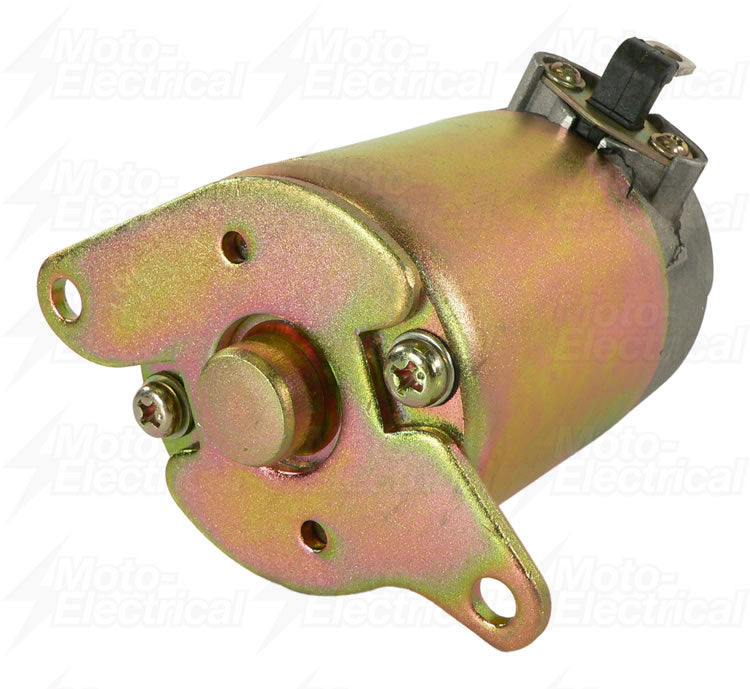

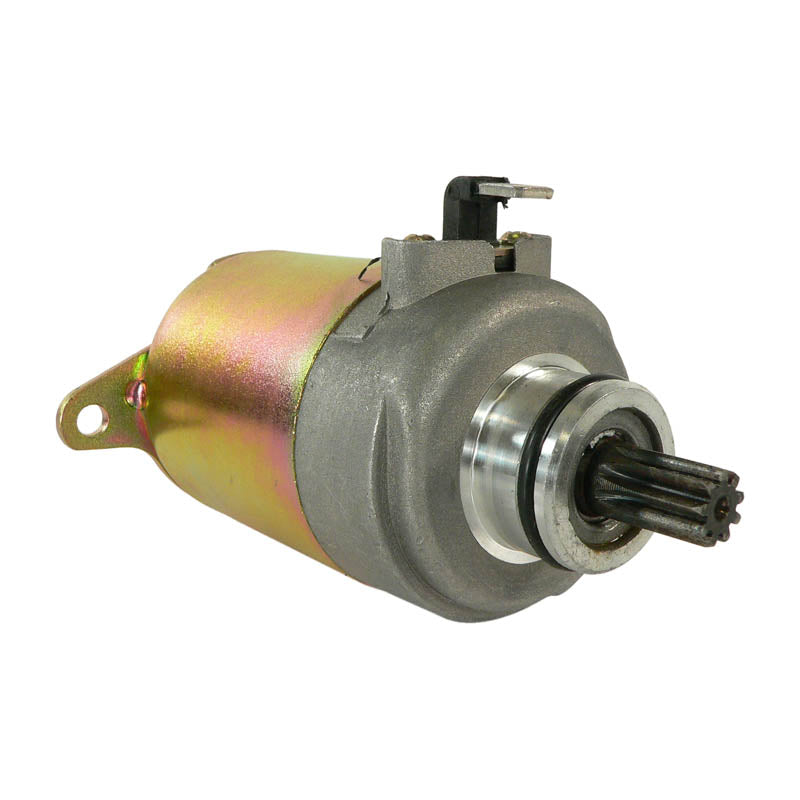

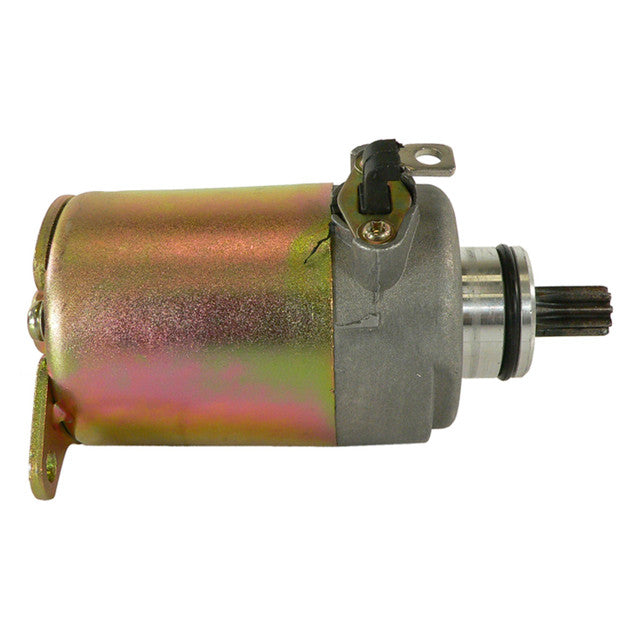

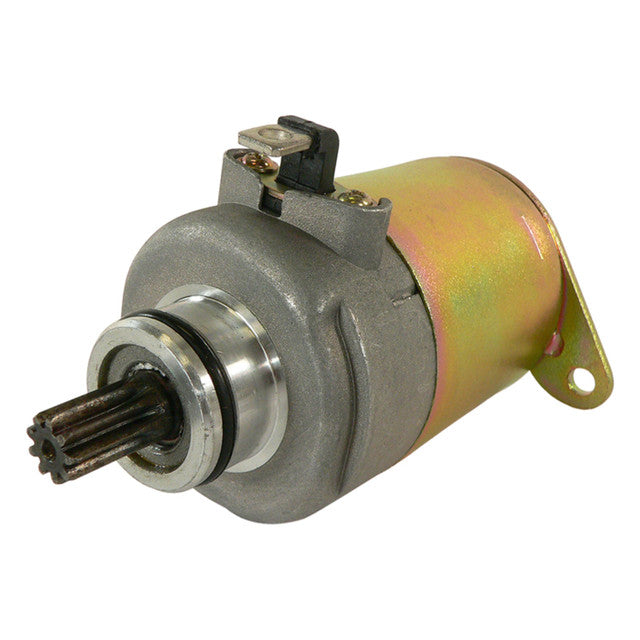

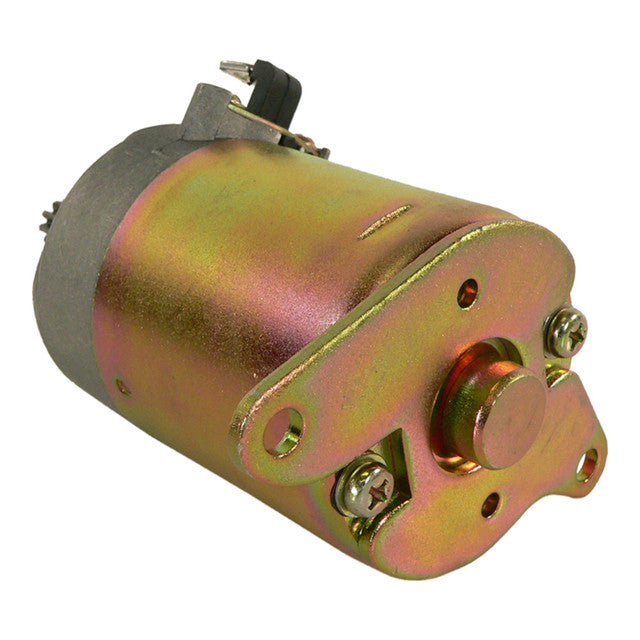

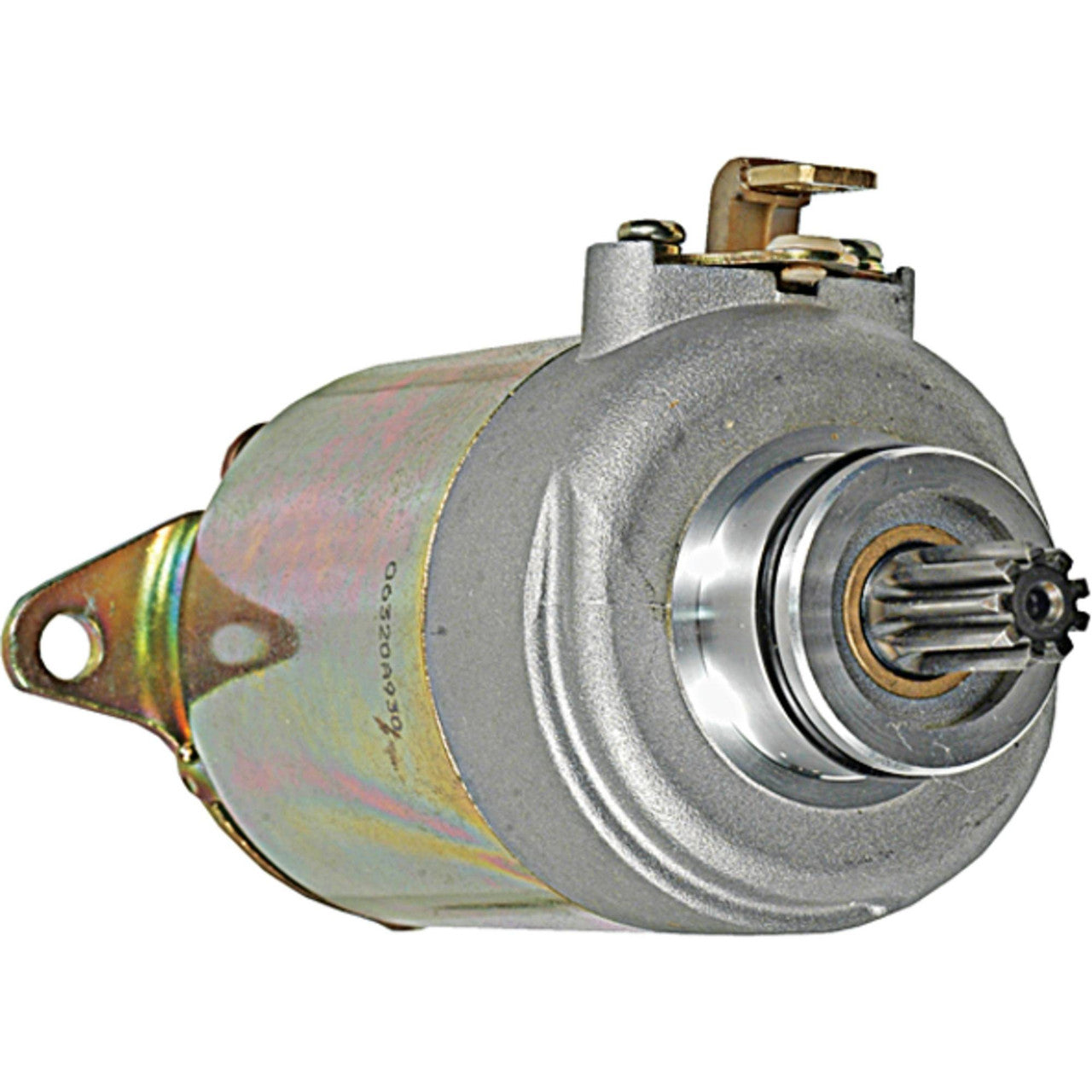

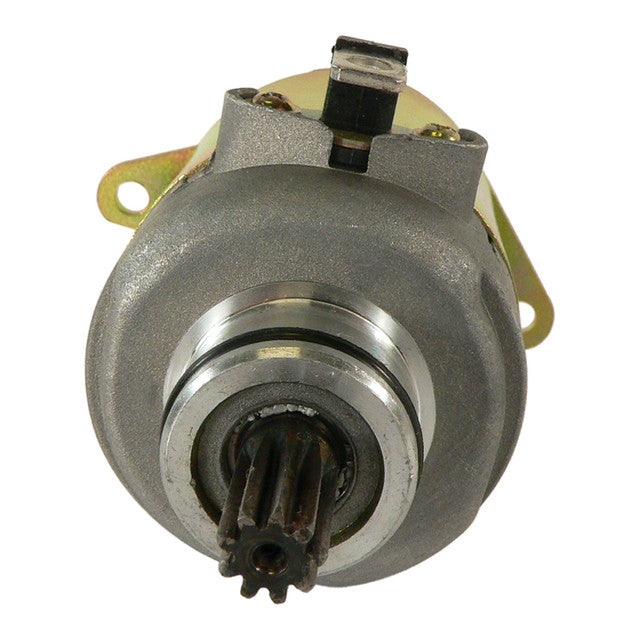

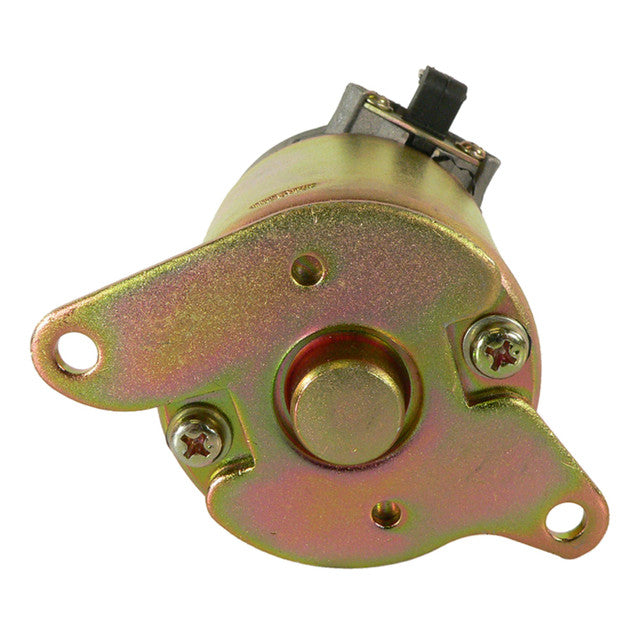

STARTER MOTOR FOR ETON MATRIX R4-150 & BEAMER 150CC - [19573]
Reliable Performance & Precise Fitment
This premium replacement starter motor is engineered specifically for Eton 150cc scooters and ATVs, including the Matrix R4-150 and Beamer R4-150 (PN2I/PN2F chassis). Manufactured to meet or exceed OEM specifications, this unit provides reliable starting power for GY6-based 150cc engines found in Eton powersports vehicles. It is a direct replacement for the original Eton part number 813808.
Verified Technical Data
| Voltage | 12 Volts |
| Teeth | 9 Teeth (Splined Shaft) |
| Rotation | CW (Clockwise) |
| Starter Type | PMDD (Permanent Magnet Direct Drive) |
| Gear Diameter | 11.4 mm |
| Mounting | 2-Bolt Flange (6.6mm holes) |
OEM Cross Reference
| Brand | Part Number |
|---|---|
| Eton | 813808 |
| Arrowhead | 410-58004, SCH0003 |
| J & N | 410-58004 |
| Lester | 19573 |
| Tucker Rocky | 49-5791 |
Vehicle Compatibility
| Make | Model | Sub-Model / Specs |
|---|---|---|
| Eton | Matrix R4-150 | 150cc (Model PN2I) |
| Eton | Beamer R4-150 | 150cc (Model PN2F) |
| Eton | Viper 150R | 150cc ATV (RXL-150R) |
| Eton | Yukon 150 / CXL-150 | 150cc ATV (Model CXL-150) |
| Eton | Sport 150 | 150cc Scooter (ESPORT150) |
Questions & Answers
How do I know if this starter fits my Eton scooter?
The most accurate way is to check the part number on your original starter. If it is marked with 813808, this is the correct replacement. It is also compatible with Eton models using the 150cc GY6-style engine, such as the Matrix R4-150 and Beamer R4-150.
What should I check before installing the new starter?
Inspect the starter solenoid (relay) and battery voltage. A clicking sound often indicates a faulty solenoid or weak battery rather than a bad starter motor. Ensure your battery is fully charged (12.6V+) and all ground connections are clean and tight before installation.
Does this starter come with the power wire?
This unit is typically supplied as the motor only. You will usually reuse your existing positive cable, which attaches to the terminal post or via the screw connection on the starter body, depending on your specific wiring harness setup.
Please double-check your original part number against the cross-references provided to ensure a correct fit.
