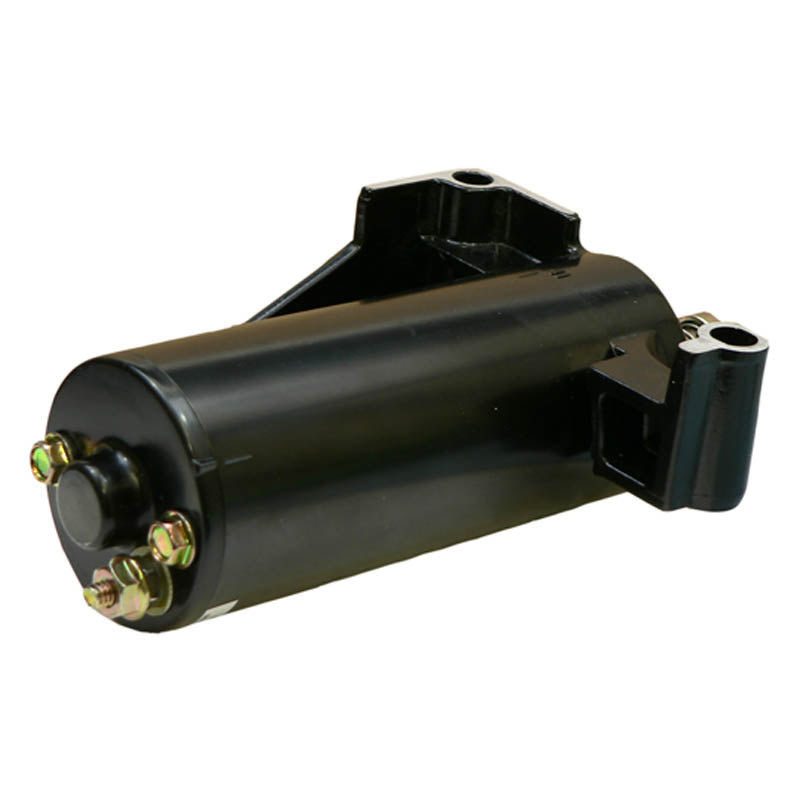

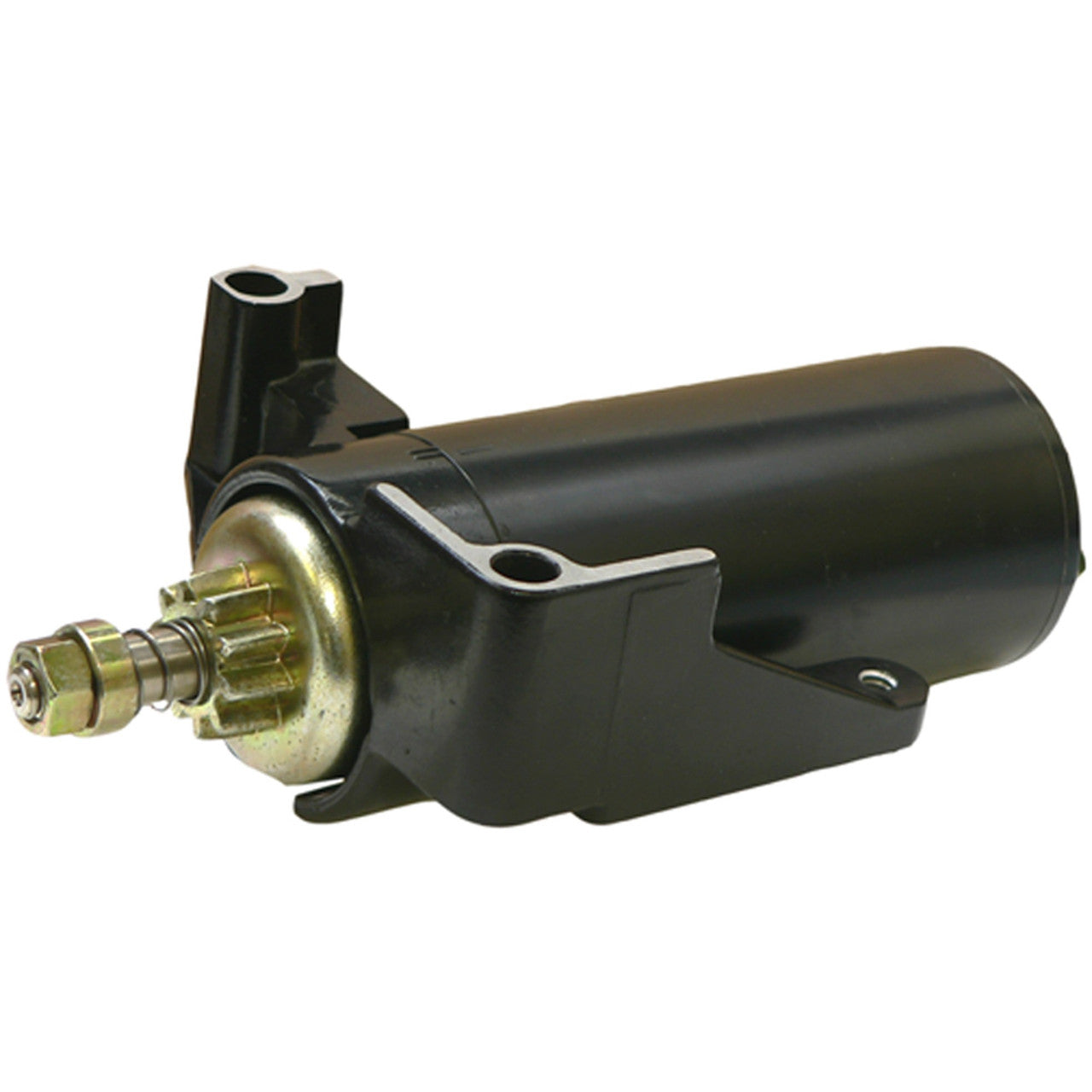

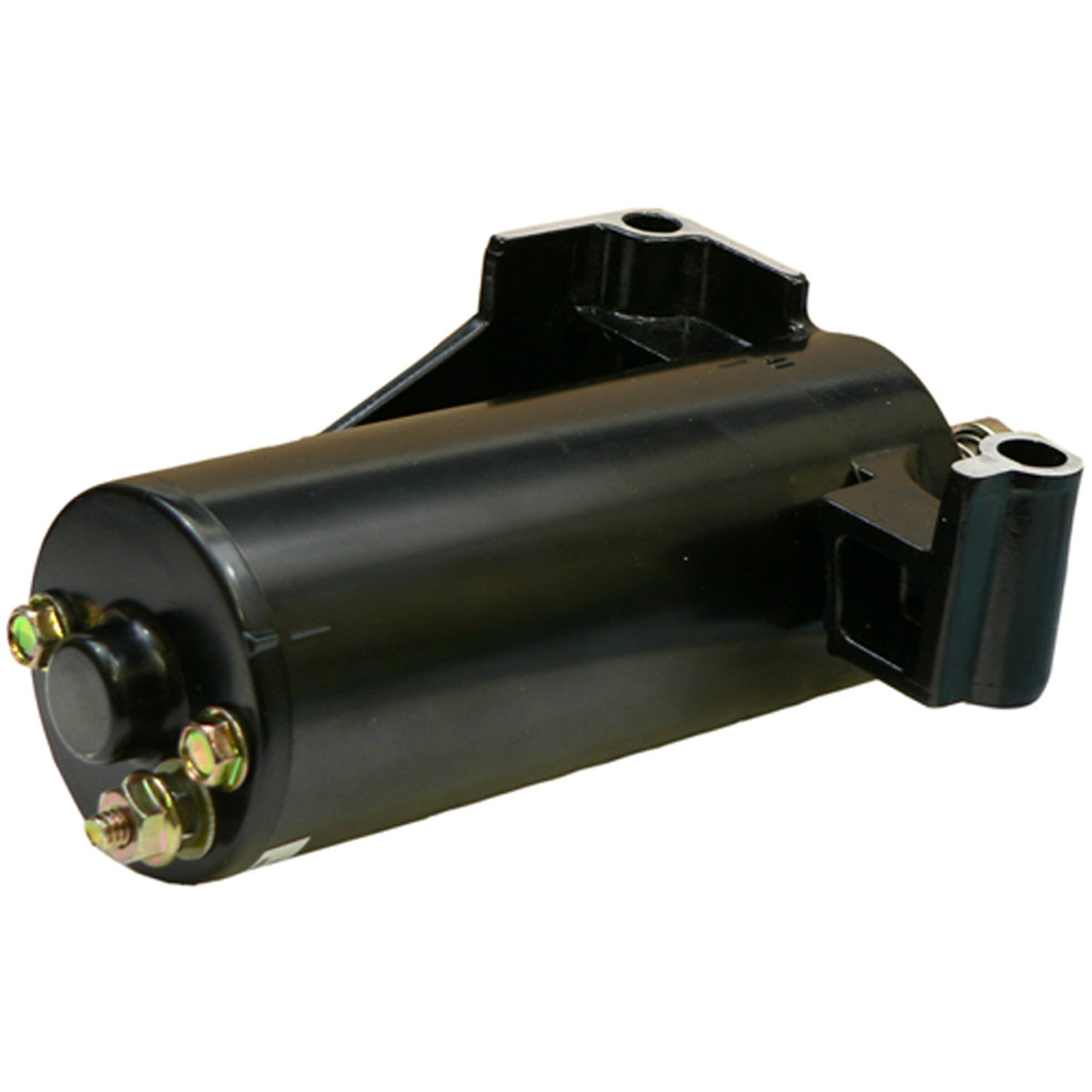

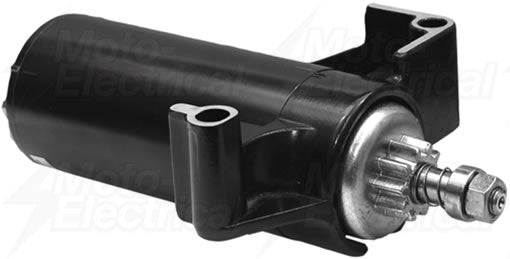

Starter Motor for Evinrude & Johnson 9.9-15HP Outboard 1993-2001
Starter Motor for Evinrude & Johnson 9.9-15HP Outboard 1993-2001
SKU:410-21044
Free shipping over £150. Terms apply
Couldn't load pickup availability
Starter Motor for Evinrude & Johnson 9.9-15HP Outboard 1993-2001
Fits Evinrude and Johnson 9.9, 10 and 15HP outboard engines, 1993-2001
This is a direct-fit replacement starter motor built to OEM specifications for Evinrude and Johnson 9.9, 10 and 15HP outboard engines built between 1993 and 2001. It is a complete, ready-to-fit unit engineered to match the form, fit and function of the original equipment.
The unit is a permanent magnet direct drive (PMDD) starter running on a standard 12-volt marine electrical system, turning counter-clockwise (CCW) with a 10-tooth drive pinion and a motor housing length of 4.048 inches, matching the specification of the original starter fitted to these outboard engines.
Key Features
- Direct OEM fit and function - no modification required
- 12-volt marine starter motor
- Counter-clockwise (CCW) rotation
- 10-tooth drive pinion
- Permanent magnet direct drive (PMDD) design
- Motor housing length 4.048 in
- 12-month warranty as standard
Technical Specs
| Specification | Detail |
|---|---|
| Voltage | 12V |
| Rotation | CCW (Counter-Clockwise) |
| Teeth | 10 |
| Starter Type | PMDD (Permanent Magnet Direct Drive) |
| Motor Housing Length | 4.048 in |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Evinrude 9.9, 10 and 15HP outboard (BE10E, BE10EL, BE10R, BE10SEL, BE15EE, BE15EL, BE15R, E10E, E10EL, E10R, E10SEL, E15B, E15EE, E15EL, E15R, SE15BA) | 1993-2001 |
| Johnson 9.9, 10 and 15HP outboard (BJ10E, BJ10EL, BJ10R, BJ10SEL, BJ15EE, BJ15EL, BJ15R, J10EE, J10EL, J10EV, J10R, J10SEL, J10TE, J10TEL, J10TES, J10TVE, J15EE, J15EL, J15EV, J15R, J15TE, J15TEL, J15TES, J15TVE, SJ15BA, SJ15RT) | 1993-2001 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only. This unit also supersedes the equivalent OMC, Sierra Marine, Arco Marine, Arrowhead, API Marine, Cargo, EMP Parts and Lester references for this application.
| Part Number | Manufacturer / Brand |
|---|---|
| 410-21044 | J&N Electrical |
Frequently Asked Questions
Will this starter motor fit without any modification?
Yes, this is a direct OEM-fit replacement for the listed Evinrude and Johnson 9.9-15HP outboard engines and requires no modification to install.
What is included in the box?
One complete starter motor unit, ready to fit in place of the original.
How do I know my old starter has failed?
Common signs include a clicking noise with no engine turnover, a slow or labouring crank, or no response at all when the key is turned or the start button is pressed.
How can I confirm this is the correct starter for my engine?
Match your engine code against the fitment list above, then check the tooth count and motor housing length against your original unit, as several similar-looking starters exist for other horsepower ranges.
