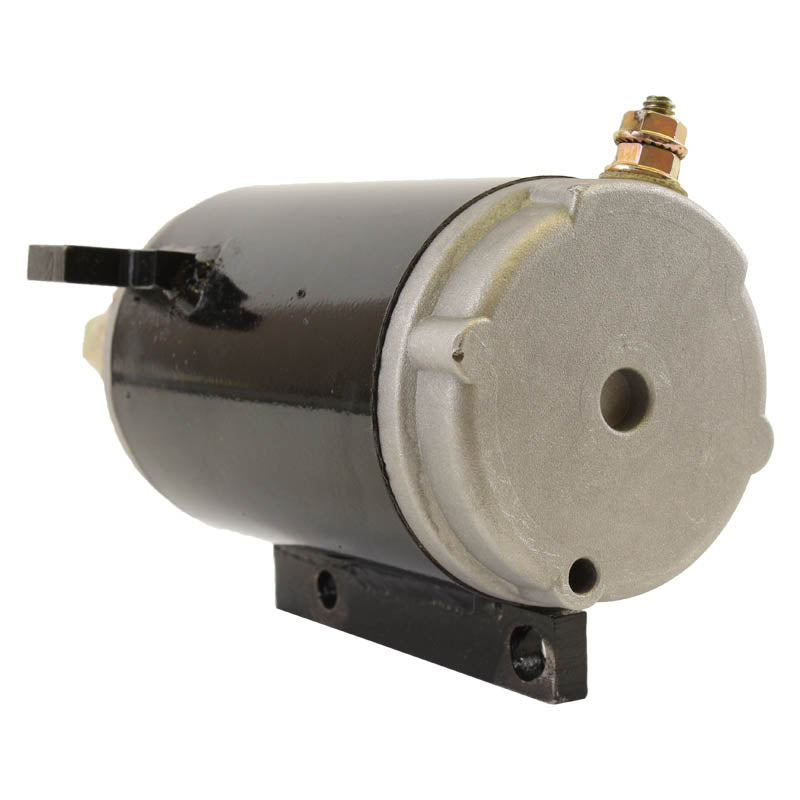

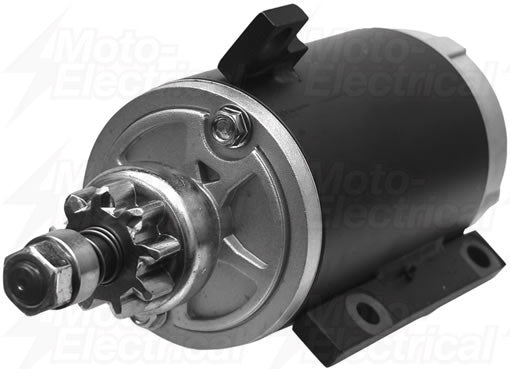

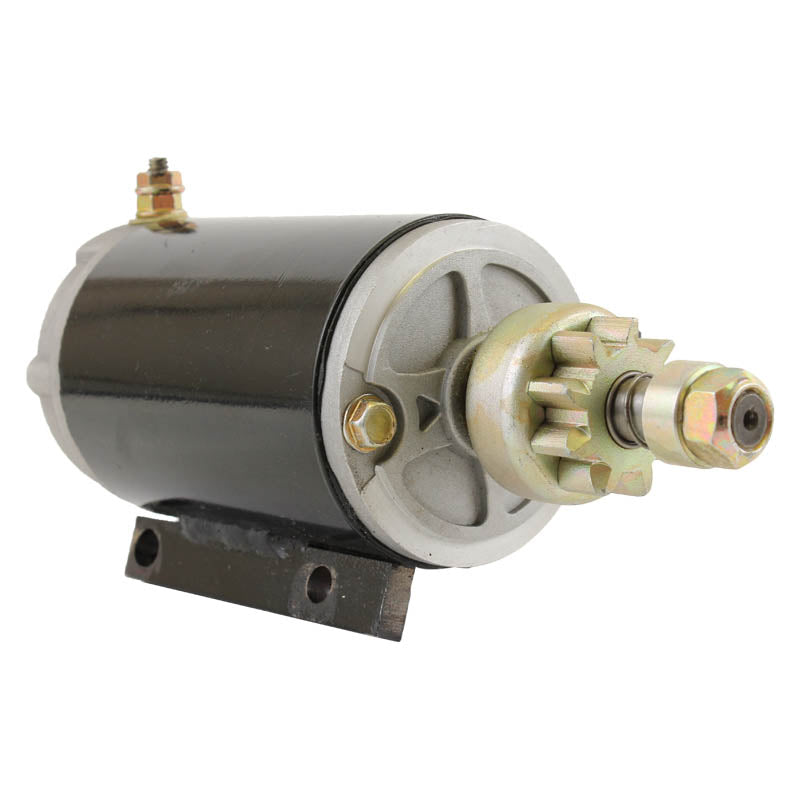

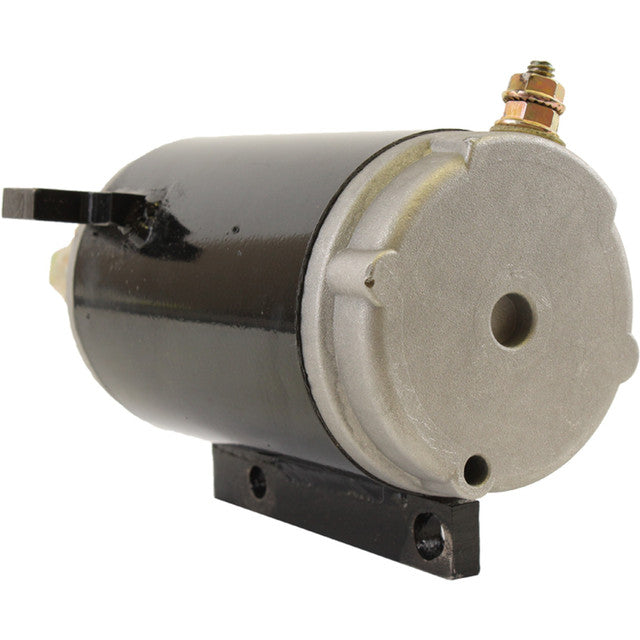

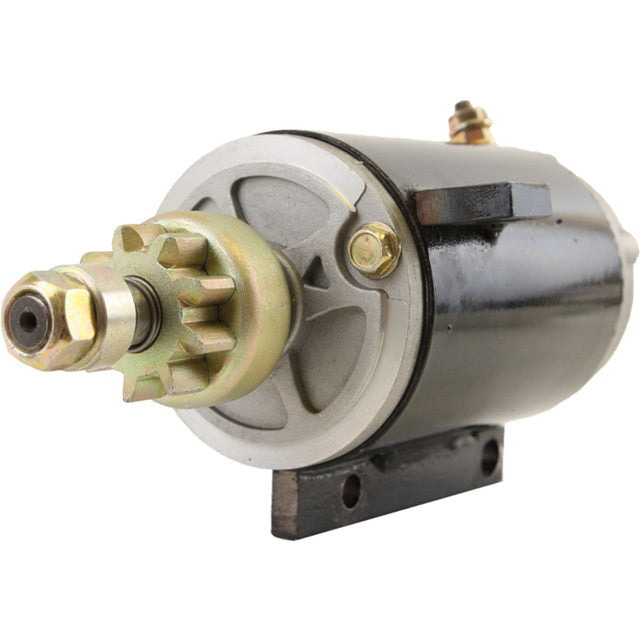

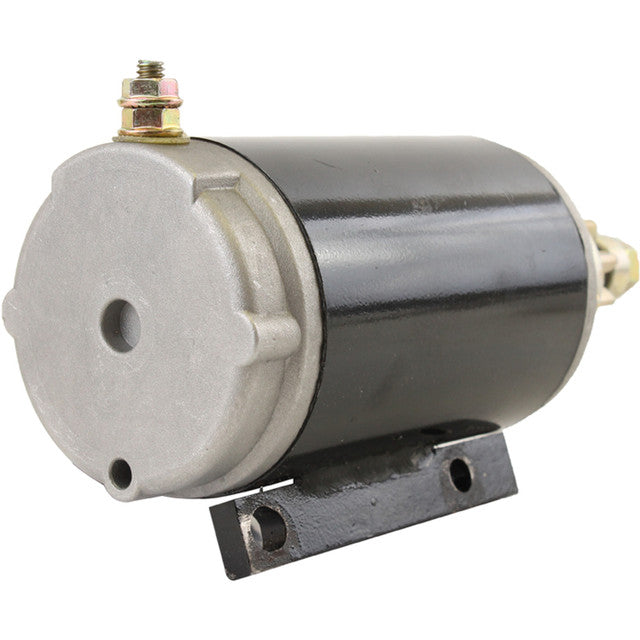

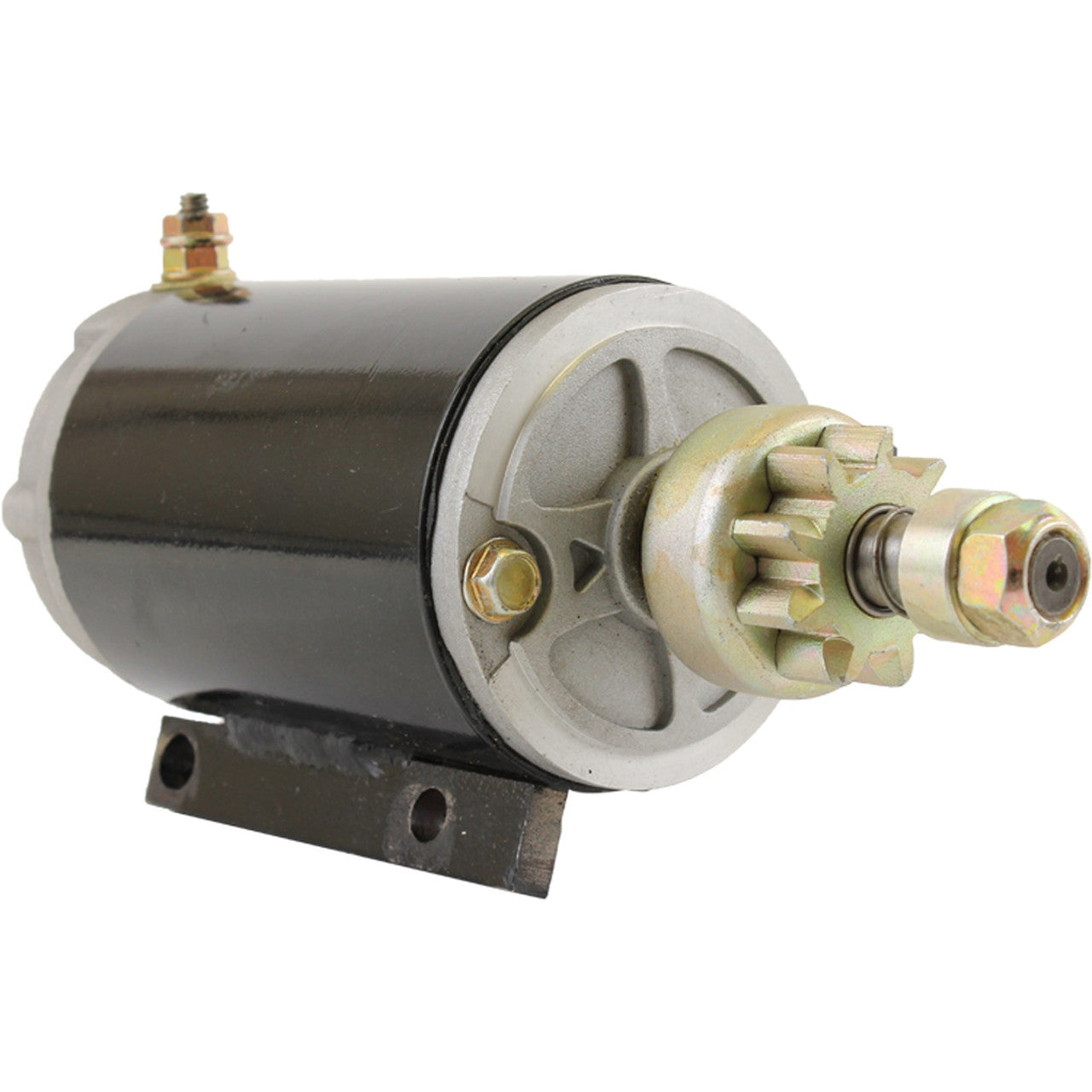

Starter Motor for Johnson Evinrude 40HP 50HP 60HP Outboard 384163 585063 9T 12V
Starter Motor for Johnson Evinrude 40HP 50HP 60HP Outboard 384163 585063 9T 12V
SKU:410-21011
Free shipping over £150. Terms apply
Couldn't load pickup availability

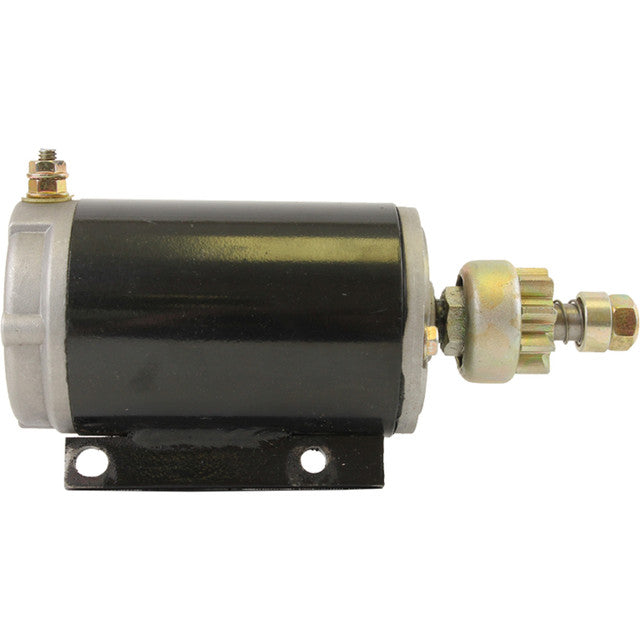

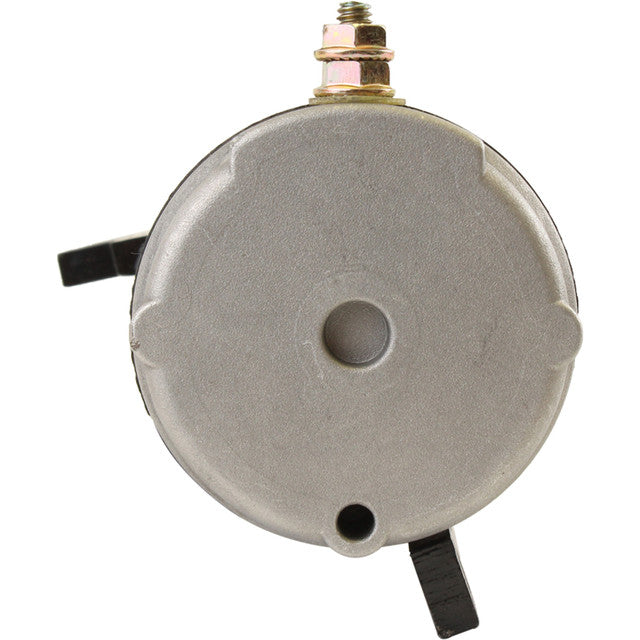

Starter Motor for Johnson Evinrude Outboard - SAB0040
Reliable Performance & Precise Fitment
Restore reliable cranking power to your marine engine with this high-quality replacement starter motor. Engineered to meet or exceed OEM specifications, this unit is designed specifically for Johnson and Evinrude 2-cylinder outboard engines ranging from 40HP to 60HP. It features a Permanent Magnet Direct Drive (PMDD) design for efficient torque delivery and is built to withstand the marine environment.
Verified Technical Data
| Voltage: | 12 Volts |
| Rotation: | CCW (Counter Clockwise) |
| Teeth: | 9 |
| Gear OD: | 36.6mm |
| Starter Type: | PMDD (Permanent Magnet Direct Drive) |
| Mounting: | 2x 8.0mm Unthreaded, 1x 10.1mm Unthreaded |
OEM Cross Reference
| Brand | Part Number |
|---|---|
| OMC / Johnson / Evinrude | 384163, 387684, 389275 |
| OMC / Johnson / Evinrude | 585063, 586280, 778993 |
| Arco Marine | 5371 |
| Sierra | 18-5630 |
| Mallory | 9-15006 |
| United Technologies | 4809540, 5705340-M030SM |
Vehicle Compatibility
| Make | Model / Engine | Year Range |
|---|---|---|
| Johnson / Evinrude | 40 HP (2-Cylinder) | 1971-1988 |
| Johnson / Evinrude | 48 HP (2-Cylinder) | 1987-1988 |
| Johnson / Evinrude | 50 HP (2-Cylinder) | 1971-1988 |
| Johnson / Evinrude | 60 HP (2-Cylinder) | 1980-1985 |
| Johnson / Evinrude | 70 HP (Some models) | Check OEM Number |
Questions & Answers
How do I verify if this part replaces my old one?
Check the 'OEM Cross Reference' section above. If the number stamped on your original starter (such as 384163 or 585063) matches any of the numbers listed, this unit is the correct replacement.
Does this starter come with the drive gear?

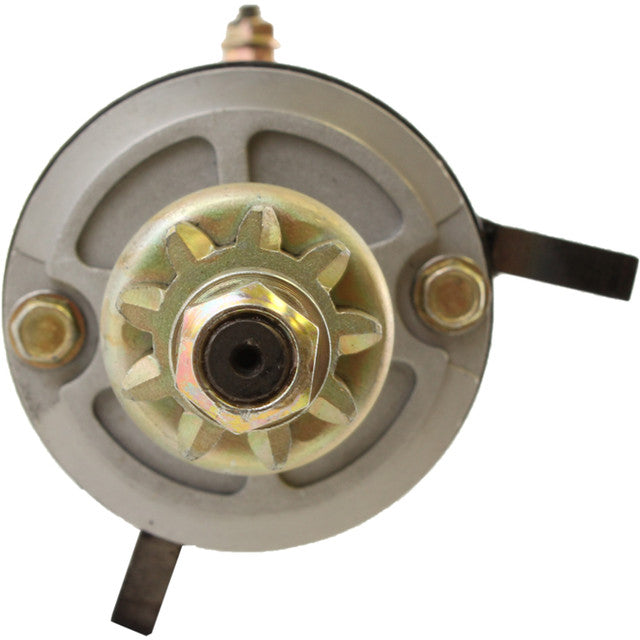

Yes, this starter motor is supplied complete with a 9-tooth drive gear (pinion) ready for installation.
What is the mounting configuration?
This unit uses a 3-bolt mounting pattern with unthreaded holes. Two holes are 8.0mm in diameter, and the third hole is 10.1mm.
Please double-check your original part number against the cross-references provided to ensure a correct fit.
