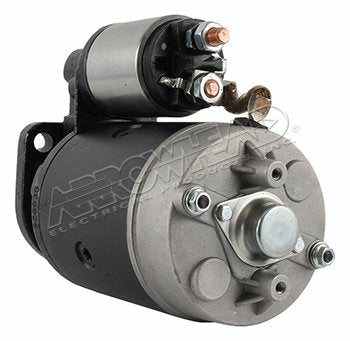

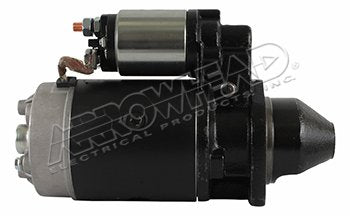

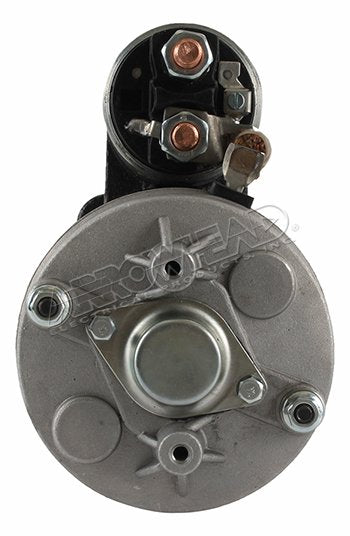

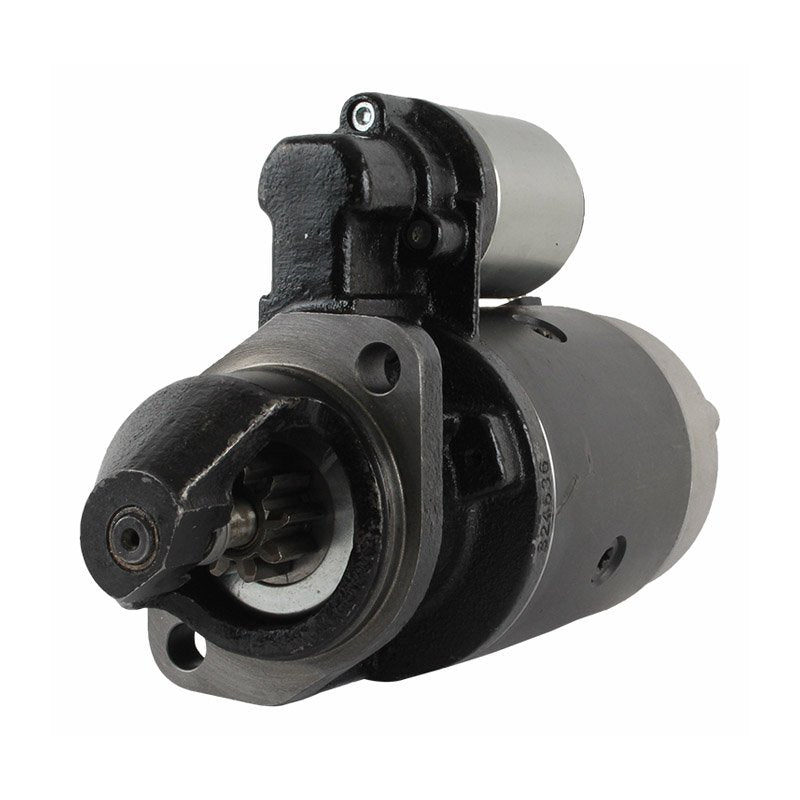

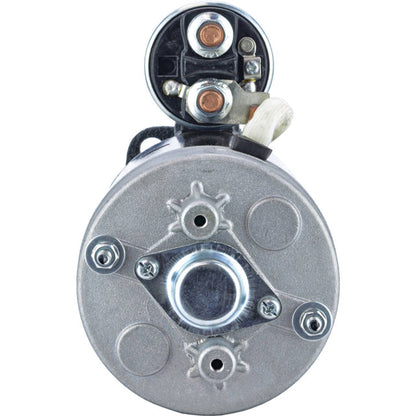

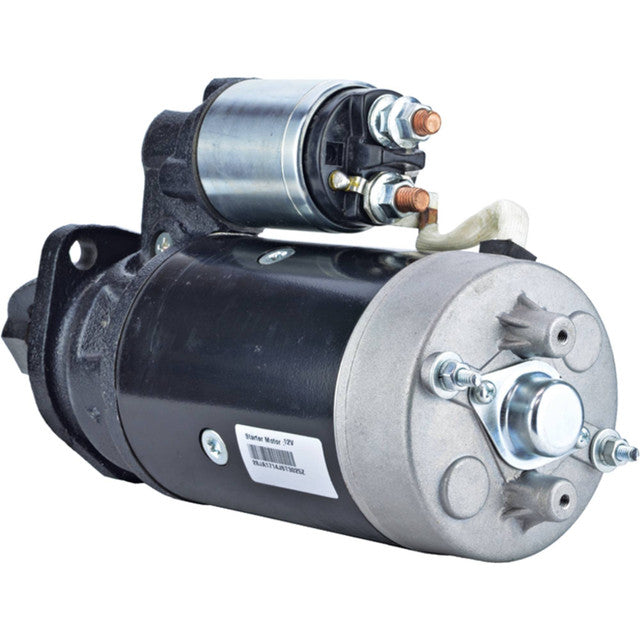

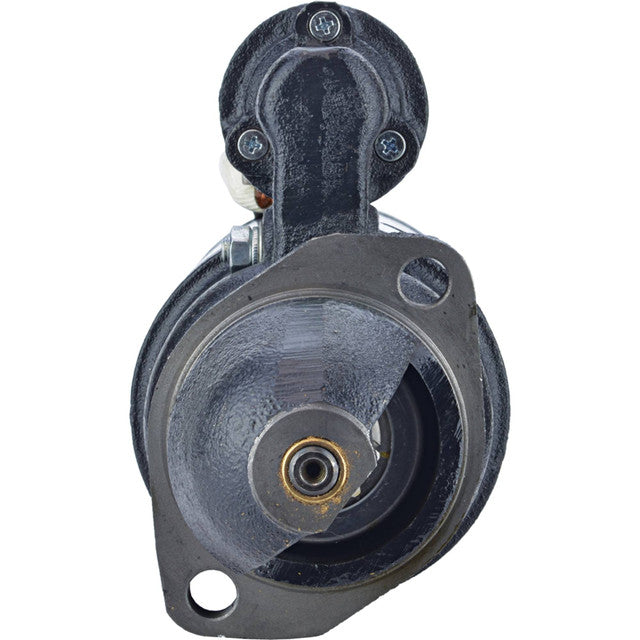

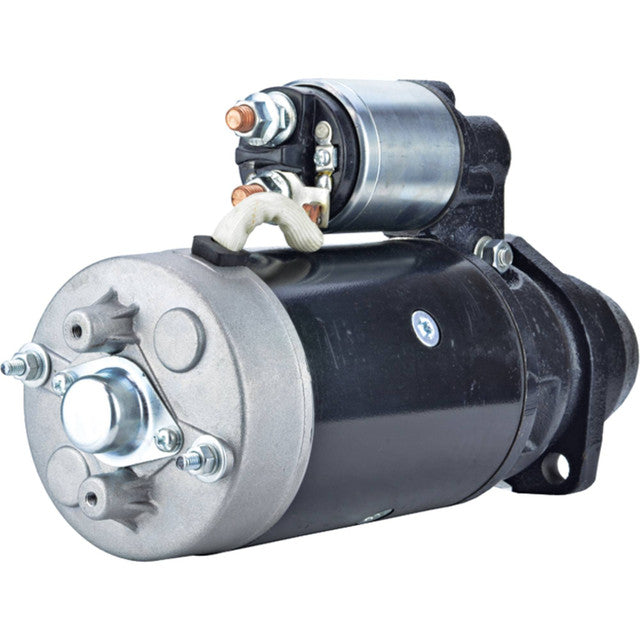

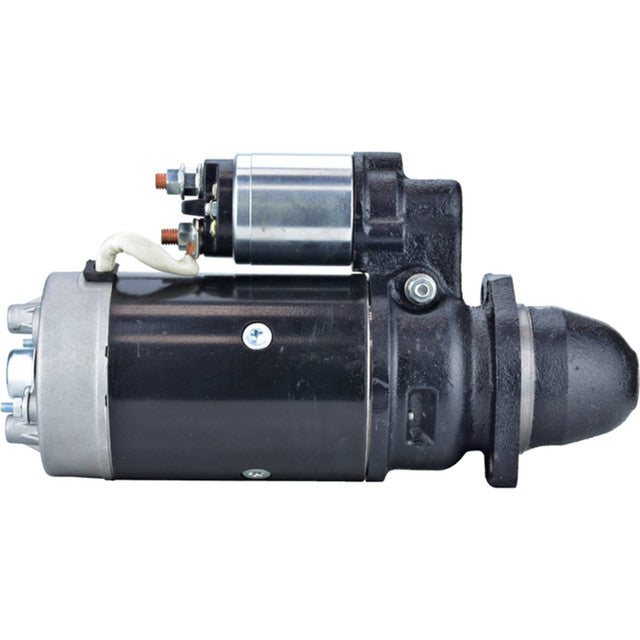

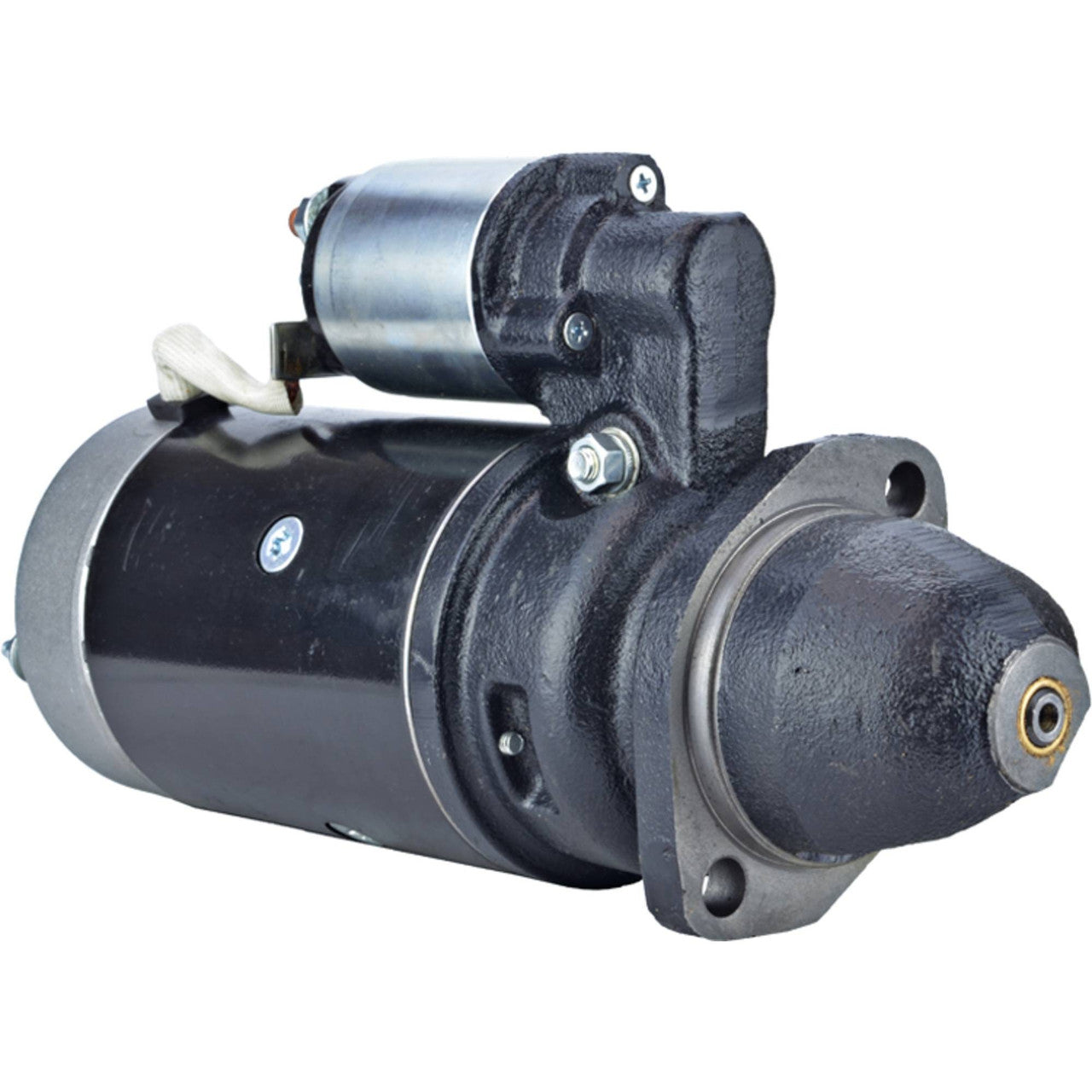

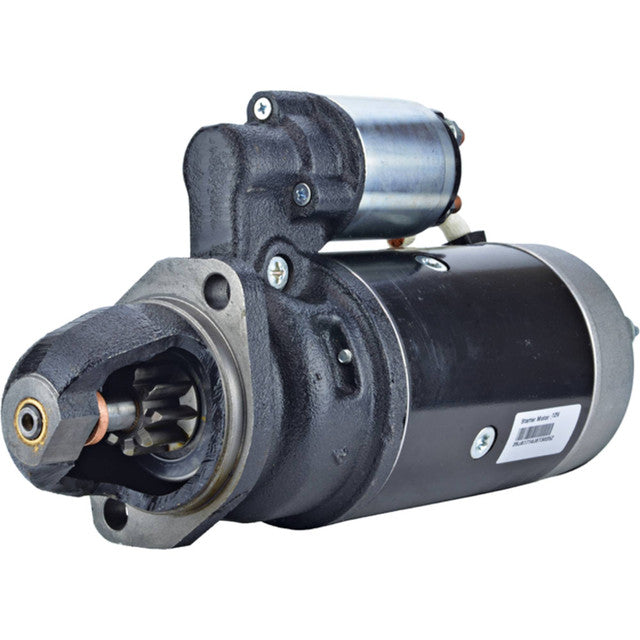

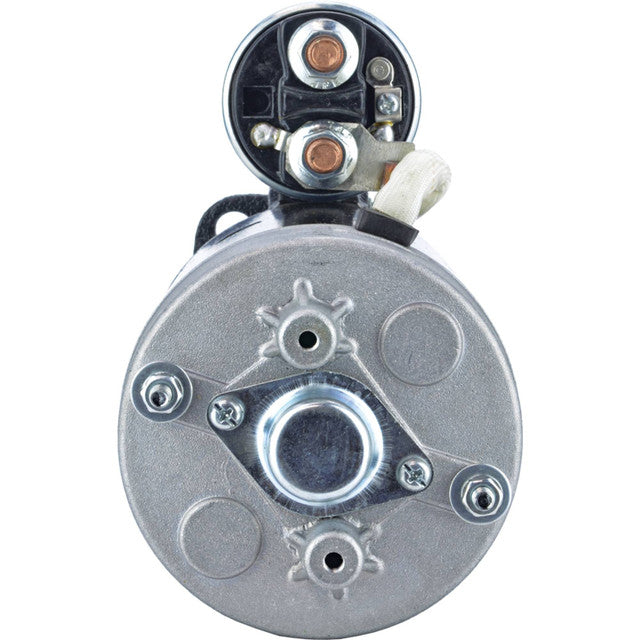

Starter Motor for Farymann 71A 95A & Slanzi DS2000 DS3000 - 12V 9T 2.7kW
Starter Motor for Farymann 71A 95A & Slanzi DS2000 DS3000 - 12V 9T 2.7kW
SKU:410-24278
Free shipping over £150. Terms apply
Couldn't load pickup availability
Starter Motor for Farymann & Slanzi Marine Engines - 12V
Reliable Performance & Precise Fitment
This heavy-duty starter motor is engineered to meet or exceed the rigorous demands of marine and industrial applications. Designed as a direct replacement for Farymann 71A and 95A series engines as well as Slanzi DS and DVA series diesel engines, this unit ensures reliable starting power in challenging environments. Manufactured to precise OEM specifications, it replaces the original Bosch and Mahle units with a robust 2.7kW output for consistent performance.
Verified Technical Data
| Voltage | 12 Volts |
| Power Output | 2.7 kW (Replaces 2.4 kW) |
| Teeth | 9 |
| Rotation | Clockwise (CW) |
| Flange Diameter | 89 mm |
| Mounting Holes | 3 x 10.5 mm (Unthreaded) |
| Pinion Rest Position | 28 mm |
| Starter Type | Direct Drive (DD) / Self-Supporting |
OEM Cross Reference
| Brand | Part Number |
|---|---|
| Bosch | 0001362034, 0001362023, 0001362036, 0001359083 |
| Mahle / Letrika / Iskra | MS274, AZJ3166, IS0548, 11.130.898 |
| Renault | 5000589041 |
| Magneti Marelli | 63216816, MT68 |
Vehicle Compatibility
| Make | Model | Engine Series |
|---|---|---|
| Farymann | Marine Engine | 71A (1.4L), 95A (1.6L) |
| Slanzi | Industrial / Marine | DS2000, DS3000, DS4000 |
| Slanzi | Industrial / Marine | DVA1800, DVA2700, DVA3600 |
Questions & Answers
How do I verify if this part replaces my old one?
Check the 'OEM Cross Reference' section. If the part number from your original starter (e.g., Bosch 0001362034 or Mahle MS274) appears there, this unit is the correct replacement. Also verify the 3-bolt mounting pattern and 9-tooth pinion.
Is the 2.7kW output compatible if my original was 2.4kW?
Yes. The original Bosch unit was rated at 2.4kW. This aftermarket replacement offers 2.7kW, providing slightly higher torque for more reliable starting, especially in colder marine conditions, without requiring any modifications.
Are the mounting holes threaded?
No, the mounting holes on this starter are unthreaded with a 10.5mm diameter, designed to accept through-bolts secured by nuts or threaded directly into the engine housing depending on the specific application.
Please double-check your original part number against the cross-references provided to ensure a correct fit.
