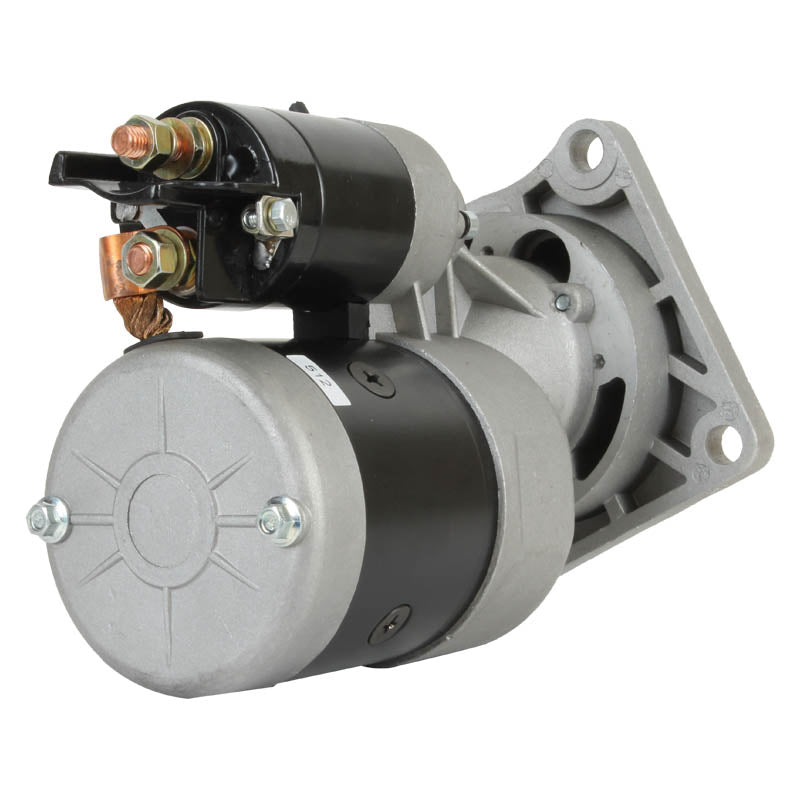

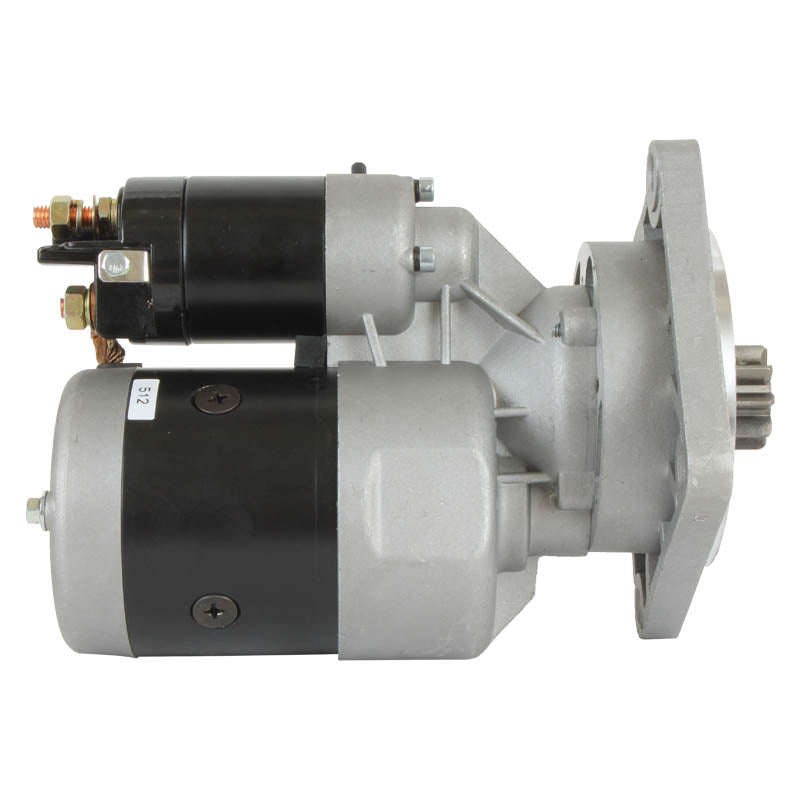

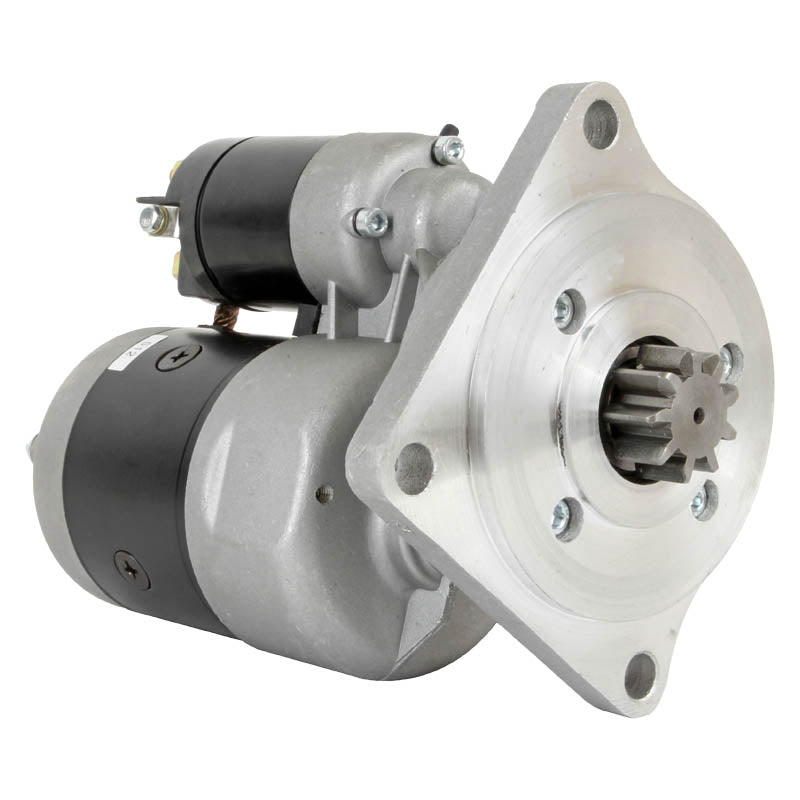

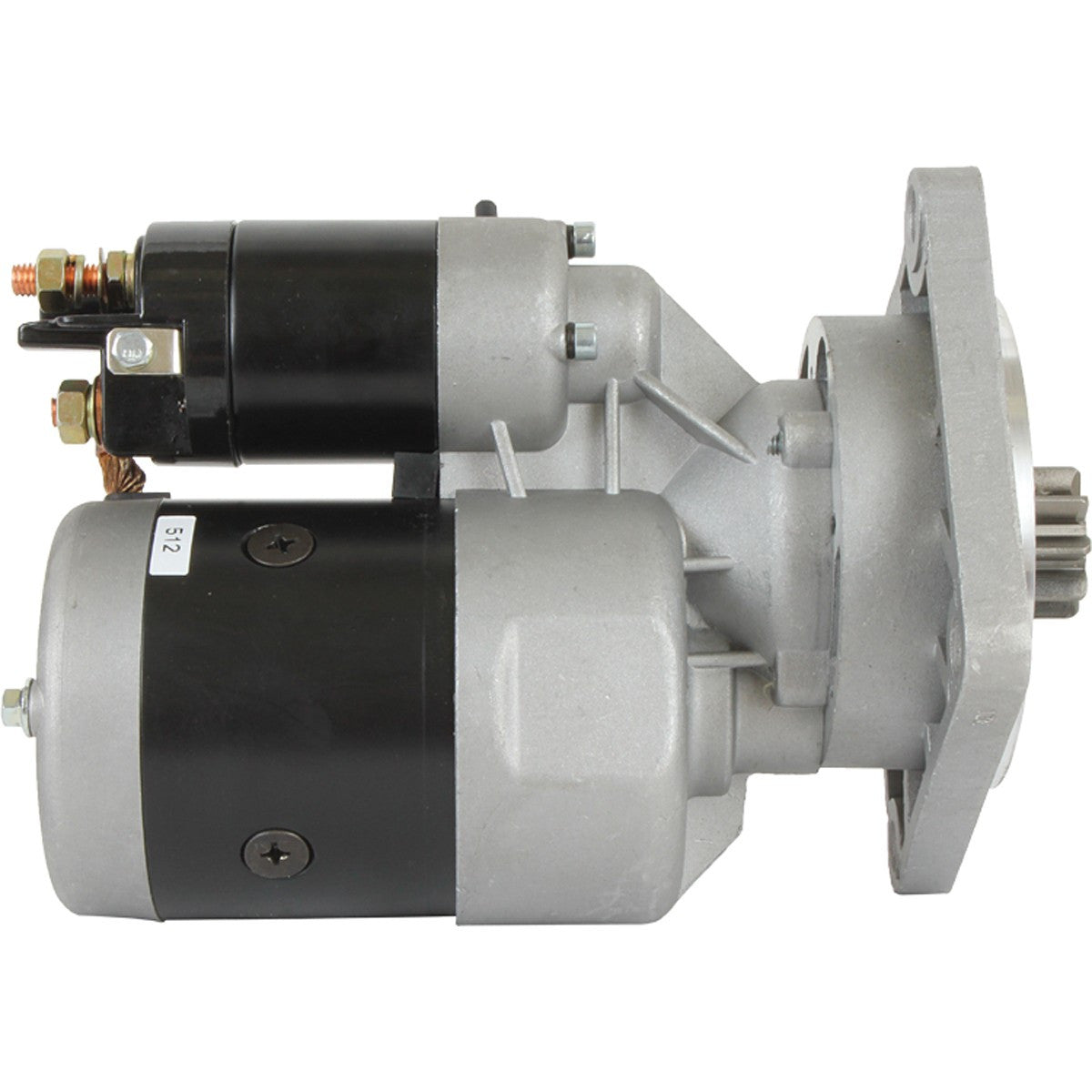

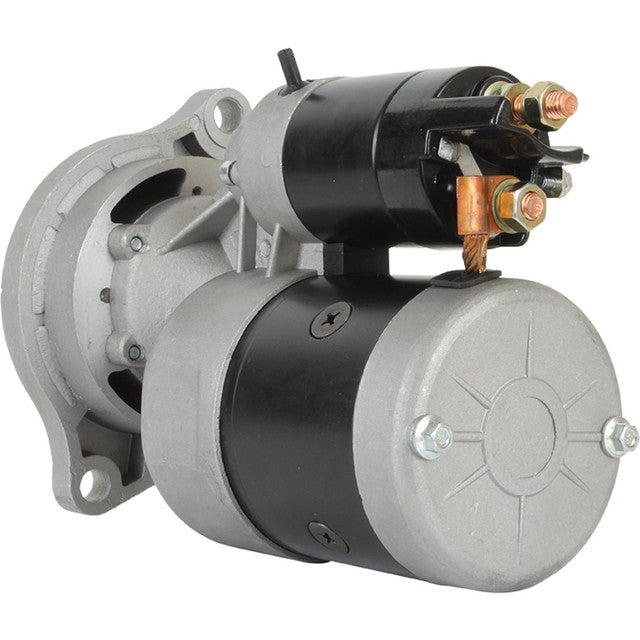

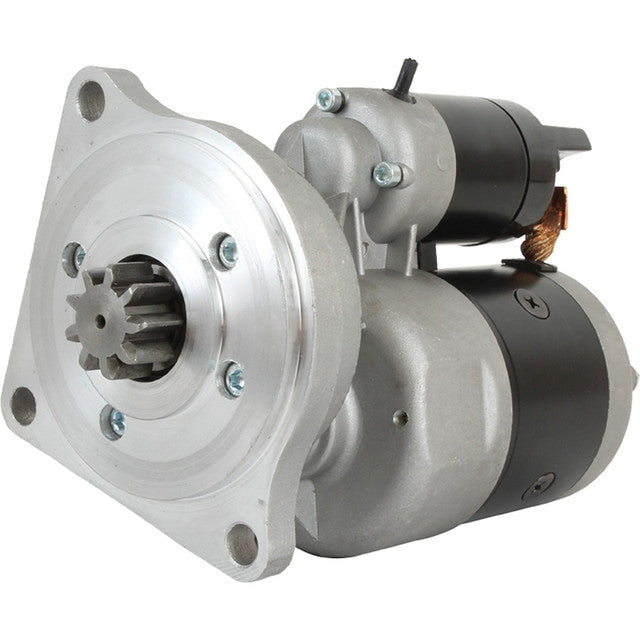

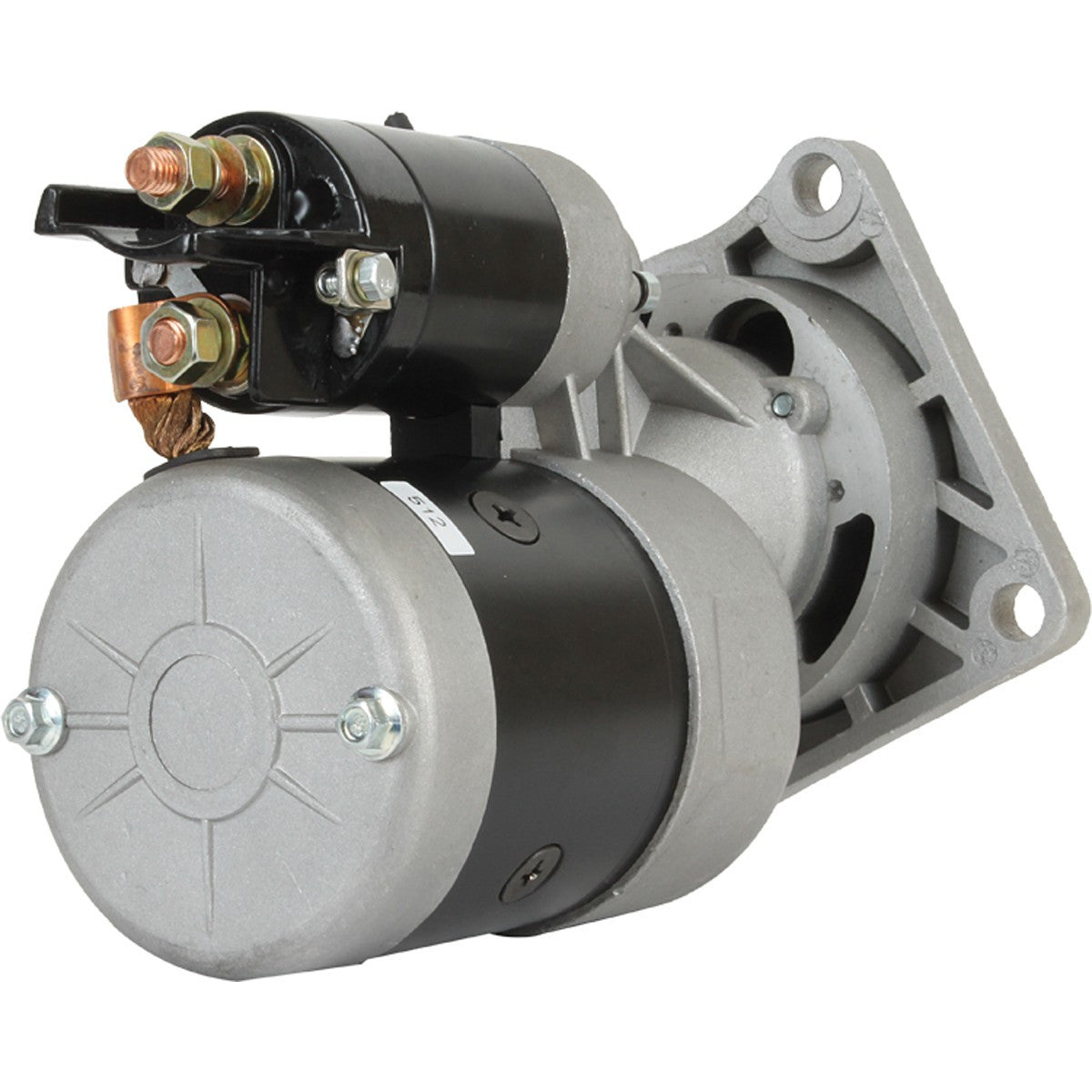

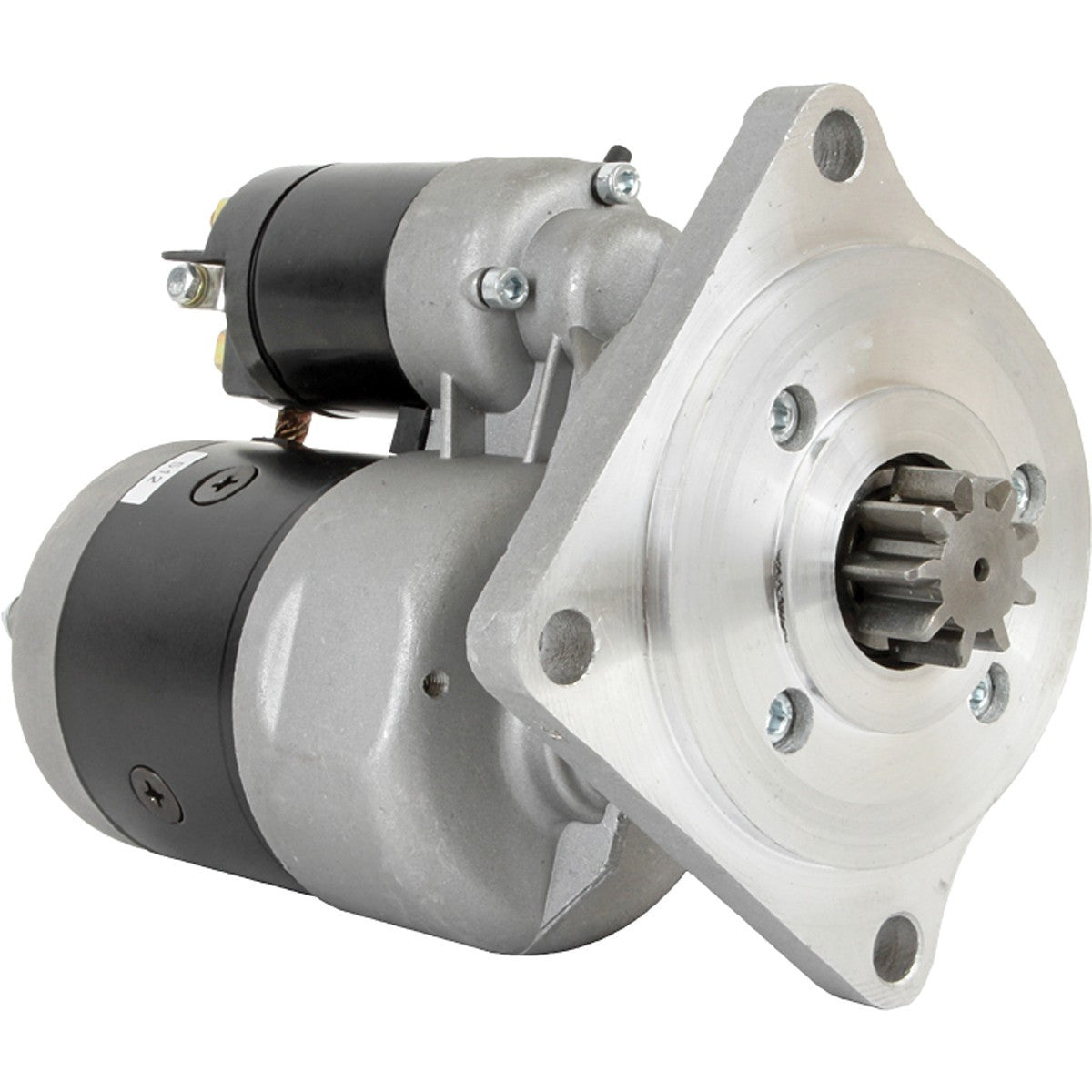

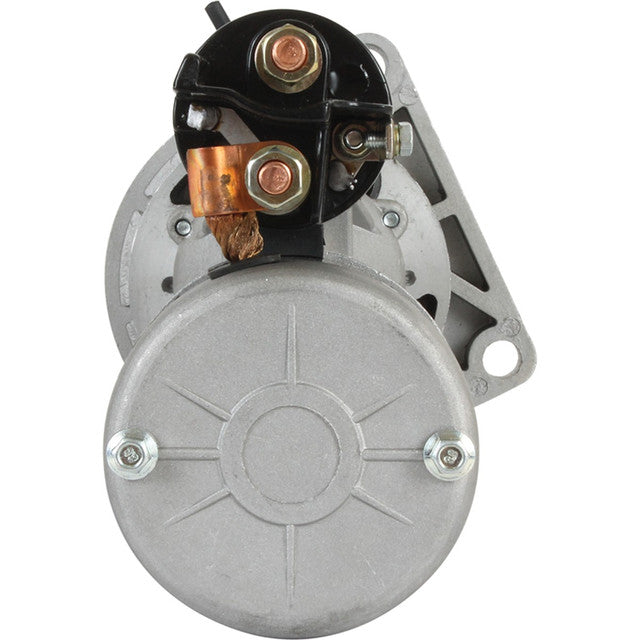

Starter Motor - Magneton 9142680
Reliable Performance & Precise Fitment for Agricultural & Commercial Applications
This heavy-duty starter motor is a direct replacement for the Magneton 9142680 unit, designed to deliver consistent starting power for New Holland tractors, Case IH machinery, and Iveco trucks. Engineered with a high-torque gear reduction design, this 12V unit ensures reliable ignition even in cold weather conditions. It serves as a robust replacement for original Bosch, Mahle, and Fiat/Iveco components.
Verified Technical Data
| Voltage | 12V |
| Power Output | 2.7 kW - 3.2 kW (High Torque) |

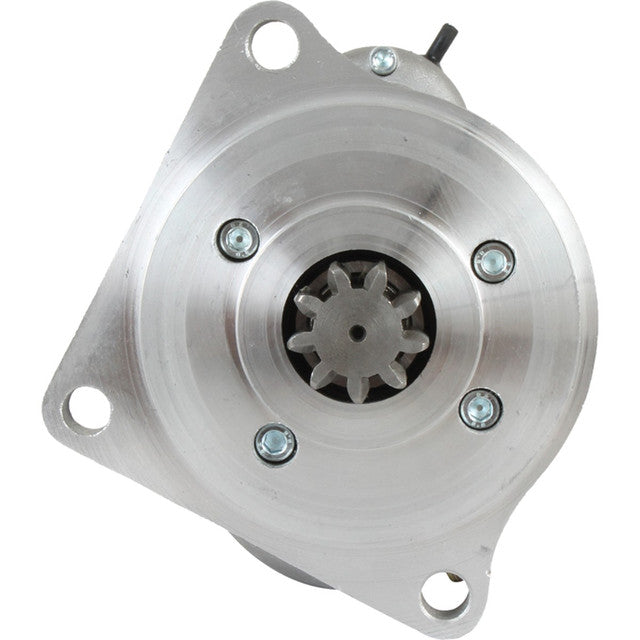

| Teeth Count | 9 Teeth |
| Rotation | Clockwise (CW) |
| Mounting Holes | 3 Flange Holes |
| Flange Diameter | ~110 mm |
| Starter Type | PLGR (Planetary Gear Reduction) |
OEM Cross Reference
| Brand | Part Number |
|---|---|
| Magneton | 9142680, 9-142-680, 443 115 142 680 |
| Bosch | 0001359091, 0001367014, 0001367028 |
| New Holland / Case / Fiat | 4755109, 4807375, 500333271, 5119319 |
| Mahle / Iskra / Letrika | IS0409, AZJ3115, MS192, 11.130.409 |
| Lucas | LRS00944, LRS944 |
Vehicle Compatibility
| Make | Series / Model |
|---|---|
| New Holland |
TL Series: TL70, TL80, TL90, TL100 TN Series: TN65F, TN70F, TN75F, TN80F, TN90F, TN95F TD Series: TD60D, TD70D, TD80D, TD90D, TD95D |
| Case IH | JX Series: JX70U, JX80U, JX90U, JX100U, JX1095N |
| Iveco | Various commercial truck applications with 8041 / 8060 engines |
| Fiat | Series 65, 70, 80, 85, 88 (Older Tractors) |
Questions & Answers
How do I verify if this part replaces my old one?
Check the 'OEM Cross Reference' section. If the number from your original part (e.g., Magneton 9142680 or Bosch 0001367014) appears there, this unit is the correct replacement.
Is a 9-tooth starter compatible if my old one looks slightly different?
Yes, this 9-tooth gear reduction starter is designed to replace older direct-drive units that may have had different physical dimensions but the same fitment interface. The 9-tooth pinion configuration is the standard verified spec for these Iveco and New Holland applications.
What is the benefit of a Gear Reduction (PLGR) starter?
Gear reduction starters produce higher torque with less electrical draw compared to older direct-drive models. This results in faster cranking speeds, especially beneficial for diesel engines in cold weather.
Please double-check your original part number against the cross-references provided to ensure a correct fit.
